How to build a catapult

How to build a catapult. We started with a dream…calculating and researching nothing…. Catapult I. Jake and his yellow shirt!. 5. 4. 3. The catapult should have thrown 150ft…. It went 10 ft. . Science is hard……. Hmmm, maybe we should’ve done the math first?.

shayna
Télécharger la présentation

How to build a catapult

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. How to build a catapult

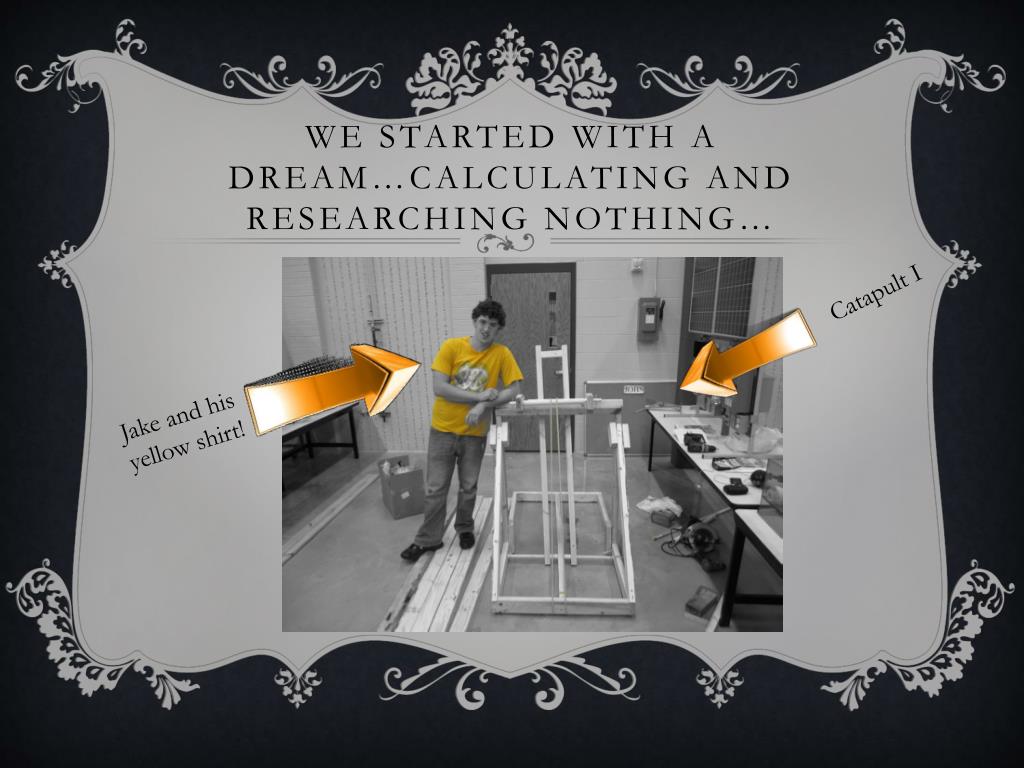

  2. We started with a dream…calculating and researching nothing… Catapult I Jake and his yellow shirt!

  3. 5

  4. 4

  5. 3

  6. The catapult should have thrown 150ft….

  7. It went 10 ft.

  8. Science is hard…….

  9. Hmmm, maybe we should’ve done the math first?

  10. Here’s our numbers we crunched…. Velocity=13.626 m/sec Potential Energy=0.6026 joules (Predicted Distance Traveled=66.29 feet Force=18 pounds Kinetic Energy= 0.9113 joules (actual distance traveled)=100.24 feet Acceleration=3.125 ft/sec

  11. And here is the new progress we made…

  12. Increased the strength to 18lbs…

  13. Switched from wood to PVC to lose weight on our throwing arms…

  14. Moved tower to adjust release angle from 88 deg to 45 deg, and then to an optimum 70 degrees.

  15. Lastly, we added another bolt to the backboard to create a fast release mechanism.

  16. F E E T Shots through changes

  17. Are you ready for……

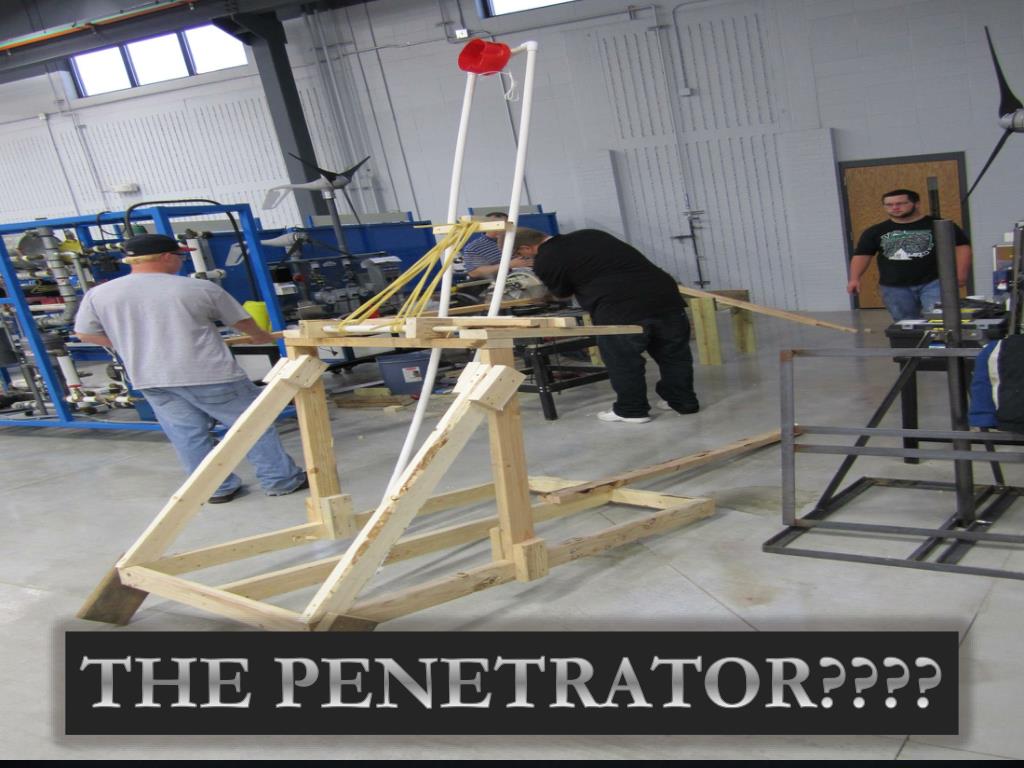

  18. THE PENETRATOR????
