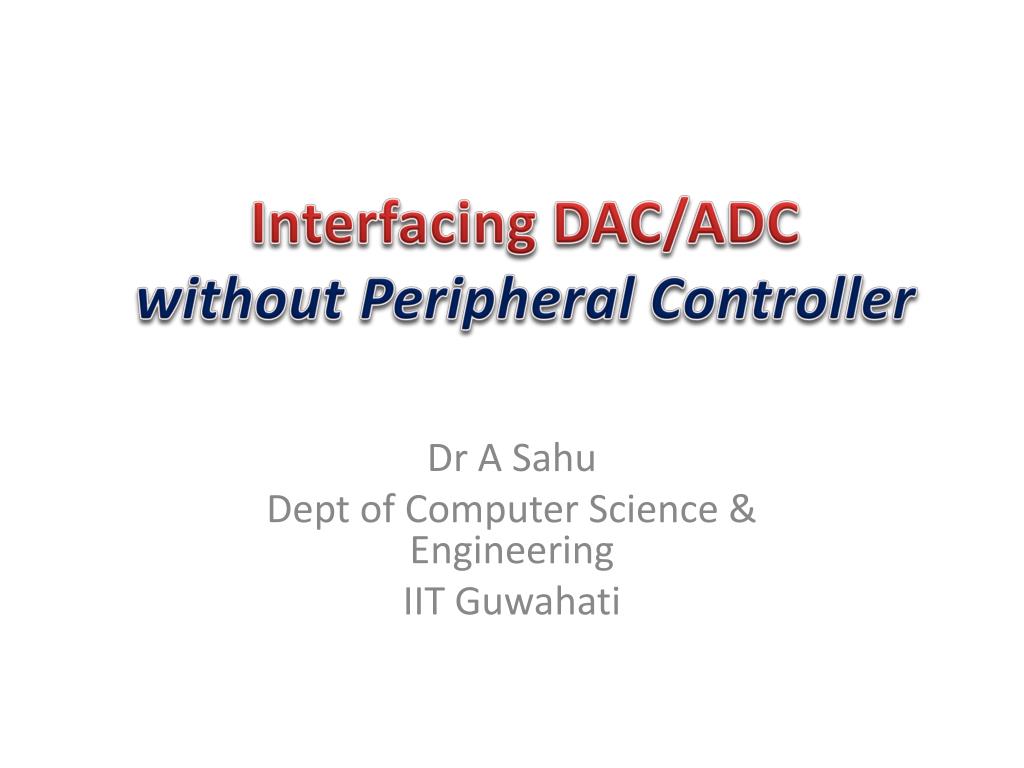

  1. Interfacing DAC/ADC without Peripheral Controller Dr A Sahu Dept of Computer Science & Engineering IIT Guwahati

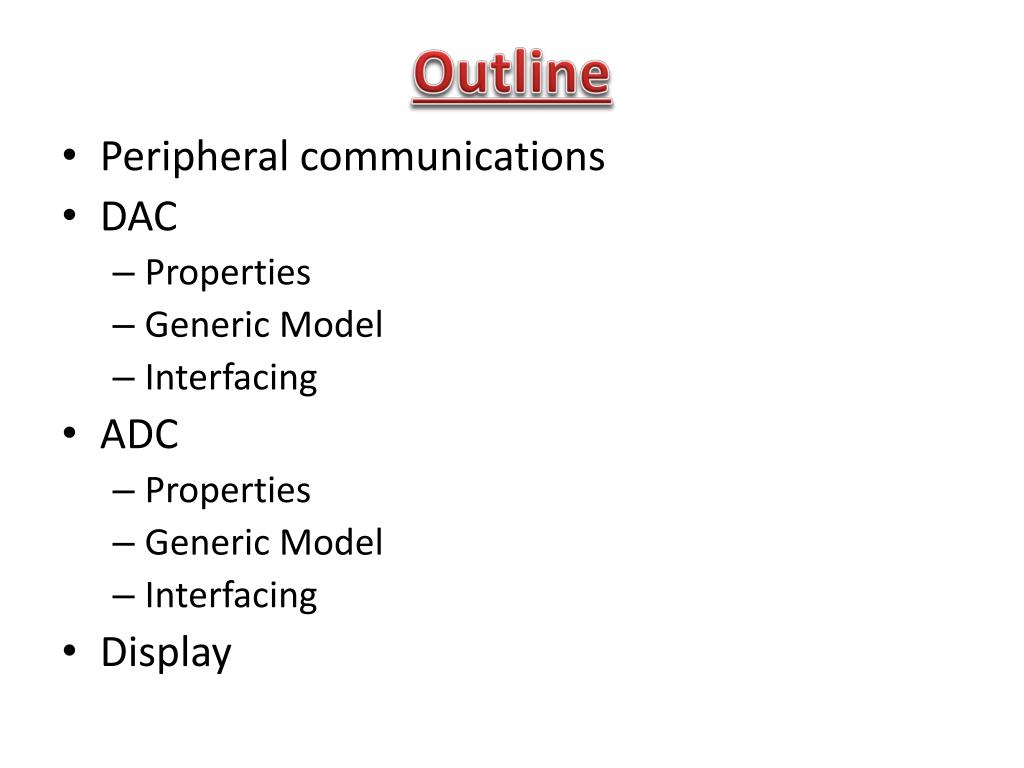

  2. Outline • Peripheral communications • DAC • Properties • Generic Model • Interfacing • ADC • Properties • Generic Model • Interfacing • Display

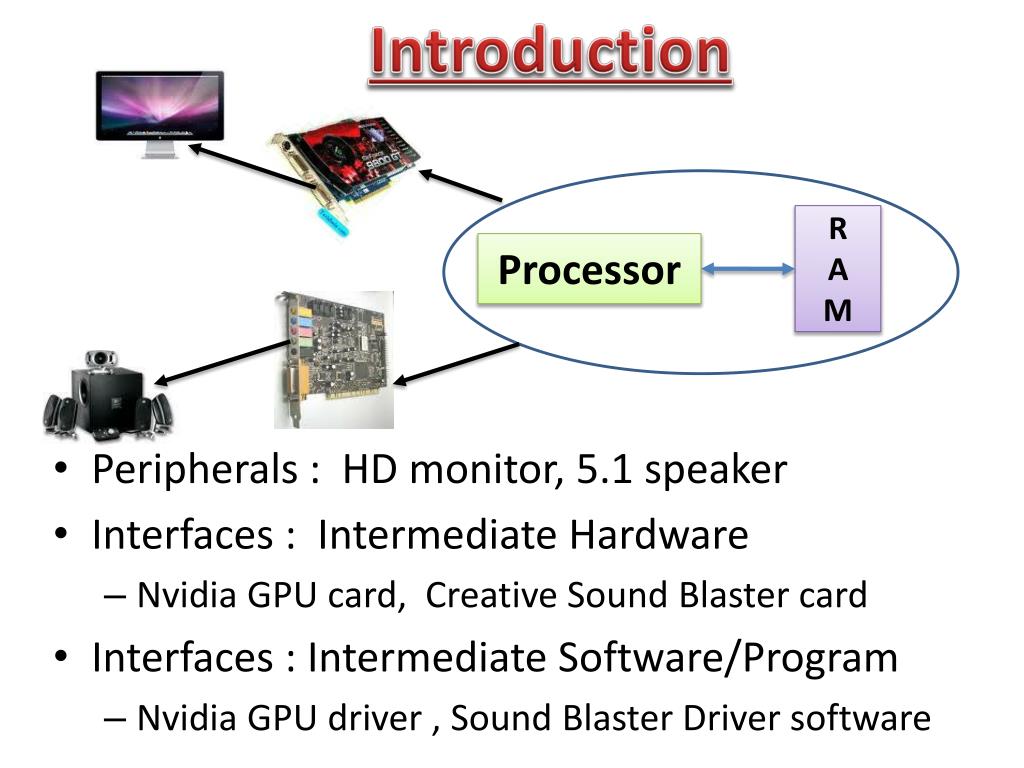

  3. Introduction R A M Processor • Peripherals : HD monitor, 5.1 speaker • Interfaces : Intermediate Hardware • Nvidia GPU card, Creative Sound Blaster card • Interfaces : Intermediate Software/Program • Nvidia GPU driver , Sound Blaster Driver software

  4. Primary function of MPU • Read Instruction from memory • Execute instruction • Read/Write data to memory • Some time send result to output device • LEDs, Monitor, Printer • Interfacing a peripheral • Why: To enable MPU to communicate with I/O • Designing logic circuit H/W for a I/O • Writing instruction (S/W)

  5. Transmission controller • Transmission Controller: • MPU control, Device Control (DMA) • Type of IO mapping • Peripheral (IN/Out), Memory mapped IO (LD/ST,MV) • Format of communication • Synchronous (T & R sync with clock), Asynchronous • Mode of Data Transfer • Parallel, Serial (UART) • Condition for data transfer • Uncond., Polling, Interrupt, Ready signal, Handshake

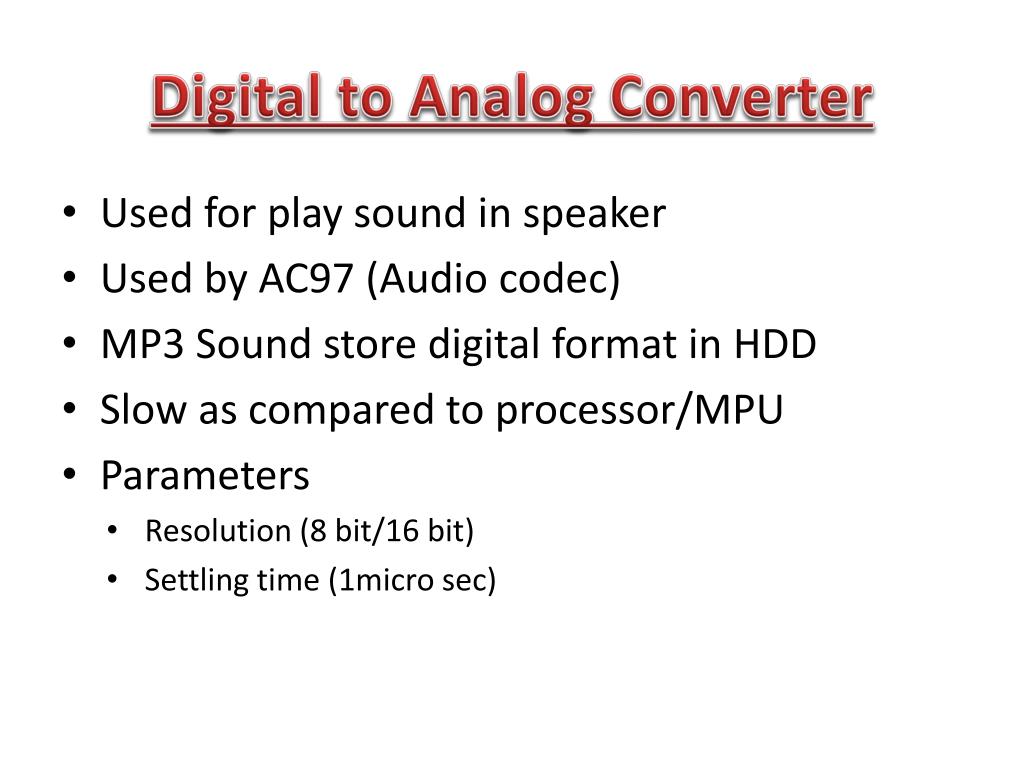

  6. Digital to Analog Converter • Used for play sound in speaker • Used by AC97 (Audio codec) • MP3 Sound store digital format in HDD • Slow as compared to processor/MPU • Parameters • Resolution (8 bit/16 bit) • Settling time (1micro sec)

  7. D/A converter FS 7 • FullScaleOutput=(FullScaleValue – 1LSBValue) • 1MSB Value=1/2 * FSV 6 Digital to Analog Converter D2 LSB 5 Vo 4 Analog output D1 Analog Output 3 2 D0 1 0 000 001 010 011 100 101 110 111 Digital Inputs

  8. Circuit Realization 2.5K 4K D3=8 5K D2=4 Vout 10K D1=2 20K D0=1 • Vo= Vref/R * ( A1/2+ A2/4+…An/2n) • Vo is proportional to values of Data Bits Value

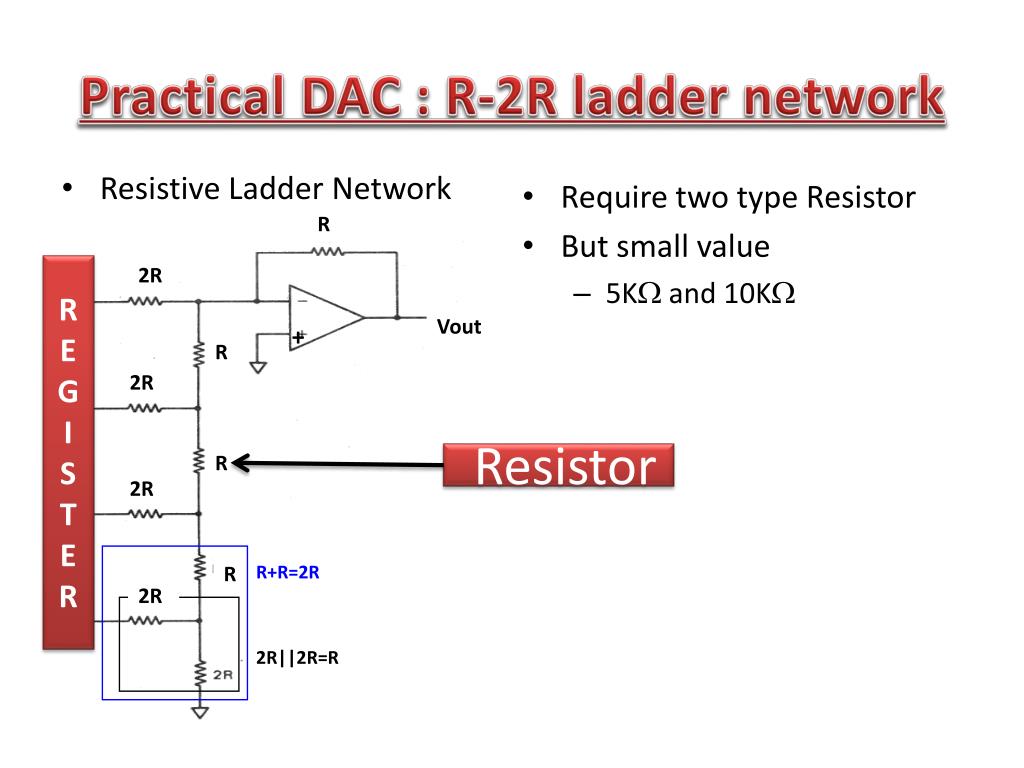

  9. Resistive Ladder Network Require two type Resistor But small value 5K and 10K Practical DAC : R-2R ladder network R R E G I S T E R 2R Vout + R 2R R Resistor 2R R R+R=2R 2R 2R||2R=R

  10. Glitches cause waveform distortion, spurs and elevated noise floors High-speed DAC output is often followed by a de-glitchingSHA (Hold Buffer) Output Glitches • Cause: Signal and clock skew in circuits • Especially severe at MSB transition where all bits are switching – • 0111…111 → • 1000…000

  11. Performance of DAC • Resolution • Reference Voltages • Settling Time • Linearity • Speed • Errors

  12. Resolution • Amount of variance in output voltage for every change of the LSB in the digital input. • How closely can we approximate the desired output signal(Higher Res. = finer detail=smaller Voltage divisions) • A common DAC has a 8 - 12 bit Resolution N = Number of bits

  13. Vout Vout Desired Analog signal Desired Analog signal 111 110 110 1 8 Volt. Levels 2 Volt. Levels 101 101 100 100 011 011 010 010 001 001 0 0 000 000 Digital Input Digital Input Approximate output Approximate output Resolution Poor Resolution(1 bit) Better Resolution(3 bit)

  14. Reference Voltage • A specified voltage used to determine how each digital input will be assigned to each voltage division. • Types: • Non-multiplier: internal, fixed, and defined by manufacturer • Multiplier: external, variable, user specified

  15. Settling Time • Settling Time: The time required for the input signal voltage to settle to the expected output voltage(within +/- VLSB). • Any change in the input state will not be reflected in the output state immediately. There is a time lag, between the two events.

  16. Analog Output Voltage +VLSB Expected Voltage -VLSB Time Settling time Settling Time

  17. Linearity(Ideal Case) NON-Linearity(Real World) Desired Output Desired/Approximate Output Approximate output Analog Output Voltage Analog Output Voltage Digital Input Digital Input Miss-alignment Perfect Agreement Linearity

  18. High Gain Desired/Ideal Output Analog Output Voltage Low Gain Digital Input Errors Gain • Gain Error: Difference in slope of the ideal curve and the actual DAC output High Gain Error: Actual slope greater than ideal Low Gain Error: Actual slope less than ideal

  19. Speed • Rate of conversion of a single digital input to its analog equivalent • Conversion Rate • Depends on clock speed of input signal • Depends on settling time of converter

  20. Generic Used: Audio player • Used when a continuous analog signal is required. • Signal from DAC can be smoothed by a Low pass filter Piece-wise Continuous Output Analog Continuous Output Digital Input n bit DAC 0 bit 011010010101010100101 101010101011111100101 000010101010111110011 010101010101010101010 111010101011110011000 100101010101010001111 Filter nth bit

  21. Interfacing 8-bitDAC with 8085 • Design an output port with Address FFH to interface 1408 DAC • Write a program to generate a continuous RAMP waveform Output Time

  22. Interfacing Diagram Address Bus (16bit) D7 D6 D5 D4 D3 D2 D1 D0 74LS373 Latches 1408 LE 8085 MPU A15 A0 Data Bus (8bit) A7 A6 A5 A4 A3 A2 A1 A0 D7 D0

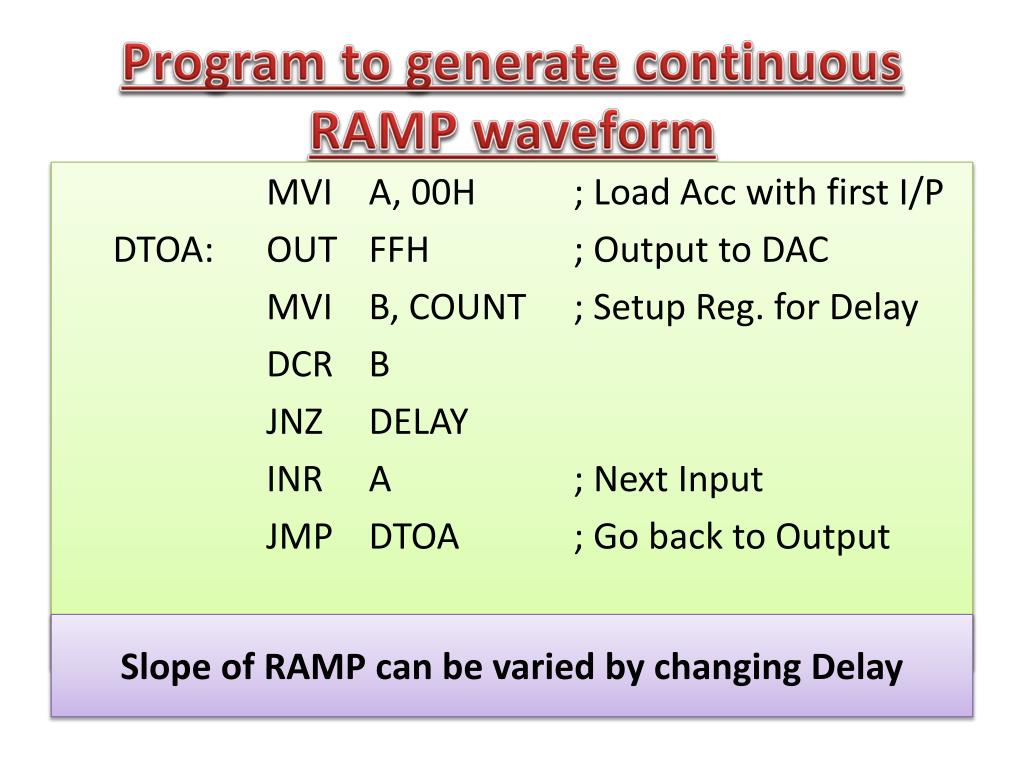

  23. Program to generate continuous RAMP waveform MVI A, 00H ; Load Acc with first I/P DTOA: OUT FFH ; Output to DAC MVI B, COUNT ; Setup Reg. for Delay DCR B JNZ DELAY INR A ; Next Input JMP DTOA ; Go back to Output Slope of RAMP can be varied by changing Delay

  24. Analog to Digital Conversion 111 • ADC are slower then DAC • Interfaced using Status Check 110 Analog to Analog Converter LSB 101 Vi D2 100 Digital output D1 Analog Input 011 010 D0 001 000 0 1 2 3 4 5 6 7 Analog Input

  25. Sampling Fourier Transform Sampling Concepts

  26. The process of reconstructing a signal from its values at discrete instants of time Zero order hold or One Point Linear or Two Point Band limited or Low pass Filtering Interpolation

  27. Algorithm for finding unknown N • Suppose my range is 0-1024 and assume some value of N between 0-1024 • You have to find the value of N • You can ask me (what about value X) • Answer ( N>X, N<X, N==X) • Operation with X (X++; X*2, X^2, X/2, X--)

  28. Algorithm for finding unknown N • What is the best Algorithm to find • Sequential ( increase X till X==N) O(N) algorithm • Successive approximation: (Binary Search) • Say R/2 as CMP( R/2, N) === if equal stop IF (R/2 < N) CMP (R/2+R/4,N) ELSE CMP (R/2-R/4, N) • If you have N persons to do the comparisons • Ask to all people and Gather the information • Mix of Both approach • If you have M comparator

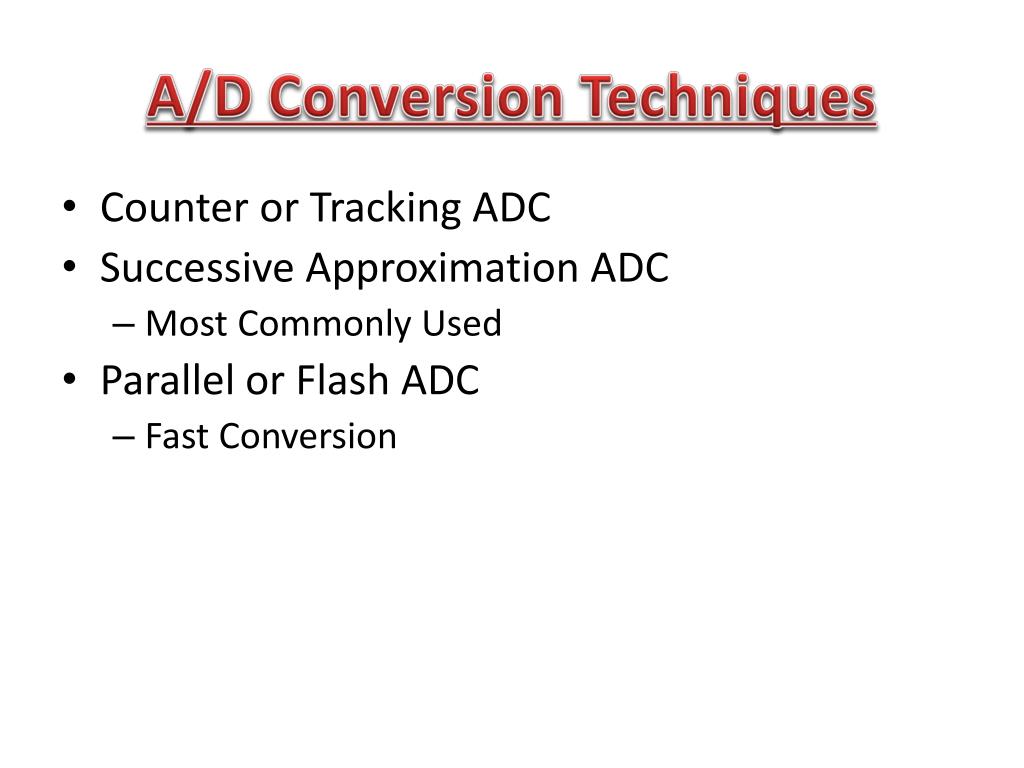

  29. A/D Conversion Techniques • Counter or Tracking ADC • Successive Approximation ADC • Most Commonly Used • Parallel or Flash ADC • Fast Conversion

  30. Block diagram Waveform Operation Reset and Start Counter DAC convert Digital output of Counter to Analog signal Compare Analog input and Output of DAC Vi < VDAC Continue counting Vi = VDAC Stop counting Digital Output = Output of Counter Disadvantage Conversion time is varied 2n Clock Period for Full Scale input Counter Type ADC Control Logic Clock Counter DAC Vi

  31. Most Commonly used in medium to high speed Converters Based on approximating the input signal with binary code and then successively revising this approximation until best approximation is achieved SAR(Successive Approximation Register) holds the current binary value Block Diagram Successive Approximation ADC

  32. Circuit waveform Logic Flow Conversion Time n clock for n-bit ADC Fixed conversion time Serial Output is easily generated Bit decision are made in serial order Successive Approximation ADC

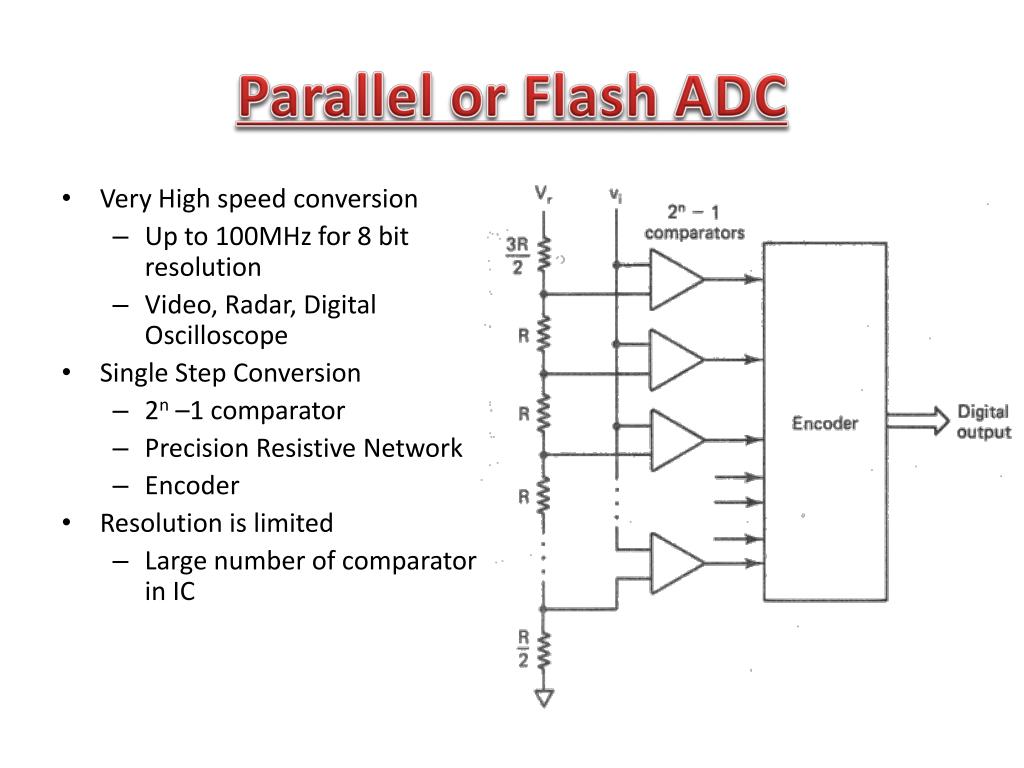

  33. Very High speed conversion Up to 100MHz for 8 bit resolution Video, Radar, Digital Oscilloscope Single Step Conversion 2n –1 comparator Precision Resistive Network Encoder Resolution is limited Large number of comparator in IC Parallel or Flash ADC

  34. Generic ADC Vinput A/D Converter Digital O/P START RD Ready Start

  35. Interface ADC using Status Check Address Bus (16bit) Vinput Tri-State Buffer A/D Converter Digital O/P 8085 MPU A15 A0 A6 A5 A4 A3 A7 82H Data Bus (8bit) 74 LS 138 E1 E3 E2 RD START o2 D7 D0 o1 81H Ready 80H o0 Start IO/R IO/W

  36. Program to Interface ADC OUT 82H ; Start Conversion TEST: IN 80H ;Read DR Status RAR ; Rotate Do to carry JC TEST ; if Do==1 conv. done IN 81H ; Read the output RET ; Return

  37. Display 7 Seg 9 Seg 16 Seg 3x5 DotMatix 5x7 9x11 Dot Matrix Display Panel 25x80 character monitor

  38. Generic Model of Display Decoder Or Memory Display Monitor/LEDs Data ASCII/BCD Time to Decode Time to Display

  39. a b f 1 1 0 a 0 D 1 5 0 1 b 5 1 g C 1 1 c f 0 Common Cathode 0 B 5v e 1 5v 1 1 1 A g 1 1 d 1 c 0 LT e 5V 5V RBI 1 1 d RBO BI Decoder 7 Segment LED Interfaces • Data to 7 Seg Decoder

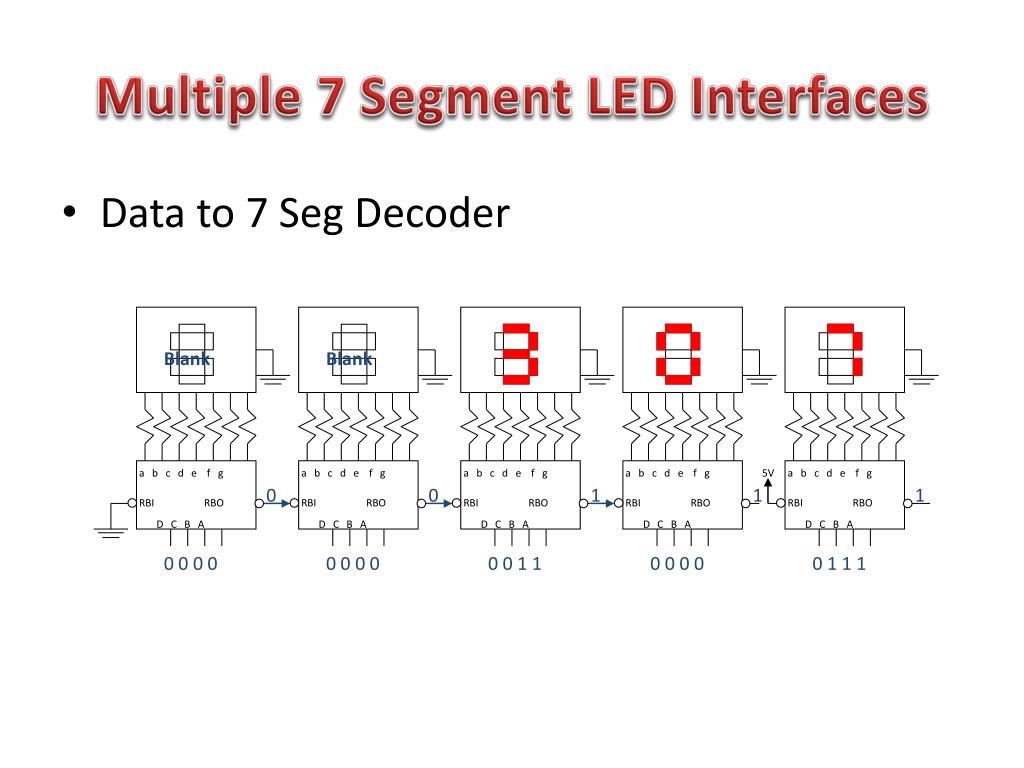

  40. Blank Blank 0 0 1 a b c d e f g a b c d e f g a b c d e f g a b c d e f g 5V a b c d e f g 1 1 RBI RBO RBI RBO RBI RBO RBI RBO RBI RBO D C B A D C B A D C B A D C B A D C B A 0 0 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 1 1 1 Multiple 7 Segment LED Interfaces • Data to 7 Seg Decoder

  41. Reference • R S Gaonkar, “Microprocessor Architecture”, Unit II preface, Chapter 13

  42. Thanks
