  1. PRESENTS GENISYS LAB SCOPE TECH TRAINING

  2. To do on car testing, scroll to Diagnostic Toolbox and press Enter. Enter Scroll to Diagnostic Toolbox

  3. To do on car testing, scroll to Scope with InfoTech and press Enter. Enter Scroll to Scope with InfoTech

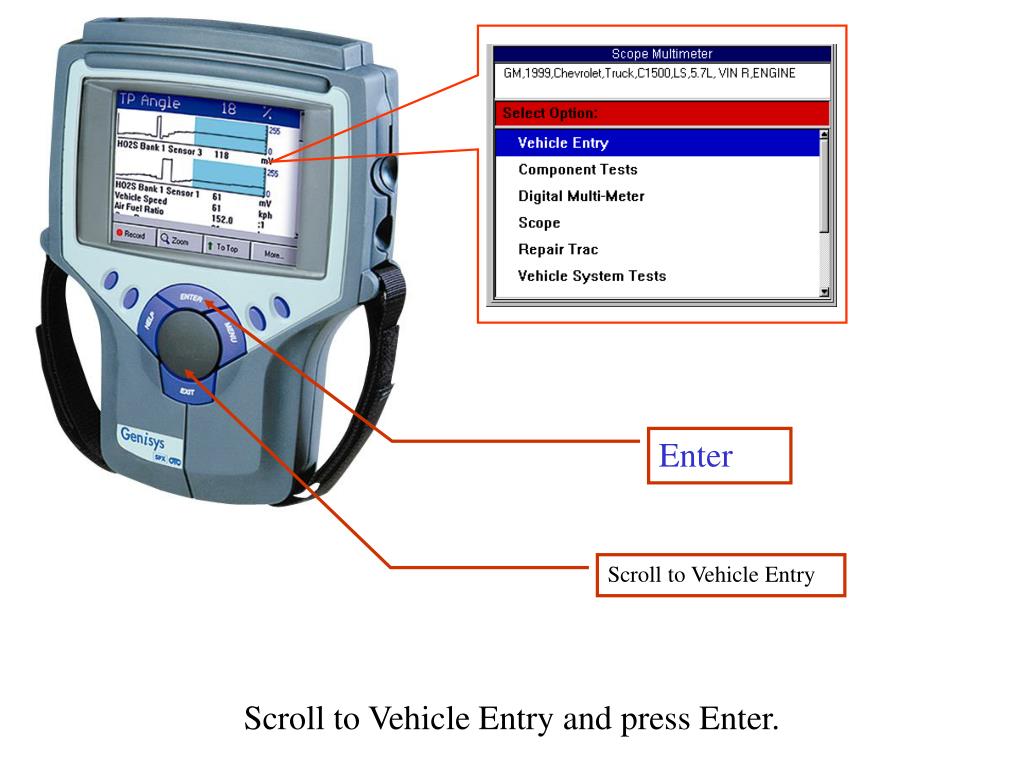

  4. Scroll to Vehicle Entry and press Enter. Enter Scroll to Vehicle Entry

  5. Scroll to GM and press Enter. Enter Scroll to GM

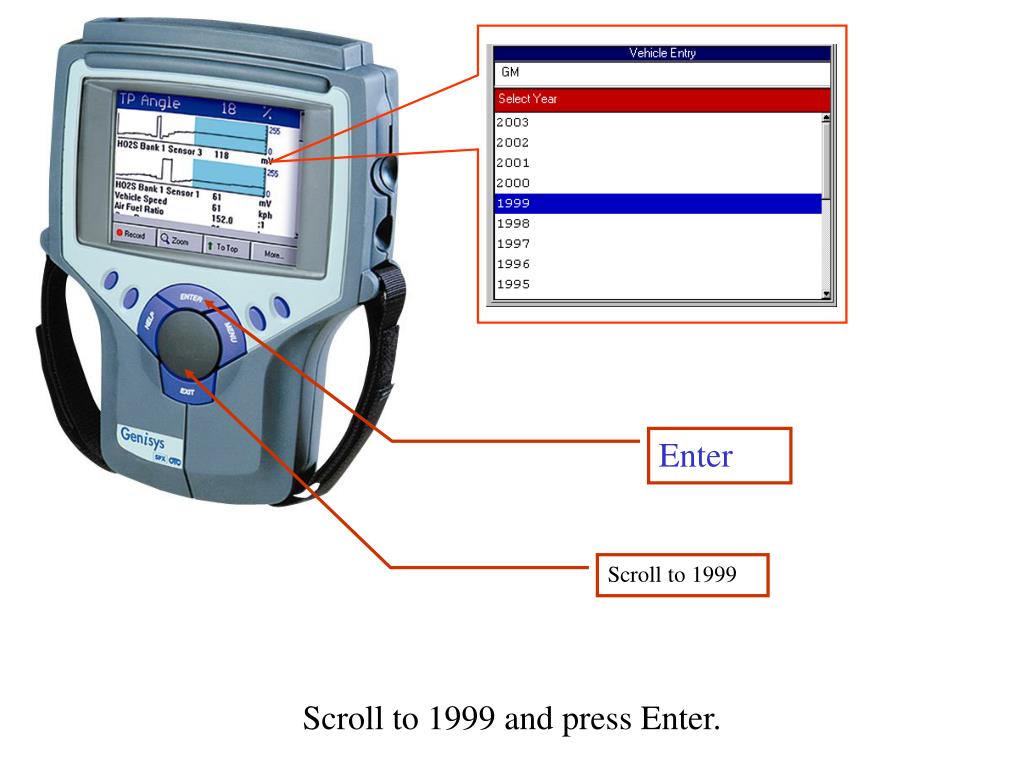

  6. Scroll to 1999 and press Enter. Enter Scroll to 1999

  7. Scroll to Chevrolet and press Enter. Enter Scroll to Chevrolet

  8. Scroll to Truck and press Enter. Enter Scroll to Truck

  9. Scroll to C1500 and press Enter. Enter Scroll to C1500

  10. Scroll to 5.7L, VIN R and press Enter. Enter Scroll to 5.7L, VIN R

  11. Scroll to Engine and press Enter. Enter Scroll to Engine

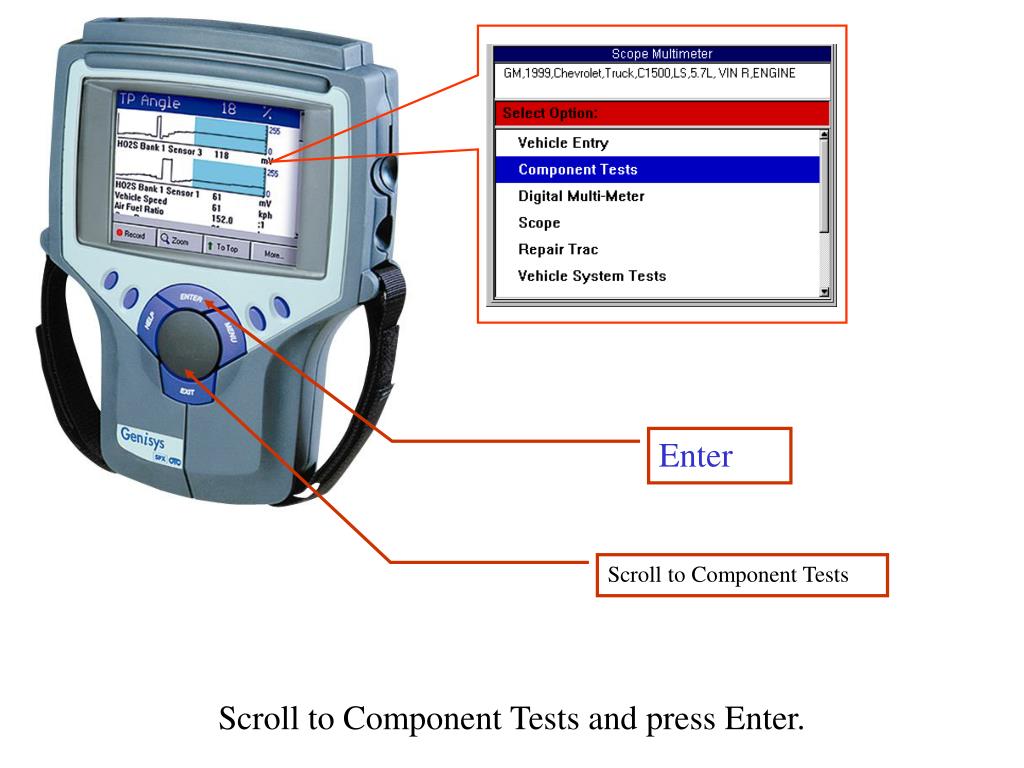

  12. Scroll to Component Tests and press Enter. Enter Scroll to Component Tests

  13. Scroll to Heated Oxygen Sensor and press Enter. Enter Scroll to Heated Oxygen Sensor

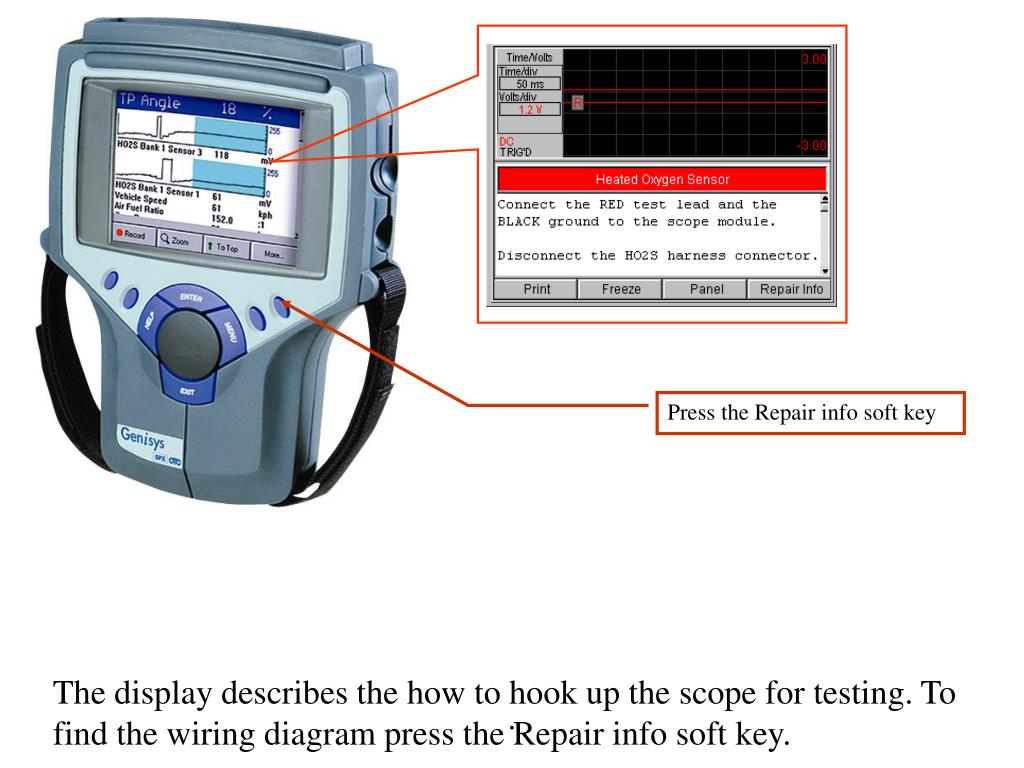

  14. Press the Repair info soft key . The display describes the how to hook up the scope for testing. To find the wiring diagram press the Repair info soft key.

  15. Scroll to Ckt Diagram, and press Enter to view the Wire Diagram. Enter Scroll to Ckt Diagram

  16. . Enter Scroll to 4L80E

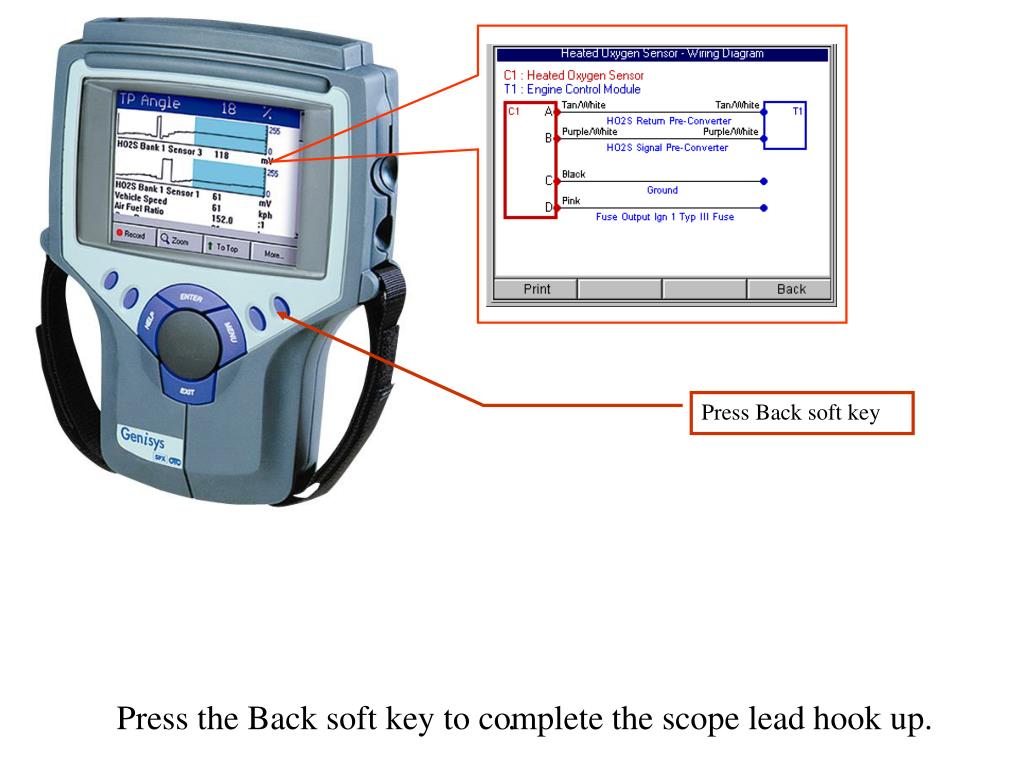

  17. Press Back soft key . Press the Back soft key to complete the scope lead hook up.

  18. Press Repair info soft key . Press the Repair info soft key to view a Reference Waveform.

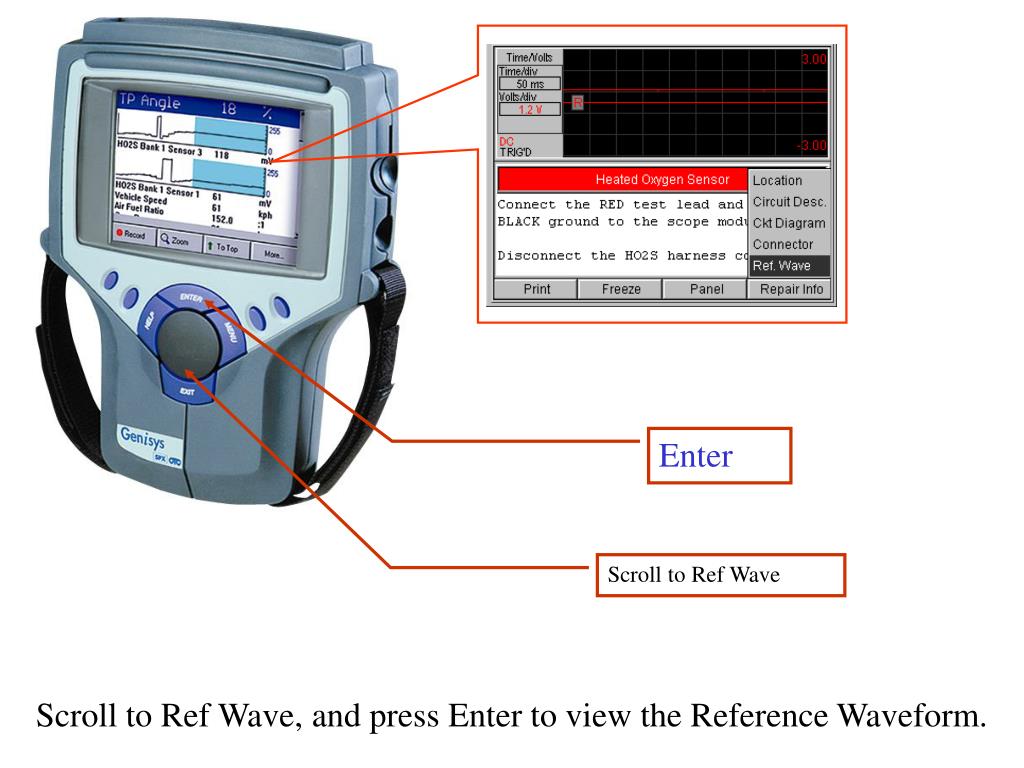

  19. Scroll to Ref Wave, and press Enter to view the Reference Waveform. Enter Scroll to Ref Wave

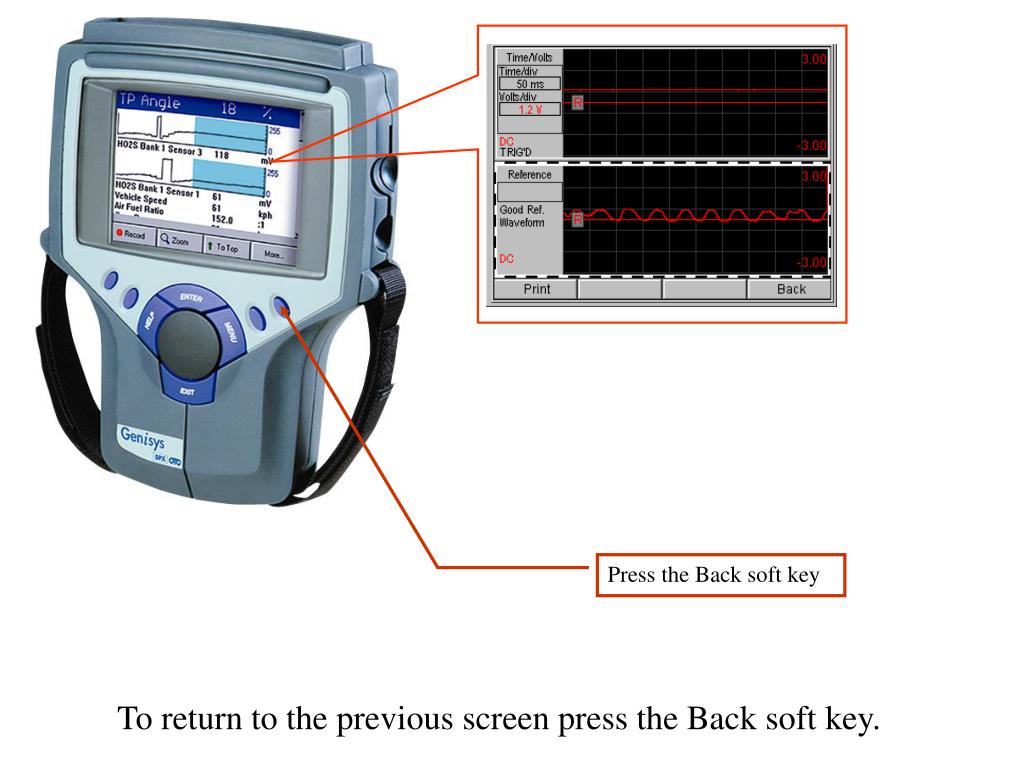

  20. To return to the previous screen press the Back soft key. Press the Back soft key

  21. Press Exit to return the Scope Multi-Meter menu. Exit

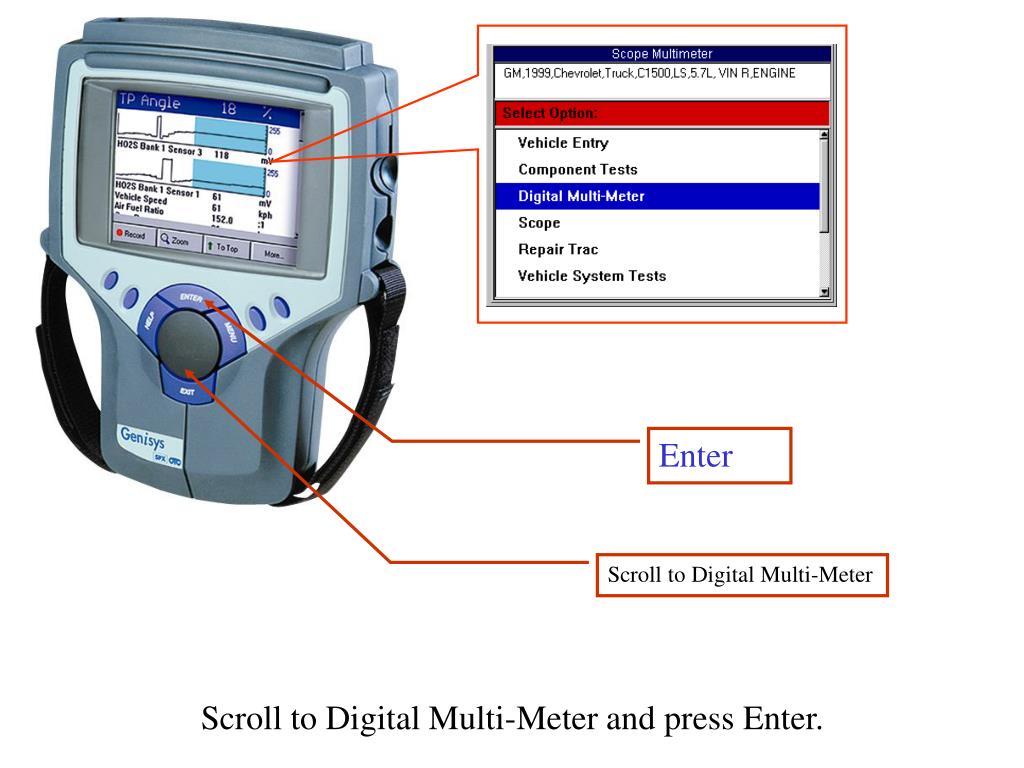

  22. Scroll to Digital Multi-Meter and press Enter. Enter Scroll to Digital Multi-Meter

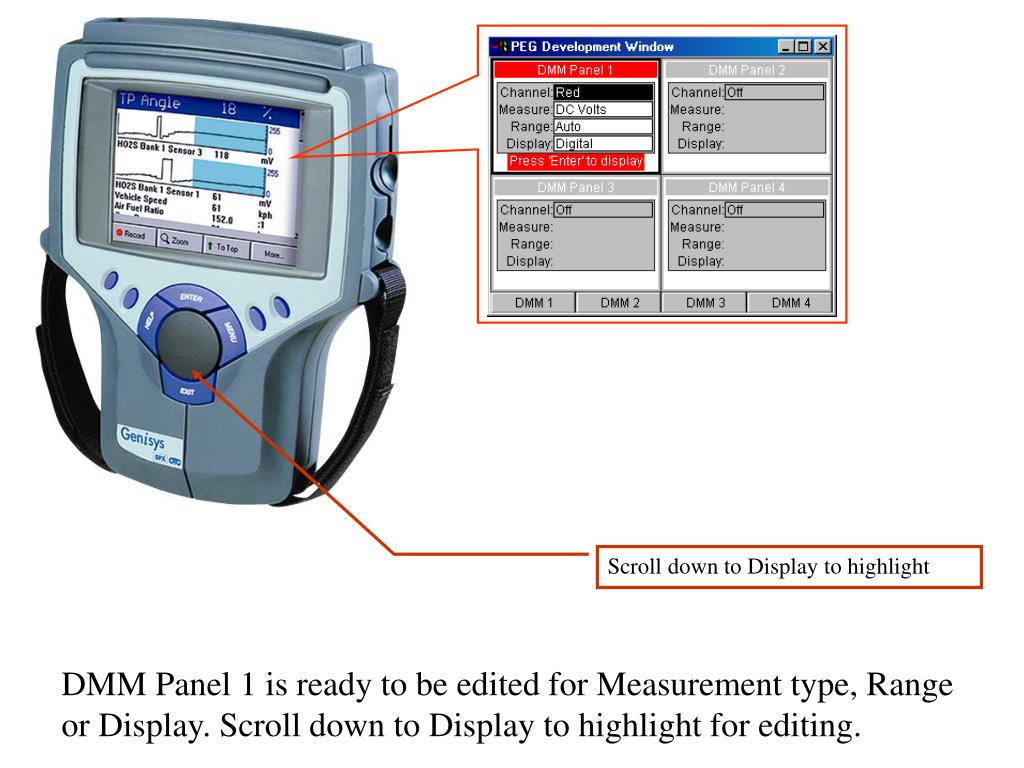

  23. DMM Panel 1 is ready to be edited for Measurement type, Range or Display. Scroll down to Display to highlight for editing. Scroll down to Display to highlight

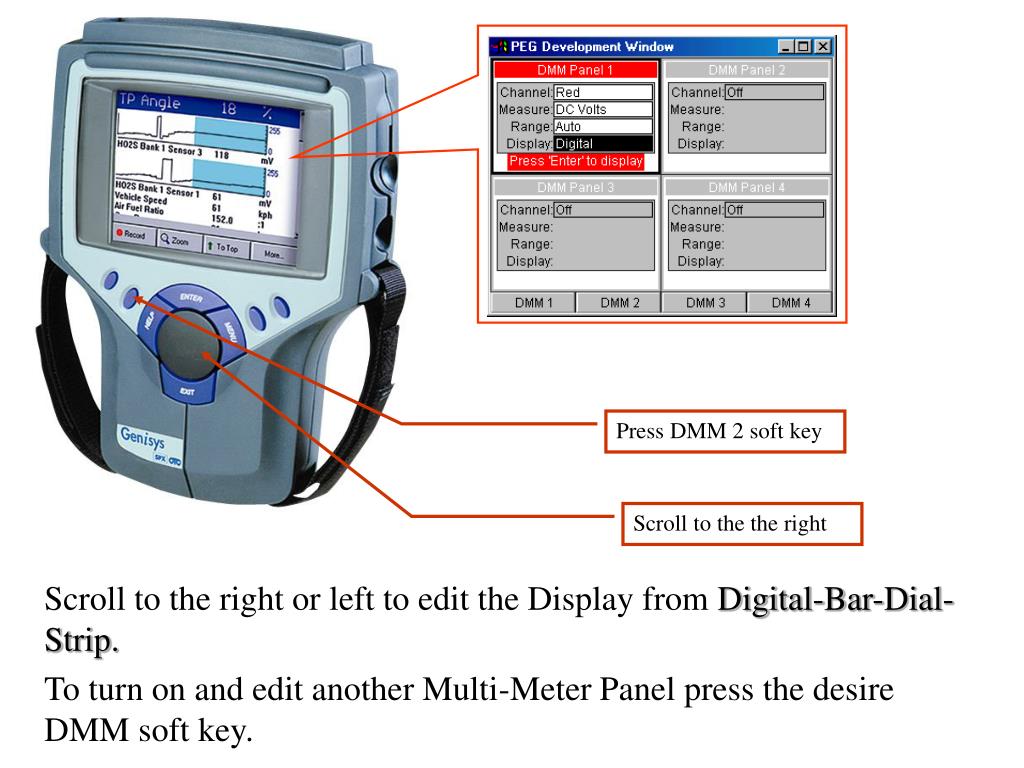

  24. Scroll to the right or left to edit the Display from Digital-Bar-Dial-Strip. To turn on and edit another Multi-Meter Panel press the desire DMM soft key. Press DMM 2 soft key Scroll to the the right

  25. Scroll down to range to highlight and scroll left or right to edit the range. Scroll right to edit range Scroll down to Range

  26. Press Enter to Display data. Note; Multiple Panels may share the same channel color so that multiple types of measurements may be shown. Enter

  27. When the Panel border is moving you can change the Display, Digital-Bar-Dial-Strip, by pressing Enter. Enter

  28. When the Panel border is moving you can scroll from Panel to Panel. Scroll to the left

  29. Press Enter to edit Panel 1. Enter

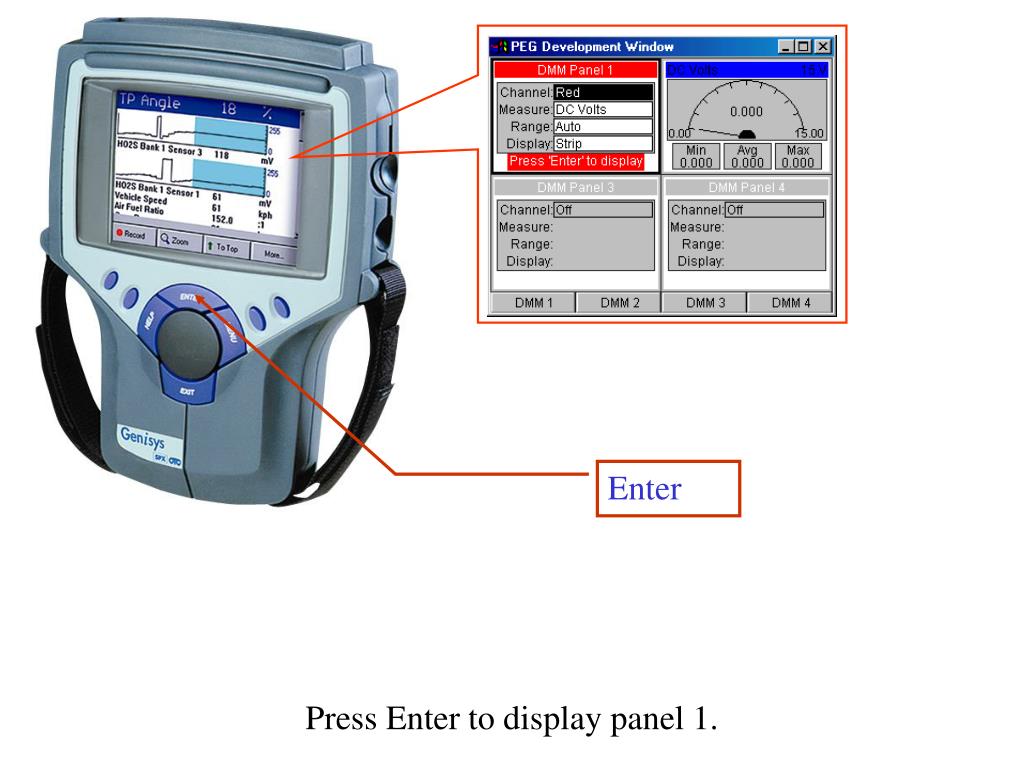

  30. Press Enter to display panel 1. Enter

  31. The Panel that has moving borders can be setup as a full screen by pressing the Full soft key. Press the Full soft key

  32. Press the Freeze soft key to store data to review. Press Freeze soft key

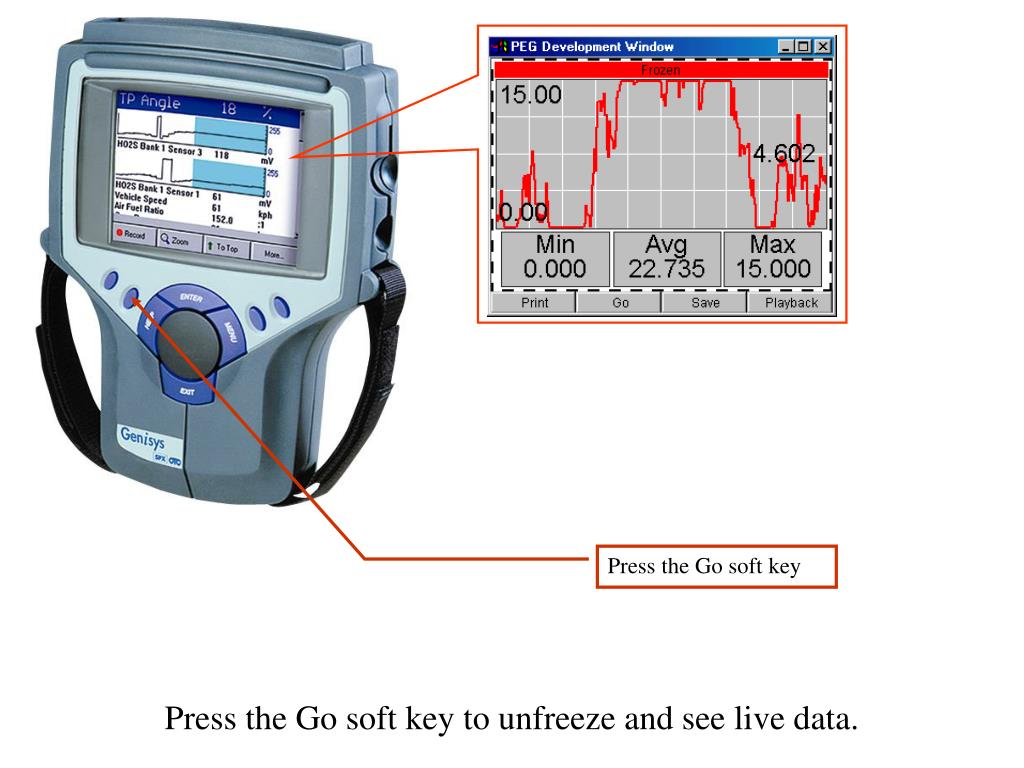

  33. Press the Go soft key to unfreeze and see live data. Press the Go soft key

  34. Press the Reset soft key to reset the meter to zero. Press the Reset soft key

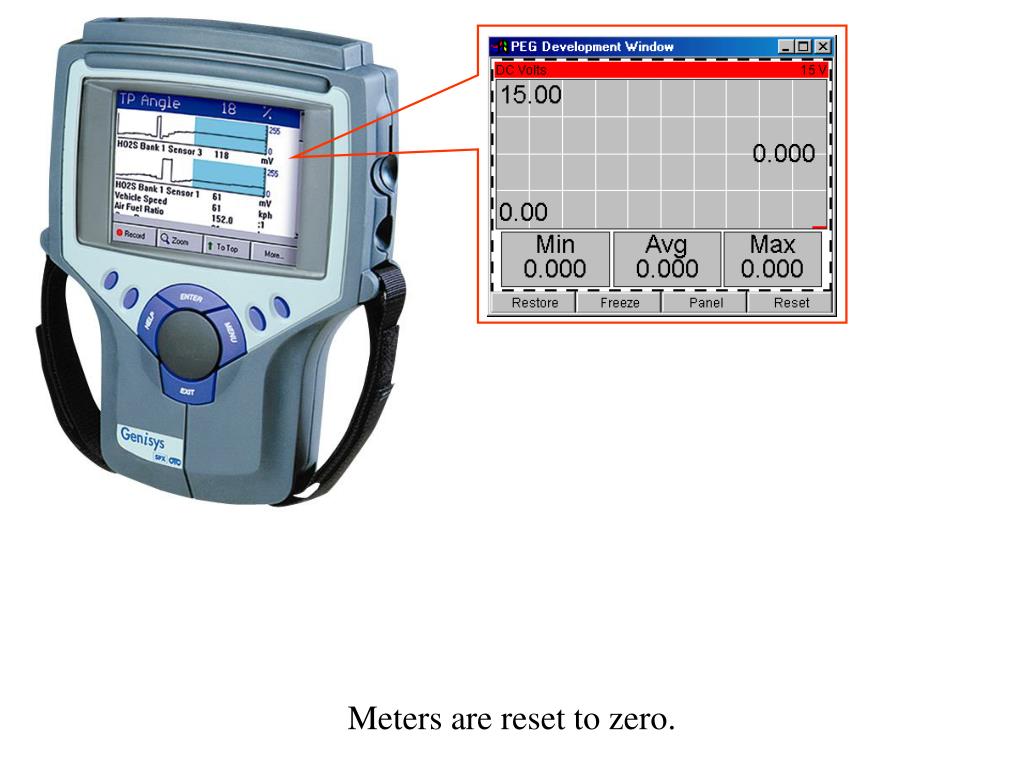

  35. Meters are reset to zero.

  36. Press the Panel soft key Press the Panel soft key and highlight Edit, then press Enter to return to the Edit Panels screen. Enter

  37. Press Exit to return to the main menu. Exit

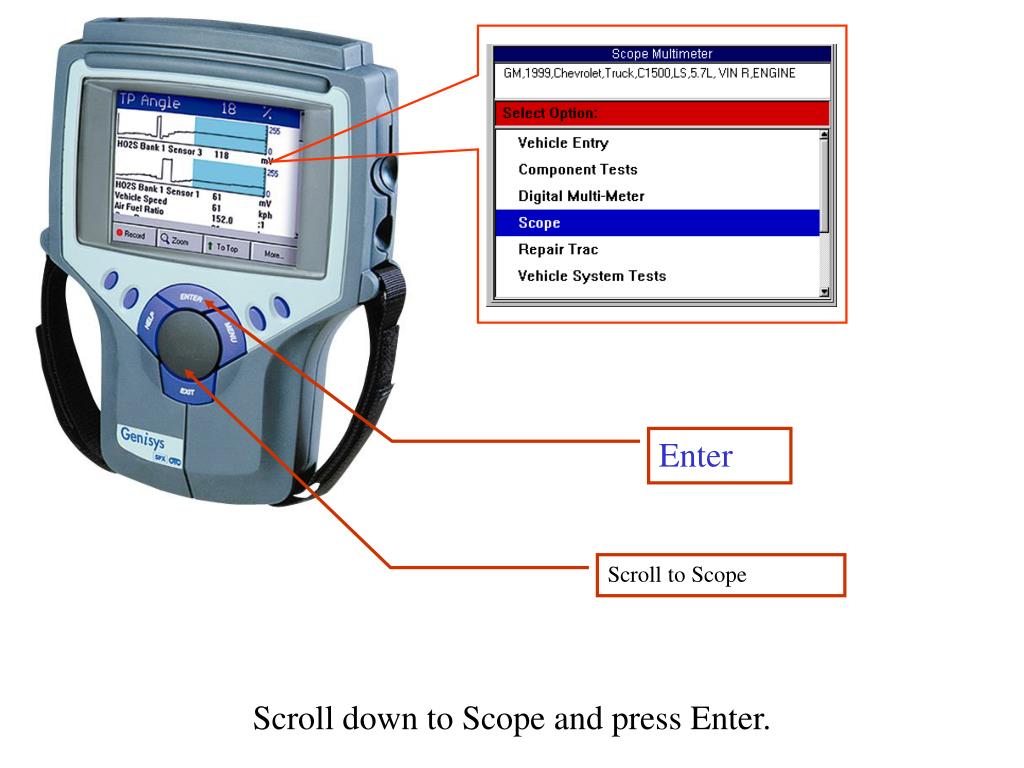

  38. Scroll down to Scope and press Enter. Enter Scroll to Scope

  39. Scroll down to Lab Scope and press Enter. Enter Scroll to Lab Scope

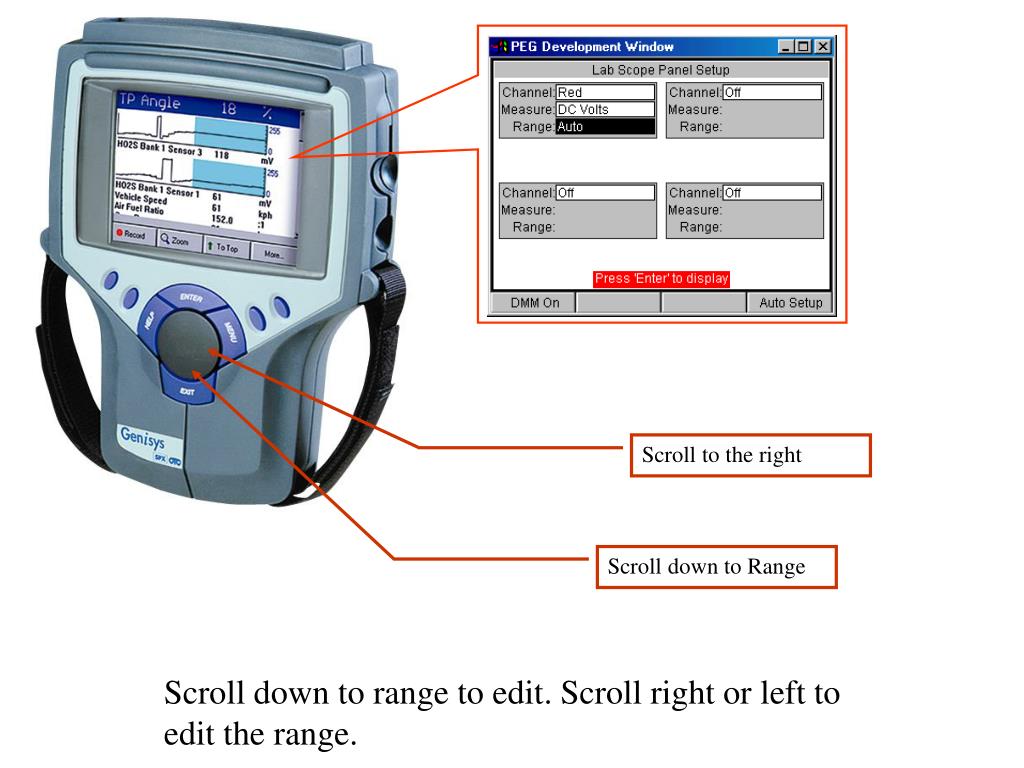

  40. Scroll down to range to edit. Scroll right or left to edit the range. Scroll to the right Scroll down to Range

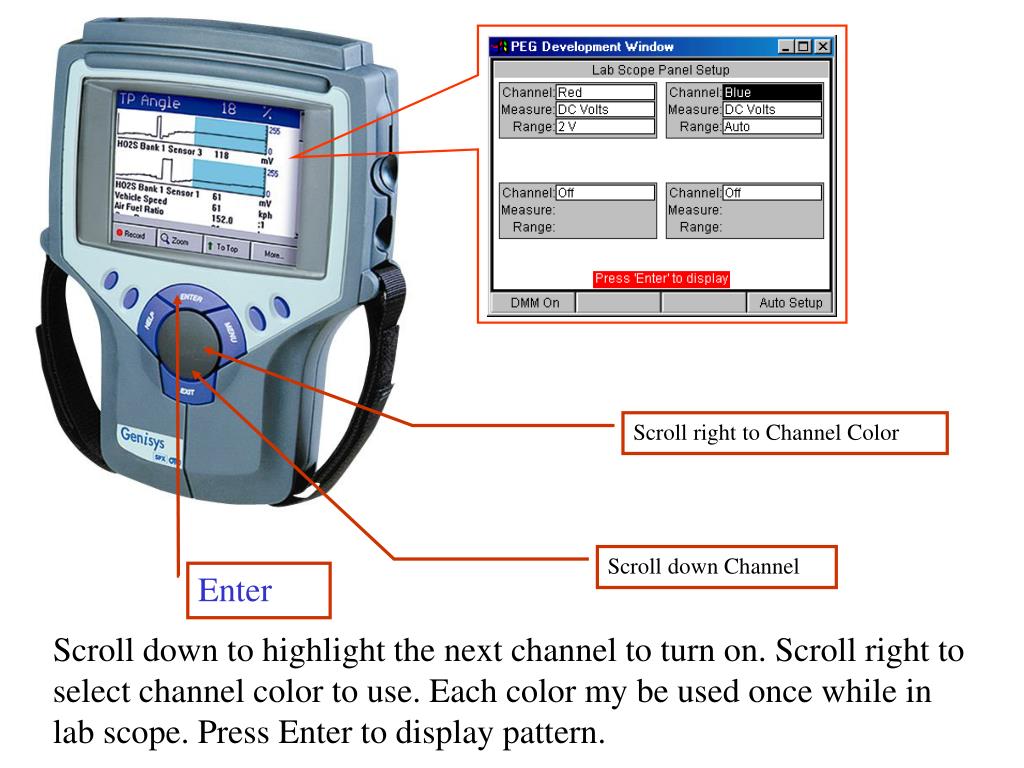

  41. Scroll down to highlight the next channel to turn on. Scroll right to select channel color to use. Each color my be used once while in lab scope. Press Enter to display pattern. Scroll right to Channel Color Scroll down Channel Enter

  42. While Time/div is highlighted scroll left or right to edit time. Scroll down to highlight Volts/div. Scroll right to Edit Scroll down to Volts/div

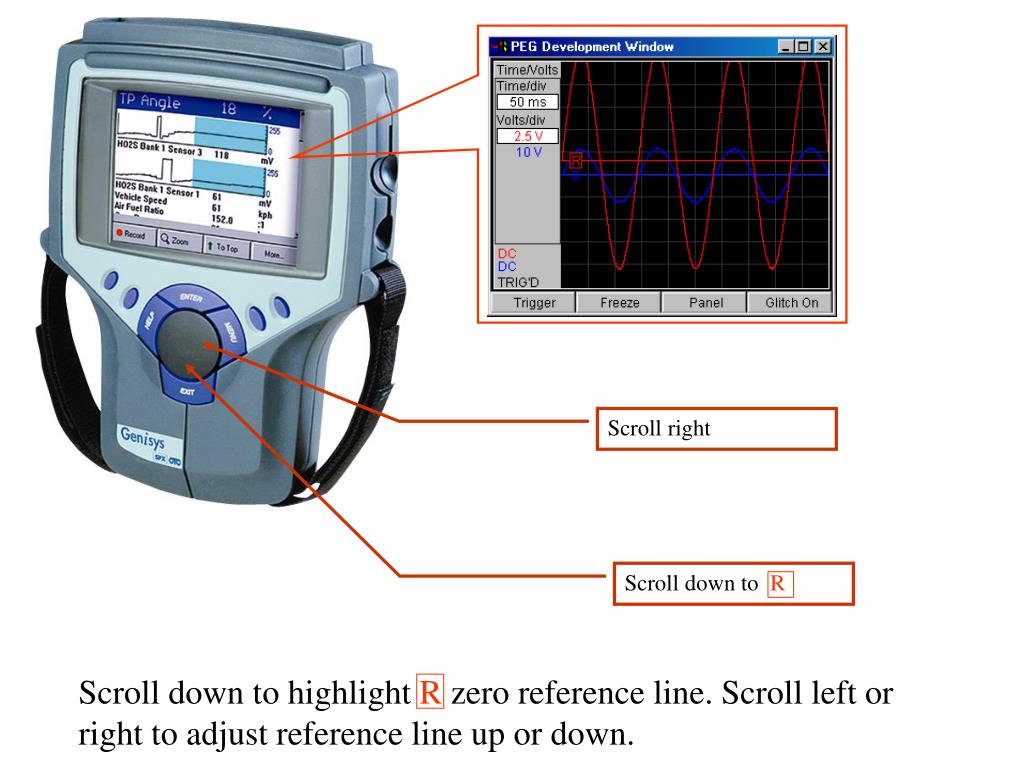

  43. Scroll down to highlight R zero reference line. Scroll left or right to adjust reference line up or down. Scroll right Scroll down to R

  44. Press the Trigger soft key to turn on the trigger. The upper right panel of the edit screen is the trigger channel. Press the Trigger soft key

  45. Scroll to the right to turn the trigger from Off to On. Scroll right to On

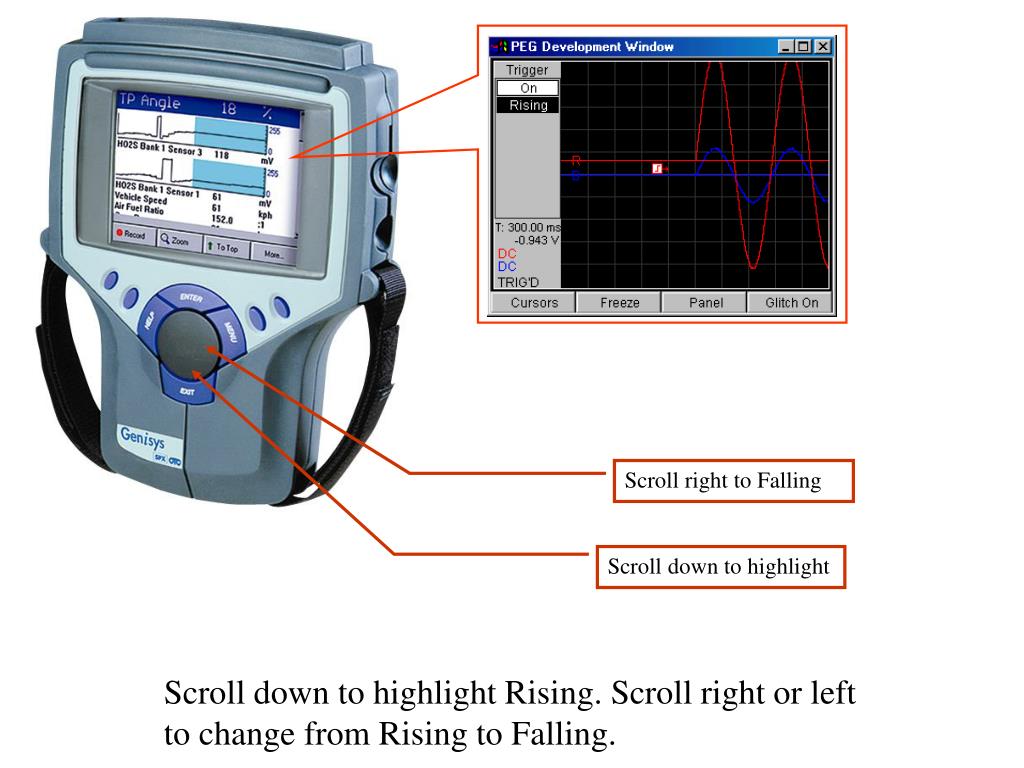

  46. Scroll down to highlight Rising. Scroll right or left to change from Rising to Falling. Scroll right to Falling Scroll down to highlight

  47. Scroll down to highlight trigger Scroll down to highlight trigger marker. Scroll left or right or up or down to set trigger time and voltage. Press Enter when settings are correct. Scroll down to edit trigger level Enter

  48. Press the Cursors soft key. Scroll right or left to turn the Cursors on. Press the Cursors soft key Scroll to the right

  49. Scroll right or left to set Cursors for Horizontal or Vertical. Scroll to the right

  50. Scroll down to highlight C1 - Cursor 1. Note; the Cursor is solid in color when highlighted. Scroll left or right to move C1. Scroll right Scroll down to C1
