RSA

Rivest, Shamir and Adleman 1978 - 1979. RSA. Rivest Shamir Adleman. Depends on the difficulty of factoring really large numbers. Security. Key Pair. Choose 2 random large (300 to 600 digits) prime numbers, p and q. p and q should be of equal length Compute n = pq

Télécharger la présentation

RSA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

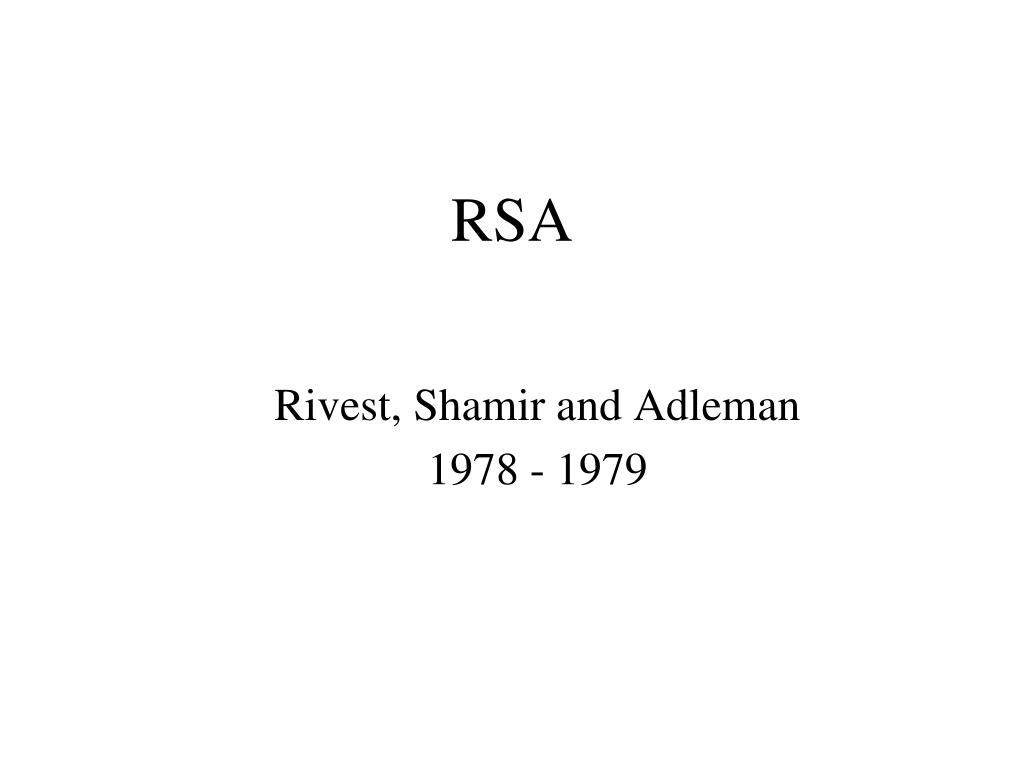

  1. Rivest, Shamir and Adleman 1978 - 1979 RSA

  2. Rivest Shamir Adleman

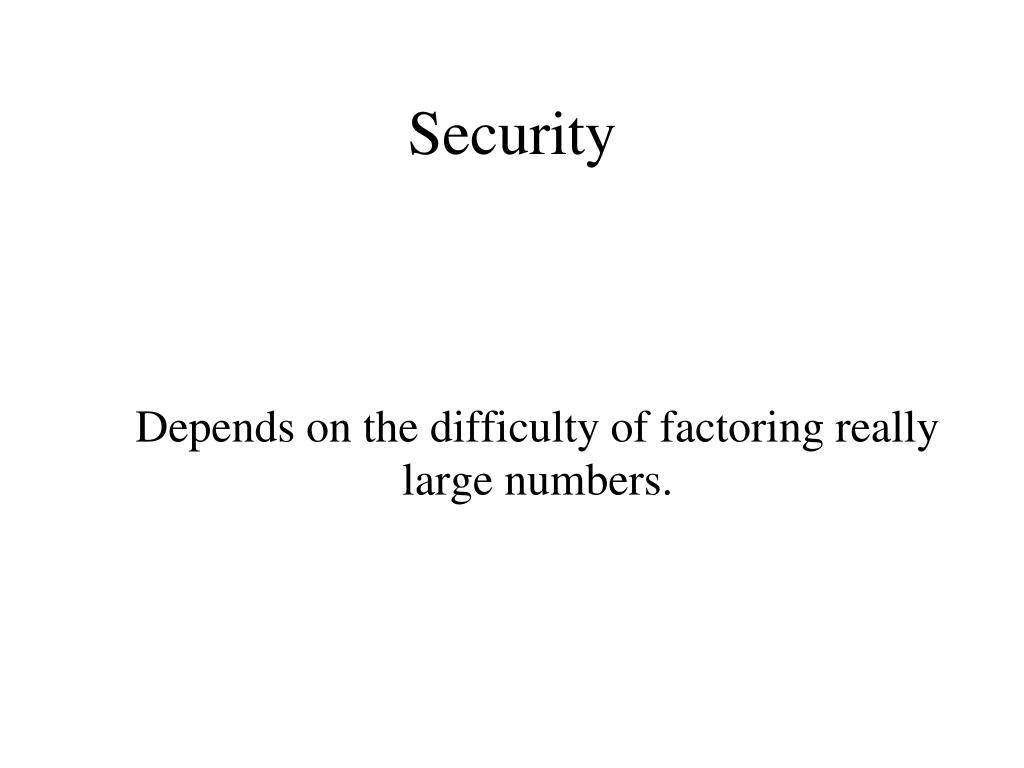

  3. Depends on the difficulty of factoring really large numbers. Security

  4. Key Pair • Choose 2 random large (300 to 600 digits) prime numbers, p and q. • p and q should be of equal length • Compute n = pq • Randomly choose e such that e and (p – 1)(q – 1) are relatively prime • Compute d such that ed = 1 mod ((p – 1)(q - 1))

  5. Keys • e is the encryption key • d is the decryption key d = e-1 mod ((p – 1)(q – 1)) • e and n are the public key • d is the private key • Throw p and q away (securely)

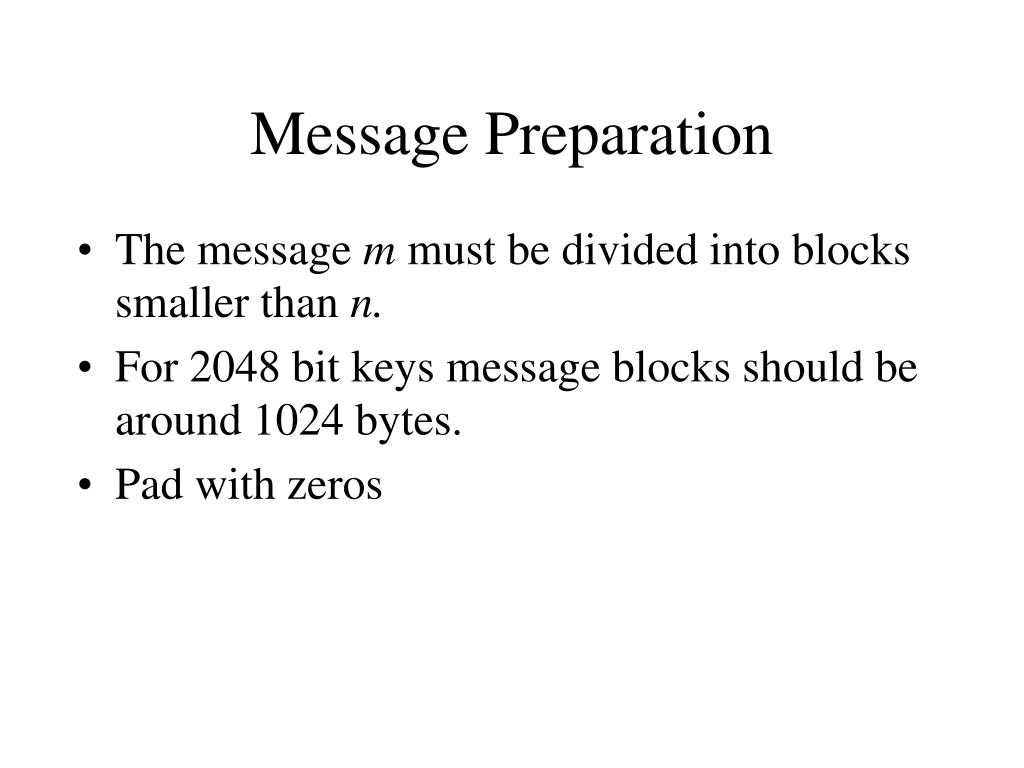

  6. Message Preparation • The message m must be divided into blocks smaller than n. • For 2048 bit keys message blocks should be around 1024 bytes. • Pad with zeros

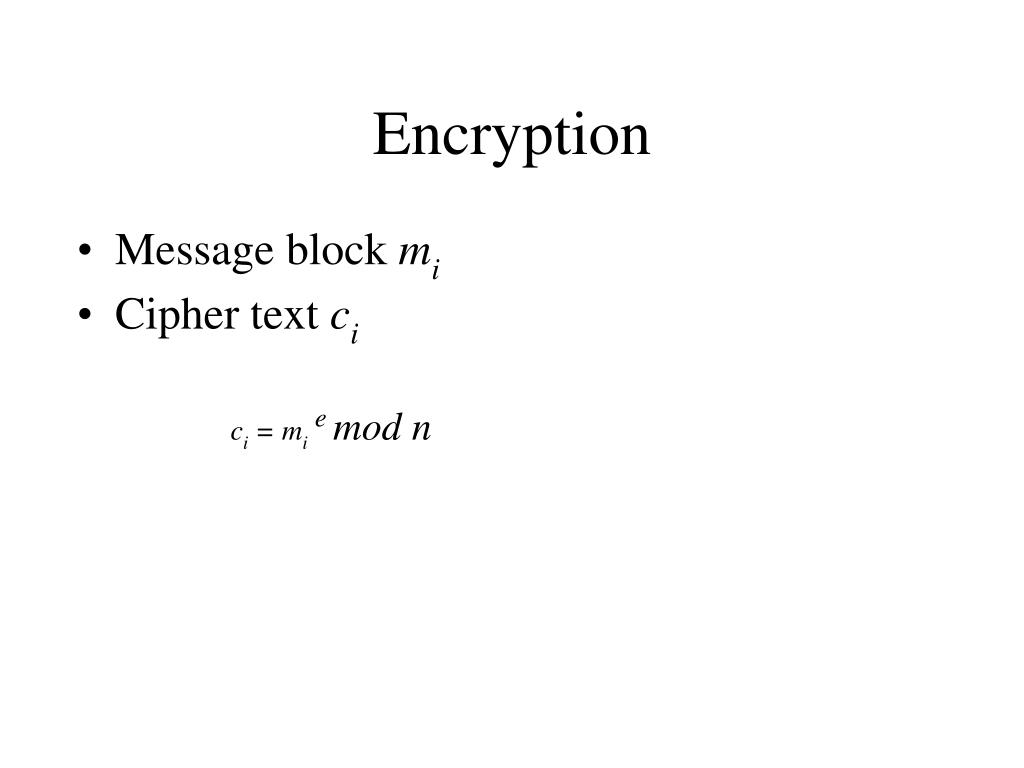

  7. Encryption • Message block mi • Cipher text ci ci = mie mod n

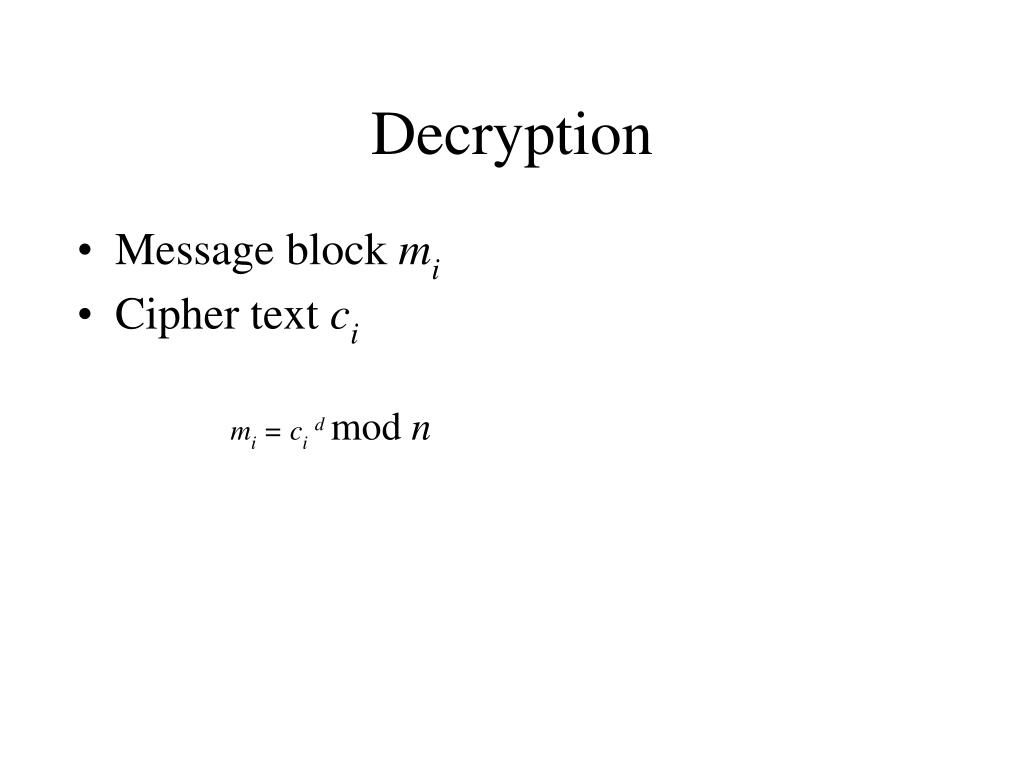

  8. Decryption • Message block mi • Cipher text ci mi = cidmod n

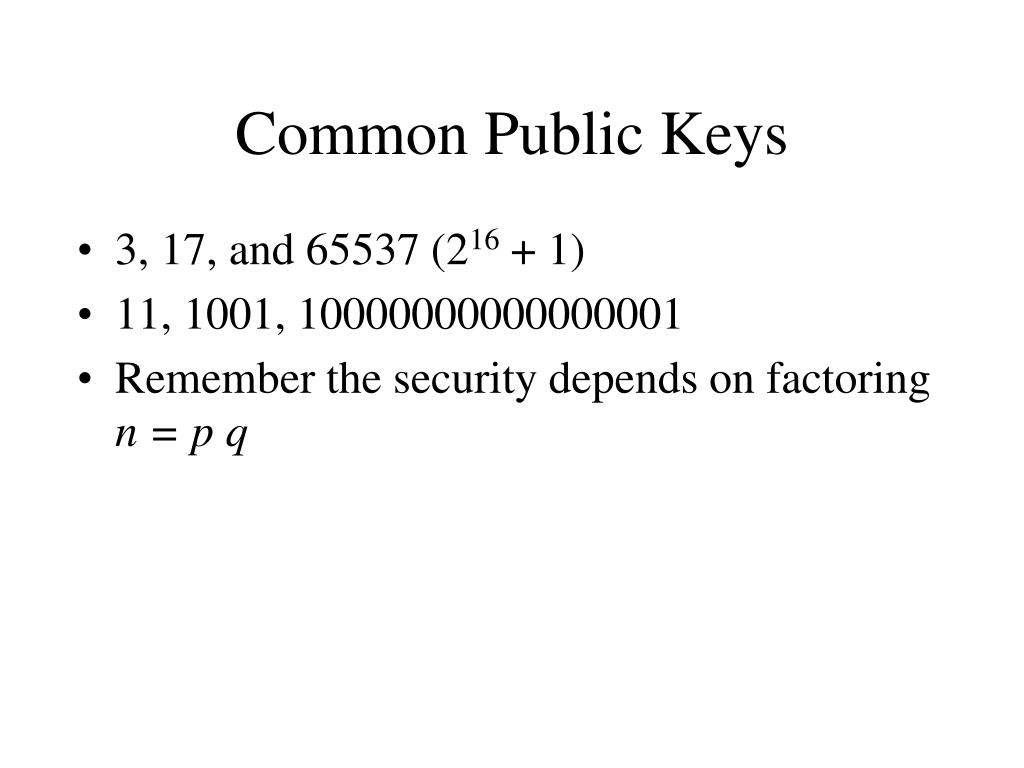

  9. Common Public Keys • 3, 17, and 65537 (216 + 1) • 11, 1001, 10000000000000001 • Remember the security depends on factoring n = p q

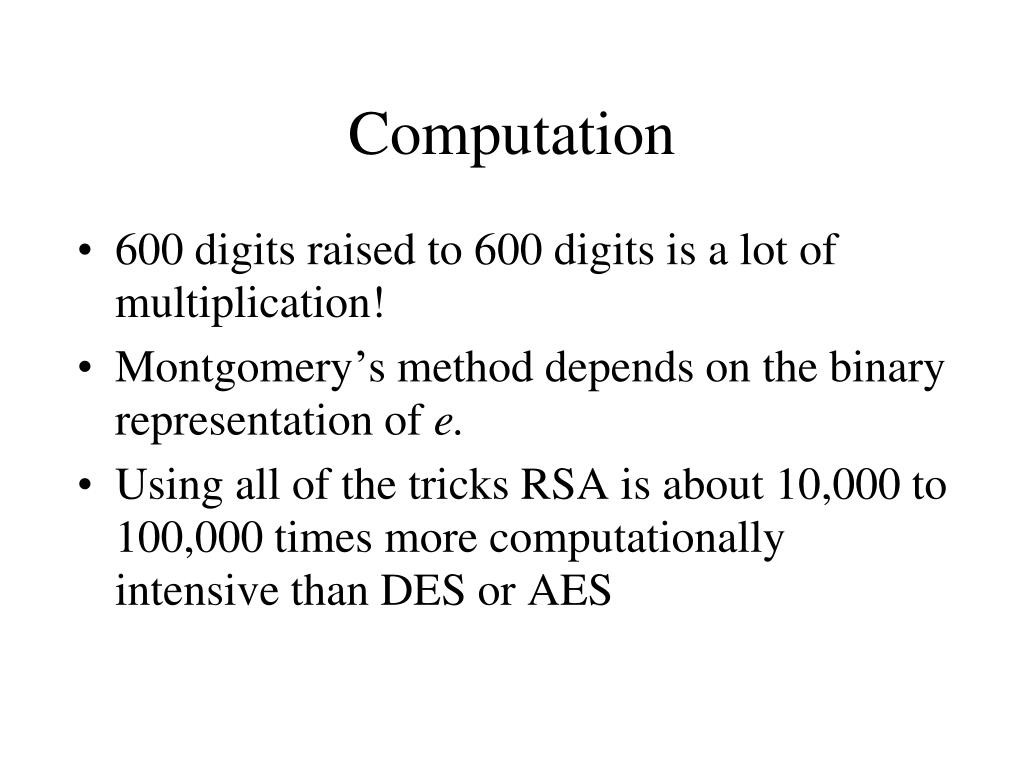

  10. Computation • 600 digits raised to 600 digits is a lot of multiplication! • Montgomery’s method depends on the binary representation of e. • Using all of the tricks RSA is about 10,000 to 100,000 times more computationally intensive than DES or AES
