Automated Signature Generation for Detecting Botnet-Based Spam Activity

This study presents AutoRE, a framework for generating high-quality regular expression signatures to identify botnet-based spam emails and members. It analyzes spamming botnet characteristics and trends, including frequent domain modifications and polymorphic URLs. The AutoRE framework consists of modules like URL preprocessor, group selector, and RegEx generator to capture botnet host IP addresses and spam URLs. Through a detailed analysis using sampled emails, AutoRE successfully identified thousands of spam campaigns and distinct botnet host IP addresses, spanning multiple ASes. This pioneering work showcases the effectiveness of automatically generated regular expression signatures for detecting botnet spam activity.

shelby-wolfe
Télécharger la présentation

Automated Signature Generation for Detecting Botnet-Based Spam Activity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Spamming Botnets: Signatures and Characteristics Authors:Yinglian Xie, Fang Yu, Kannan Achan, Rina Panigrahy, Geoff Hulten+, Ivan Osipkov+ Presenter: Chia-Li Lin

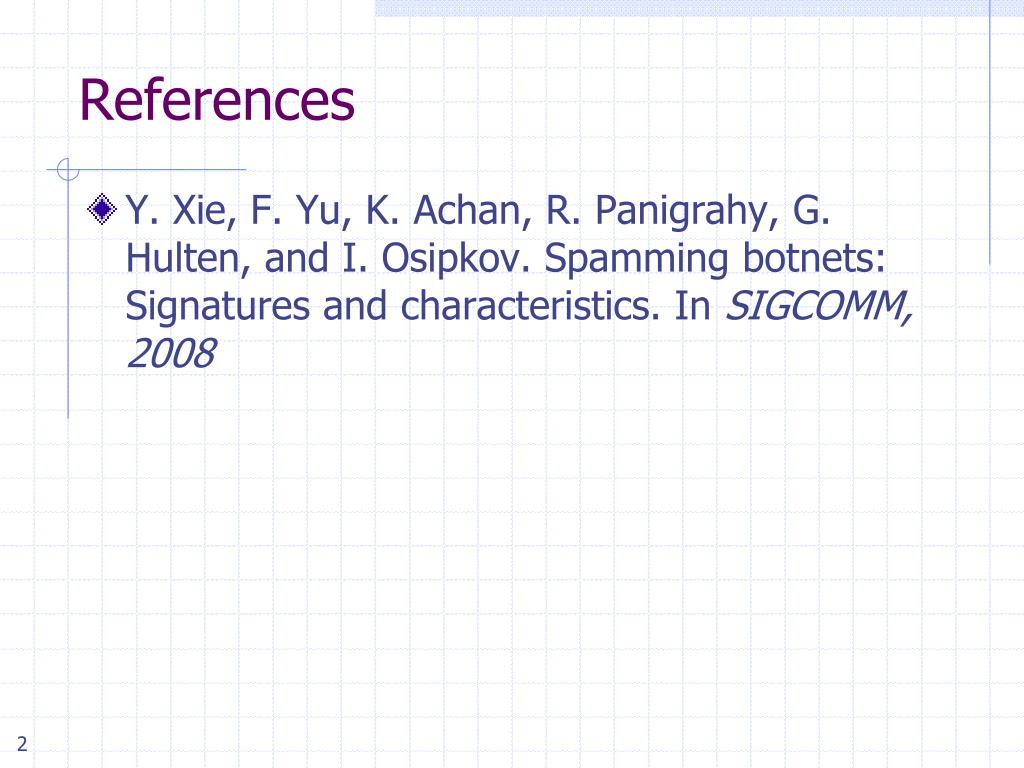

  2. References • Y. Xie, F. Yu, K. Achan, R. Panigrahy, G. Hulten, and I. Osipkov. Spamming botnets: Signatures and characteristics. In SIGCOMM, 2008

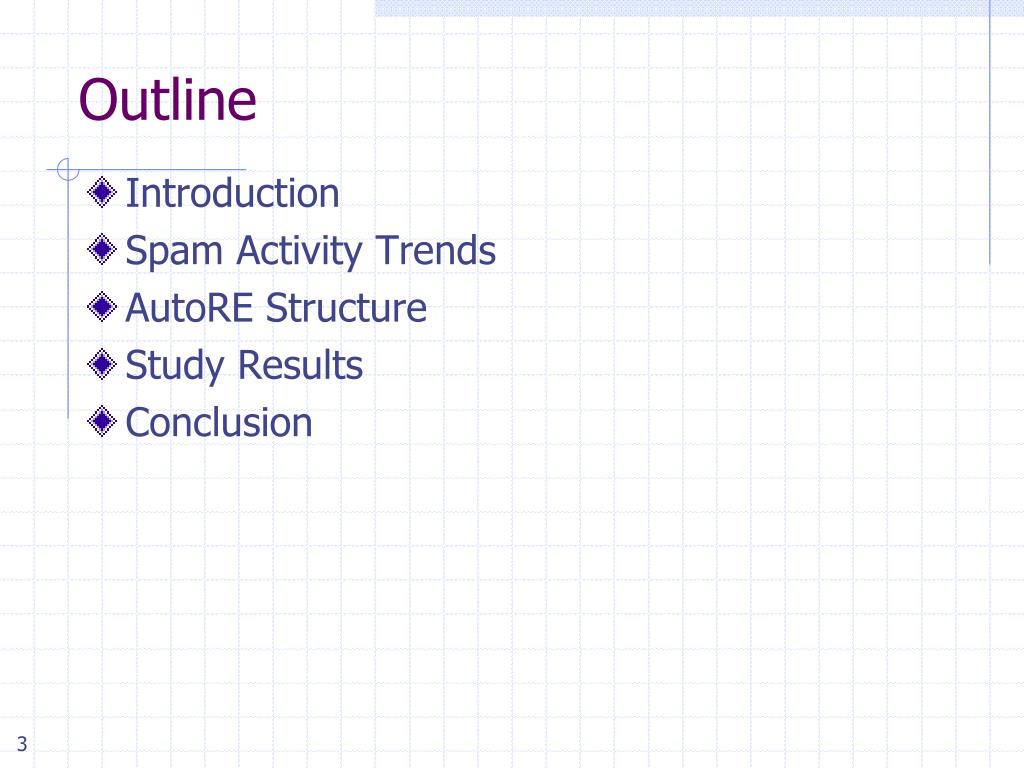

  3. Outline • Introduction • Spam Activity Trends • AutoRE Structure • Study Results • Conclusion

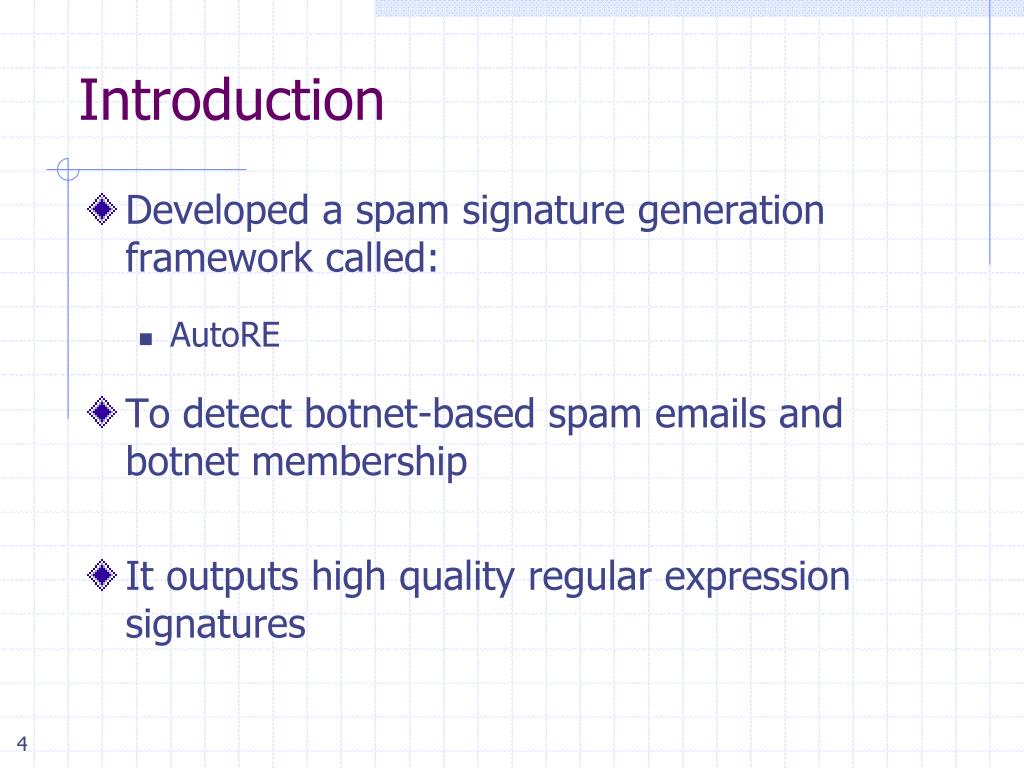

  4. Introduction • Developed a spam signature generation framework called: • AutoRE • To detect botnet-based spam emails and botnet membership • It outputs high quality regular expression signatures

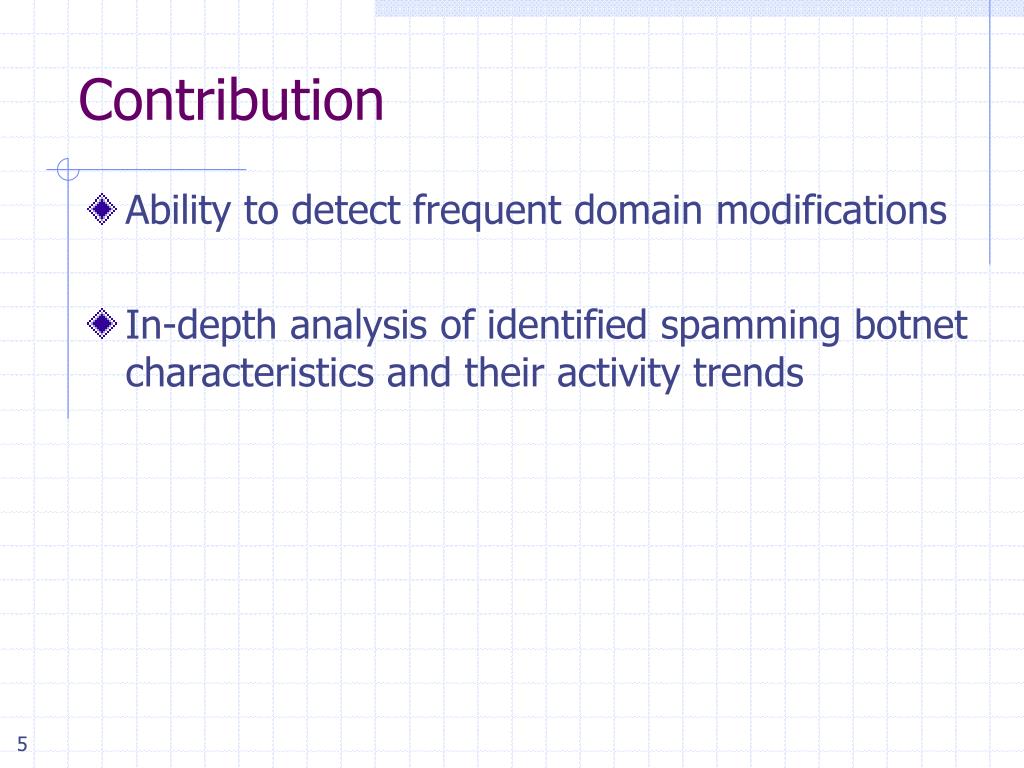

  5. Contribution • Ability to detect frequent domain modifications • In-depth analysis of identified spamming botnet characteristics and their activity trends

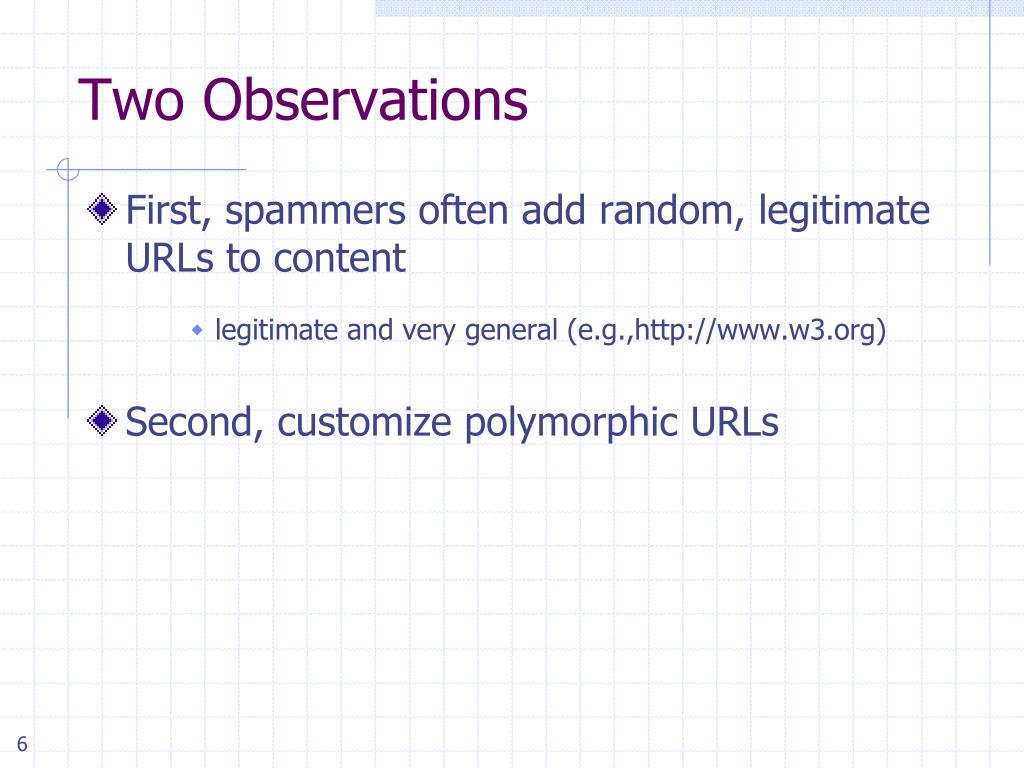

  6. Two Observations • First, spammers often add random, legitimate URLs to content • legitimate and very general (e.g.,http://www.w3.org) • Second, customize polymorphic URLs

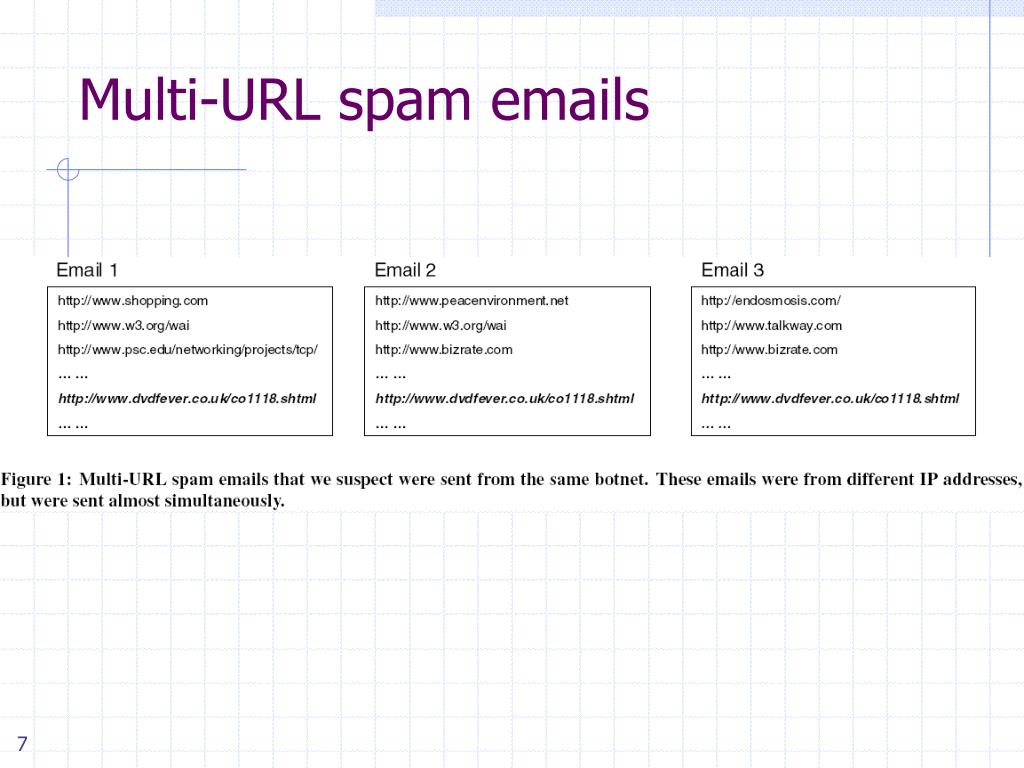

  7. Multi-URL spam emails

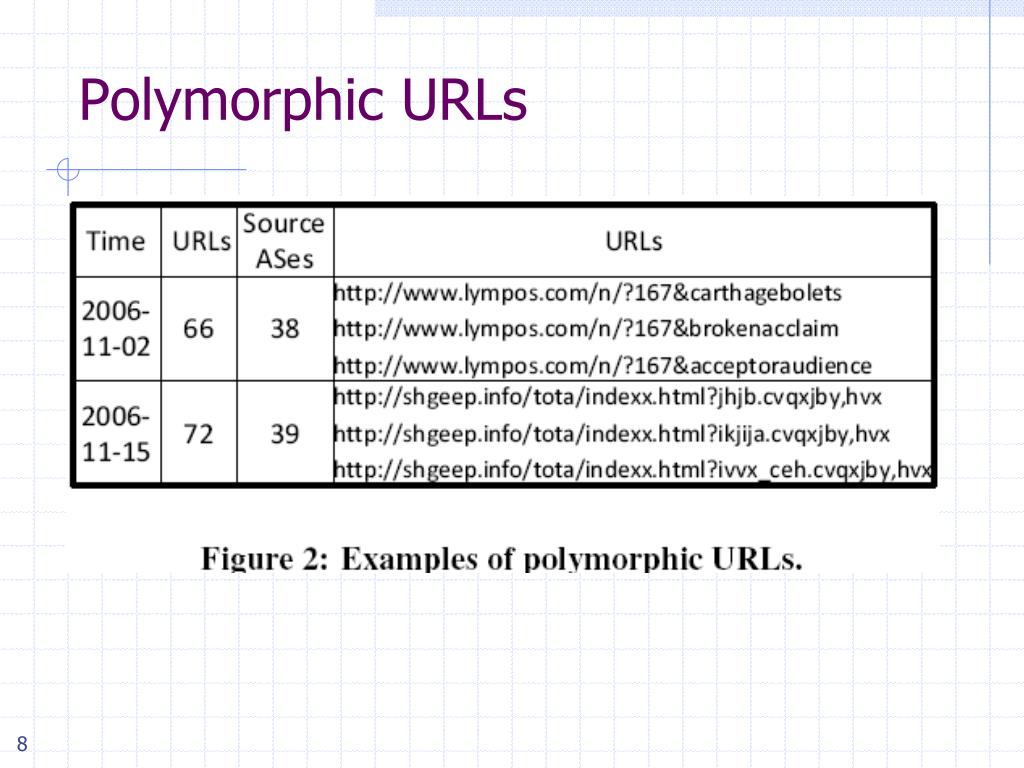

  8. Polymorphic URLs

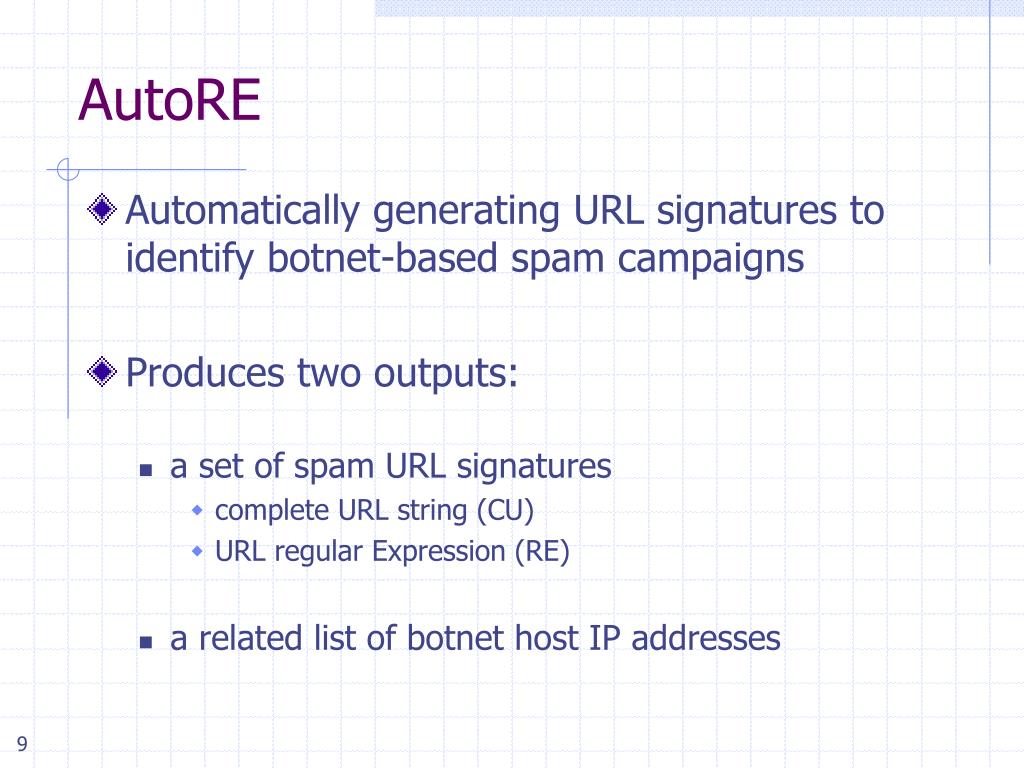

  9. AutoRE • Automatically generating URL signatures to identify botnet-based spam campaigns • Produces two outputs: • a set of spam URL signatures • complete URL string (CU) • URL regular Expression (RE) • a related list of botnet host IP addresses

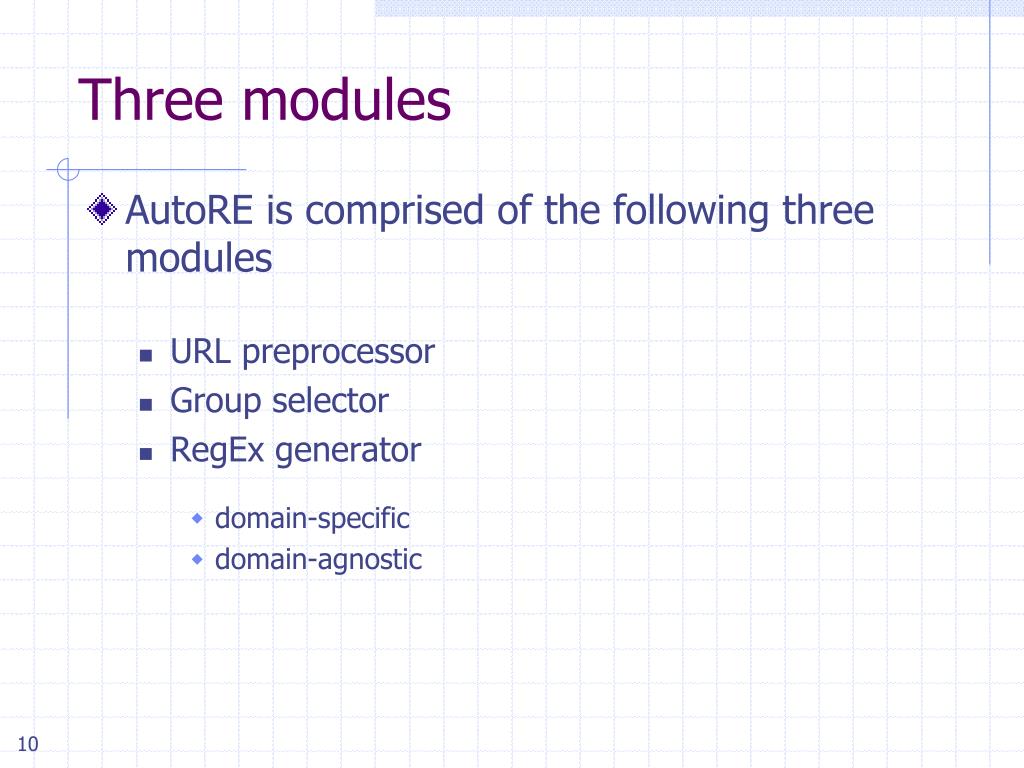

  10. Three modules • AutoRE is comprised of the following three modules • URL preprocessor • Group selector • RegEx generator • domain-specific • domain-agnostic

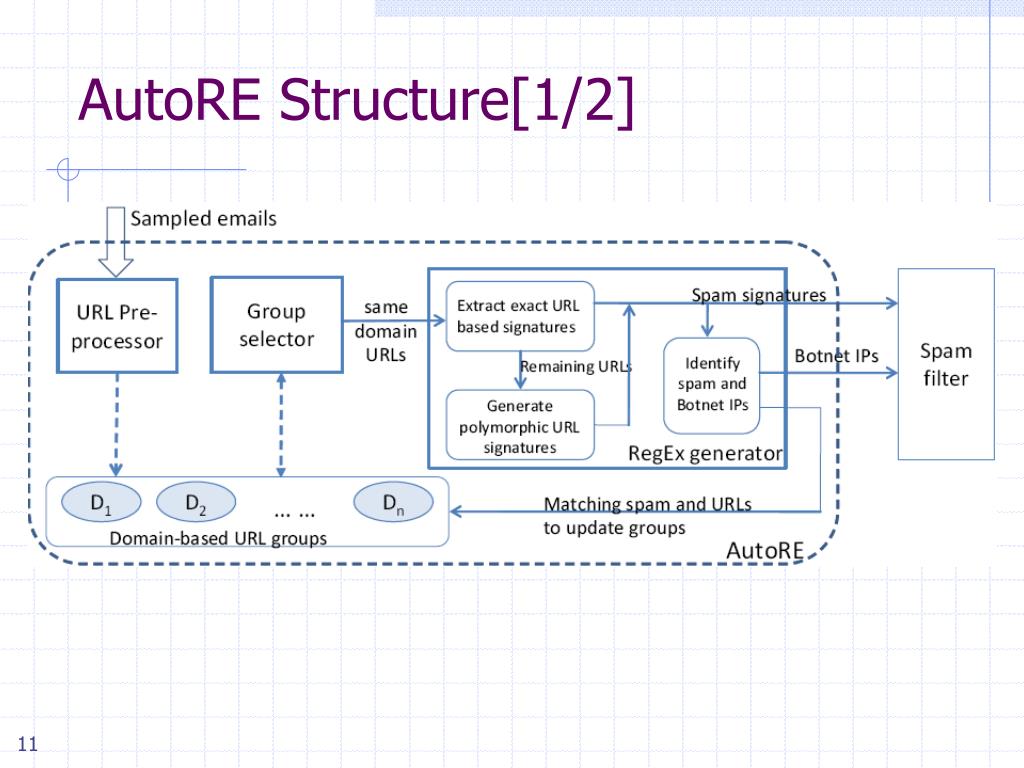

  11. AutoRE Structure[1/2]

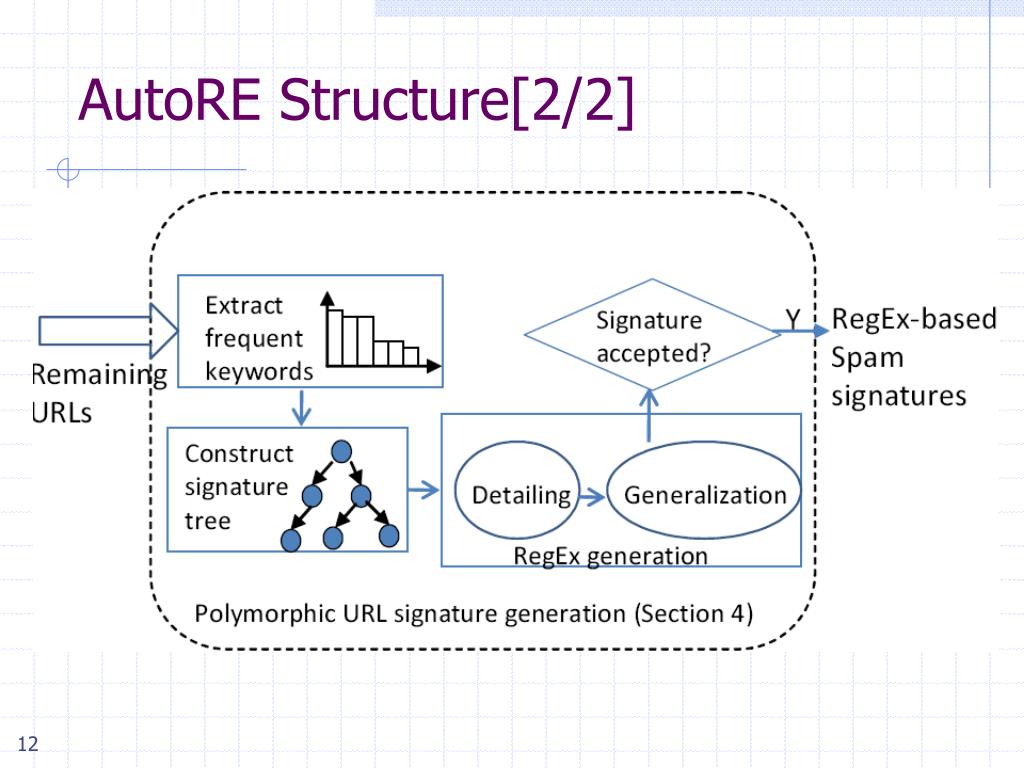

  12. AutoRE Structure[2/2]

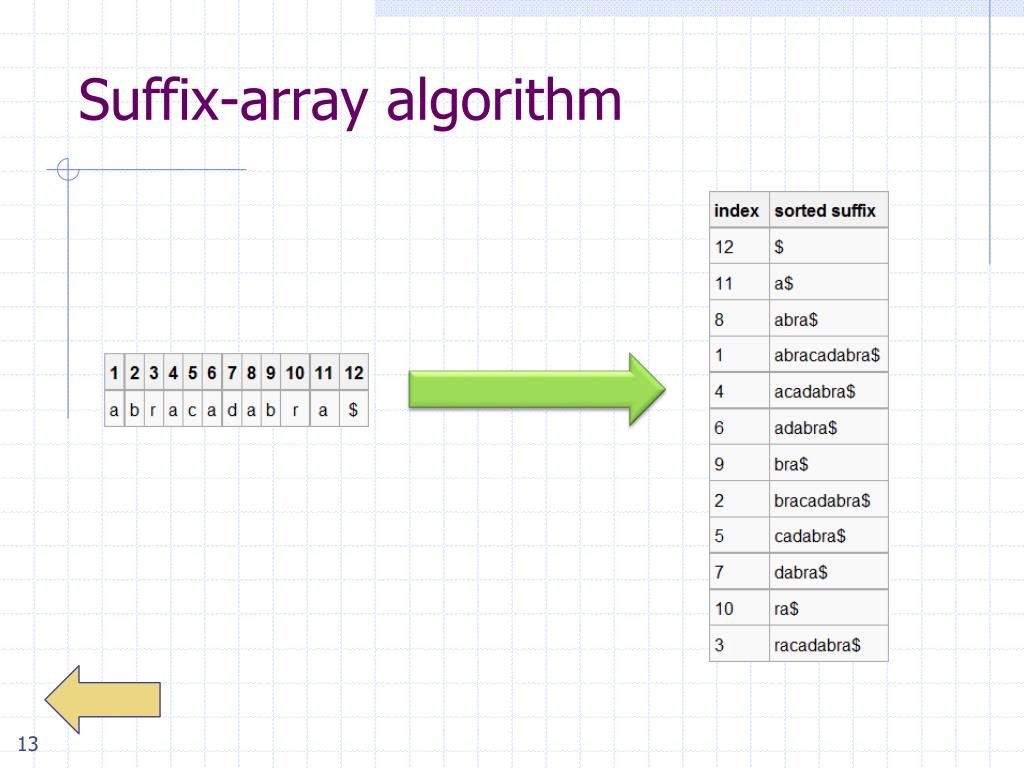

  13. Suffix-array algorithm

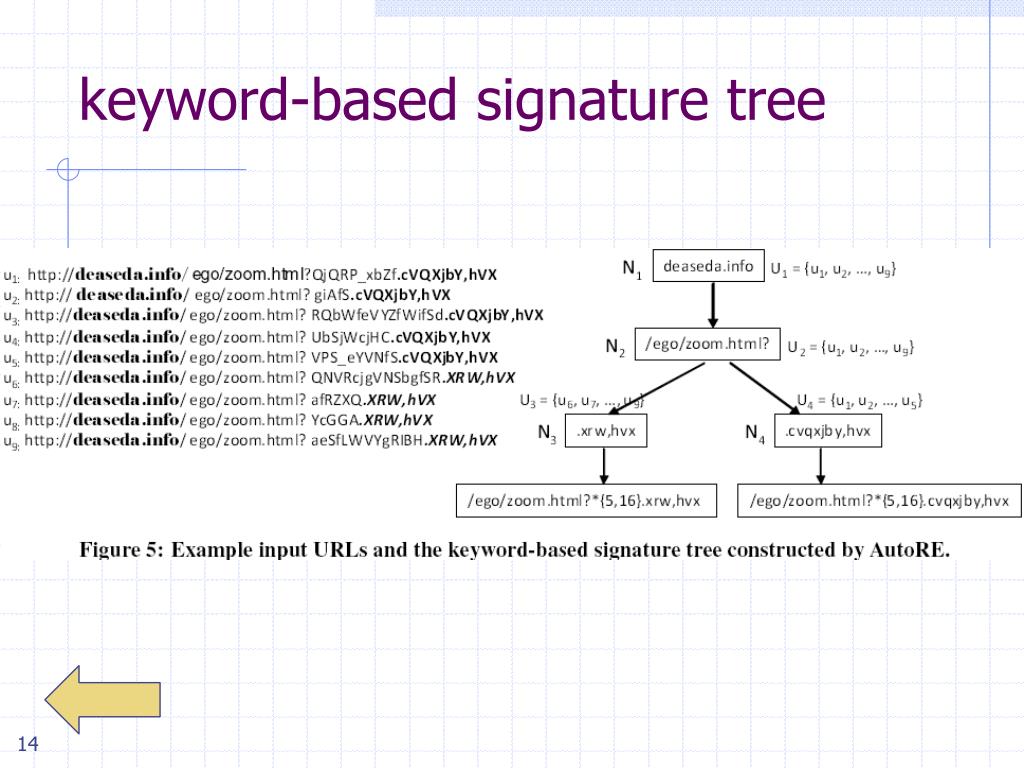

  14. keyword-based signature tree

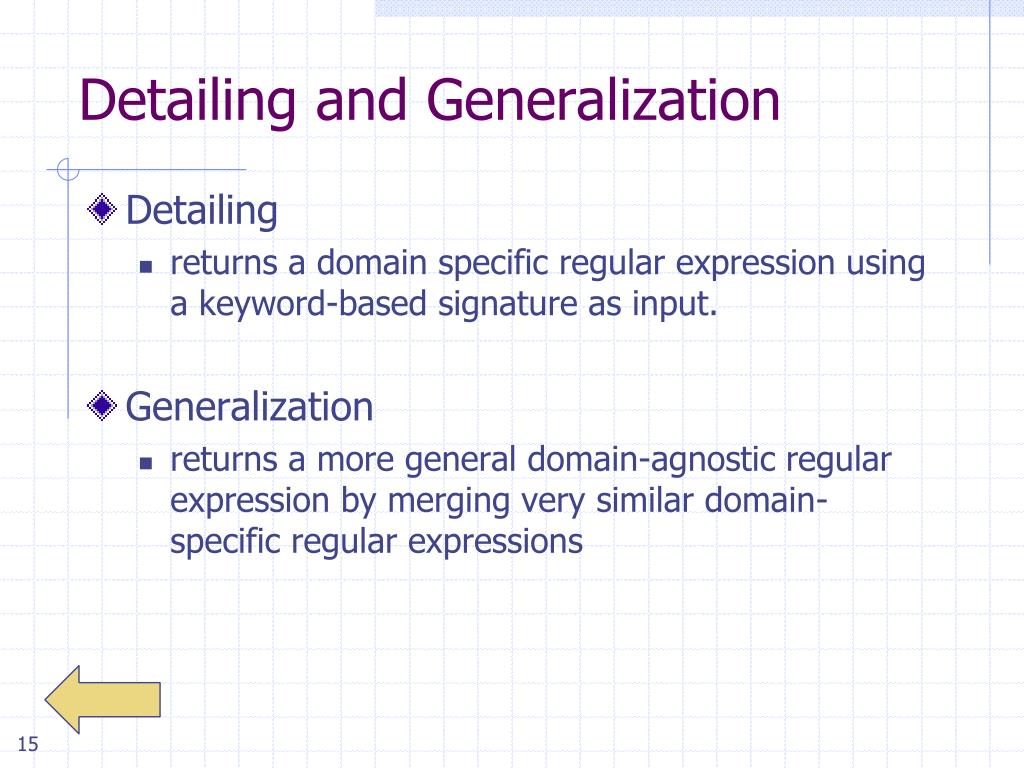

  15. Detailing and Generalization • Detailing • returns a domain specific regular expression using a keyword-based signature as input. • Generalization • returns a more general domain-agnostic regular expression by merging very similar domain-specific regular expressions

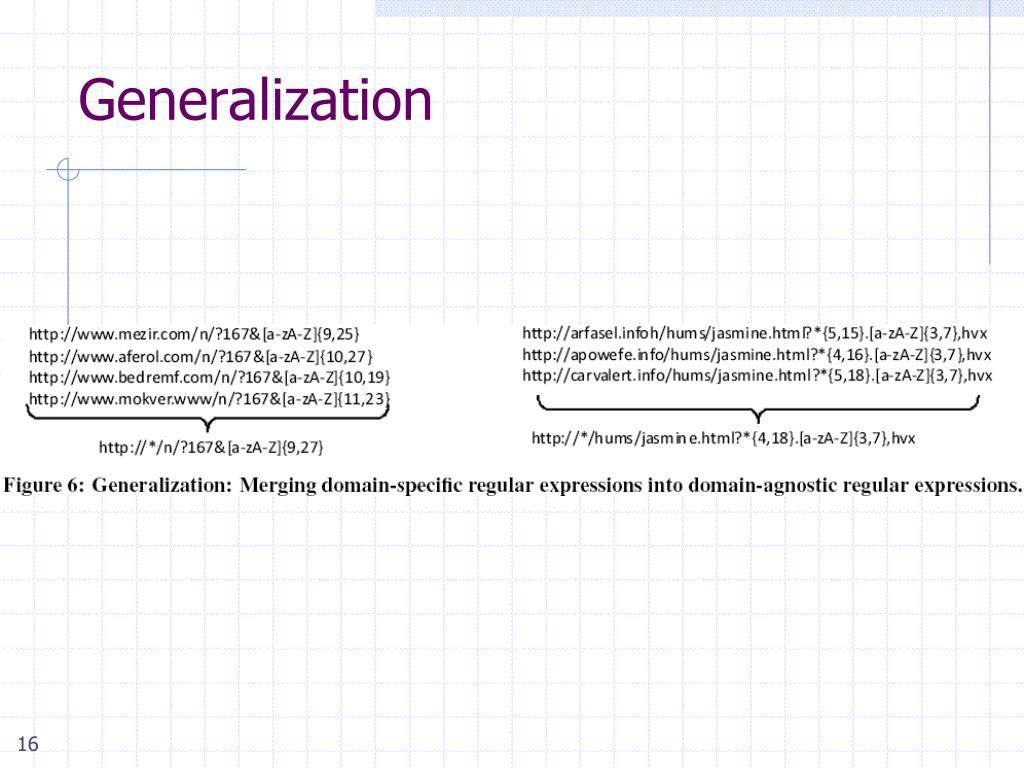

  16. Generalization

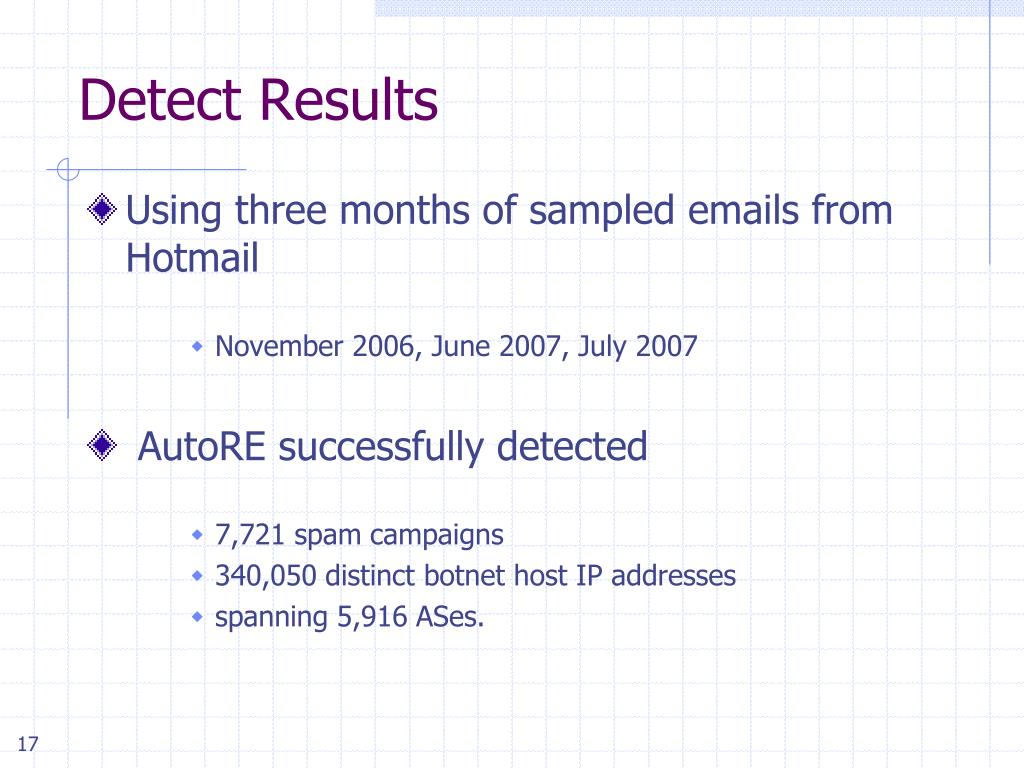

  17. Detect Results • Using three months of sampled emails from Hotmail • November 2006, June 2007, July 2007 • AutoRE successfully detected • 7,721 spam campaigns • 340,050 distinct botnet host IP addresses • spanning 5,916 ASes.

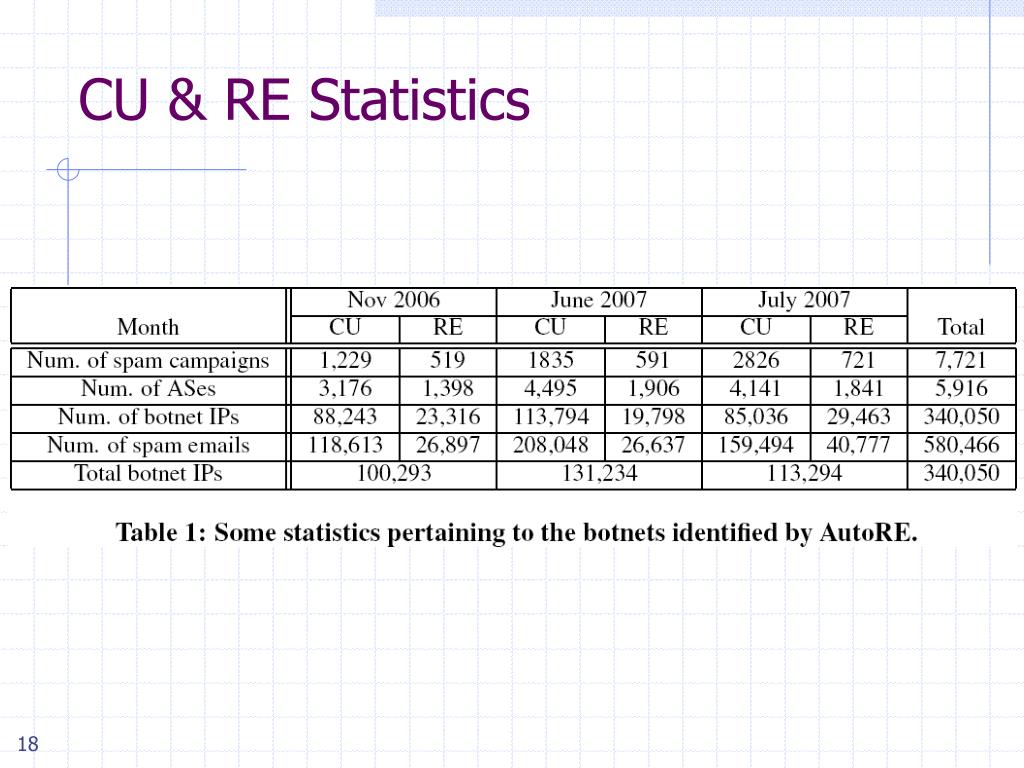

  18. CU& RE Statistics

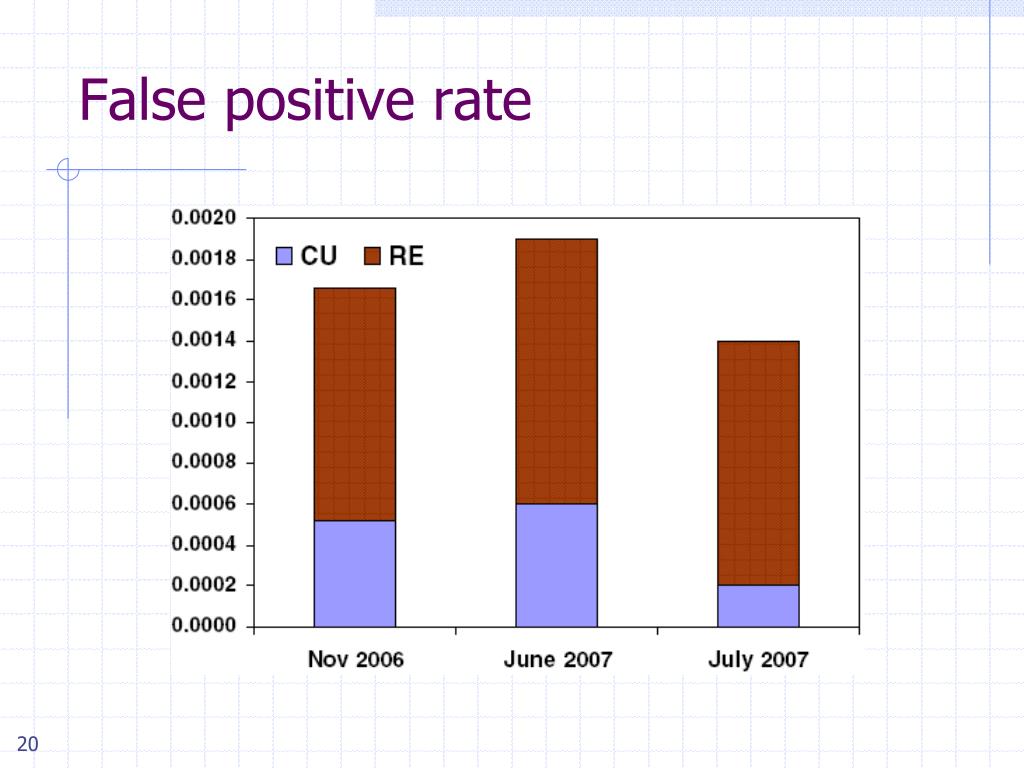

  19. False positive rate

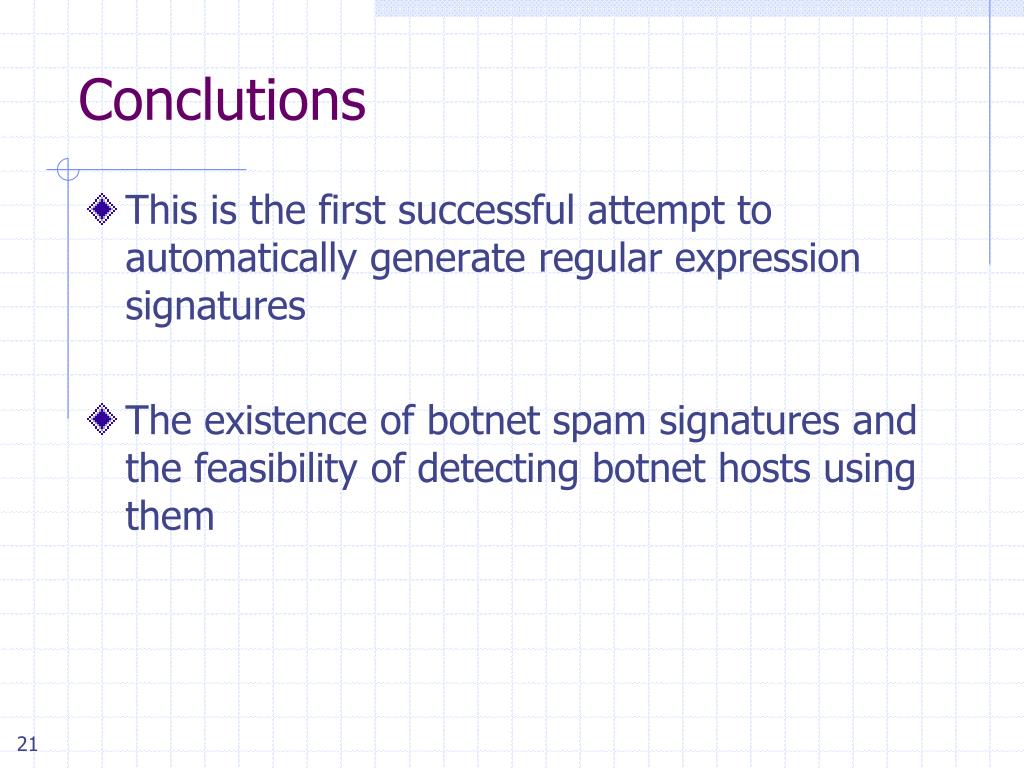

  20. Conclutions • This is the first successful attempt to automatically generate regular expression signatures • The existence of botnet spam signatures and the feasibility of detecting botnet hosts using them

  21. Questions
