This chapter discusses the efficient importation of geometry for analysis in ANSYS, focusing on methods to integrate existing CAD designs rather than recreating them from scratch. It explores various import options, including IGES imports, which provide methods such as No Defeaturing for faster processing or Defeaturing for more detail management. Users can utilize Connection Products for direct import from specific CAD packages. A hands-on workshop is included to facilitate learning the importing process in ANSYS, emphasizing steps, available options, and best practices.

Efficient Importing of Geometry in ANSYS: Options and Methods Overview - slide 1
01 / 16Efficient Importing of Geometry in ANSYS: Options and Methods Overview
1 / 17

Télécharger la présentation

Efficient Importing of Geometry in ANSYS: Options and Methods Overview
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Module 8 Importing Geometry

  2. Importing GeometryOverview • If the geometry of the part you want to analyze has already been created in a CAD package, it is generally more efficient to import it into ANSYS than to re-create it. • In this chapter, we will discuss the various import options available in ANSYS: A. IGES Imports — expands on IGES importing, which was covered briefly in Chapter 4. B. Connection Products — shows how to import parts directly from certain CAD packages. C. F.E. Model Imports — briefly explains how to import nodes and elements. D. Workshop — a hands-on exercise on importing. January 30, 2001 Inventory #001441 8-2

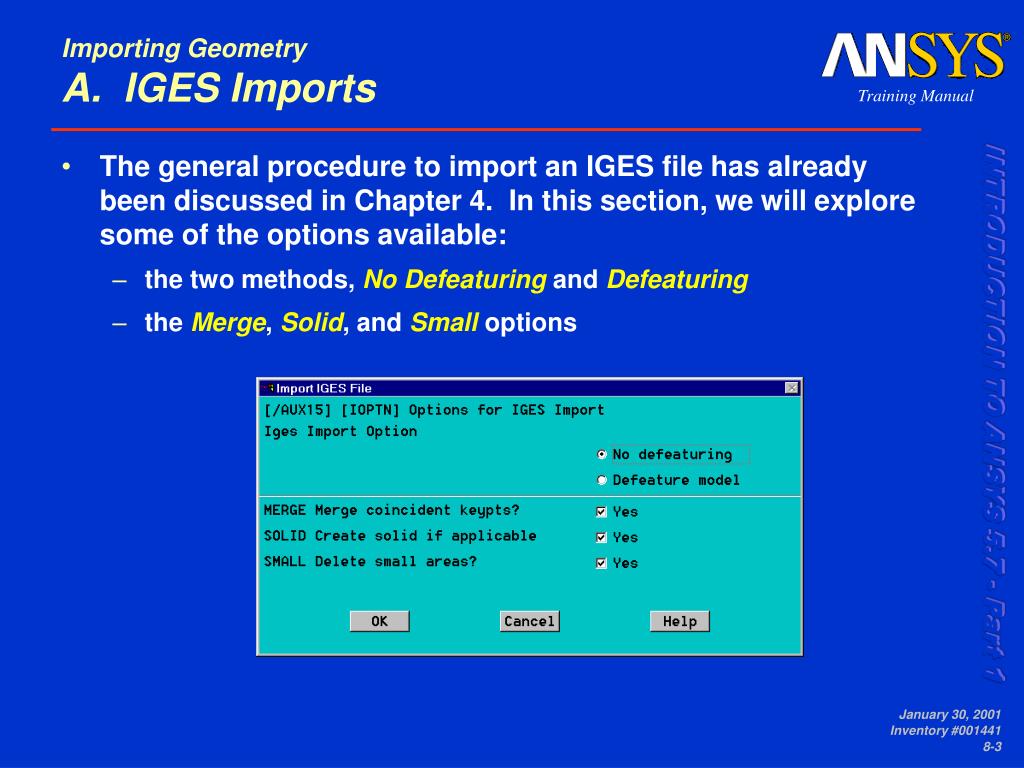

  3. Importing GeometryA. IGES Imports • The general procedure to import an IGES file has already been discussed in Chapter 4. In this section, we will explore some of the options available: • the two methods, No Defeaturing and Defeaturing • the Merge, Solid, and Small options January 30, 2001 Inventory #001441 8-3

  4. Importing Geometry...IGES Imports • No Defeaturing Method — Imports and stores geometry in the standard ANSYS database. [ioptn,iges,nodefeat] • Faster and more reliable than the Defeaturing method. • Allows the full set of solid model operations. • No defeaturing tools are available. • This is the DEFAULT and recommended method. January 30, 2001 Inventory #001441 8-4

  5. Importing Geometry...IGES Imports • Defeaturing Method — Imports and stores geometry in a special database that allows you to repair and defeature the model. [ioptn,iges,defeat] • Ability to defeature, i.e, to remove minor details such as protrusions, cavities, and small holes. • Because of the special database used to store geometry, only a limited number of solid model operations are available. • Generally requires more memory and is somewhat slower than the “No defeaturing” method. • This method is efficient for single solid models that will be imported, loaded, meshed and solved. • In general, it is NOT recommended when advanced geometry capabilities are required. January 30, 2001 Inventory #001441 8-5

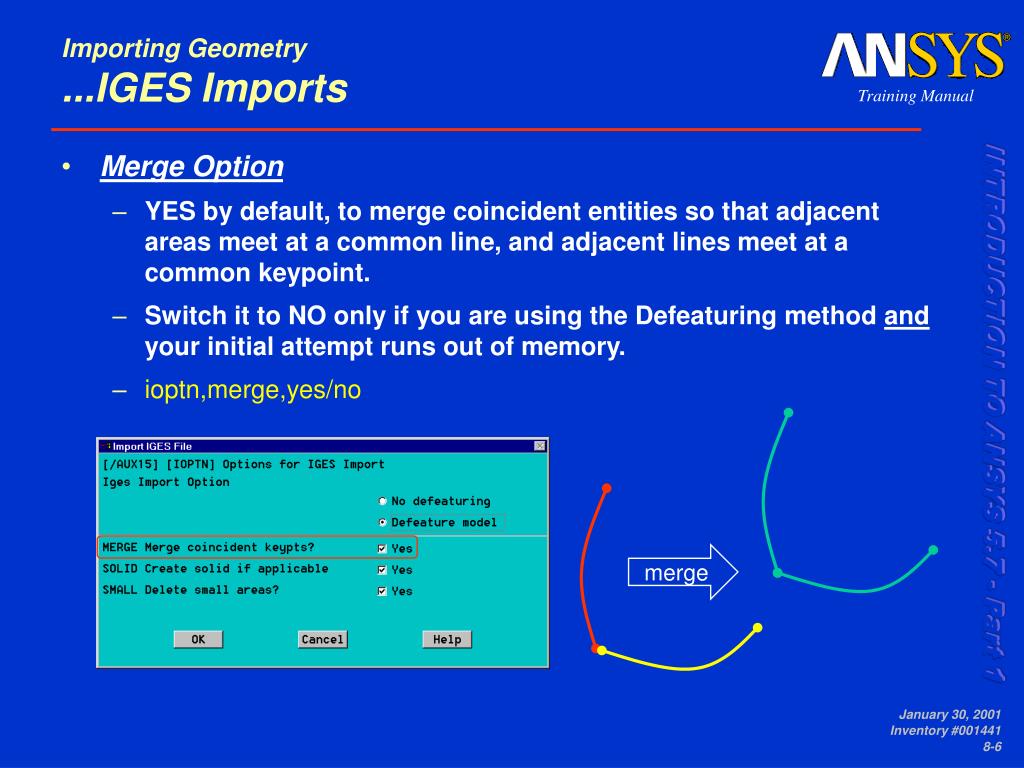

  6. Importing Geometry...IGES Imports • Merge Option • YES by default, to merge coincident entities so that adjacent areas meet at a common line, and adjacent lines meet at a common keypoint. • Switch it to NO only if you are using the Defeaturing method and your initial attempt runs out of memory. • ioptn,merge,yes/no merge January 30, 2001 Inventory #001441 8-6

  7. Importing Geometry...IGES Imports • Solid Option • YES default, to automatically create a volume (solid) after importing and merging. • Switch it to NO if you want to import surfaces only and create a shell or 2-D plane model. • ioptn,solid,yes/no January 30, 2001 Inventory #001441 8-7

  8. Importing Geometry...IGES Imports • Small Option • YES by default, to automatically delete small, sliver-like areas that might be troublesome for meshing. • Available only for the Defeature method. • Switch it to NO if you find gaps or “holes” in the model. • ioptn,small,yes/no January 30, 2001 Inventory #001441 8-8

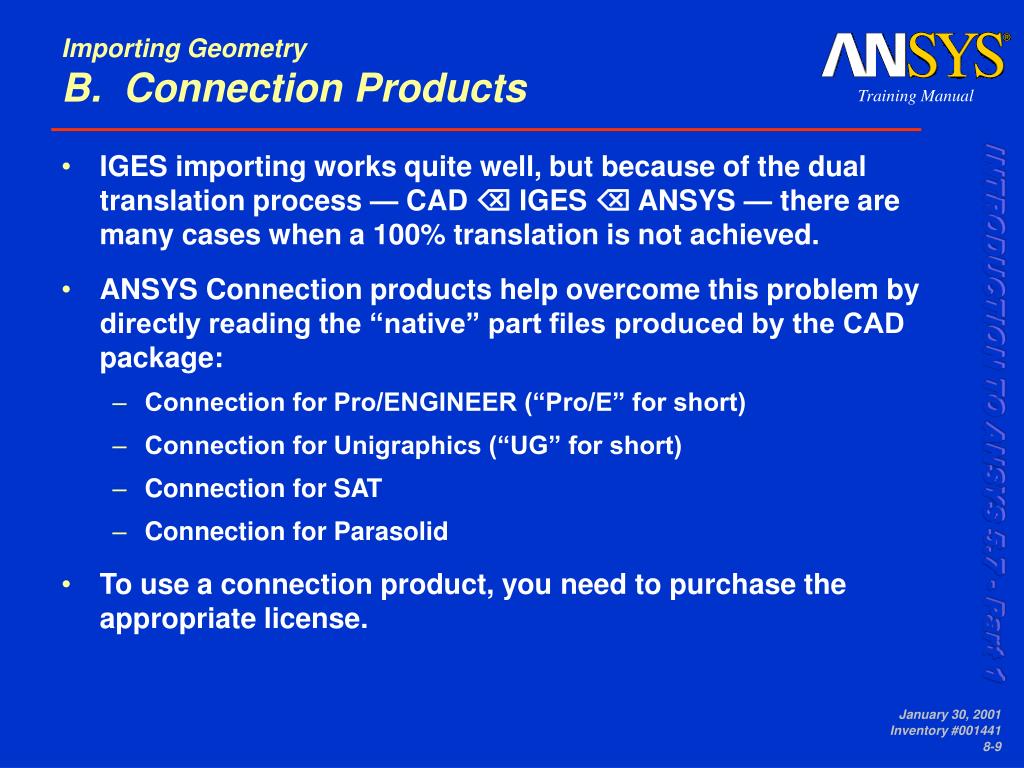

  9. Importing GeometryB. Connection Products • IGES importing works quite well, but because of the dual translation process — CAD  IGES  ANSYS — there are many cases when a 100% translation is not achieved. • ANSYS Connection products help overcome this problem by directly reading the “native” part files produced by the CAD package: • Connection for Pro/ENGINEER (“Pro/E” for short) • Connection for Unigraphics (“UG” for short) • Connection for SAT • Connection for Parasolid • To use a connection product, you need to purchase the appropriate license. January 30, 2001 Inventory #001441 8-9

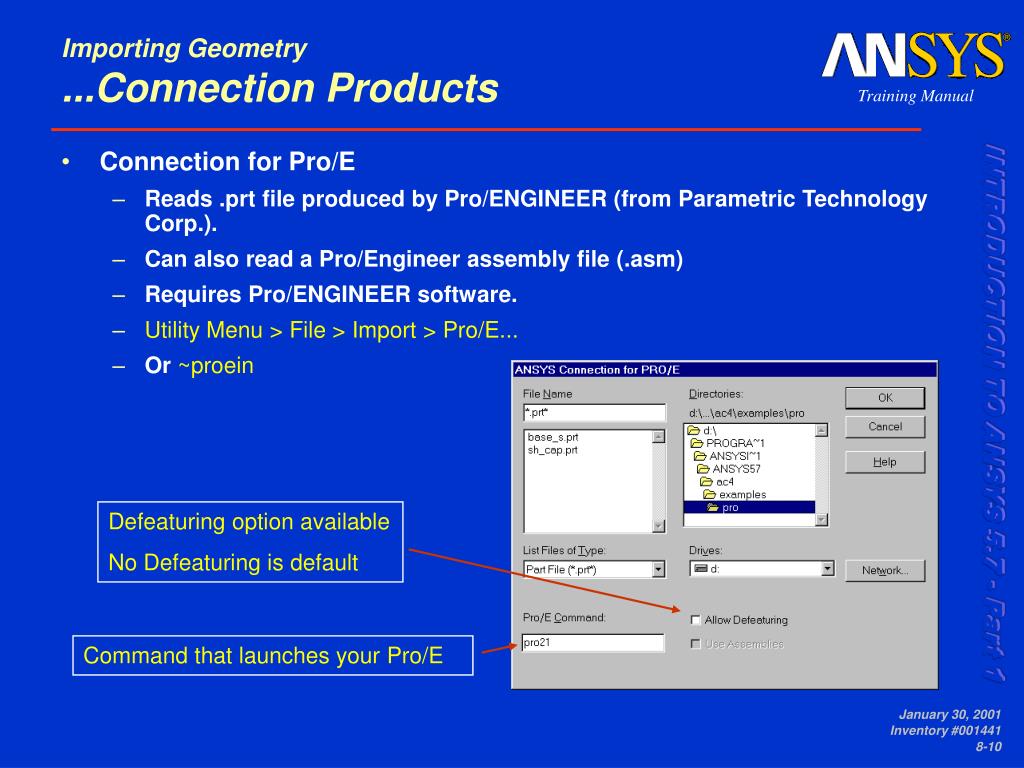

  10. Importing Geometry...Connection Products • Connection for Pro/E • Reads .prt file produced by Pro/ENGINEER (from Parametric Technology Corp.). • Can also read a Pro/Engineer assembly file (.asm) • Requires Pro/ENGINEER software. • Utility Menu > File > Import > Pro/E... • Or ~proein Defeaturing option available No Defeaturing is default Command that launches your Pro/E January 30, 2001 Inventory #001441 8-10

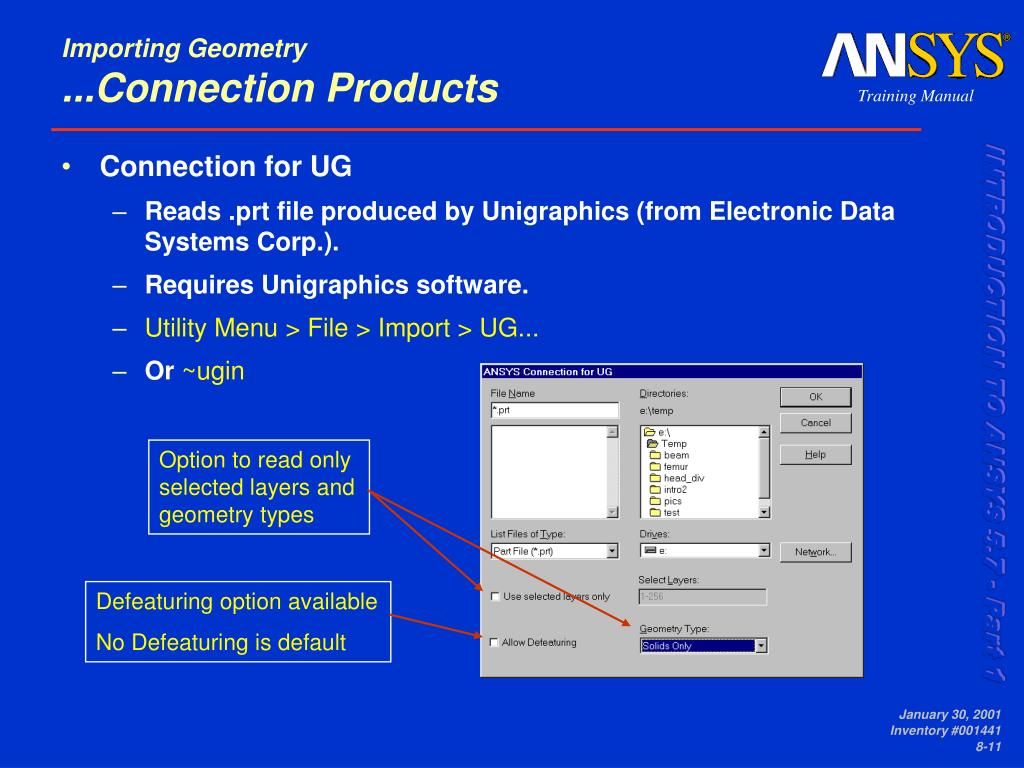

  11. Option to read only selected layers and geometry types Defeaturing option available No Defeaturing is default Importing Geometry...Connection Products • Connection for UG • Reads .prt file produced by Unigraphics (from Electronic Data Systems Corp.). • Requires Unigraphics software. • Utility Menu > File > Import > UG... • Or ~ugin January 30, 2001 Inventory #001441 8-11

  12. Option to read only selected geometry types Defeaturing option available No Defeaturing is default Importing Geometry...Connection Products • Connection for SAT • Reads .sat file produced by CAD packages that use the ACIS modeler. • Does not require ACIS software. • Utility Menu > File > Import > SAT... • Or ~satin January 30, 2001 Inventory #001441 8-12

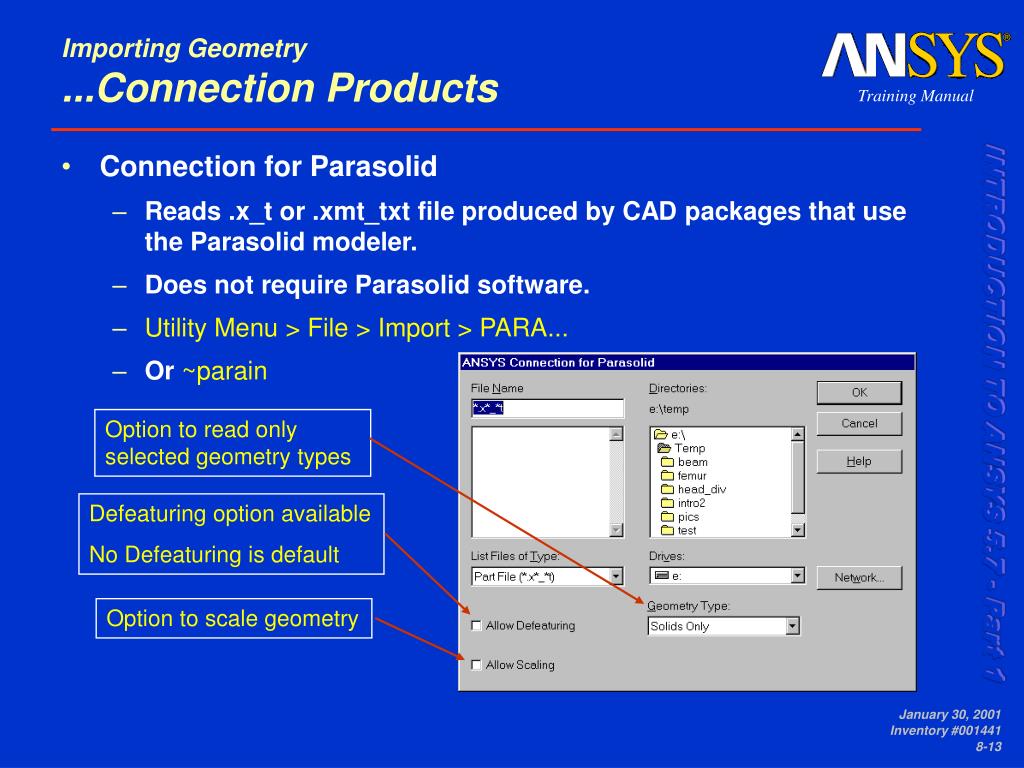

  13. Option to read only selected geometry types Defeaturing option available No Defeaturing is default Option to scale geometry Importing Geometry...Connection Products • Connection for Parasolid • Reads .x_t or .xmt_txt file produced by CAD packages that use the Parasolid modeler. • Does not require Parasolid software. • Utility Menu > File > Import > PARA... • Or ~parain January 30, 2001 Inventory #001441 8-13

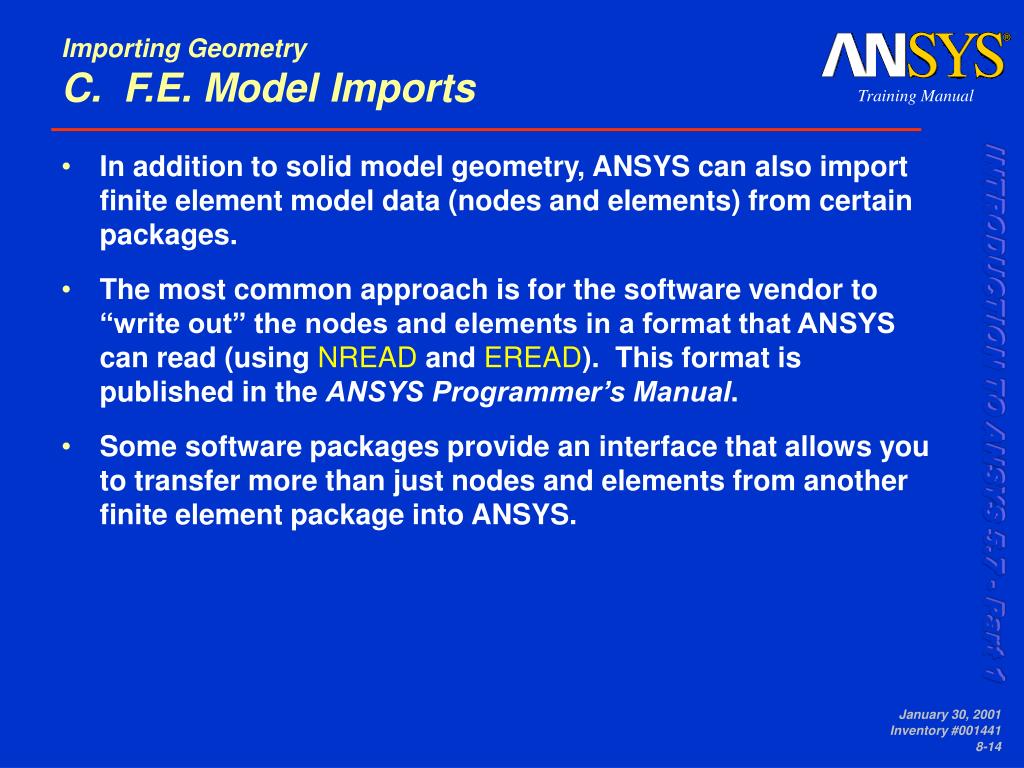

  14. Importing GeometryC. F.E. Model Imports • In addition to solid model geometry, ANSYS can also import finite element model data (nodes and elements) from certain packages. • The most common approach is for the software vendor to “write out” the nodes and elements in a format that ANSYS can read (using NREAD and EREAD). This format is published in the ANSYS Programmer’s Manual. • Some software packages provide an interface that allows you to transfer more than just nodes and elements from another finite element package into ANSYS. January 30, 2001 Inventory #001441 8-14

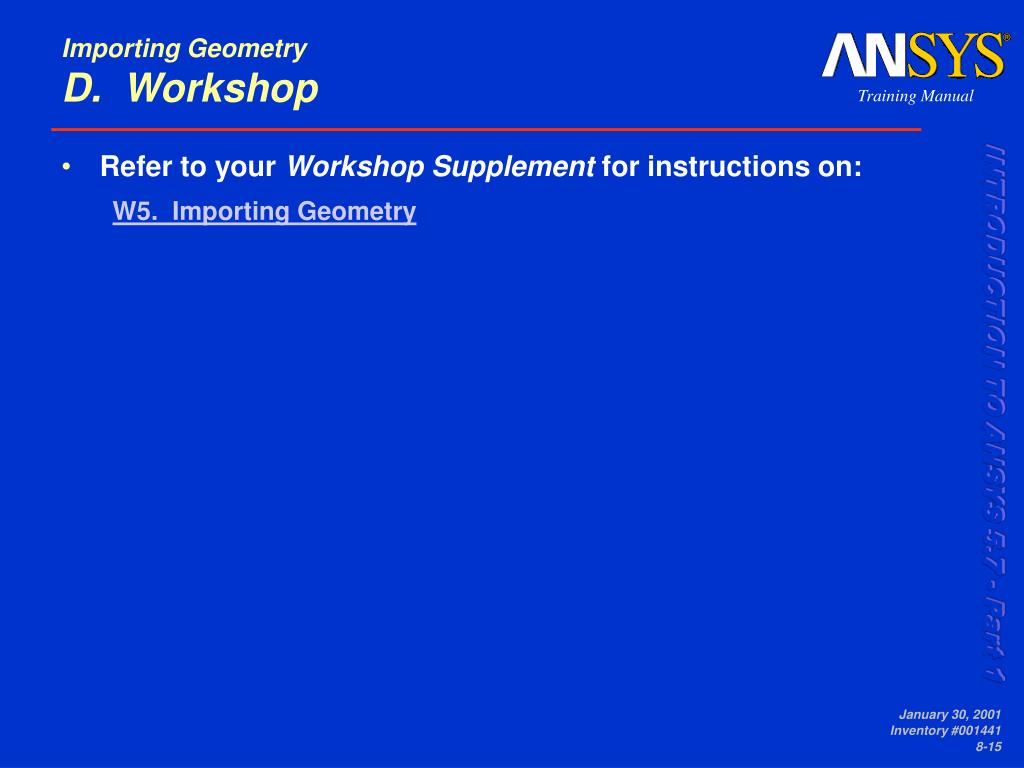

  15. Importing GeometryD. Workshop • Refer to your Workshop Supplement for instructions on: W5. Importing Geometry January 30, 2001 Inventory #001441 8-15
