  1. Bart van Greevenbroek Hierarchical Model for Real Time Simulation of Virtual HumanCrowds

  2. Overview • Article • Authors • ViCrowd • Experiments • Assessment

  3. The Authors SoraiaRauppMusse Daniel Thalmann

  4. The Article • Published in 2001 • Cited 229 times • Cited by “Finding Paths for Coherent Groups Using clearance” (no 6 on our list) by Arno kamphuis and Mark Overmars

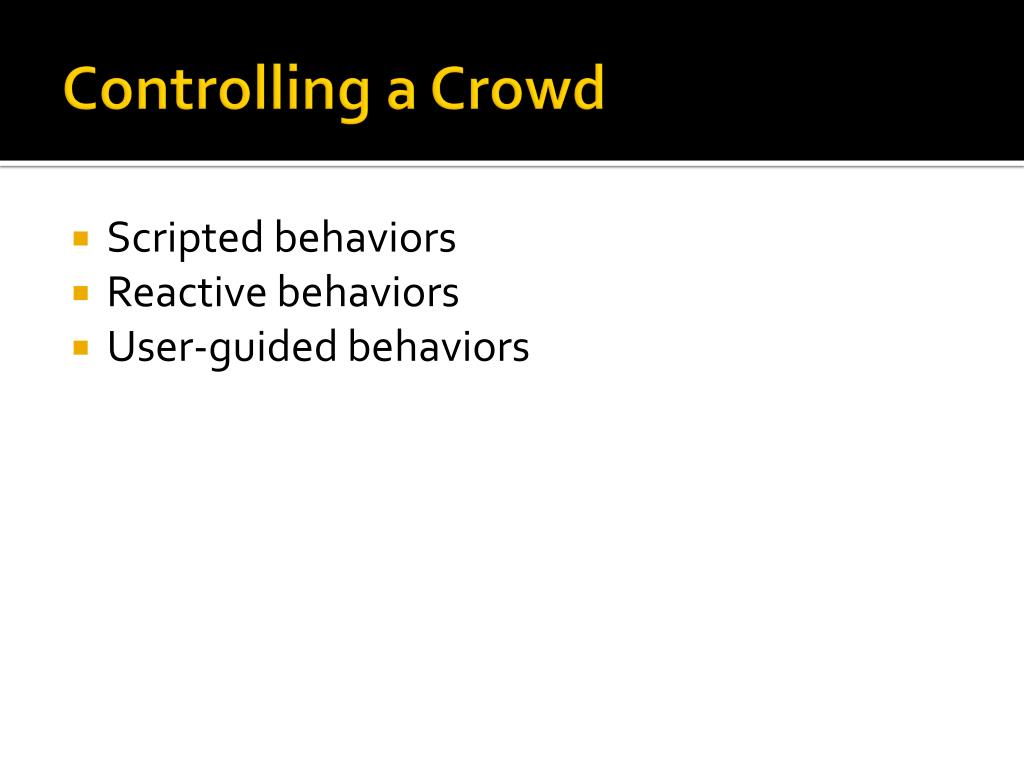

  5. Controlling a Crowd • Scripted behaviors • Reactive behaviors • User-guided behaviors

  6. Hierarchy

  7. ViCrowd • Behavioral based multi-level framework • Used to simulate crowds in real time • Script-based language.

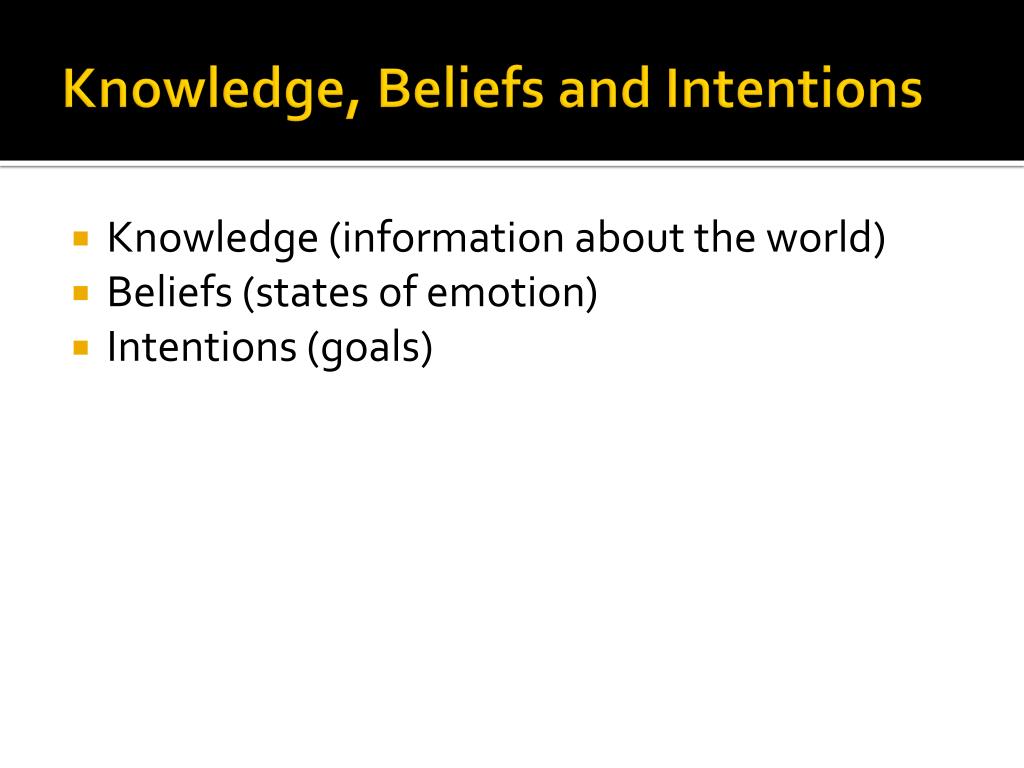

  8. Knowledge, Beliefs and Intentions • Knowledge (information about the world) • Beliefs (states of emotion) • Intentions (goals)

  9. Events • Can change the knowledge, beliefs or intentions of an agent • And thus the behavior • Example: A door closes, the knowledge that the door closes changes, agents will not go through that door. • Example: A bomb goes off, agents within a radius panic, and behavior is altered.

  10. Main Problems • Modeling of crowd information, also concerning the distribution of groups • Different levels of realism • Required Structure to provide interaction between groups of agents in real time

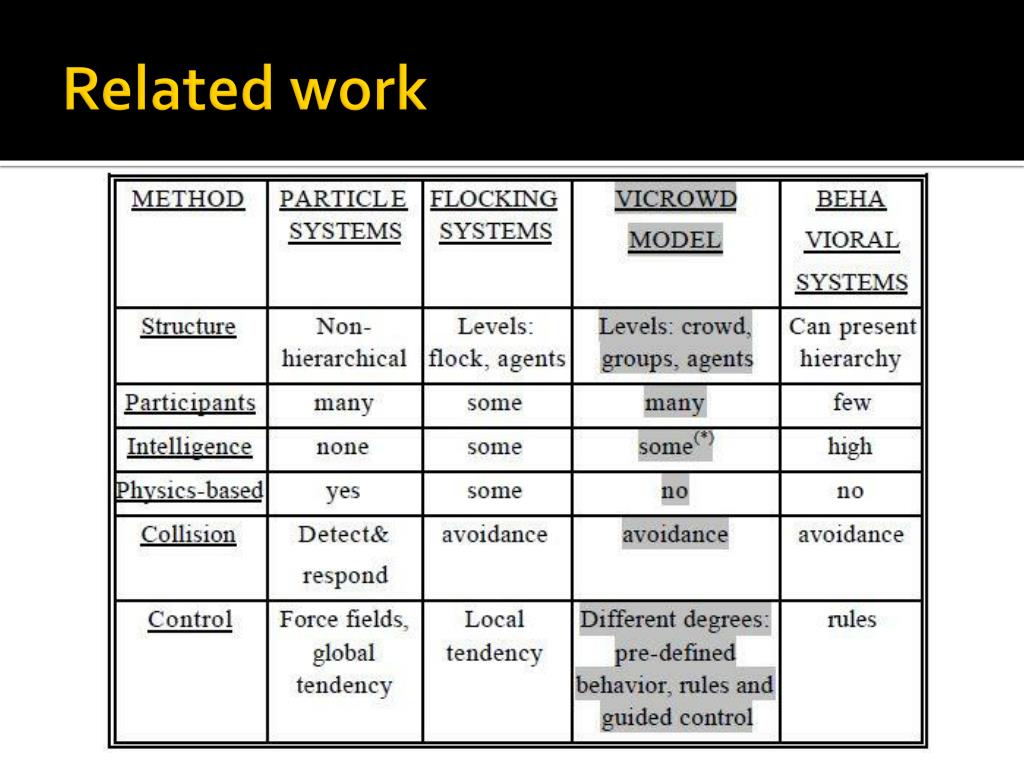

  11. Related work

  12. Different Types of Crowd Control

  13. Priority

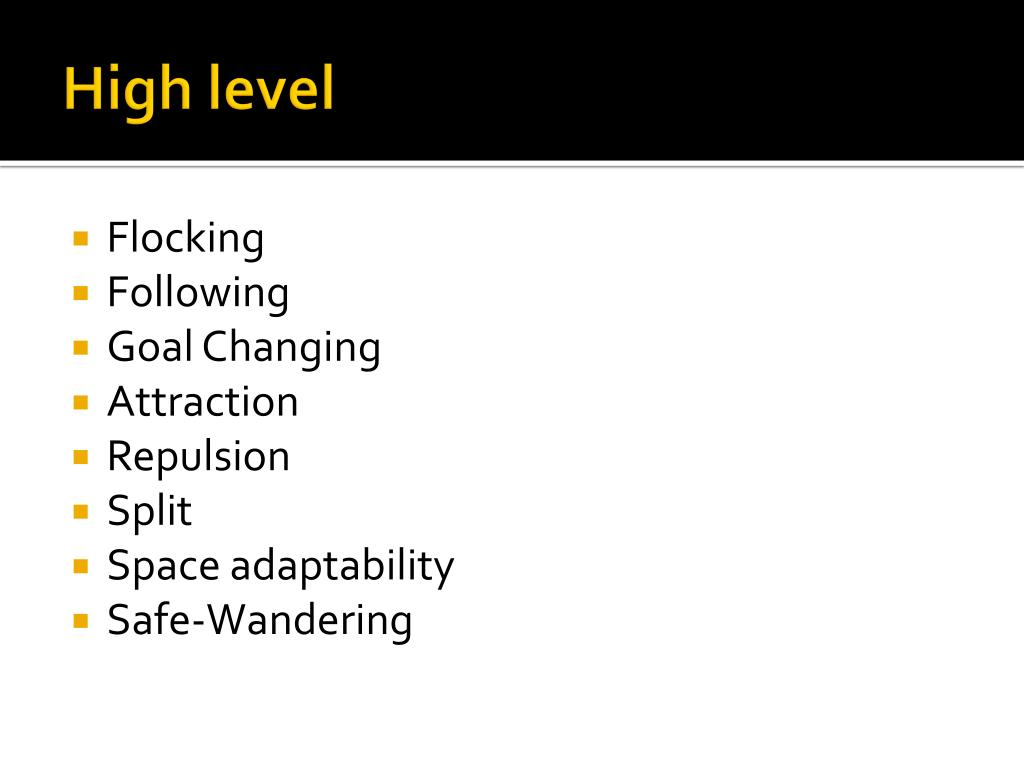

  14. High level • Flocking • Following • Goal Changing • Attraction • Repulsion • Split • Space adaptability • Safe-Wandering

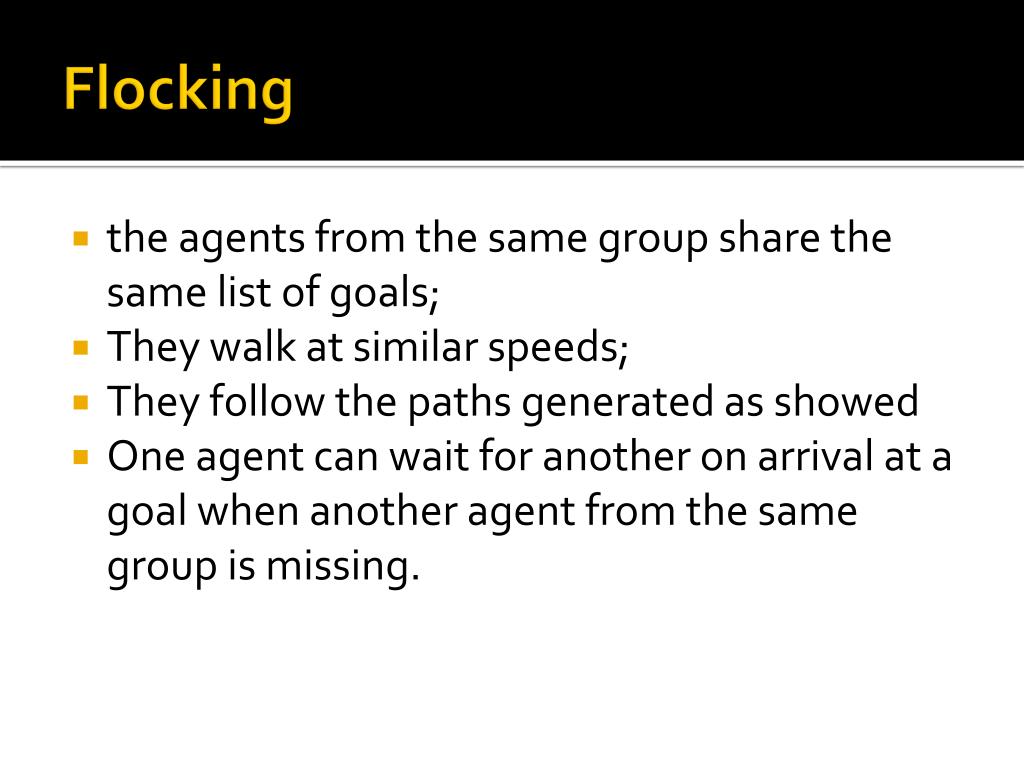

  15. Flocking • the agents from the same group share the same list of goals; • They walk at similar speeds; • They follow the paths generated as showed • One agent can wait for another on arrival at a goal when another agent from the same group is missing.

  16. Following • A group can follow another group by sharing the same goals, either temporary or permanently.

  17. Goal Changing • Agents can change groups, and this is influenced by the relationship value with each agent in the group (value between 0 and 1) • Agents have a leadership ability value, which is also taken into account • If an agent has a higher relationship with another group, it will join that group. If the leadership value is high enough

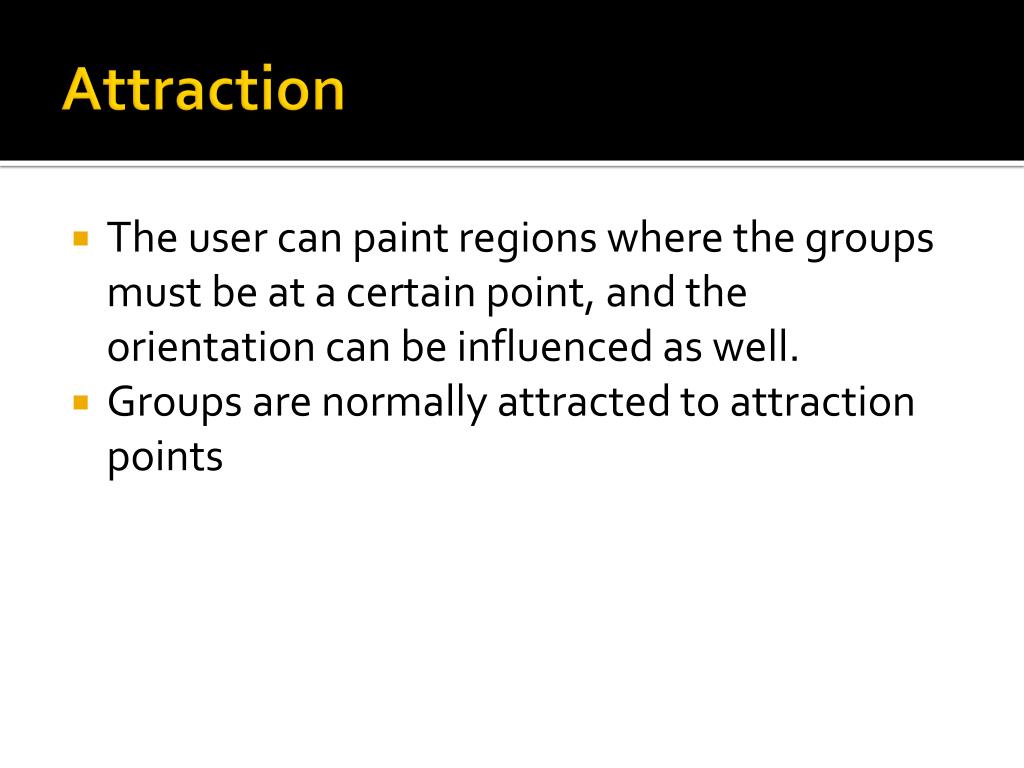

  18. Attraction • The user can paint regions where the groups must be at a certain point, and the orientation can be influenced as well. • Groups are normally attracted to attraction points

  19. Repulsion • Groups are repulsed by obstacles and each other (similar to the social force model)

  20. Split • Groups can split randomly

  21. Space Adaptability • The group wants to occupy all the walking space, using a bezier curve:

  22. Safe-Wandering • Using a procedural method, the agents predict collisions using collision detection between two lines

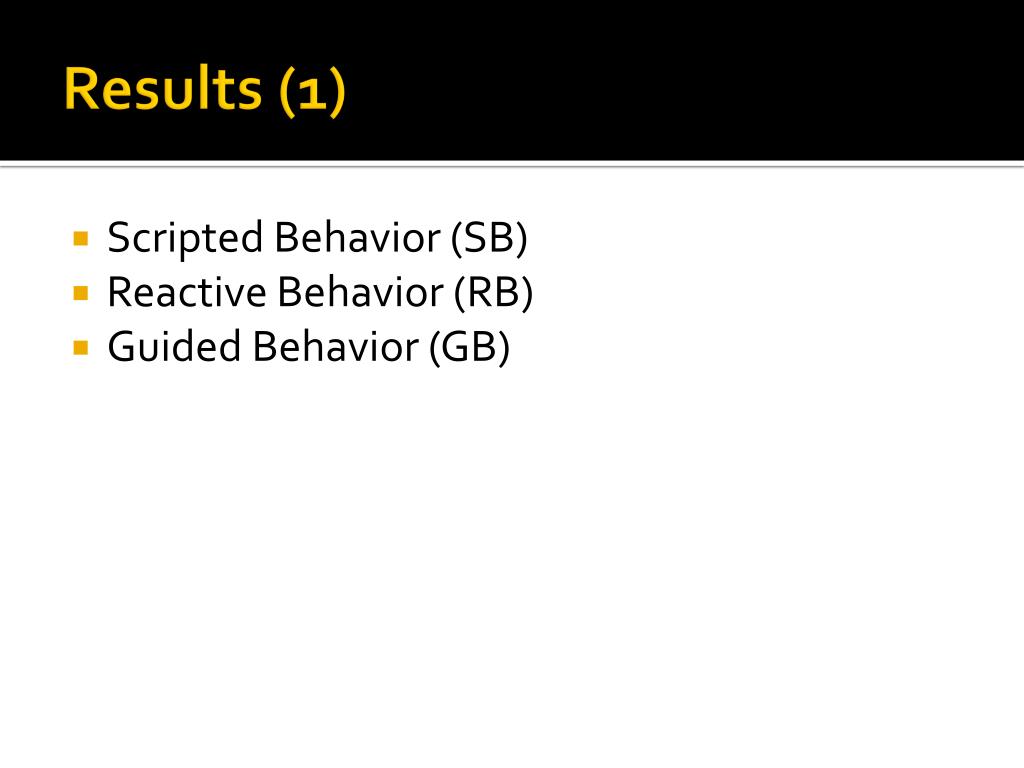

  23. Results (1) • Scripted Behavior (SB) • Reactive Behavior (RB) • Guided Behavior (GB)

  24. Results (2)

  25. Results (3)

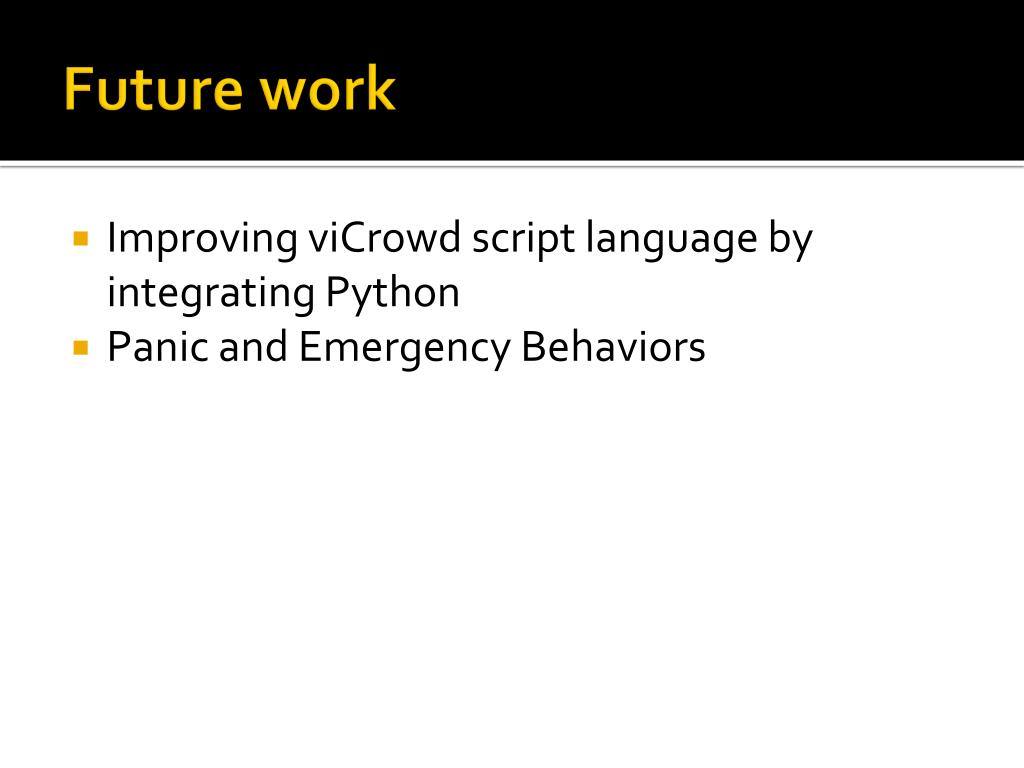

  26. Future work • Improving viCrowd script language by integrating Python • Panic and Emergency Behaviors

  27. The Good • High level of compatibility with other methods • Very flexible system • User has control over groups if needed • Groups are essential for a realistic crowd, so its good to focus on groups • Knowledge, Beliefs and Intentions is a well-known paradigm in the AI field

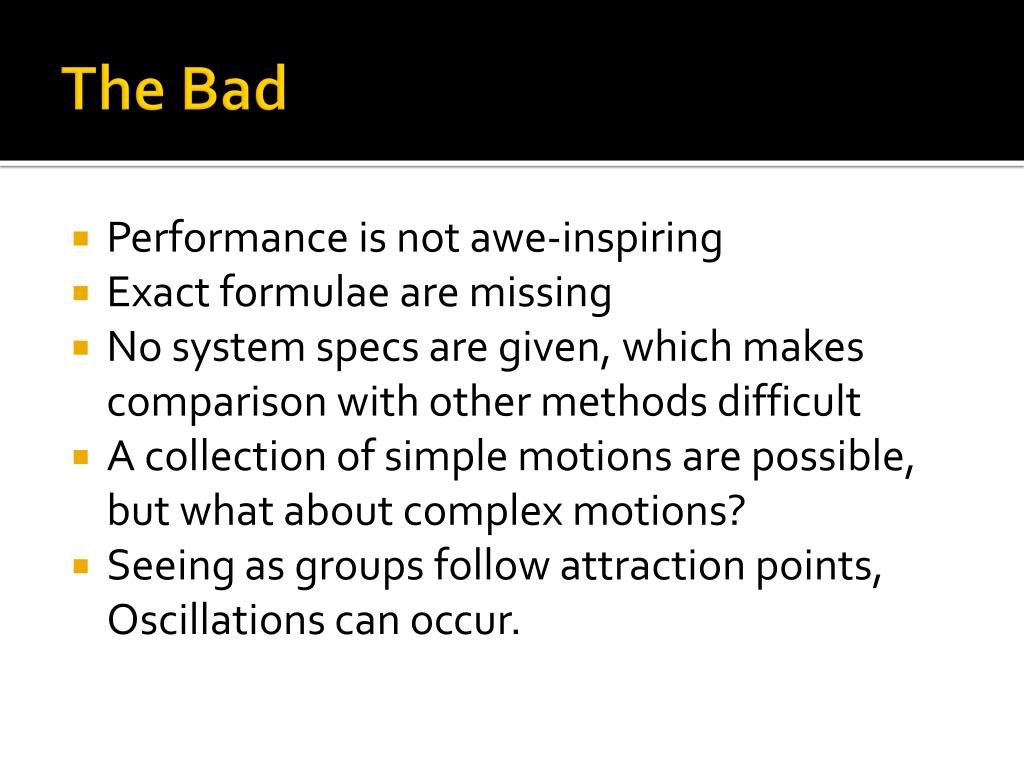

  28. The Bad • Performance is not awe-inspiring • Exact formulae are missing • No system specs are given, which makes comparison with other methods difficult • A collection of simple motions are possible, but what about complex motions? • Seeing as groups follow attraction points, Oscillations can occur.

  29. The ugly • The site with examples they mentioned, does not work. • Figures are sloppy, some text is cut off. • Meaningless pictures. If something is happening in the experiment involving motions, draw arrows or make the motion obvious. • In general, they go all over the place.
