Neural Plasticity: From Homeostasis to Speech

1. Neural Plasticity: From Homeostasis to Speech Mike Kilgard Associate Professor University of Texas at Dallas

3. What is neural plasticity good for?

4. Neural Plasticity as Homeostasis. Turrigiano, 2004

5. Lidocaine Wash Block Inhibition After Two Days Turrigiano, 2004

6. INCREASE ACTIVITY DECREASE ACTIVITY Weaken Excitatory Synapses Strengthen Inhibitory Synapses Strengthen Excitatory Synapses Weaken Inhibitory Synapses Turrigiano, 2004

7. Neural Plasticity as Electrician.

8. Neural Plasticity as Electrician. Hubel and Wiesel, 1970

9. Visual Cortex Hubel et al,Nature, 1982

10. After removal of C row whiskers P1 P2 Somatosensory Cortex P3 Schlaggar et al, Nature, 1993

11. Auditory Cortex de Villers-Sidani, et al. J. Neurosci. 2007

12. Is the young brain more plastic? - or - Is plasticity just less tightly regulated in the young?

13. Best Frequency NB Recanzone and Merzenich, J. Neuroscience. 1993 Science, 1998 Kilgard and Merzenich, Science. 1998

14. Can unregulated plasticity put the young brain at risk?

15. Noise Reared Age Control 16 days 19 days 22 days Zhang, et al., PNAS, 2002 80 days

16. Naïve Noise Reared Zhou and Merzenich,PNAS, 2008

17. Similar temporal processing and cortical map disturbances • are caused by • - perinatal anoxia or • perinatal environmental toxins • - polychlorinated biphenyls (PCBs) Strata, et al., PNAS, 2005 Kenet, et al., PNAS, 2007

18. One in twenty children cannot effectively process the basic elements of speech.

19. Primary Auditory Cortex Response to Speech Sounds Engineer and Kilgard,Nature Neuroscience, 2008

20. Before Speech Therapy After Speech Therapy Callan, et. al. Neuroimage, 2003

21. Conclusions The brain is highly plastic. Modification of sensory experience and brain state is sufficient to reorganize neural networks for good (or for ill). Prediction In 20 years, plasticity will be routinely manipulated for the treatment of neurological and psychiatric illness.

22. Brain Responses Da vs. Ga Normal Learning Impaired Kraus et al., Science 1996

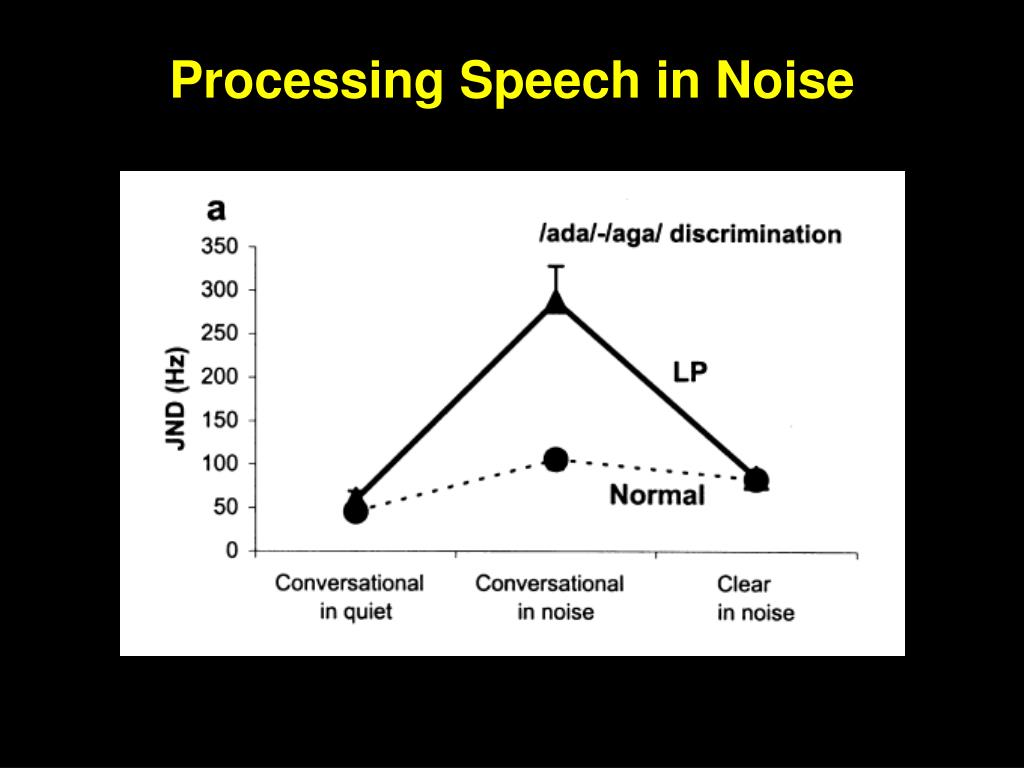

23. Processing Speech in Noise

24. Brain Responses to Speech in Noise

25. Molfese, Brain & Language, 2000 Infant brain responses may predict reading 8 years later.

26. Training Improves the Brain

27. Consonant Spectrograms Pad Bad Fad Vad Mad Wad Tad Dad Sad Zad Chad Jad Nad Lad Kad Gad Shad Had Yad Rad 0-600 ms 0-30 kHz

28. Inferior Colliculus Neurograms N=187 sites, 6 rats

29. A1 Neurograms N=441 sites, 11 rats Spatial Temporal

30. A1 Neurograms N=441 sites, 11 rats

31. Sad vs. Dad High Medium Low Time (milliseconds)

32. Speech Discrimination by Rats Dad or Sad Easy!

33. Rad vs. Lad High Impossible Medium Low Time (milliseconds)

34. Bad vs. Dad High Impossible using mean rate or Easy using spike timing? Medium Low

35. Rat Consonant Discrimination N=11 rats

36. Neural Discrimination Predicts Behavioral Discrimination R= 0.81 P= 0.002

37. Pediatric / Developmental Plasticity – Animal Studies Movie of neurons connecting What are they doing? Helping the brain survive, but how? Stability Turrigiano review Vision - Hubel Weisel Give population size two sides of the sword recent studies demonstrating critical period may be reopenable Auditory - Merzenich studies Give population size environment toxins recovery Is this limited to the young? No Recanzone, Kilgard, and Relate to clinic two key factors are knowing how to activate plasticity and how to direct plasticity speech processing Training benefits kids in many ways FFW plasticity trials Neville attention

38. Pediatric / Developmental Plasticity – Animal Studies Other speakers • Neural Plasticity in Animal Models • Brain Development and Plasticity • Limitations to Plasticity—Evidence From Epilepsy Studies • Limitations to Plasticity—Evidence From Neonatal Stroke Studies The developing brain is capable of a great deal of plasticity, with evidence for the ability to find alternate pathways of neural organization in the face of structural, genetic and developmental disorders. In this symposium, we will discuss animal and human studies of neural plasticity in the developing brain. We will then explore limitations to plasticity in pathological conditions, such as epilepsy and perinatal stroke. Finally, we will discuss potential interventions and neuroprotective therapies in the developing brain. Target Audience: Developmental pediatricians, behavioral pediatricians, child neurologists, neonatologists, neuroscientists, developmental biologists, but this should have wide interest for anyone in pediatrics.

39. What is Neural Plasticity?

42. Plasticity makes the young more resilient and more at risk / fragile.

43. Stimulating NB paired with different sounds alters: • Frequency Maps • - primary auditory cortex– Science, 1998 • - non-primary auditory cortex– J. Neurophys, 2007 • - subcortical structures– Suga, 2003 • Selectivity– Science, 1998 • Sensitivity– J. Neurophys, 2001 • Temporal Processing– Nature Neuroscience, 1998 • Sequence Selectivity, and– PNAS, 2001 • Synchrony– Hearing Research, 2007 • for more than a month.– unpublished
