CL-33 Control Box

Terminal Strip. In-Line Terminal Strip at Top Of Tower. Quick Disconnect. CCC Rotor Box 1. CL-33 Control Box. Ham IV. Belden 8 conductor cable. 1 Blk 2 Red 3 Blu 4 Yel 5 Wht 6 Brn 7 Grn 8 Org. Terminal Strip. CCC Rotor Box 3. WARC Control Box. Belden 8 conductor cable.

shepry
Télécharger la présentation

CL-33 Control Box

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

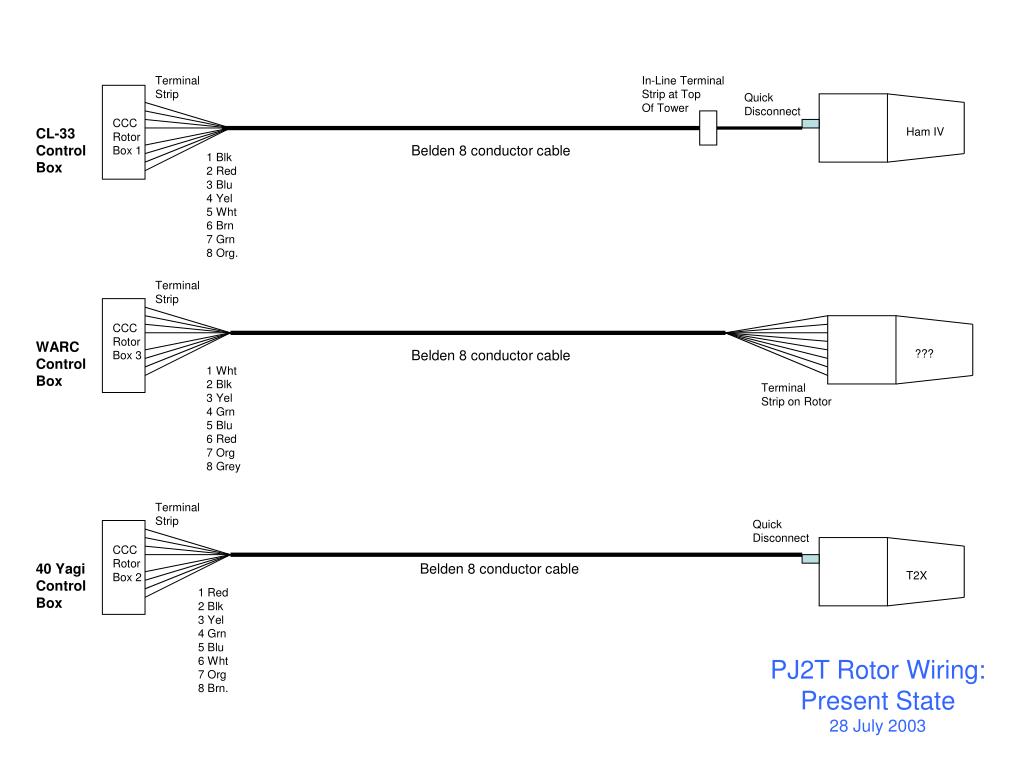

  1. Terminal Strip In-Line Terminal Strip at Top Of Tower Quick Disconnect CCC Rotor Box 1 CL-33 Control Box Ham IV Belden 8 conductor cable 1 Blk2 Red3 Blu4 Yel5 Wht6 Brn7 Grn8 Org. Terminal Strip CCC Rotor Box 3 WARC Control Box Belden 8 conductor cable ??? 1 Wht2 Blk3 Yel4 Grn5 Blu6 Red7 Org8 Grey Terminal Strip on Rotor Terminal Strip Quick Disconnect CCC Rotor Box 2 40 Yagi Control Box Belden 8 conductor cable T2X 1 Red2 Blk3 Yel4 Grn5 Blu6 Wht7 Org8 Brn. PJ2T Rotor Wiring: Present State 28 July 2003

  2. Terminal Strip Quick Disconnect CL-33 Control Box Belden 8 conductor cable 1 Red2 Blk3 Yel4 Grn5 Blu6 Wht7 Org8 Brn. Quick Disconnect: Male/Female In-Line Terminal Strip WARC Control Box Belden 8 conductor cable 1 Red2 Blk3 Yel4 Grn5 Blu6 Wht7 Org8 Brn. Terminal Strip on Rotor Terminal Strip Quick Disconnect 40 Yagi Control Box Belden 8 conductor cable 1 Red2 Blk3 Yel4 Grn5 Blu6 Wht7 Org8 Brn. PJ2T Rotor Wiring: Desired Future State
