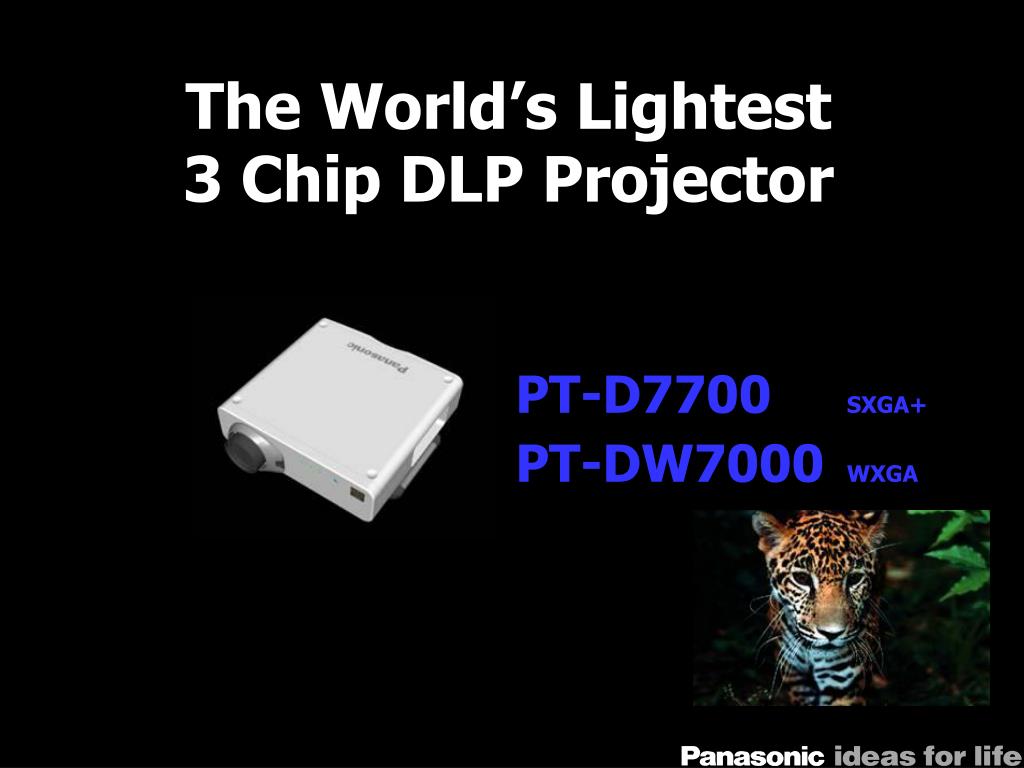

  1. The World’s Lightest 3 Chip DLP Projector PT-D7700SXGA+ PT-DW7000 WXGA

  2. Projector Markets Home System Presentation Cate- gory - Meeting Room - Education - Seminar - Sales Force - Control room - Advertisement - Staging - Installation Appli- cation - Home Theater - Home Party - Game 1. Brightness 2. Low Price 3. Compact body 1. High picture quality 2. Easy to use 3. Low price 1. High picture quality 2. Reliability 3. System performance Needs

  3. 8～24hrs/day 56～168hrs/week 4～6hrs/day 20～30hrs/week 2～3hrs/day 4～6hrs/week Hours of operation （Continuation） Projector Markets Home System Presentation Cate- gory - Meeting Room - Education - Seminar - Sales Force - Control room - Advertisement - Staging - Installation Appli- cation - Home Theater - Home Party - Game 1. Brightness 2. Low Price 3. Compact body 1. High picture quality 2. Easy to use 3. Low price 1. High picture quality 2. Reliability 3. System performance Needs

  4. Panasonic’s Strategy for System Projectors Not just output lumens & Better Pictures MORE… - Reliability, 24/7 - Stability, - Strenuous Environment

  5. Why DLP ? • 1. Superior picture Quality • Excellent and stable image quality • The higher resolution, the more lumen output • For premium applications • 2. High reliability & Stability • No other consumables than lamps • To avoid customer down time • For 24/7 application • 3. Excellent uniformity • Ideal for multi screen application

  6. Why Panasonic DLP ? Panasonic’s patent technology for DLP subsystems • 1. Fluid-cooled optical system • The smallest DLP projector with hi-lumens output • Packed optical system, dust-proof design • 2. Dual lamp optical system • Super high lumens output • Reduce customer down time • 3. Great picture quality technology • Extremely high contrast optical system • Good using broadcast professional technology • 4. SI experience in the world • Edge blending function installed • Abundant signal & control terminals • The replacement lens covered wide area

  7. PT-D7700 The World’s Lightest SXGA+ 3 Chip DLP Projector The Professional Solution

  8. Product Outline D7700 Model PT-D7700 Panel 3chip DLP SXGA+ Brightness 7000 lm Launching 2004/Oct. • 1400 x 1050 pixels • Contrast ratio 4000:1 • Lamp 300W UHM x2 • Size 530x200x540mm (20-7/8”x 6-7/8”x 21-9/32”) • Weight 22.0kg / 48.5 lbs PT-D7700 PT-D7700-K Available in black (PT-D7700-K) and white (PT-D7700) cabinet colors.

  9. High Reliability PT-D7700/DW7000 Concept Heavy Duty Application (24hours/7days) Panasonic Patent Panasonic Patent Liquid-Cooling System Dual Lamp System World’s Lightest 3 Chip DLP Projector High Image Quality Compact Body Dynamic Iris High Contrast High Brightness

  10. Panasonic DLP Projector Advantages Panasonic Patent Liquid-Cooling device Liquid-Cooling System Extends projector performance and attains a high level of reliability Off light Cooling liquid On light DMD

  11. Panasonic DLP Projector Advantages Dust Proof Design with Sealed Optical Block Lamp Prism Lens array Prism DMD High quality image over an extended service life. Lens

  12. Panasonic DLP Projector Advantages Dynamic Iris Dynamic Gamma <Scene-Tracking Gamma> Real-time control of the light striking the DMD chips. Brightness Lamp Lamp 256-step Signal level Dynamic Iris Dark areas can be made darker while bright areas remain unchanged <Conventional model＞ <D7700/DW7000 Image> 4000:1 Contrast Ratio

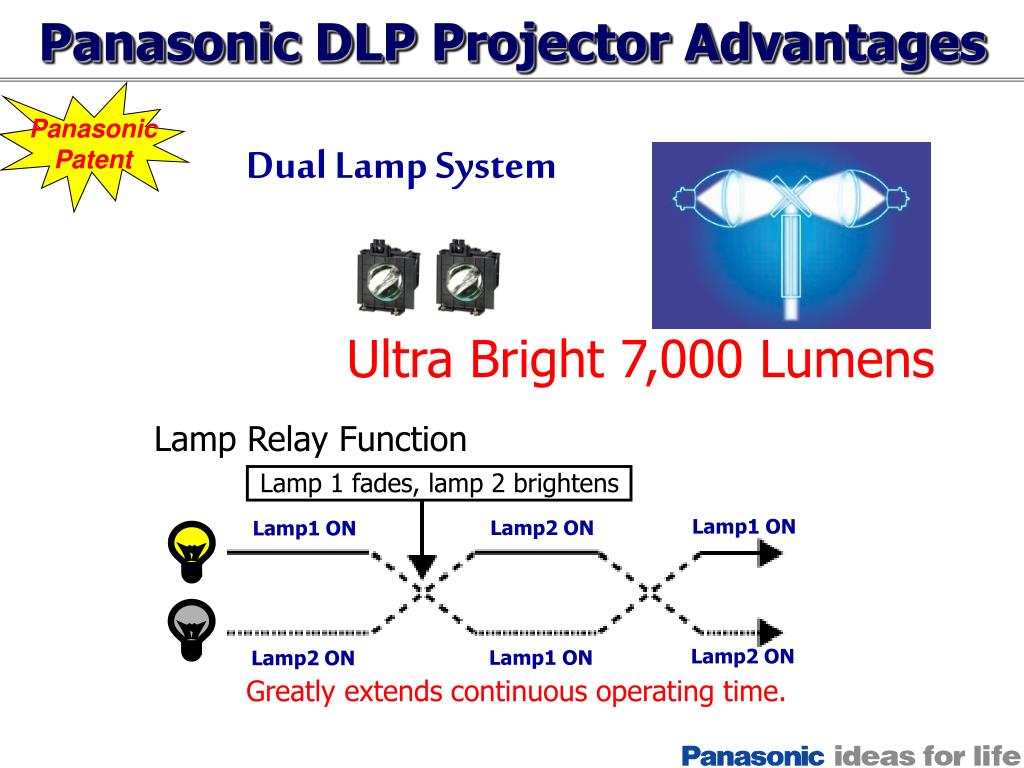

  13. Panasonic DLP Projector Advantages Panasonic Patent Dual Lamp System Ultra Bright 7,000 Lumens Lamp Relay Function Lamp 1 fades, lamp 2 brightens Lamp1 ON Lamp2 ON Lamp1 ON Lamp2 ON Lamp1 ON Lamp2 ON Greatly extends continuous operating time.

  14. Panasonic DLP Projector Advantages Optional Long Life Lamp A long life lamp that stretches lamp life to8,000 hours ! . PT-D7700 Non-stop operation 24 hours a day for up to 47 weeks without replacing lamp!

  15. Panasonic DLP Projector Advantages Optional Long Life Lamp A long life lamp that stretches lamp life to8,000 hours ! . PT-DW7000 Non-stop operation 24 hours a day for up to 47 weeks without replacing lamp!

  16. Panasonic DLP Projector Advantages Panasonic Only !! Built-in Multi-Screen Processor, “Edge-Blending”and “Color Matching” <Without edge blending> Color matching Edge blending Overlapping image edges <With edge blending>

  17. Panasonic DLP Projector Advantages Edge-Blending Up to 100 Projectors(10x10) edge-blended !

  18. Horizontal/Vertical Lens Shift A motor-driven lens shifting function is equipped PT-DW7000 PT-D7700 63% 50% 30% 30% 30% 30% 50% 63% Easy to accurate adjust when installing the projector

  19. 0.8 1.5 2.0 3.0 5.0 8.0 15.0 ET-D75LE5 ET-D75LE1 ET-D75LE2 ET-D75LE3 ET-D75LE4 ET-D75LE8 NO GAP between 1 : 1:1.5 ~ 15.0 ! Optional Lenses for Various Venue (Projection Ratio) bayonet system One-touch ease !

  20. Terminals Supporting a broad range of projection needs RGB1 (5 BNC) Remote IN/OUT Video IN/OUT (BNC) RGB2 (D-SUB) Serial IN/OUT Remote S-Video Abundant Optional Interface Boards Network, DVI/Network, SDI/Network, HD/SDI/Network

  21. Network Function Network Board (Option) e-mail ET-MD75NT Mobile Phone Web Browser Control and Monitoring e-mail Message Alert - Status - A lamp need to replaced - etc…

  22. Easy Maintenance Easy Replacement of Dust Filter and Lamp Dust filter can be removed easily from the front. Lamps can be replaced easily from the back panel.

  23. Other Valuable Features - Mechanical shutter It completely blocks light leakage when no image is being projected - Picture in Picture (main/sub input source combination possible only when using computer and video) - 16-Bit Color Depth for Film-Like Natural Image - Dynamic Sharpness Control - Progressive Cinema Scan (3/2 Pulldown) - ID assignment for up to 65 units - Coordinated group control for up to 26 groups (A-Z) - Digital vertical keystone correction - 3x digital zoom - Built-in test pattern - Selectable 9-language on-screen menu(English, German, French, Spanish, Italian, Russian, Japanese, Chinese, Korean)

  24. PT-DW7000 The World’s Lightest WXGA 3 Chip DLP Projector Native 16:9 Wide-Screen Impact

  25. Product Outline DW7000 Model PT-DW7000 Panel 3chip DLP WXGA Brightness 6000 lm Launching 2004/Dec. • 1366 x 768 pixels • Contrast ratio 4000:1 • Lamp 300W UHM x2 • Size 530x200x540mm (20-7/8”x 6-7/8”x 21-9/32”) • Weight 22.0kg / 48.5 lbs PT-DW7000-K PT-DW7000 Available in black (PT-DW7000-K) and white (PT-DW7000) cabinet colors.

  26. Why 16:9 ・ Growing Market Requirements - More and more presentations now including WIDE 16:9 aspect Moving Pictures. - Personal Computer displays turning WIDE. - Combination of WIDE plasma screens and projectors in company Board rooms. - E-cinema applications.(Including pre-viewing of advertisements in WIDE aspect). World 1stWIDE 16:9 3 DLP projector

  27. Why 16:9 Native 16:9 Wide-Screen Impact 4:3 16:9

  28. Why 16:9 Native 16:9 Wide-Screen Impact 4:3 16:9

  29. Why 16:9 Native 16:9 Wide-Screen Impact 4:3 16:9

  30. Why 16:9 Native 16:9 Wide-Screen Impact 4:3 16:9

  31. Why 16:9 Native 16:9 Wide-Screen Impact 4:3 16:9 Picture in picture function

  32. D7700/DW7000 perfect matches for Advertisement Company board rooms Rental, Staging market Mission critical 24/7 control rooms E-cinema applications Broadcast station Public hall

  33. Thank you!

  34. Why DLP for high light output PROJs? LCD panel and/or Polarizer has limited Life-time especially on High Light Output DLP does not use Polarizer nor any Liquid materials Therefore the Life-time is extremely long DLP PROJECTOR AFTER 6 MONTH 24 HOURS/7 DAYS LCD/MLA PROJECTOR AFTER 6 MONTH 24 HOURS/7 DAYS
