SMART - AKK

SMART - AKK. Anita Has & Kristina Suen CMPE 490 Design Project 2010w Presenting at 9:50am. What is a SMART–AKK ?

shika
Télécharger la présentation

SMART - AKK

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

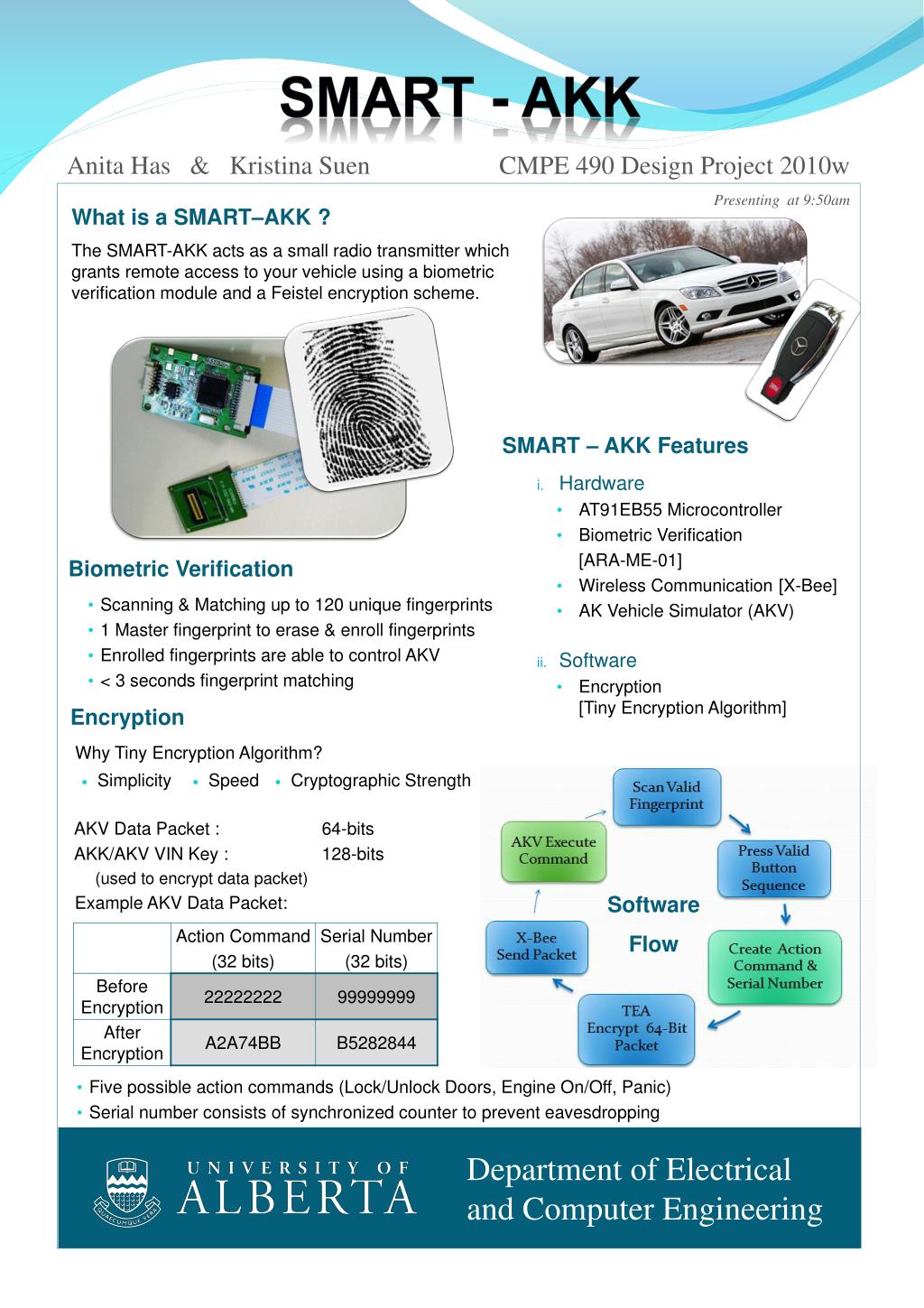

  1. SMART - AKK Anita Has & Kristina Suen CMPE 490 Design Project 2010w Presenting at 9:50am What is a SMART–AKK ? The SMART-AKK acts as a small radio transmitter which grants remote access to your vehicle using a biometric verification module and a Feistel encryption scheme. • SMART – AKK Features • Hardware • AT91EB55 Microcontroller • Biometric Verification [ARA-ME-01] • Wireless Communication [X-Bee] • AK Vehicle Simulator (AKV) • Software • Encryption[Tiny Encryption Algorithm] Biometric Verification • Scanning & Matching up to 120 unique fingerprints • 1 Master fingerprint to erase & enroll fingerprints • Enrolled fingerprints are able to control AKV • < 3 seconds fingerprint matching Encryption Why Tiny Encryption Algorithm? AKV Data Packet : 64-bits AKK/AKV VIN Key : 128-bits (used to encrypt data packet) • Example AKV Data Packet: Software Flow • Five possible action commands (Lock/Unlock Doors, Engine On/Off, Panic) • Serial number consists of synchronized counter to prevent eavesdropping Department of Electrical and Computer Engineering
