Algebra of Concurrent Programming. Tony Hoare Redmond August 2011. With ideas from. Ian Wehrman John Wickerson Stephan van Staden Peter O’Hearn Bernhard Moeller Georg Struth Rasmus Petersen …and others. Subject matter: designs.
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation
Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement.Téléchargez la présentation en cliquant sur ce lien.Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.
With ideas from • Ian Wehrman • John Wickerson • Stephan van Staden • Peter O’Hearn • Bernhard Moeller • Georg Struth • Rasmus Petersen • …and others
Subject matter: designs • variables (p, q, r) stand for computer programs, designs, specifications,… • they all describe what happens inside/around a computer that executes a given program. • The program itself is the most precise. • The specification is the most abstract. • Designs come in between.
Examples • Postcondition: • execution ends with array A sorted • Conditional correctness: • if execution ends, it ends with A sorted • Precondition: • execution starts with x even • Program: x := x+1 • the final value of x one greater than the initial

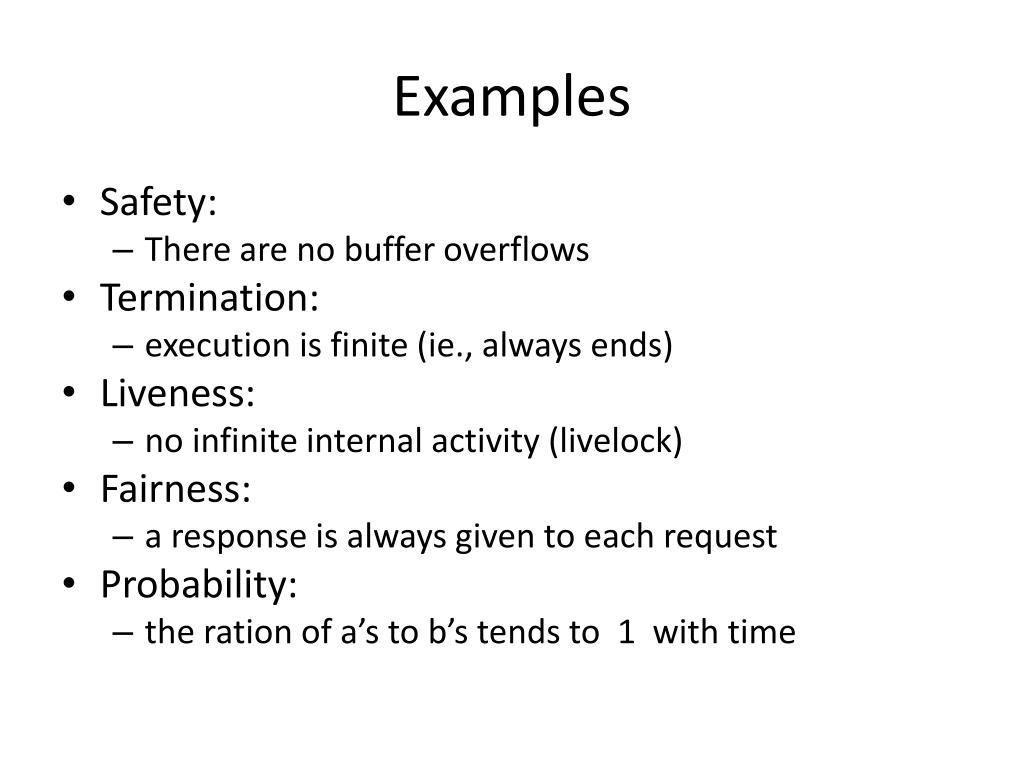

Examples • Safety: • There are no buffer overflows • Termination: • execution is finite (ie., always ends) • Liveness: • no infinite internal activity (livelock) • Fairness: • a response is always given to each request • Probability: • the ration of a’s to b’s tends to 1 with time

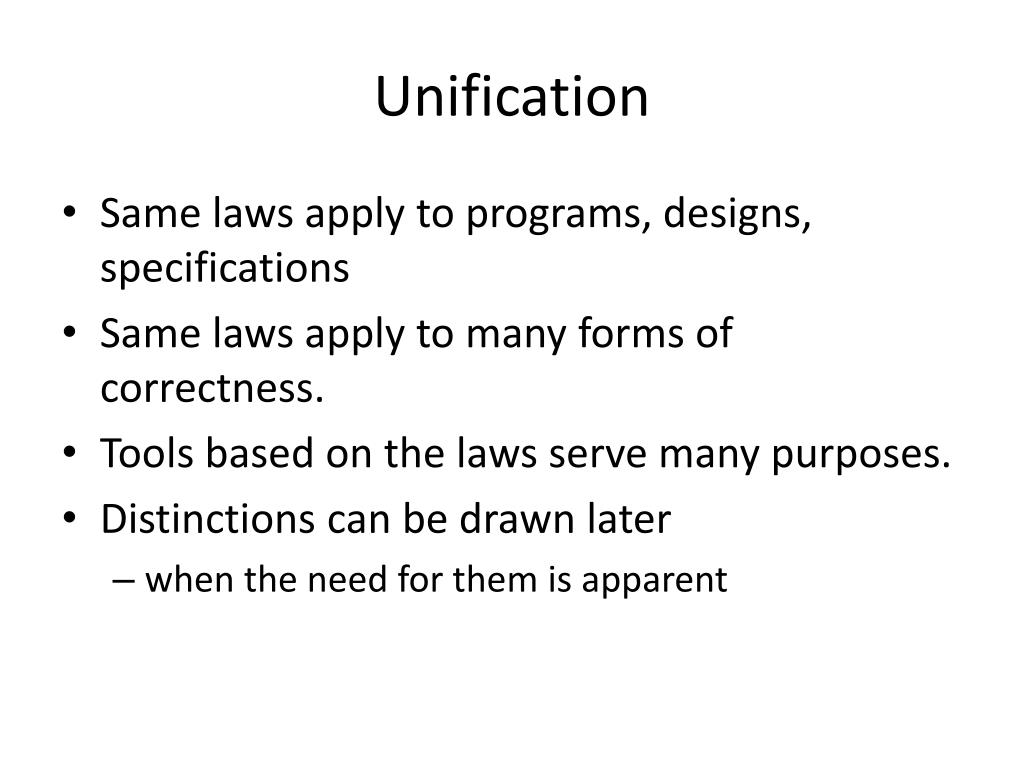

Unification • Same laws apply to programs, designs, specifications • Same laws apply to many forms of correctness. • Tools based on the laws serve many purposes. • Distinctions can be drawn later • when the need for them is apparent
Refinement: p ⊑ q • Everything described by p is also described by q , e.g., • spec p implies spec q • prog p satisfies spec q • prog p more determinate than prog q • stepwise development of a spec is • spec ⊒ design ⊒ program • stepwise analysis of a program is • program ⊑ design ⊑ spec
Various terminologyp ⊑ q • below • lesser • stronger • lower bound • more precise • …deterministic • included in • antecedent => • above • greater • weaker • upper bound • more abstract • ...non-deterministic • containing (sets) • consequent (pred)
Law: ⊑ is a partial order • ⊑ is transitive • p ⊑ r if p ⊑ q and q ⊑ r • needed for stepwise development/analysis • ⊑ is antisymmetric • p = r if p ⊑ r and r ⊑ p • needed for abstraction • ⊑ is reflexive • p ⊑ p • for convenience
Binary operator: p ; q • sequential composition of p and q • eachexecution of p;q consists of • all events x from an execution of p • and all events y from an execution of q • subject to ordering constraint, either • strong -- weak • interruptible -- inhibited

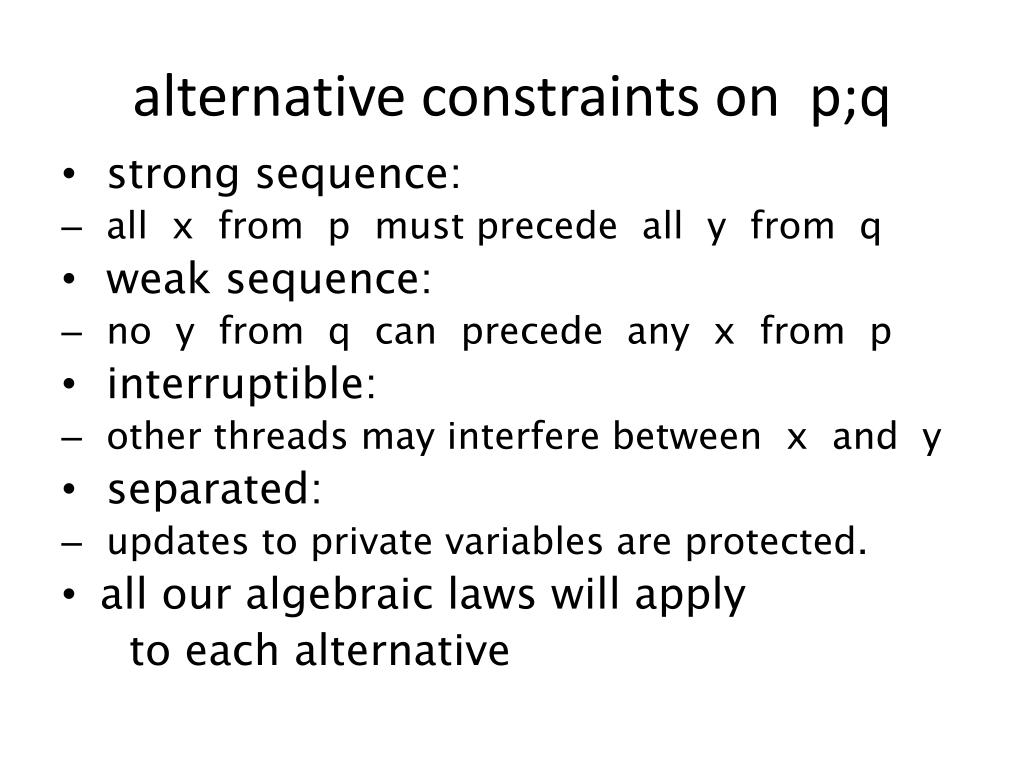

alternative constraints on p;q • strong sequence: • all x from p must precede all y from q • weak sequence: • no y from q can precede any x from p • interruptible: • other threads may interfere between x and y • separated: • updates to private variables are protected. • all our algebraic laws will apply to each alternative
Hoare triple: {p} q {r} • defined as p;q ⊑ r • starting in the final state of an execution of p, q ends in the final state of some execution of r • p and r may be arbitrary designs. • example: {..x+1 ≤ n} x:= x + 1 {..x ≤ n} • where ..b (finally b) describes all executions that end in a state satisfying a single-state predicate b .

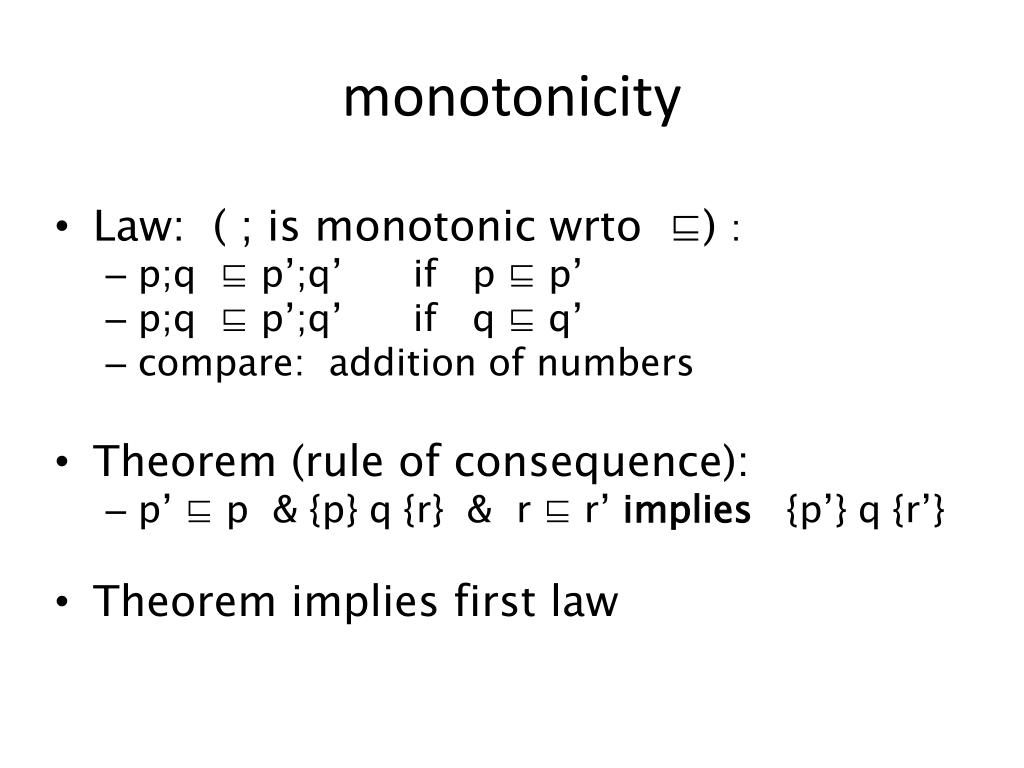

monotonicity • Law: ( ; is monotonic wrto ⊑) : • p;q ⊑ p’;q’ if p ⊑ p’ • p;q⊑ p’;q’ if q ⊑ q’ • compare: addition of numbers • Theorem (rule of consequence): • p’ ⊑ p & {p} q {r} & r ⊑ r’ implies {p’} q {r’} • Theorem implies first law
associativity • Law (; is associative) : • (p;q);q’ = p;(q;q’) • Theorem (sequential composition): • {p} q {s} & {s} q’ {r} implies{p} q;q’ {r} • half the law provable from theorem

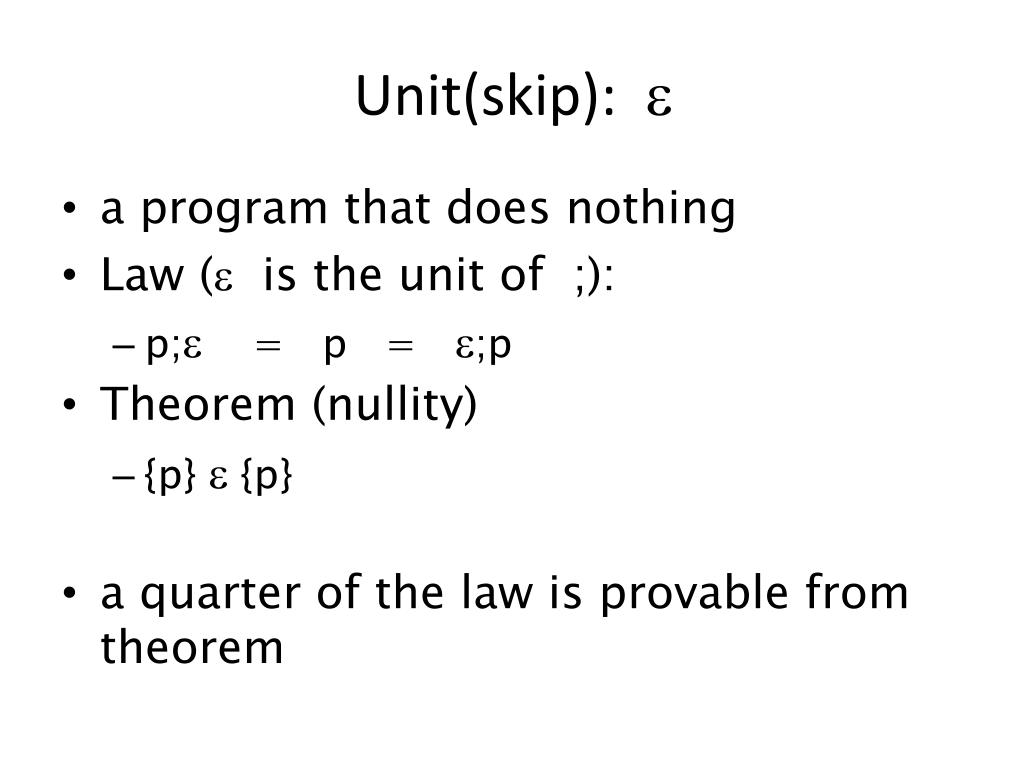

Unit(skip): • a program that does nothing • Law ( is the unit of ;): • p;= p = ;p • Theorem (nullity) • {p} {p} • a quarter of the law is provable from theorem
concurrent composition: p | q • each execution of (p|q) consists of • all events x of an execution of p, • and all events y of an execution of q • same laws apply to alternatives: • interleaving: x precedes or follows y • true concurrency: x neither precedes nor follows y. • Laws: | is associative, commutative and monotonic
Separation Logic • Law (locality of ; wrto |): • (s|p) ; q ⊑ s |(p;q) (left locality ) • p ; (q|s) ⊑ (p;q) | s (right locality) • Theorem (frame rule) : • {p} q {r} implies {p|s} q {r|s} • Theorem implies left locality

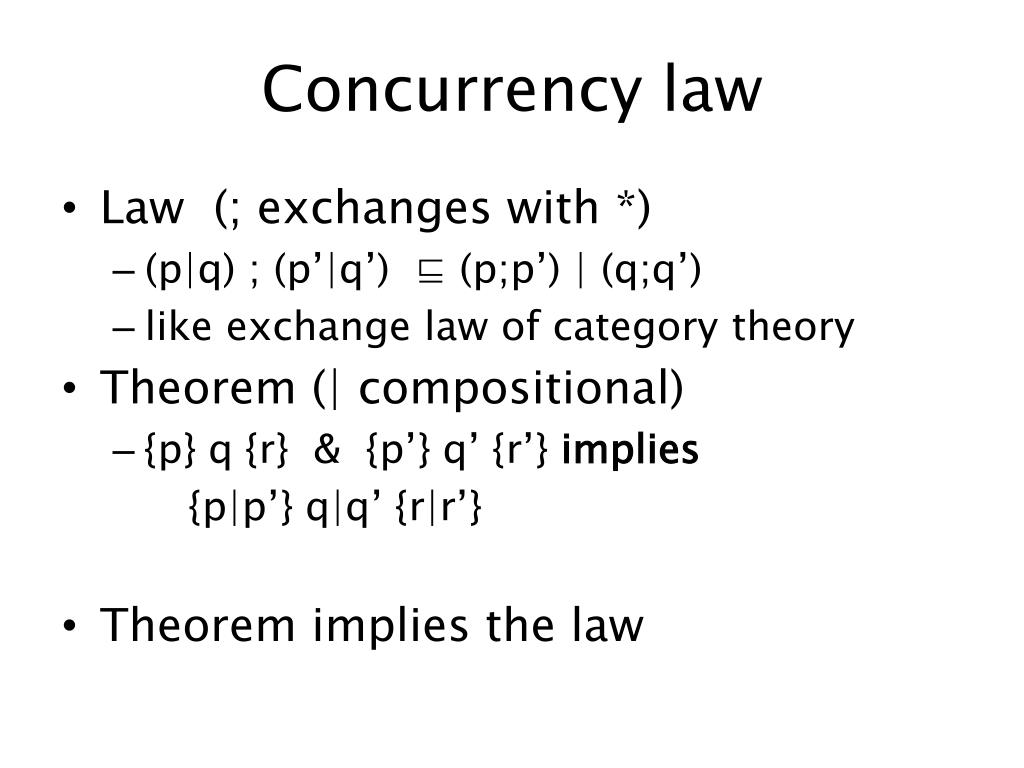

Concurrency law • Law (; exchanges with *) • (p|q) ; (p’|q’) ⊑ (p;p’) | (q;q’) • like exchange law of category theory • Theorem (| compositional) • {p} q {r} & {p’} q’ {r’} implies {p|p’} q|q’ {r|r’} • Theorem implies the law
Regular language model • p, q, r,… are languages • descriptions of execution of fsm. • p ⊑ q is inclusion of languages • p;q is (lifted) concatenation of strings • i.e., {st| s ∊ p & t ∊ q} • p|q is (lifted) interleaving of strings • = {< >} (only the empty string) • “c” = {<c>} (only the string “c”)

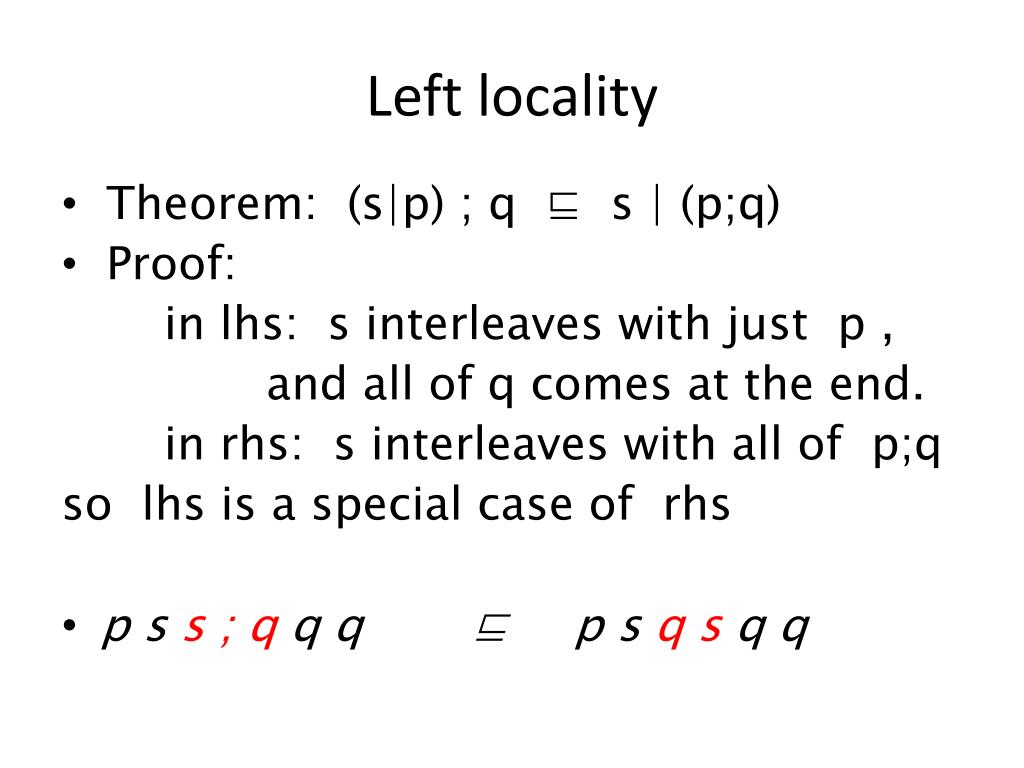

Left locality • Theorem: (s|p) ; q ⊑ s | (p;q) • Proof: in lhs: s interleaves with just p , and all of q comes at the end. in rhs: s interleaves with all of p;q so lhs is a special case of rhs • p s s ; q qq ⊑ p s q s q q
Exchange • Theorem: (p|q) ; (p’|q’) ⊑ (p;p’) | (q;q’) • in lhs: all of p and q comes before all of p’ and q’ . • in rhs: end of p may interleave with q’ or start of p’ with q the lhs is a special case of the rhs. p q p ; q’ p’ q’ ⊑ p q q’ p p’ q’
Conclusion • regular expressions satisfy all our laws for ⊑ , ; , and | • and for other operators introduced later
Part 2. More Program Control Structures • Non-determinism, intersection • Iteration, recursion, fixed points • Subroutines, contracts, transactions • Basic commands
Subject matter • variables (p, q, r) stand for programs, designs, specifications,… • they are all descriptions of what happens inside and around a computer that is executing a program. • the differences between programs and specs are often defined from their syntax.

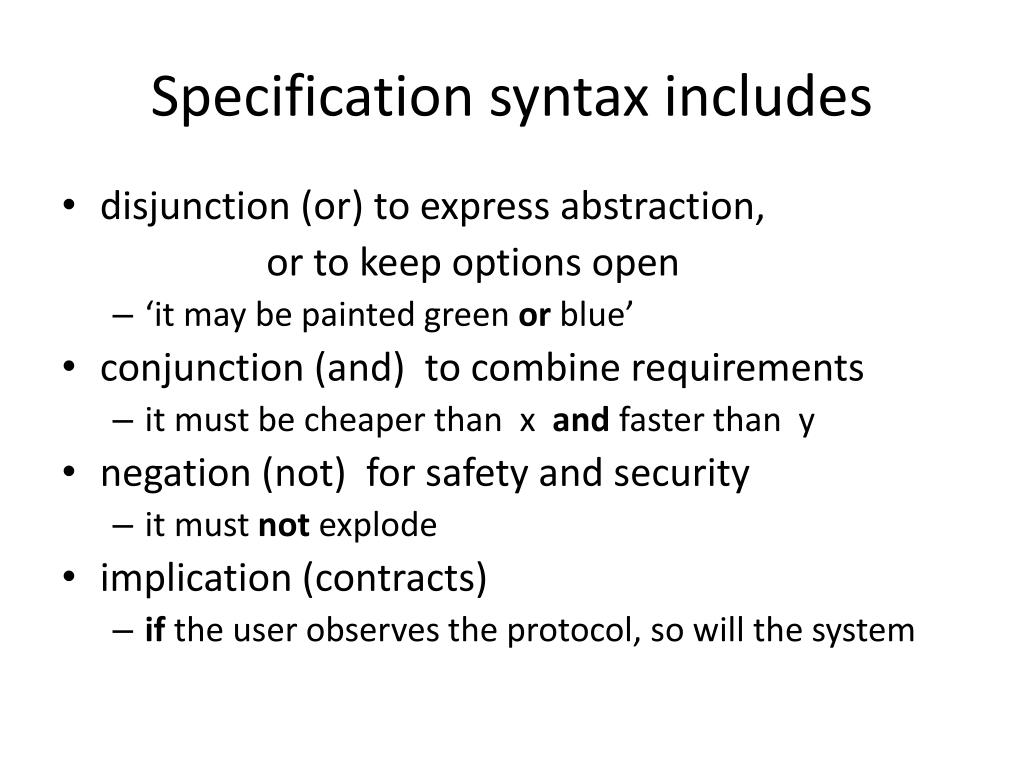

Specification syntax includes • disjunction (or) to express abstraction, or to keep options open • ‘it may be painted green or blue’ • conjunction (and) to combine requirements • it must be cheaper than x and faster than y • negation (not) for safety and security • it must not explode • implication (contracts) • if the user observes the protocol, so will the system

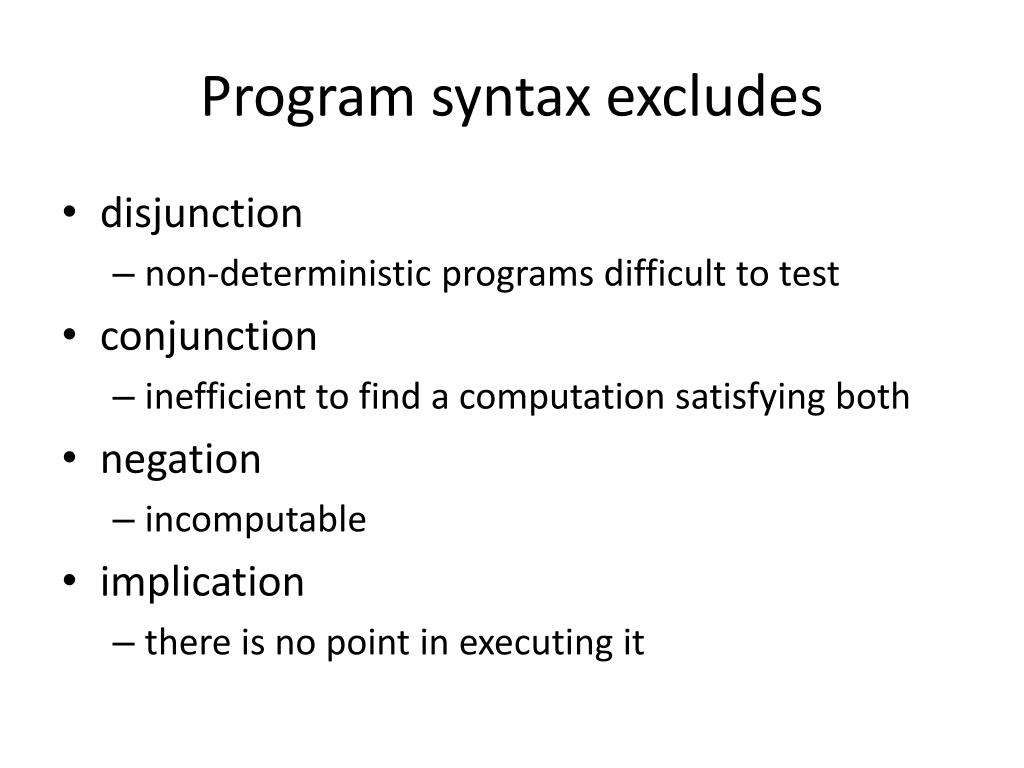

Program syntax excludes • disjunction • non-deterministic programs difficult to test • conjunction • inefficient to find a computation satisfying both • negation • incomputable • implication • there is no point in executing it
programs include • sequential composition (;) • concurrent composition (|) • interrupts • iteration, recursion • contracts (declarations) • transactions • assignments, inputs, outputs, jumps,… • So include these in our specifications!
Bottom • An unimplementable specification • like the false predicate • A program that has no execution • the compiler stops it from running • Define as least solution of: _ ⊑ _ • Theorem: ⊑ r • satisfies every spec, • but cannot be run (Dijkstra’s miracle)
Algebra of • Law ( is the zero of ;) : • ; p = = p ; • Theorem : {p} {q} • Quarter of law provable from theorem
Top ⊤ • a vacuous specification, • satisfied by anything, • like the predicate true • a program with an error • for which the programmer is responsible • e.g., subscript error, violation of contract… • define ⊤ as greatest solution of: _ ⊑ _
Algebra of ⊤ • Law: none • Theorem: none • you can’t prove a program with this error • it might admit a virus! • A debugging implementation may supply useful laws for ⊤
Non-determinism (or): p ⊔ q • describes all executions that either satisfy p or satisfy q . • The choice is not (yet) determined. • It may be determined later • in development of the design • or in writing the program • or by the compiler • or even at run time
lub (join): ⊔ • Define p⊔q as least solution of p ⊑ _ & q ⊑ _ • Theorem • p ⊑ r & q ⊑ r iffp⊔q⊑ r • Theorem • ⊔ is associative, commutative, monotonic, idempotent and increasing • it has unit ⊥ and zero ⊤

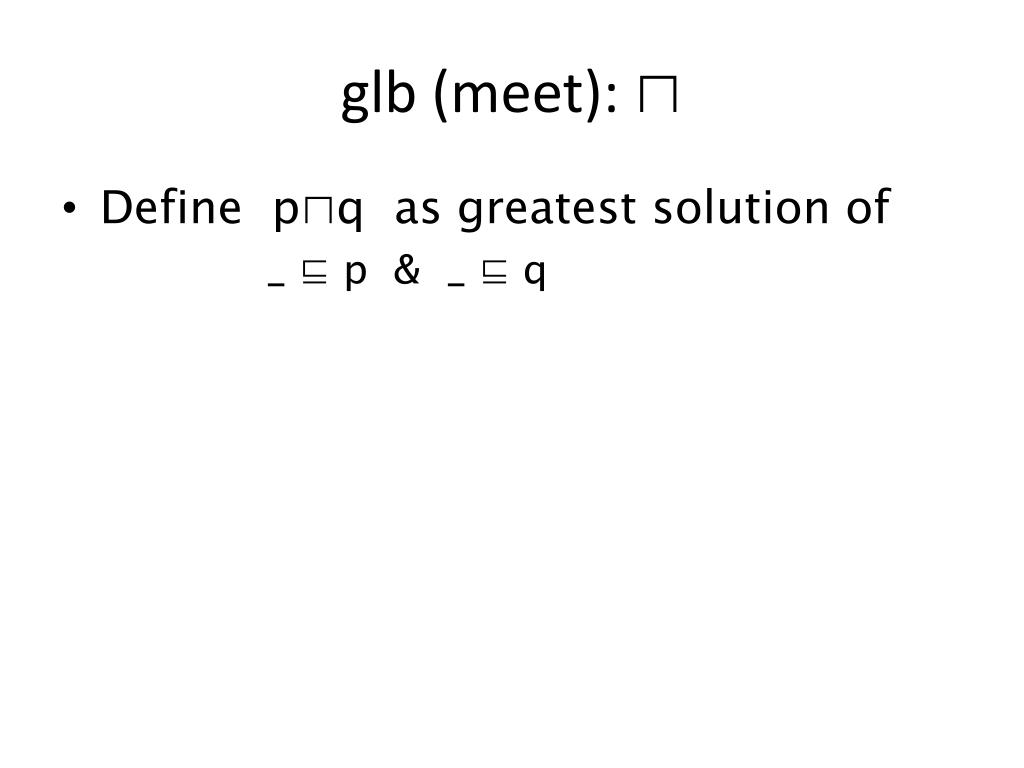

glb (meet): ⊓ • Define p⊓qas greatest solution of _ ⊑ p & _ ⊑ q
Distribution • Law ( ; distributive through ⊔ ) • p ; (q⊔q’) = p;q ⊔ p;q’ • (q⊔q’) ; p = q;p⊔ q’;p • Theorem (non-determinism) • {p} q {r} & {p} q’ {r} implies {p} q⊔q’ {r} • i.e., to prove something of q⊔q’ prove the same thing of both q and q’ • quarter of law provable from theorem

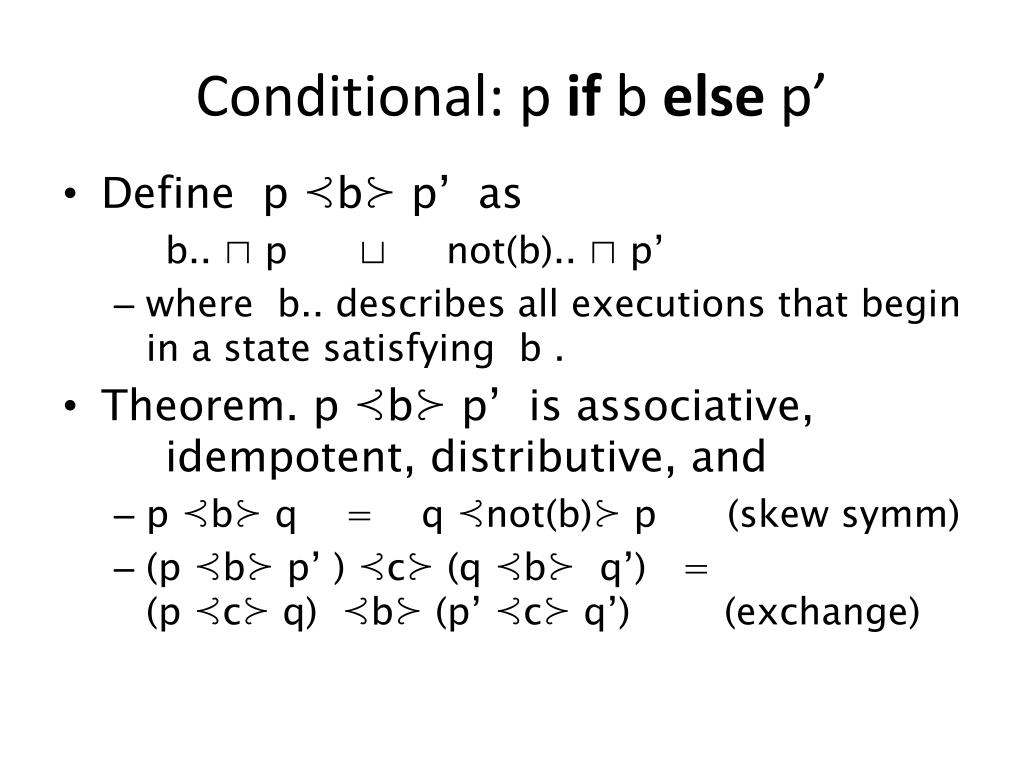

Conditional: p if b else p’ • Define p ⊰b⊱ p’ as b.. ⊓ p ⊔ not(b).. ⊓ p’ • where b.. describes all executions that begin in a state satisfying b . • Theorem. p ⊰b⊱ p’ is associative, idempotent, distributive, and • p ⊰b⊱ q = q ⊰not(b)⊱ p (skew symm) • (p ⊰b⊱ p’ ) ⊰c⊱ (q⊰b⊱ q’) = (p ⊰c⊱ q) ⊰b⊱ (p’ ⊰c⊱ q’) (exchange)
Transaction • Defined as (p ⊓..b) ⊔ (q ⊓..c) • where ..b describes all executions that end satisfying single-state predicate b . • Implementation: • execute p first • test the condition b afterwards • terminate if b is true • backtrack on failure of b • and try an alternative q with condition c.
Contracts • Let q be the body of a subroutine • Let s be its specification • Let (q .. s) assert that q meets s • Programmer error (⊤) if not so • Caller of subroutine may assume that s describes all its calls • Implementation may just execute q

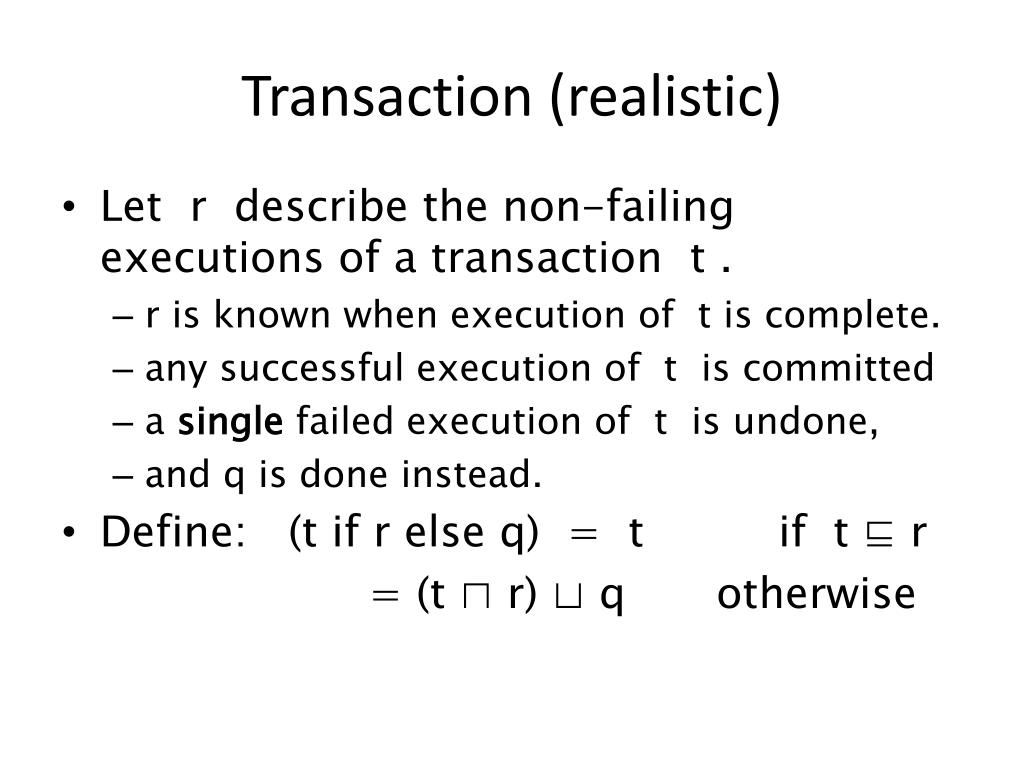

Transaction (realistic) • Let r describe the non-failing executions of a transaction t . • r is known when execution of t is complete. • any successful execution of t is committed • a single failed execution of t is undone, • and q is done instead. • Define: (t if r else q) = t if t ⊑ r = (t ⊓ r) ⊔ q otherwise

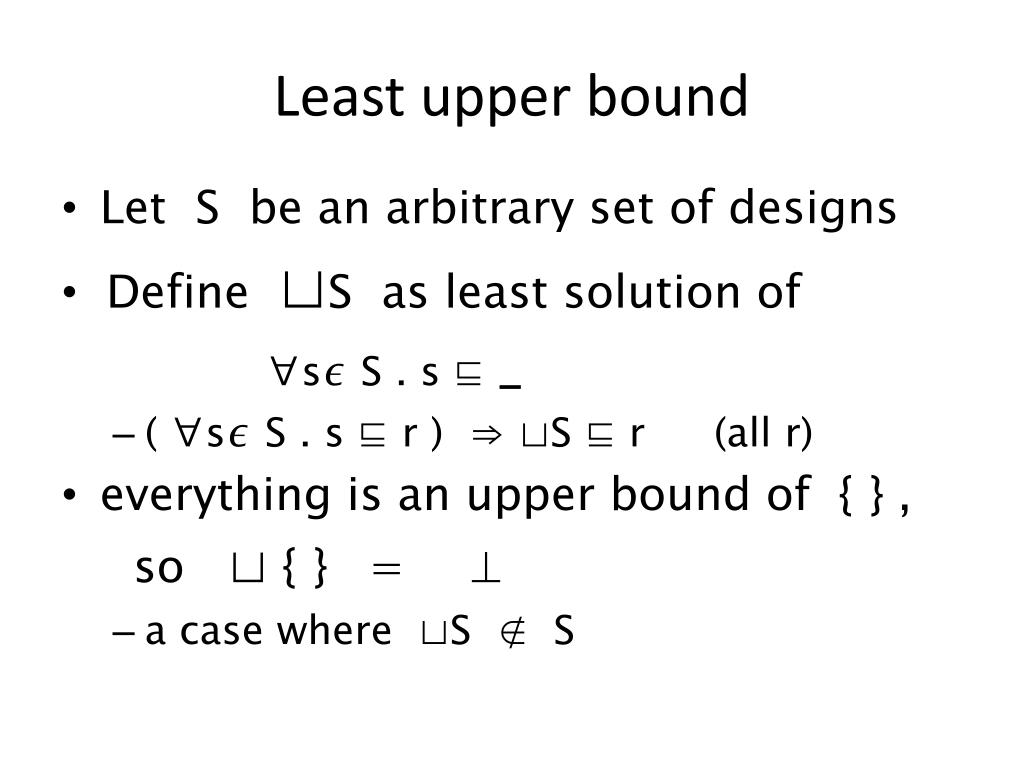

Least upper bound • Let S be an arbitrary set of designs • Define ⊔S as least solution of ∀s∊ S . s ⊑ _ • ( ∀s∊ S . s ⊑ r) ⇒ ⊔S ⊑ r (all r) • everything is an upper bound of { } , so ⊔ { } = • a case where ⊔S ∉ S
similarly • ⊓S is greatest lower bound of S • ⊓ { } = ⊤
Iteration (Kleene *) • q* is least solution of • (ɛ ⊔ (q; _) ) ⊑ _ • q* =def⊔{s| ɛ ⊔ q; s ⊑ s} • ɛ ⊔ q; q* ⊑ q* • ɛ ⊔ q; q’ ⊑ q’ implies q* ⊑ q’ • q*=⊔ {qⁿ | n ∊ Nat} (continuity) • Theorem (invariance): • {p}q*{p} if {p}q{p}
Infinite replication • !p is the greatest solution of _ ⊑ p|_ • as in the pi calculus • all executions of !p are infinite • or possibly empty
Recursion • Let F(_) be a monotonic function between programs. • Theorem: all functions defined by monotonic operators are monotonic. • μF is strongest solution of F(_) ⊑ _ • νF is weakest solution of _ ⊑ F(_) • Theorem (Knaster-Tarski): These solutions exist.
