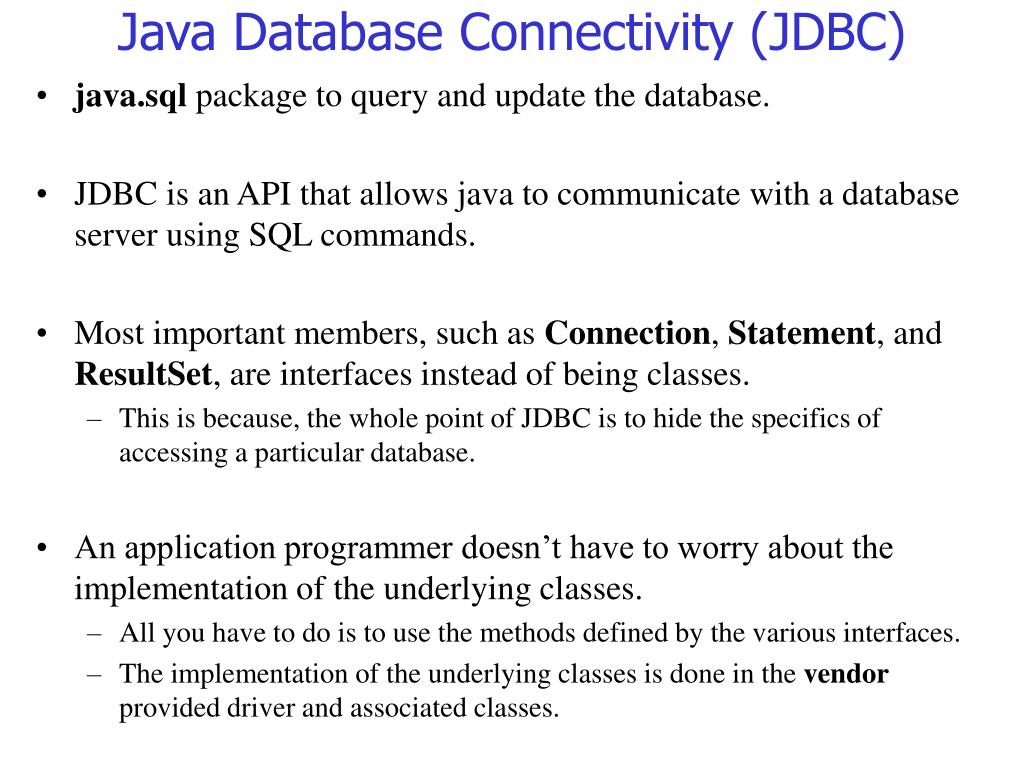

1. Java Database Connectivity (JDBC) • java.sql package to query and update the database. • JDBC is an API that allows java to communicate with a database server using SQL commands. • Most important members, such as Connection, Statement, and ResultSet, are interfaces instead of being classes. • This is because, the whole point of JDBC is to hide the specifics of accessing a particular database. • An application programmer doesn’t have to worry about the implementation of the underlying classes. • All you have to do is to use the methods defined by the various interfaces. • The implementation of the underlying classes is done in the vendor provided driver and associated classes.

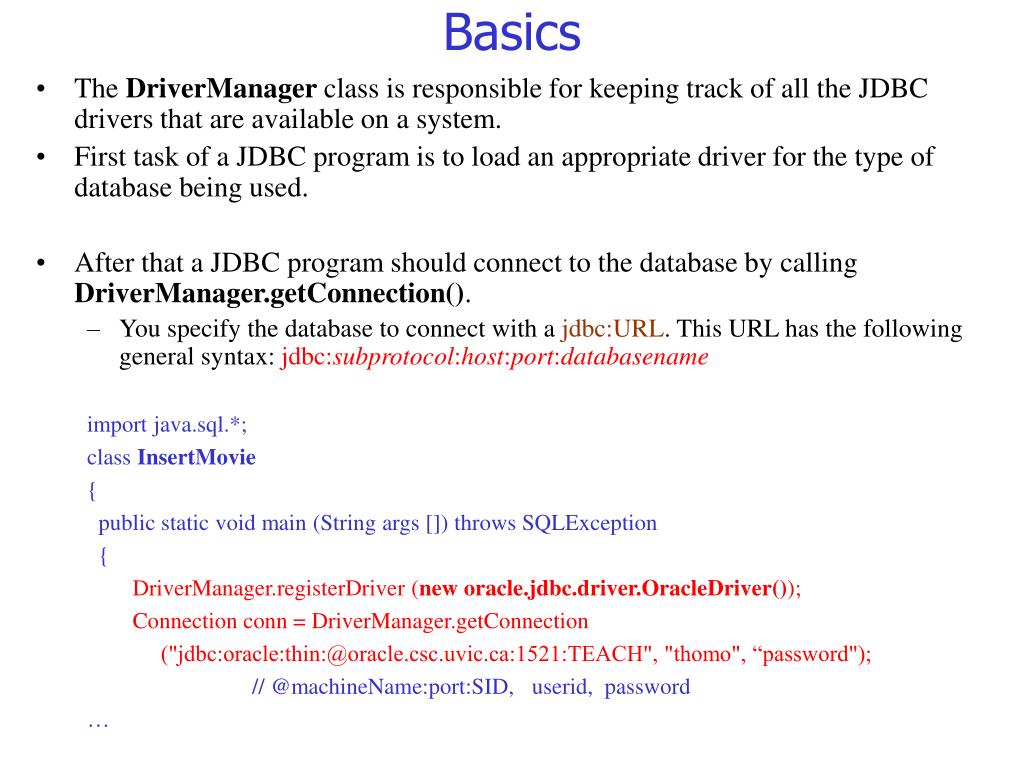

2. Basics • The DriverManager class is responsible for keeping track of all the JDBC drivers that are available on a system. • First task of a JDBC program is to load an appropriate driver for the type of database being used. • After that a JDBC program should connect to the database by calling DriverManager.getConnection(). • You specify the database to connect with a jdbc:URL. This URL has the following general syntax: jdbc:subprotocol:host:port:databasename import java.sql.*; class InsertMovie { public static void main (String args []) throws SQLException { DriverManager.registerDriver (new oracle.jdbc.driver.OracleDriver()); Connection conn = DriverManager.getConnection ("jdbc:oracle:thin:@oracle.csc.uvic.ca:1521:TEACH", "thomo", “password"); // @machineName:port:SID, userid, password …

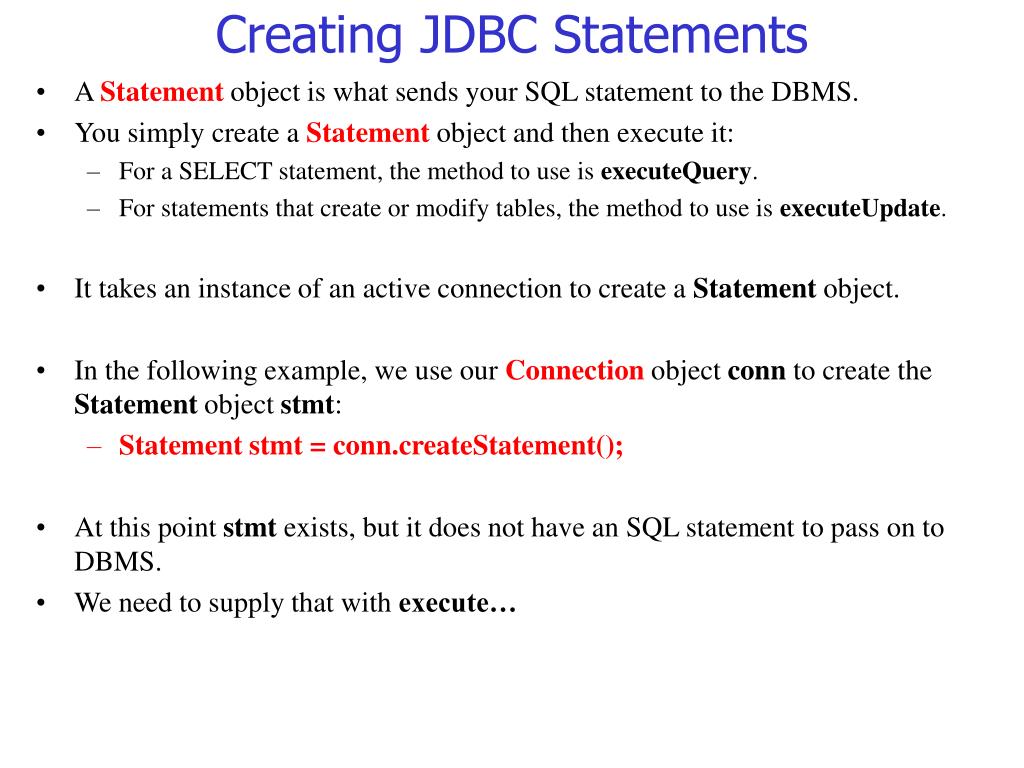

3. Creating JDBC Statements • A Statement object is what sends your SQL statement to the DBMS. • You simply create a Statement object and then execute it: • For a SELECT statement, the method to use is executeQuery. • For statements that create or modify tables, the method to use is executeUpdate. • It takes an instance of an active connection to create a Statement object. • In the following example, we use our Connection object conn to create the Statement object stmt: • Statement stmt = conn.createStatement(); • At this point stmt exists, but it does not have an SQL statement to pass on to DBMS. • We need to supply that with execute…

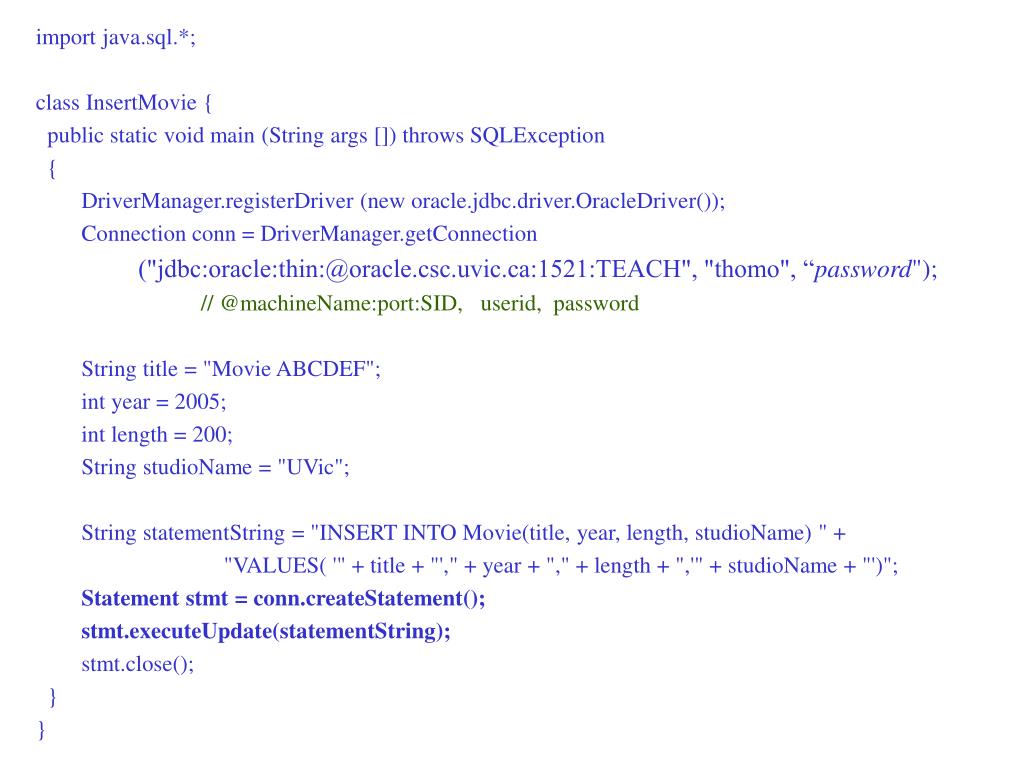

4. import java.sql.*; class InsertMovie { public static void main (String args []) throws SQLException { DriverManager.registerDriver (new oracle.jdbc.driver.OracleDriver()); Connection conn = DriverManager.getConnection ("jdbc:oracle:thin:@oracle.csc.uvic.ca:1521:TEACH", "thomo", “password"); // @machineName:port:SID, userid, password String title = "Movie ABCDEF"; int year = 2005; int length = 200; String studioName = "UVic"; String statementString = "INSERT INTO Movie(title, year, length, studioName) " + "VALUES( '" + title + "'," + year + "," + length + ",'" + studioName + "')"; Statement stmt = conn.createStatement(); stmt.executeUpdate(statementString); stmt.close(); } }

5. Getting Data • Recall the impediance mismatch problem… • Well, Java provides us a class ResultSet which helps us bridge the gap. ResultSet rset = stmt.executeQuery( "SELECT title, year " + "FROM Movie"); while (rset.next()) … • The variable rset, which is an instance of ResultSet, contains the rows of the query result. • In order to access the titles and years, we will go to each row and retrieve the values according to their types. • The first call of the method next moves the cursor to the first row and makes it the current row. • Successive invocations of the method next move the cursor down one row at a time from top to bottom.

6. Using the getXXX methods • Use the getXXX method of the appropriate type to retrieve the value in each column. • For example, the first column in each row of the previous rset stores a value of SQL type VARCHAR. The method for retrieving a value of SQL type VARCHAR is getString. • The second column in each row stores a value of SQL type INT, and the method for retrieving values of that type is getInt. while (rset.next()) { String s = rset.getString("Title"); int n = rset.getInt("Year"); System.out.println(s + " " + n); } However we can also say instead: (which is slightly more efficient) String s = rset.getString(1); int n = rset.getInt(2); Column Name Column Position

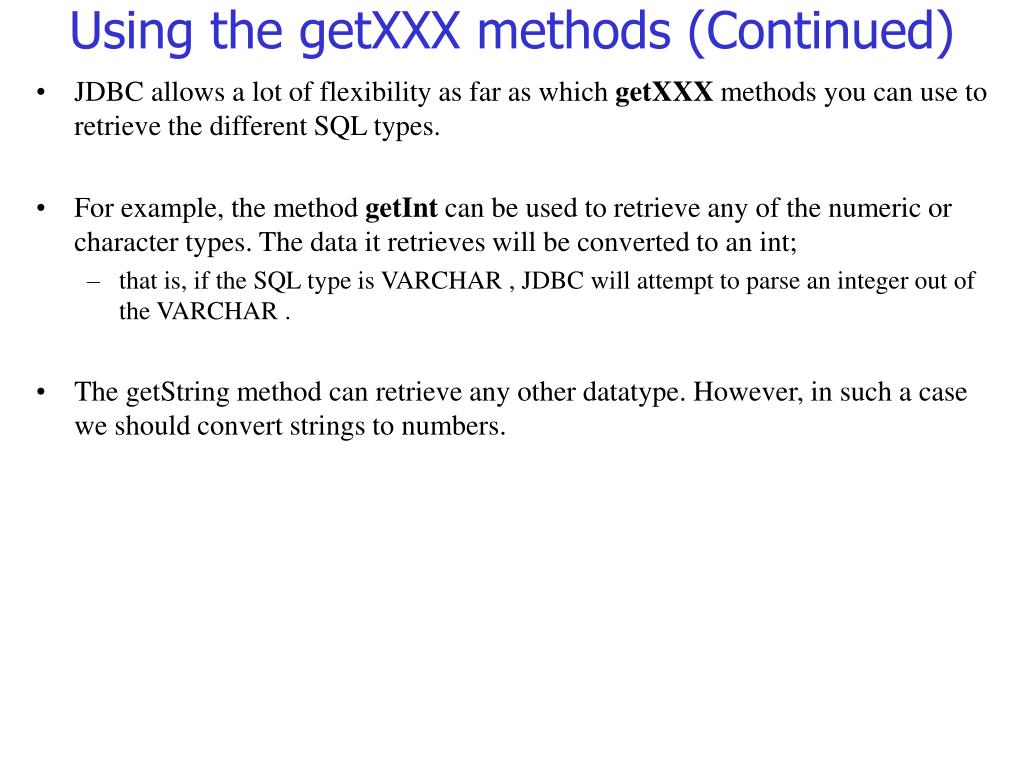

7. Using the getXXX methods (Continued) • JDBC allows a lot of flexibility as far as which getXXX methods you can use to retrieve the different SQL types. • For example, the method getInt can be used to retrieve any of the numeric or character types. The data it retrieves will be converted to an int; • that is, if the SQL type is VARCHAR , JDBC will attempt to parse an integer out of the VARCHAR . • The getString method can retrieve any other datatype. However, in such a case we should convert strings to numbers.

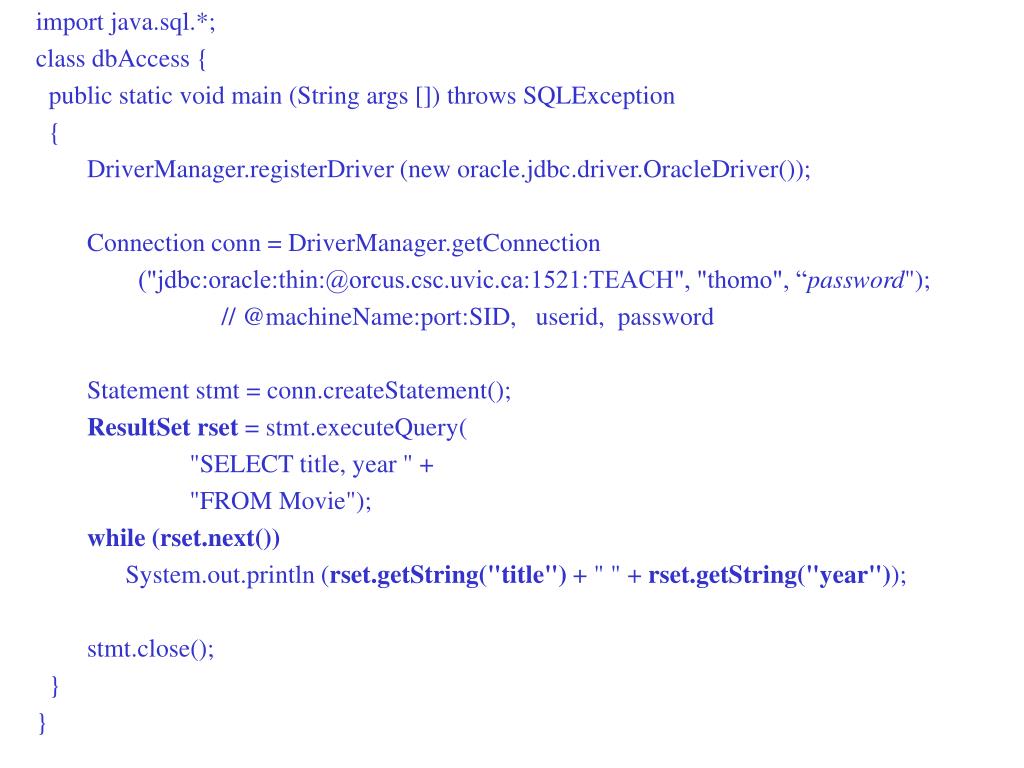

8. import java.sql.*; class dbAccess { public static void main (String args []) throws SQLException { DriverManager.registerDriver (new oracle.jdbc.driver.OracleDriver()); Connection conn = DriverManager.getConnection ("jdbc:oracle:thin:@orcus.csc.uvic.ca:1521:TEACH", "thomo", “password"); // @machineName:port:SID, userid, password Statement stmt = conn.createStatement(); ResultSet rset = stmt.executeQuery( "SELECT title, year " + "FROM Movie"); while (rset.next()) System.out.println (rset.getString("title") + " " + rset.getString("year")); stmt.close(); } }

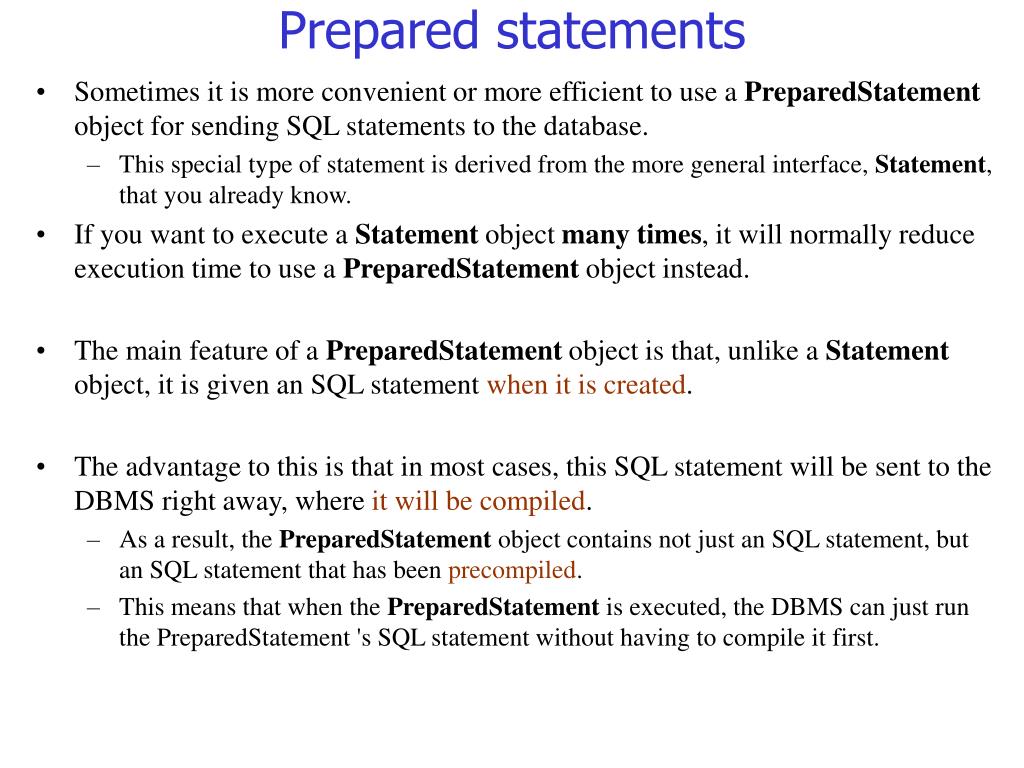

9. Prepared statements • Sometimes it is more convenient or more efficient to use a PreparedStatement object for sending SQL statements to the database. • This special type of statement is derived from the more general interface, Statement, that you already know. • If you want to execute a Statement object many times, it will normally reduce execution time to use a PreparedStatement object instead. • The main feature of a PreparedStatement object is that, unlike a Statement object, it is given an SQL statement when it is created. • The advantage to this is that in most cases, this SQL statement will be sent to the DBMS right away, where it will be compiled. • As a result, the PreparedStatement object contains not just an SQL statement, but an SQL statement that has been precompiled. • This means that when the PreparedStatement is executed, the DBMS can just run the PreparedStatement 's SQL statement without having to compile it first.

10. Prepared statements (Continued) • Using our open connection conn from previous examples, we create a PreparedStatement: PreparedStatement updateMovies = conn.prepareStatement( "UPDATE Movie SET studioName = ? WHERE studioName = ?"); • The variable updateMovies now contains the SQL statement, "UPDATE Movie SET studioName = ? WHERE studioName = ?" , which has also, been sent to the DBMS and been precompiled.

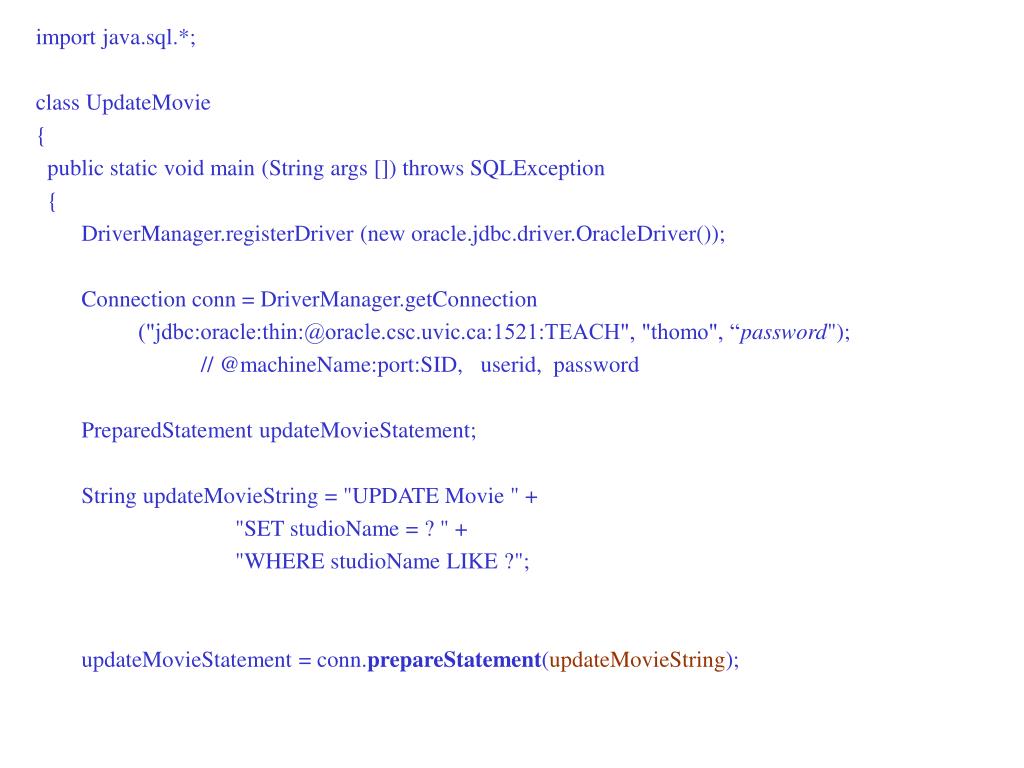

11. import java.sql.*; class UpdateMovie { public static void main (String args []) throws SQLException { DriverManager.registerDriver (new oracle.jdbc.driver.OracleDriver()); Connection conn = DriverManager.getConnection ("jdbc:oracle:thin:@oracle.csc.uvic.ca:1521:TEACH", "thomo", “password"); // @machineName:port:SID, userid, password PreparedStatement updateMovieStatement; String updateMovieString = "UPDATE Movie " + "SET studioName = ? " + "WHERE studioName LIKE ?"; updateMovieStatement = conn.prepareStatement(updateMovieString);

12. String studiosBoughtByParamount [] = {"Disney", "Fox"}; for(int i=0; i<studiosBoughtByParamount.length; i++) { updateMovieStatement.setString(1, "Paramount"); updateMovieStatement.setString(2, "%"+studiosBoughtByParamount[i]+"%"); updateMovieStatement.executeUpdate(); } updateMovieStatement.close(); } }
