  1. Make your data with Kinect 2011. May. 24 Jiseob Kim, Eun-Sol Kim

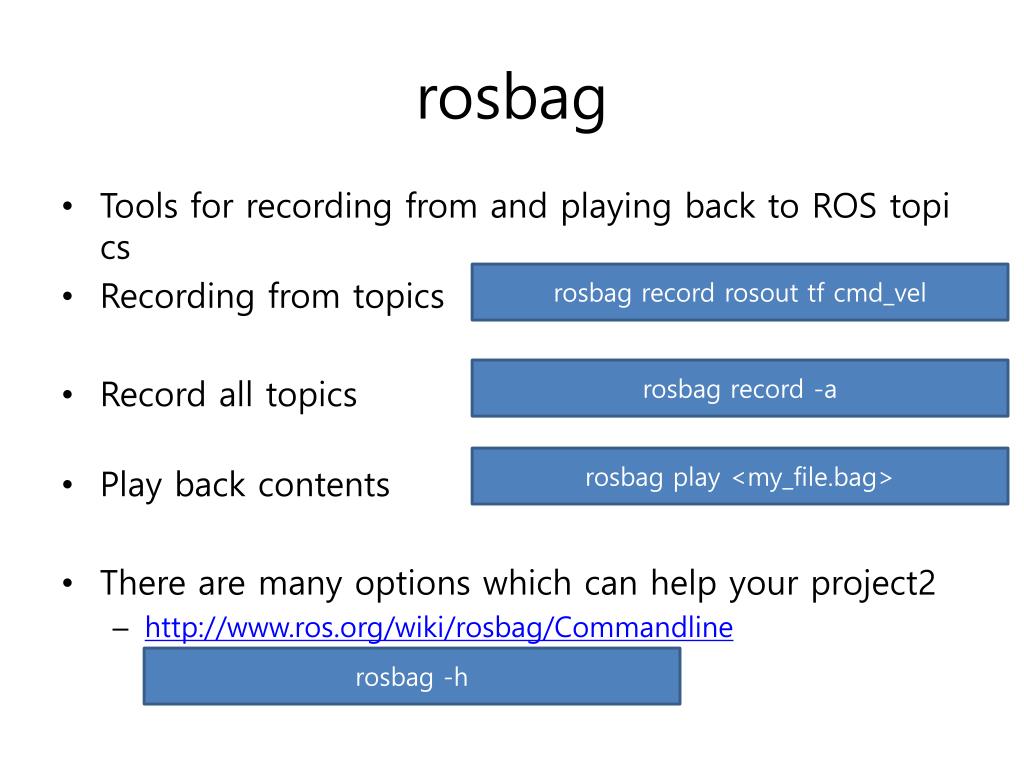

  2. rosbag • Tools for recording from and playing back to ROS topics • Recording from topics • Record all topics • Play back contents • There are many options which can help your project2 • http://www.ros.org/wiki/rosbag/Commandline rosbag record rosouttf cmd_vel rosbag record -a rosbag play <my_file.bag> rosbag -h

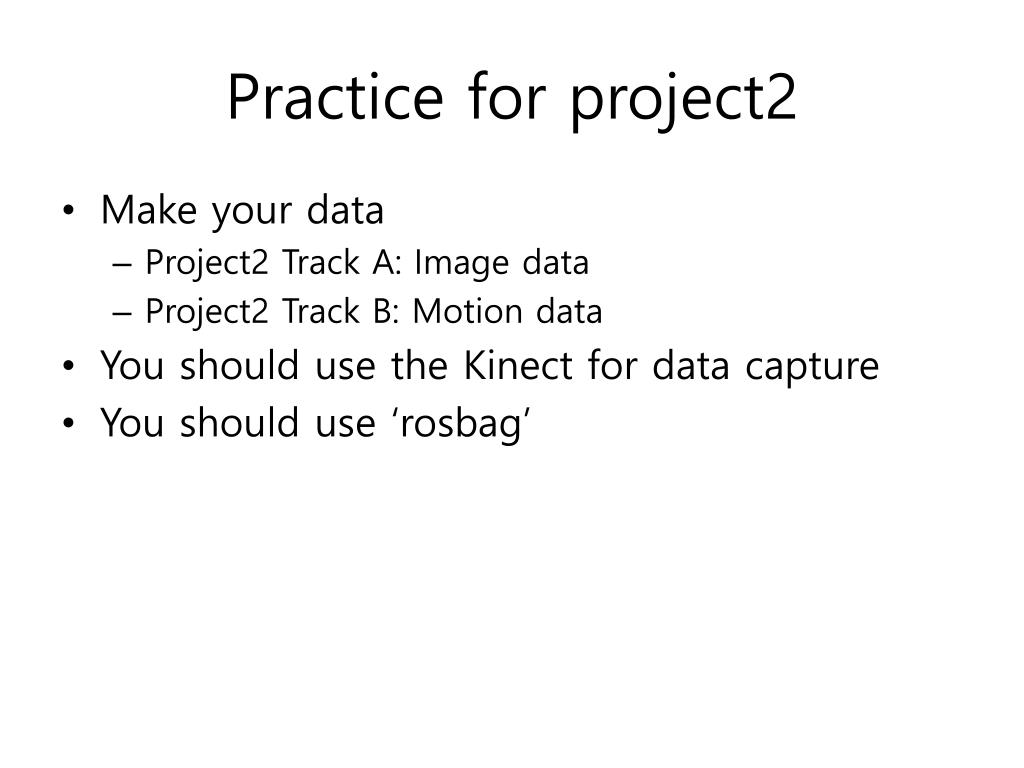

  3. Practice for project2 • Make your data • Project2 Track A: Image data • Project2 Track B: Motion data • You should use the Kinect for data capture • You should use ‘rosbag’

  4. Make an Image Dataset • Take a picture with Kinect • Change • color image to gray scale image • image size: 20ⅹ20 • One image has 400 feature values

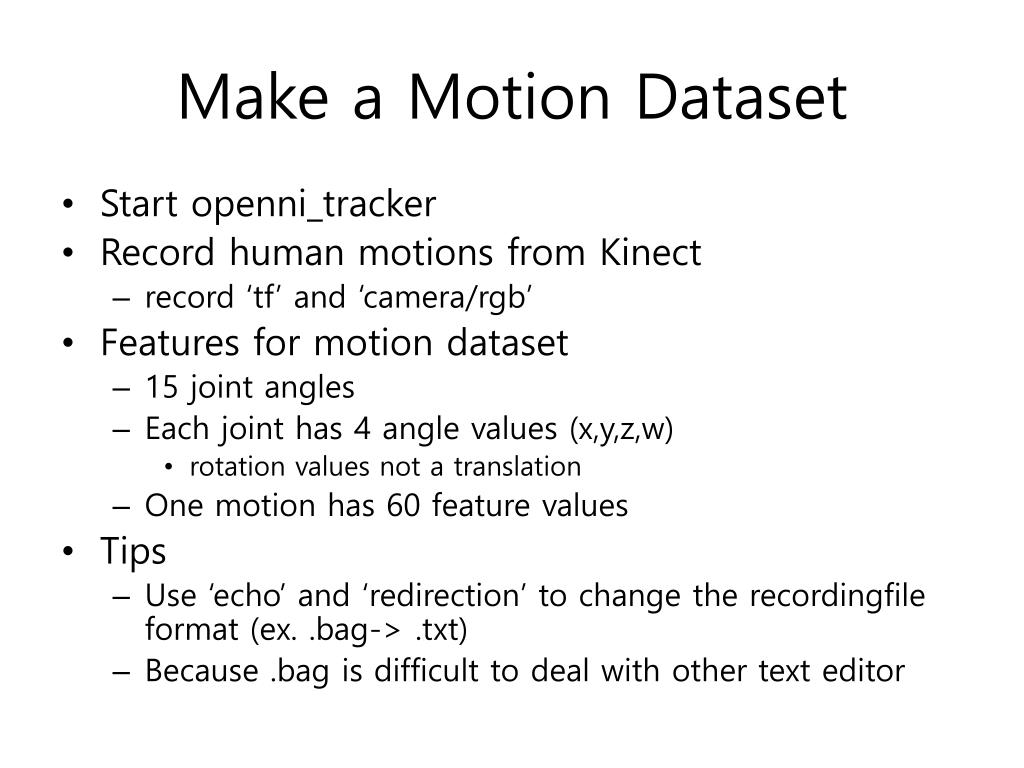

  5. Make a Motion Dataset • Start openni_tracker • Record human motions from Kinect • record ‘tf’ and ‘camera/rgb’ • Features for motion dataset • 15 joint angles • Each joint has 4 angle values (x,y,z,w) • rotation values not a translation • One motion has 60 feature values • Tips • Use ‘echo’ and ‘redirection’ to change the recordingfile format (ex. .bag-> .txt) • Because .bag is difficult to deal with other text editor

  6. Make an .arff file @RELATION <dataset name> @ATTRIBUTE <feature1 name> <feature1 type> @ATTRIBUTE <feature2 name> <feature2 type> @ATTRIBUTE <feature3 name> <feature3 type> @ATTRIBUTE <feature4 name> <feature4 type> ….. @ATTRIBUTE class <classes name> @DATA 1,2,3,1, apple 3,2,0,1, book …… Header Data ( feature values + class )

  7. Schedule for project2 • May. 29 • TA will give you kinect and Linux machine • Specification document for project 2 will be uploaded • (Jun. 5: Final Exam) • Jun. 12 • Poster presentation • Jun. 14 • Deadline of a report for project2
