  1. Understanding VoIP from Backbone Measurements Marco Mellia, Dario Rossi Robert Birke, and Michele Petracca INFOCOM 07’, Anchorage, Alaska, USA Young J. Won Oct. 15, 2007

  2. Outline • Introduction • Measurement methodology • The FastWeb network • Measurement results • Conclusion

  3. Introduction • VoIP has long been indicated as the technology that will trigger convergence. • Traffic monitoring and characterization have been seen as a key methodology to understand telecommunication technology and operation • This paper presents the first extended set of measurement results collected via passive monitoring of VoIP traffic

  4. Measurement Methodology • Identification of RTP/RTCP over UDP flows • Measurement indexes • Call duration • Call round trip time • Flow packet loss probability • Flow jitter (Inter-Packet-Gap variation) • Flow equivalent mean opinion score (eMOS) • A computational model by ITU-T the predicts subjective quality of packetized voice.

  5. Why? • Why we are interested in this? • Curiosity • Extracting basic parameter values for OPNET and later modeling • Basis for the theorical scenario analysis models

  6. Identification of RTP/RTCP over UDP Flows • Conditions to Check • The version field must be set to 2 • The payload type field must have an admissible value or the same SSCR (Synchronized Source Identifier) • The UDP port > 1024 or the same payload type

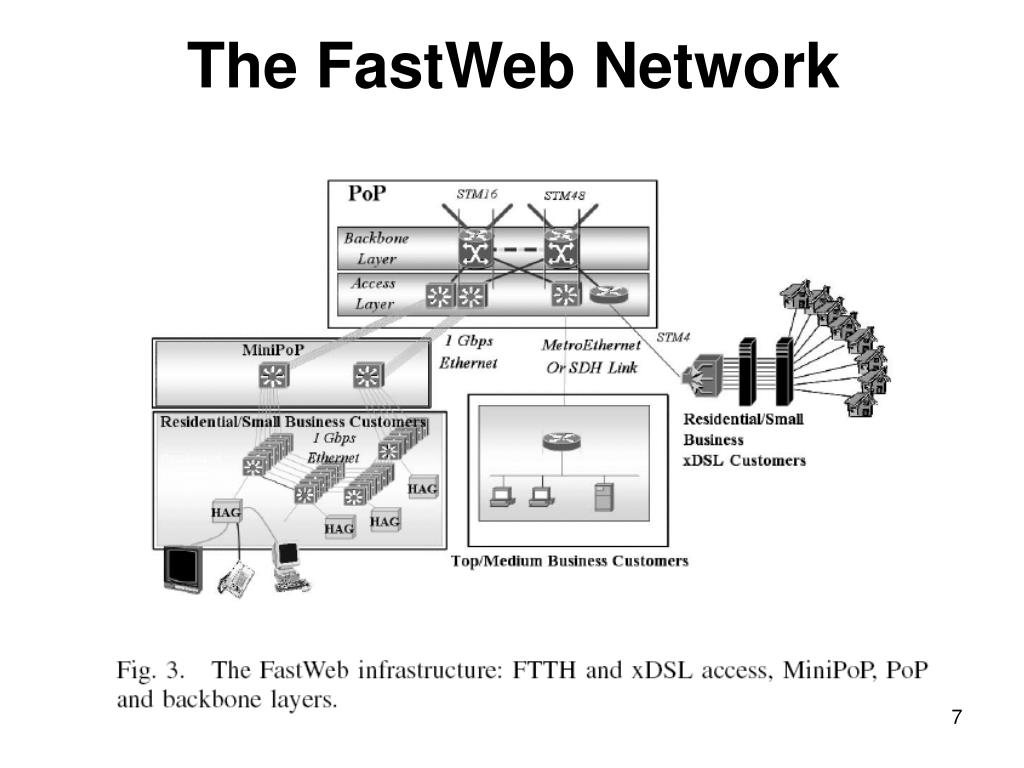

  7. The FastWeb Network

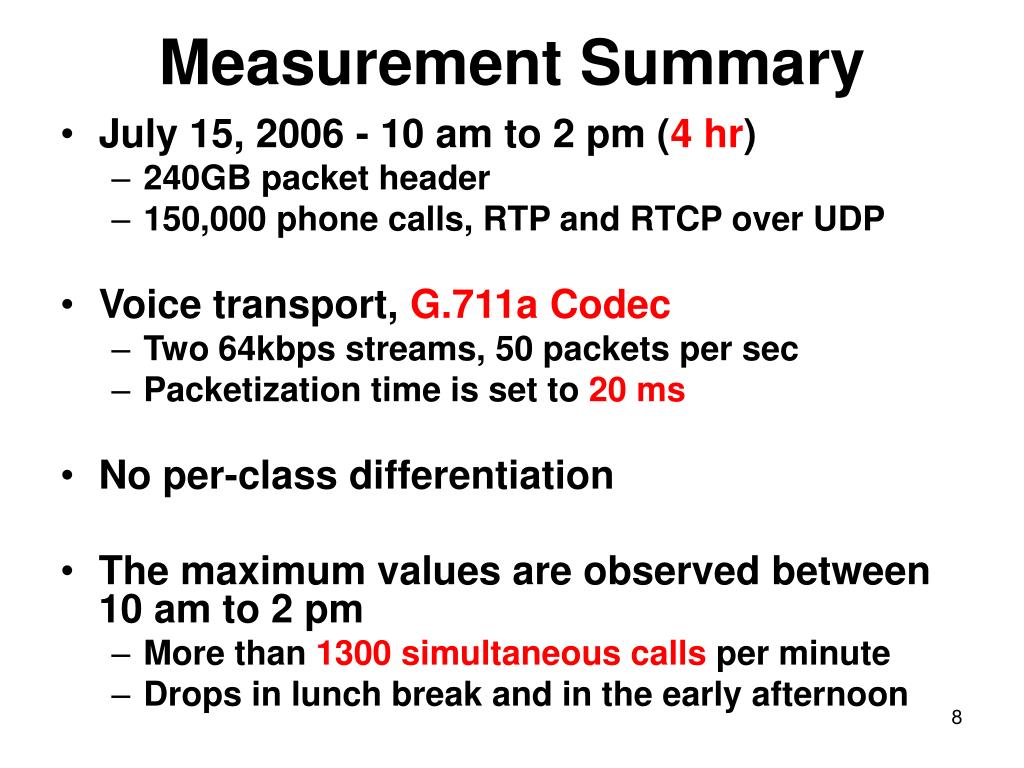

  8. Measurement Summary • July 15, 2006 - 10 am to 2 pm (4 hr) • 240GB packet header • 150,000 phone calls, RTP and RTCP over UDP • Voice transport, G.711a Codec • Two 64kbps streams, 50 packets per sec • Packetization time is set to 20 ms • No per-class differentiation • The maximum values are observed between 10 am to 2 pm • More than 1300 simultaneous calls per minute • Drops in lunch break and in the early afternoon

  9. Measurement Results • Two probe nodes located in a PoP located in Turin, and a Gateway node located in Milan • Tstat was run on the probe to take live traffic measurements • Passive monitoring tool by the Politecnico di Torino • RTP/RTCP over UDP or tunneled TCP

  10. HAG Distribution • Home Access Gateway (HAG) • Offers Ethernet ports to PCs, VideoBox, Plain Old Telephone

  11. Number of Phone Calls Tracked

  12. User-Centric Measurements (Call Duration) • User-Centric measurements • Average phone duration, 106s: heavy-tailed distribution • Long (97s), Local (113s) • My observation: Very similar to FLOW Lifetime measurement

  13. eMOS CDF • eMOS • Excellent ( eMOS>4 ) • Good ( eMOS[3:4] ) • eMOS >= 3.6 • The same quality as traditional PSTN phone calls

  14. Network-Centric Measurements (RTT) • All measurements present RTT values smaller than 200ms for more than 97% of calls • RTT cannot be considered as a major impairment of VoIP call quality

  15. Network-Centric Measurements (Jitter) • Jitter is traced smaller than 15ms • Inter-packet-gap is 20ms

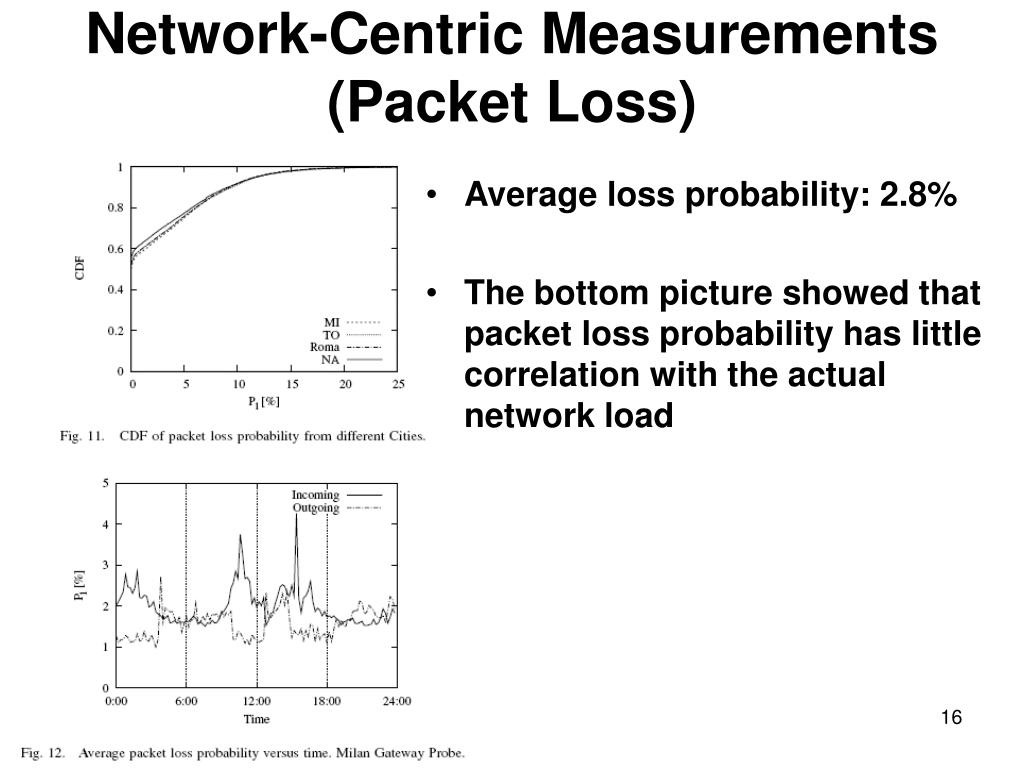

  16. Network-Centric Measurements (Packet Loss) • Average loss probability:2.8% • The bottom picture showed that packet loss probability has little correlation with the actual network load

  17. Conclusion • This paper presented an extensive measurement campaign focusing on VoIP traffic characterization • Use eMOS model to compare the quality of VoIP to traditional PSTN phone calls • In FastWeb, only the packet loss probability affected the quality of VoIP
