  1. Wireless Remote Control Derail System CSX Atlanta , GA CSX Atlanta , GA Track and Derail Graphic layout

  2. This system was designed as Modular Packageutilizing - Reliable proven components - Expandable control of multiple locations - Software generated Control graphical Interlace allowing for realtime feedback - Quick system upgrades - Low maintenance - Quick change out of all components - System self Diagnostics - Easy system troubleshooting This wireless Control System was developed to address the Railroads need to provide a Safe, Reliable cost effective method of remotely controlling derails within the guidelines of FRA requirements. Wireless Control System Robust Omini directional wireless Radio with a 25 mile range Allen Bradley off the self Micro controller • SafeTran loop detector Snyder Electric Derail Package

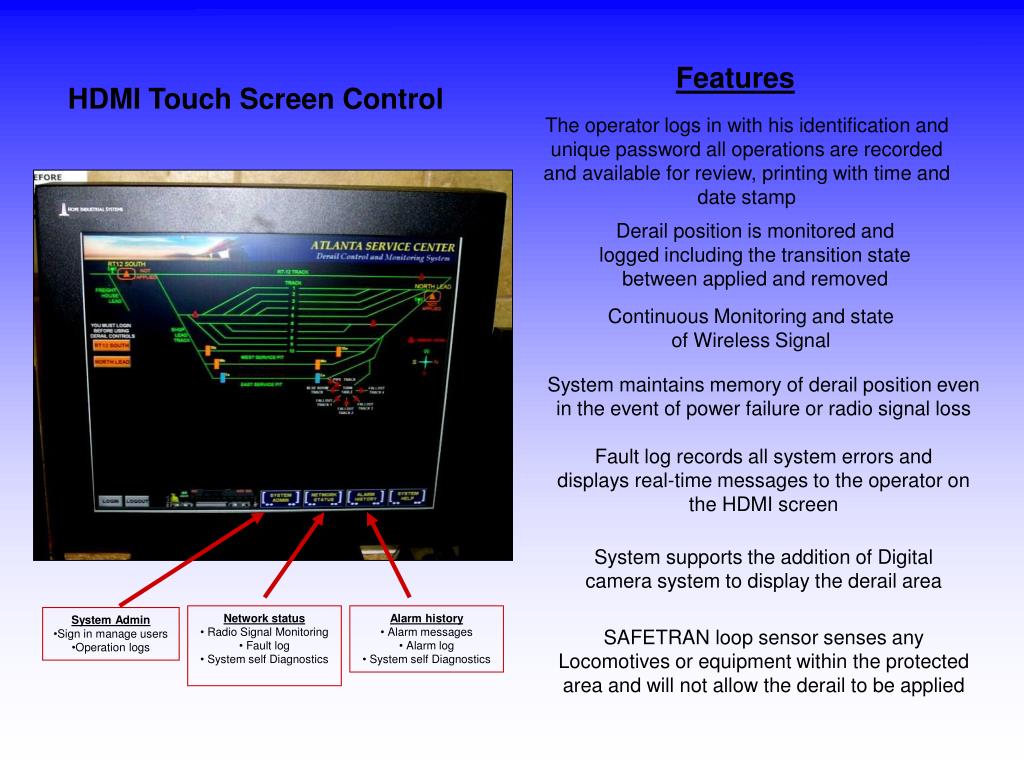

  3. Features The operator logs in with his identification and unique password all operations are recorded and available for review, printing with time and date stamp HDMI Touch Screen Control Derail position is monitored and logged including the transition state between applied and removed Continuous Monitoring and state of Wireless Signal System maintains memory of derail position even in the event of power failure or radio signal loss Fault log records all system errors and displays real-time messages to the operator on the HDMI screen System supports the addition of Digital camera system to display the derail area • Network status • Radio Signal Monitoring • Fault log • System self Diagnostics • Alarm history • Alarm messages • Alarm log • System self Diagnostics • System Admin • Sign in manage users • Operation logs SAFETRAN loop sensor senses any Locomotives or equipment within the protected area and will not allow the derail to be applied

  4. Basic Derail System Power requirements 110v 10a Breaker Powder coated weather tite enclosure Omni Directional Antenna Position switchesControl RelaysTerminal Block RadioDerail Control Box Loop detector NEMA 4 EnclosurePowder coated Derail Actuator All power, control, loop wiring enclosed In support tube

  5. 1800ft distance 2800ft distance Multiple Derails controlled from one location 1300ft distance 25 mile radius 3800ft distance CSX Chicago Barr Yard 6 –Remote derail controlled CSX Atlanta Tilford Yard 2 –Remote derails controlled 2600ft distance

  6. Remote Derail System w/ wireless control Safety Flexibility Reliability Expandability
