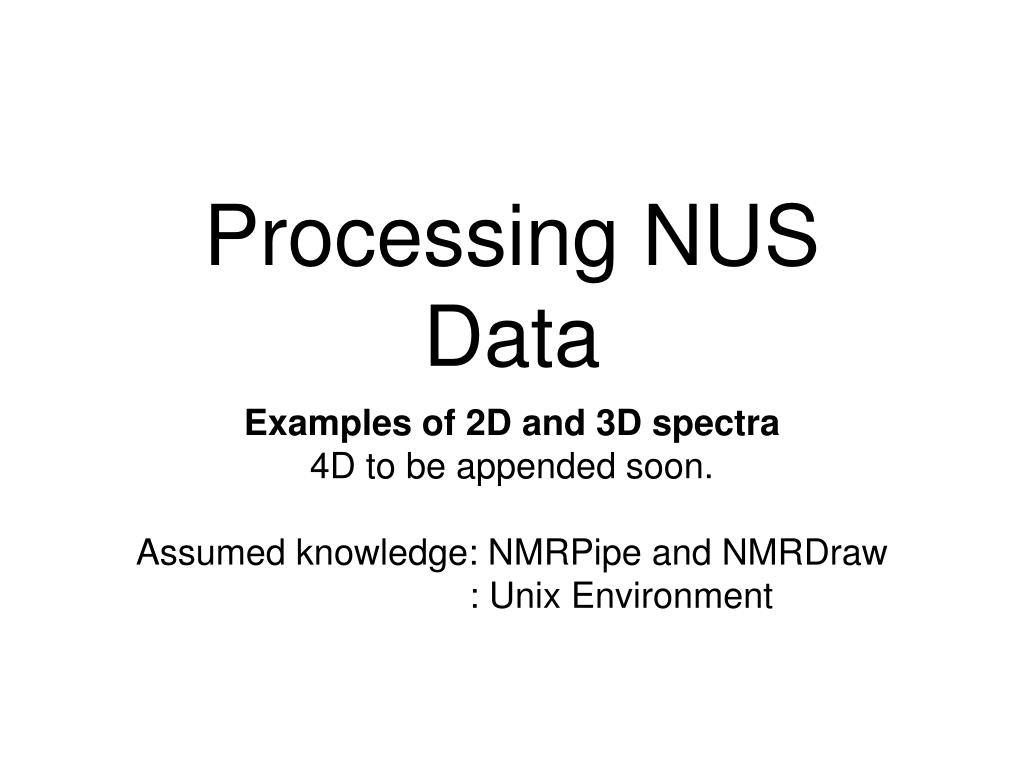

Processing NUS Data. Examples of 2D and 3D spectra 4D to be appended soon. Assumed knowledge: NMRPipe and NMRDraw : Unix Environment. 2D Processing 1D Reconstruction. 15 N, 13 C HSQC and Homonuclear Spectra Single indirect dimension acquired non-uniformly

shirin
Télécharger la présentation

Processing NUS Data

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Processing NUS Data • Examples of 2D and 3D spectra • 4D to be appended soon. • Assumed knowledge: NMRPipe and NMRDraw • : Unix Environment

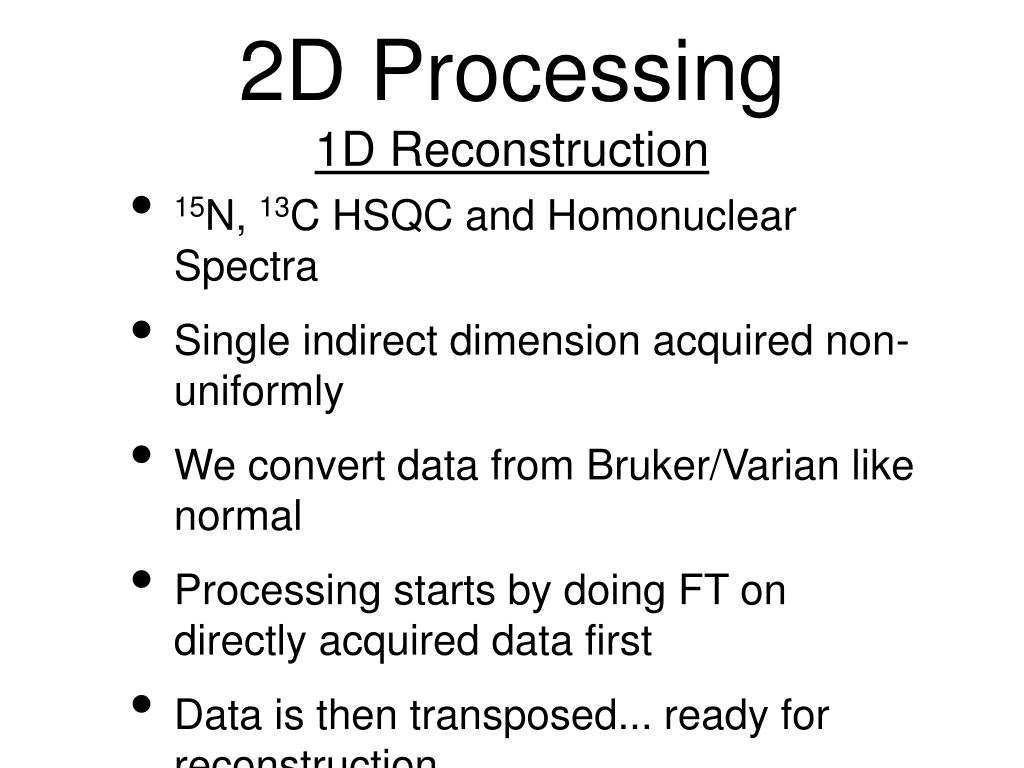

  2. 2D Processing1D Reconstruction • 15N, 13C HSQC and Homonuclear Spectra • Single indirect dimension acquired non-uniformly • We convert data from Bruker/Varian like normal • Processing starts by doing FT on directly acquired data first • Data is then transposed... ready for reconstruction

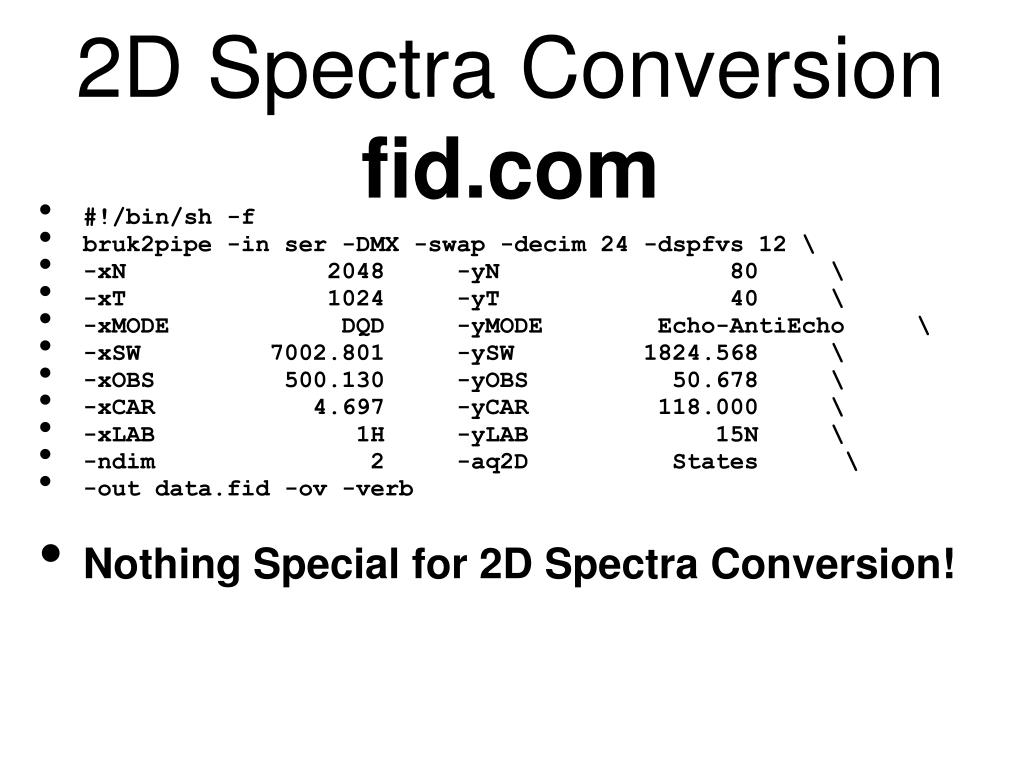

  3. 2D Spectra Conversionfid.com • #!/bin/sh -f • bruk2pipe -in ser -DMX -swap -decim 24 -dspfvs 12 \ • -xN 2048 -yN 80 \ • -xT 1024 -yT 40 \ • -xMODE DQD -yMODE Echo-AntiEcho \ • -xSW 7002.801 -ySW 1824.568 \ • -xOBS 500.130 -yOBS 50.678 \ • -xCAR 4.697 -yCAR 118.000 \ • -xLAB 1H -yLAB 15N \ • -ndim 2 -aq2D States \ • -out data.fid -ov -verb • Nothing Special for 2D Spectra Conversion!

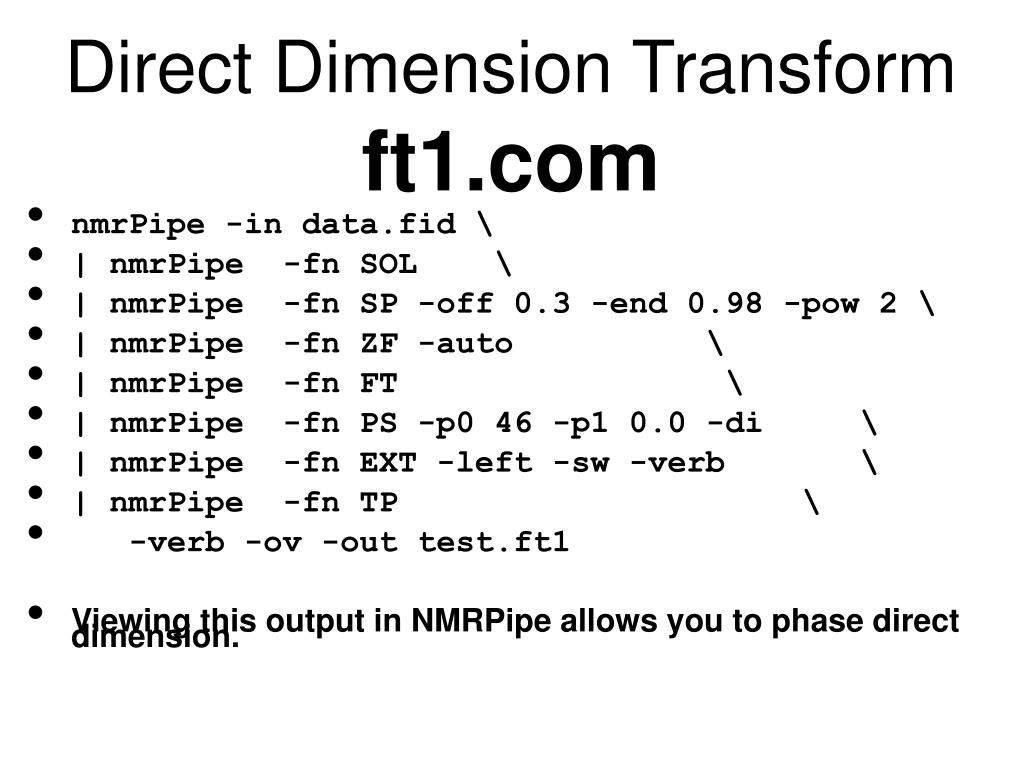

  4. Direct Dimension Transformft1.com • nmrPipe -in data.fid \ • | nmrPipe -fn SOL \ • | nmrPipe -fn SP -off 0.3 -end 0.98 -pow 2 \ • | nmrPipe -fn ZF -auto \ • | nmrPipe -fn FT \ • | nmrPipe -fn PS -p0 46 -p1 0.0 -di \ • | nmrPipe -fn EXT -left -sw -verb \ • | nmrPipe -fn TP \ • -verb -ov -out test.ft1 • Viewing this output in NMRPipe allows you to phase direct dimension.

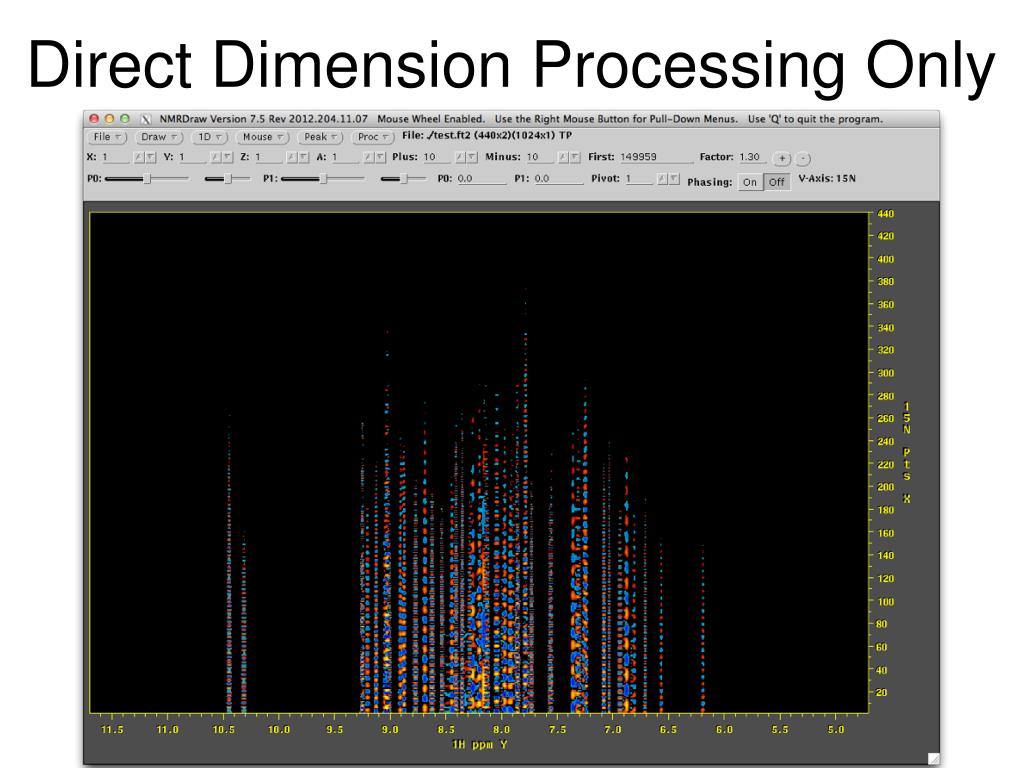

  5. Direct Dimension Processing Only

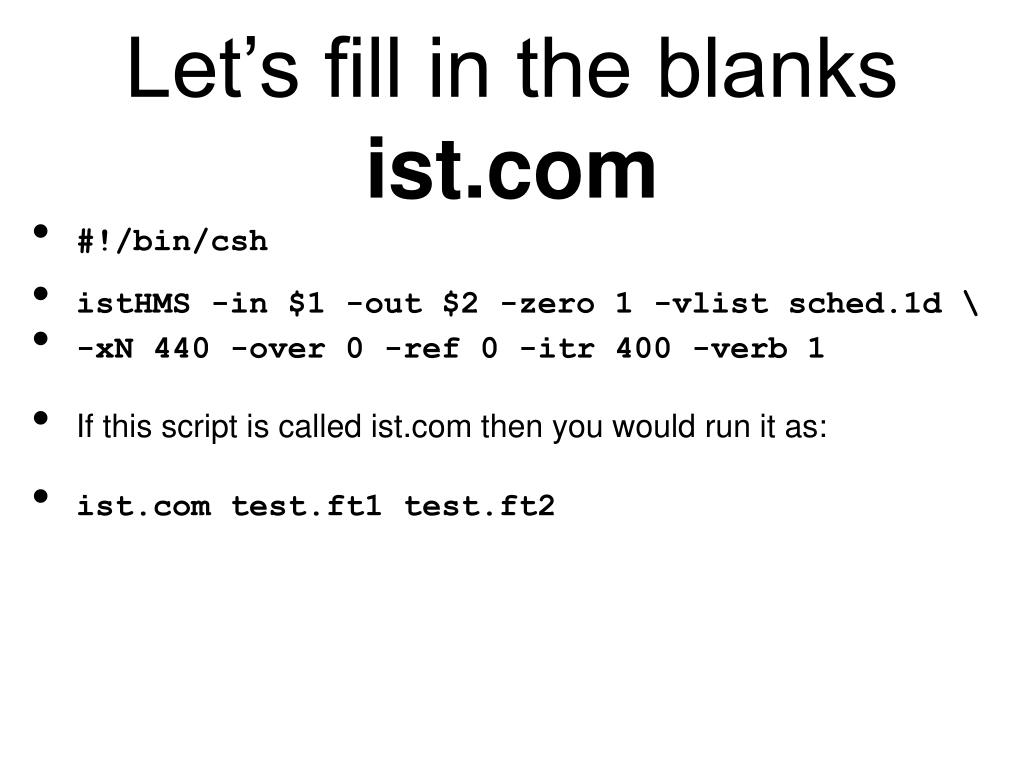

  6. Let’s fill in the blanksist.com • #!/bin/csh • istHMS -in $1 -out $2 -zero 1 -vlist sched.1d \ • -xN 440 -over 0 -ref 0 -itr 400 -verb 1 • If this script is called ist.com then you would run it as: • ist.com test.ft1 test.ft2

  7. Direct Dimension Processing Only

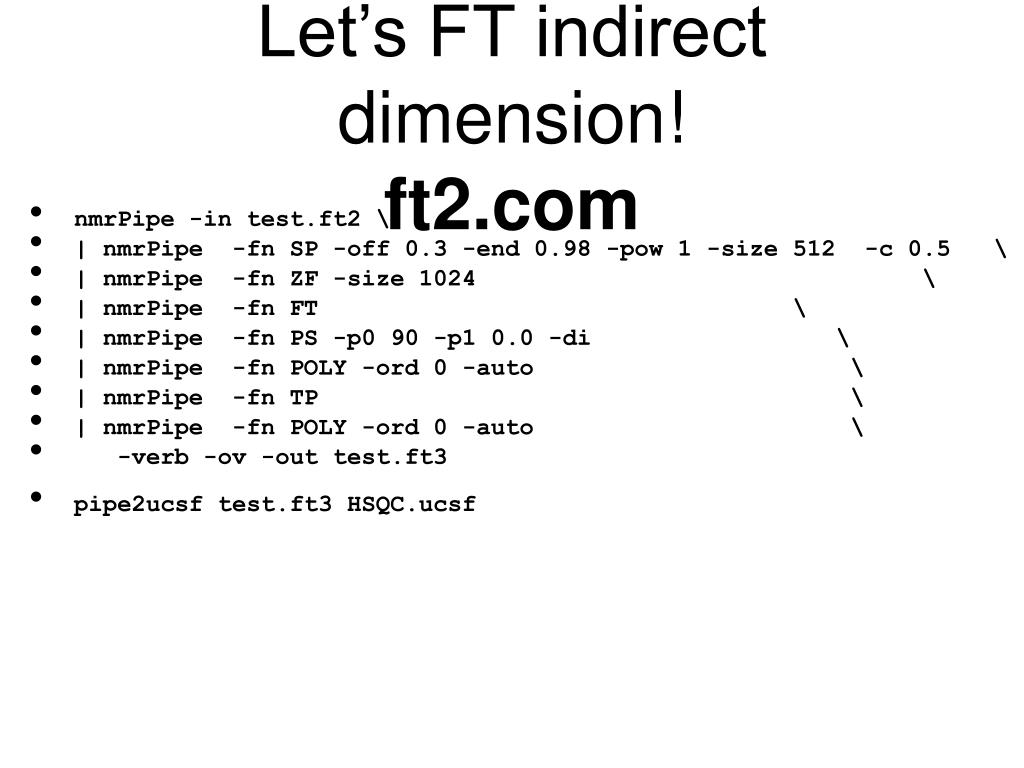

  8. Let’s FT indirect dimension!ft2.com • nmrPipe -in test.ft2 \ • | nmrPipe -fn SP -off 0.3 -end 0.98 -pow 1 -size 512 -c 0.5 \ • | nmrPipe -fn ZF -size 1024 \ • | nmrPipe -fn FT \ • | nmrPipe -fn PS -p0 90 -p1 0.0 -di \ • | nmrPipe -fn POLY -ord 0 -auto \ • | nmrPipe -fn TP \ • | nmrPipe -fn POLY -ord 0 -auto \ • -verb -ov -out test.ft3 • pipe2ucsf test.ft3 HSQC.ucsf

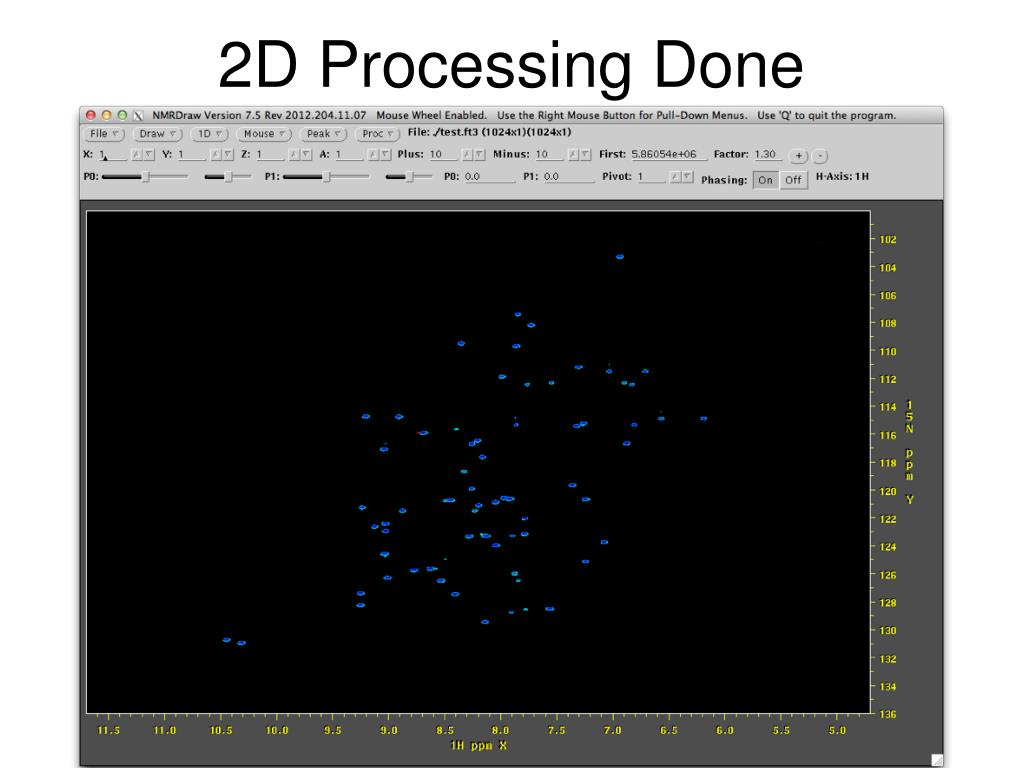

  9. 2D Processing Done

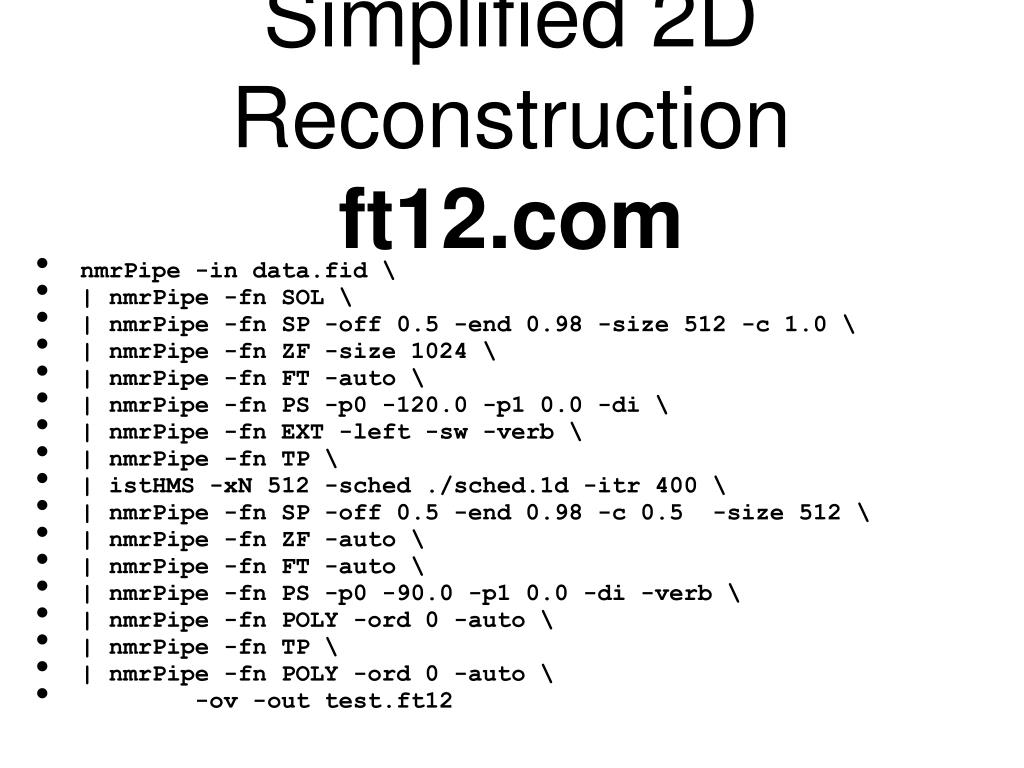

  10. Simplified 2D Reconstructionft12.com • nmrPipe -in data.fid \ • | nmrPipe -fn SOL \ • | nmrPipe -fn SP -off 0.5 -end 0.98 -size 512 -c 1.0 \ • | nmrPipe -fn ZF -size 1024 \ • | nmrPipe -fn FT -auto \ • | nmrPipe -fn PS -p0 -120.0 -p1 0.0 -di \ • | nmrPipe -fn EXT -left -sw -verb \ • | nmrPipe -fn TP \ • | istHMS -xN 512 -sched ./sched.1d -itr 400 \ • | nmrPipe -fn SP -off 0.5 -end 0.98 -c 0.5 -size 512 \ • | nmrPipe -fn ZF -auto \ • | nmrPipe -fn FT -auto \ • | nmrPipe -fn PS -p0 -90.0 -p1 0.0 -di -verb \ • | nmrPipe -fn POLY -ord 0 -auto \ • | nmrPipe -fn TP \ • | nmrPipe -fn POLY -ord 0 -auto \ • -ov -out test.ft12

  11. Looks great!

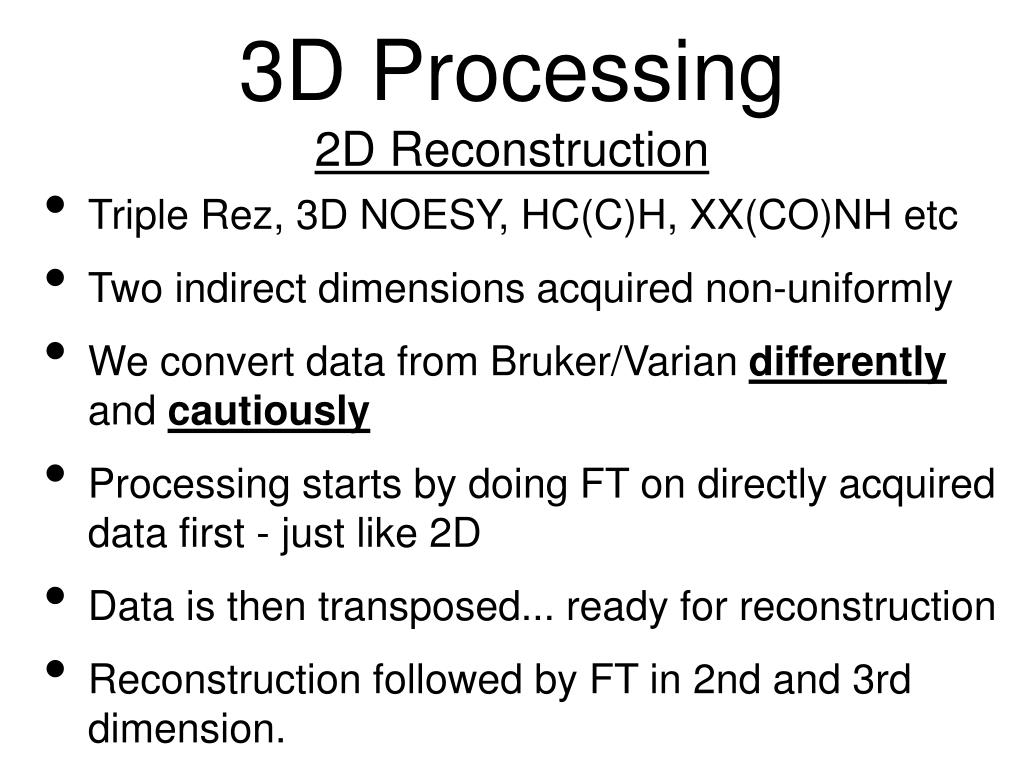

  12. 3D Processing2D Reconstruction • Triple Rez, 3D NOESY, HC(C)H, XX(CO)NH etc • Two indirect dimensions acquired non-uniformly • We convert data from Bruker/Varian differently and cautiously • Processing starts by doing FT on directly acquired data first - just like 2D • Data is then transposed... ready for reconstruction • Reconstruction followed by FT in 2nd and 3rd dimension.

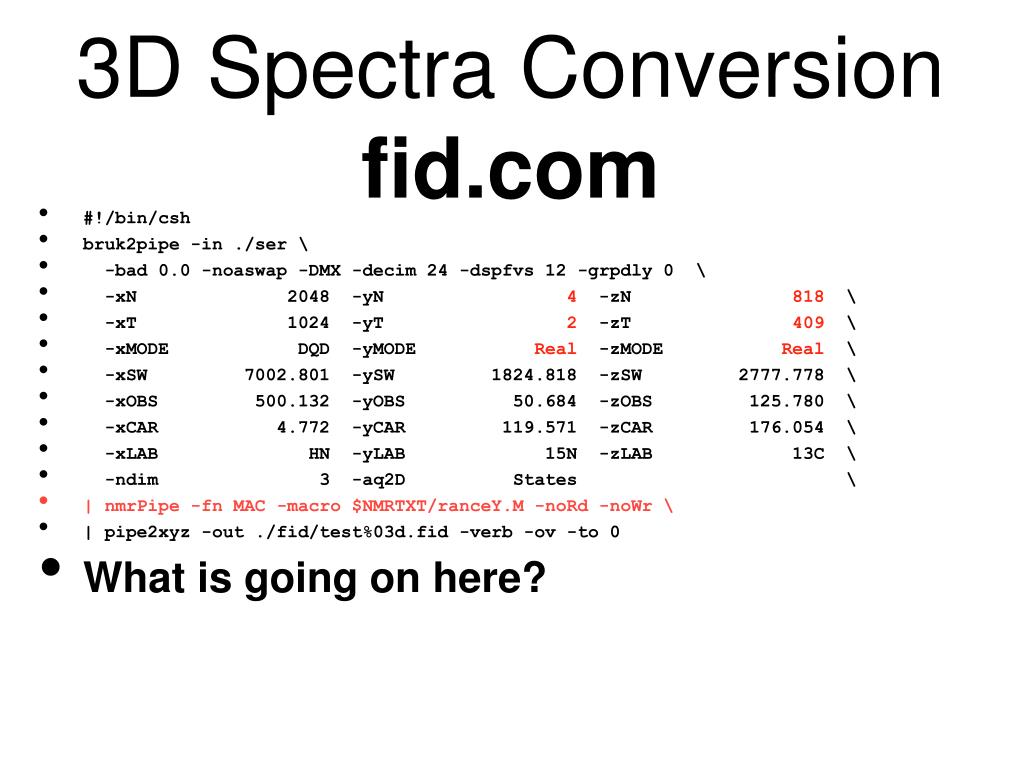

  13. 3D Spectra Conversionfid.com • #!/bin/csh • bruk2pipe -in ./ser \ • -bad 0.0 -noaswap -DMX -decim 24 -dspfvs 12 -grpdly 0 \ • -xN 2048 -yN 4 -zN 818 \ • -xT 1024 -yT 2 -zT 409 \ • -xMODE DQD -yMODE Real -zMODE Real \ • -xSW 7002.801 -ySW 1824.818 -zSW 2777.778 \ • -xOBS 500.132 -yOBS 50.684 -zOBS 125.780 \ • -xCAR 4.772 -yCAR 119.571 -zCAR 176.054 \ • -xLAB HN -yLAB 15N -zLAB 13C \ • -ndim 3 -aq2D States \ • | nmrPipe -fn MAC -macro $NMRTXT/ranceY.M -noRd -noWr \ • | pipe2xyz -out ./fid/test%03d.fid -verb -ov -to 0 • What is going on here?

  14. What is going on here? • Data no longer collected as a series of planes. • Instead, treat data as string of points acquired according to the schedule. • In 3D spectrum there are 4 FIDs per indirect point. -yN = 4 • 2 FIDs for each indirect dimension. • E.g. 2 FIDs for Nitrogen (a complex point) • 2 FIDs for Carbon (a complex point) • This is how the Pulse Program Acquires the data • Then there are 818 points acquired. -zN = 818 • We treat each FID is real for conversion • Each FID is put into a complex line of data by the reconstruction program • Any dimension with non-complex acquisition (read Echo-AntiEcho) needs to be labeled as such. • | nmrPipe -fn MAC -macro $NMRTXT/ranceY.M -noRd -noWr \ • Here the Y dimension (Nitrogen) is labeled as Rance-Kay (Echo-AntiEcho).

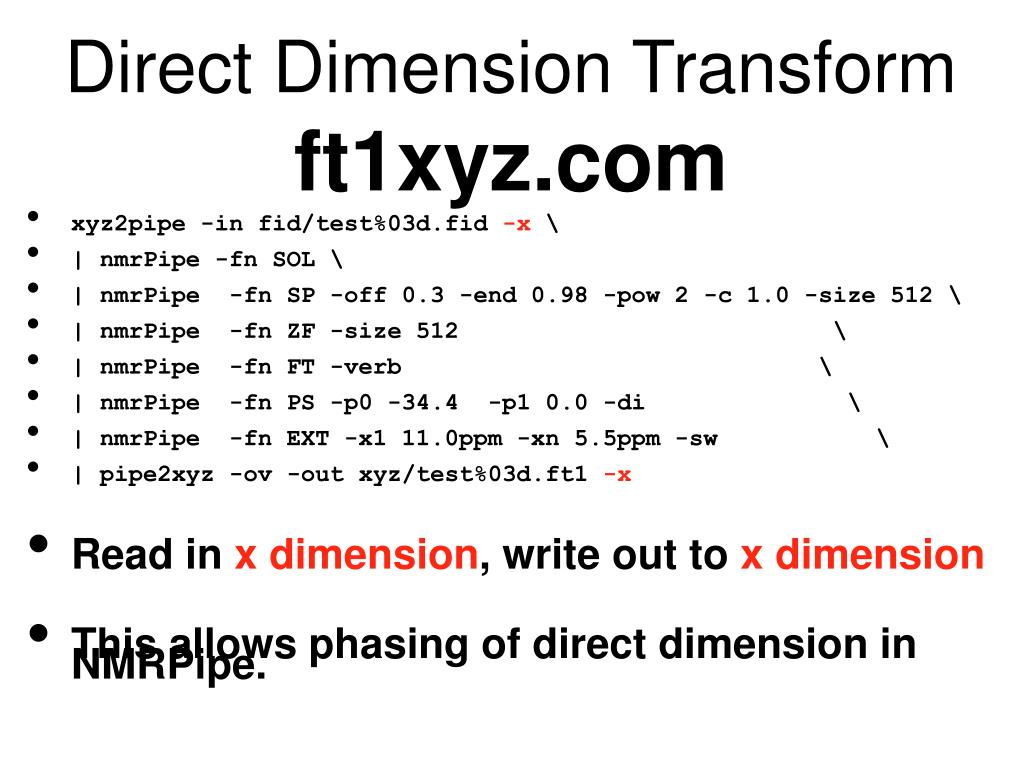

  15. Direct Dimension Transformft1xyz.com • xyz2pipe -in fid/test%03d.fid -x \ • | nmrPipe -fn SOL \ • | nmrPipe -fn SP -off 0.3 -end 0.98 -pow 2 -c 1.0 -size 512 \ • | nmrPipe -fn ZF -size 512 \ • | nmrPipe -fn FT -verb \ • | nmrPipe -fn PS -p0 -34.4 -p1 0.0 -di \ • | nmrPipe -fn EXT -x1 11.0ppm -xn 5.5ppm -sw \ • | pipe2xyz -ov -out xyz/test%03d.ft1 -x • Read in x dimension, write out to x dimension • This allows phasing of direct dimension in NMRPipe.

  16. Direct Dimension Processing Only

  17. Phase, Transpose for Reconstructionft1.com • xyz2pipe -in fid/test%03d.fid -x \ • | nmrPipe -fn SOL \ • | nmrPipe -fn SP -off 0.3 -end 0.98 -pow 2 -c 1.0 -size 512 \ • | nmrPipe -fn ZF -size 512 \ • | nmrPipe -fn FT -verb \ • | nmrPipe -fn PS -p0 -34.4 -p1 0.0 -di \ • | nmrPipe -fn EXT -x1 11.0ppm -xn 5.5ppm -sw \ • | pipe2xyz -ov -out xyz/test%03d.ft1 -z • Read in x dimension, write out to z dimension • This places indirect data in the x and y dimensions. • This is necessary for istHMS reconstruction.

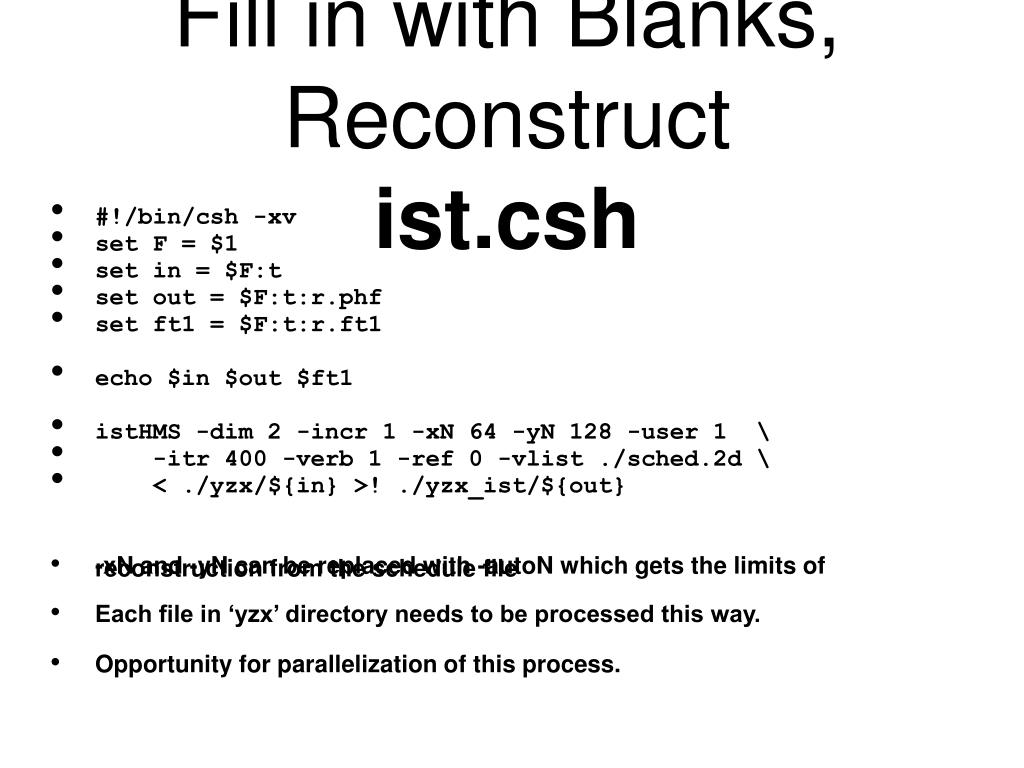

  18. Fill in with Blanks, Reconstructist.csh • #!/bin/csh -xv • set F = $1 • set in = $F:t • set out = $F:t:r.phf • set ft1 = $F:t:r.ft1 • echo $in $out $ft1 • istHMS -dim 2 -incr 1 -xN 64 -yN 128 -user 1 \ • -itr 400 -verb 1 -ref 0 -vlist ./sched.2d \ • < ./yzx/${in} >! ./yzx_ist/${out} • -xN and -yN can be replaced with -autoN which gets the limits of reconstruction from the schedule file • Each file in ‘yzx’ directory needs to be processed this way. • Opportunity for parallelization of this process.

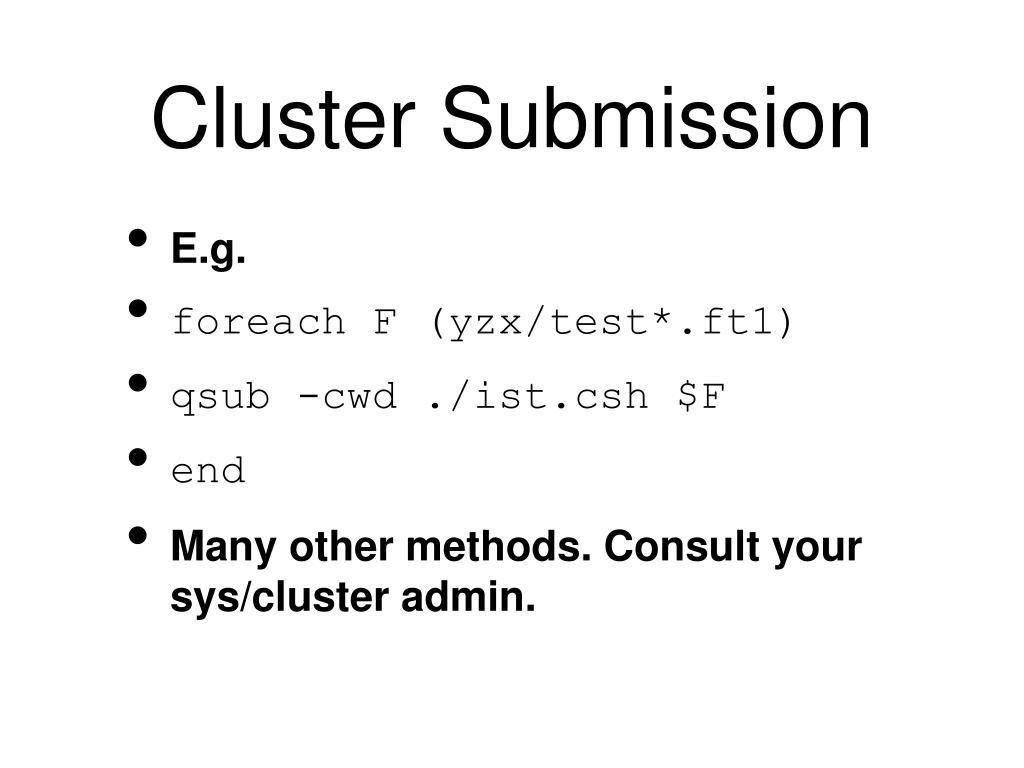

  19. Cluster Submission • E.g. • foreach F (yzx/test*.ft1) • qsub -cwd ./ist.csh $F • end • Many other methods. Consult your sys/cluster admin.

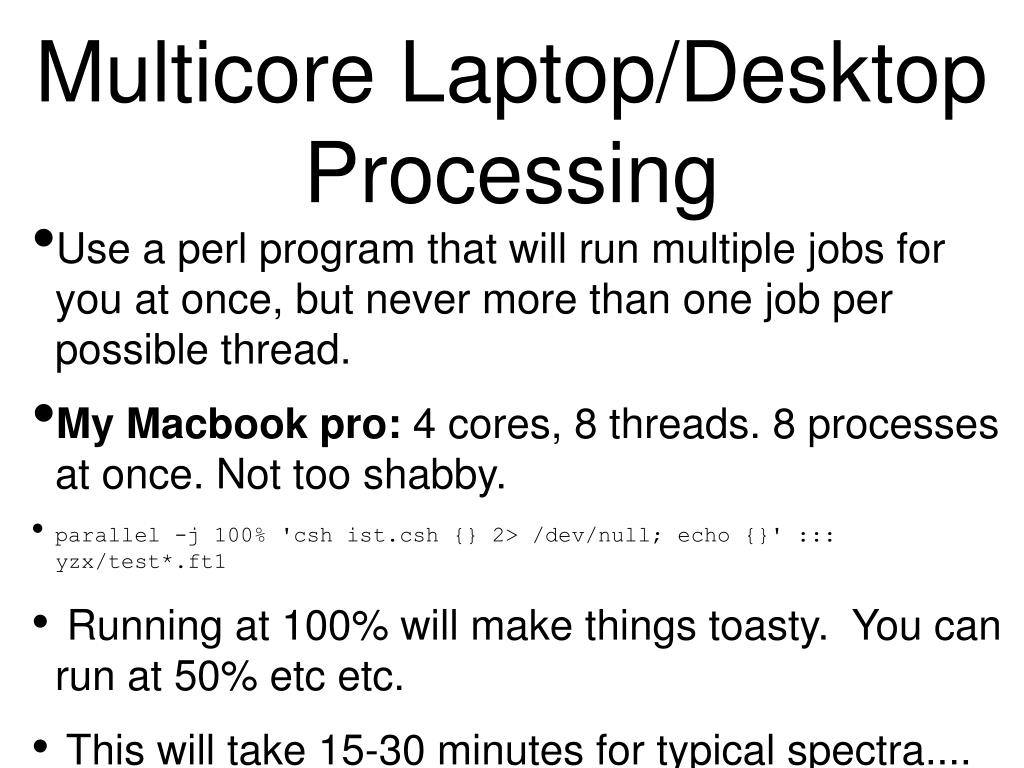

  20. Multicore Laptop/Desktop Processing • Use a perl program that will run multiple jobs for you at once, but never more than one job per possible thread. • My Macbook pro: 4 cores, 8 threads. 8 processes at once. Not too shabby. • parallel -j 100% 'csh ist.csh {} 2> /dev/null; echo {}' ::: yzx/test*.ft1 • Running at 100% will make things toasty. You can run at 50% etc etc. • This will take 15-30 minutes for typical spectra.... • coffee time!

  21. Reordering FIDsphf2pipe.com • #!/bin/csh • xyz2pipe -in yzx_ist/test%03d.phf \ • | phf2pipe -user 1 -xproj xz.ft1 -yproj yz.ft1 \ • | pipe2xyz -out rec/test%03d.ft1 • FIDs are fully reconstructed from last step • FIDs are now in conventional order (planes) • xproj and yproj give the first plane in each indirect dimension - for phasing. • Lets look at yz.ft1

  22. Projection Phasing

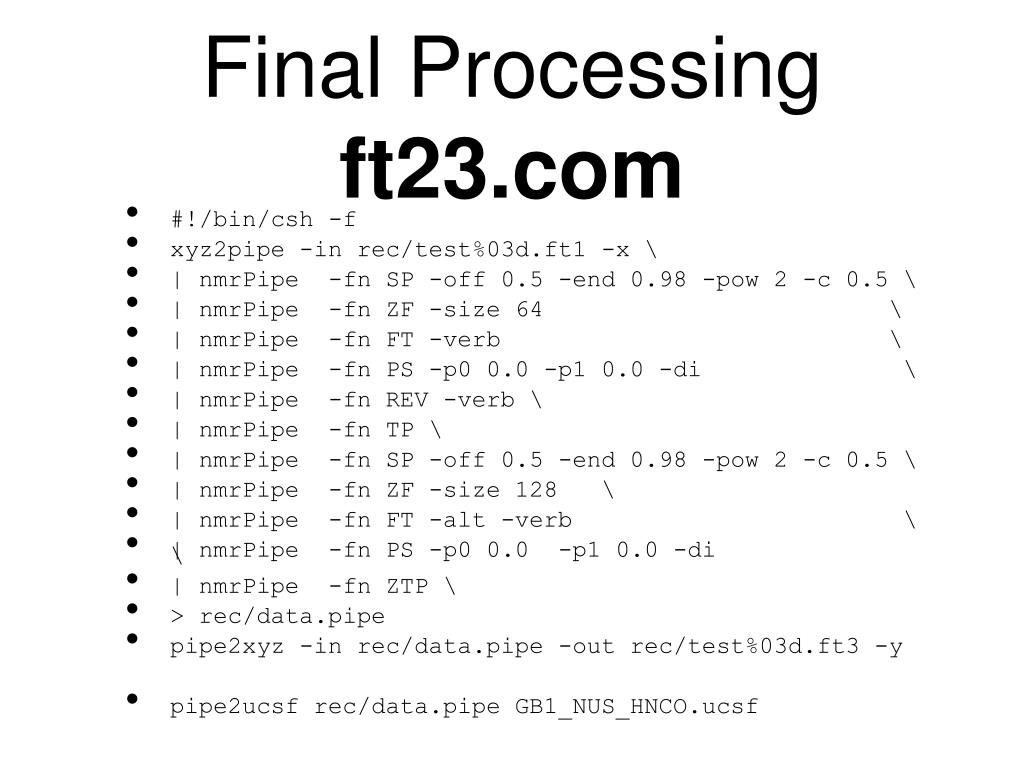

  23. Final Processingft23.com • #!/bin/csh -f • xyz2pipe -in rec/test%03d.ft1 -x \ • | nmrPipe -fn SP -off 0.5 -end 0.98 -pow 2 -c 0.5 \ • | nmrPipe -fn ZF -size 64 \ • | nmrPipe -fn FT -verb \ • | nmrPipe -fn PS -p0 0.0 -p1 0.0 -di \ • | nmrPipe -fn REV -verb \ • | nmrPipe -fn TP \ • | nmrPipe -fn SP -off 0.5 -end 0.98 -pow 2 -c 0.5 \ • | nmrPipe -fn ZF -size 128 \ • | nmrPipe -fn FT -alt -verb \ • | nmrPipe -fn PS -p0 0.0 -p1 0.0 -di \ • | nmrPipe -fn ZTP \ • > rec/data.pipe • pipe2xyz -in rec/data.pipe -out rec/test%03d.ft3 -y • pipe2ucsf rec/data.pipe GB1_NUS_HNCO.ucsf

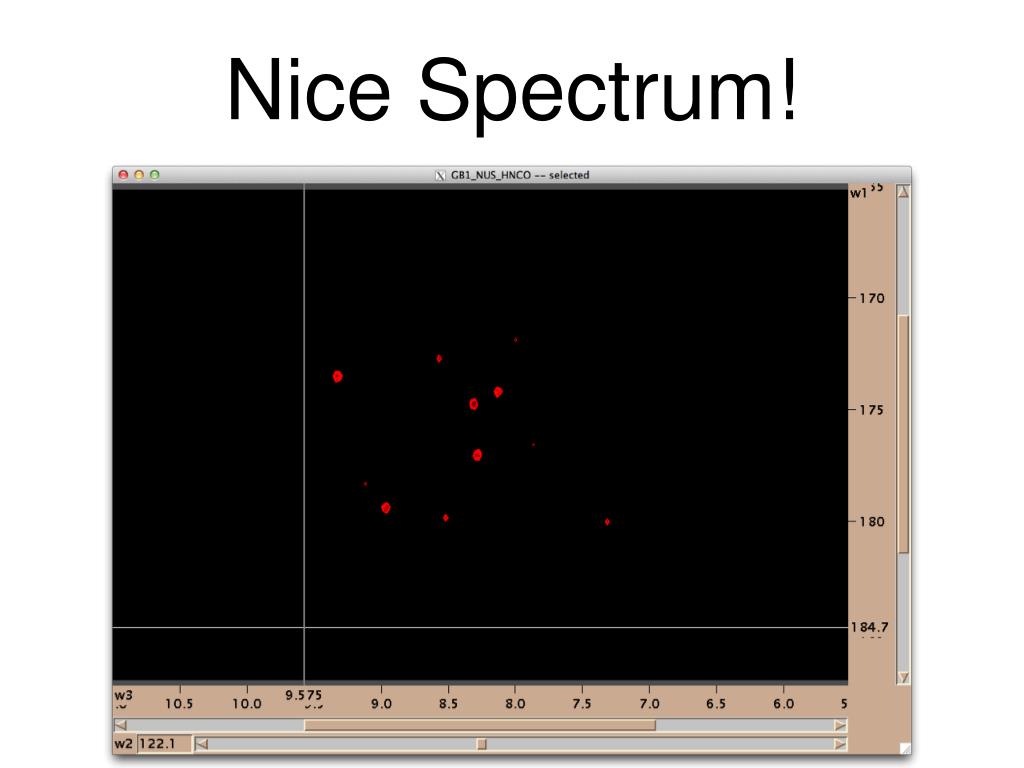

  24. Nice Spectrum!
