Punnett Squares

shyla avatar
shyla
16 diapositives · 419 Views · Sep 14, 2014

Punnett Squares. Cornell Notes Page 47. For what is a Punnett Square Used?. to show all possible ways alleles from parents can combine to create offspring to predict the probability of offspring inheriting a particular trait. How is a Punnett Square Used?.

#punnett squares #punnett squares ppt #powerpoint #presentation
Punnett Squares - slide 1
01 / 16Punnett Squares
1 / 17

Télécharger la présentation

Punnett Squares
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

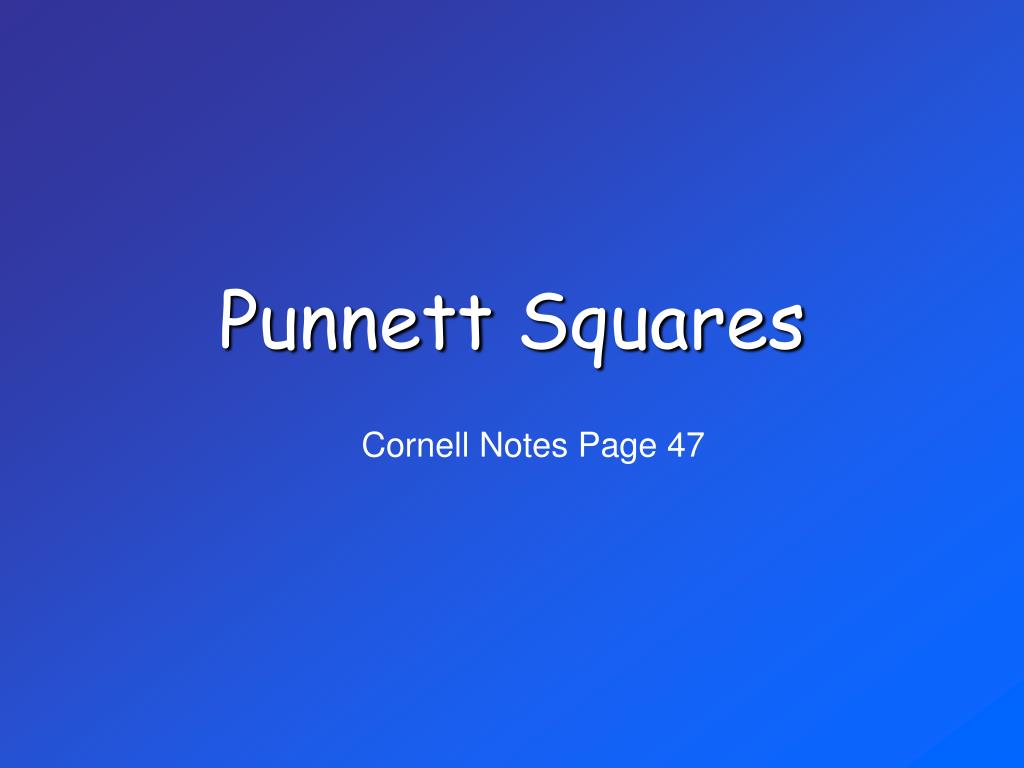

  1. Punnett Squares Cornell Notes Page 47

  2. For what is a Punnett Square Used? • to show all possible ways alleles from parents can combine to create offspring • to predict the probability of offspring inheriting a particular trait.

  3. How is a Punnett Square Used? • Parents’ genotypes go along outside of box • Offspring genotypes are written inside each box • Each box represents 25% of possible offspring • Look at each genotype to determine phenotype.

  4. Practice Using a PUNNETT SQUARE One of Harry Potter’s best friends is Hermione Granger. Hermione is a wizard, but her parents are not. So, how did Hermione get the wizarding trait? We can use a Punnett square to figure it out…

  5. Using a PUNNETT SQUARE A letter is chosen to represent a characteristic, such as magical powers. Having magical powers is a recessive trait, so we’ll use: • Mfor muggle (non-wizard) • mfor wizard

  6. Using a PUNNETT SQUARE Both of Hermione’s parents are muggles and both have a genotype of Mm. Genotypes: Mm x Mm (mom x dad) Phenotypes: both muggles (non-wizards)

  7. Using a PUNNETT SQUARE Cross Hermione’s parents: M m M m

  8. Using a PUNNETT SQUARE The cross looks like this: M m M M M M m m m m m M

  9. Using a PUNNETT SQUARE Each square stands for 25% of the possible offspring. Or, ¼ of the possible offspring. M m M M M M m m m m m M

  10. Using a PUNNETT SQUARE Remember, the recessive trait is having magical powers. What’s the probability of being a wizard? M m M M M M m m m m m M

  11. Expressing PROBABILITIES Can express probability several ways: 3:1 ratio of muggles to wizards 1/4 chance of being wizard 25% chance of being wizard M m M M M M m m m m m M

  12. Expressing PROBABILITIES can use for genotypes 25% - MM 50% - Mm 25% - mm or phenotypes 3/4 - muggles 1/4 – wizards 3:1 muggles to wizards M m M M M M m m m m m M

  13. Practice #1 Mendel crossed a pure-breeding purple flower (PP) with a pure-breeding white flower (pp). Complete a Punnett square for this cross. • Which is the dominant trait? • What are the offspring genotypes? • For the offspring, what fraction will have purple flowers? • What percentage will have genotype Pp?

  14. Widow’s Peak Widow’s Peak No Widow’s Peak

  15. Practice #2 A mom with a widow’s peak (Ww) is crossed (mates) with a dad who does not have a widow’s peak (ww). Complete a Punnett square for this cross. • Which is the dominant trait? • What are the offspring genotypes? • What is the ratio of widow’s peak to no widow’s peak for the offspring? • What is the ratio of Ww to ww for the offspring?

  16. Practice #3 A man and a woman both have a cleft chin. Both have genotypes of Cc. Complete a Punnett square for a cross between them. • Which is the dominant trait? • What are the offspring genotypes? • What fraction of offspring will have a cleft chin? • What percentage will have genotype Cc?
