  1. Morphological analysis and segmentation of 3D shapes with application to human body animation G. Patanè, M. Mortara, M. Spagnuolo, B. Falcidieno CNR IMATI Ge F. Dellas, L. Moccozzet, N. Magnenat-Thalmann MIRALab

  2. Overview • Joint research IMATI-MIRAlab • Task: Surface analysis techniques + segmentation in tubular features to extract landmarks and joints for animation skeleton of human body models TAILOR: morphologycal analysis PLUMBER: tubular segmentation Spine computation Joint location Animation skeleton construction

  3. Tailor • Tool for a multi-scale morphological decomposition of 3D shapes. • Each vertex gets a morphological label among the following:

  4. Tailor results Tip Tip Cylindrical Saddle Saddle Cylindrical Concave Conic Branching Branching Smooth Concave

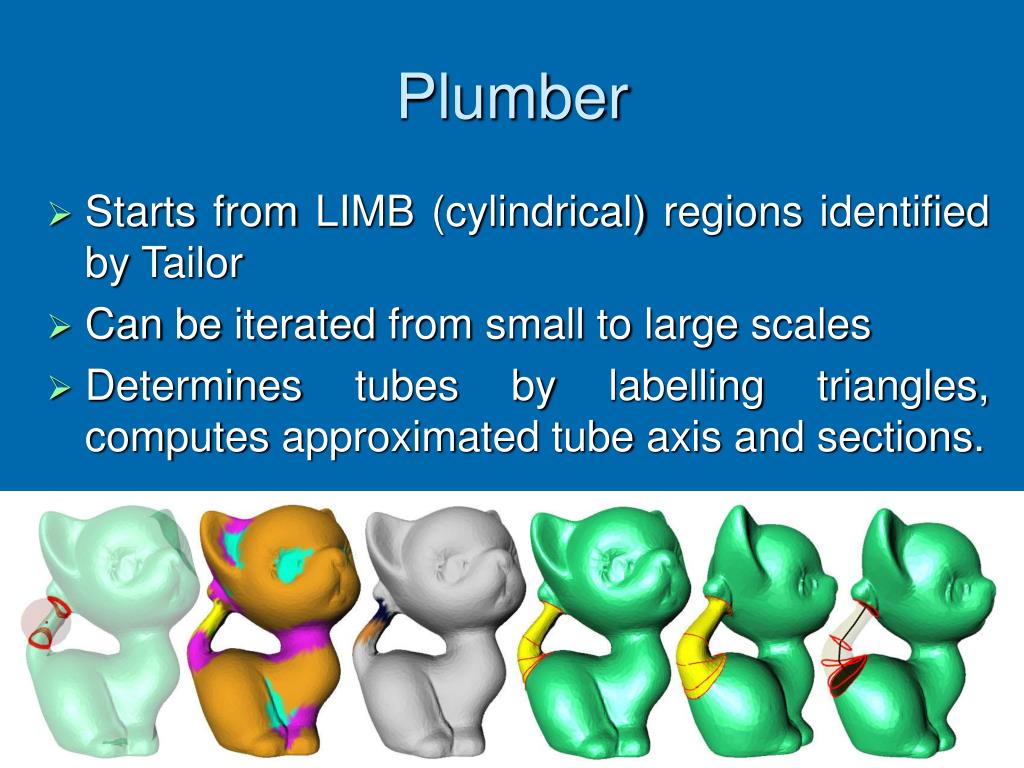

  5. Plumber • Starts from LIMB (cylindrical) regions identified by Tailor • Can be iterated from small to large scales • Determines tubes by labelling triangles, computes approximated tube axis and sections.

  6. Plumber • Select LIMB regions with 2 boundaries • Compute a medial loop around the tube • Place the sphere in the center of the medial loop • Intersect the sphere with the mesh • Sweep the tube moving the sphere in the center of the new intersection curves until possible

  7. Plumber - examples

  8. Virtual Humans • Plumber is particularly suitable to locate human limbs.

  9. Virtual Humans • Tailor can locate morphological regions were interesting landmarks lay.

  10. Skeleton for animation Idea: combining Tailor and Plumber with a-priori anatomy knowledge to locate skeletal joints automatically. • The skin is thinner where we have natural articulations (concave/ saddle regions)

  11. Joint location: • Limb segment: looking for two joints in saddle regions (e.g. elbow) • Torso segment: identification of the spine through concave regions; consequently shoulders, hips and basin • Tips and neck: locate extremity joints and the skullbase point Skeleton for animation • Pipeline:  Plumber segmentation  Tailor analysis on each segment  Checking skeleton’s integrity and choice of optimal joints according to proportions

  12. Limb joints

  13. Torso

  14. Tips and neck
