Management of Non-Point Source PollutionCE 296B Department of Civil Engineering California State University, Sacramento Lecture #19, April 26, 1998 Management Strategies - Part II

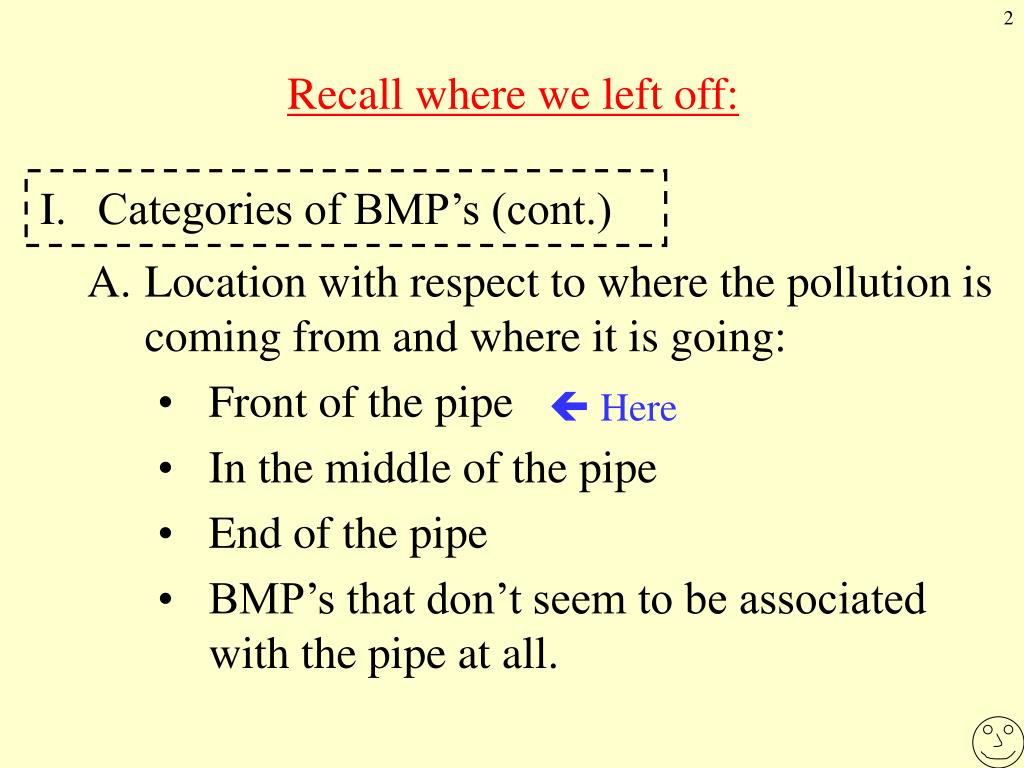

Recall where we left off: I. Categories of BMP’s (cont.) A. Location with respect to where the pollution is coming from and where it is going: • Front of the pipe • In the middle of the pipe • End of the pipe • BMP’s that don’t seem to be associated with the pipe at all.  Here

Recall where we left off: I. Categories of BMP’s (cont.) B. At the front of the pipe, categories could include: • BMP’s that seek to minimize the use of a substance that could be a pollutant. • BMP’s that seek to adjust peoples behavior. • BMP’s that seek to keep pollutants in their place. • BMP’s that seek to prevent pollutants that have been mobilized from entering the pipe. And Here 

II. Front-of-Pipe BMP’s (cont.) • D. Keeping pollutants immobilized. Two principle categories come to mind here, BMP’s associated with construction and BMP’s associated with existing facilities. (cont.) 2. Existing Facilities. Many sub-categories exist here. Some are: a. Cleaning up of spilled material  b. Cleaning surfaces c. Maintaining vegetative cover d. Storing materials properly.

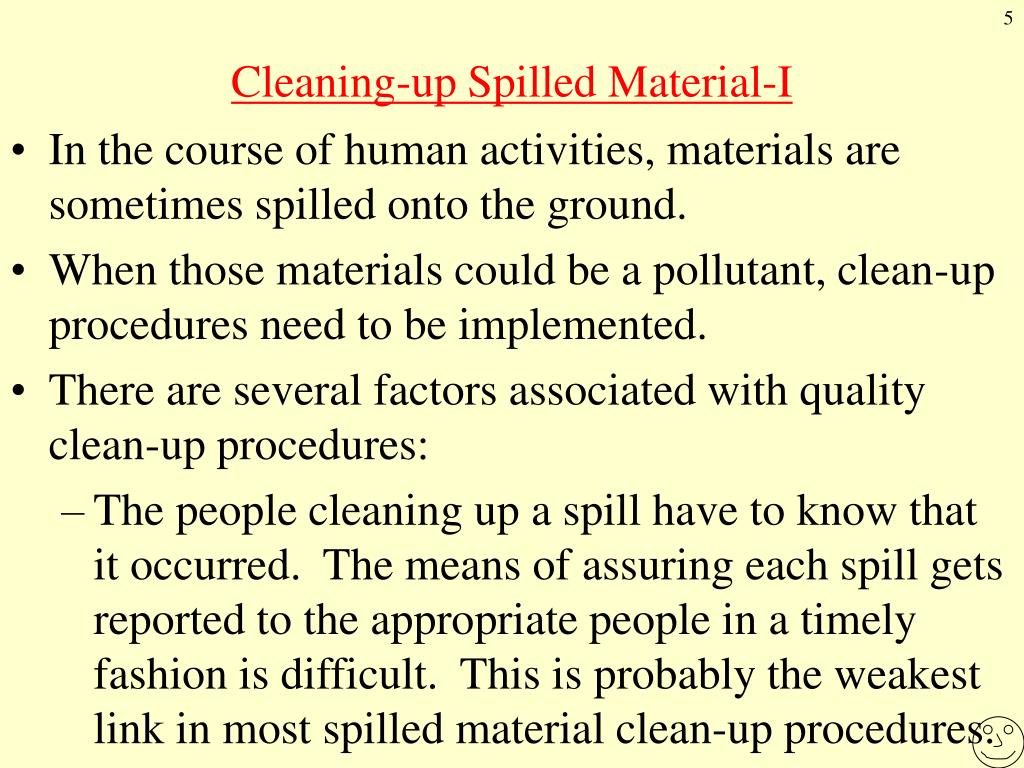

Cleaning-up Spilled Material-I • In the course of human activities, materials are sometimes spilled onto the ground. • When those materials could be a pollutant, clean-up procedures need to be implemented. • There are several factors associated with quality clean-up procedures: • The people cleaning up a spill have to know that it occurred. The means of assuring each spill gets reported to the appropriate people in a timely fashion is difficult. This is probably the weakest link in most spilled material clean-up procedures.

Cleaning-up Spilled Material-II • Factors associated with quality clean-up procedures: • The people cleaning up a spill must: • Be able to actually find the reported spill in a timely manner given the varied quality of reporting information. • Have at their disposal the appropriate equipment to clean-up the spilled material. • Have adequate knowledge of the material spilled

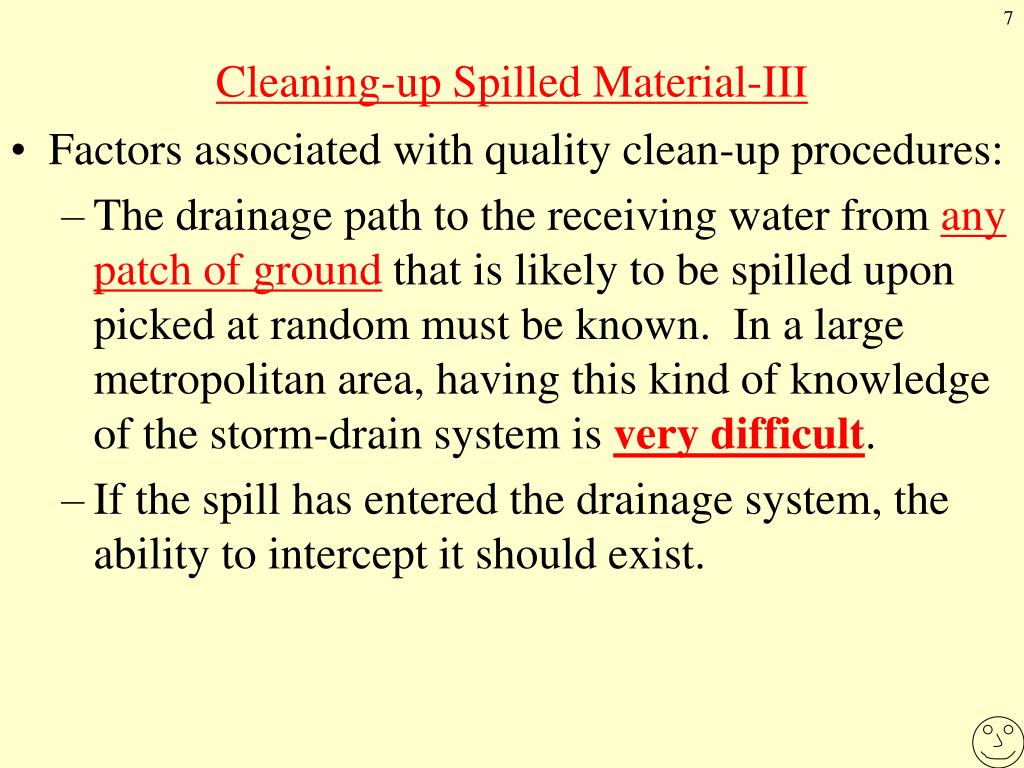

Cleaning-up Spilled Material-III • Factors associated with quality clean-up procedures: • The drainage path to the receiving water from any patch of ground that is likely to be spilled upon picked at random must be known. In a large metropolitan area, having this kind of knowledge of the storm-drain system is very difficult. • If the spill has entered the drainage system, the ability to intercept it should exist.

II. Front-of-Pipe BMP’s (cont.) • D. Keeping pollutants immobilized. Two principle categories come to mind here, BMP’s associated with construction and BMP’s associated with existing facilities. (cont.) 2. Existing Facilities. Many sub-categories exist here. Some are: a. Cleaning up of spilled material b. Cleaning surfaces c. Maintaining vegetative cover d. Storing materials properly.

Cleaning Surfaces - I • One idea for preventing pollutants that are on the surface from becoming mobilized is to clean those pollutants off of that surface. • On impervious surfaces, this has typically meant sweeping. • Two types of materials are typically cleaned from a surface: • Trash • Particulates • With trash, this typically works fairly well.

Cleaning Surfaces - II • Cleaning large particulate material, coarse sand and above, works fairly well also. • The ability to pay for surface cleaning activities varies from one kind of public entity to another. • Cleaning particulate material off of impervious surfaces has a problematical pollution control benefit. There is an equilibrium thickness of fine particulates that is difficult to change. Consider the animation on the following slide:

Wind blowing away particulates faster than they accumulate Fine particulate layer thickness Wind blowing away particulates at the same rate they are accumulating Wind No wind Fine particulate accumulation rate Time Equilibrium Thickness of Fine Particulate Layer - I • Start with a “perfectly” clean surface. • Assume that no wind is blowing. • Watch the dust accumulate. • Turn on normal wind conditions

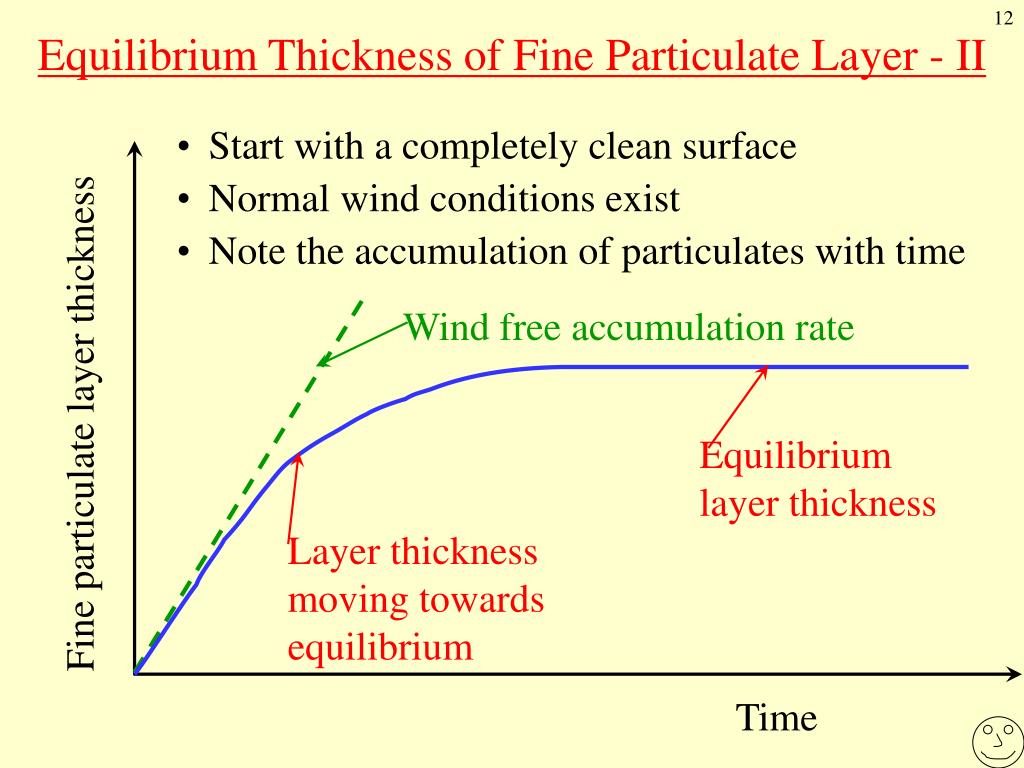

Wind free accumulation rate Fine particulate layer thickness Equilibrium layer thickness Layer thickness moving towards equilibrium Time Equilibrium Thickness of Fine Particulate Layer - II • Start with a completely clean surface • Normal wind conditions exist • Note the accumulation of particulates with time

Equilibrium conditions Fine particulate layer thickness Sweeping Operation Sweeping Operation Sweeping Operation Wind free accumulation rate Time Equilibrium Thickness of Fine Particulate Layer - III • Start with system at equilibrium • Sweep the surface partially clean • Repeat

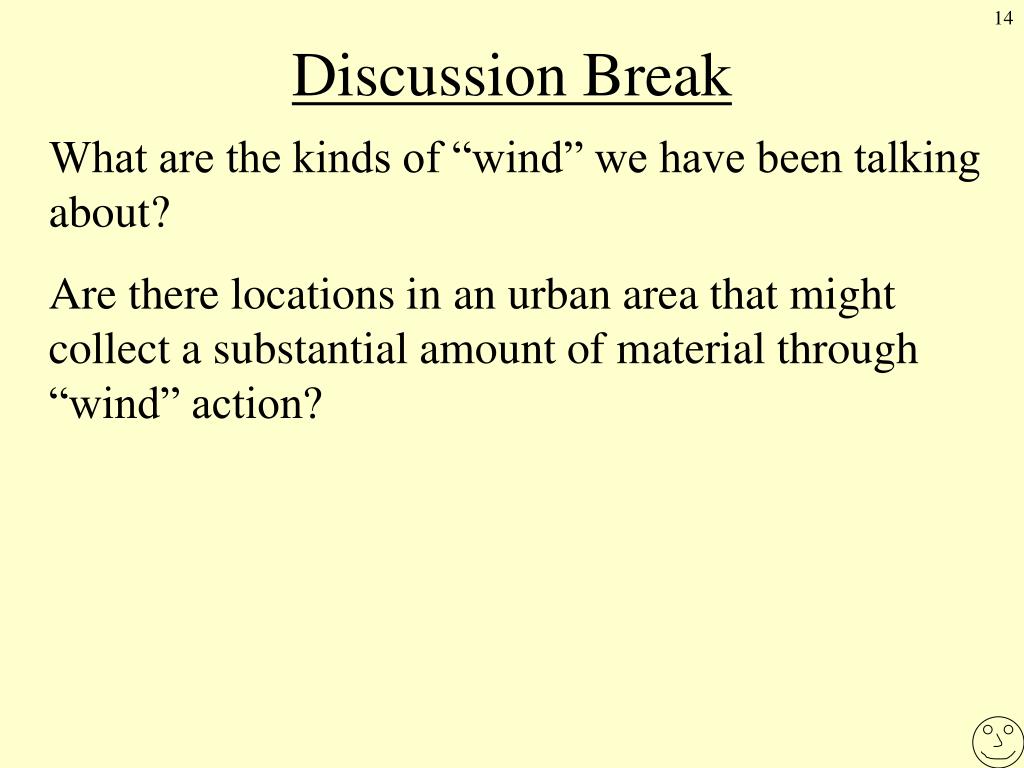

Discussion Break What are the kinds of “wind” we have been talking about? Are there locations in an urban area that might collect a substantial amount of material through “wind” action?

Discussion Break Why is there a concern about cleaning up the fine particulate material off of impervious surfaces? With respect to non-point source pollution, what kinds of surfaces benefit more from sweeping operations? What kind less? Why? How much of a difference does a highly effective cleaning device make over a moderately effective device? Why?

Discussion Break There has been a suggestion in some quarters that to help meet TMDL’s, an urban discharger might measure and count the pounds of pollutant in street sweepings. Does this mean that those pollutants have really been removed from the non-point source stream?

II. Front-of-Pipe BMP’s (cont.) • D. Keeping pollutants immobilized. Two principle categories come to mind here, BMP’s associated with construction and BMP’s associated with existing facilities. (cont.) 2. Existing Facilities. Many sub-categories exist here. Some are: a. Cleaning up of spilled material b. Cleaning surfaces c. Maintaining vegetative cover  d. Storing materials properly.

Maintaining Vegetative Cover • Many surfaces in urban locations, both public and private, are covered with vegetation that holds sediment in place. • Establishing vegetative cover where it does not exist and maintaining existing cover is the focus of much non-point source pollution effort in urban areas. • In California, maintaining vegetative cover usually requires irrigation. This potentially produces a flow stream during dry weather that could be considered non-point source pollution.

Discussion Break A chic idea is to use California native plants for vegetative cover. One of many positive attributes to this idea is that California native plants are by nature drought resistant and require less irrigation. Several problems do exist though: Is it worth the expense of keeping out exotic plants? During drought conditions, many native plants provide less cover, making it possible that erosion would take place. How does this fit with the context of the CWA?

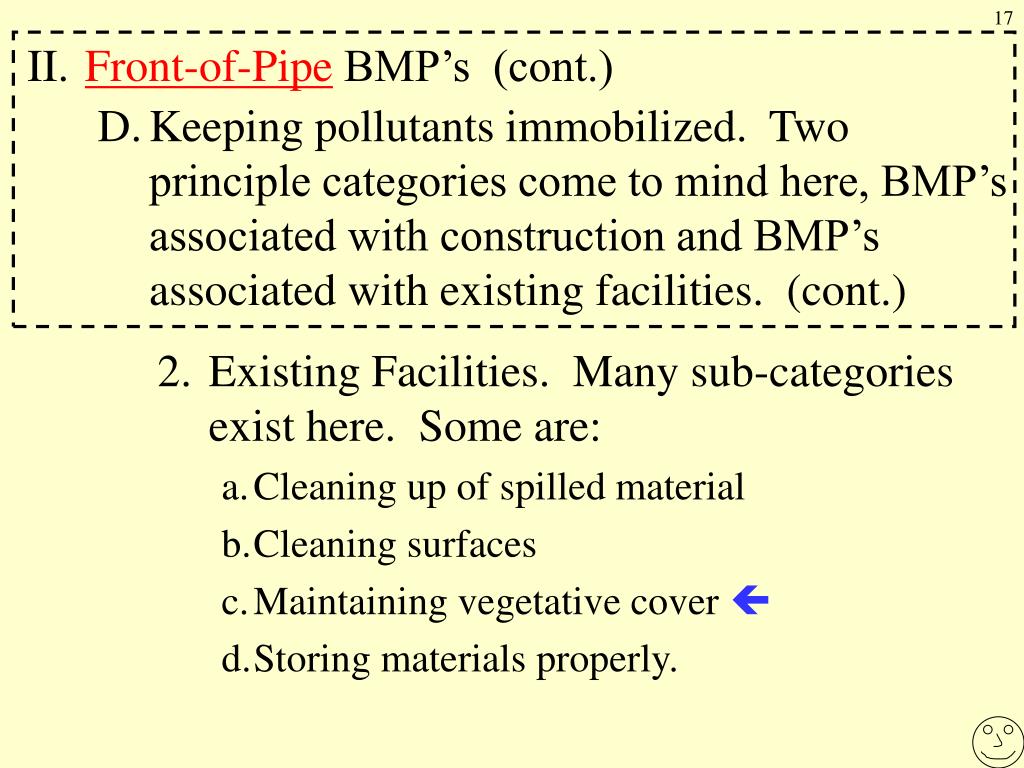

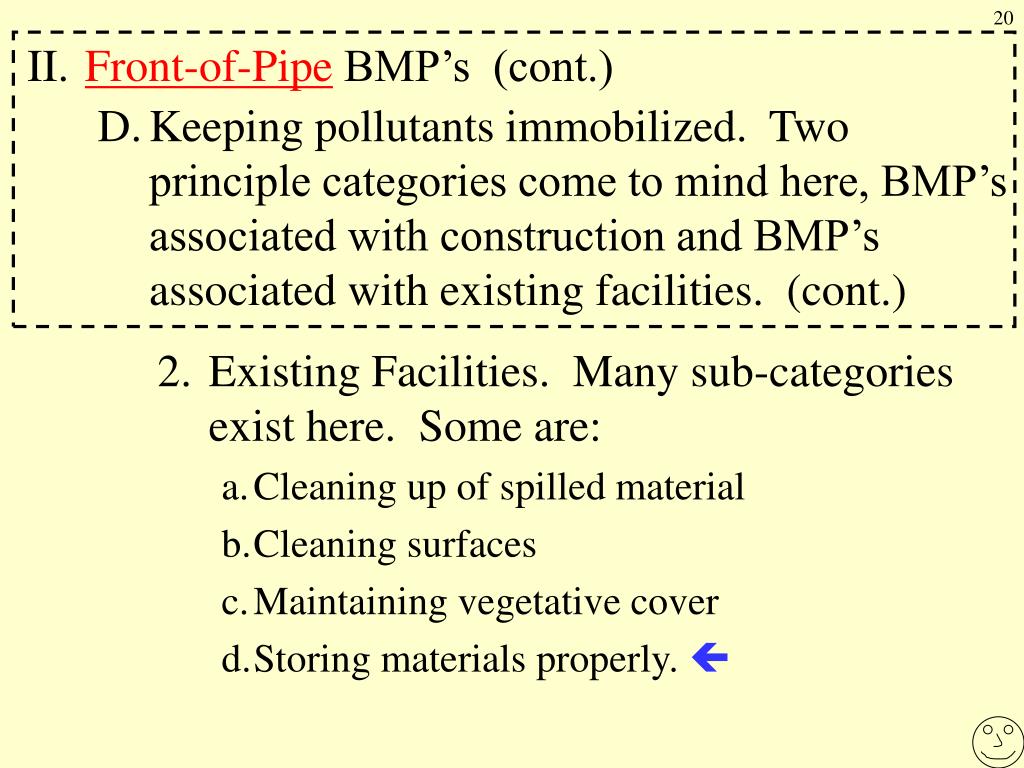

II. Front-of-Pipe BMP’s (cont.) • D. Keeping pollutants immobilized. Two principle categories come to mind here, BMP’s associated with construction and BMP’s associated with existing facilities. (cont.) 2. Existing Facilities. Many sub-categories exist here. Some are: a. Cleaning up of spilled material b. Cleaning surfaces c. Maintaining vegetative cover d. Storing materials properly. 

Proper Material Storage - I • Many items that are pollutants are pollutants if they find their way into a receiving water have legitimate uses. As these items are stored for use the idea is to prevent them from becoming mobilized in a flow stream. Examples include: • Aggregate piles • Sacks of fertilizer • Containers of herbicides, pesticides, or fungicides • Petroleum products

Proper Material Storage - II • BMP’s associated with proper material storage direct that techniques specific to the: • Material in question • Particular use of that material • Location of that material Be devised. • The list of such techniques is endless, but includes: • Placing a tarp over aggregate piles • Storing materials on a pallet • Construction a berm around a storage area.

Watershed Receiving Water Storm or Combined Sewer Small Watercourse Overland Flow III. Middle-of-Pipe BMP’s A. Recall our drawing defining what the pipe is: “Pipes” Polluting Activities

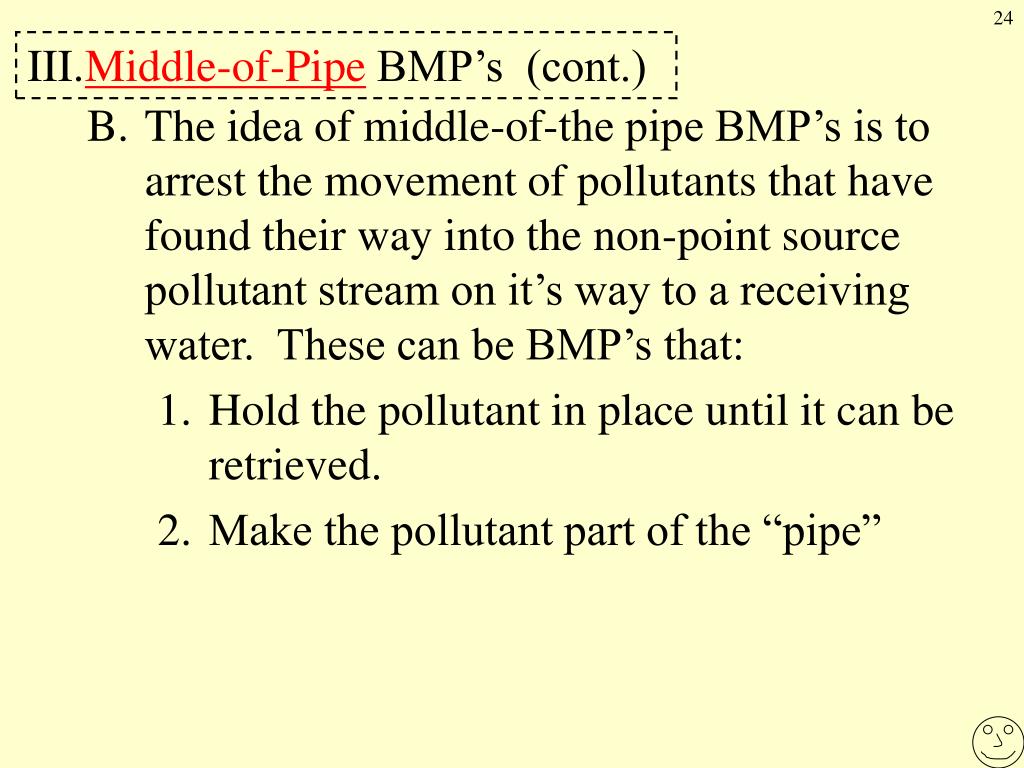

III. Middle-of-Pipe BMP’s (cont.) B. The idea of middle-of-the pipe BMP’s is to arrest the movement of pollutants that have found their way into the non-point source pollutant stream on it’s way to a receiving water. These can be BMP’s that: 1. Hold the pollutant in place until it can be retrieved. 2. Make the pollutant part of the “pipe”

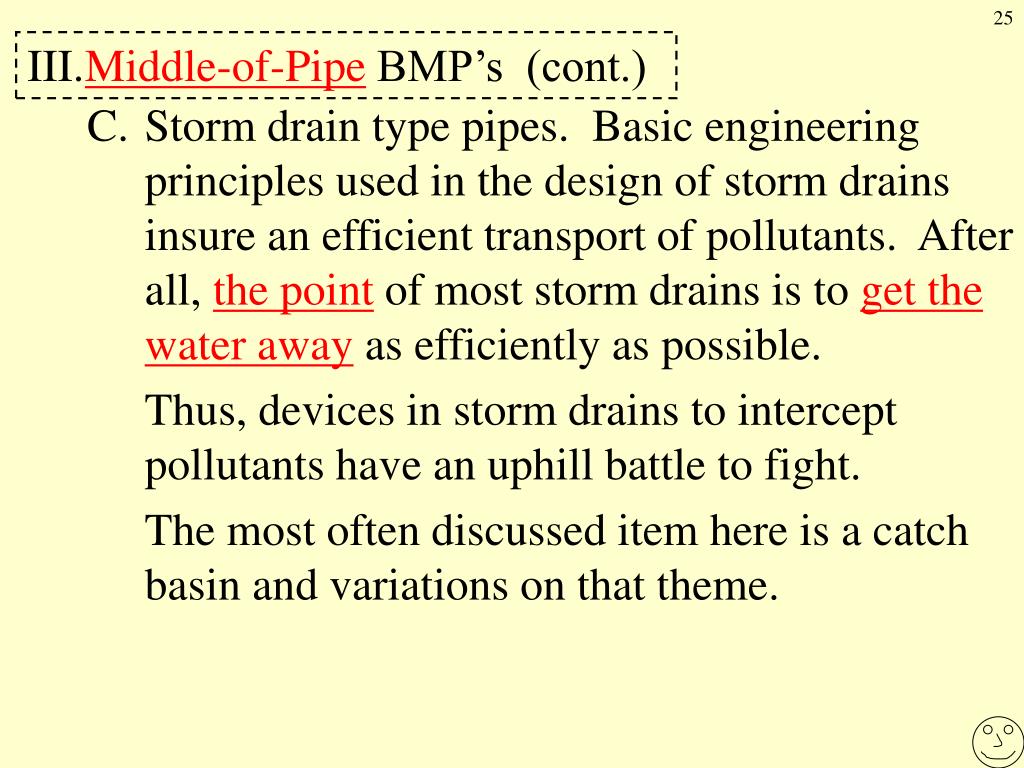

III. Middle-of-Pipe BMP’s (cont.) C. Storm drain type pipes. Basic engineering principles used in the design of storm drains insure an efficient transport of pollutants. After all, the point of most storm drains is to get the water away as efficiently as possible. Thus, devices in storm drains to intercept pollutants have an uphill battle to fight. The most often discussed item here is a catch basin and variations on that theme.

Catch Basin Usage - I • Picture to be inserted by tonight.

Catch Basin Usage - II • The basic problem with this idea is the extremely short detention time. It is often less than one second meaning that only very large and dense items will be trapped. Rocks are typically not thought of as pollutants. • Cleaning costs can be extremely high as well. • A variation on the theme of a catch basin is the use of filtering inserts placed in the basin. These inserts made up of adsorbent material are designed to trap fine particulates and dissolved constituents. The maintenance on these is appalling.

Discussion Break Periodically, the use of catch basins are studied as a means of reducing non-point source pollution (going back decades). The conclusions are usually the same. Despite this, they still keep coming back as a suggested BMP. Why do you think this is?

Discussion Break How could these type devices serve to enhance the propagation of disease vectoring? If they did improve water quality, how would you compare those benefits with the detriments of increase disease due to insect vectors? What is the equation?

III. Middle-of-Pipe BMP’s (cont.) D. Small water course type pipes. These can be flood control type channels (the classic concrete trapezoidal channel) or small, often ephemeral, streams. A popular, but expensive idea is to reestablish or enhance existing riparian habitat. Wetlands restoration is particularly popular.

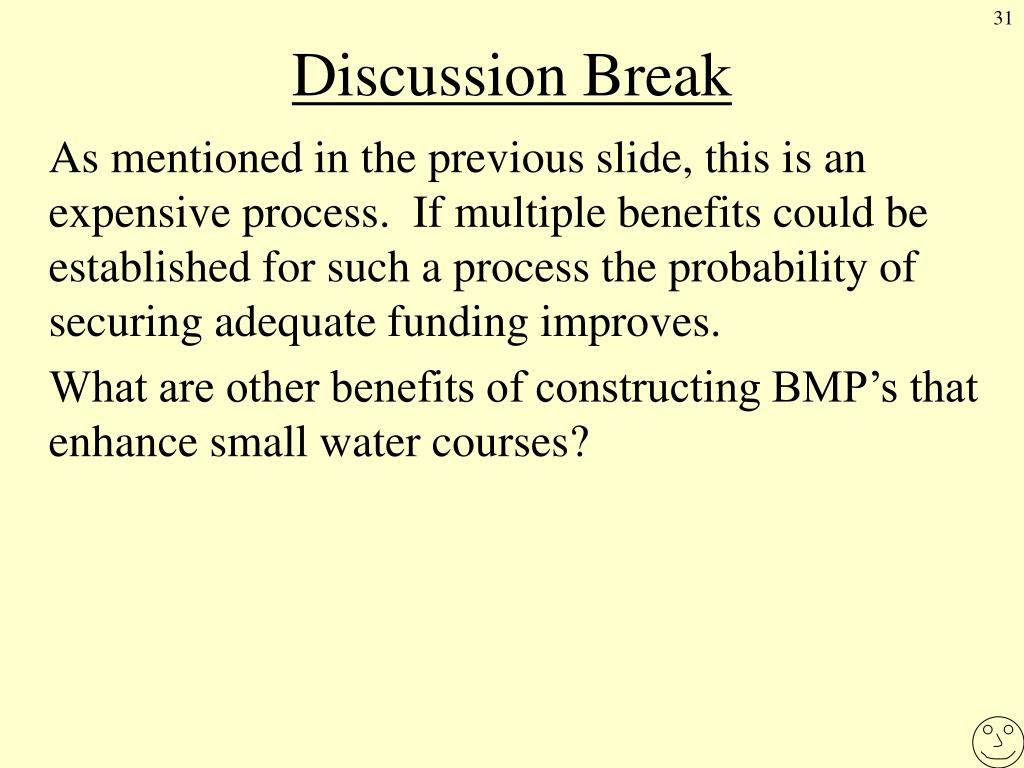

Discussion Break As mentioned in the previous slide, this is an expensive process. If multiple benefits could be established for such a process the probability of securing adequate funding improves. What are other benefits of constructing BMP’s that enhance small water courses?

III. Middle-of-Pipe BMP’s (cont.) E. Overland flow type pipes. When water flows over a grassy slope in a thin sheet, substantial pollution control benefits may accrue. Among them: 1. Removal of sediment 2. Removal of conventional organics 3. Removal of nutrients (if the grass is mowed and removed to a landfill) 4. Removal of metals (somewhat temporary though)

III. Middle-of-Pipe BMP’s (cont.) • E. Overland flow type pipes. (cont.) Problems include: 1. Irrigation requirements, in an arid region this may mean several feet of water. 2. Maintenance requirements. 3. Possible disposal problems associated with the clippings if they contain metals. 4. These systems only work well if the grass is of a particular height. What if the grass is too long when it rains?
