TOF Emittance Measurement for Beam Characterization: Tools, Calibrations, and Analysis

This event on December 13th focuses on Time-of-Flight (TOF) emittance measurement for beam characterization. The aim is to accurately calibrate TOFs, test the calibration, measure emittance, and address various challenges encountered by DAQ and TOF teams. With a resolution of 150 ps, confirmed momentum measurements, and upcoming steps including error analysis and consideration of emittance growth in Cherenkov, this workshop aims to enhance understanding of space point/time-of-flight/momentum reconstruction. Necessary tools are available in G4MICE.

sileas
Télécharger la présentation

TOF Emittance Measurement for Beam Characterization: Tools, Calibrations, and Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Beam Characterization with the TOFs Mark Rayner CM23 Harbin TOF Emittance Measurement

  2. Saturday 13th December Shift TOF Emittance Measurement

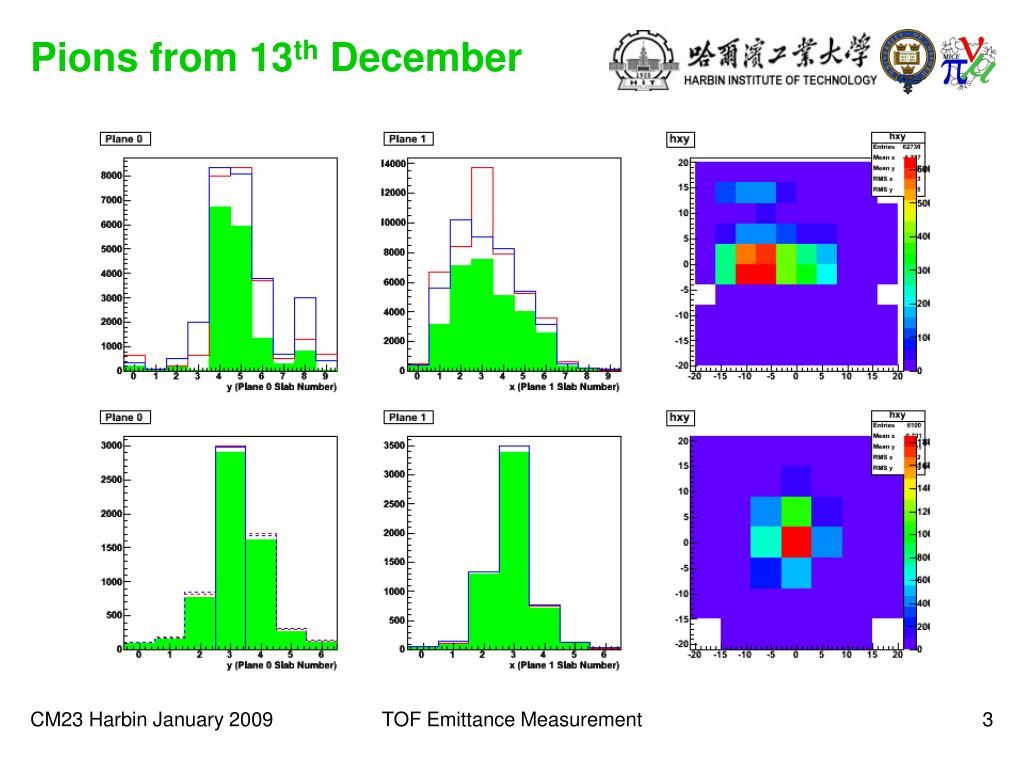

  3. Pions from 13th December TOF Emittance Measurement

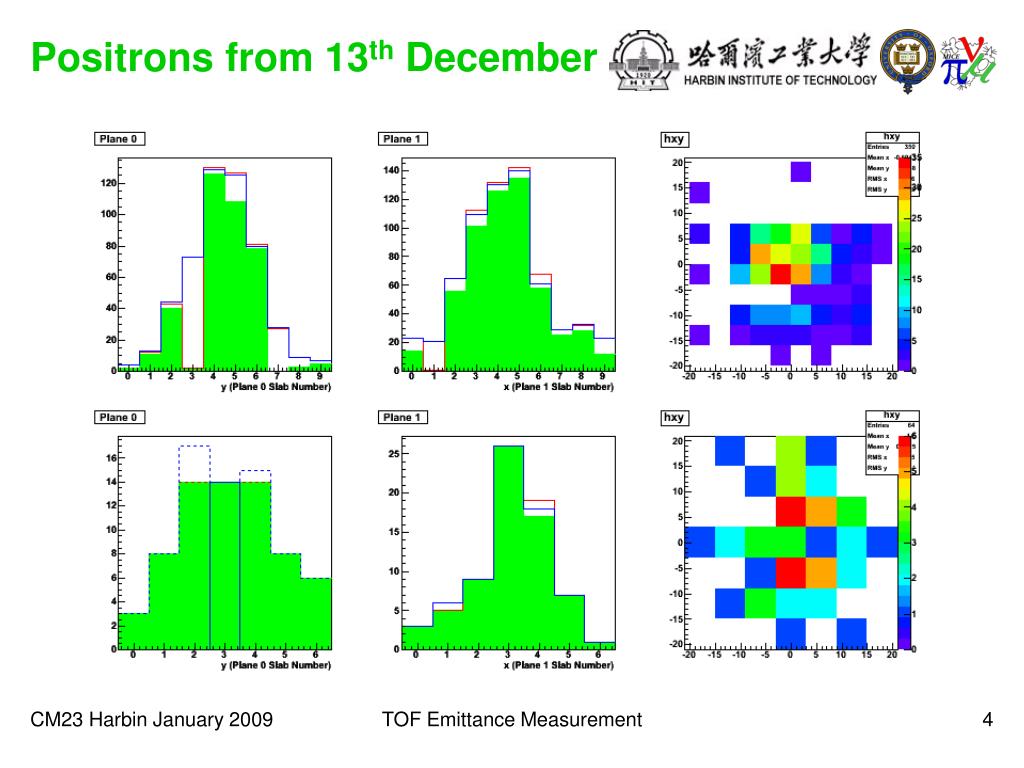

  4. Positrons from 13th December TOF Emittance Measurement

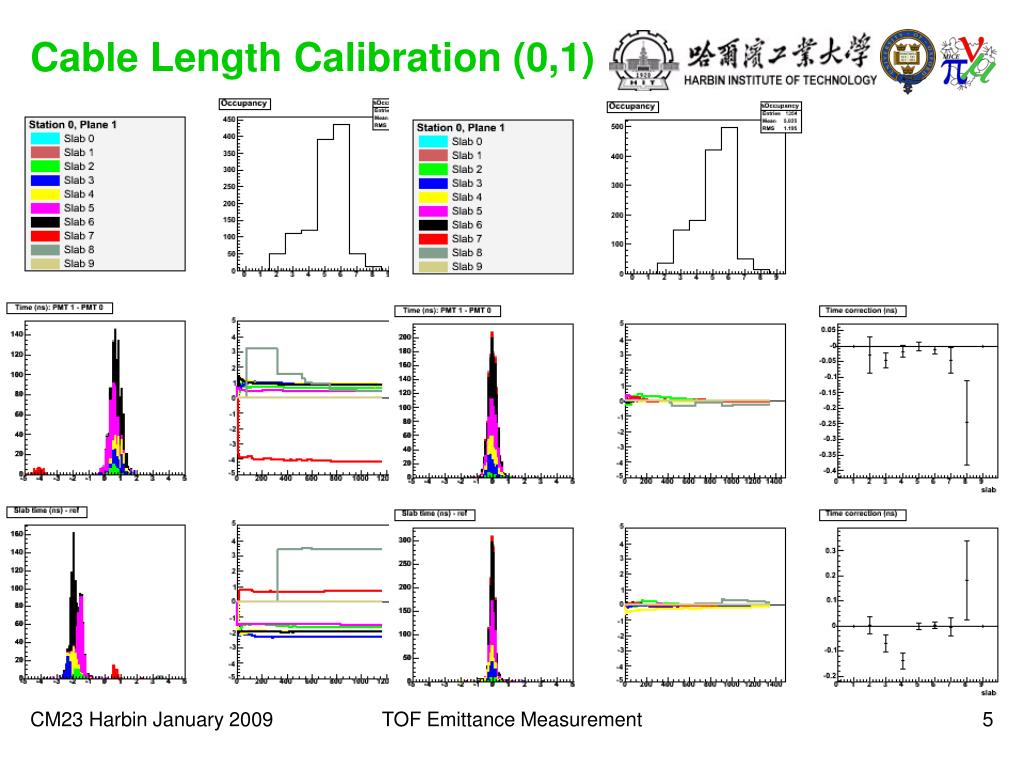

  5. Cable Length Calibration (0,1) TOF Emittance Measurement

  6. Cable Length Calibration (0,0) TOF Emittance Measurement

  7. Cable Length Calibration (1,0) TOF Emittance Measurement

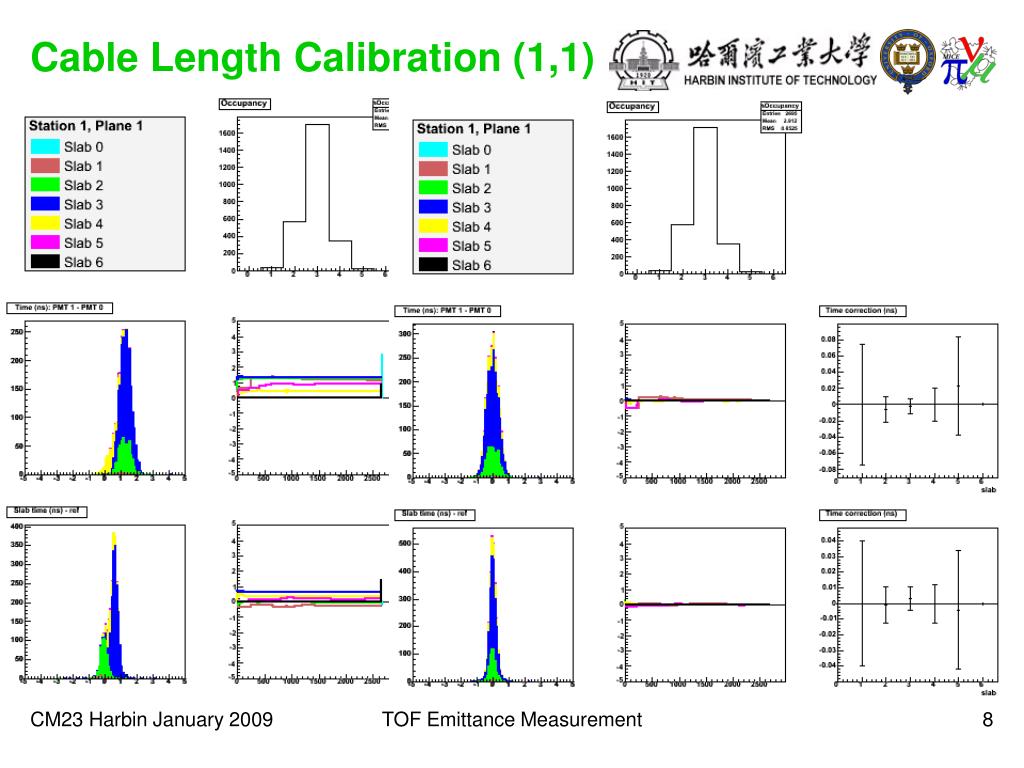

  8. Cable Length Calibration (1,1) TOF Emittance Measurement

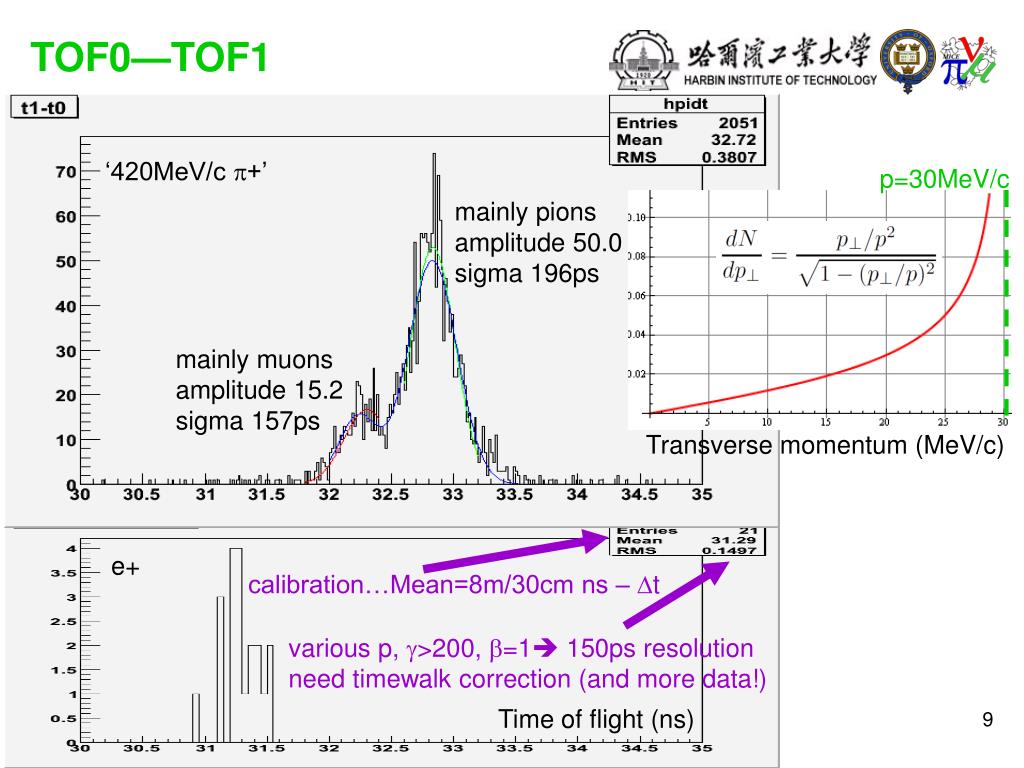

  9. p=30MeV/c Transverse momentum (MeV/c) TOF0—TOF1 ‘420MeV/c p+’ mainly pions amplitude 50.0 sigma 196ps mainly muons amplitude 15.2 sigma 157ps e+ calibration…Mean=8m/30cm ns – Dt various p, g>200, b=1 150ps resolution need timewalk correction (and more data!) Time of flight (ns) TOF Emittance Measurement

  10. TOF & Momentum TOF Emittance Measurement

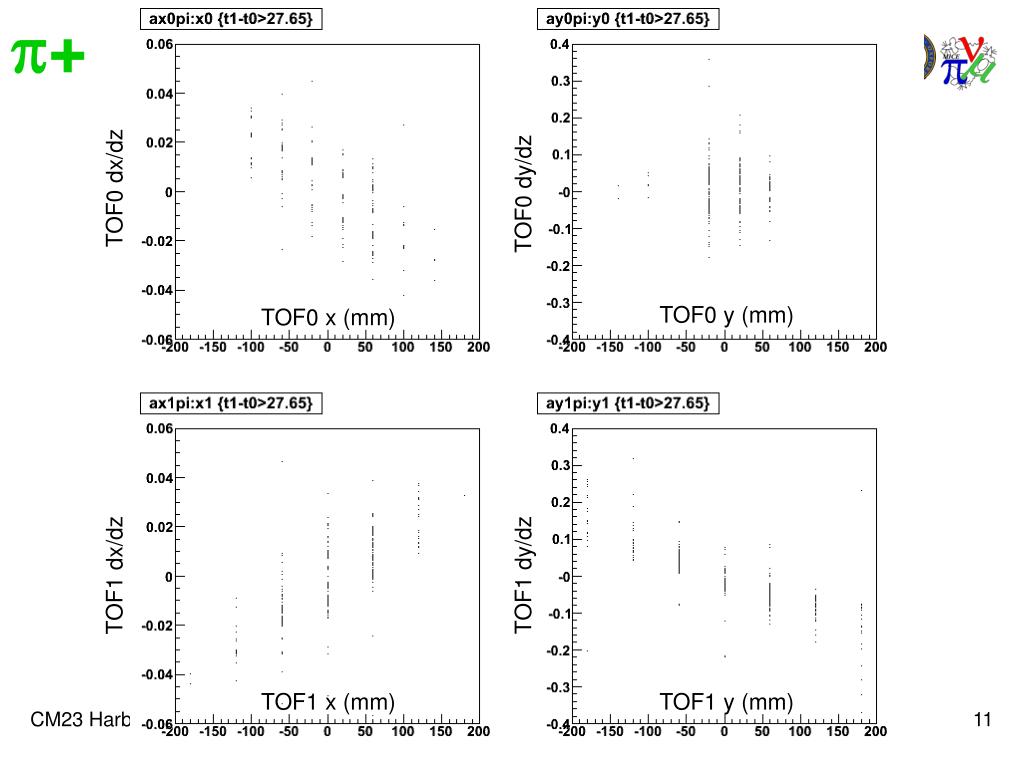

  11. p+ TOF0 dx/dz TOF0 dy/dz TOF0 y (mm) TOF0 x (mm) TOF1 dy/dz TOF1 dx/dz TOF1 x (mm) TOF1 y (mm) TOF Emittance Measurement

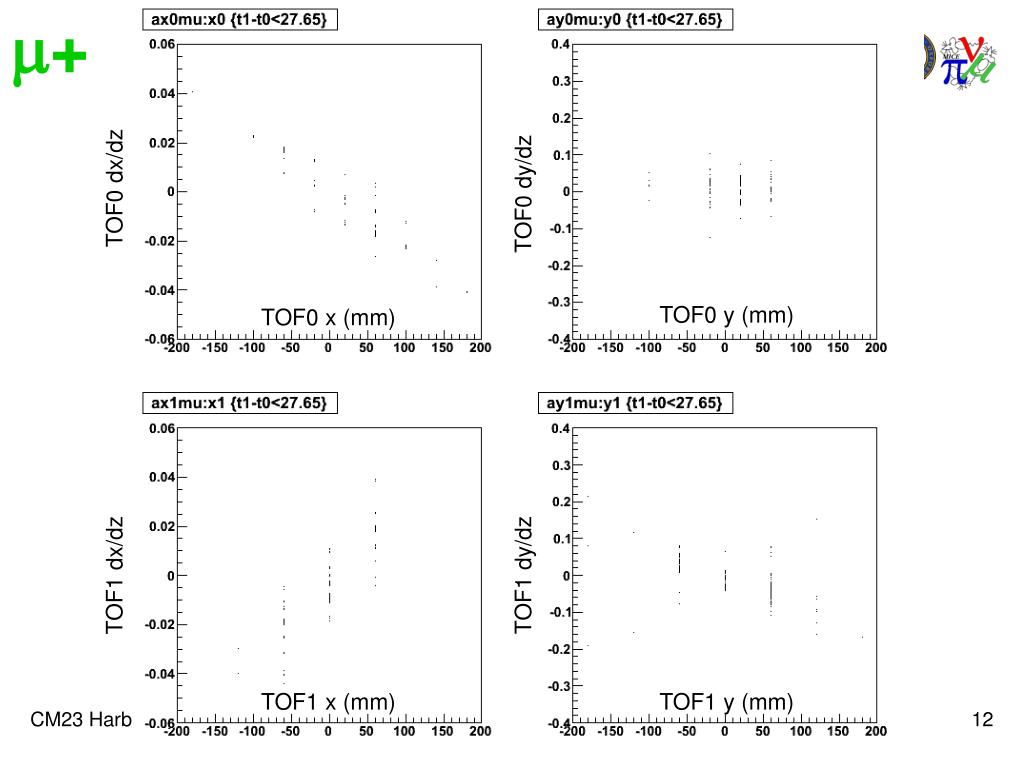

  12. m+ TOF0 dx/dz TOF0 dy/dz TOF0 y (mm) TOF0 x (mm) TOF1 dy/dz TOF1 dx/dz TOF1 x (mm) TOF1 y (mm) TOF Emittance Measurement

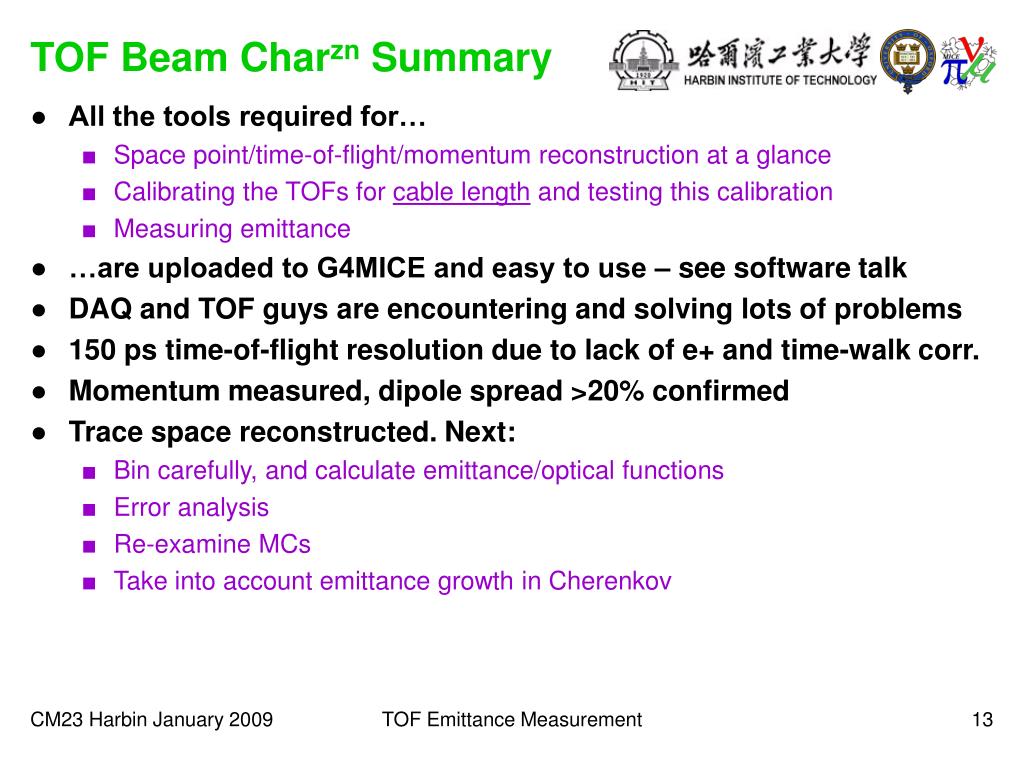

  13. TOF Beam Charzn Summary • All the tools required for… • Space point/time-of-flight/momentum reconstruction at a glance • Calibrating the TOFs for cable length and testing this calibration • Measuring emittance • …are uploaded to G4MICE and easy to use – see software talk • DAQ and TOF guys are encountering and solving lots of problems • 150 ps time-of-flight resolution due to lack of e+ and time-walk corr. • Momentum measured, dipole spread >20% confirmed • Trace space reconstructed. Next: • Bin carefully, and calculate emittance/optical functions • Error analysis • Re-examine MCs • Take into account emittance growth in Cherenkov TOF Emittance Measurement
