  1. Chapter 13 RNA splicing • The chemistry of RNA splicing • The spliceosome machinery • Splicing pathways • Alternative splicing • Exon shuffling • RNA editing • mRNA transport

  2. The chemistry of RNA splicing

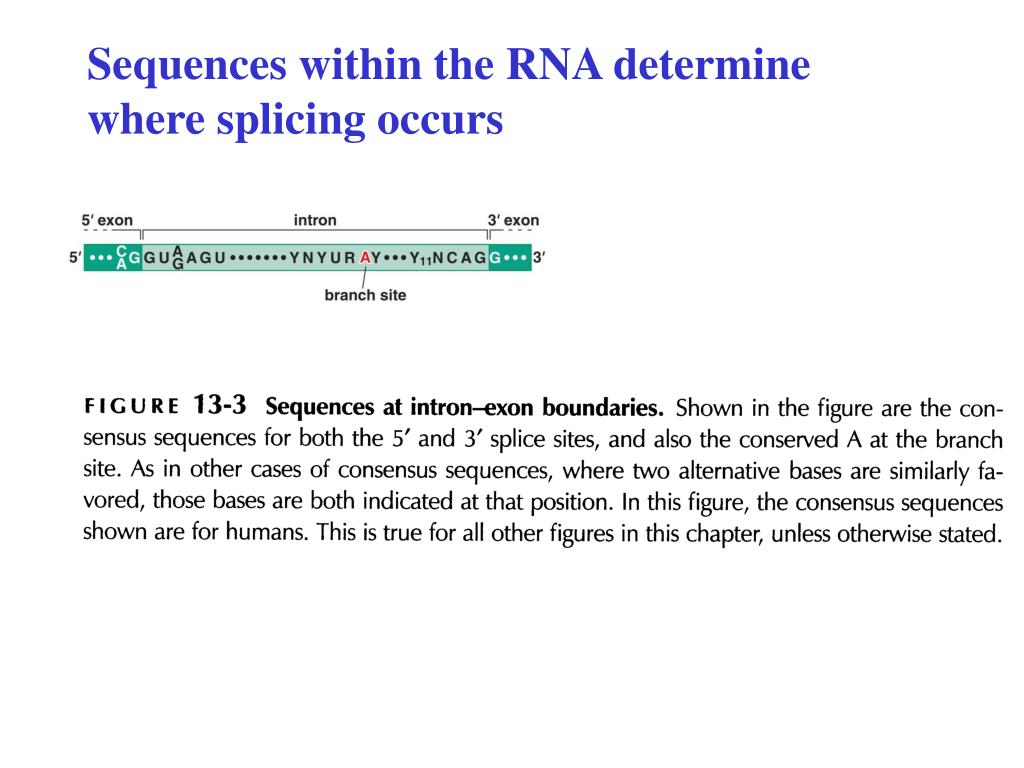

  3. Sequences within the RNA determine where splicing occurs

  4. The intron is removed in a form called a lariat as the flanking exons are joined

  5. Fig 13-5 The structure of the three-way junction formed during the splicing reaction

  6. The splicing reactions have no net gain in the no. of chemical bonds. Yet, a large number of ATP is consumed, not for the chemistry, but to properly assemble and operate the slicing machinery. • What ensures the slicing only goes forward? • Increase in entropy • Excised intron is quickly degraded

  7. Box 13-1 Adenovirus and the discovery of splicing Map of the human adenovirus-2 genome Human adenovirus is a DNA virus which serve as a model for studying eukaryotic gene regulation. Same promoter and the tripartate leader sequence for all the transcripts which are resulted from alternative splicing

  8. R-loop mapping of the adenovirus-2 late messenger RNAs.

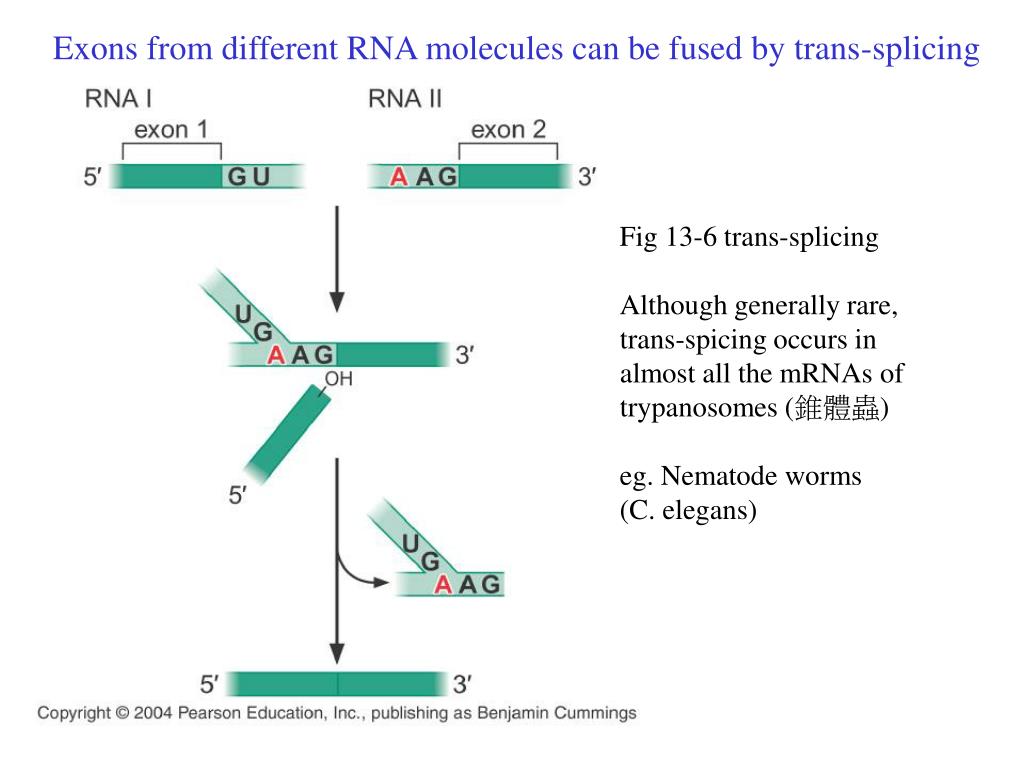

  9. Exons from different RNA molecules can be fused by trans-splicing Fig 13-6 trans-splicing Although generally rare, trans-spicing occurs in almost all the mRNAs of trypanosomes (錐體蟲) eg. Nematode worms (C. elegans)

  10. The spliceosome machinery • RNA splicing is carried out by a large complex called the spliceosome • Spliceosome comprises about 150 proteins and 5 RNAs and is similar in size with ribosomes. • Many functions of spliceosome are carried out by RNAs rather by proteins. • Five RNAs (U1, U2, U4, U5 and U6) are collectively called small nuclear RNAs (snRNAs)with the size in the range of 100-300 bp long and are complexed to • small nuclear ribonuclear proteins (snRNP) • The makeup of spliceosome varies at different stages of the splicing reaction.

  11. Fig 13-7 some RNA-RNA hybrids formed during the splicing reaction

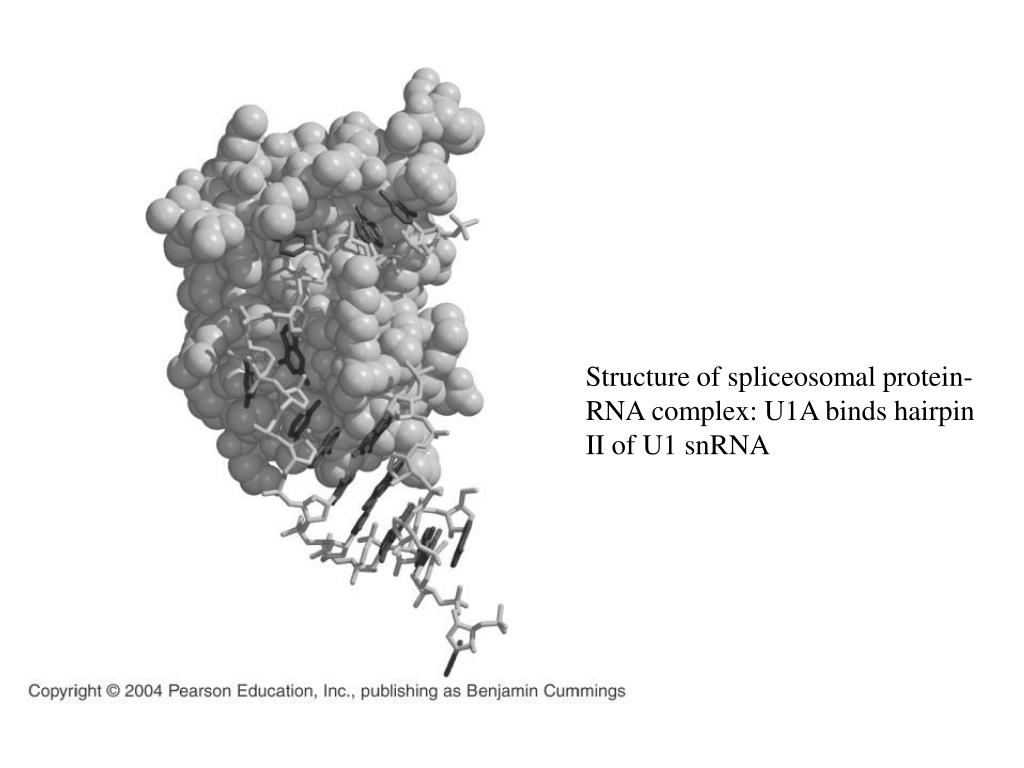

  12. Structure of spliceosomal protein-RNA complex: U1A binds hairpin II of U1 snRNA

  13. Splicing pathways • Assembly, rearrangements, and catalysis within the spliceosome: the splicing pathway

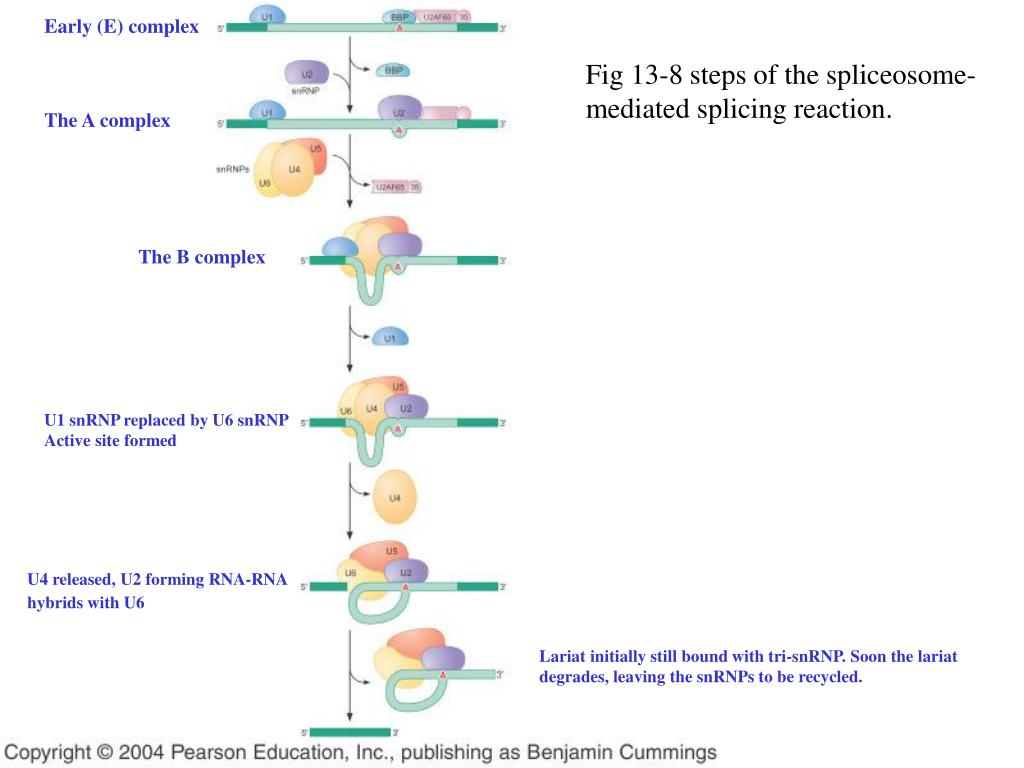

  14. Early (E) complex Fig 13-8 steps of the spliceosome-mediated splicing reaction. The A complex The B complex U1 snRNP replaced by U6 snRNP Active site formed U4 released, U2 forming RNA-RNA hybrids with U6 Lariat initially still bound with tri-snRNP. Soon the lariat degrades, leaving the snRNPs to be recycled.

  15. Self-splicing introns reveal that RNA can catalyze RNA splicing

  16. Fig 13-9 group I and group II introns Group I introns release a linear intron rather than a lariat

  17. Fig 13-10 Proposed folding of the RNA catalytic regions for splicing of group II introns and pre-mRNAs.

  18. Group I intron use a free G nucleoside or nucleotide. This G species is bound by the RNA and its 3’OH group is presented to the 5’ splice site. • Structure of group I intron includes • a binding pocket that will accommodate any guanine nucleoside and nucleotide. • Internal guide sequence that base-pairs with the 5’ splice site sequence.

  19. Box 13-1 group I introns can be converted into true ribozymes.

  20. How does the spliceosome find the splice sites reliably? • The average exon in only some 150 nt long, whereas the average intron is about 3,000 nt long. Thus, the exons must be identified within a vast ocean of intronic sequences.

  21. Fig 13-12 Errors produced by mistakes in splice-site selection.

  22. To avoid exon-skipping: co-transcriptional loading of spliceosome components onto the splice sites.(refer to 12-20) • To avoid pseudo splice-site selection:

  23. Fig 13-12 SR (serine-arginine rich) proteins recruit spliceosome components to the 5’ and 3’ splice sites. ESE: exonic splicing enhancer

  24. A small group of introns are spliced by an alternative spliceosome composed of a different set of snRNPs Fig 13-13 The AT-AC (minor) spliceosome catalyzed splicing. This minor spliceosome has distinct splice site sequences but same splicing chemistry.

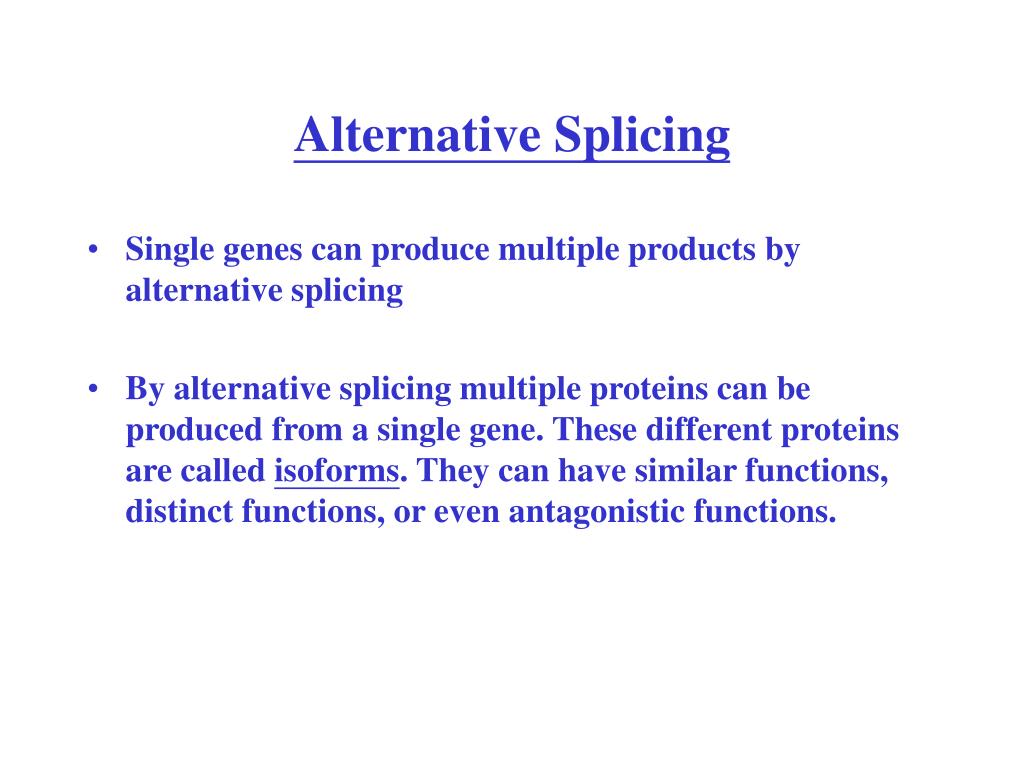

  25. Alternative Splicing • Single genes can produce multiple products by alternative splicing • By alternative splicing multiple proteins can be produced from a single gene. These different proteins are called isoforms. They can have similar functions, distinct functions, or even antagonistic functions.

  26. Fig 13-14 Alternative splicing in the troponin T gene

  27. Fig 13-15 Five ways to splice a RNA

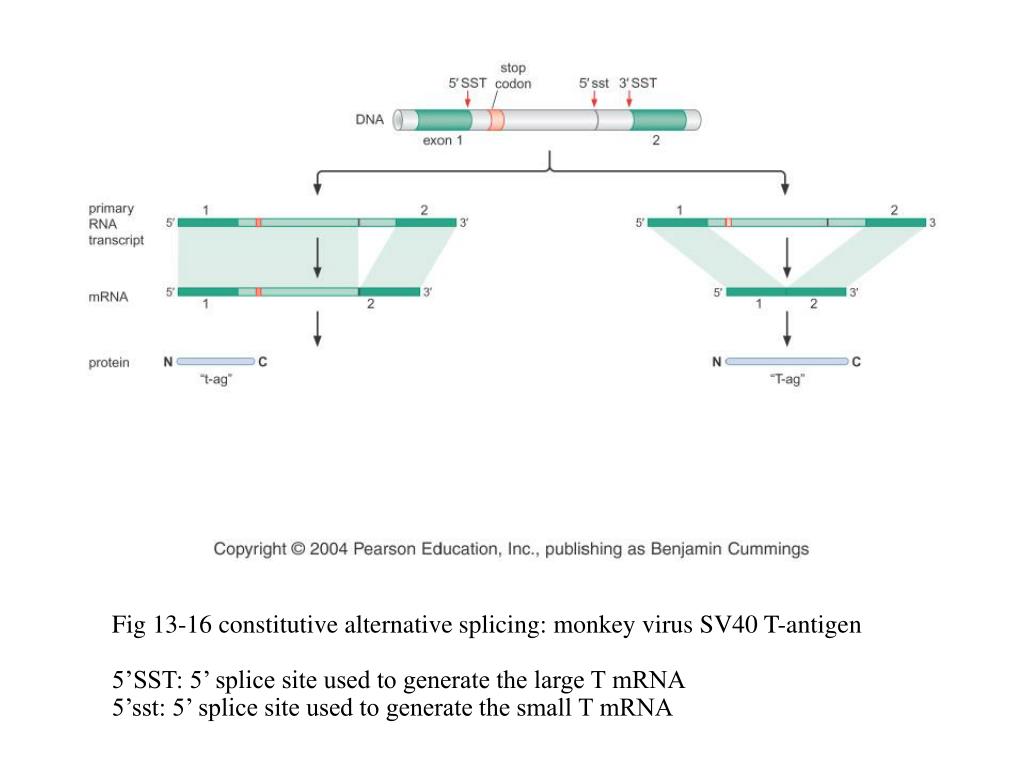

  28. Fig 13-16 constitutive alternative splicing: monkey virus SV40 T-antigen 5’SST: 5’ splice site used to generate the large T mRNA 5’sst: 5’ splice site used to generate the small T mRNA

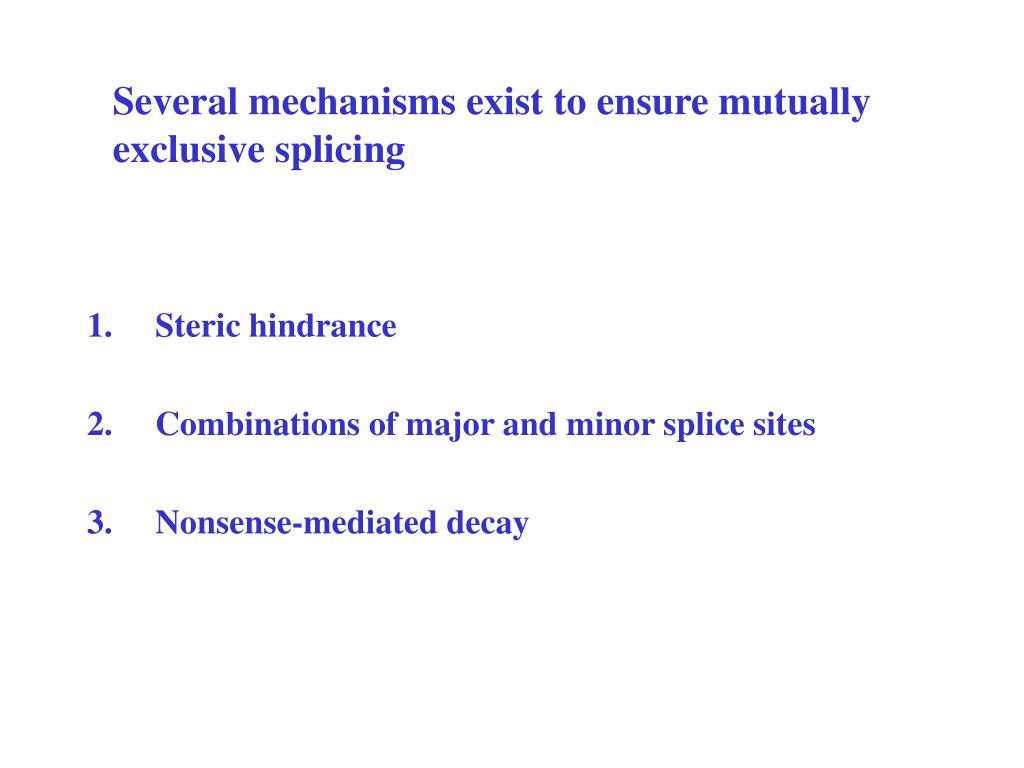

  29. Several mechanisms exist to ensure mutually exclusive splicing • Steric hindrance • Combinations of major and minor splice sites 3. Nonsense-mediated decay

  30. The curious case of the Drosophila Dscam gene: Mutually exclusive splicing on a grand scale

  31. Dscam Down syndrome cell-adhesion molecule

  32. Alternative splicing is regulated by activators and repressors Fig 13-22 Regulated alternative splicing • Proteins that regulate splicing bind to specific sites called exonic (intronic) splicing enhancers (ESE/ISE) or silencers (ESS/ISS)

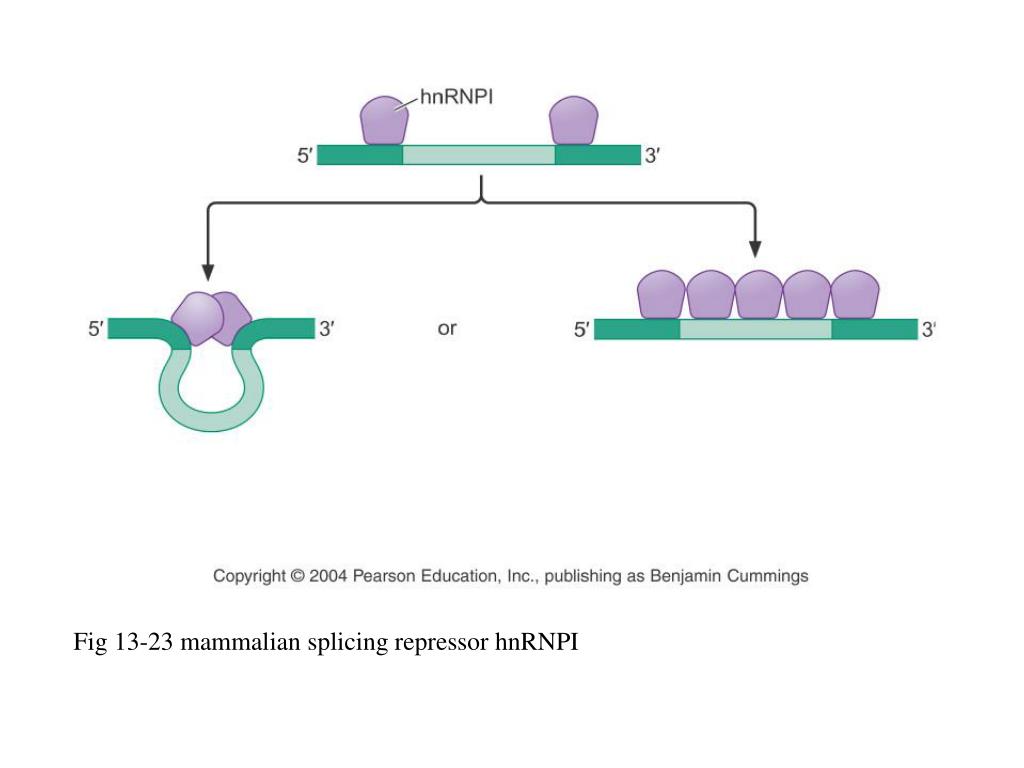

  33. Fig 13-23 mammalian splicing repressor hnRNPI

  34. Fig 13-25 a cascade of alternative splicing events determines the sex of a fly. Sxl: splicing repressor Tra: splicing activator

  35. Exon Shuffling • Exons are shuffled by recombination to produce genes encoding new proteins • Why introns are present in all organisms except bacteria??? Introns early model: due to selection pressure to speed chromosome replication and cell division Introns late model: due to a transposome like mechanism Why have the introns been retained in (higher) eukaryotes?? The advantages of exon shuffling

  36. Fig 13-26 Exons encode protein domains.

  37. Fig 13-27 Genes made up of parts of other genes.

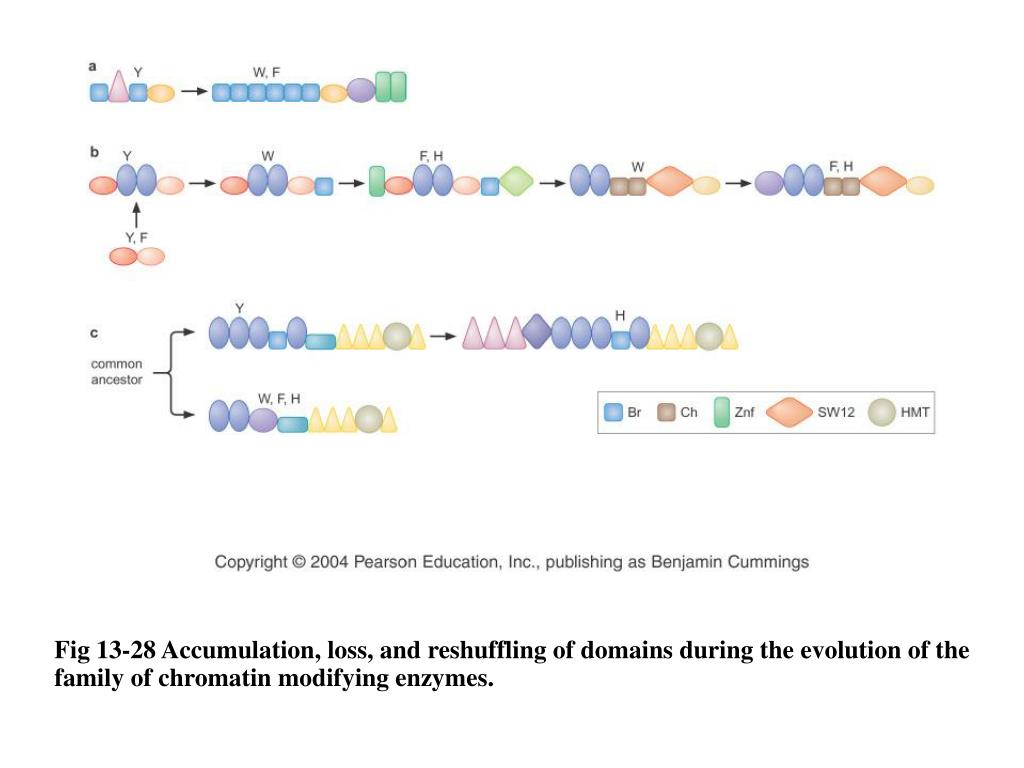

  38. Fig 13-28 Accumulation, loss, and reshuffling of domains during the evolution of the family of chromatin modifying enzymes.

  39. Evidences of exon shuffling • The boundaries between exons/introns often coincide with boundaries between domains. • Some proteins (eg. immunoglobulin) have repeating units, which might be due to gene duplications. • Related exons are sometimes found in unrelated genes.

  40. RNA Editing • Site-specific deamination • Guide RNA-directed uridine insertion or deletion (often in trypanosomes and mitochondria).

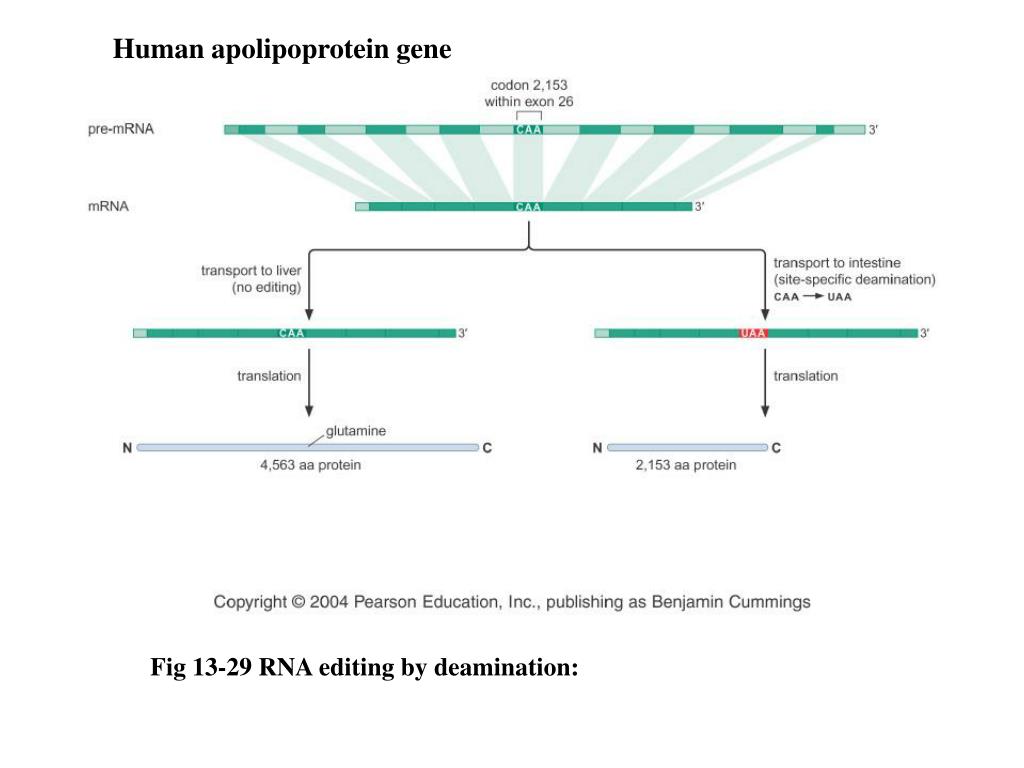

  41. Human apolipoprotein gene Fig 13-29 RNA editing by deamination:
