Presentation Transcript

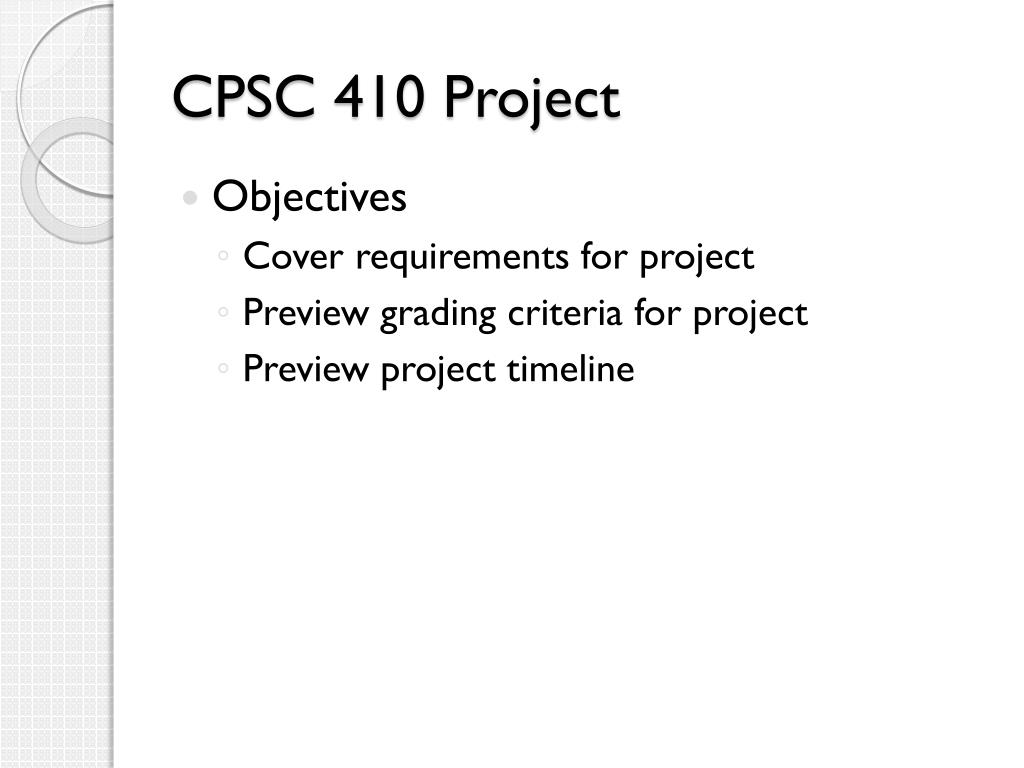

  1. CPSC 410 Project • Objectives • Cover requirements for project • Preview grading criteria for project • Preview project timeline

  2. Requirements Overview • Updates (10) • Integration (10) • Location (5) • AOSA presentation (10) • Design Review (15) • Separation of Concerns (10) • Testing (10) • Security (5) • Verification (5) • Evolution (5) • Demo (15) • Wow Factor (+20)

  3. Basic Requirements • Build a custom designed Web application • Using • <language>: Server • <language>: Client • Reliable data storage of your choosing • e.g. SQL database, Google App Engine, etc… • We are leaving the language choice up to you. In the past Java Server Pages and HTML/CSS have been used. • But iOS+Node.js, Android+RoR, etc are all valid • Your team is responsible for delivering a quality system that demonstrates the functionality you specify for it in your requirements

  4. Basic Requirements • Your project could take a variety of forms:    -Multiple player on-line game room    -Online banking or stock market trading site    - Mapping/navigation aid •     -Online community     -Multi-user location tracking and mapping system    -Auction site

  5. Updates (15) • Users must be able to subscribe/unsubscribe to a subset of content on the site • e.g. Watch, Like, Friend, Follow, etc… • Users must be able to contribute and update content • When content is updated, users who are logged in and subscribed must be notified immediately • Users should never see stale data • Implementation must be free of concurrency bugs

  6. Integration (10) • Your application will use at least 2 Web services • Web services must provide API or REST-based service • Must not just be a page that you link to or embed • Web services must be relevant to your application • Provide valuable feature • Not just “tacked on” as an afterthought

  7. Location awareness (5) • Your application must leverage the user’s location preferences, subject to privacy choices. • Your application’s interface should reflect where the user currently is in (near) real-time.

  8. Design Review (20) • 20 minute meeting • Present • HTML mockups of the UI • 10 user stories for your custom application features • UML diagrams for your server code design • Focusing on package structure, design patterns, and data model • Describe which Web services you will use and why • Mention how you will handle data storage

  9. Separation of Concerns (10) • Separate style and outline of pages • Separate page generation and business logic • Separate security concerns

  10. Testing (10) • Provide unit tests for your application • Provide useful functional tests • Document acceptance criteria. • Test driver will act as Web client • Reach 60% statement coverage for full credit • Use a suitable coverage tool, e.g. EclEmma

  11. Security (5) • Review your code against the SANS Top-25 list (e.g. XSS, SQL injection, etc)

  12. Verification (5) • Run a static analysis tool like FindBugs on your Java code • Fix all of the (important) bugs that it finds

  13. Evolution (5) • You may provide a 1 page evolution document • Document can describe how your final design is different from that described at your Design Review • UI changes • UML -> implementation changes • Provide justification for the changes and no credit will be deducted

  14. Project Demo (20) • 20 minute meeting • Demonstrate that the system meets the end-user observable requirements • Especially… • Updates • 10 user stories • Web service integration • Location

  15. Wow Factor • Novel functionality • Sophisticated DB indexing and search • Highly responsive or scalable performance • Custom algorithms • Rigorous JavaDoc and coding style • Polished UI or original artwork

  16. Teams • Each team will have four members. Once formed, please email cs410@ugrad.cs.ubc.ca with your team information. For each member of the team, you must provide: • name (as known to the registrar), and • undergraduate CS email id (letter-digit-letter-digit).

  17. Submissions • 10 user stories (at design review) • HTML screenshots (at design review) • UML diagrams (at design review) • Evolution document • Team Assessment

  18. Important Dates • Sept 14: Group Formation due, Github usernames submitted. • Sept 21: Email project proposal. • Oct 15-17: Design Reviews • Nov 26-28: Project Demos • Nov 30: Source Code, Team Assessment and Evolution documents due

  19. Homework Form your team (Piazza can help) e-mail team to cs410@ugrad.cs.ubc.ca by next Friday include names and e-mail Create Github username Read Doom3 article for Monday.
