The Garmin 1000

The Garmin 1000. Introduction to the G1000 for Flight Examiners Normal, Abnormal, Emergency procedures. What we will cover: (questions at any time). The system Definitions & Abbreviations Description & Operation of the system Flight Tests & the G1000 Abnormal Ops & Emergencies

siran
Télécharger la présentation

The Garmin 1000

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Garmin 1000 Introduction to the G1000 forFlight Examiners Normal, Abnormal, Emergency procedures

  2. What we will cover: (questions at any time) • The system • Definitions & Abbreviations • Description & Operation of the system • Flight Tests & the G1000 • Abnormal Ops & Emergencies • Simulating failures • Review

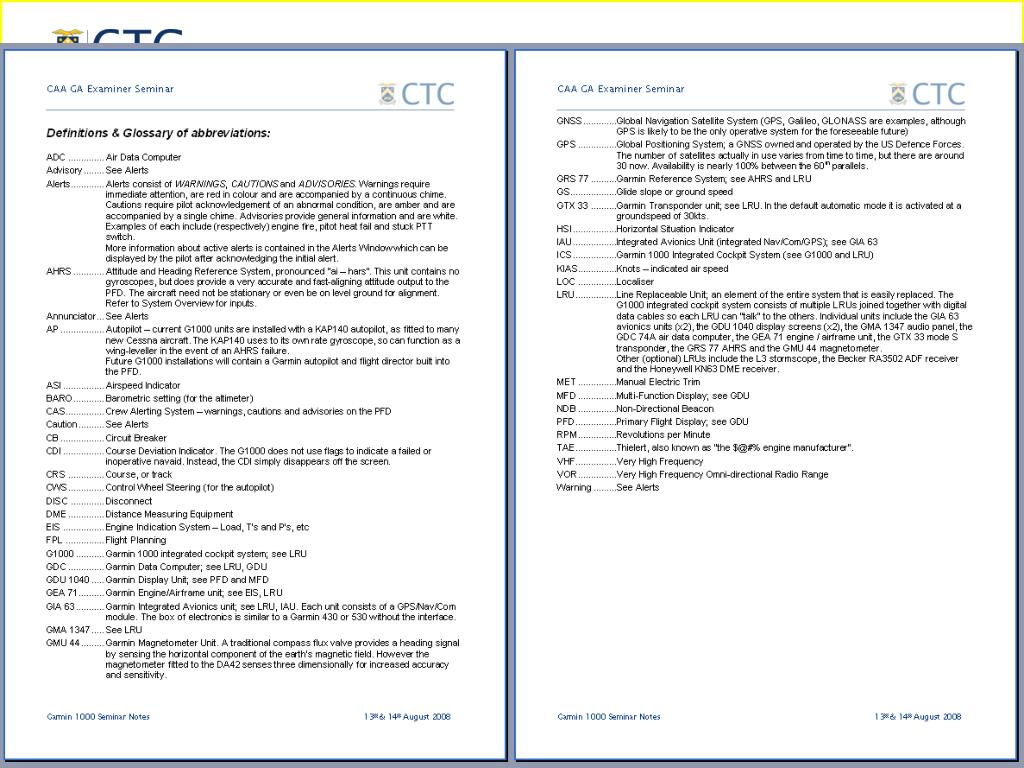

  3. Definitions & Abbreviations

  4. Components of Garmin 1000 (see handout) ADC OAT, Pitot & Static instr. GPS / Com / Nav 1 Similar to Garmin 430 GPS / Com / Nav 2 Similar to Garmin 430 AHRS Attitude & Heading Rate sensors, Slip/Skid • Optional modules • KAP140 autopilot • ADF • DME • Stormscope Engine / Airframe unit Engine, Fuel sensors Transponder Modes A, C, S Magnetometer

  5. The Primary Flight Display SAM 113.35 125.60 SAM 113.35 • Slip bar: • ¼ bar = ¼ ball imbalance • Heavily damped – “lag” Expanded pitch scale: Can set attitudes ±1° (really!)

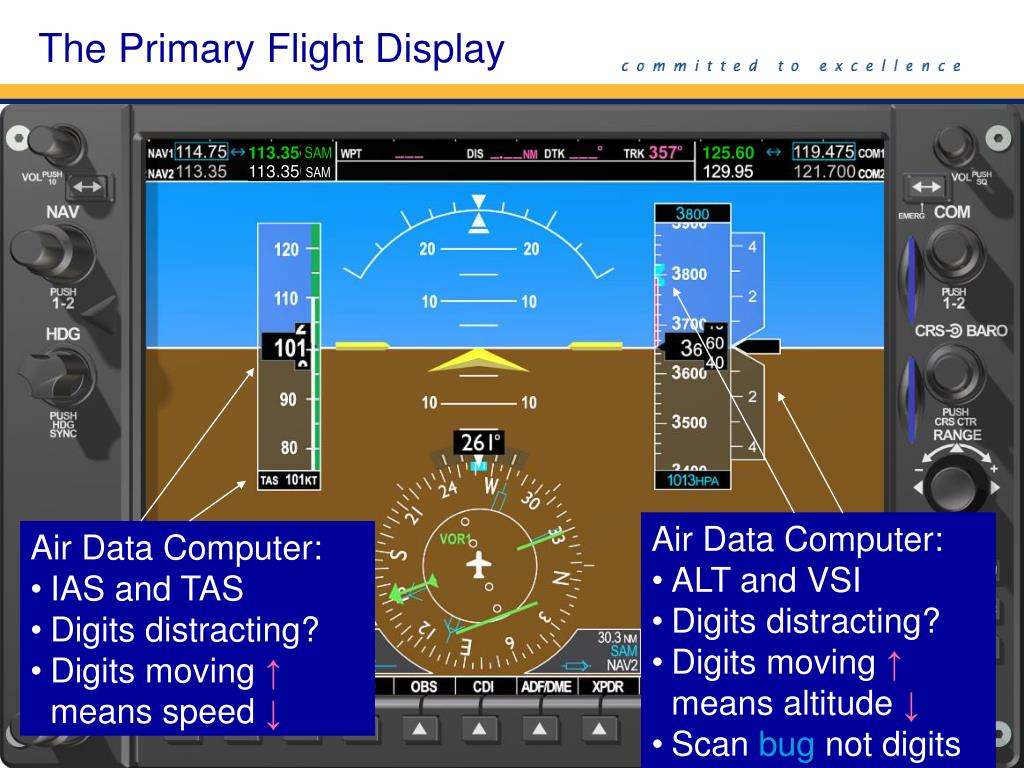

  6. The Primary Flight Display SAM 113.35 125.60 SAM 113.35 • Air Data Computer: • ALT and VSI • Digits distracting? • Digits moving ↑means altitude ↓ • Scanbugnot digits • Air Data Computer: • IAS and TAS • Digits distracting? • Digits moving ↑means speed ↓

  7. The Primary Flight Display SAM 113.35 125.60 SAM 113.35 • ADC and AHRS trend vectors: • 6 seconds • ASI, Alt, HSI (turn rate)

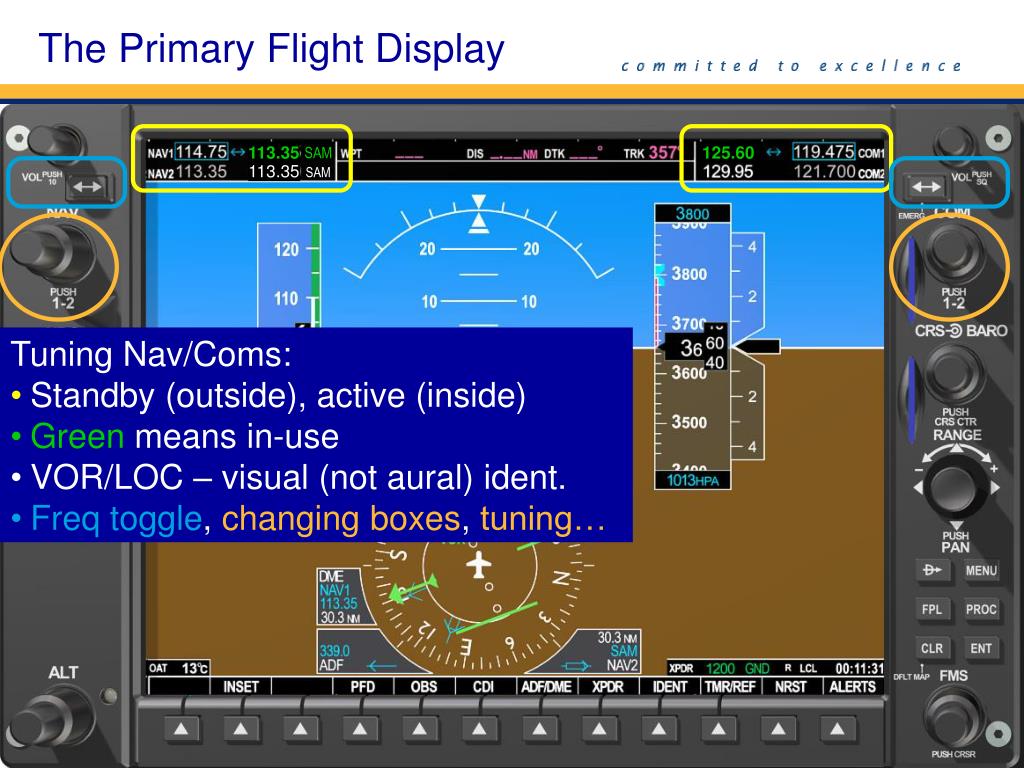

  8. The Primary Flight Display SAM 113.35 125.60 SAM 113.35 • Tuning Nav/Coms: • Standby (outside), active (inside) • Green means in-use • VOR/LOC – visual (not aural) ident. • Freq toggle, changing boxes, tuning…

  9. The Primary Flight Display SAM 113.35 125.60 SAM 113.35 • Displaying navaids: • HSI display: Nav 1, Nav 2, GPS • CDI disappears if no signal • RMI: VOR 1, 2, GPS, ADF

  10. The Primary Flight Display SAM 113.35 125.60 SAM 113.35 DME – conventional RMI – distance is GPS-based DME – Nav 1Nav 2Hold

  11. The Primary Flight Display SAM 113.35 125.60 SAM 113.35 • Transponder Status Bar: • Mode S • Auto, Manual • Codes, squawk etc

  12. The Primary Flight Display SAM 113.35 125.60 SAM 113.35 • Softkeys: • Context-sensitive: look before you leap! • Sub-menus & the “Back” button • “Alerts” button always on the far right to acknowledge alerts

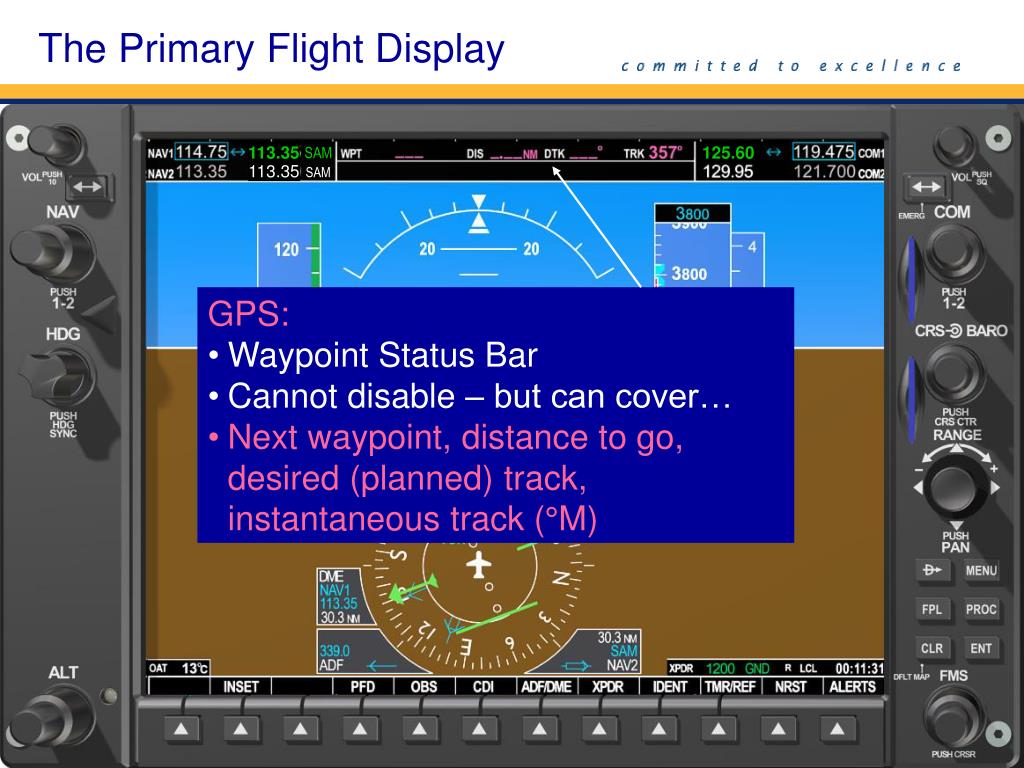

  13. The Primary Flight Display SAM 113.35 125.60 SAM 113.35 • GPS: • Waypoint Status Bar • Cannot disable – but can cover… • Next waypoint, distance to go, desired (planned) track, instantaneous track (°M)

  14. The Primary Flight Display • Using the FMS knobs: tuning the ADF or DME • Bring up the ADF window; • Use the outer & inner knobs to select fields and change digits; • IMPORTANT: Press ENTER, not the FMS knob itself, to accept the new value. Pressing the FMS knob simply cancels the change. SAM 113.35 125.60 SAM 113.35

  15. The Multi-Function Display SAM 113.35 120.750 IBMH • Nav/Com displays: as per PFD • GPS: • Navigation Status bar: • Operator can change • Instantaneous GS, Cross-track error, Distance and ETA for example.

  16. The Multi-Function Display • Useful features: • Change map appearance / defaults using MENU • Use MAP softkey to overlay information • Topography, Terrain Awareness, Stormscope etc • GPS flight plan will always be overlaid SAM 113.35 120.750 IBMH

  17. The Multi-Function Display SAM 300° 9.8NM – Elev 357FT – N45°W001° 113.35 120.750 IBMH • Changing map scale: • Rotate RANGE knob • Press the range knob to generate a map panning arrow • Range knob acts as a joystick to pan cursor on map • More information displayed at top of screen

  18. The Multi-Function Display SAM 113.35 120.750 IBMH • Page Groups • Map, Waypoint, Auxiliary, Nearest • Pages within groups • Navigate using boxes to keep track of where you are • Navigate with FMS knobs • Change groups and change pages within each group

  19. The Audio Selector Panel • Similar functions to other Garmin audio panels • “COM1 MIC” – listen & talk • “COM1” – just listen • Audio identification of DME / ADF • Volumes • Coms, Navaids (not DME) have own volume • Intercom volume for pilot, one other for all pax

  20. Failures affecting the G1000 VOR 1 NO DATA NAV2 ADC OAT, Pitot & Static instr. GPS / Com / Nav 1 Similar to Garmin 430 GPS / Com / Nav 2 Similar to Garmin 430 AHRS Attitude & Heading Rate sensors, Slip/Skid • Optional modules • KAP140 autopilot • ADF • DME • Stormscope Engine / Airframe unit Engine, Fuel sensors Transponder Modes A, C, S Magnetometer

  21. Reversionary Modes ADC OAT, Pitot & Static instr. GPS / Com / Nav 1 Similar to Garmin 430 GPS / Com / Nav 2 Similar to Garmin 430 AHRS Attitude & Heading Rate sensors, Slip/Skid • Optional modules • KAP140 autopilot • ADF • DME • Stormscope • Note: even though GPS / Com / Nav 2 work, the data may not be accessible. • You may also lose the use of ADF, DME etc! • Limited navigation available – Nav 1, NRST Magnetometer

  22. Manual Reversionary Mode ADC OAT, Pitot & Static instr. GPS / Com / Nav 1 Similar to Garmin 430 GPS / Com / Nav 2 Similar to Garmin 430 AHRS Attitude & Heading Rate sensors, Slip/Skid • Optional modules • KAP140 autopilot • ADF • DME • Stormscope • Reversion should be automatic. • If it does not occur, it can be done manually. • If this is simulated (i.e. no real failure), all navaids will remain useable. Magnetometer

  23. What we have covered: • The system • Definitions & Abbreviations • Description & Operation of the system • Flight Tests & the G1000 • Abnormal Ops & Emergencies • Simulating failures • Review: Questions or comments?
