  1. CAT CHECKPOINTDefect Inspections and Remedial Management CAT Checkpoint is a construction inspection and remedial management system which can be used as a simple punch list system or as a tool for the whole project team including subcontractors and consultants. CAT Checkpoint provides all parties involved in the process with consolidated and practical tools to get the job done efficiently. CAT Checkpoint is simple, effective and affordable for any size of project whether it is a residence or a major commercial project. If remedial management was priced into a tender a project would never be won. … …

  2. KEY BENEFITS OF cat checkpoint • Inspection tools for punch lists, safety and formal inspections • Allow consultants to enter inspections on your projects without them seeing inspections generated by your company. • Consolidation of information and practical tools for the team • Progress and performance monitoring of subcontractors with performance stats • Minimal project set up time for each new project • Tablet companion is not reliant on internet connected  • Ability to add photographs on the fly • Affordability for any size of company or project • Audit trail for all actions with easy to identify remedial status • Manual lists for subcontractors that are technically challenged • Speedy addition of remedial works with minimal typing • User friendly and simple to use • Invite your client into the team so they can see progress …

  3. The LIST structure of cat checkpoint One of the key objectives is to minimise typing and where possible to let you do an inspection with no typing at all. Set up default build types for the type of buildings your company builds (many have been done for you). The example below shows commercial apartments and includes area groups, sub areas, elements and common defects associated with each element. …

  4. Personalising your cat checkpoint site There are many other default lists and functions so that you can personalise your site to your way of doing things including: Professionally presented branding for notifications • Default logo • Project Specific Logo’s • Location Lists • Inspection Type Lists • Discipline Lists • Administrator Logins • Contacts Database for Consultants • Import function for project specific subcontractors • Invitation introduction text for consultants and subcontractors All project are available from one login regardless of your role on the project. …

  5. Setting up a new project in cat checkpoint Setting up a new project in CAT Checkpoint is quick. When setting up a job other than inviting participants you need to set up location and area structures. Using a commercial apartment building as an example the structure would be something like: Basement - Build Type Basement Level (parking, service rooms etc) Ground - Build Type Apartment Common Areas (Reception, Lift Lobby, etc) Level 1, 2, 3 etc - Build Type Apartment (rooms, common areas, service areas etc) Envelope - Build Type Exterior (façade, roof, balconies, entry etc) Site Works - Build Type Site Works (parking, recreational, landscaping etc) To each location relevant area groups are assigned so the right lists populate for that area (but you can still add on the fly).  After locations are finalised add the actual areas for each location ie: Apartment A,B,C etc. Depending on the project size and complexity this is anywhere between 10 and 30 minutes work. …

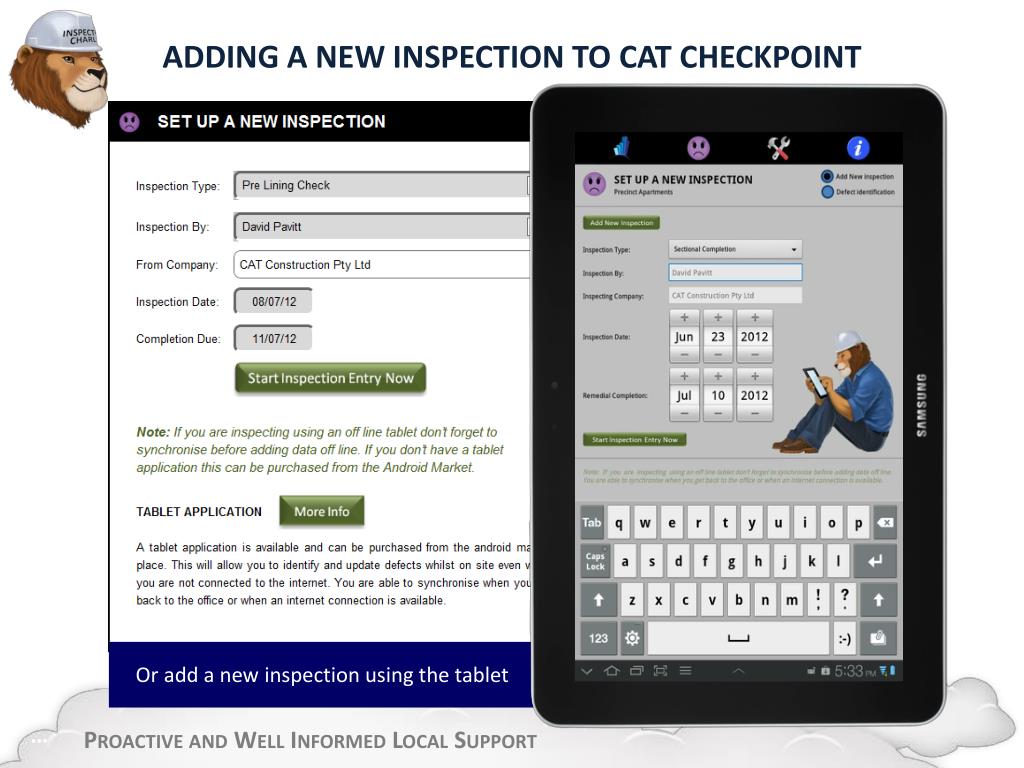

  6. ADDING A NEW INSPECTION TO CAT CHECKPOINT Or add a new inspection using the tablet …

  7. ADDING A DEFECT Or add a new defect using the tablet …

  8. Powerful filter panel REMEDIAL SCHEDULE Status legend The defects schedule is easy to read and has a powerful filter panel. Reports print to pdf or export to excel and mirror your filters. Send a notification to all parties when the inspection is completed. …

  9. REMEDIAL SCHEDULE Inspections carried out by the consultants filter through to the Main Contractor however the consultants can not see inspections generated by the Main Contractor. Use for pre-lining checks, pre pour checks, safety checks and on going punch lists. …

  10. VIEW THE DEFECT DETAILS …

  11. Re-inspection update Add a note Update the schedule during a reinspection using your laptop or your tablet then send a good looking notification to all parties advising the results. …

  12. Fantastic range of reports Reports are based on your screen filters. The performance report provides powerful supporting documentation for contra charge, retention and future work discussions. …

  13. Cat checkpoint TABLET companion The Tablet Companion is available for both Android and iPad. It is designed to work with or without being connected to the internet as remote connection is often unreliable when in a construction zone. The Tablet Companion is not compulsory but it is extremely powerful and pays for itself on the first day in time savings alone. Being able to add and update information including photo’s on the fly is worth gold. Sync before starting an inspection and then sync again after the inspection is complete. …

  14. LICENCING AND COST If you are the site administrator all participants you invite are free of charge and you can have unlimited users including subcontractors, consultants and your own staff. The only cost by others is the tablet application which is optional but really powerful and is priced at around two hours of their time so it pays for itself on the 1st day.  The consultant and the subcontractors can use the web application combined with manual lists if they don’t want to purchase a tablet. Therefore there is no valid reason that any party can object particularly when they are gaining big time savings. CAT Checkpoint is software as a service and is based on an affordable monthly or project subscription in both a standard and light versions. This service provides time and cost savings that are significant enough to justify the very modest cost. …

  15. The Construction Software Company For more information please feel welcome to visit the CAT Checkpoint website at www.catcheckpoint.com Call or email us to organise a demonstration or a quotation to see how CAT Checkpoint can benefit your business. Melbourne Office Construction Software Pty Ltd Phone: +61 3 9981 5728 Email: melbourne@catcheckpoint.com Auckland Office CAT Group NZ Ltd Phone: +64 9 574 5735 Email: auckland@catcheckpoint.com www.catcheckpoint.com …
