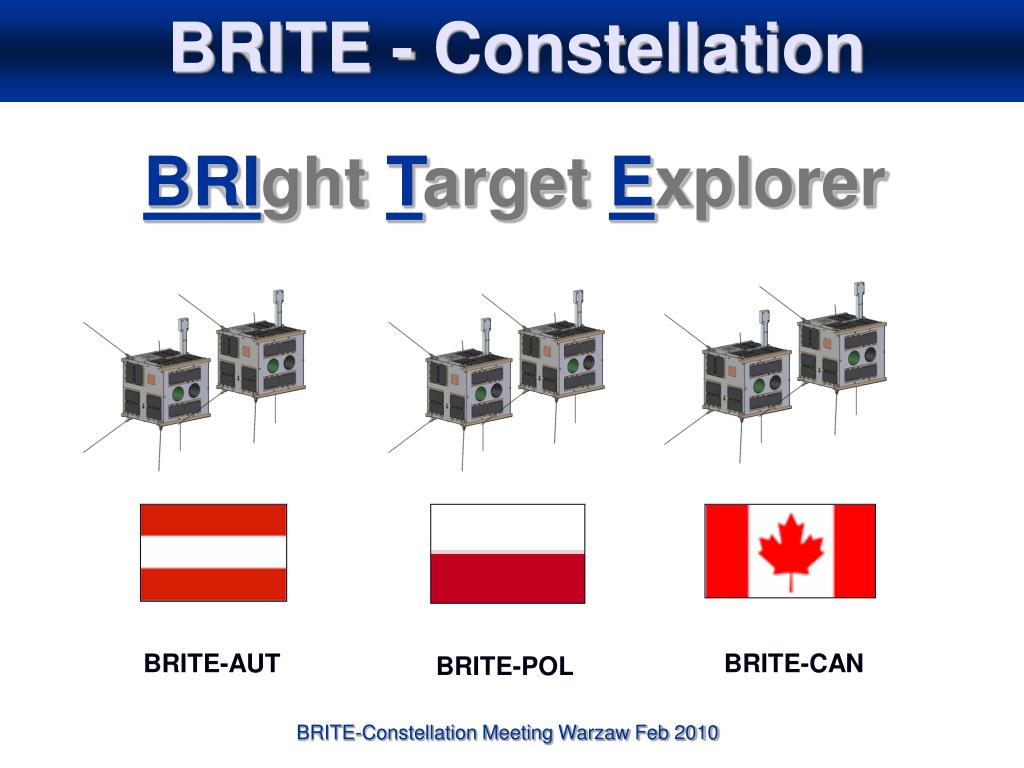

  1. BRITE - Constellation BRIghtTargetExplorer BRITE-AUT BRITE-CAN BRITE-POL

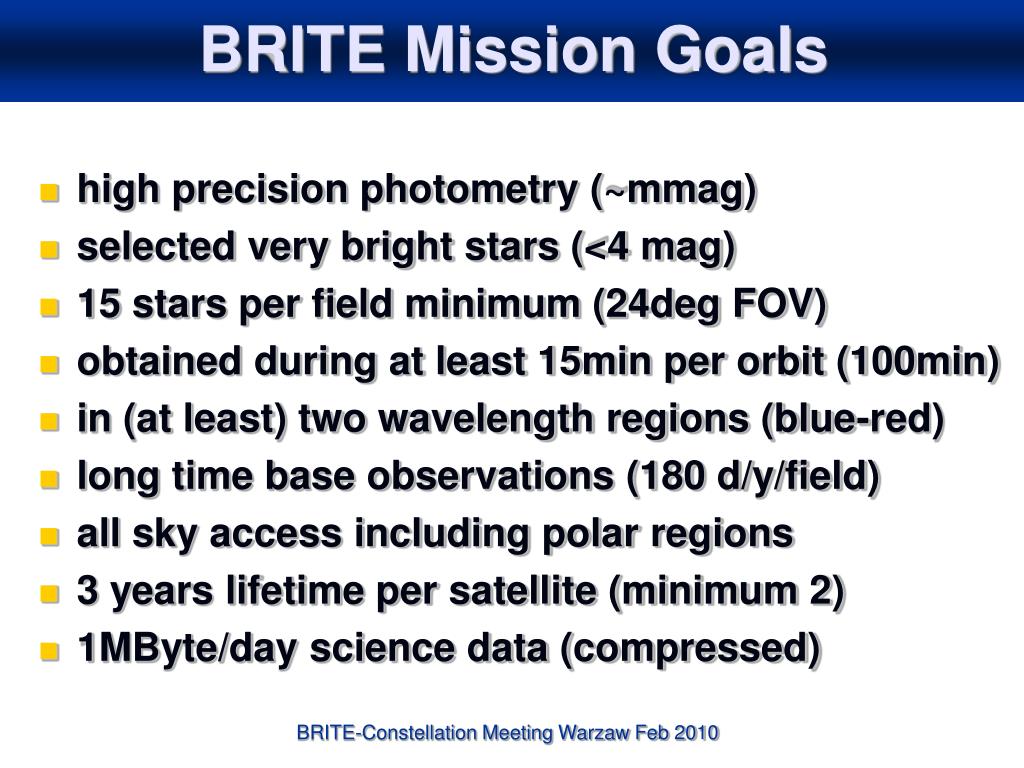

  2. high precision photometry (~mmag) selected very bright stars (<4 mag) 15 stars per field minimum (24deg FOV) obtained during at least 15min per orbit (100min) in (at least) two wavelength regions (blue-red) long time base observations (180 d/y/field) all sky access including polar regions 3 years lifetime per satellite (minimum 2) 1MByte/day science data (compressed) BRITE Mission Goals

  3. BRITE Photometry 101min BLUE- RED

  4. BRITE Sky BRITE: BRIghtTargetExplorer

  5. BRITE Target Stars Selection • 42 proposals have been submitted • 13 PI‘s and their teams • Austria (15), Australia (1), • Belgium (2), Bulgaria (1), • Canada (4), Croatia (1), • Germany (6), Iran (1), Poland (2), • Spain (1), Switzerland (1), U.K. (3) and USA (3) • O, B and Be stars, beta Cephei stars, hot Supergiants, • delta Scuti variables, gamma Doradus pulsators, • roAp / CP stars, red Giants , eclipsing binaries and more BRITE CANDIDATE TARGET STAR CATALOG BRITE-sky: a target fields evaluations tool

  6. BRITE - Constellation • nano-satellites • 20cm cube spacecrafts <8kg • 3 axis pointing control • LEO sunsynchronous (polar) orbit • small aperture (3cm) telescopes • wide (24deg) field of view • one instrument is RED sensitive one BLUE

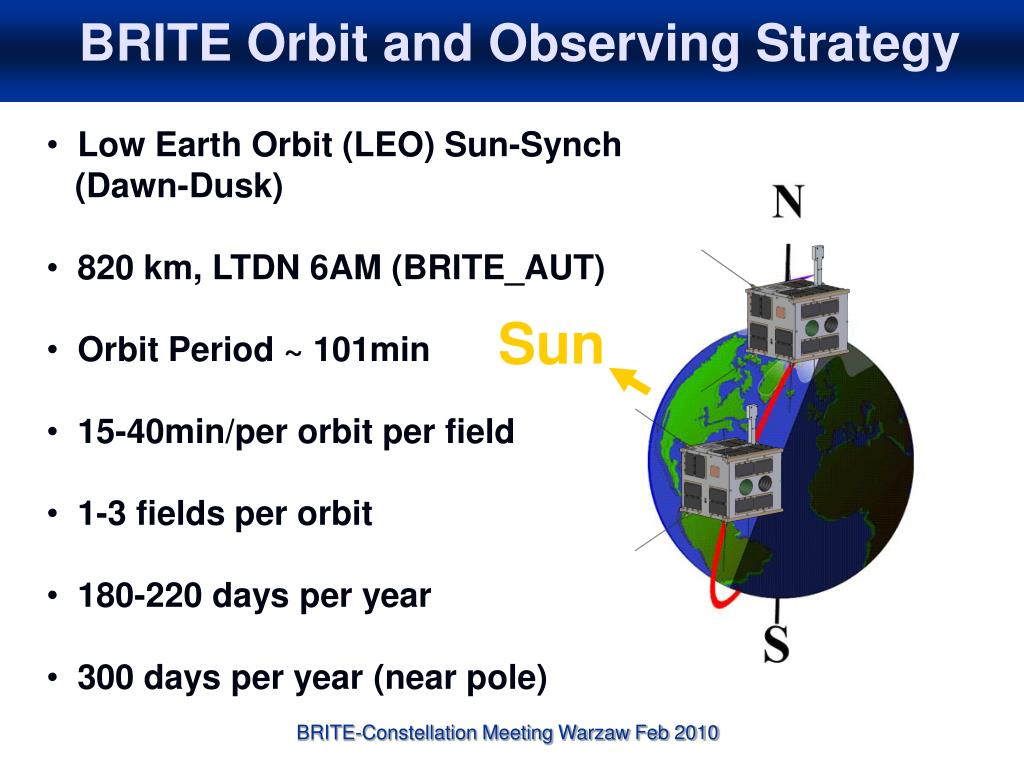

  7. BRITE Orbit and Observing Strategy • Low Earth Orbit (LEO) Sun-Synch • (Dawn-Dusk) • 820 km, LTDN 6AM (BRITE_AUT) • Orbit Period ~ 101min • 15-40min/per orbit per field • 1-3 fields per orbit • 180-220 days per year • 300 days per year (near pole) Sun

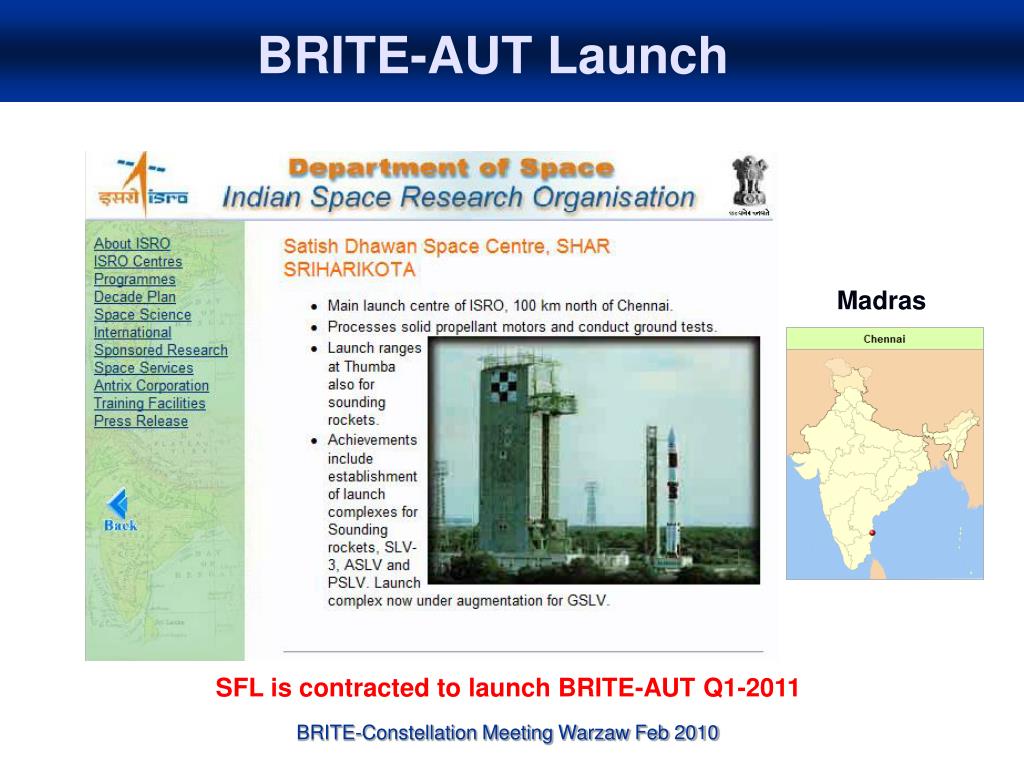

  8. BRITE-AUT Launch Madras SFL is contracted to launch BRITE-AUT Q1-2011

  9. BRITE Instrument - Telescope 5 lens system plus filter & baffle RED design BLUE design for a 24 deg cicular FOV, telecentric low distortion, mimimal vignetting

  10. BRITE Detectors KODAKKA11002 good performance at high (+20C) temperatures low power consumption and reasonable price ReadNoise ~15e rms

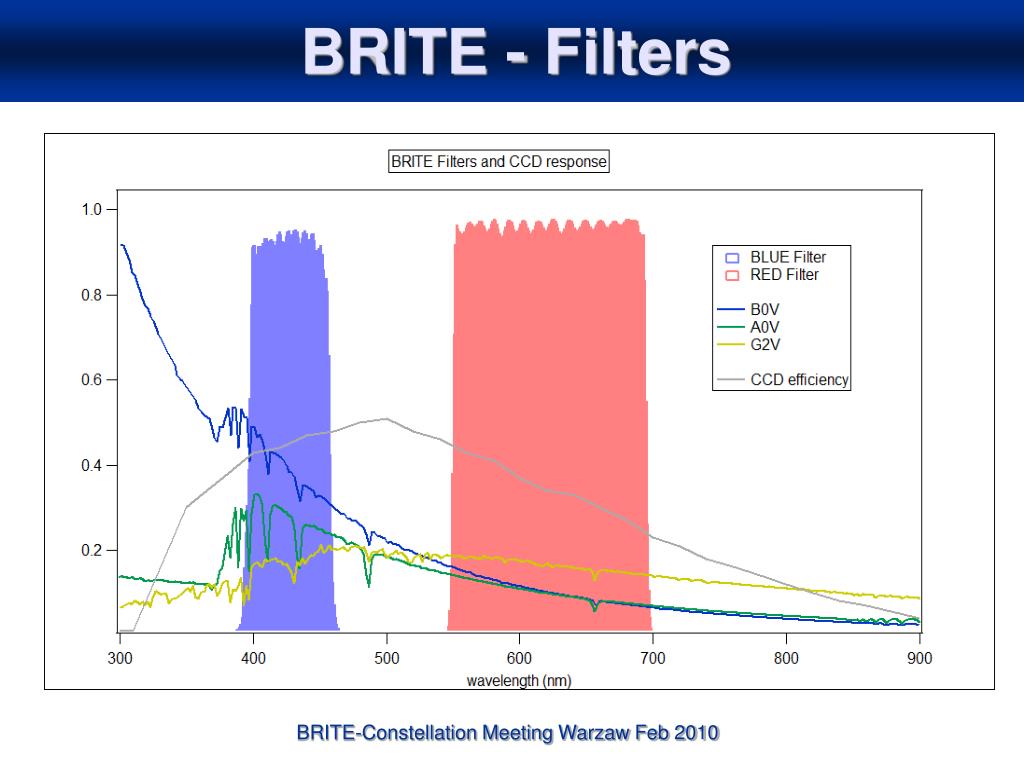

  11. BRITE - Filters

  12. BRITE - Filters

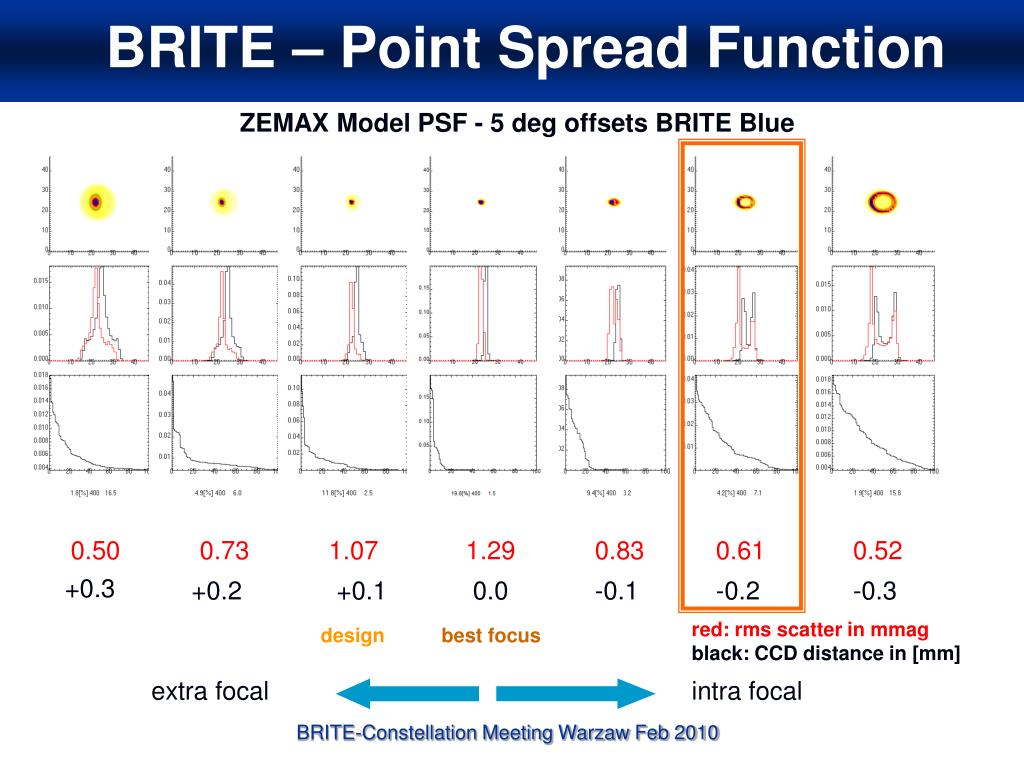

  13. BRITE – Point Spread Function ZEMAX Model PSF - 5 deg offsets BRITE Blue 0.50 0.73 1.07 1.29 0.83 0.61 0.52 +0.3 +0.2 +0.1 0.0 -0.2 -0.3 -0.1 red: rms scatter in mmag black: CCD distance in [mm] design best focus extra focal intra focal

  14. BRITE – Point Spread Function ZEMAX Model PSF - 7 deg offsets BRITE Red 0.46 1.31 1.19 1.01 0.85 0.56 0.40 +0.3 +0.2 +0.1 0.0 -0.1 -0.15 -0.20 red: rms scatter in mmag black: CCD distance in [mm] design

  15. BRITE Point Spread Function BRITE Blue PSF 5 deg offsets 8 pixels diameter – 80 pixels carry signal~30“/pixel

  16. BRITE – Field Of View 30“/pixel 2670 pixel 4000 pixel

  17. Region of Interest ROI/Raster up to 15 (32x32pixel) ROI/Raster

  18. ROI Rnnn X2 Y2 RnnnB2 RnnnB3 RnnnA2 RnnA1 V pix BW pix RnnnB4 RnnnB1 BW pix H pix Y1 X1 BRITE Onboard Data Processing sections: RnnnB1-4 ... backgrounds RnnnA1-2 ... apertures processed data: for each background median and sigma are calculated + the sum of signals values encompassed in the two apertures a total of 10 values BW ... width of background [pixels]

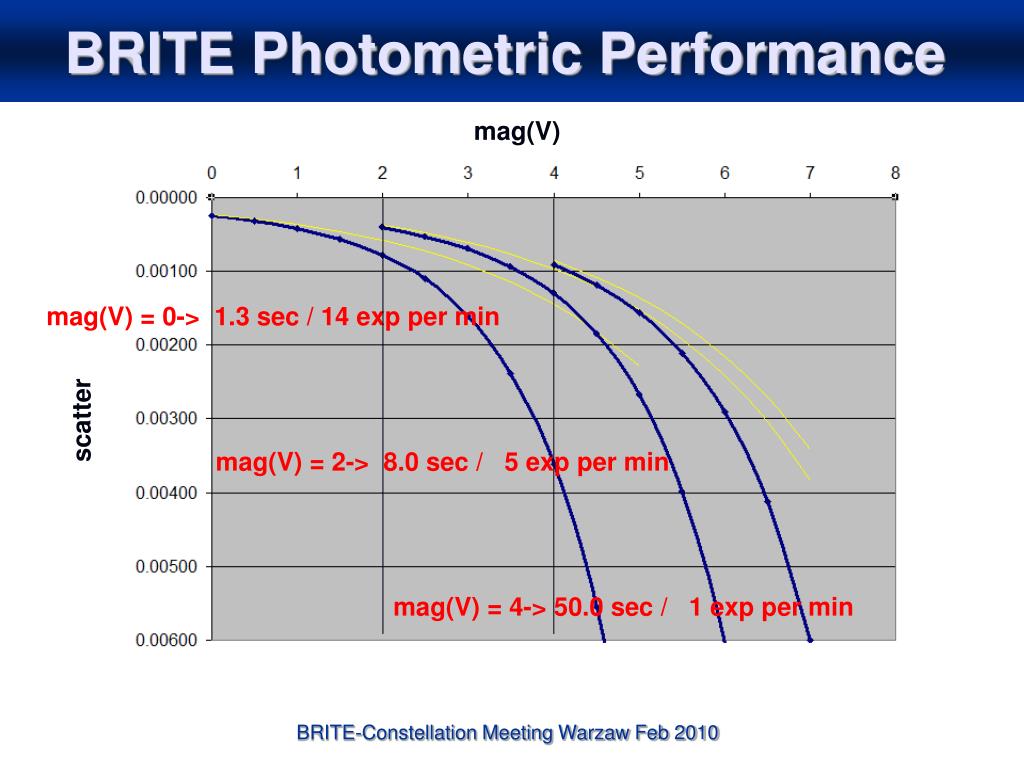

  19. BRITE Photometric Performance mag(V) mag(V) = 0-> 1.3 sec / 14 exp per min scatter mag(V) = 2-> 8.0 sec / 5 exp per min mag(V) = 4-> 50.0 sec / 1 exp per min

  20. BRITE Operational Software Science Data Generation Code

  21. BRITE Ground Station(s) • Primary Ground Station: IKS – TU Graz • Additional Locations: UTIAS – Toronto Canada TU Wien IfA Uni Wien

  22. BRITE-AUT Project Timeline • development of the hardware and software • completion of two satellites June 2010 • launch targeted for January 2011 http://www.brite-constellation.at

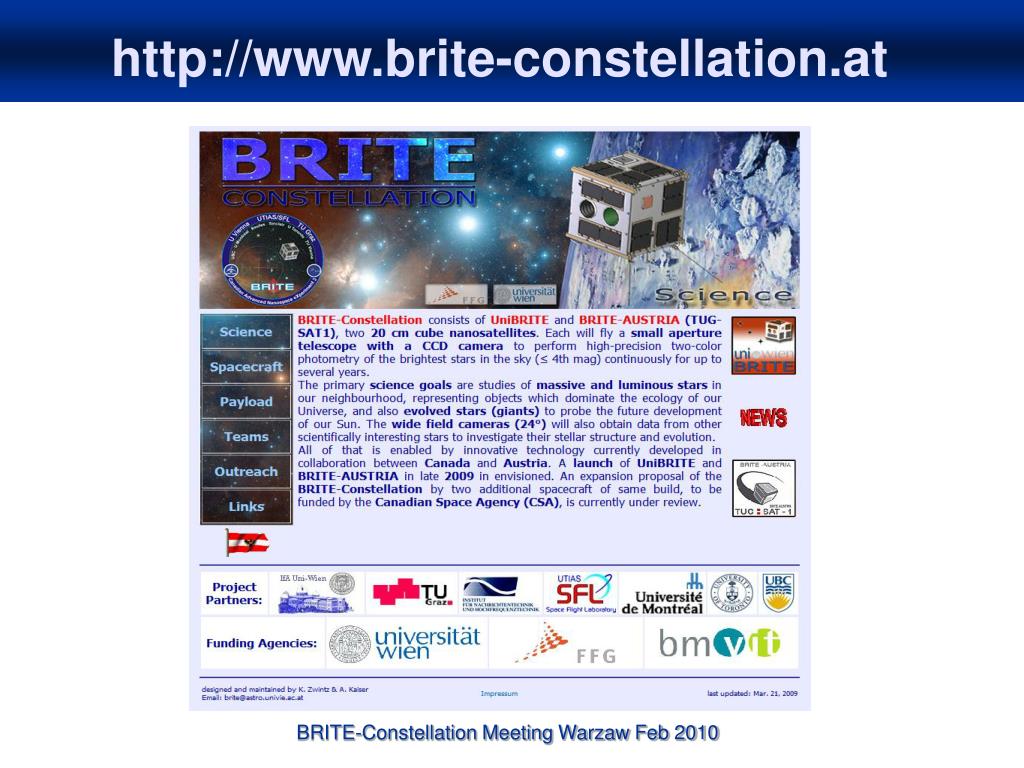

  23. http://www.brite-constellation.at
