1. Exploiting Nonstationarity for Performance Prediction Christopher Stewart (University of Rochester) Terence Kelly and Alex Zhang (HP Labs)

2. Motivation • Enterprise applications are hard manage • Complex software hierarchy executes on (globally) distributed platforms • Application-level performance metrics are more complicated than system-level metrics • Infrastructure is fragile; system modifications (even for measurement purposes) are not always practical for real applications

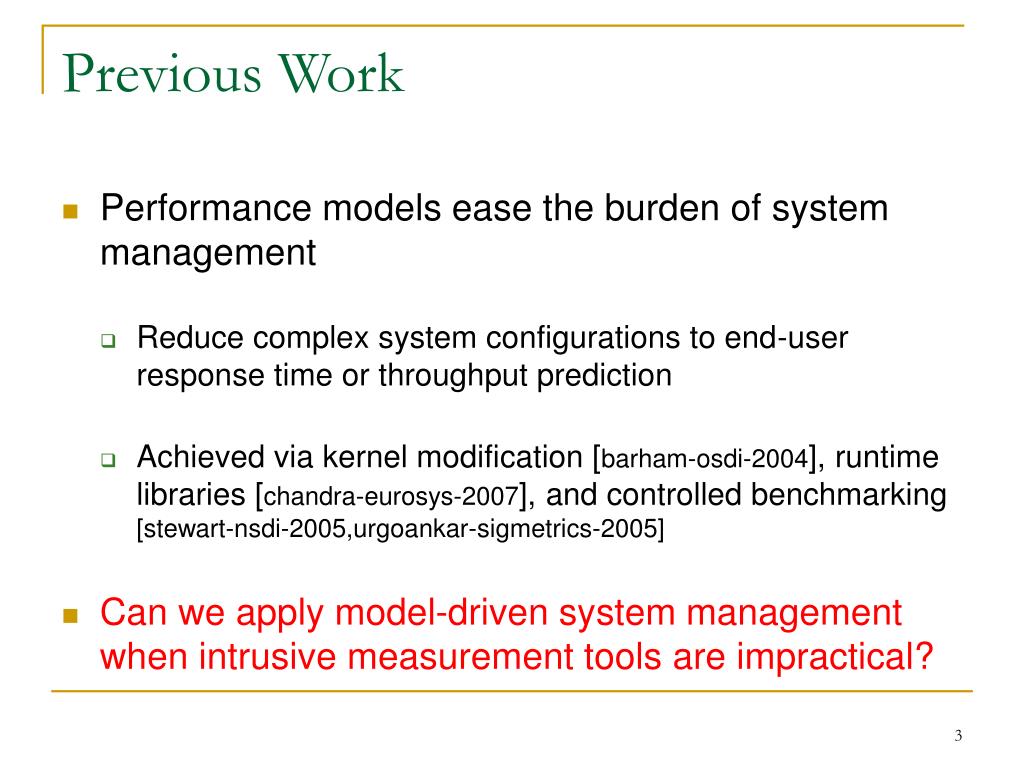

3. Previous Work • Performance models ease the burden of system management • Reduce complex system configurations to end-user response time or throughput prediction • Achieved via kernel modification [barham-osdi-2004], runtime libraries [chandra-eurosys-2007], and controlled benchmarking [stewart-nsdi-2005,urgoankar-sigmetrics-2005] • Can we apply model-driven system management when intrusive measurement tools are impractical?

4. Observation • Relative frequencies of transaction types in real enterprise applications are nonstationary • i.e., they change over time • Nonstationarity allows model calibration using passive observations of application-level performance and system metrics

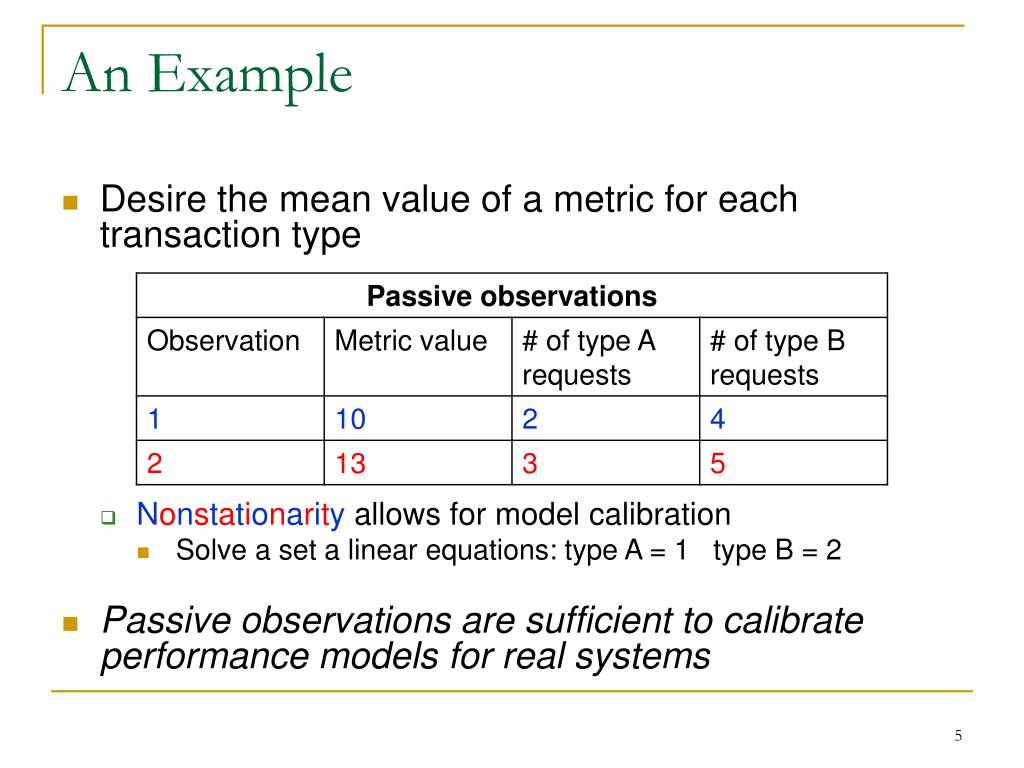

5. An Example • Desire the mean value of a metric for each transaction type • Nonstationarity allows for model calibration • Solve a set a linear equations: type A = 1 type B = 2 • Passive observations are sufficient to calibrate performance models for real systems

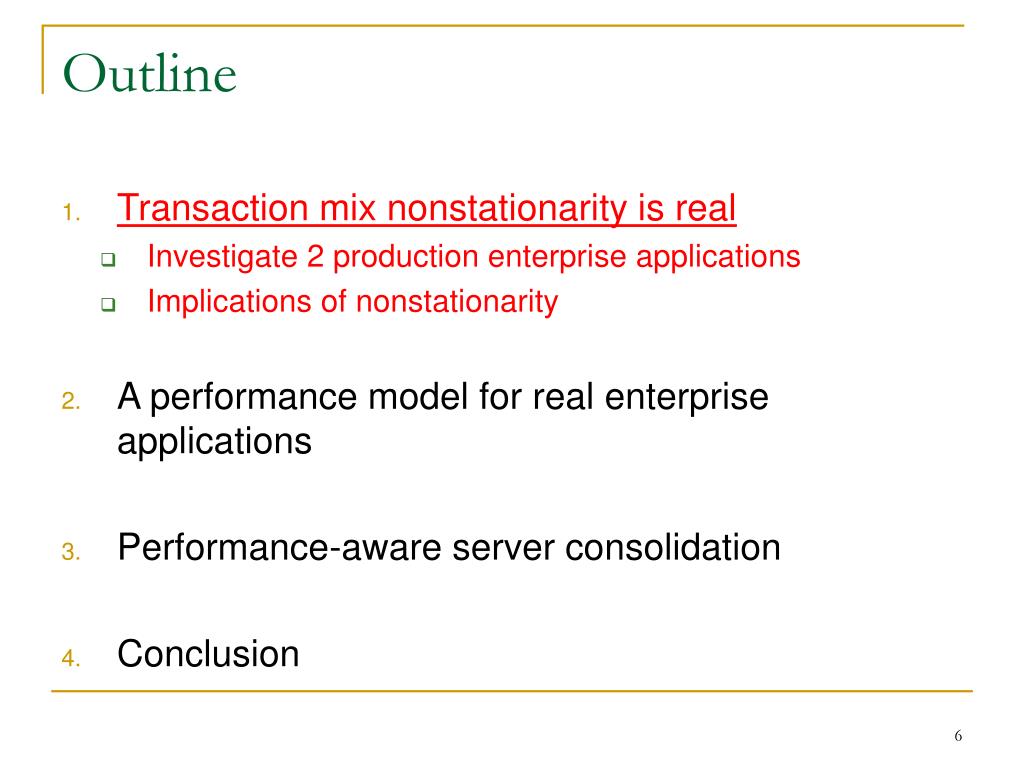

6. Outline • Transaction mix nonstationarity is real • Investigate 2 production enterprise applications • Implications of nonstationarity • A performance model for real enterprise applications • Performance-aware server consolidation • Conclusion

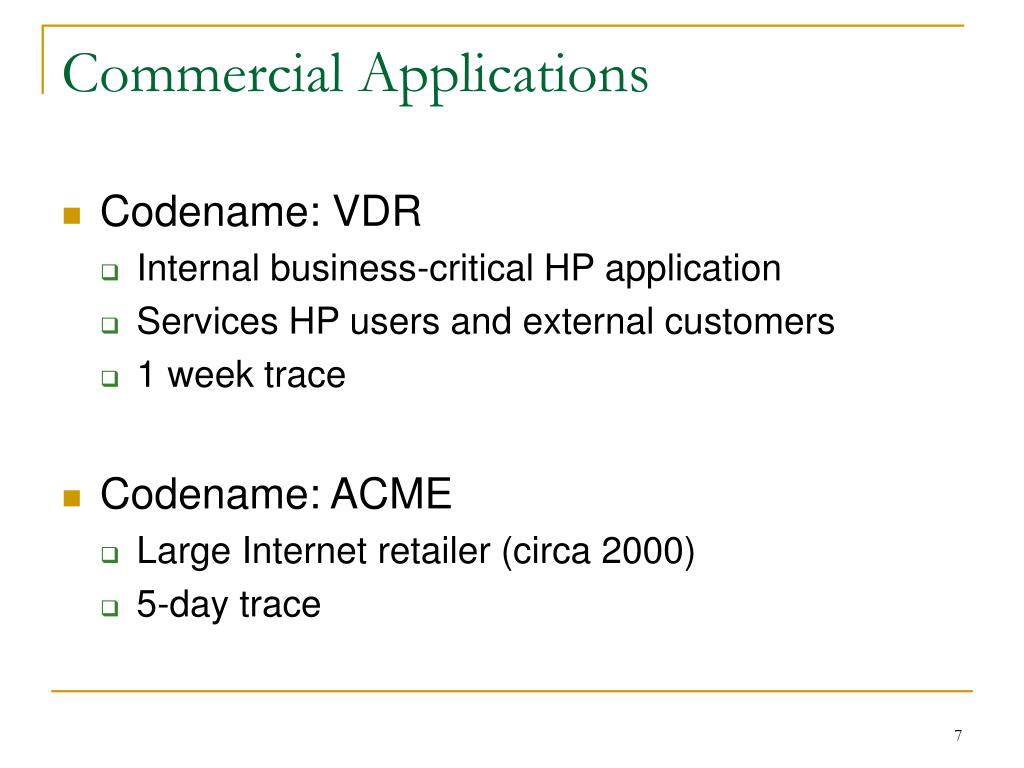

7. Commercial Applications • Codename: VDR • Internal business-critical HP application • Services HP users and external customers • 1 week trace • Codename: ACME • Large Internet retailer (circa 2000) • 5-day trace

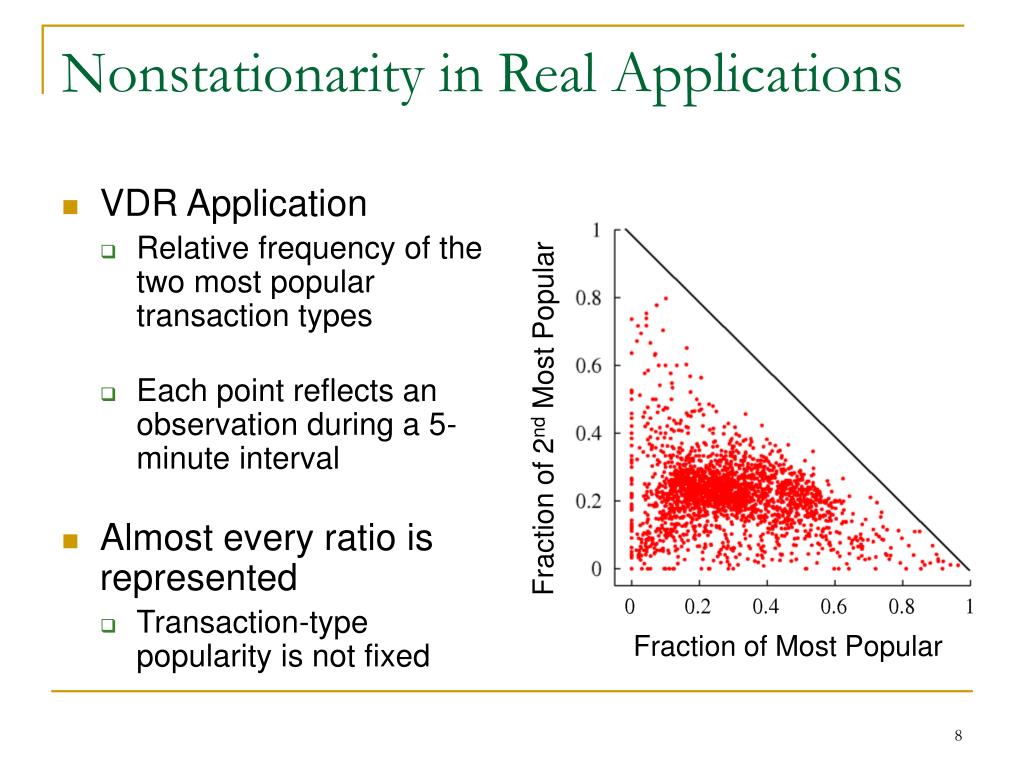

8. Fraction of 2nd Most Popular Fraction of Most Popular Nonstationarity in Real Applications • VDR Application • Relative frequency of the two most popular transaction types • Each point reflects an observation during a 5-minute interval • Almost every ratio is represented • Transaction-type popularity is not fixed

9. Nonstationarity in Real Applications • ACME Application • Fraction of “add-to-cart” transactions in the ACME workload • Each point reflects an observation during a 5-minute window • Frequencies vary by 2 orders of magnitude 0 24 48 72 96 120 Time (hours)

10. Implications of Nonstationarity • Performance models • A wide-range of transaction mixes is a first-order concern for real production applications • Models that consider only request rate are likely to provide poor predictive accuracy under real-world conditions

11. Fraction of 2nd Most Popular Fraction of Most Popular Implications of Nonstationarity • Workload generators • Popular benchmarks (e.g., RUBiS and TPC-W) use first-order Markov models • First-order Markov models yield stationary mixes (in the long term) • RUBiS browse-mix shown • Rethink workload generation

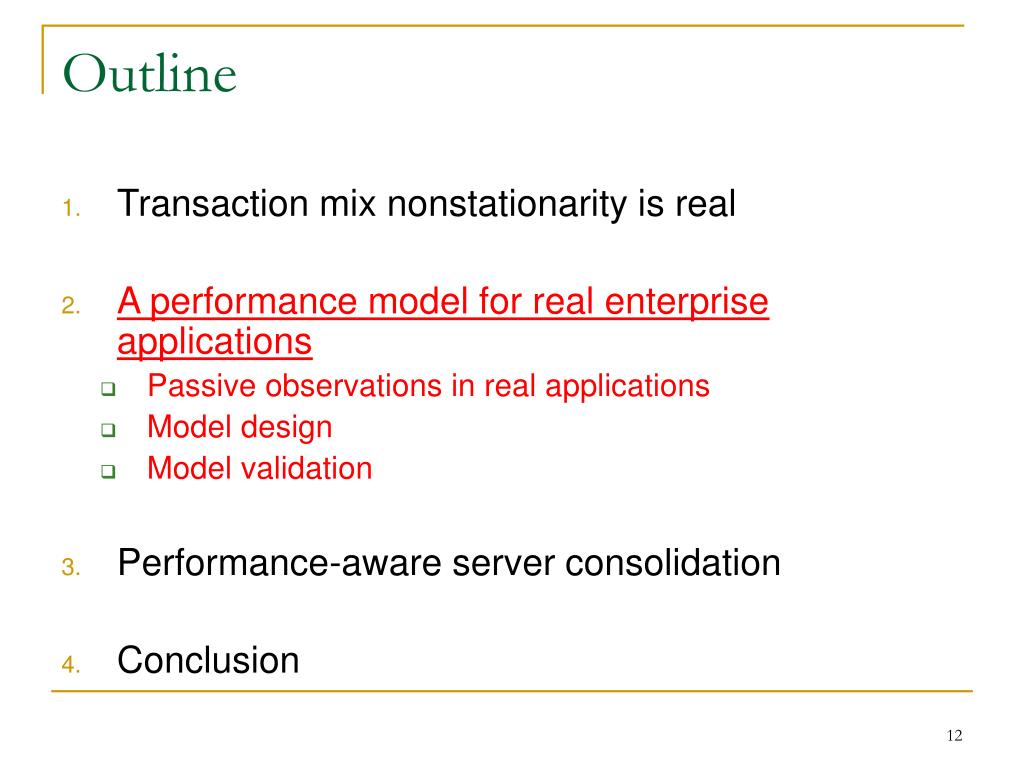

12. Outline • Transaction mix nonstationarity is real • A performance model for real enterprise applications • Passive observations in real applications • Model design • Model validation • Performance-aware server consolidation • Conclusion

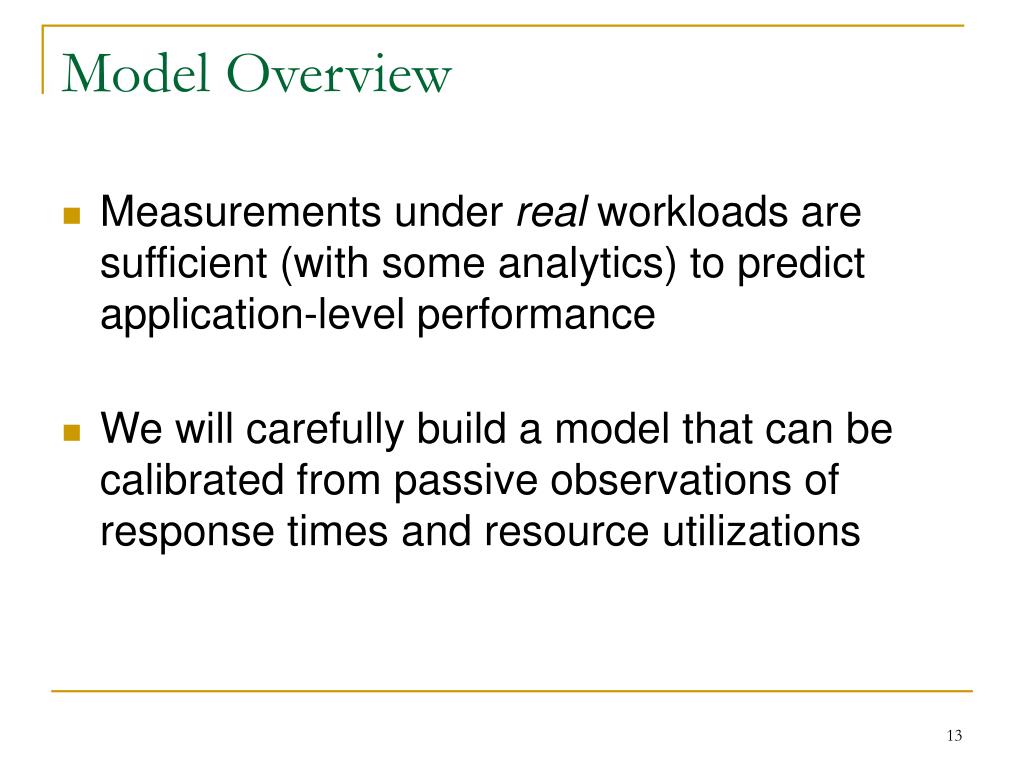

13. Model Overview • Measurements under real workloads are sufficient (with some analytics) to predict application-level performance • We will carefully build a model that can be calibrated from passive observations of response times and resource utilizations

14. Passive Observations • Certain system metrics are easy-to-acquire and widely available in production environments • Response times, CPU, and disk utilizations are routinely collected by tools in commodity Operating Systems

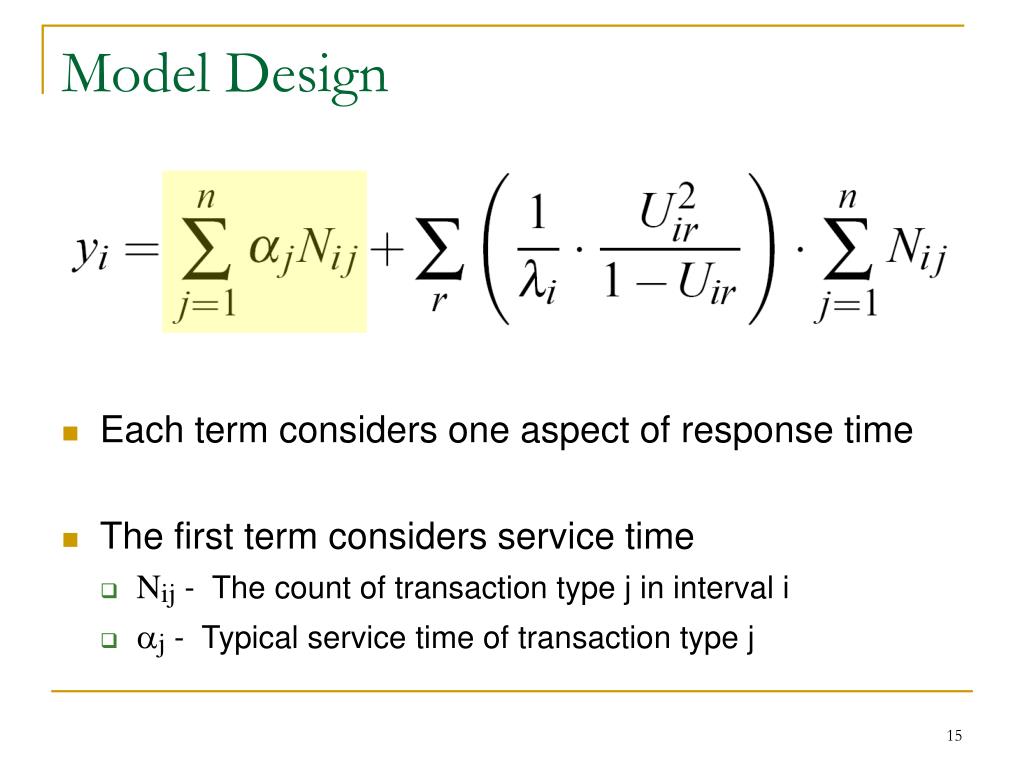

15. Model Design • Each term considers one aspect of response time • The first term considers service time • Nij - The count of transaction type j in interval i • j - Typical service time of transaction type j

16. Model Design • The second term considers queuing delay • Uir - The utilization of resource r at interval i • i - The arrival rate of all transactions during interval i • Resource utilization is not known a priori • Independently calibrated as a function of transaction mix

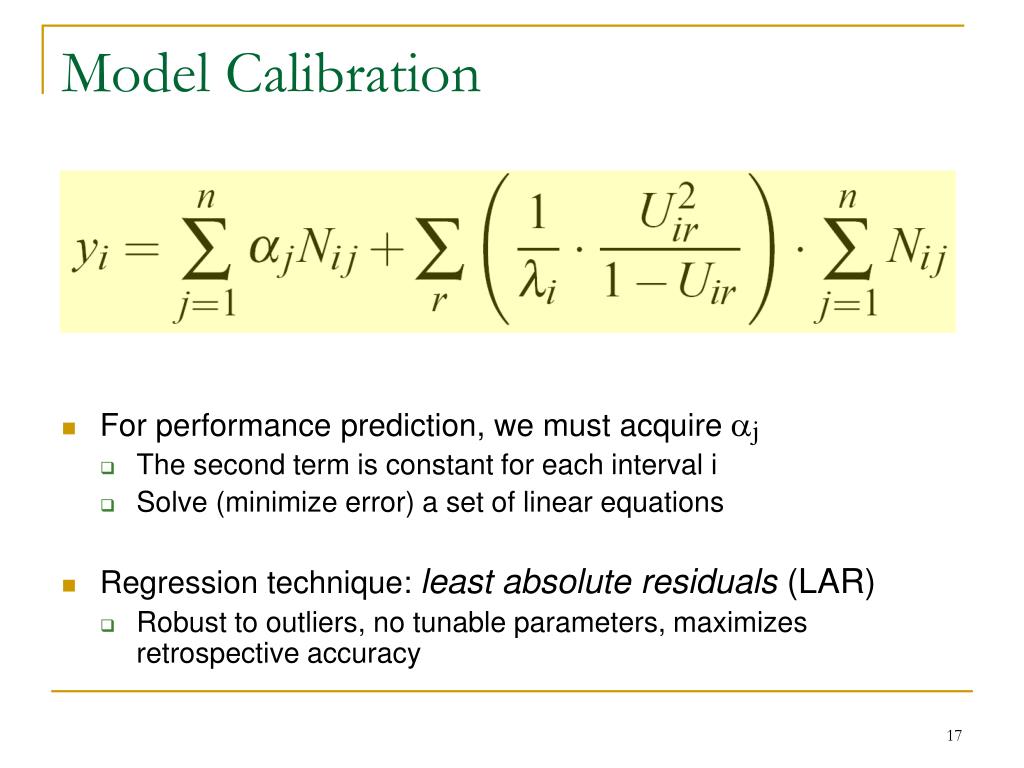

17. Model Calibration • For performance prediction, we must acquire j • The second term is constant for each interval i • Solve (minimize error) a set of linear equations • Regression technique: least absolute residuals (LAR) • Robust to outliers, no tunable parameters, maximizes retrospective accuracy

18. 2000 1500 Sum of Response Times (sec.) 1000 500 0 0 500 1000 1500 2000 5-min intervals (in trace order) Model Validation • VDR trace • ½ for calibration • ½ for prediction • Our model robustly predicts past and future performance

19. Model Validation CDF • VDR trace • Median Error • 7% calibrated set • 9% predicted set • ACME 12% median predictive error • An accurate model from passive observations 100% 80% 60% 40% 20% 0% 0% 50% 100% 150% Absolute Percentage Error | predict – actual | / actual

20. Outline • Transaction mix nonstationarity is real • Performance prediction for real enterprise applications • Performance-aware server consolidation • Problem statement • Extending our model for server consolidation • Validation • Conclusion

21. Problem Statement • Performance-aware server consolidation • Given passive observations of enterprise applications running separately • Predict post-consolidation performance for each application • For this work, the hardware platform does not change

22. Performance-Aware Server Consolidation • Post-consolidation performance model • Application consolidation primarily affects the queuing delay for each application • Simplifying assumption: Post-consolidation utilization is the sum of pre-consolidation utilizations

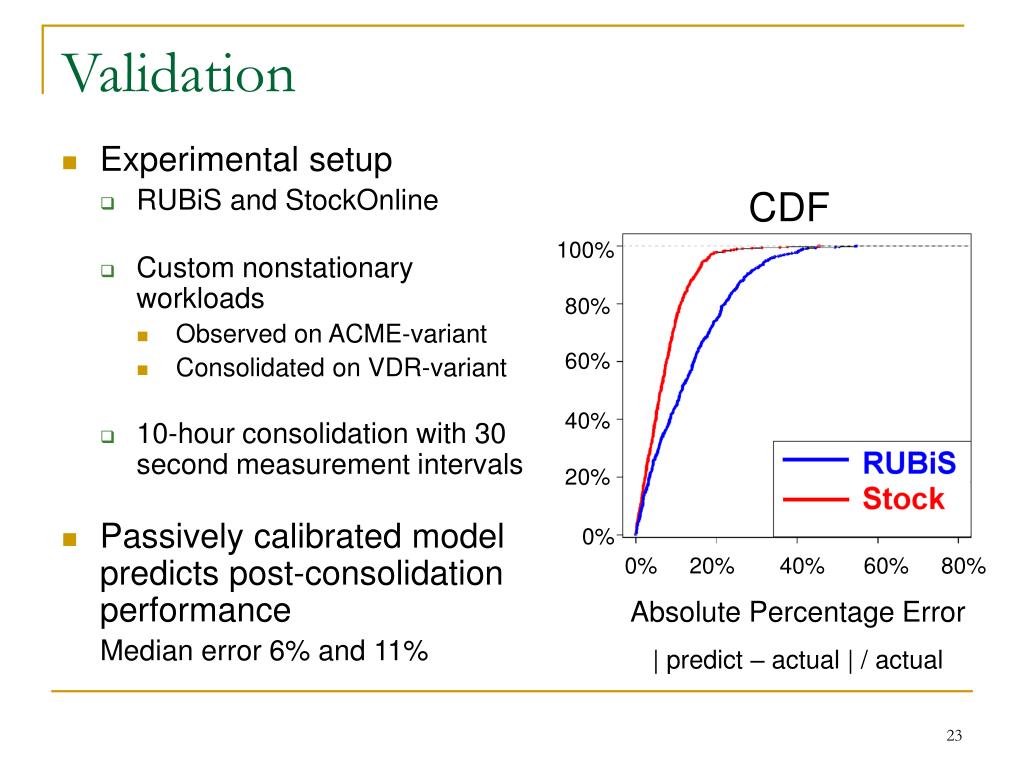

23. 100% 80% 60% 40% 20% 0% 0% 20% 40% 60% 80% Absolute Percentage Error | predict – actual | / actual Validation CDF • Experimental setup • RUBiS and StockOnline • Custom nonstationary workloads • Observed on ACME-variant • Consolidated on VDR-variant • 10-hour consolidation with 30 second measurement intervals • Passively calibrated model predicts post-consolidation performance Median error 6% and 11%

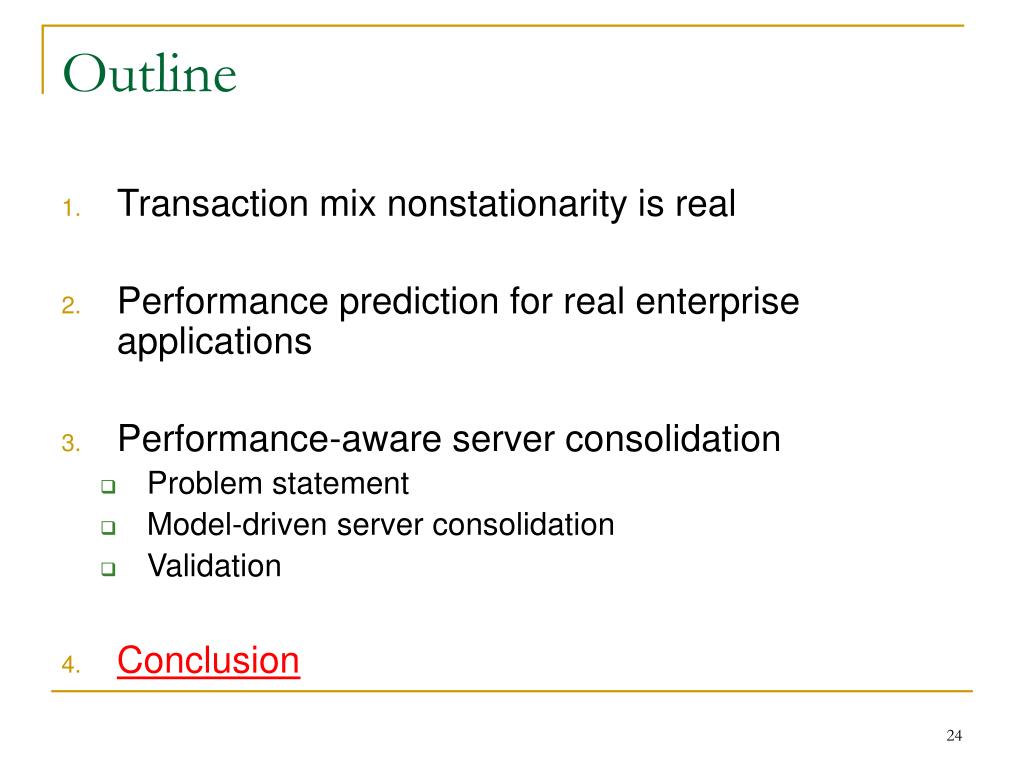

24. Outline • Transaction mix nonstationarity is real • Performance prediction for real enterprise applications • Performance-aware server consolidation • Problem statement • Model-driven server consolidation • Validation • Conclusion

25. Future Work • Performance prediction across multi-core processor configurations • Passive observations calibrate simple yet effective models of processor utilization • Performance anomaly depiction • Predictions are used to identify situations where performance does not match model expectations [stewart-hotdep-2006 , kelly-worlds-2005]

26. Take Away Points • Transaction mix nonstationarity is a real phenomenon in production applications • Passive observations are sufficient to calibrate performance models • Passively calibrated performance models can guide system management decisions
