How to Configure Firefox on an Apple Computer

How to Configure Firefox on an Apple Computer. Presented by Timothy A. Solberg. The instructions in this presentation are for using Coolkey. This was replaced by CACkey. So, if you want an easier approach, go to: http://militarycac.com/macnotes.htm Video instructions can be viewed at:

skule
Télécharger la présentation

How to Configure Firefox on an Apple Computer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. How to Configure Firefox on an Apple Computer Presented by Timothy A. Solberg The instructions in this presentation are for using Coolkey. This was replaced by CACkey. So, if you want an easier approach, go to: http://militarycac.com/macnotes.htm Video instructions can be viewed at: http://militarycac.com/MACvideos.htm Presentation last tweaked by CW3 Danberry on: 7 September 2013

  2. Configuring Firefox on your MAC using Coolkey If you are NOT familiar with Linux or Terminal DO NOT ATTEMPT THE FOLLOWING COMMANDS, have Tim or someone who knows what they are doing do this for you. Tim has no problems helping you and can setup a time to access your MAC remotely and will do it for you.

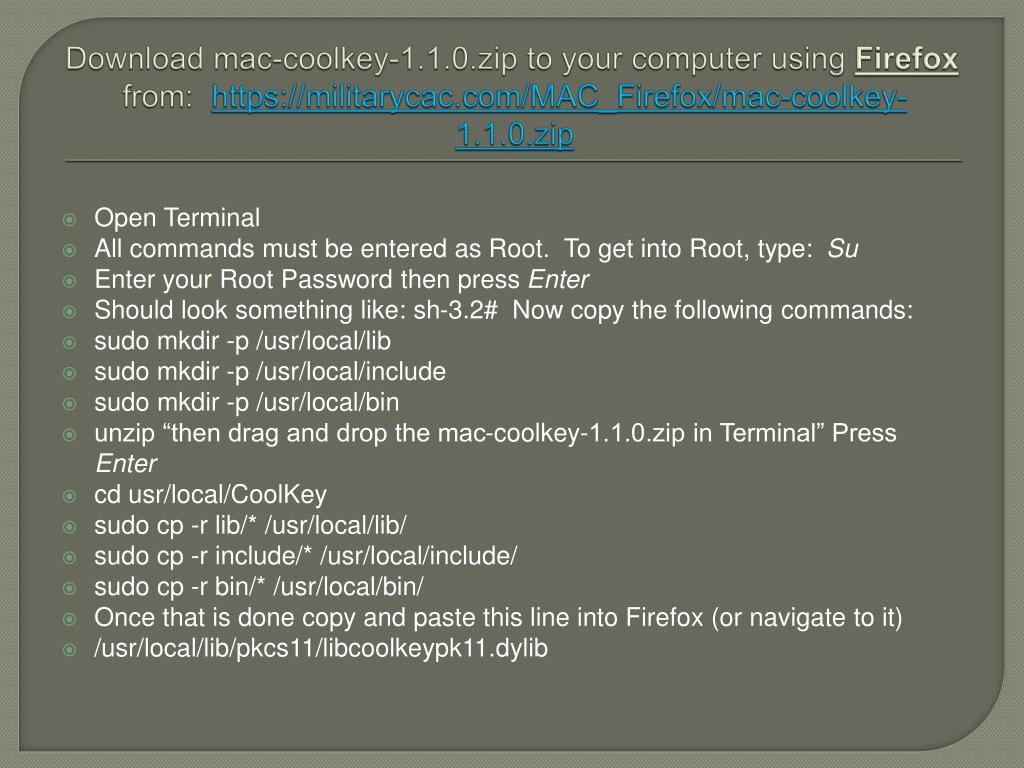

  3. Download mac-coolkey-1.1.0.zip to your computer using Firefox from: https://militarycac.com/MAC_Firefox/mac-coolkey-1.1.0.zip Open Terminal All commands must be entered as Root. To get into Root, type: Su Enter your Root Password then press Enter Should look something like: sh-3.2# Now copy the following commands: sudo mkdir -p /usr/local/lib sudo mkdir -p /usr/local/include sudo mkdir -p /usr/local/bin unzip “then drag and drop the mac-coolkey-1.1.0.zip in Terminal” Press Enter cd usr/local/CoolKey sudo cp -r lib/* /usr/local/lib/ sudo cp -r include/* /usr/local/include/ sudo cp -r bin/* /usr/local/bin/ Once that is done copy and paste this line into Firefox (or navigate to it) /usr/local/lib/pkcs11/libcoolkeypk11.dylib

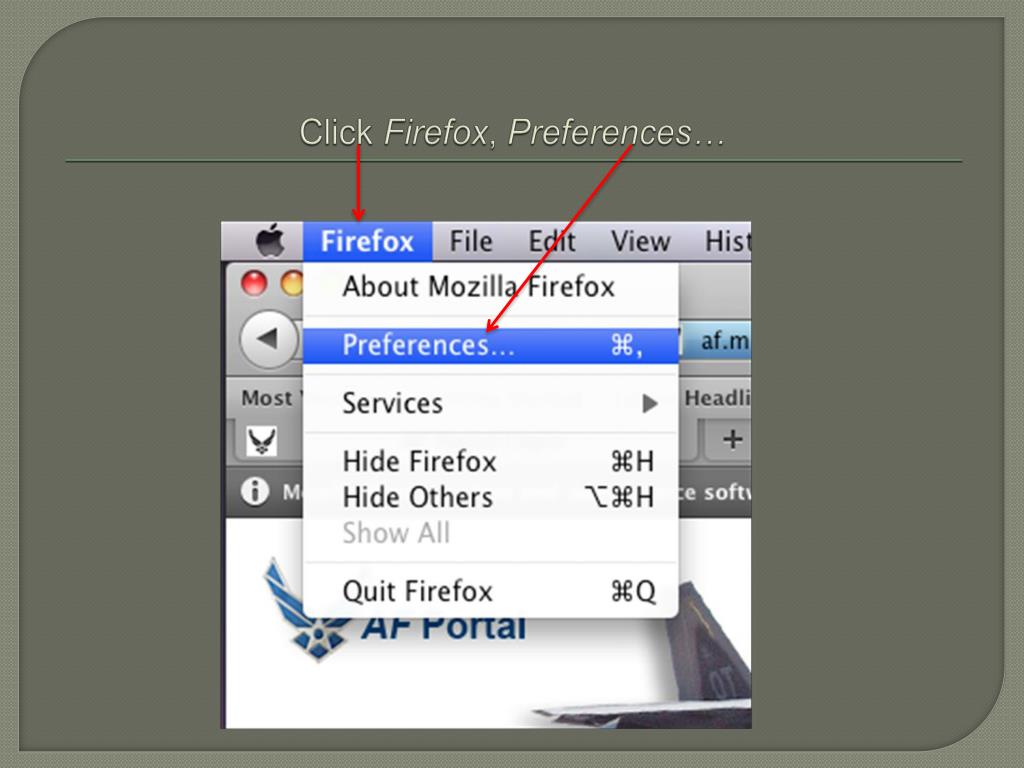

  4. Click Firefox, Preferences…

  5. Click Advanced(gear), Encryption(tab), Security Devices(button)

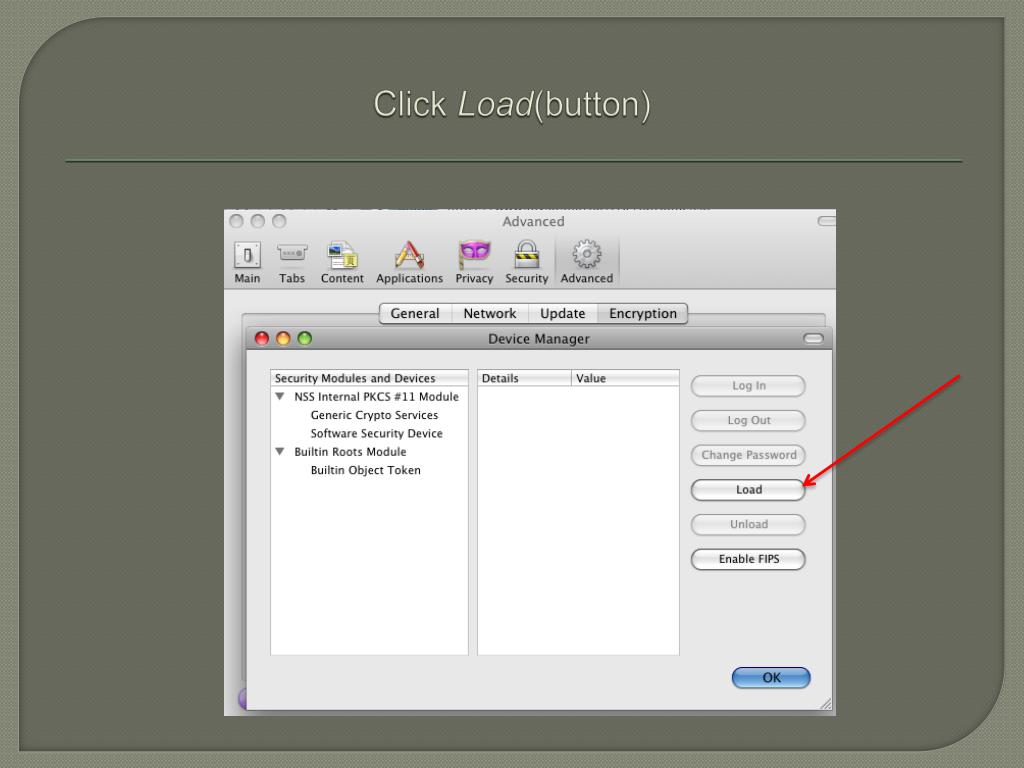

  6. Click Load(button)

  7. Title it: CAC Reader Copy, then paste the following: /usr/local/lib/pkcs11/libcoolkeypk11.dylib into Module filename, then click OK

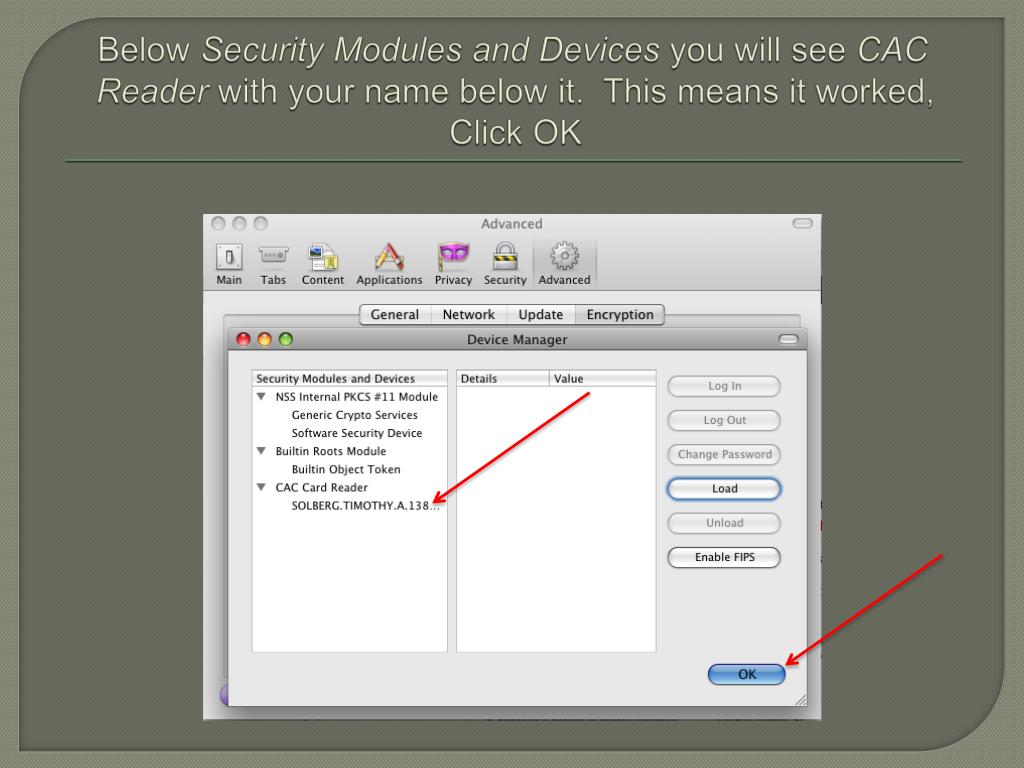

  8. Below Security Modules and Devices you will see CAC Reader with your name below it. This means it worked, Click OK

  9. Try going to a CAC enabled website via Firefox. Example: Air Force Portal https://www.my.af.milClick I understand the risks

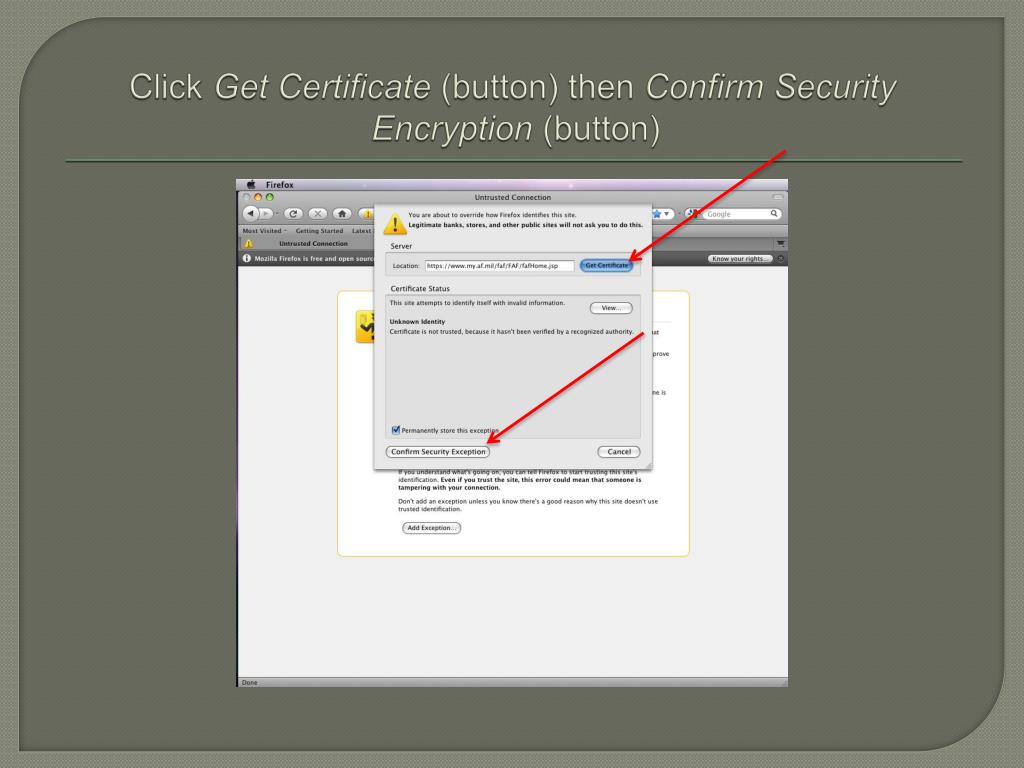

  10. Click Get Certificate (button) then Confirm Security Encryption (button)

  11. Type your CAC PIN in the Password Required box, then select OK

  12. Select the Email Signature Cert (Air Force) AKO uses the NON Email certificate

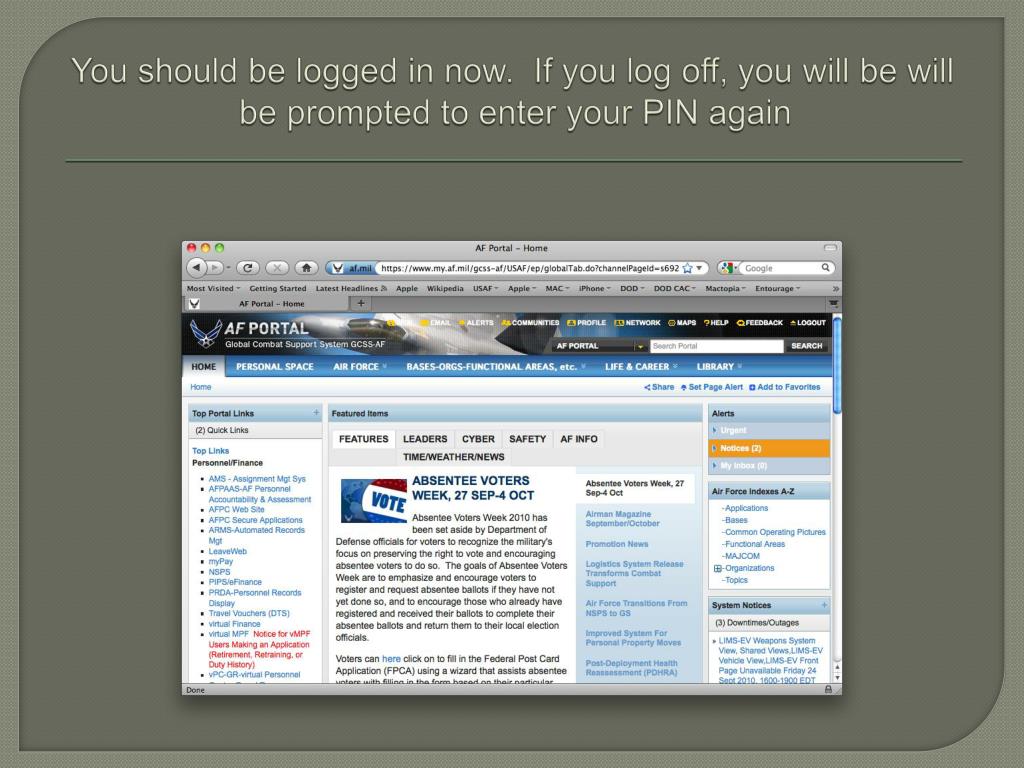

  13. You should be logged in now. If you log off, you will be will be prompted to enter your PIN again

  14. You have now enabled Firefox on your Mac to access CAC enabled websites Another presentation by: CW3 Michael J. Danberry https://MilitaryCAC.com For specific questions regarding this Presentation please contact: Timothy A. Solberg 202-455-8037 Timothy.solberg@militarycac.com
