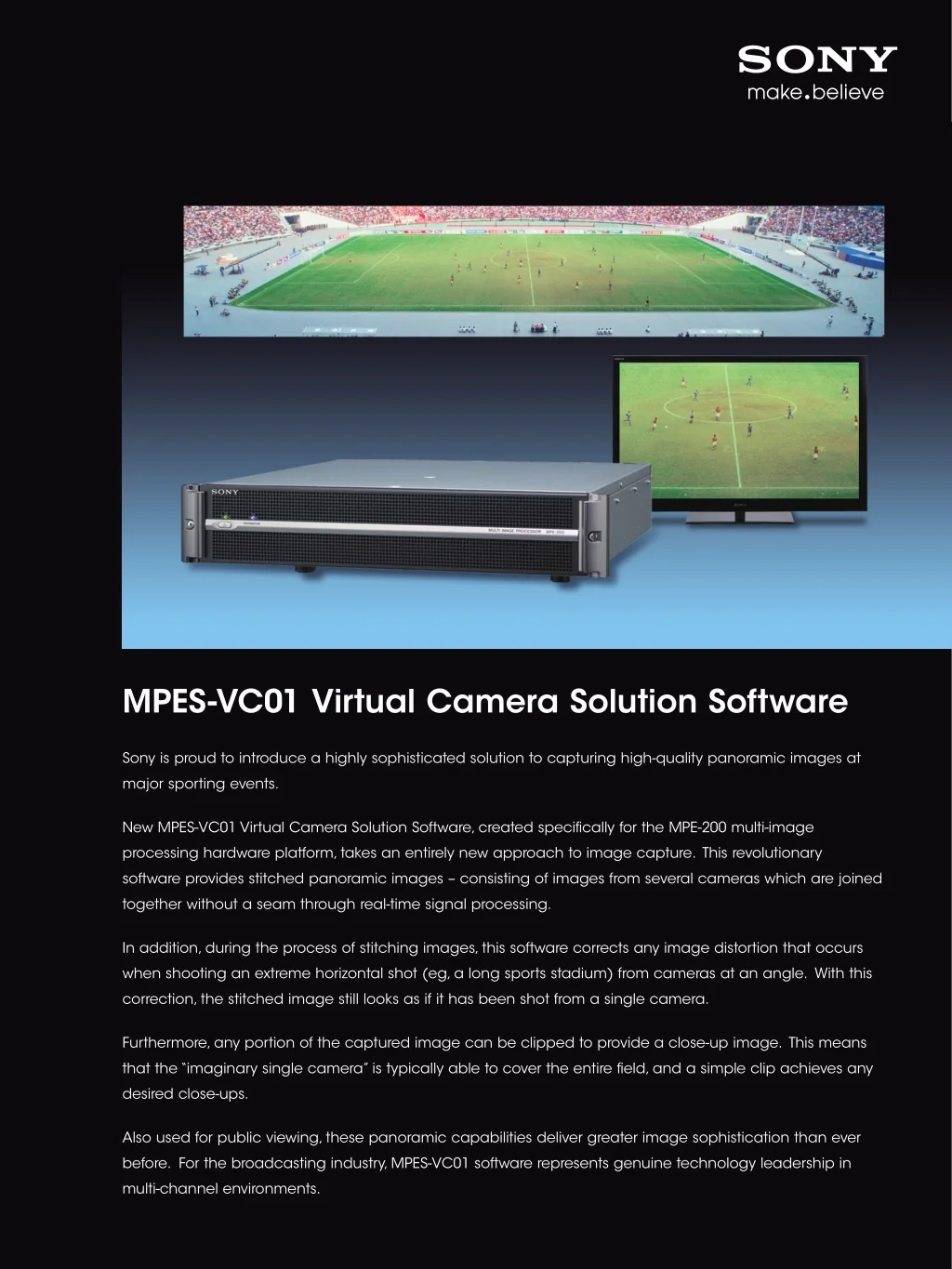

1. MPES-VC01 Virtual Camera Solution Software Sony is proud to introduce a highly sophisticated solution to capturing high-quality panoramic images at major sporting events. New MPES-VC01 Virtual Camera Solution Software, created specifically for the MPE-200 multi-image processing hardware platform, takes an entirely new approach to image capture. This revolutionary software provides stitched panoramic images – consisting of images from several cameras which are joined together without a seam through real-time signal processing. In addition, during the process of stitching images, this software corrects any image distortion that occurs when shooting an extreme horizontal shot (eg, a long sports stadium) from cameras at an angle. With this correction, the stitched image still looks as if it has been shot from a single camera. Furthermore, any portion of the captured image can be clipped to provide a close-up image. This means that the “imaginary single camera” is typically able to cover the entire field, and a simple clip achieves any desired close-ups. Also used for public viewing, these panoramic capabilities deliver greater image sophistication than ever before. For the broadcasting industry, MPES-VC01 software represents genuine technology leadership in multi-channel environments.

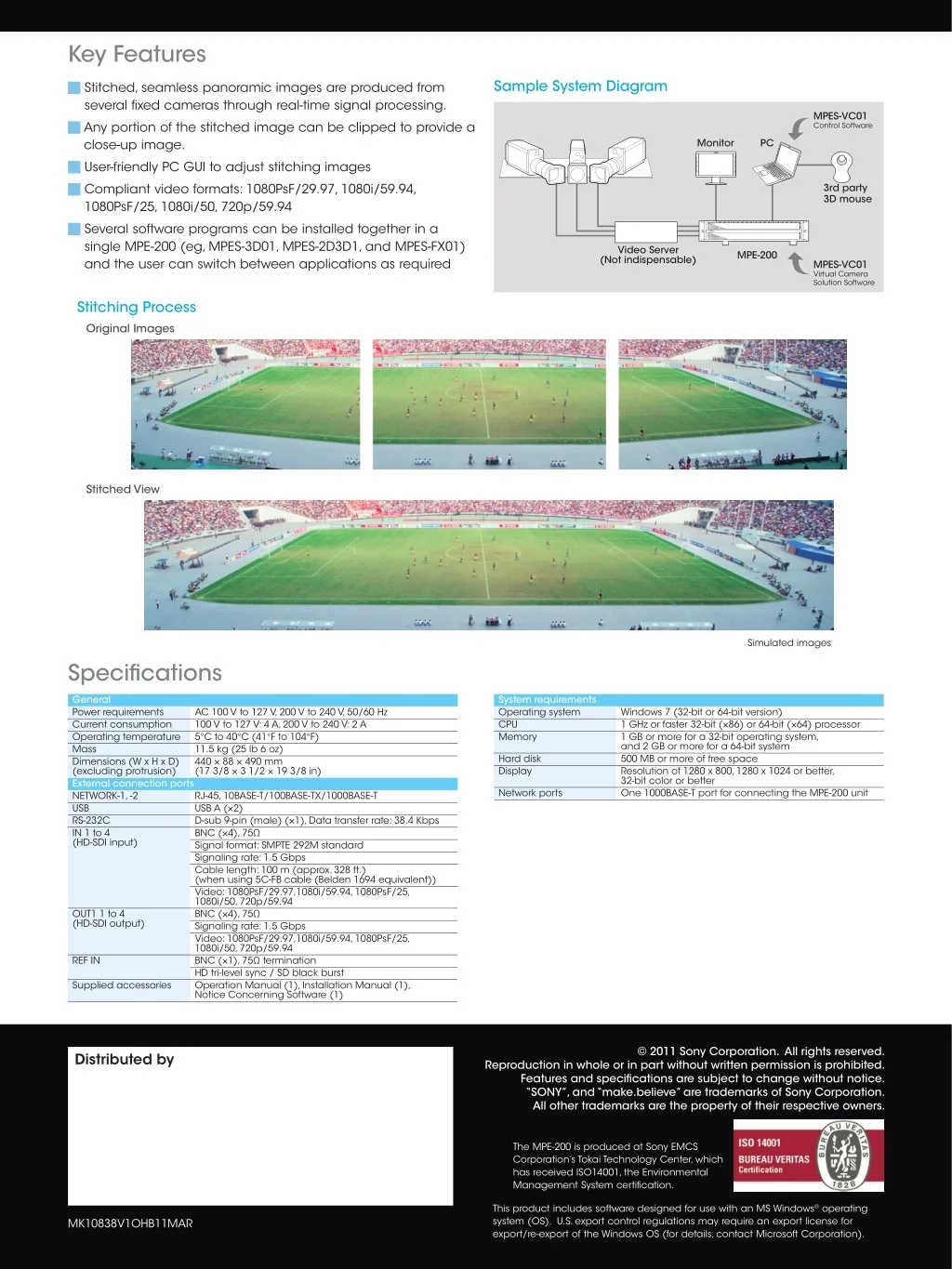

2. Key Features Sample System Diagram Stitched, seamless panoramic images are produced from several fixed cameras through real-time signal processing. Any portion of the stitched image can be clipped to provide a close-up image. User-friendly PC GUI to adjust stitching images Compliant video formats: 1080PsF/29.97, 1080i/59.94, 1080PsF/25, 1080i/50, 720p/59.94 Several software programs can be installed together in a single MPE-200 (eg, MPES-3D01, MPES-2D3D1, and MPES-FX01) and the user can switch between applications as required MPES-VC01 Control Software Monitor PC 3rd party 3D mouse Video Server (Not indispensable) MPE-200 MPES-VC01 Virtual Camera Solution Software Stitching Process Original Images Stitched View Simulated images Specifications General Power requirements Current consumption Operating temperature Mass Dimensions (W x H x D) (excluding protrusion) External connection ports NETWORK-1, -2 USB RS-232C IN 1 to 4 (HD-SDI input) System requirements Operating system CPU Memory AC 100 V to 127 V, 200 V to 240 V, 50/60 Hz 100 V to 127 V: 4 A, 200 V to 240 V: 2 A 5°C to 40°C (41°F to 104°F) 11.5 kg (25 lb 6 oz) 440 × 88 × 490 mm (17 3/8 × 3 1/2 × 19 3/8 in) Windows 7 (32-bit or 64-bit version) 1 GHz or faster 32-bit (×86) or 64-bit (×64) processor 1 GB or more for a 32-bit operating system, and 2 GB or more for a 64-bit system 500 MB or more of free space Resolution of 1280 x 800, 1280 x 1024 or better, 32-bit color or better One 1000BASE-T port for connecting the MPE-200 unit Hard disk Display Network ports RJ-45, 10BASE-T/100BASE-TX/1000BASE-T USB A (×2) D-sub 9-pin (male) (×1), Data transfer rate: 38.4 Kbps BNC (×4), 75Ω Signal format: SMPTE 292M standard Signaling rate: 1.5 Gbps Cable length: 100 m (approx. 328 ft.) (when using 5C-FB cable (Belden 1694 equivalent)) Video: 1080PsF/29.97,1080i/59.94, 1080PsF/25, 1080i/50, 720p/59.94 BNC (×4), 75Ω Signaling rate: 1.5 Gbps Video: 1080PsF/29.97,1080i/59.94, 1080PsF/25, 1080i/50, 720p/59.94 BNC (×1), 75Ω termination HD tri-level sync / SD black burst Operation Manual (1), Installation Manual (1), Notice Concerning Software (1) OUT1 1 to 4 (HD-SDI output) REF IN Supplied accessories © 2011 Sony Corporation. All rights reserved. Distributed by Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. “SONY”, and “make.believe” are trademarks of Sony Corporation. All other trademarks are the property of their respective owners. The MPE-200 is produced at Sony EMCS Corporation’s Tokai Technology Center, which has received ISO14001, the Environmental Management System certification. This product includes software designed for use with an MS Windows® operating system (OS). U.S. export control regulations may require an export license for export/re-export of the Windows OS (for details, contact Microsoft Corporation). MK10838V1OHB11MAR
