  1. IP Camera and Solution -Ian 2012.06

  2. Agenda Product Line 1 Product Key Features 2 Product Introduction 3 4 Software Partner & Accessories 5 IPC Solution

  3. Product Line Network Camera Box Cam Indoor Dome Bullet Cam Cube Cam Mini Dome Thermal Camera Intelligent Camera Outdoor Dome VGA 4CIF 1.3MP2MP 3MP 5MP VGA 4CIF 1.3MP 2MP 3MP 5MP VGA 4CIF 1.3MP 2MP 3MP 5MP VGA 1.3MP 2MP 3MP 5MP VGA 1.3MP 2MP VGA 1.3MP 2MP 4CIF 1.3MP 384*288 1.3MP

  4. Agenda 1 Product Line 2 Product Key Features Product Introduction 3 4 Software Partner & Accessories 5 IPC Solution

  5. Key Features-Day and Night Switch • Two different methods • Electronic switch——adopt fixed filter, accept both visible light and infrared light; • ICR Switch——adopt mechanical infrared cut filter: Forbidden infrared light to ensure the image quality in day time; Accept all light to ensure the sensor can accept enough light at night; ICR Normal D/N Camera (Electronic switch)

  6. AGC Disable AGC Enable AGC AGC: AGC allows users to adjust the gain of amplifier, enabling the camera to output the standard video signal in different lighting conditions. As scene lighting decreases, the system will automatically adjust, adding a mixture of AGC and slow shutter according to the AGC limit setting. In low illumination, AGC will increase camera’s sensitivity, and output bright and clear video.

  7. Black Light Compensation BLC: If a bright backlight is present, the subjects in the picture may appear dark or as a silhouette. Backlight compensation enhances objects in the center of the picture. The camera will adjust the iris so that the object in the sensitive area is properly exposed. BLC ON Too Dark to See Clear BLC OFF

  8. WDR Over Exposure Clear Normal Camera

  9. WDR WDR(Wide Dynamic Range) control exposure time of both foreground and background. It could balance the brightest and darkest section of a picture to provide more details on screen display. ALL Clear WDR Camera

  10. Strength of HD WDR BLC(1280×960 ) • Mainstream cameras apply BLC to improve the whole image, this makes the background image over exposure. • HD WDR camera could get high definition and clear image of both foreground and background BLC( 1280×960 ) WDR( 1280×960 ) WDR( 1280×960 )

  11. The Difference between WDR and BLC WDR BLC

  12. 3D DNR • 3D DNR reduce noise on Y component, C component and Original data. • 3D DNR cameras compare the original data from sensor with the data gained by AGC. This could improve the SNR. A/D 3D DNR Sensor AGC DSP Light Video Stream 3DDNR 0.27Lux(Color，1280×960 ) 0.27Lux(B/W，1280×960 )

  13. Low Illumination • Low Illumination is the function for the camera to get bright image when the lightness of the environment is very low. Normal Camera Low Illumination Camera

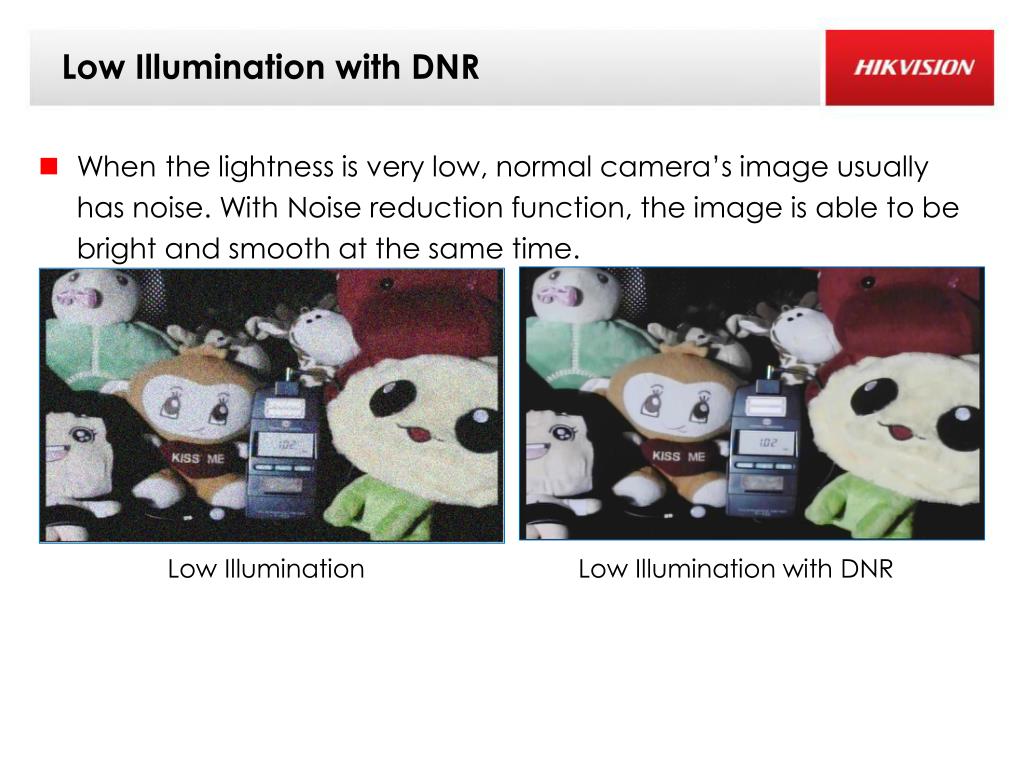

  14. Low Illumination with DNR • When the lightness is very low, normal camera’s image usually has noise. With Noise reduction function, the image is able to be bright and smooth at the same time. Low Illumination Low Illumination with DNR

  15. Electronic Shutter ES(Electronic Shutter): normally, 1/50-1/100000s adjustable. 1/50S 1/500S For high speed moving object capturing 0.06Lux(彩色)

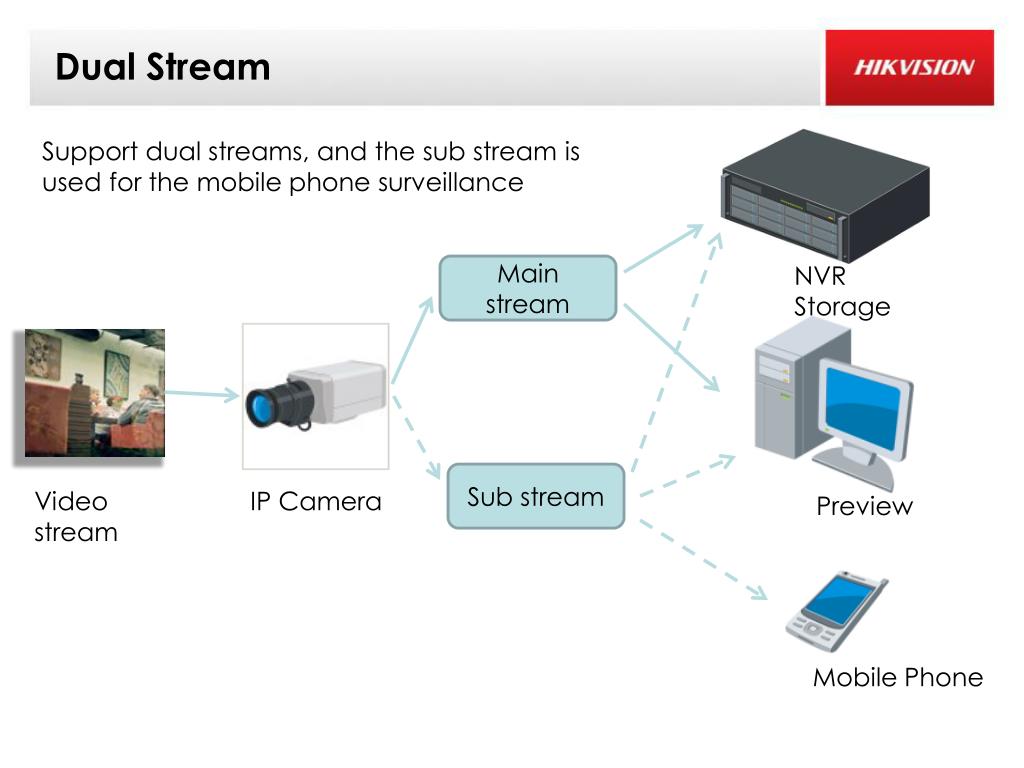

  16. Dual Stream • Support dual streams, and the sub stream is used for the mobile phone surveillance NVR Storage Main stream Sub stream Video stream IP Camera Preview Mobile Phone

  17. PoE PoE function is a common function shared by network devices. With PoE, the user can simply use network cable and PoE switches to provide the IP cameras with power. This saves a lot of time from wiring and UPS.

  18. PoE For the application of PoE function, both of the camera and the switch should support 802.3af protocol. And as long as the total power of all the IPCs is smaller than the power supply of the PoE switch, there should be no problem using this function. For the convenience, HIKVISION has newly developed a series of PoE NVR: DS-7600NI-SP series. This series truly supports “Plug and Play”.

  19. Voice Talk Voice Talk allows the user to communicate between the surveillance center and the IP camera site. Convenient to send orders to local site for actions such as camera adjustment.

  20. Sound Pick-up Specification For the new IPC, the user can just use 3.5mm microphone to pick up sound.

  21. Heart Beat The HEART BEAT function is for the remote control center to check the IPC’s status. The IPC will send a message to the center suggesting it’s still online and working fine at certain frequency.

  22. Watermark The WATERMARK function is for prevent the surveillance from being tampered. The Watermark is information added to the video while recording. 1 The users are able to see the watermark of the video using VS player.

  23. One Key Reset The Reset Button is for the IP camera back to factory settings quickly under certain circumstances. Just hold the button and reboot the camera. Then, Keep on holding the reset button for 10-20 seconds. The camera’s parameters will go back to factory settings.(Firmware not included)

  24. Intelligent Analysis Intrusion Detection Traverse Plane Detection Left-take Detection People Gathering Detection Loitering Detection Rapid Motion Detection Parking Detection Region Exiting Detection Region Entrance Detection

  25. Agenda Product Line 1 Product Key Feature 2 Product Introduction 3 4 Software Partner & Accessories 5 IPC Solution

  26. Box Camera • 1.3MP(1280x960) Resolution • Low Illumination • Standard H.264/MPEG4/MJPEG • 120dB WDR • 3D DNR • Dual Stream • Up to 32G SD/SDHC card storage • ICR • Reset Button • PoE • Wifi(802.11g) optional DS-2CD864FWD-E(W) CGI PSIA ONVIF

  27. Box Camera DS-2CD893P(N)F(WD)-E(W): 4CIF 25fps@4CIF , With WDR function(160X) DS-2CD833F-E(W): VGA 25fps@VGA DS-2CD863P(N)F-E(W): 1.3MP 25fps@HD 720P DS-2CD853F-E(W): 2MP 12.5fps@1600x1200 DS-2CD855F-E: 2MP 25fps@Full HD 1080P, With Low Illumination CGI PSIA ONVIF DS-2CD854F(WD)-E(W): 3MP 25fps@Full HD 1080P, With WDR function(120dB) optional DS-2CD883F-E(W): 5MP 6.25fps@2560x1920

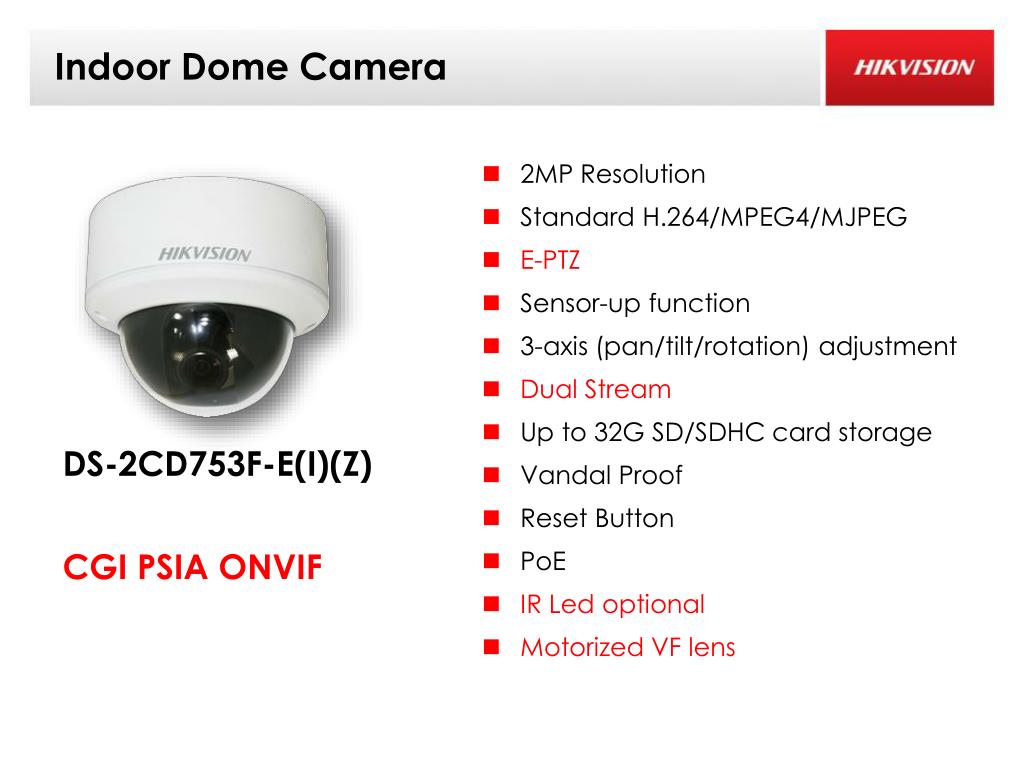

  28. Indoor Dome Camera • 2MP Resolution • Standard H.264/MPEG4/MJPEG • E-PTZ • Sensor-up function • 3-axis (pan/tilt/rotation) adjustment • Dual Stream • Up to 32G SD/SDHC card storage • Vandal Proof • Reset Button • PoE • IR Led optional • Motorized VF lens DS-2CD753F-E(I)(Z) CGI PSIA ONVIF

  29. Indoor Dome Camera DS-2CD793P(N)F(WD)-E(I)(Z):4CIF 25fps@4CIF , With WDR function(160X) DS-2CD733F-E(I)(Z):VGA 25fps@VGA DS-2CD763P(N)F-E(I)(Z):1.3M 25fps@HD 720P DS-2CD764F(WD)-E(I)(Z):1.3M 25fps@1280*960, with WDR (120dB) optional DS-2CD755F-E(I)(Z): 2MP 25fps@Full HD 1080P, With Low Illumination CGI PSIA ONVIF DS-2CD754F(WD)-E(I)(Z):3M 25fps@Full HD 1080P, with WDR function(120dB) optional DS-2CD783F-E(I)(Z):5M 6.25fps@2560x1920

  30. Outdoor Dome Camera • 2MP Resolution • Standard H.264/MPEG4/MJPEG • E-PTZ • Sensor-up function • Dual Stream • Up to 32G SD/SDHC card storage • ICR • Vandal Proof • IP66 • 3-axis (pan/tilt/rotation) adjustment • PoE • Heater optional DS-2CD752MF-IFB(H) CGI PSIA ONVIF

  31. Outdoor Dome Camera • 3MP(2048x1536) Resolution • Standard H.264/MPEG4/MJPEG • Dual Stream • Up to 32G SD/SDHC card storage • Vandal Proof • IP66 • 3-axis (pan/tilt/rotation) adjustment • PoE • Reset Button • IR Led & Heater optional • Motorized VF lens • One Button Auto-Zoom DS-2CD7254F-E(I)(H)Z CGI PSIA ONVIF

  32. Outdoor Dome Camera DS-2CD7293P(N)F(WD)-E(I)Z(H):4CIF 25fps@4CIF , With WDR function(160X) DS-2CD7233F-E(I)(H)Z:VGA 25fps@VGA DS-2CD7263P(N)F-E(I)(H)Z:1.3M 25fps@HD 720P DS-2CD7264F(WD)-E(I)Z(H):1.3M 25fps@1280*960, with WDR (120dB) optional DS-2CD7253F-E(I)(H)Z:2M 12.5fps@1600x1200 DS-2CD7283F-E(I)(H)Z:5M 6.25fps@2560x1920 CGI PSIA ONVIF (-I) To be released

  33. Bullet Camera • 1.3MP Resolution • Standard H.264/MPEG4/MJPEG • Low Illumination • 120dB WDR Opitional • 3D DNR • Dual Stream • Up to 32G SD/SDHC card storage • Reset Button • PoE • IP 66 • IR Led optional • Embedded with Bracket • Motorized VF lens • One Button Auto-Zoom DS-2CD8264F(WD)-E(I)(S)(Z) CGI PSIA ONVIF ”-S” is equipped with audio interface, alarm interface and RS-485 interface

  34. Bullet Camera DS-2CD8233F-E(I)(S)(Z):VGA 25fps@VGA DS-2CD8253F-E(I)(S)(Z):2MP 12.5fps@1600x1200 DS-2CD8255F-E(I)(Z): 2MP 25fps@Full HD 1080P, With Low Illumination DS-2CD8254FWD-E(I)(S)(Z):3MP 25fps@1080P CGI PSIA ONVIF DS-2CD8283F-E(I)(S)(Z):5MP 6.25fps@2560x1920

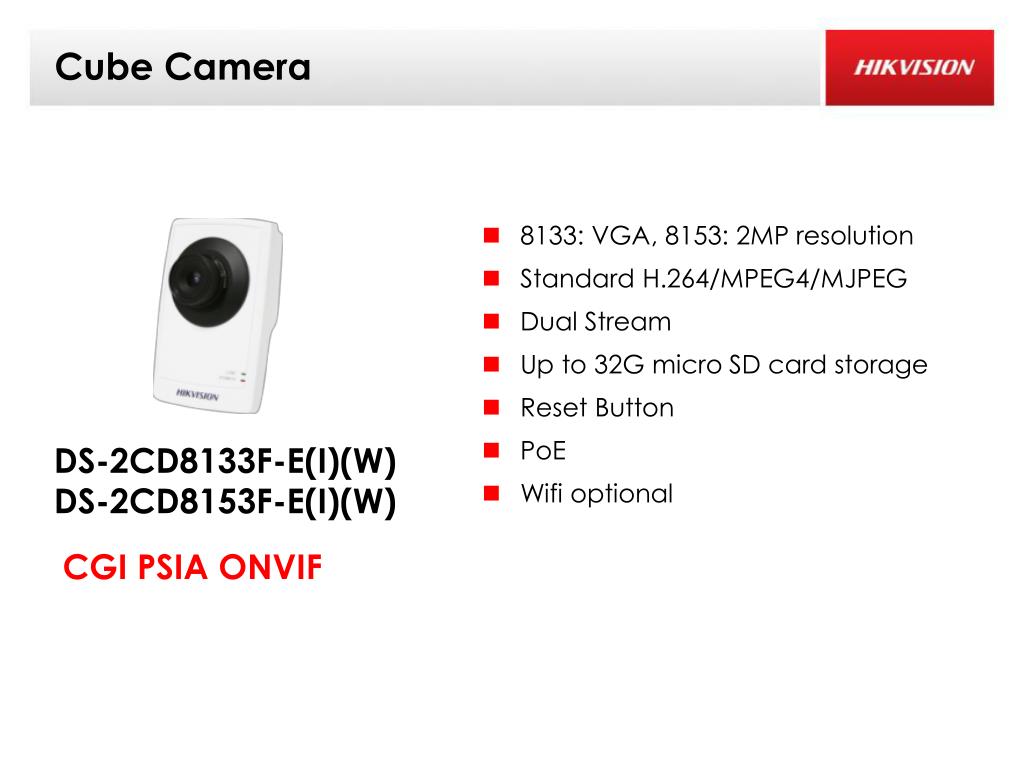

  35. Cube Camera • 8133: VGA, 8153: 2MP resolution • Standard H.264/MPEG4/MJPEG • Dual Stream • Up to 32G micro SD card storage • Reset Button • PoE • Wifi optional DS-2CD8133F-E(I)(W) DS-2CD8153F-E(I)(W) CGI PSIA ONVIF

  36. Mini Dome Camera • 7133: VGA, 7164: 1.3MP 7153: 2MP • Standard H.264/MPEG4/MJPEG • Dual Stream • Reset Button • PoE • Vandal Proof • IP66 • 3-axis (pan/tilt/rotation) adjustment DS-2CD7133-E DS-2CD7164-E DS-2CD7153-E CGI PSIA ONVIF

  37. Intelligent Camera • Behavior Analysis: • Cross Armed Surface • Enter Area • Leave Area • Area Incursion • Wander • Item Removed or Left • Parking • Fast Movement • Personnel Gather iDS-2CD864FWD-E(W) iDS-2CD893P(N)F-E(W)

  38. Speed Dome-4CIF • 4CIF resolution • Standard H.264/MJPEG • Dual Stream • Self-adaptive to HIKVISION, Pelco-P/D protoco • 3D intelligent positioning function • Fiber optical interface optional • 256 presets, 8 patrols, 4 patterns • Up to 32G micro SD card storage • IP66 for Outdoor • PoE & Vandal Proof optional 18X 22X 23X 28X 30X Embeded 36X DS-2DF1-5XY Indoor Indoor/ Outdoor/ In-ceiling CGI PSIA Outdoor

  39. Speed Dome-HD • DS-2DF1-57(0/3)2: 720P resolution • DS-2DF1-57(0/3)A: 1.3MP(1280x960) • DS-2DF1-58(0/3)3: 2MP • DS-2DF1-58(0/3)5: 2MP DS-2DF1-5XY Indoor/ Outdoor/ In-ceiling CGI PSIA

  40. IR Speed Dome-4CIF • 4CIF resolution • Standard H.264/MJPEG • Dual Stream • Self-adaptive to HIKVISION, Pelco-P/D protoco • 3D intelligent positioning function • Fiber optical interface optional • 256 presets, 8 patrols, 4 patterns • Up to 80m radiation distance • Up to 32G micro SD card storage • IP66 18X 22X 23X 28X 30X 36X DS-2DF1-7XY Outdoor CGI PSIA

  41. Mid-range LED lights ON Far LED lights ON IR Speed Dome • IR LED Smart control • light-to-electric energy conversion rate up to 30%，normal LED only about 20% • IR LED and camera drive separation to avoid infrared light interfering camera

  42. Agenda Product Line 1 Product Key Feature 2 Product Introduction 3 4 Software Partner & Accessories 5 IPC Solution

  43. Software Partner & Accessory & Comparison • Third Party Software Partner List • Bracket Selection Table • Lens Selection Table • DS-2CD864FWD-E VS SONY SNC-CH140

  44. Agenda Product Line 1 Product Key Feature 2 Product Introduction 3 4 Software Partner & Accessories 5 IPC Solution

  45. Embedded Solution-NVR DS-7600NI-ST DS-9664NI-RH DS-8600NI-ST DS-9600NI-ST

  46. DS-9600/9000-ST DS-8600/8000-ST DS-9500 DS-7600

  47. DS-9664NI-RH • Support 64-ch IP cameras and 160Mbps IPC Bandwidth • 16 HDDs, support RAID 0,1, 5, 10 • Live video display locally • Two 1000Mb network cards • PSIA compatibility for integration • Dual power supply

  48. DS-9600NI-ST/9000HFI-ST • Up to 32 IP cameras • HDMI/VGA/main BNC/4-ch spot output • Two 1000Mb network cards • 8 SATA + 1 e-SATA ports Note: DS-9000HFI-ST HDVR supports 16-ch analog cameras + 16-ch IP cameras

  49. DS-8600NI-ST/8000HFI-ST • Up to 32 IP cameras • HDMI/VGA 1080P local live view • 8 SATA + 1 e-SATA ports • 8000-ST HDVR supports 16-ch analog cameras + 16-ch IP cameras

  50. DS-7600NI-ST • Up to 16 IP cameras • Up to 40 IPC Bandwidth • HDMI/VGA 1080P local live view • 2 SATA ports
