  1. Safe Wireless communication for infrared gas detectors using the ISA100 standard Niels Aakvaag, GasSecure March 22, 2012

  2. Agenda • Introduction • Principleofdetection • Whataretherequirements for safe wirelesscommunication? • Why ISA100? • Whataretheissues and how have wesolvedthem • Installations present and future

  3. GasSecure develops the first wireless, infrared hydrocarbon gas detector • Features: • High reliability – SIL2 incl. SafeWirelessTM communication • Continuous monitoring with two years battery life • Fast response (5 s) • No recalibration Control room Gateway GS01 GS01 GS0x GS01 GS01 GS01

  4. Wireless gas detectors will increase safety by higher coverage and installation flexibility, and...

  5. … reduce system costs with 60% to 80% 60-80% 70% 15% 5% 20% 80% 10%

  6. Challenge From 5 W to 0,005 Wpower consumption • A new detection method • Optical sensor completely redesigned • Smart use of wireless standard MEMS optical filters

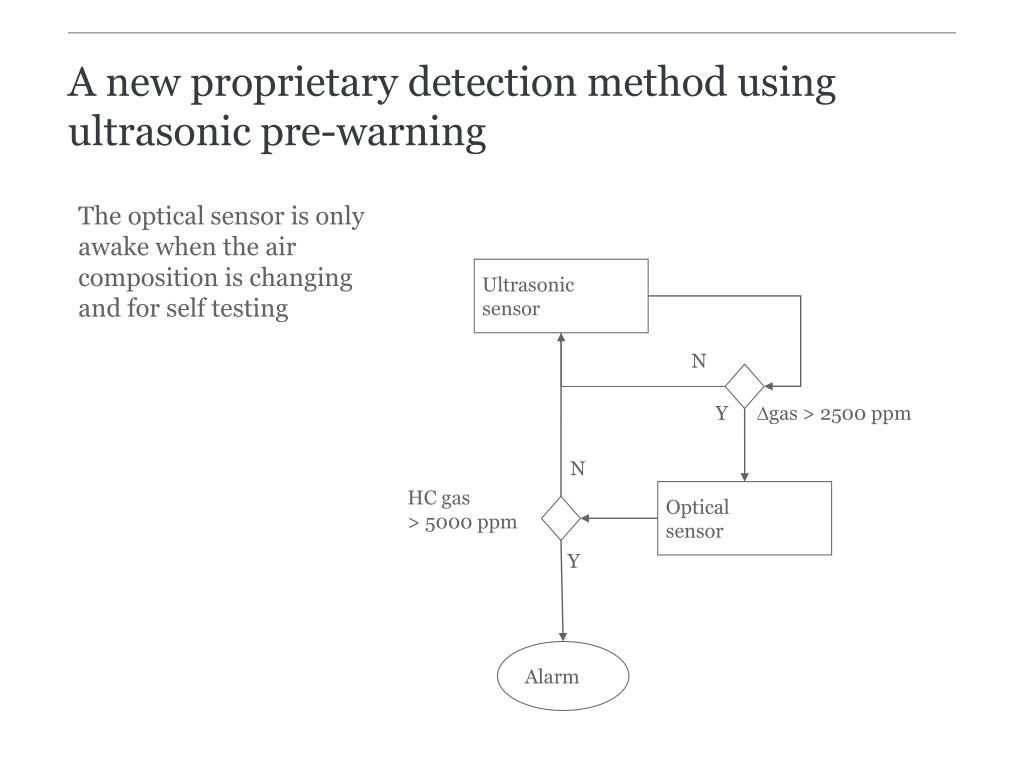

  7. A new proprietary detection method using ultrasonic pre-warning The optical sensor is only awake when the air composition is changing and for self testing Ultrasonic sensor N Y gas > 2500 ppm N HC gas > 5000 ppm Opticalsensor Y Alarm

  8. Optical design

  9. Wireless instrument classes (Modified ISA Table) Source: Simon Carlsen, Statoil

  10. Communicationrequirements from end-users • SIL2 • Multihop support • Max 2 second latency from node to controller • Based on a standard • 2.4GHz

  11. Choiceof standard: WiHARTvs ISA100 • Other major differences: • In ISA 100, the end devices can request contracts with the gateway in order to obtain a certain Quality of Service. • ISA has definedfive hopping sequences, HART onlyone. • ISA supports fragmented packets, in HART this needs to be done by application • WiHART to be supported by GasSecure ifsufficientdemand

  12. Safe message characteristics • IEC61508 dictatesfourmechanisms for safe communication • ProfiSAFEsupports all

  13. SafeWirelessTM: SIL2-rate safe wirelesscommunication • Initiated from controller • Max 2 seconds latency from gas detection to packet at controller • Max two hops • Safe communication over grey channel • Message: • Gas concentration • Temperature • Battery status • Diagnostic Safe request 1 Safe response 1 Safe request 2 Safe response 2 Safe request 3 Safe response 3

  14. Challenge and solution • Combinecontradicoryrequirements: Lowenergyconsumption rapid response • Solution: Asymmetricalbandwidthallocation We reserve more bandwidthuplink, butonlyuse it wheneverit'srequired.

  15. Modes ofoperation Controller Gateway GS01 Controller Gateway GS01 request (x) request (x) Gas response (x) 18 s 20 s response (x) request (x+1) response (x+1) request (x+1) response (x+1) request (x+2) response (x+2) request (x+2) PROFIsafemessage ISA100 message

  16. Processsafety time • 60 seconds, defined by IEC60079-29-1 • With safe messageevery 20 seconds threeattempts • If no safe messagewithinprocesssafety time: • Detectorset to safe state • Marked as unavailable to control system • Operator interventionrequired to resume

  17. RSSI Currentinstallation • Kårstø gas processing plant • Seven detectors PER

  18. Futureinstallations • Gullfaks C. • Rig operated by Statoil. • 20 detectors • Schedule: August 2012 • Tor. • Rig operated by Conoco-Phillips. • 20 detectors • Schedule: October 2012

  19. Summary Detector • Dual detectionprinciple (US and IR) gives fast response and lowpowerconsumption Wireless communication • SafeWirelessTMwithasymmetricbandwidthallocation • ProfiSAFE Wiredcommunication • ProfiNET • Integration done with ABB • Close cooperationwith: • Statoil, Conoco-Phillips, NIVIS, ABB, Yokogawa, and others
