  1. COM+:An Overview Ayesha Mascarenhas February, 2001

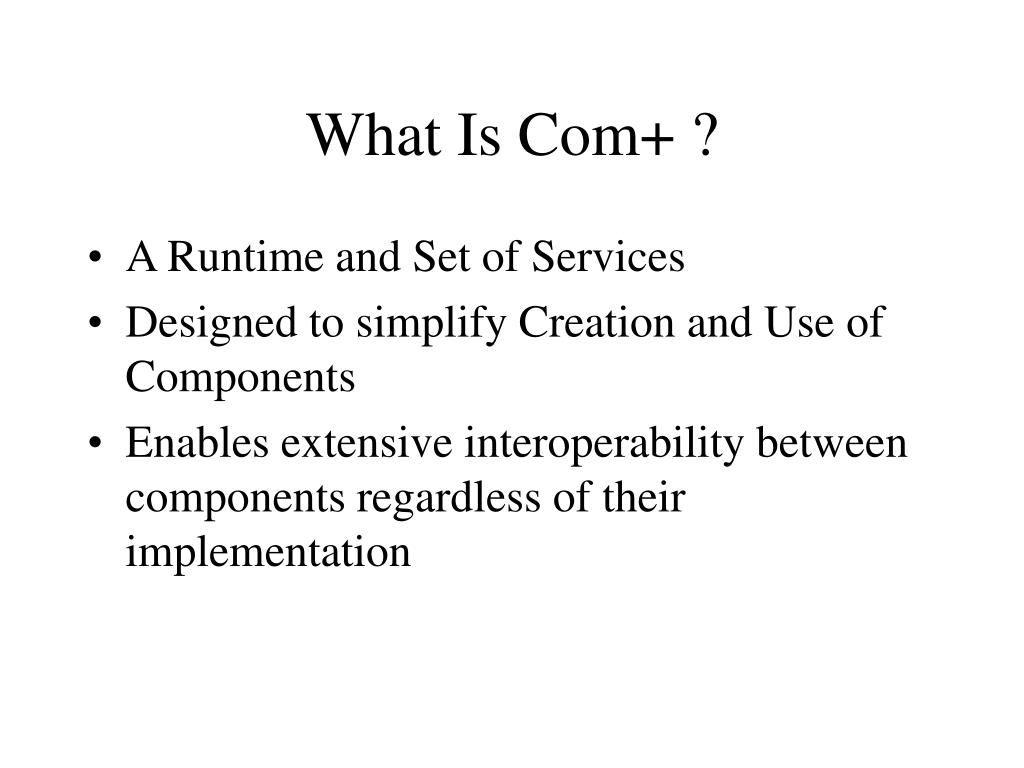

  2. What Is Com+ ? • A Runtime and Set of Services • Designed to simplify Creation and Use of Components • Enables extensive interoperability between components regardless of their implementation

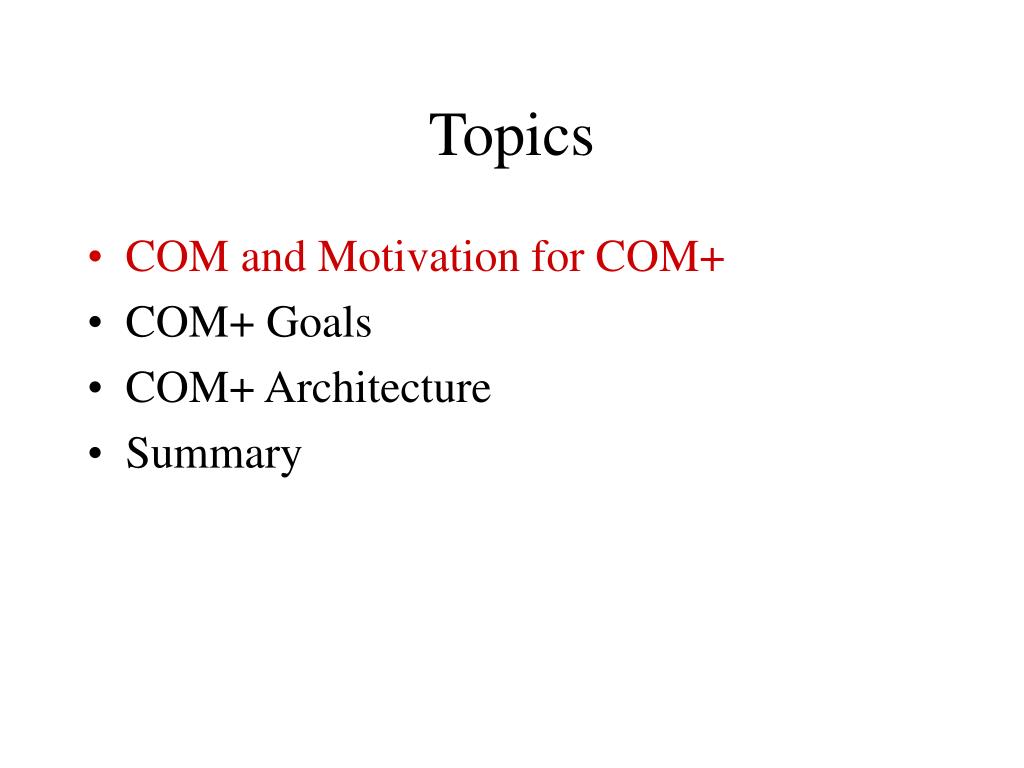

  3. Topics • COM and Motivation for COM+ • COM+ Goals • COM+ Architecture • Summary

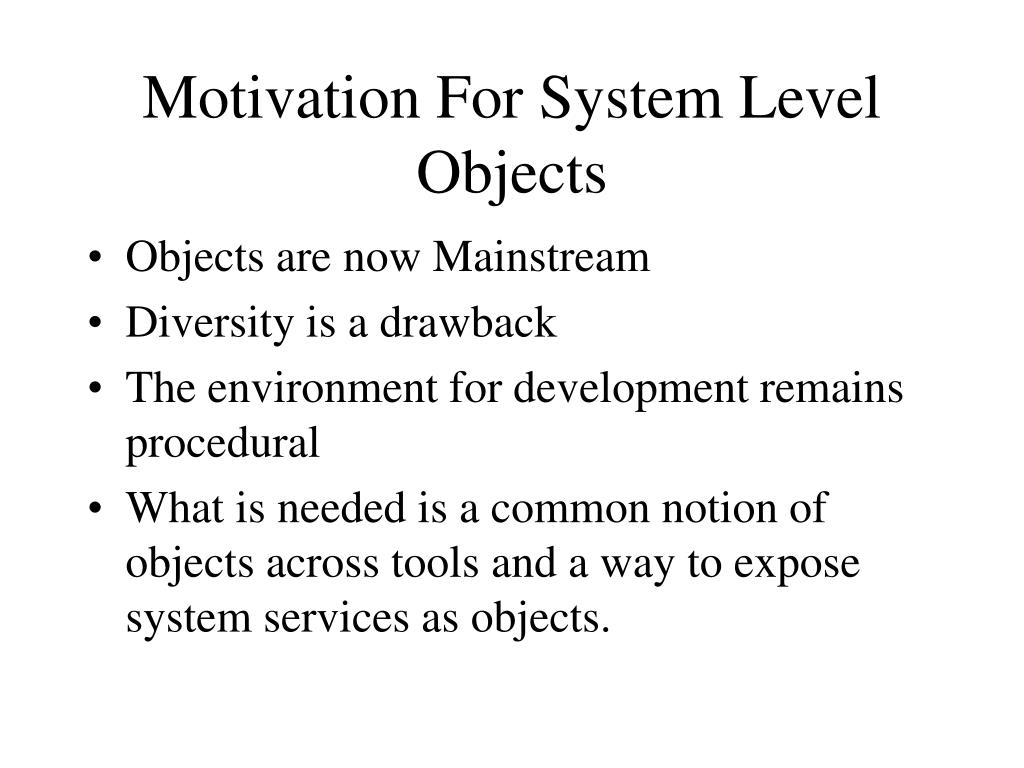

  4. Motivation For System Level Objects • Objects are now Mainstream • Diversity is a drawback • The environment for development remains procedural • What is needed is a common notion of objects across tools and a way to expose system services as objects.

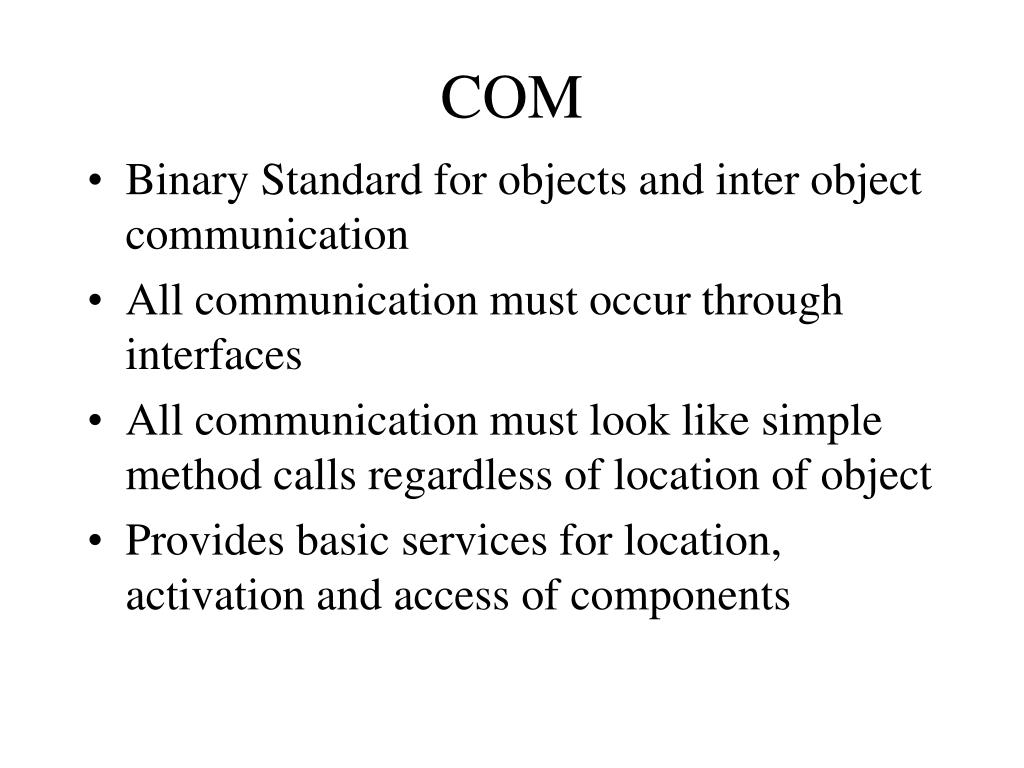

  5. COM • Binary Standard for objects and inter object communication • All communication must occur through interfaces • All communication must look like simple method calls regardless of location of object • Provides basic services for location, activation and access of components

  6. COM • Interface for dynamic discovery of interface implemented by components • Mechanism to uniquely identify components

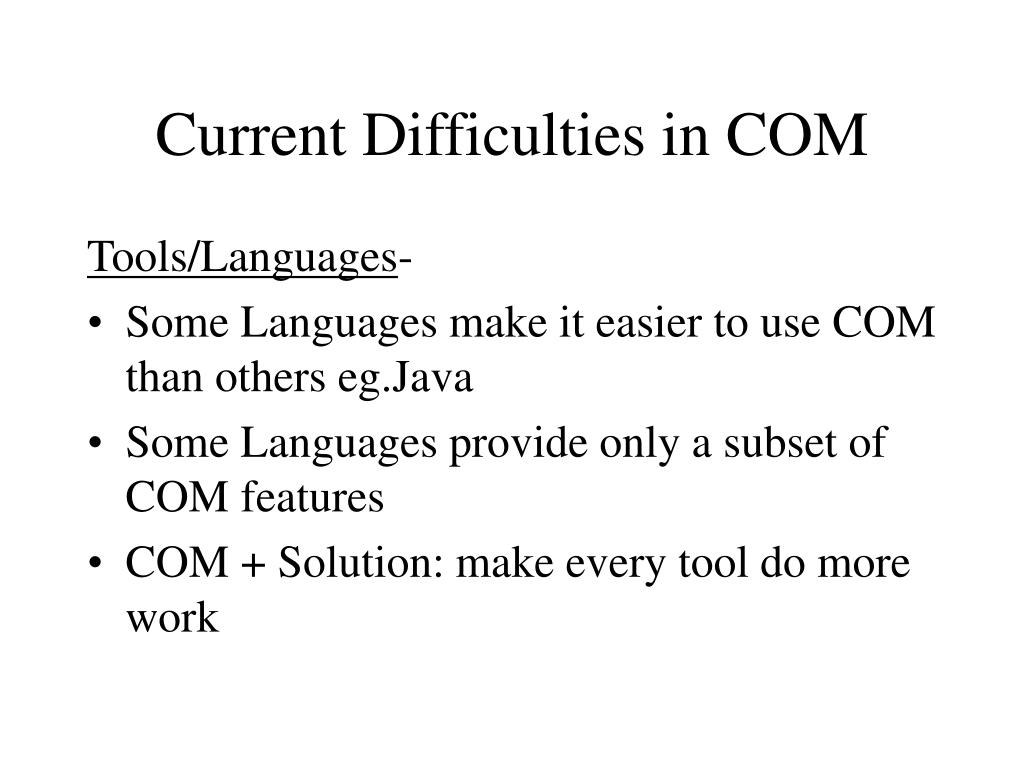

  7. Current Difficulties in COM Tools/Languages- • Some Languages make it easier to use COM than others eg.Java • Some Languages provide only a subset of COM features • COM + Solution: make every tool do more work

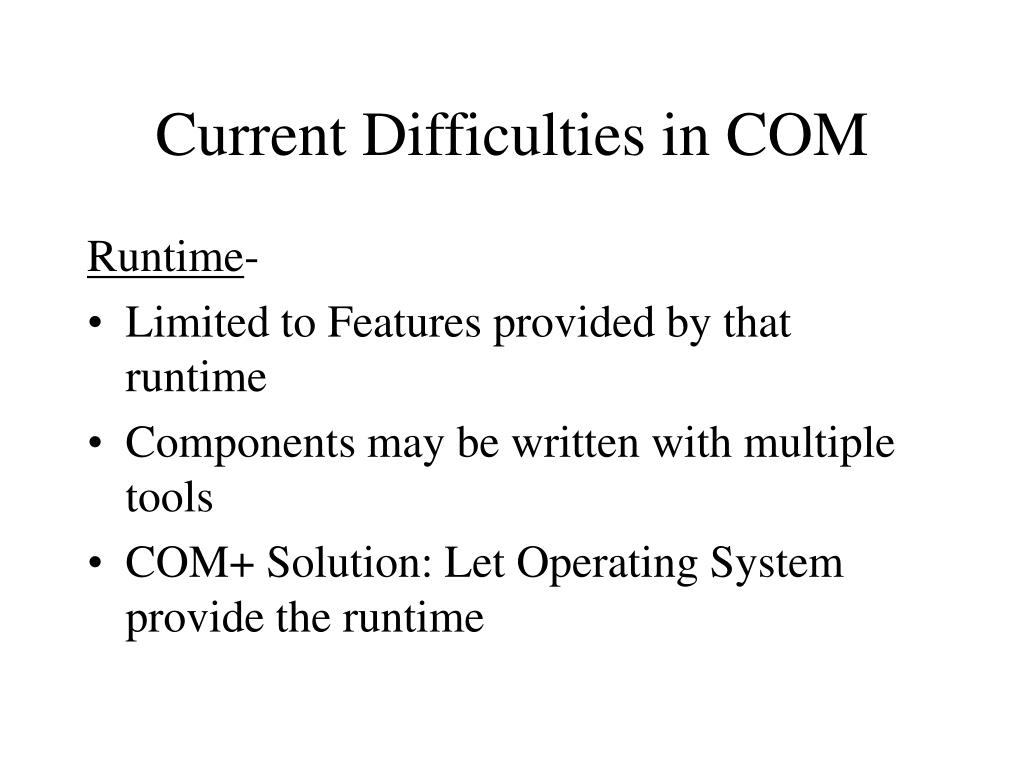

  8. Current Difficulties in COM Runtime- • Limited to Features provided by that runtime • Components may be written with multiple tools • COM+ Solution: Let Operating System provide the runtime

  9. Current Difficulties in COM Innovative Features- • MTS provides features to write scalable and distributed application • MTS also introduces a concept of declarative access/attribute based programming • MTS also displayed COMs lack of any mechanism to extend COM

  10. Topics • COM and Motivation for COM+ • COM+ Goals • COM+ Architecture • Summary

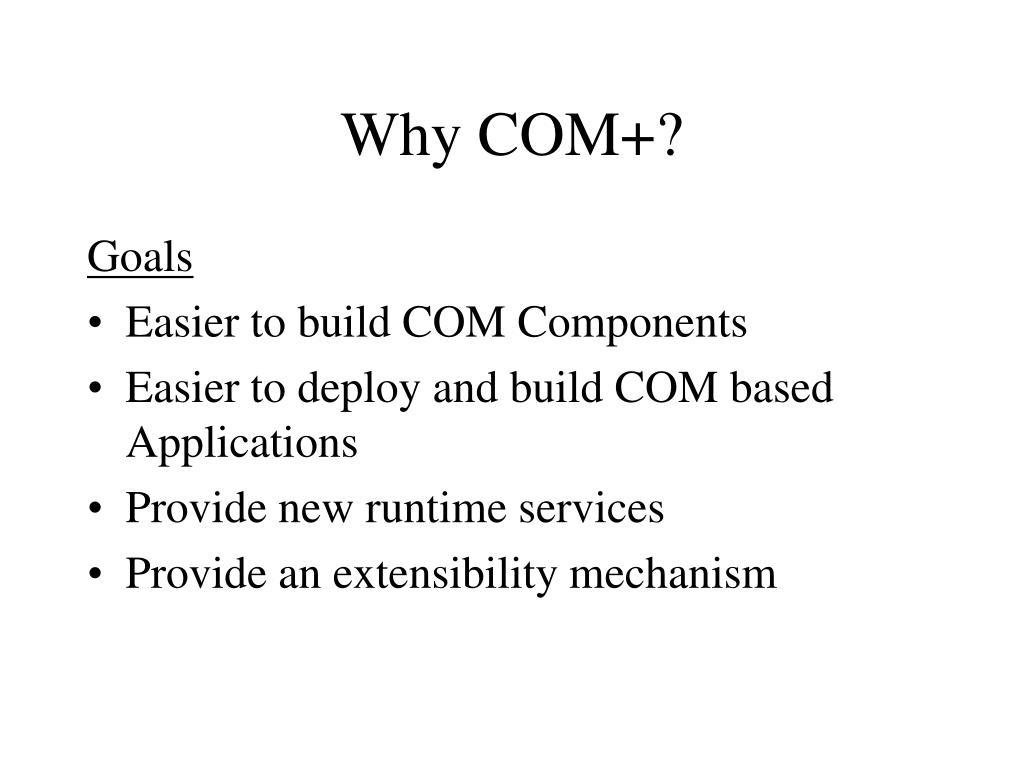

  11. Why COM+? Goals • Easier to build COM Components • Easier to deploy and build COM based Applications • Provide new runtime services • Provide an extensibility mechanism

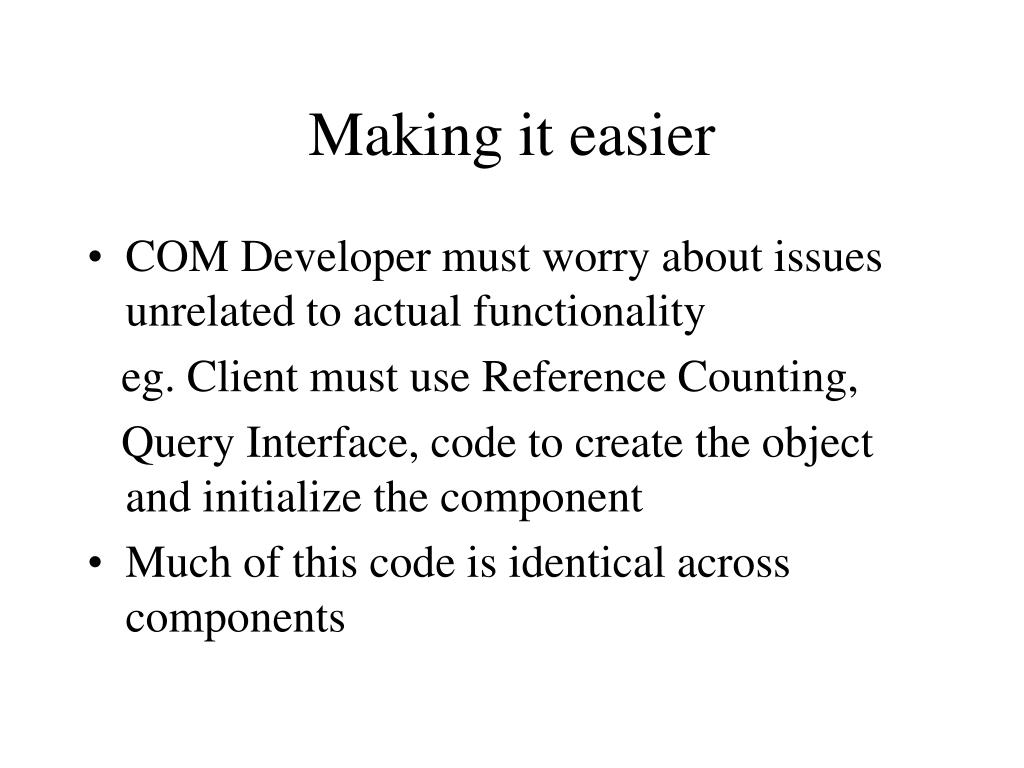

  12. Making it easier • COM Developer must worry about issues unrelated to actual functionality eg. Client must use Reference Counting, Query Interface, code to create the object and initialize the component • Much of this code is identical across components

  13. Making it Easier

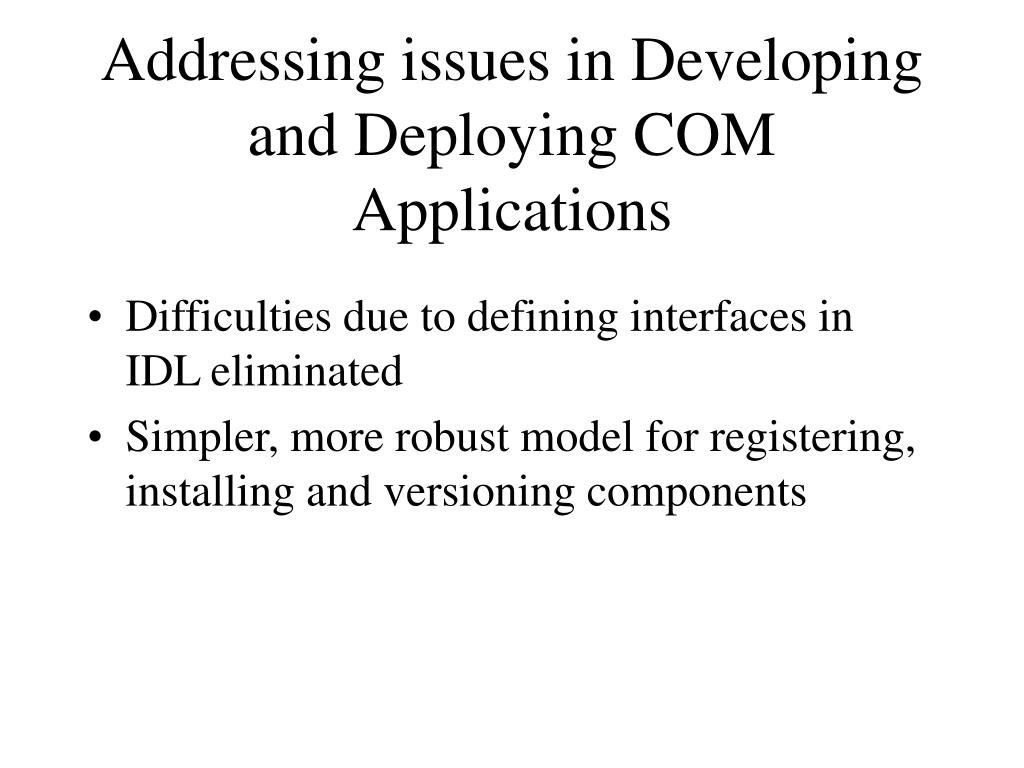

  14. Addressing issues in Developing and Deploying COM Applications • Difficulties due to defining interfaces in IDL eliminated • Simpler, more robust model for registering, installing and versioning components

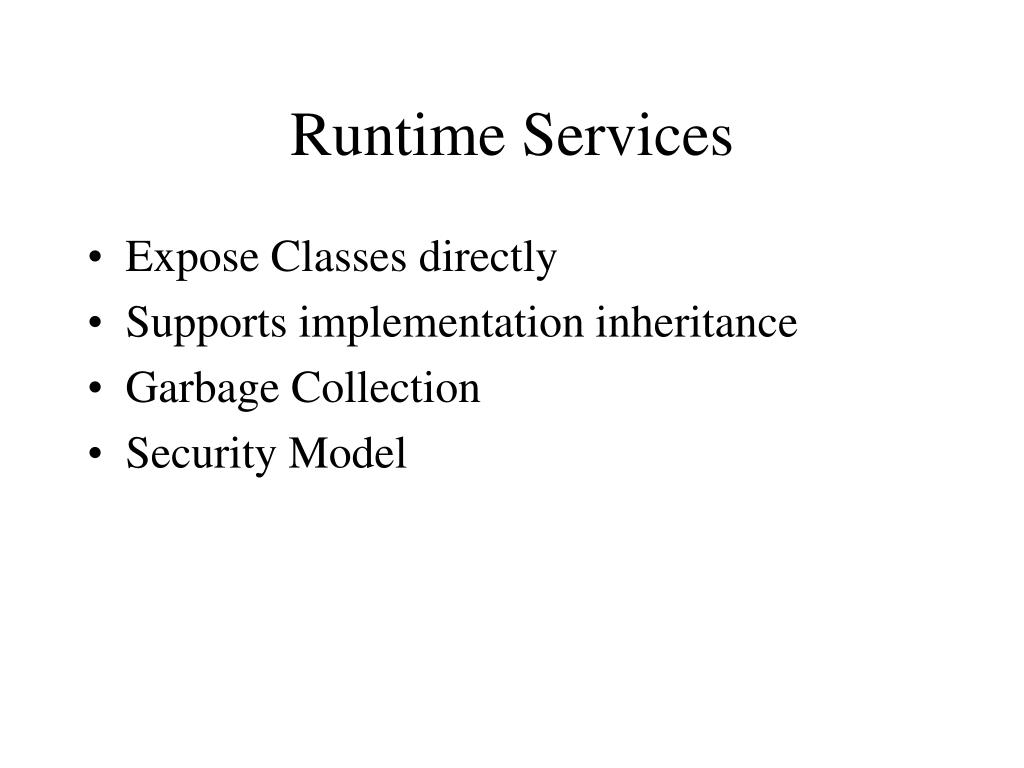

  15. Runtime Services • Expose Classes directly • Supports implementation inheritance • Garbage Collection • Security Model

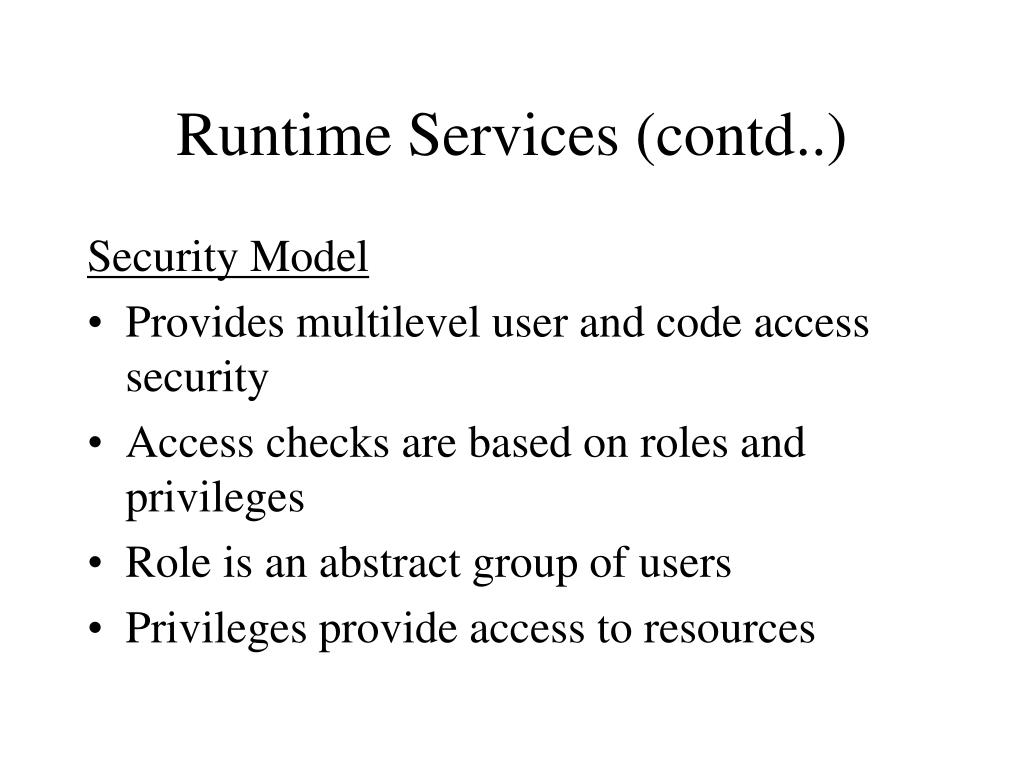

  16. Runtime Services (contd..) Security Model • Provides multilevel user and code access security • Access checks are based on roles and privileges • Role is an abstract group of users • Privileges provide access to resources

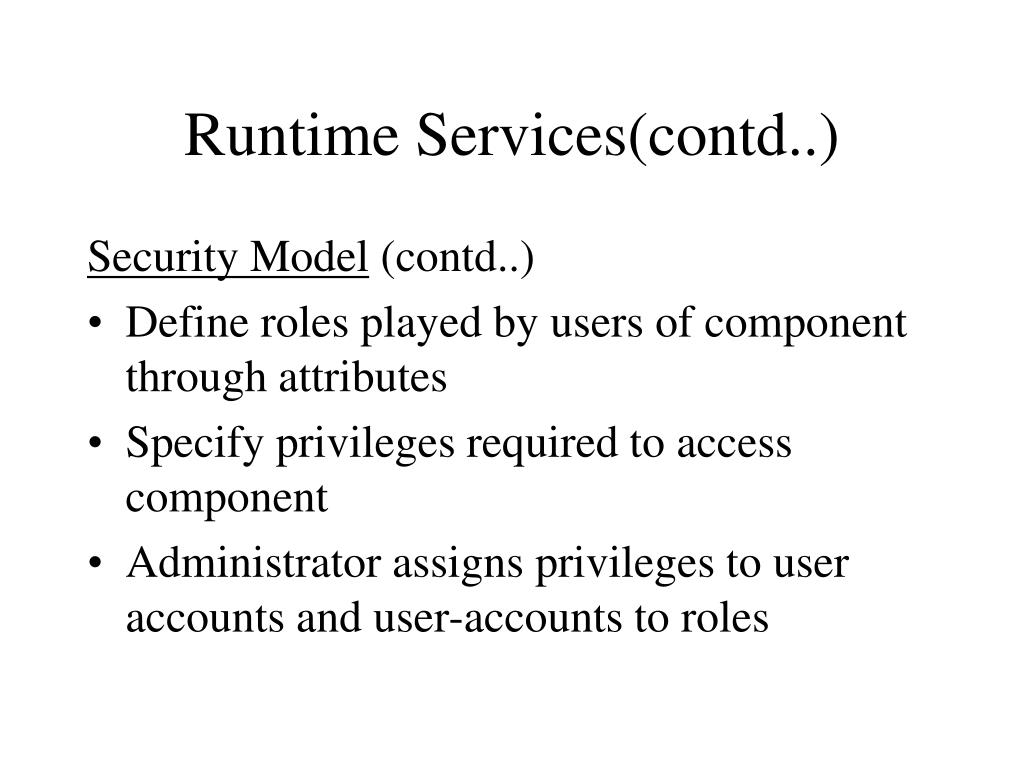

  17. Runtime Services(contd..) Security Model (contd..) • Define roles played by users of component through attributes • Specify privileges required to access component • Administrator assigns privileges to user accounts and user-accounts to roles

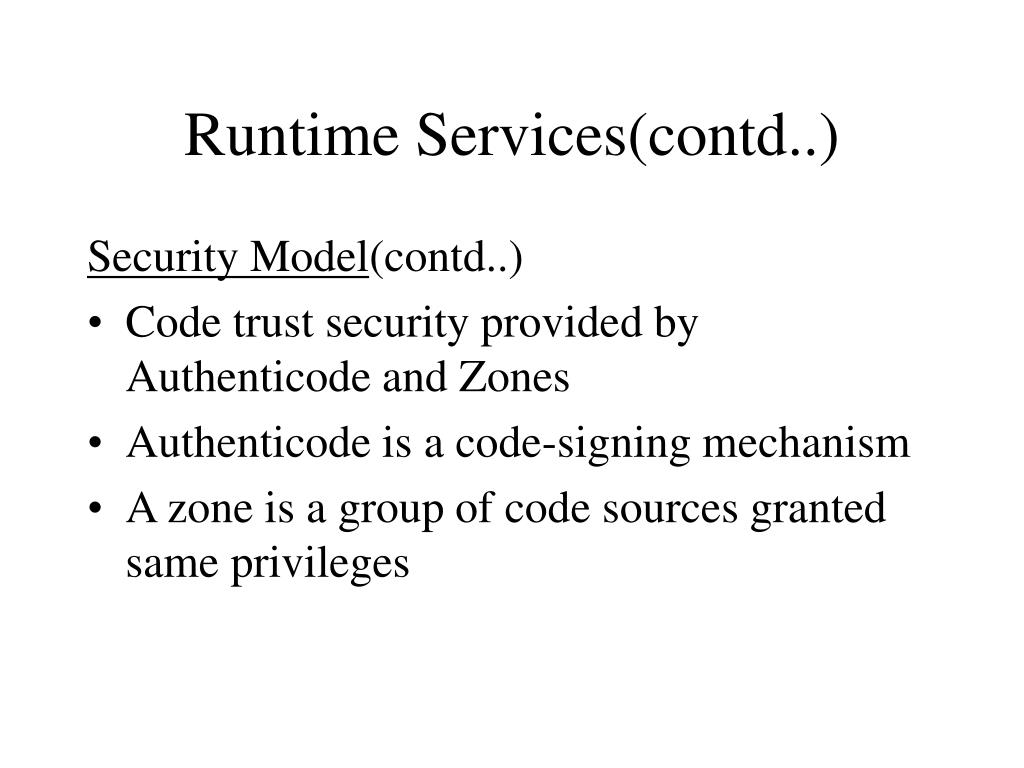

  18. Runtime Services(contd..) Security Model(contd..) • Code trust security provided by Authenticode and Zones • Authenticode is a code-signing mechanism • A zone is a group of code sources granted same privileges

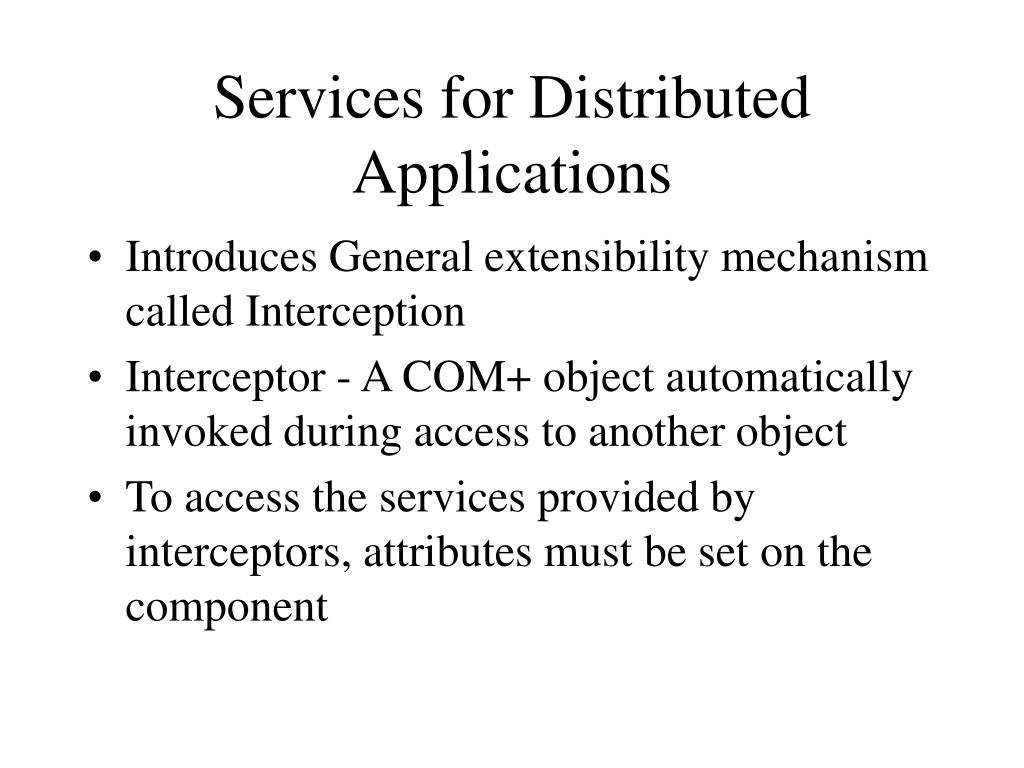

  19. Services for Distributed Applications • Introduces General extensibility mechanism called Interception • Interceptor - A COM+ object automatically invoked during access to another object • To access the services provided by interceptors, attributes must be set on the component

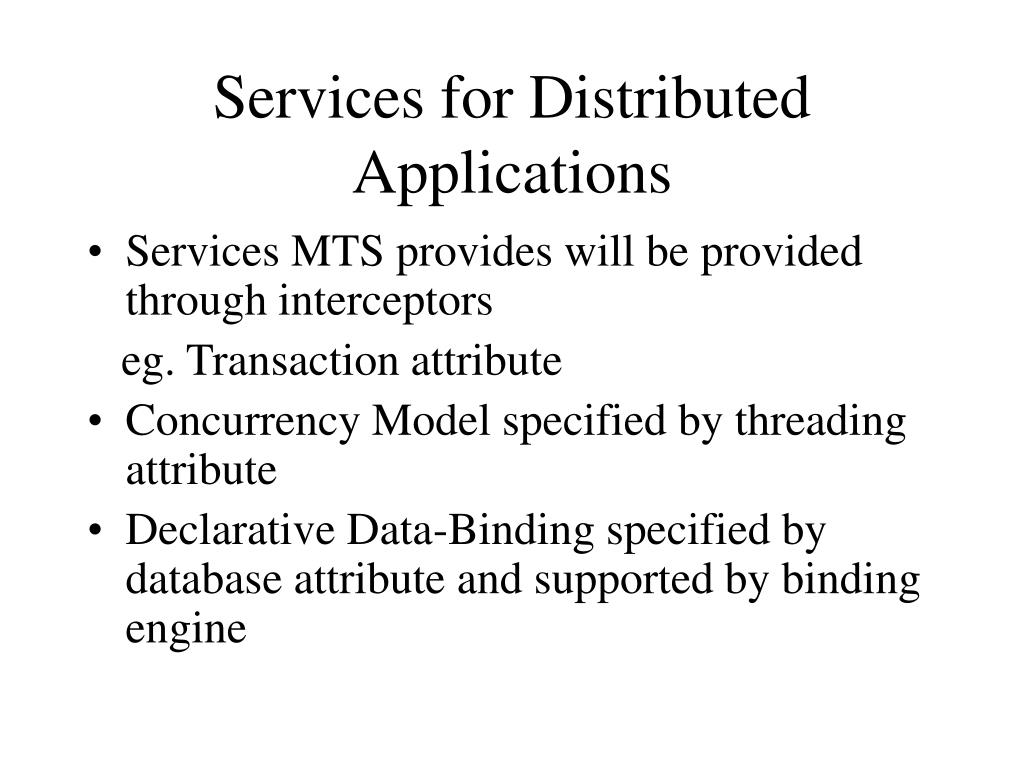

  20. Services for Distributed Applications • Services MTS provides will be provided through interceptors eg. Transaction attribute • Concurrency Model specified by threading attribute • Declarative Data-Binding specified by database attribute and supported by binding engine

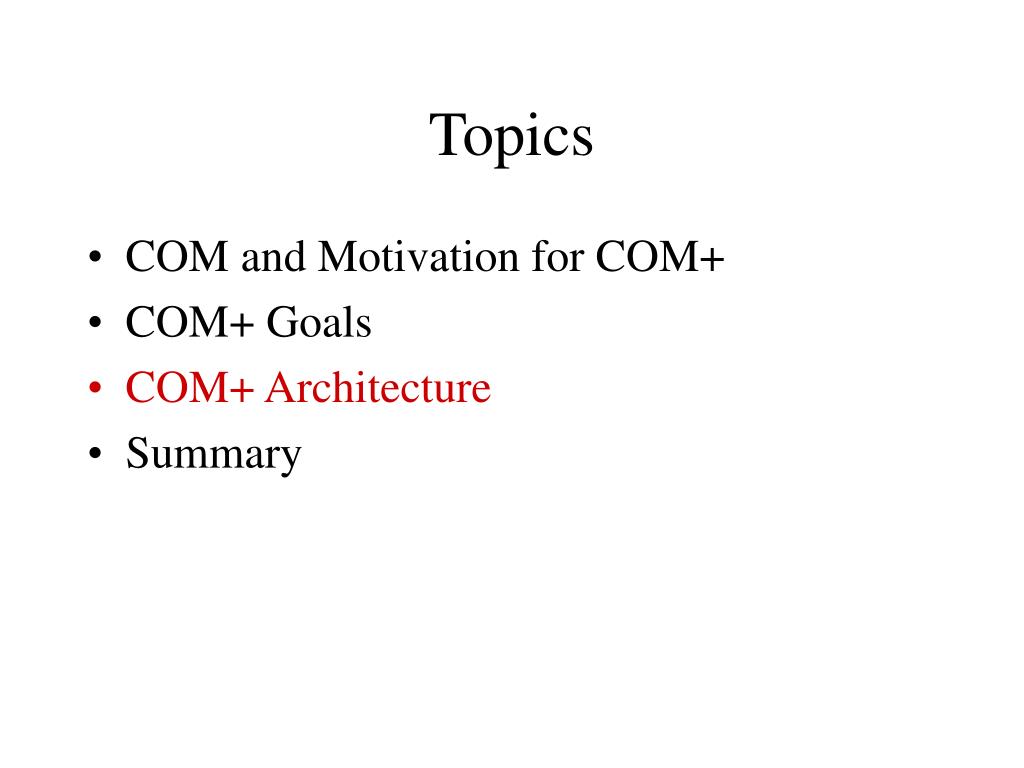

  21. Topics • COM and Motivation for COM+ • COM+ Goals • COM+ Architecture • Summary

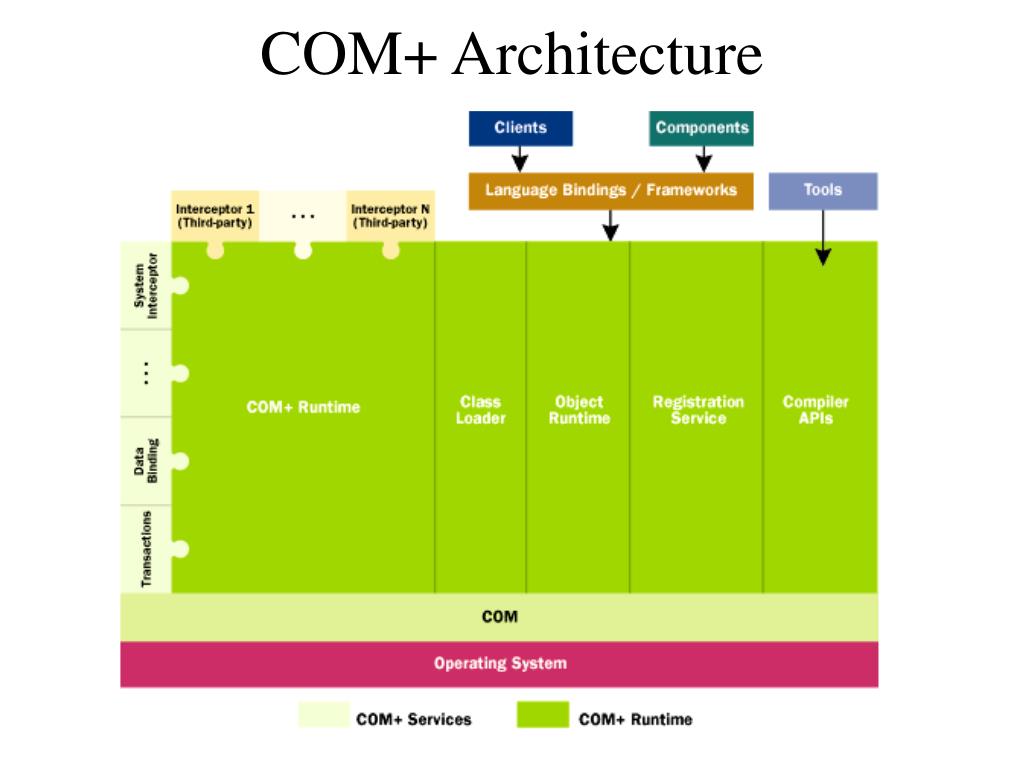

  22. COM+ Architecture

  23. COM+ Architecture interfaces for creating and consuming class interface and library definitions • Define Class by writing source code • Language Compiler uses COM+ runtime compiler services to create Metadata • Compiler services also used to import Metadata • Calls to other runtime services are inserted into binary class code

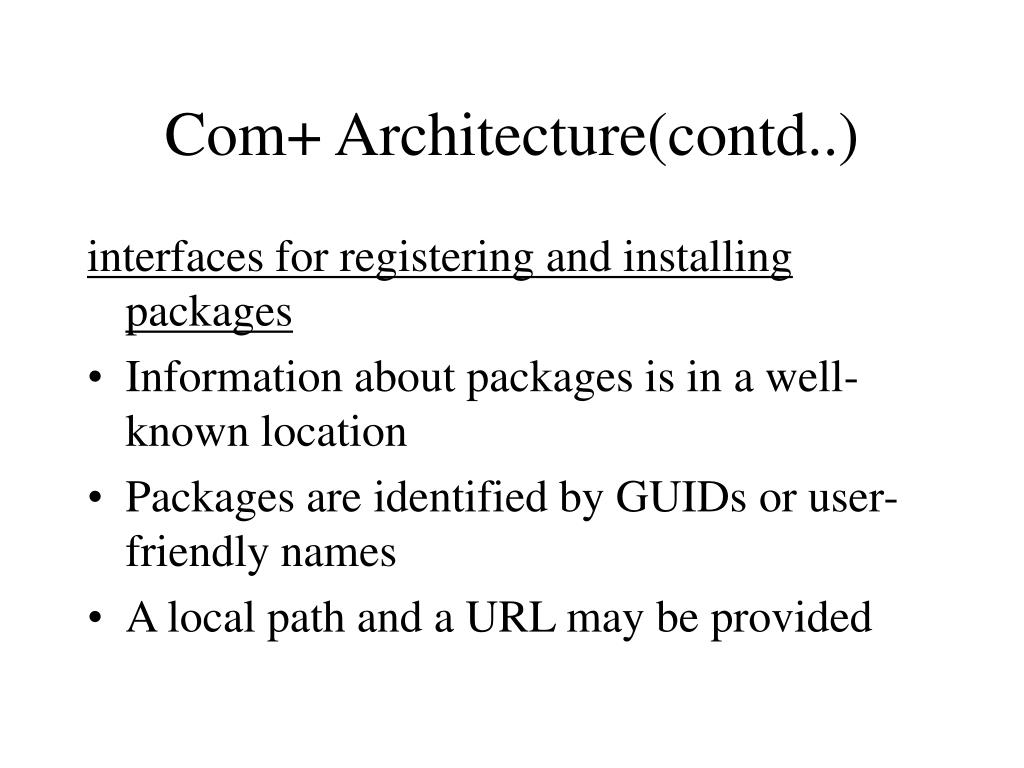

  24. Com+ Architecture(contd..) interfaces for registering and installing packages • Information about packages is in a well-known location • Packages are identified by GUIDs or user-friendly names • A local path and a URL may be provided

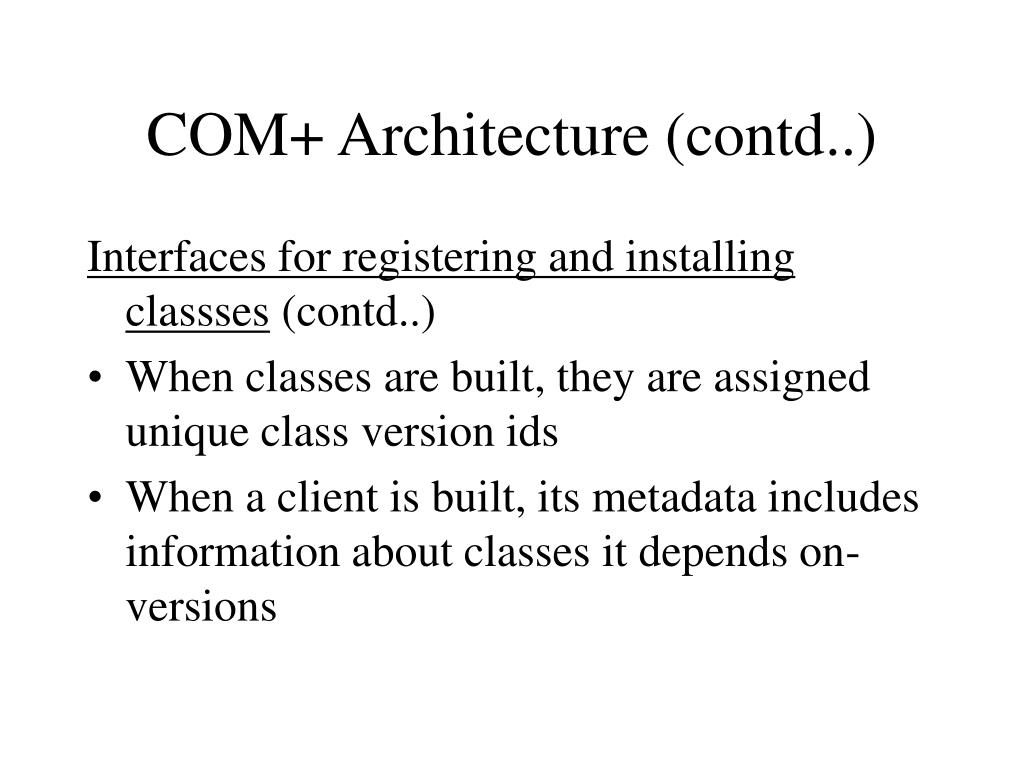

  25. COM+ Architecture (contd..) Interfaces for registering and installing classses (contd..) • When classes are built, they are assigned unique class version ids • When a client is built, its metadata includes information about classes it depends on- versions

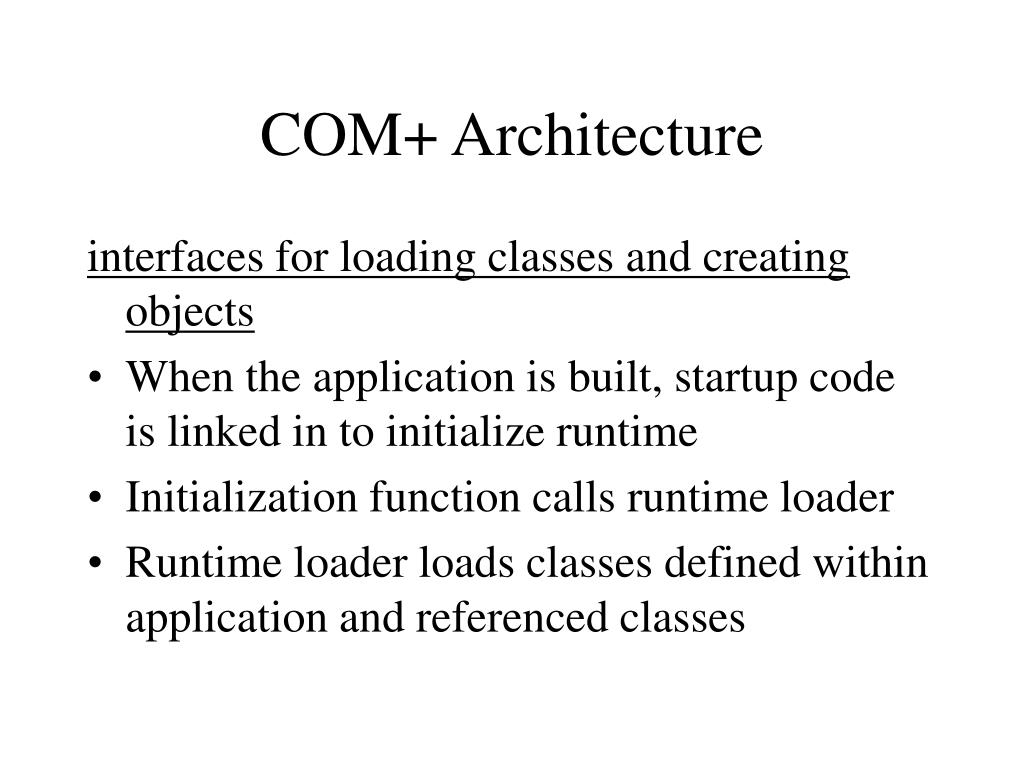

  26. COM+ Architecture interfaces for loading classes and creating objects • When the application is built, startup code is linked in to initialize runtime • Initialization function calls runtime loader • Runtime loader loads classes defined within application and referenced classes

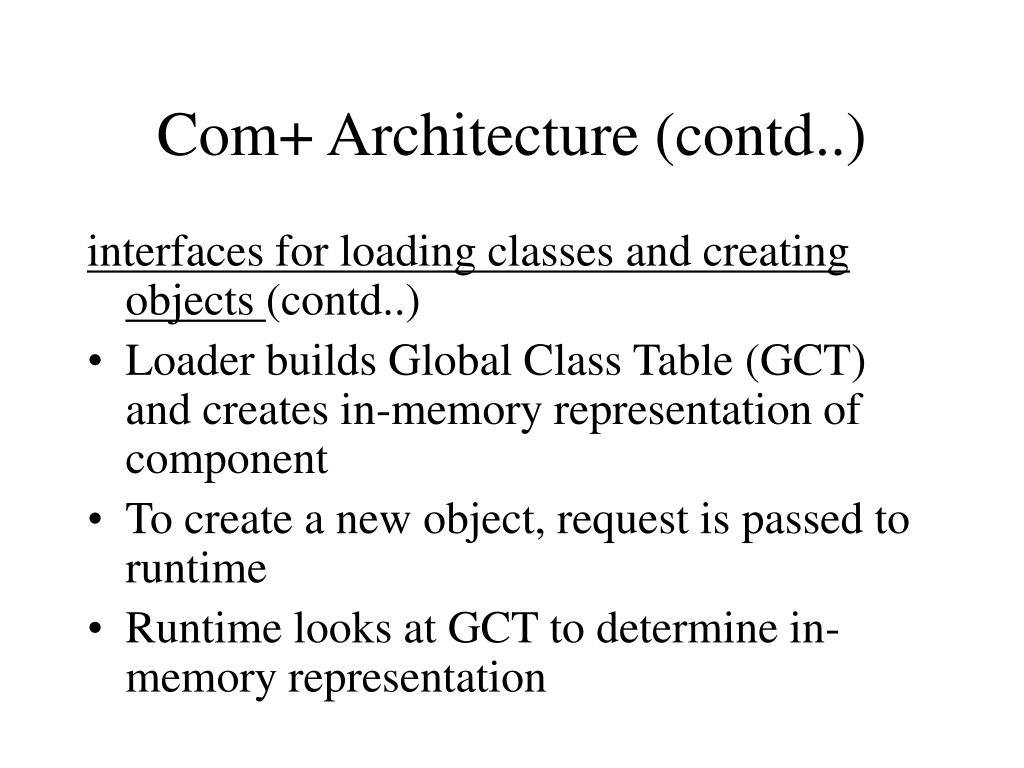

  27. Com+ Architecture (contd..) interfaces for loading classes and creating objects (contd..) • Loader builds Global Class Table (GCT) and creates in-memory representation of component • To create a new object, request is passed to runtime • Runtime looks at GCT to determine in-memory representation

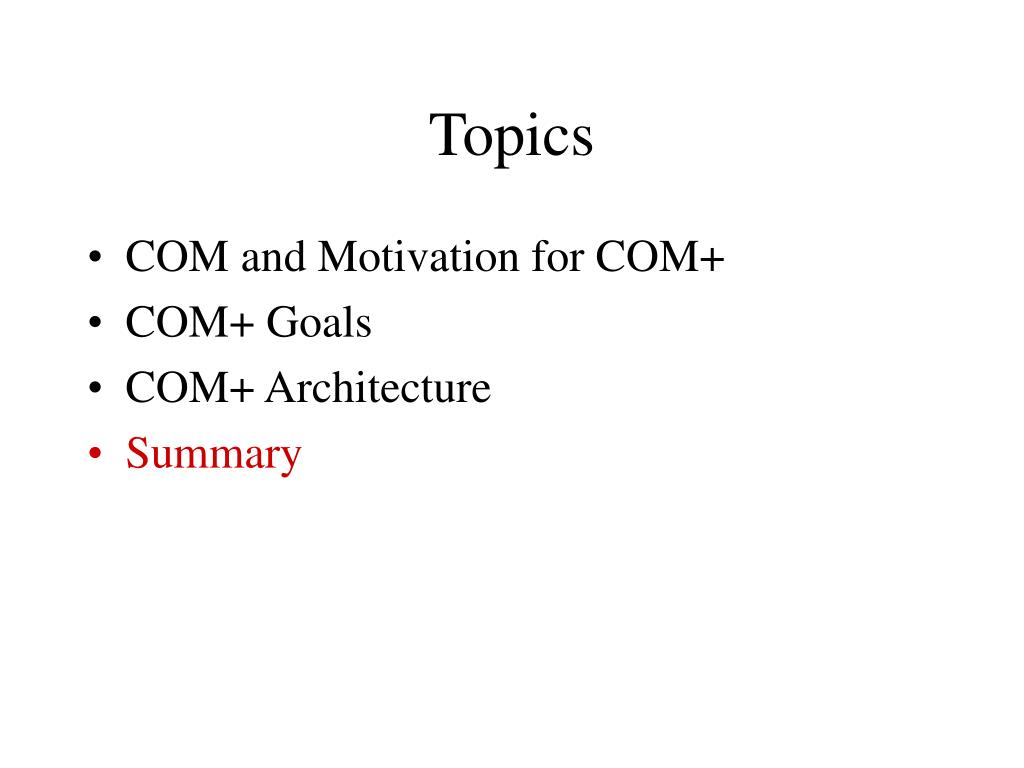

  28. Topics • COM and Motivation for COM+ • COM+ Goals • COM+ Architecture • Summary

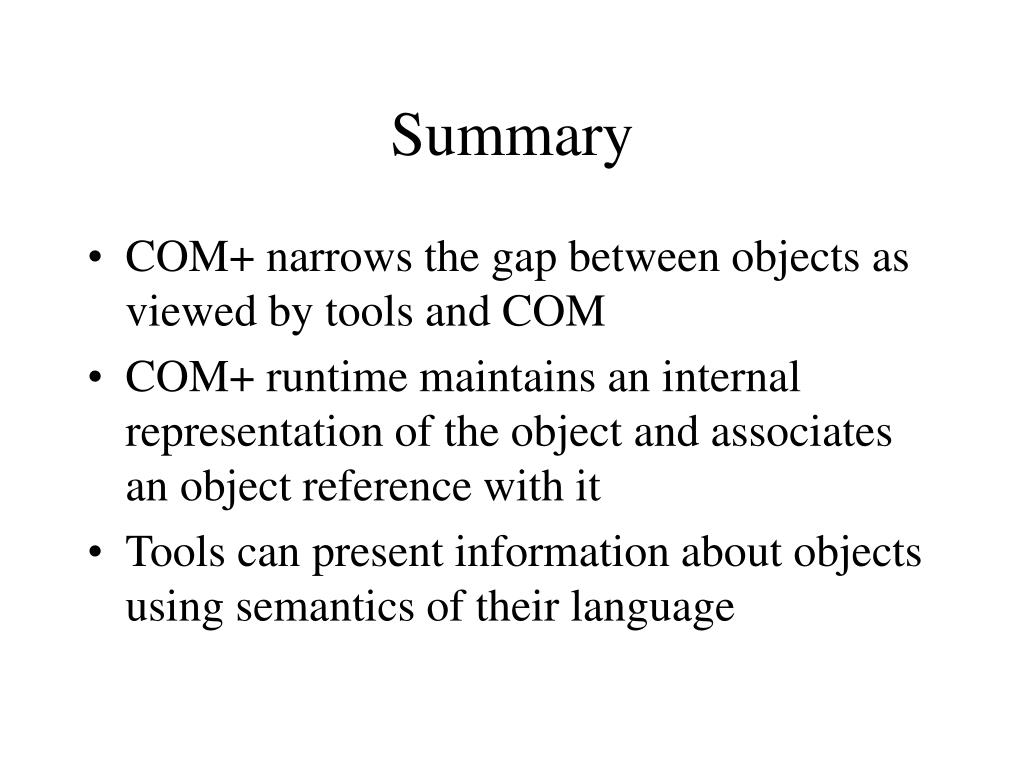

  29. Summary • COM+ narrows the gap between objects as viewed by tools and COM • COM+ runtime maintains an internal representation of the object and associates an object reference with it • Tools can present information about objects using semantics of their language

  30. Summary • Build solutions using components that model real-life objects rather than solution-specific components • Since clients communicate with components through well defined interfaces, components implementation can be easily modified

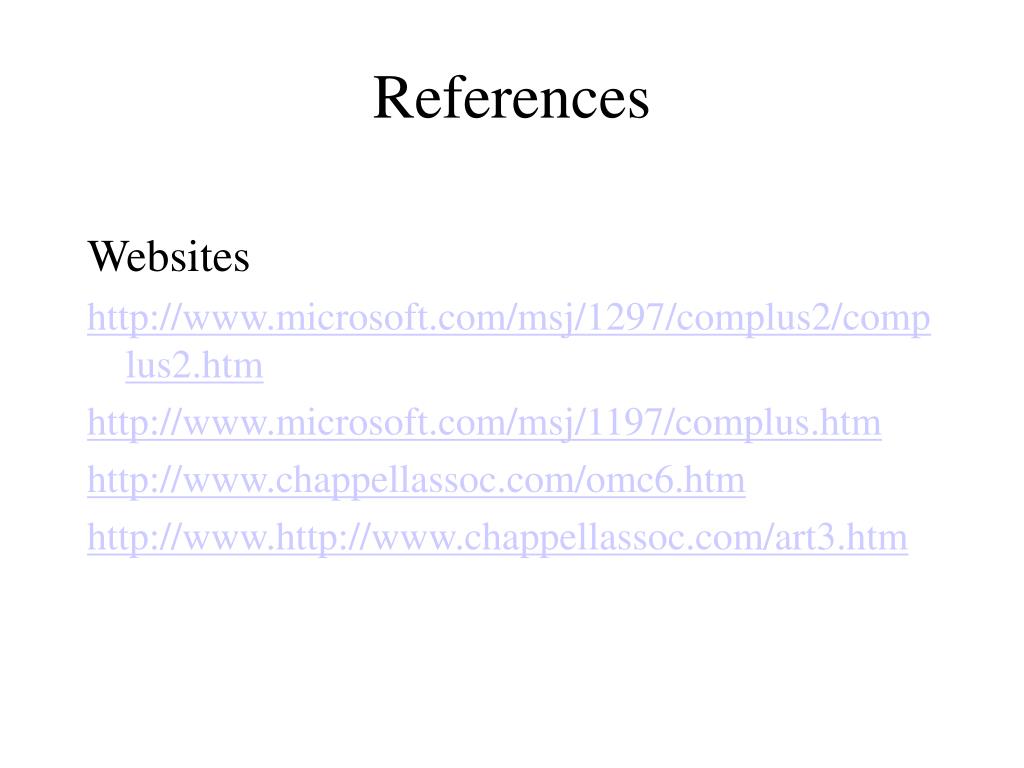

  31. References Websites http://www.microsoft.com/msj/1297/complus2/complus2.htm http://www.microsoft.com/msj/1197/complus.htm http://www.chappellassoc.com/omc6.htm http://www.http://www.chappellassoc.com/art3.htm
