  1. VS3: Verification and Synthesis usingSMT SolversSMT Solvers for Program Verification Saurabh Srivastava * Sumit Gulwani ** Jeffrey S. Foster * * University of Maryland, College Park ** Microsoft Research, Redmond

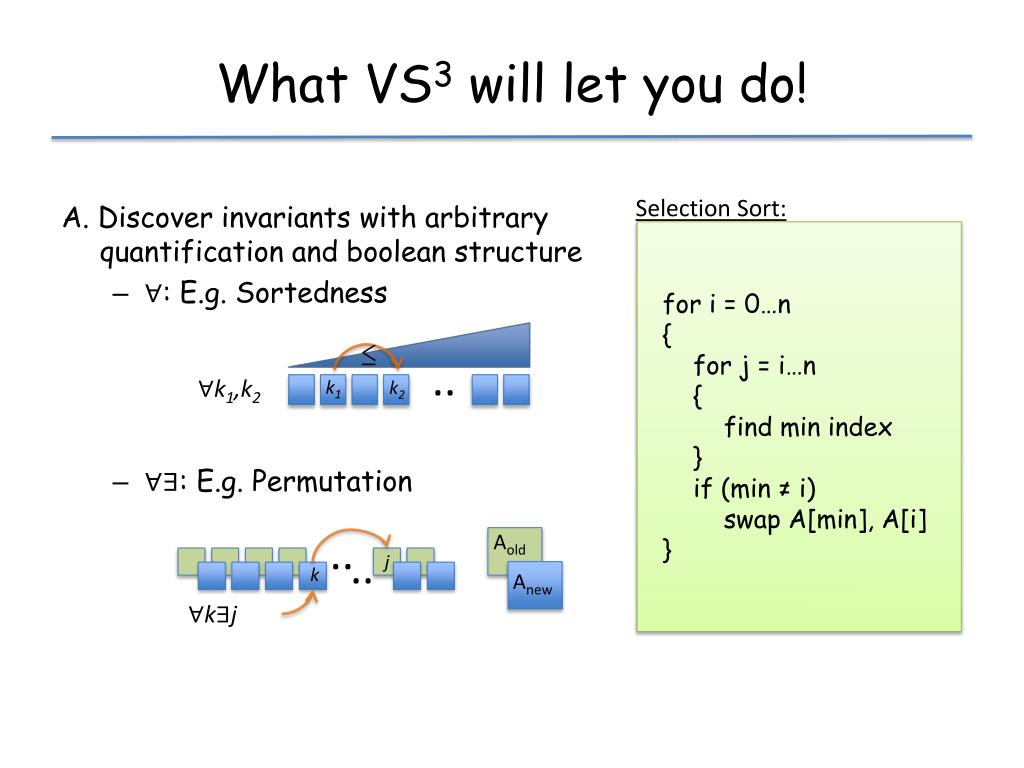

  2. What VS3 will let you do! A. Discover invariants with arbitrary quantification and boolean structure • ∀: E.g. Sortedness • ∀∃: E.g. Permutation • Selection Sort: for i = 0…n { for j = i…n { find min index } if (min ≠ i) swap A[min], A[i] } .. ∀k1,k2 k1 k2 Aold .. j .. k • Anew ∀k∃j

  3. What VS3 will let you do! A. Discover invariants with arbitrary quantification and boolean structure • ∀: E.g. Sortedness • ∀∃: E.g. Permutation • Selection Sort: i:=0 i<n j:=i j<n Output array Find min index .. • if (min != i) • swap A[i], A[min] ∀k1,k2 k1 k2 Aold .. j .. k • Anew ∀k∃j

  4. Verification: Proving Programs Correct Input state true • Selection Sort: i:=0 Iouter i<n j:=i Output state Iinner j<n Sortedness Permutation Output array Find min index The difficult task is program state (invariant) inference: Iinner, Iouter, Input state, Output state • if (min != i) • swap A[i], A[min]

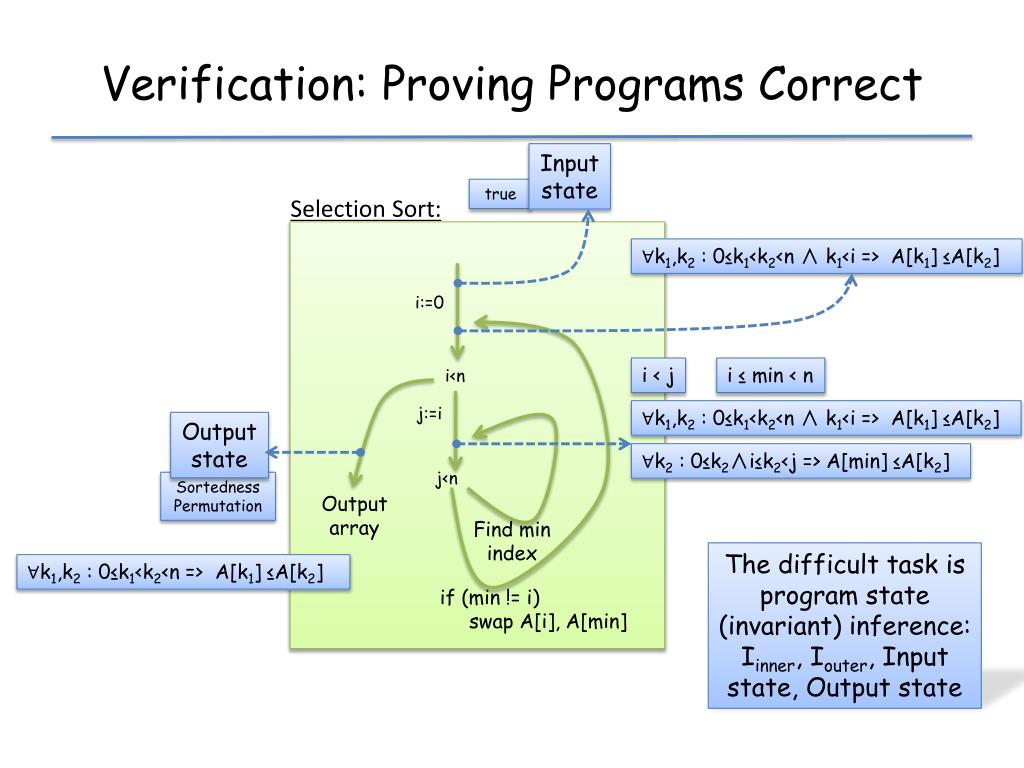

  5. Verification: Proving Programs Correct Input state true • Selection Sort: ∀k1,k2 : 0≤k1<k2<n∧ k1<i => A[k1] ≤A[k2] i:=0 i < j i ≤ min < n i<n j:=i ∀k1,k2 : 0≤k1<k2<n∧ k1<i => A[k1] ≤A[k2] Output state ∀k2 : 0≤k2∧i≤k2<j => A[min] ≤A[k2] j<n Sortedness Permutation Output array Find min index The difficult task is program state (invariant) inference: Iinner, Iouter, Input state, Output state ∀k1,k2 : 0≤k1<k2<n => A[k1] ≤A[k2] • if (min != i) • swap A[i], A[min]

  6. Verification: Proving Programs Correct Input state true • Selection Sort: ∀k1,k2 : 0≤k1<k2<n∧ k1<i => A[k1] ≤A[k2] ∀k1,k2 : 0≤k1<k2<n∧ k1<i => A[k1] ≤A[k2] ∀k1,k2 : (----------------) => A[k1] ≤A[k2] i:=0 (-------------------) i < j i ≤ min < n i<n j:=i ∀k1,k2 : 0≤k1<k2<n∧ k1<i => A[k1] ≤A[k2] ∀k1,k2 : (---------------) => A[k1] ≤A[k2] Output state ∀k2 : 0≤k2∧i≤k2<j => A[min] ≤A[k2] ∀k2 : (-----------) => A[min] ≤A[k2] j<n Sortedness Permutation Output array Find min index The difficult task is program state (invariant) inference: Iinner, Iouter, Input state, Output state ∀k1,k2 : 0≤k1<k2<n => A[k1] ≤A[k2] • if (min != i) • swap A[i], A[min]

  7. Verification: Proving Programs Correct Input state true • Selection Sort: (-------------------) ∀k1,k2 : (----------------) => A[k1] ≤A[k2] ∀k2 : (-----------) => A[min] ≤A[k2] i:=0 (-------------------) i<n j:=i ∀k1,k2 : (---------------) => A[k1] ≤A[k2] Output state ∀k2 : (-----------) => A[min] ≤A[k2] j<n Sortedness Permutation Output array Find min index The difficult task is program state (invariant) inference: Iinner, Iouter, Input state, Output state ∀k1,k2 : 0≤k1<k2<n => A[k1] ≤A[k2] • if (min != i) • swap A[i], A[min]

  8. Verification: Proving Programs Correct • Bubble Sort: (-------------------) ∀k1,k2 : (----------------) => A[k1] ≤A[k2] ∀k1,k2 : (----------) => A[k1] ≤A[k2] i:=n-1 (-------------------) i>0 j:=0 ∀k1,k2 : (---------------) => A[k1] ≤A[k2] ∀k1,k2 : (----------) => A[k1] ≤A[k2] j<i Output array • if (a[j] > a[j+1]) • swap A[j], A[j+1] ∀k1,k2 : 0≤k1<k2<n => A[k1] ≤A[k2]

  9. User Input:Templates and Predicates • Templates • Intuitive and simple • Depending on the property being proved; form straight-forward • Limited to the quantification and disjunction Unknown holes • Predicate Abstraction Program variables, array elements • Enumerate predicates of the form Relational operator <, ≤, >, ≥ … • E.g., {i<j, i>j, i≤j, i≥j… }

  10. Tool architecture Microsoft’s Phoenix Compiler Cut-Set VS3 Verification Conditions C Program CFG Templates for invariants Iterative Fixed-point GFP/LFP Constraint- based Fixed-Point Predicate Sets SMT Solver Candidate Solutions Boolean Constraint SAT Solver Preconditions Postconditions Invariants

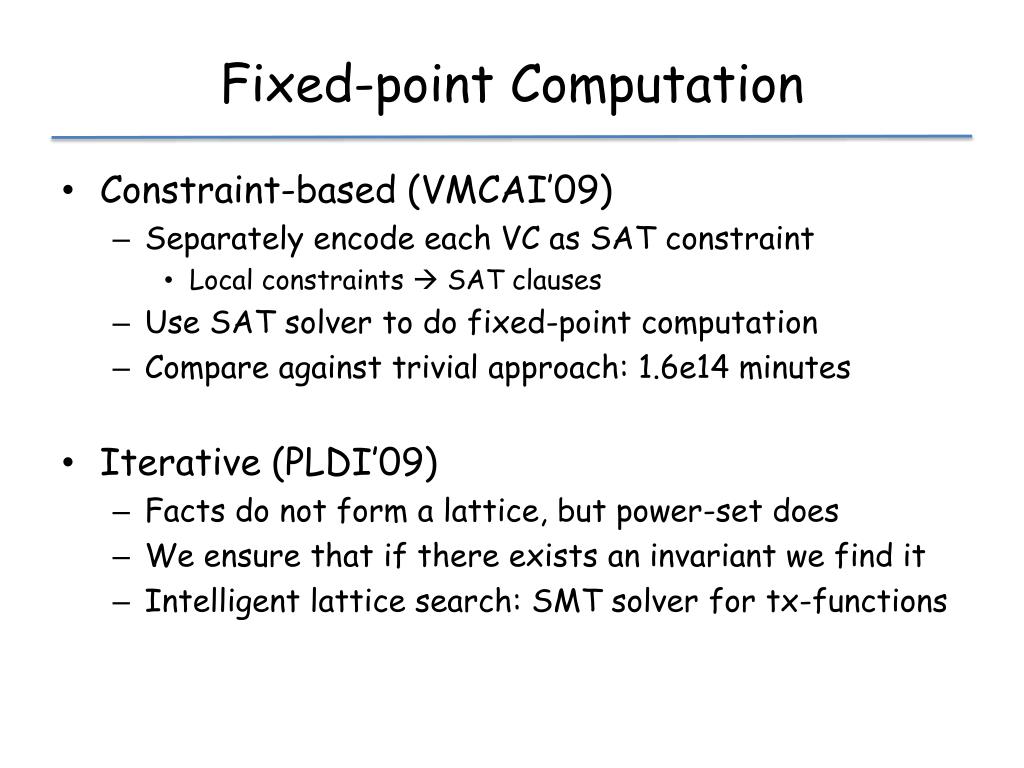

  11. Fixed-point Computation • Constraint-based (VMCAI’09) • Separately encode each VC as SAT constraint • Local constraints  SAT clauses • Use SAT solver to do fixed-point computation • Compare against trivial approach: 1.6e14 minutes • Iterative (PLDI’09) • Facts do not form a lattice, but power-set does • We ensure that if there exists an invariant we find it • Intelligent lattice search: SMT solver for tx-functions

  12. Weakest Preconditions Weakest conditions on input? k2 k1 < i:=0 i<n j:=i j<n Output array Worst case behavior: swap every time it can Find min index • if (min != i) • swap A[i], A[min]

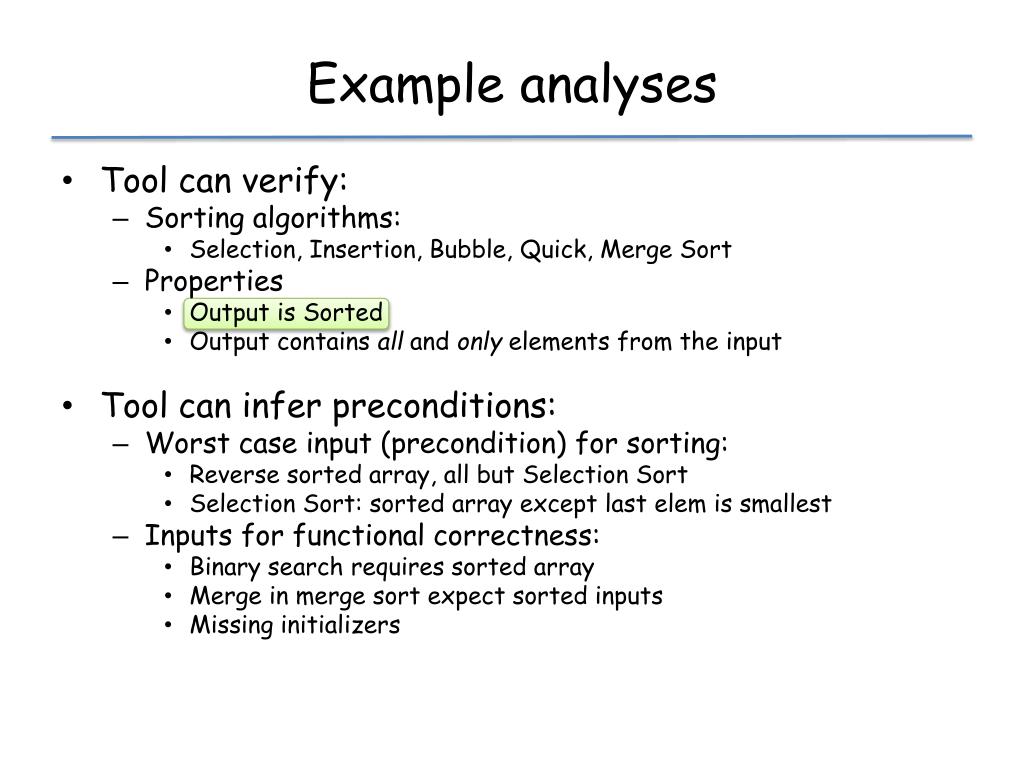

  13. Example analyses • Tool can verify: • Sorting algorithms: • Selection, Insertion, Bubble, Quick, Merge Sort • Properties • Output is Sorted • Output contains all and only elements from the input • Tool can infer preconditions: • Worst case input (precondition) for sorting: • Reverse sorted array, all but Selection Sort • Selection Sort: sorted array except last elem is smallest • Inputs for functional correctness: • Binary search requires sorted array • Merge in merge sort expect sorted inputs • Missing initializers

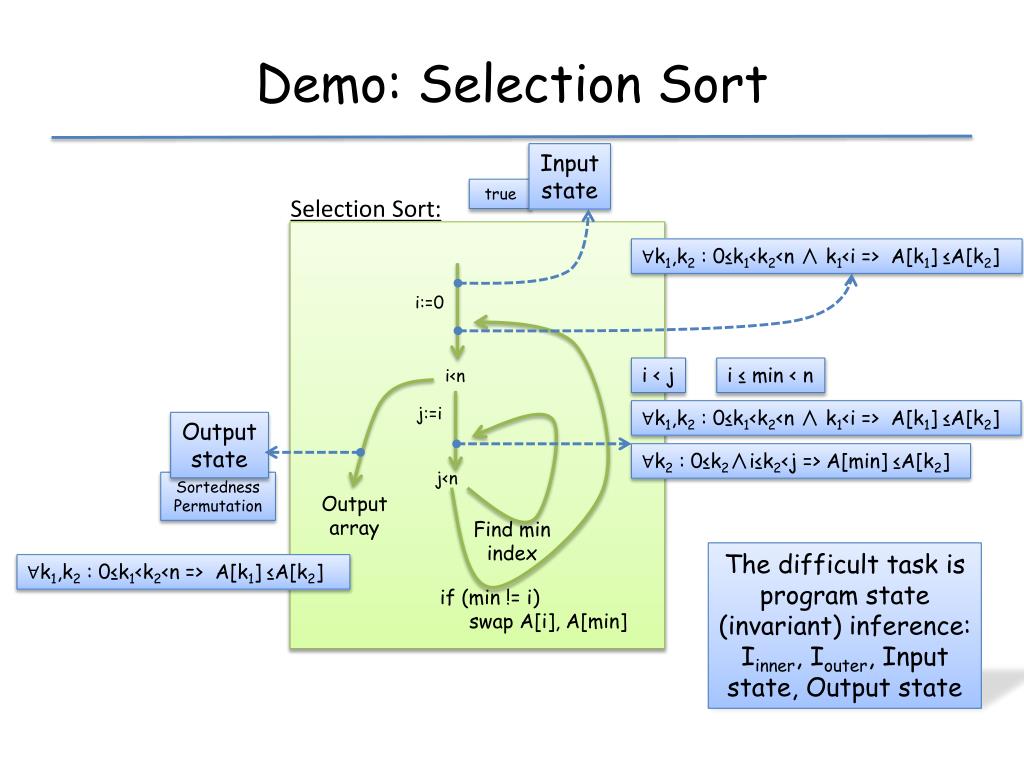

  14. Demo: Selection Sort Input state true • Selection Sort: ∀k1,k2 : 0≤k1<k2<n∧ k1<i => A[k1] ≤A[k2] i:=0 i < j i ≤ min < n i<n j:=i ∀k1,k2 : 0≤k1<k2<n∧ k1<i => A[k1] ≤A[k2] Output state ∀k2 : 0≤k2∧i≤k2<j => A[min] ≤A[k2] j<n Sortedness Permutation Output array Find min index The difficult task is program state (invariant) inference: Iinner, Iouter, Input state, Output state ∀k1,k2 : 0≤k1<k2<n => A[k1] ≤A[k2] • if (min != i) • swap A[i], A[min]

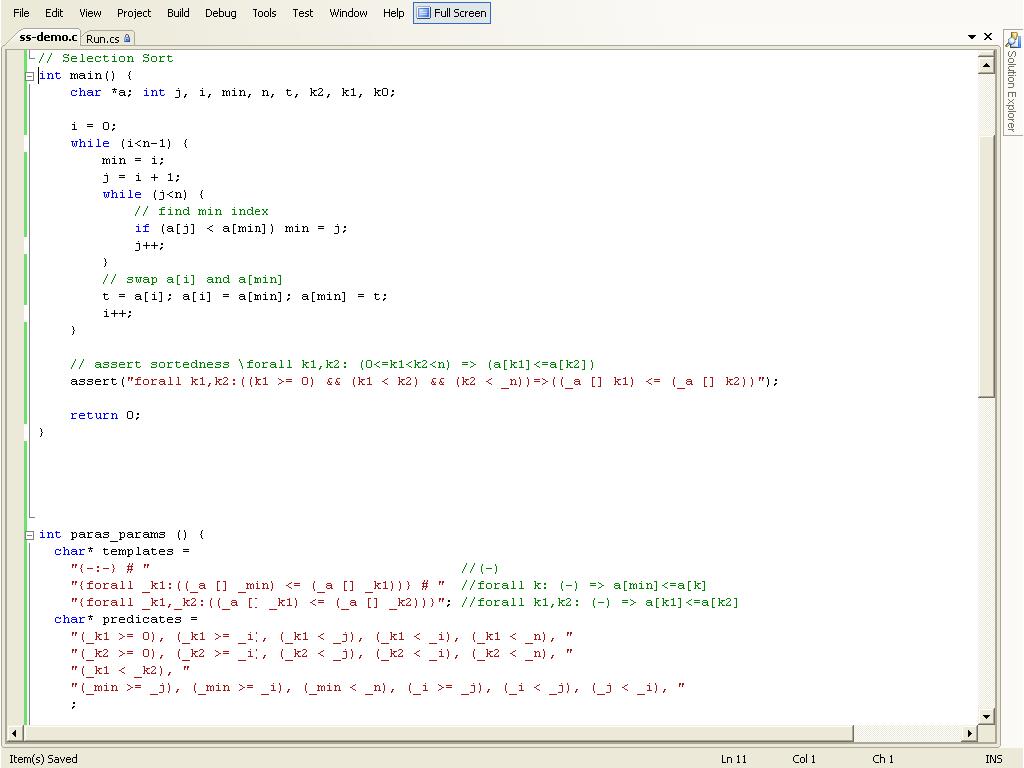

  15. Demo: Program

  16. Demo: Output

  17. Conclusions • VS3: Verification tool over predicate abstraction • Verification • Can infer quantified invariants • Maximally-weak preconditions • Builds on SMT Solvers, so exploits their power • Project Webpage http://www.cs.umd.edu/~saurabhs/pacs Future work

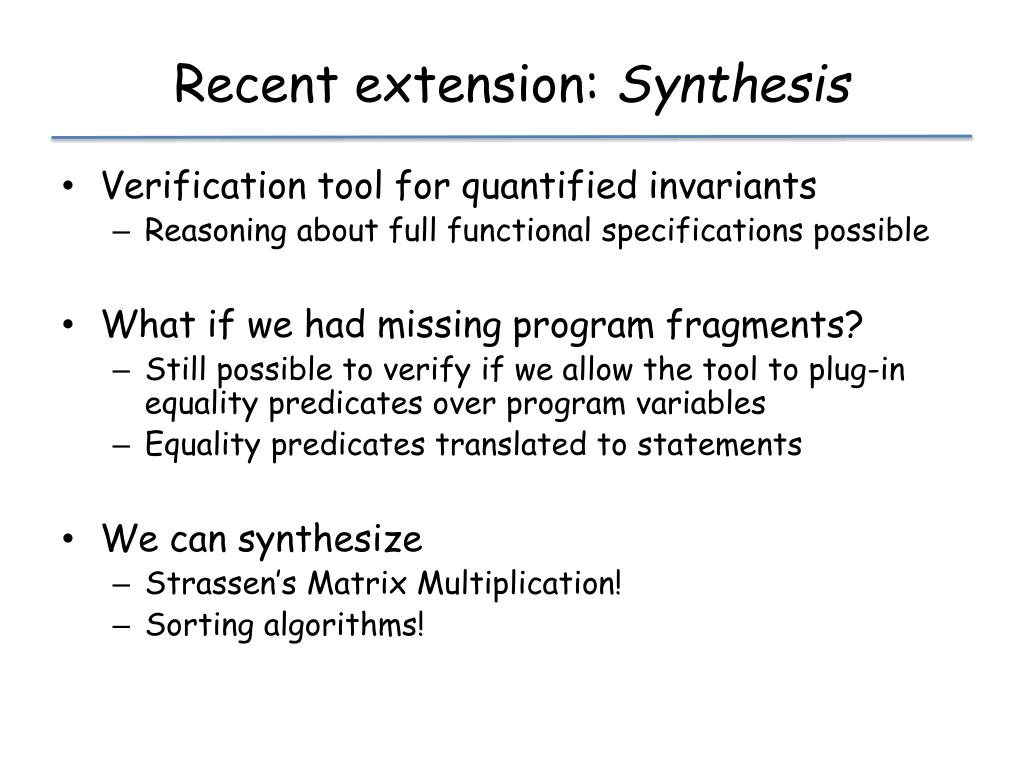

  18. Recent extension: Synthesis • Verification tool for quantified invariants • Reasoning about full functional specifications possible • What if we had missing program fragments? • Still possible to verify if we allow the tool to plug-in equality predicates over program variables • Equality predicates translated to statements • We can synthesize • Strassen’s Matrix Multiplication! • Sorting algorithms!
