  1. BPA RTU Rooftop Unit Pilot Servicing Program Monitoring Results Presentation to the RTF RTUG December 15, 2009 Kathryn Hile The Cadmus Group

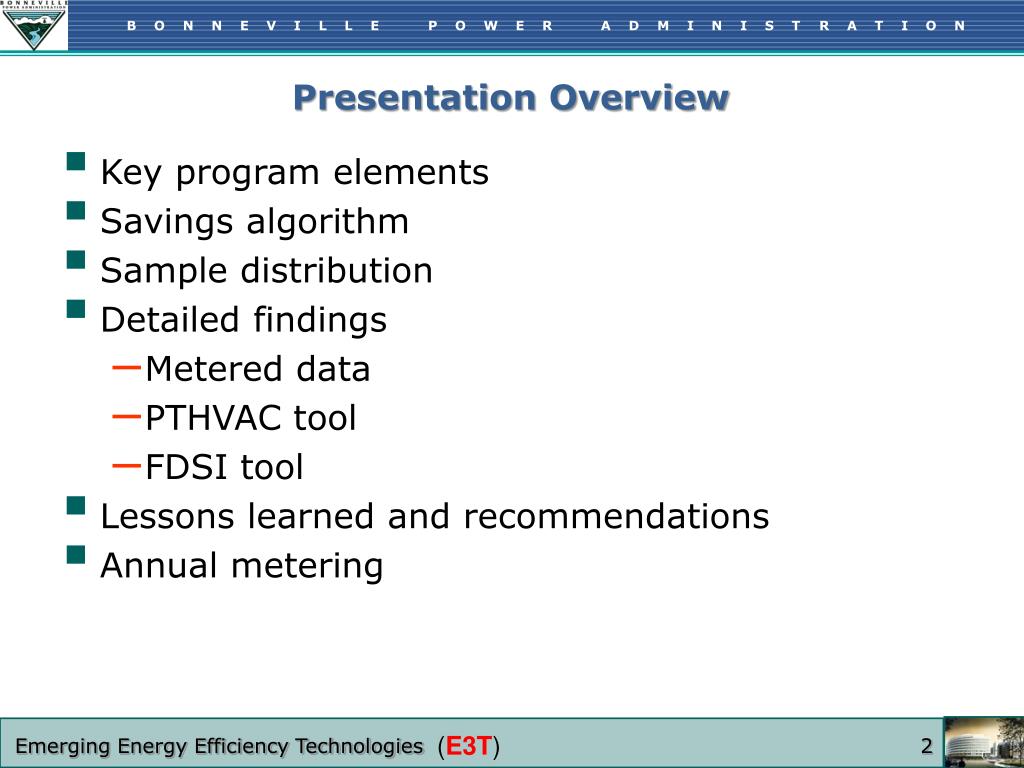

  2. Presentation Overview • Key program elements • Savings algorithm • Sample distribution • Detailed findings • Metered data • PTHVAC tool • FDSI tool • Lessons learned and recommendations • Annual metering Emerging Energy Efficiency Technologies

  3. Key Program Elements • Pilot evaluation elements • Service protocols Emerging Energy Efficiency Technologies

  4. Key Pilot Evaluation Elements • Evaluation approach: • Measure cooling and fan energy use at individual RTU level • Larger sample size • Two week pre/post metering with annualization • Energy signature (kW and OA temperature) and TMY3 weather data to annualize cooling and fan energy savings • Compare metered savings to estimated savings Emerging Energy Efficiency Technologies

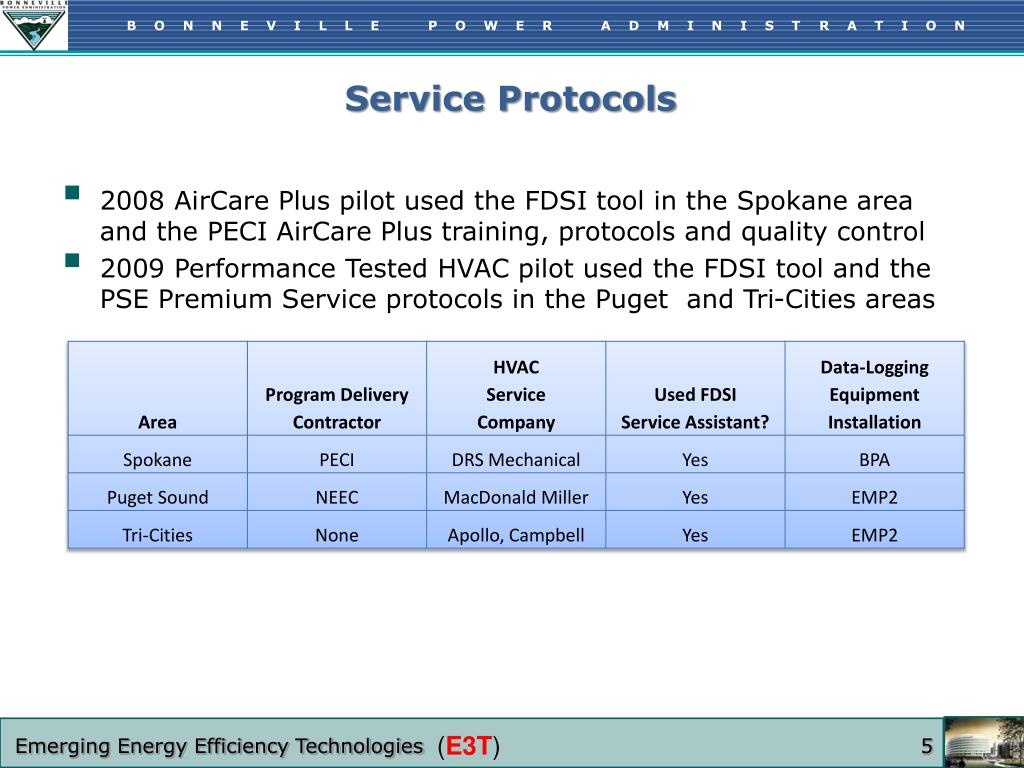

  5. Service Protocols • 2008 AirCare Plus pilot used the FDSI tool in theSpokane area and the PECI AirCare Plus training, protocols and quality control • 2009 Performance Tested HVAC pilot used the FDSI tool and the PSE Premium Service protocols in the Puget and Tri-Cities areas Emerging Energy Efficiency Technologies

  6. Premium Service Protocols • Each unit in the Puget Sound and Tri-Cities areas received a package of measures; basic diagnostic package (A): • Other packages: • B (basic diagnostics plus fix damper) • C (basic diagnostics plus new thermostat) • D (basic diagnostics plus new controller) Emerging Energy Efficiency Technologies

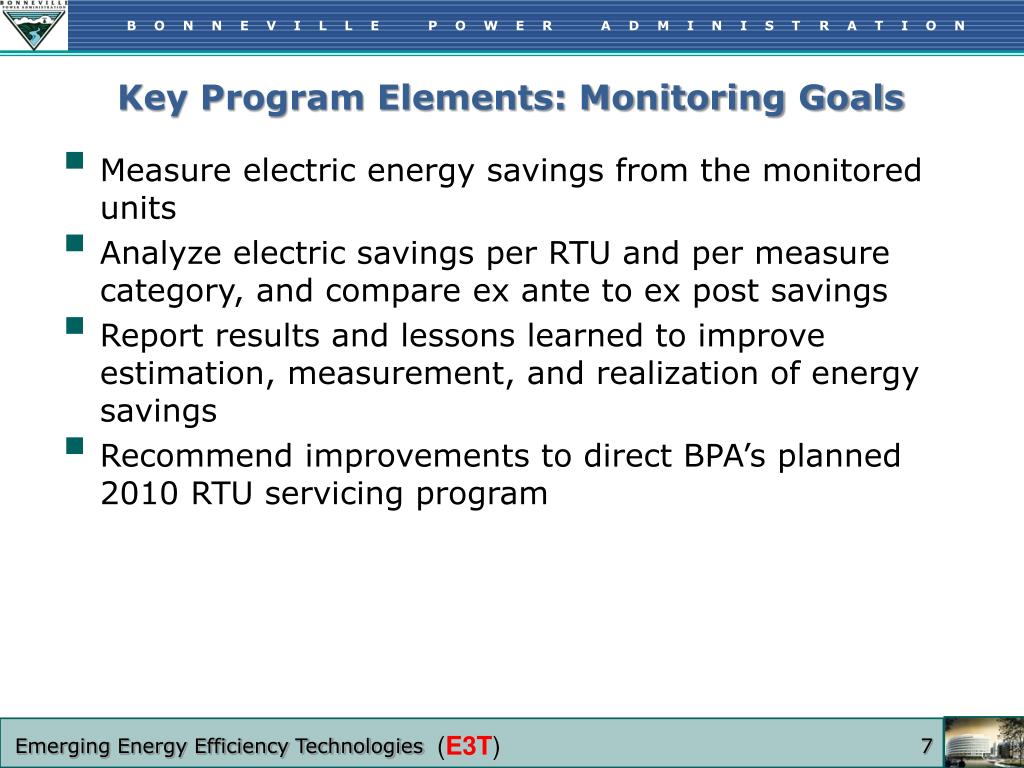

  7. Key Program Elements: Monitoring Goals • Measure electric energy savings from the monitored units • Analyze electric savings per RTU and per measure category, and compare ex ante to ex post savings • Report results and lessons learned to improve estimation, measurement, and realization of energy savings • Recommend improvements to direct BPA’s planned 2010 RTU servicing program Emerging Energy Efficiency Technologies

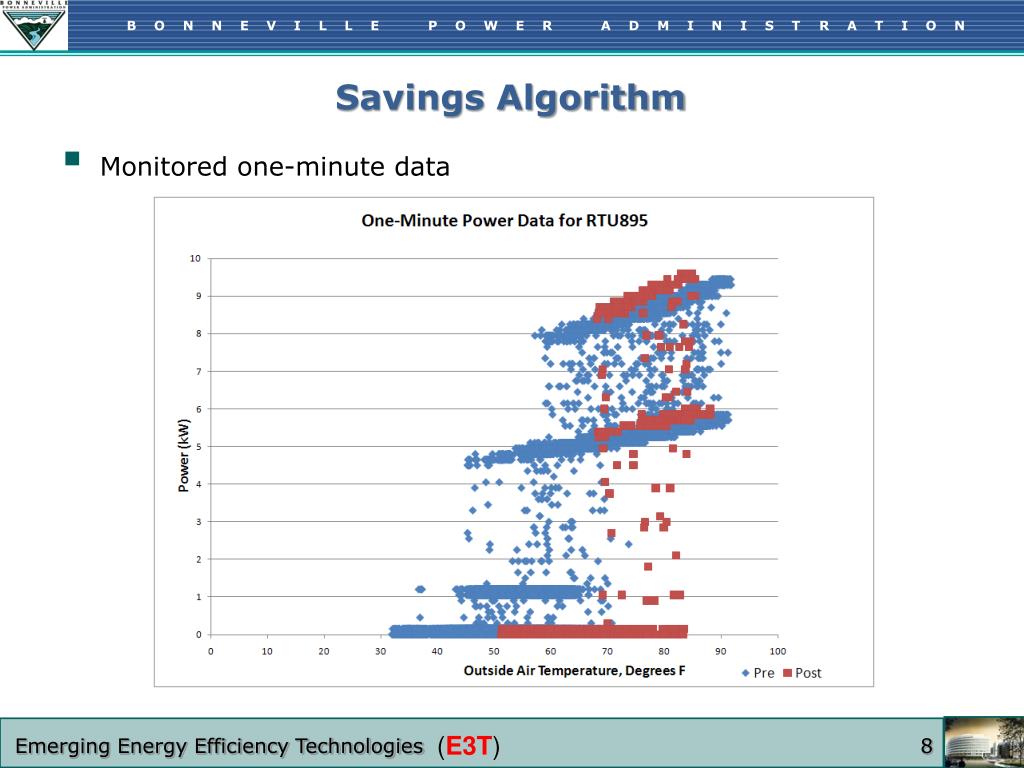

  8. Savings Algorithm • Monitored one-minute data Emerging Energy Efficiency Technologies

  9. Savings Algorithm • Aggregate into hourly averages and/or sums • Calculate hourly averages for: • Outside air temperature • Total unit power • Supply, mixed, and return air temperature • Calculate maximum hourly power • Use these values to examine data through output graphs: • Compressor power • Time series • Percent outside air • RTU operation • Energy signature Emerging Energy Efficiency Technologies

  10. Savings Algorithm • Energy signature: used with TMY3 data to annualize energy • Horizontal line = fan energy • Sloped line = fan + compressor energy • Balance point = intersection of horizontal and sloped lines Emerging Energy Efficiency Technologies

  11. Savings Algorithm • Calculation uncertainty: • Residual value: accurate to within ±0.03% • Balance point temperature: accurate within 2% • Annual metering: • Will confirm or better align our methodology with annual performance data • Sensitivity analysis: • Will be summarized in a white paper Emerging Energy Efficiency Technologies

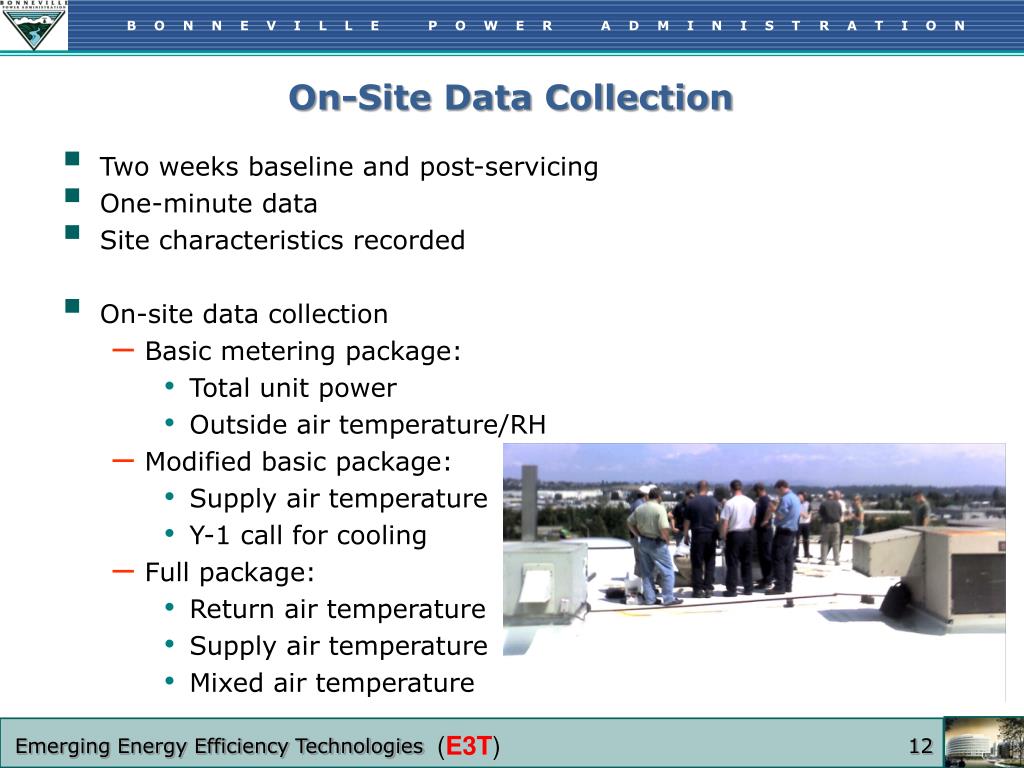

  12. On-Site Data Collection • Two weeks baseline and post-servicing • One-minute data • Site characteristics recorded • On-site data collection • Basic metering package: • Total unit power • Outside air temperature/RH • Modified basic package: • Supply air temperature • Y-1 call for cooling • Full package: • Return air temperature • Supply air temperature • Mixed air temperature Emerging Energy Efficiency Technologies

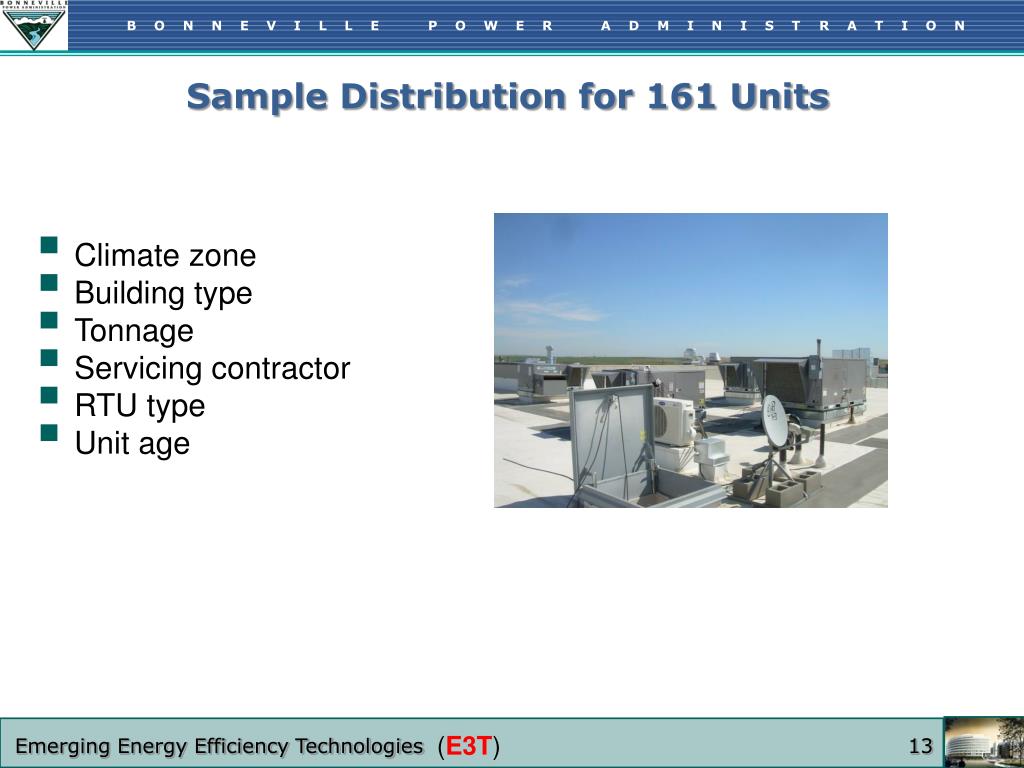

  13. Sample Distribution for 161 Units • Climate zone • Building type • Tonnage • Servicing contractor • RTU type • Unit age Emerging Energy Efficiency Technologies

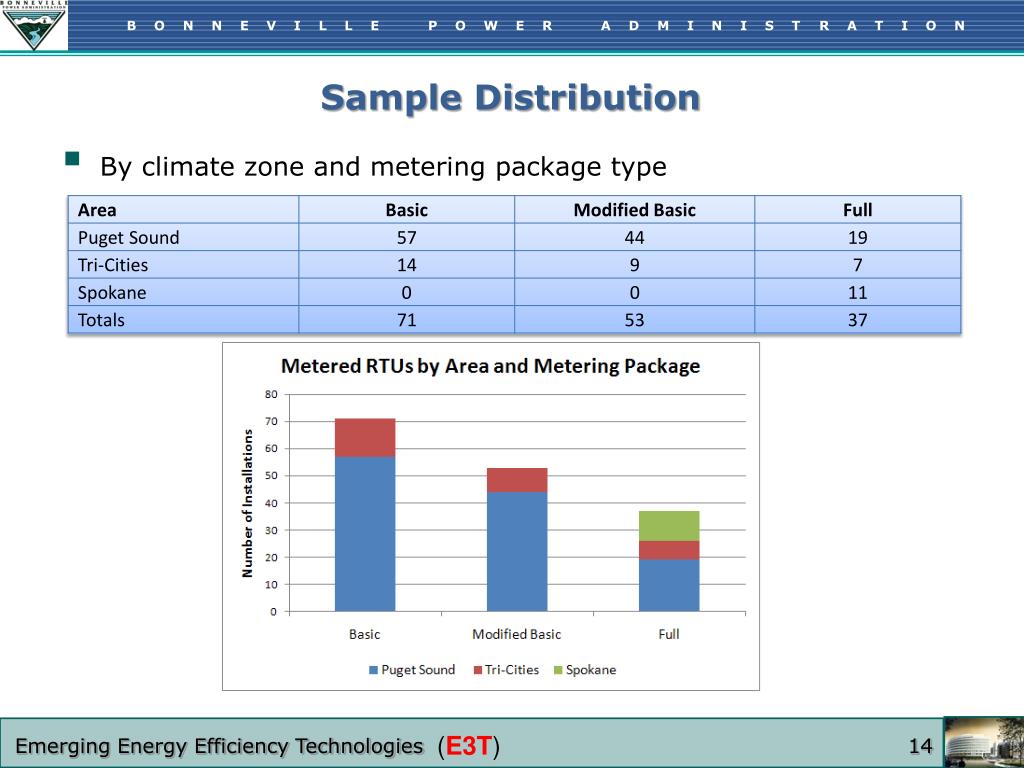

  14. Sample Distribution • By climate zone and metering package type Emerging Energy Efficiency Technologies

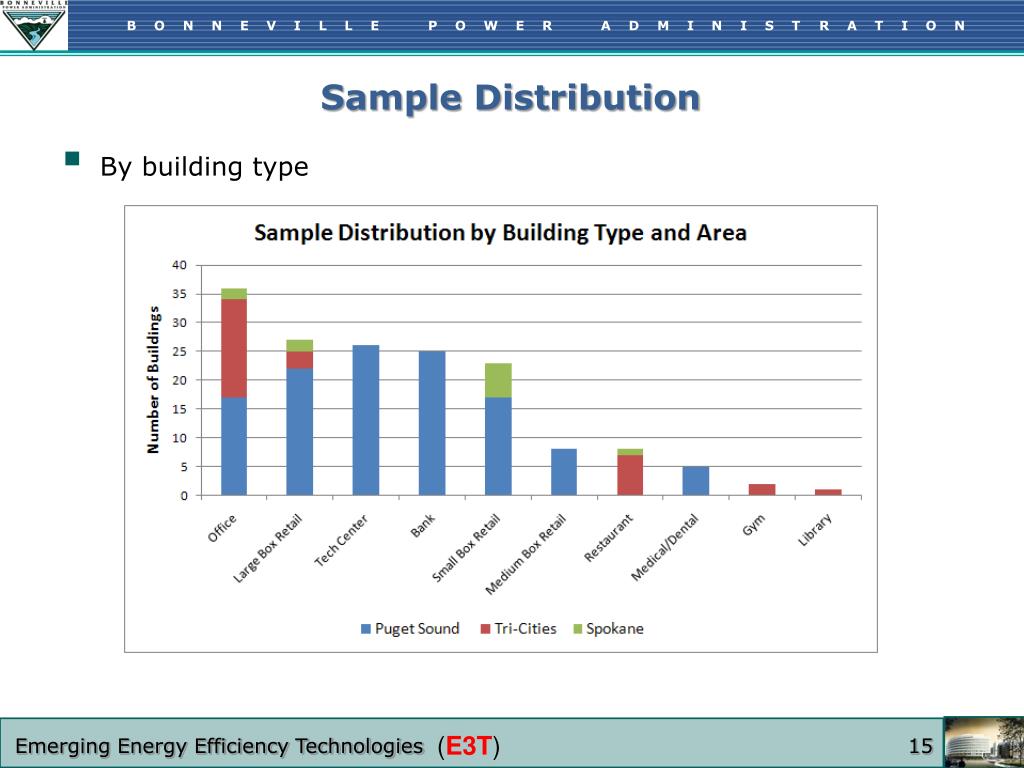

  15. Sample Distribution • By building type Emerging Energy Efficiency Technologies

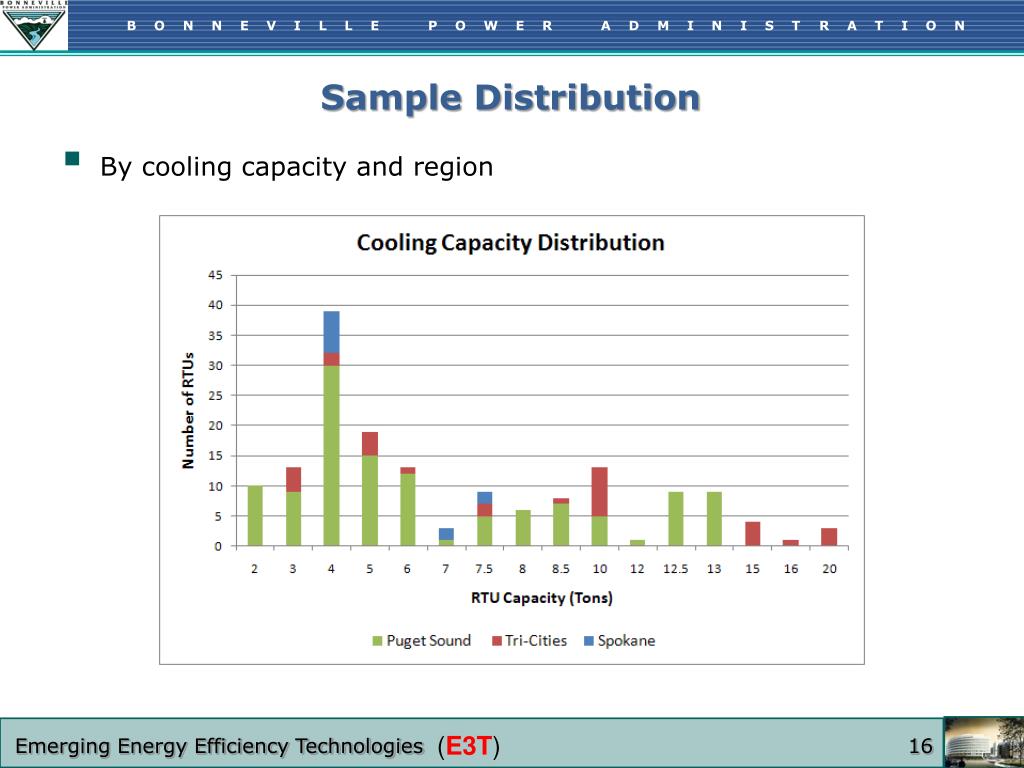

  16. Sample Distribution • By cooling capacity and region Emerging Energy Efficiency Technologies

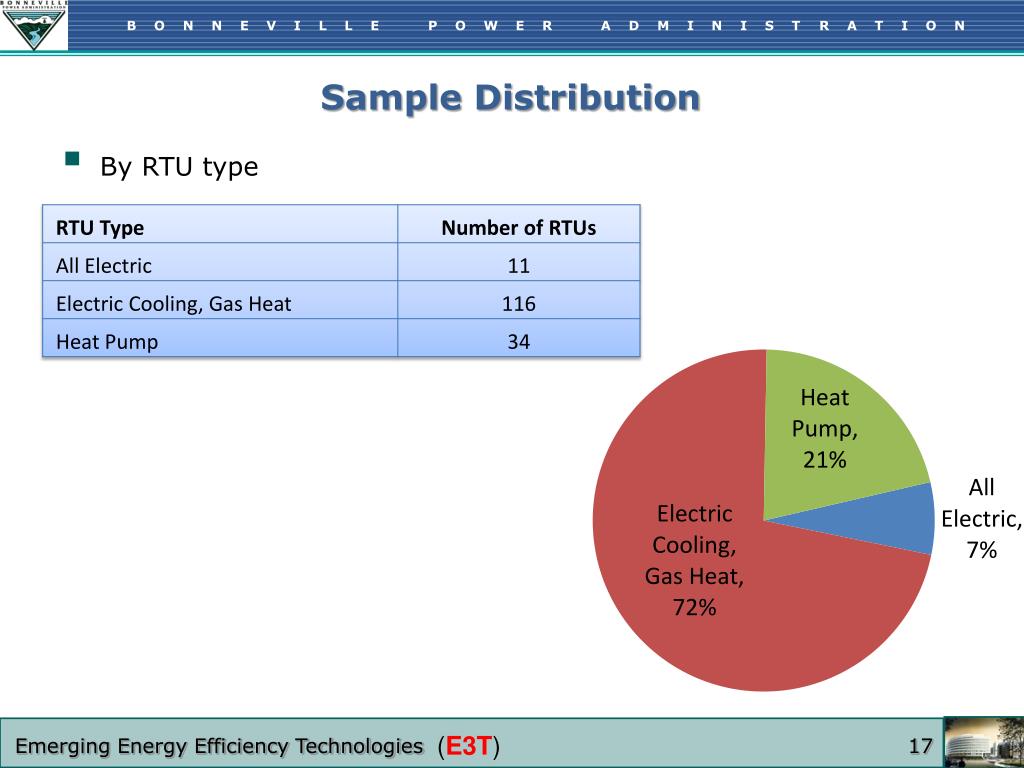

  17. Sample Distribution • By RTU type Emerging Energy Efficiency Technologies

  18. Detailed Findings • Metered data • PTHVAC estimates • FDSI estimates Emerging Energy Efficiency Technologies

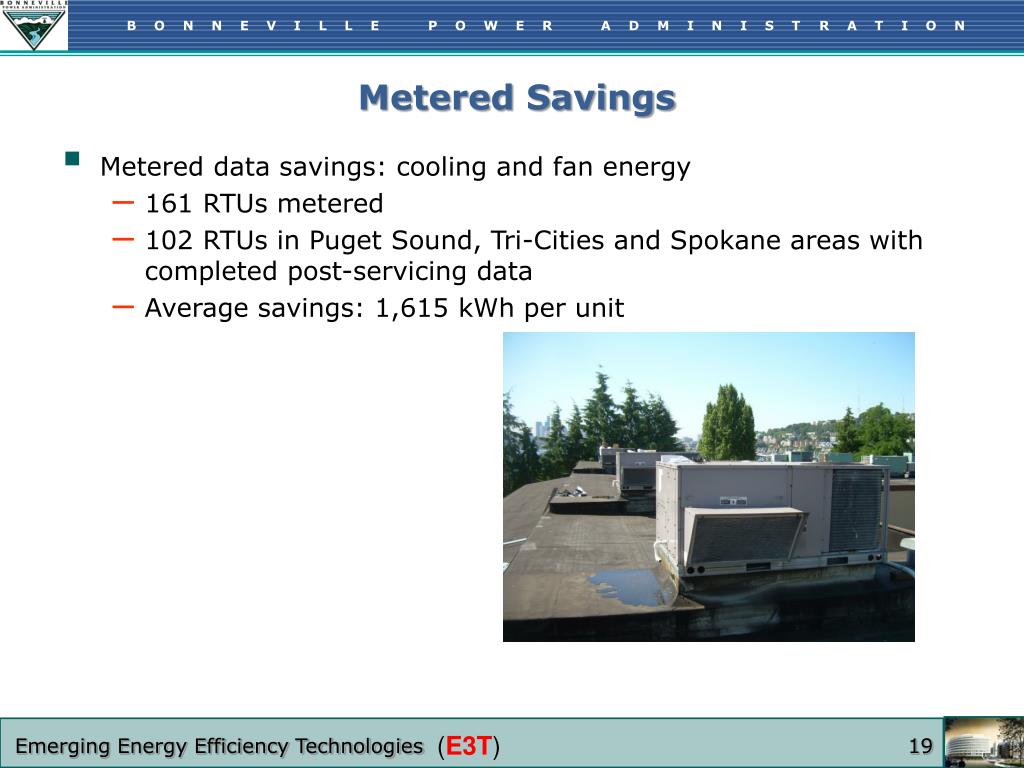

  19. Metered Savings • Metered data savings: cooling and fan energy • 161 RTUs metered • 102 RTUs in Puget Sound, Tri-Cities and Spokane areas with completed post-servicing data • Average savings: 1,615 kWh per unit Emerging Energy Efficiency Technologies

  20. Metered Savings • Total cooling and fan energy savings Emerging Energy Efficiency Technologies

  21. Metered Savings • Total cooling and fan energy savings Emerging Energy Efficiency Technologies

  22. Metered Savings • Compressor and fan savings (kWh/ton) Emerging Energy Efficiency Technologies

  23. Metered Savings • Average savings by rated cooling capacity Emerging Energy Efficiency Technologies

  24. Metered Savings • Savings in kWh/ton for each RTU Emerging Energy Efficiency Technologies

  25. Metered Savings • Total cooling and fan energy savings for RTUs at least seven tons Emerging Energy Efficiency Technologies

  26. Metered Savings • Metered savings for 3- to 6-ton units Emerging Energy Efficiency Technologies

  27. Metered Savings • Average savings by servicing company Emerging Energy Efficiency Technologies

  28. Metered Savings • Average savings by unit age • Average savings by RTU type Emerging Energy Efficiency Technologies

  29. Metered Savings • Savings by existing servicing contract Emerging Energy Efficiency Technologies

  30. Service Measures • Thermostat measures • Replacement • Setpoint or schedule changes • Economizer measures • Economizer commissioning • Setpoint changes • Fixing dampers • Replacing or repairing broken parts • Minimum and maximum ventilation adjustment • Refrigeration cycle measures • Condenser coil cleaning • Evaporator coil cleaning • Refrigerant charge adjustment • System airflow adjustment Emerging Energy Efficiency Technologies

  31. Service Measures Savings • Ten RTUs with the greatest savings Emerging Energy Efficiency Technologies

  32. Service Measures Savings • Thermostat measures: operating schedules • Average savings for 30 RTUs: 3,307 kWh • Average savings 7 tons and greater: 5,198 kWh • All had positive savings • 83% of the units realized savings • Maximum savings: 15,408 kWh Emerging Energy Efficiency Technologies

  33. Service Measures Savings • Thermostat measures: operating schedules • Baseline conditions • 34% of units ran at least 95% of the time • Building types • Included banks, offices and small box retail • After servicing • Fan duty: • Decreased in only 10 of the units • Nine of 10 had significant savings • Banks: • Four RTUs did not change from 24-7 • Offices and small retail: • Six of 14 RTUs reduced their schedules Emerging Energy Efficiency Technologies

  34. Service Measures Savings • Economizer measures: economizer changeover temperature adjustment compared to change in percent compressor operation Emerging Energy Efficiency Technologies

  35. Service Measures Savings • Economizer measures: percent outside air in RTU0022 Emerging Energy Efficiency Technologies

  36. Service Measures Savings • Economizer measures: minimum ventilation adjustment • Correlation: • Cannot isolate effect of minimum ventilation increase • Code settings: • Proper settings were not provided to the technicians for each building type • Result: non-uniform changes for each building type • Measurement inaccuracy, calculation uncertainty: • Inaccuracies in onsite measurements • Difficulty of precision during adjustments • Uncertainty in the calculations Emerging Energy Efficiency Technologies

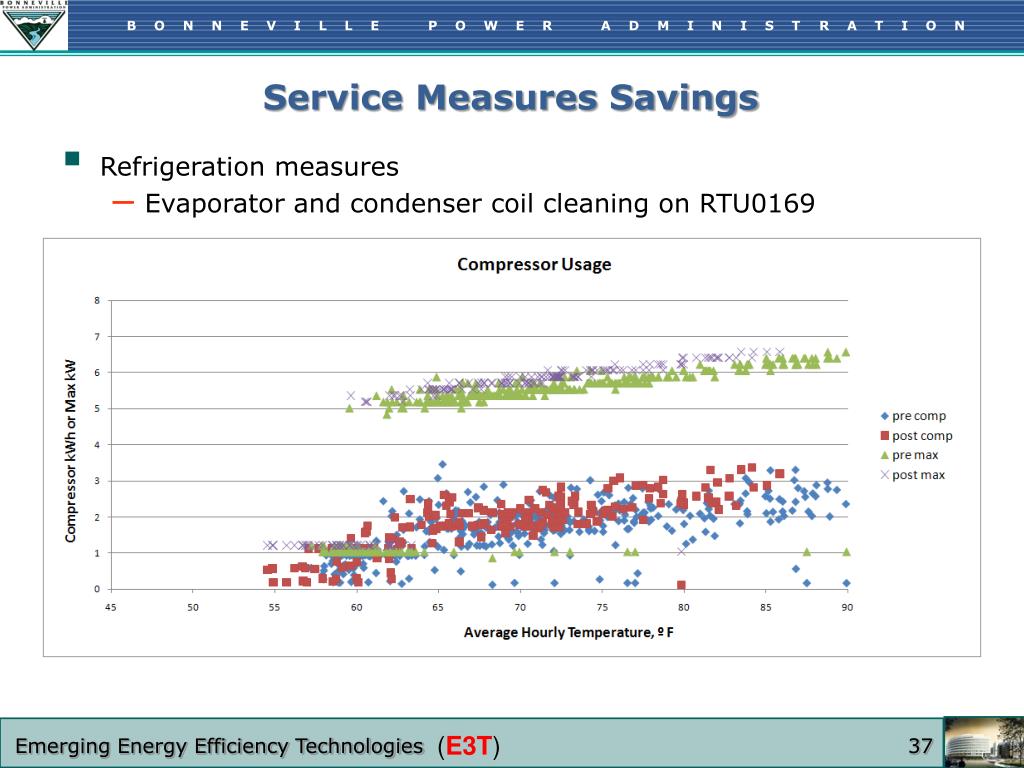

  37. Service Measures Savings • Refrigeration measures • Evaporator and condenser coil cleaning on RTU0169 Emerging Energy Efficiency Technologies

  38. Service Measures Savings • Refrigeration measures: refrigerant charge adjustment • No strong correlation to extreme savings • 10 units received RCA and economizer measures (thermostat measures removed) • Average savings: 1,954 kWh • Refrigeration measures: system airflow adjustment • Caused increase in fan power • Resulted in higher daily base load • Increased annual electric energy Emerging Energy Efficiency Technologies

  39. Service Measures Savings • Refrigeration measures: system airflow adjustment on RTU0034 Emerging Energy Efficiency Technologies

  40. Service Measures Savings • Refrigeration measures: system airflow adjustment • Units with thermostat measures are not shown Emerging Energy Efficiency Technologies

  41. Service Measures Savings • Little to no savings: • 55 out of 102 units showed savings of ± 1,000 kWh, an average savings of 3% • RTU size: 40 were less than 7 tons • PTHVAC package A for 38of the 46that received a PTHVAC package • Unit age: 1 to 24 years • Servicing measures: combination of all available measures Emerging Energy Efficiency Technologies

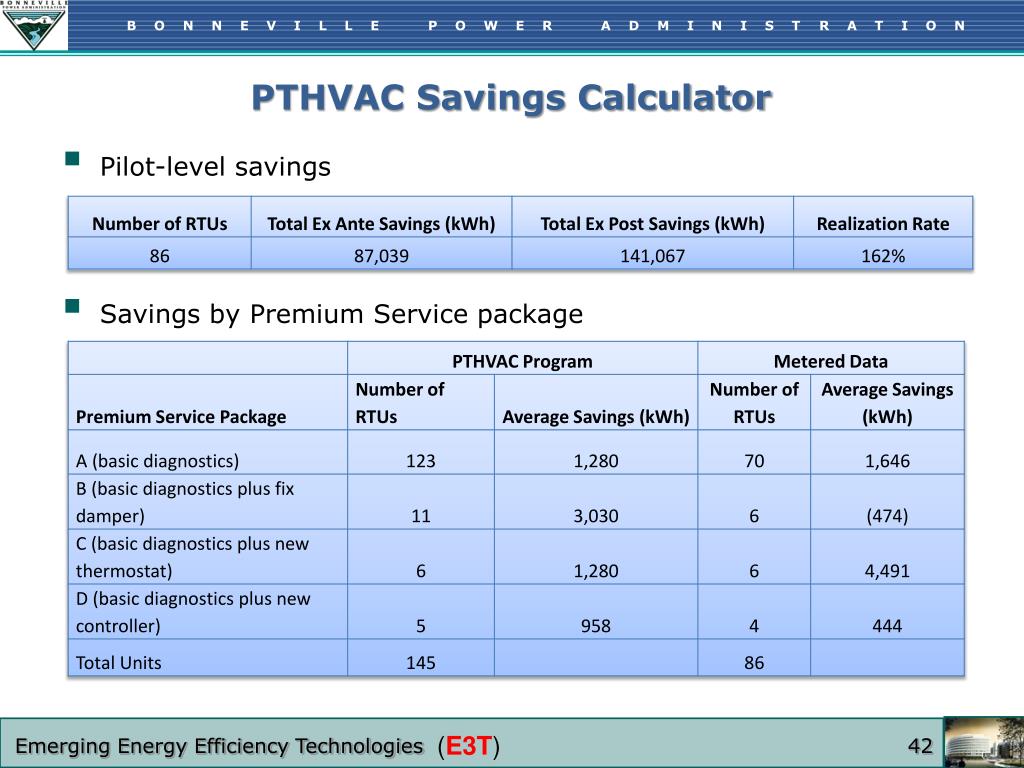

  42. PTHVAC Savings Calculator • Pilot-level savings • Savings by Premium Service package Emerging Energy Efficiency Technologies

  43. PTHVAC Savings Calculator • Estimated savings (kWh) for 145 RTUs • Average savings: 1,402 kWh • Median savings: 706 kWh Emerging Energy Efficiency Technologies

  44. FDSI Service Assistant Tool • FDSI default runtime and equivalent full load hours (EFLH) • Default EFLH: 1,200 hours • Default runtime for each compressor: • Compressor 1: 1,956 hours • Compressor 2: 1,452 hours • Compressor 3: 948 hours • Compressor 4: 444 hours Emerging Energy Efficiency Technologies

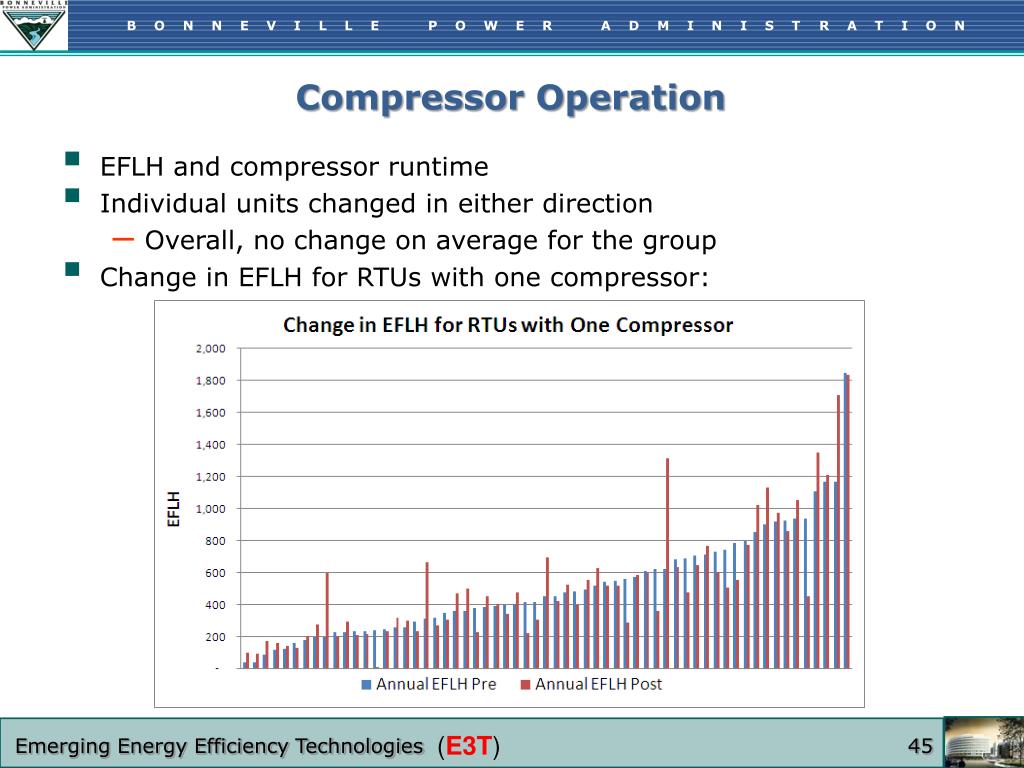

  45. Compressor Operation • EFLH and compressor runtime • Individual units changed in either direction • Overall, no change on average for the group • Change in EFLH for RTUs with one compressor: Emerging Energy Efficiency Technologies

  46. RTUs Monitored After the Cooling Season • By RTU type • Fan characteristics • Fan duty did not change in 9 of 10 units that ran 100% of the time before servicing • 6 units served spaces that did not operate overnight or on weekends • Fan power increased in most sites where system airflow adjustment was performed Emerging Energy Efficiency Technologies

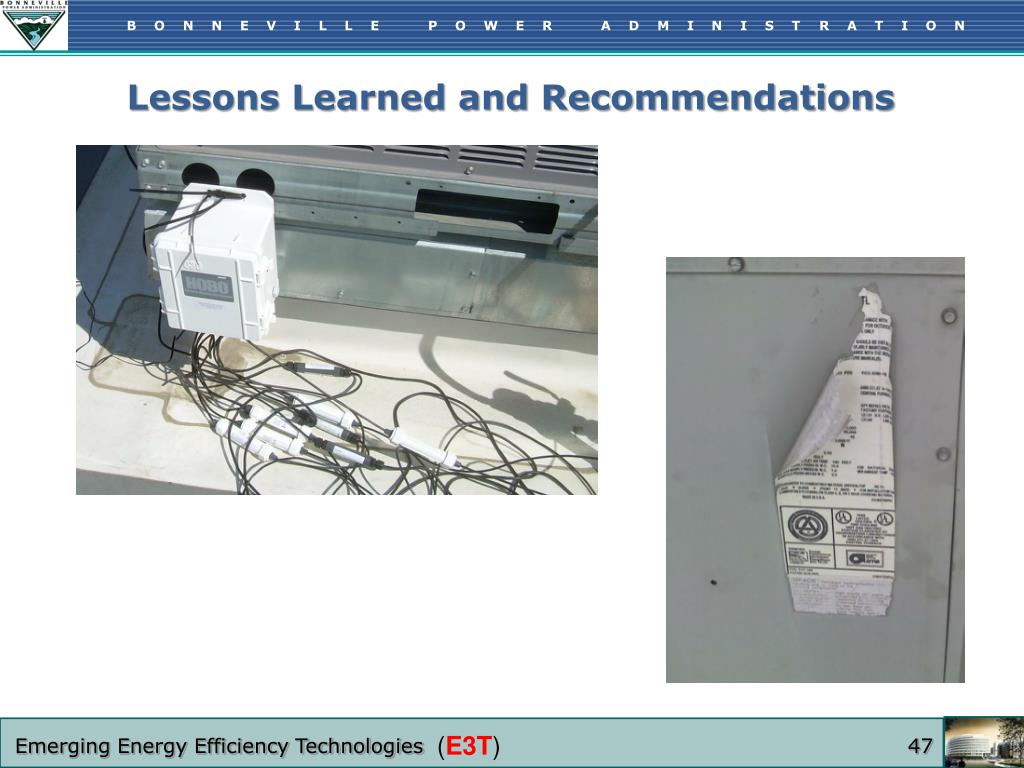

  47. Lessons Learned and Recommendations Emerging Energy Efficiency Technologies

  48. M&V Lessons Learned • Challenging to collect detailed information in a large-scale project • Building and RTU characteristics • Servicing data • Possible error sources: • Recording by the field staff and service technicians • FDSI and PTHVAC estimates based off incorrect tonnages • Office staff entering data from faxed forms • Interpreting data and choosing PTHVAC package type for energy savings estimates • PTHVAC savings estimates • Disconnect between service technicians and owner/operators • Monitoring equipment issues • Most issues resolved after initial learning curve • HOBO/Onset issues: • HOBOlink data gaps • Weak connections in remote areas caused cell phone plans to reach their data transfer limit • Monitoring the cooling call Emerging Energy Efficiency Technologies

  49. Recommendations and Conclusions • Fan energy is a key factor in savings • Pre-screening: all units average 172 kWh/ton and 1,615 kWh • Limit unit age ≥ 5 years: • 228 kWh/ton • 2,225 kWh • Limit capacity ≥ 7 tons: • 301 kWh/ton • 3,268 kWh • Limit unit age ≥ 5 years and capacity ≥ 7 tons • 456 kWh/ton • 5,308 kWh • Heat pump winter operation requires additional research • Outside air temperature • Total unit power Emerging Energy Efficiency Technologies

  50. Recommendations and Conclusions • Measures • Thermostat measures generate the greatest savings, although persistence may be an issue • Minimum ventilation measurement needs more research • Minimum points for basic monitoring: outside air and power • Missed opportunity • Fan duty cycles could have been decreased on 24-7 units without 24-7 occupancy • Annual metering • Use these units to examine persistence, heat pump performance • Verification of annualization protocol and correlation between TMY3 and measured outside air temperatures Emerging Energy Efficiency Technologies
