  1. Chapter 17How to read a table of codons

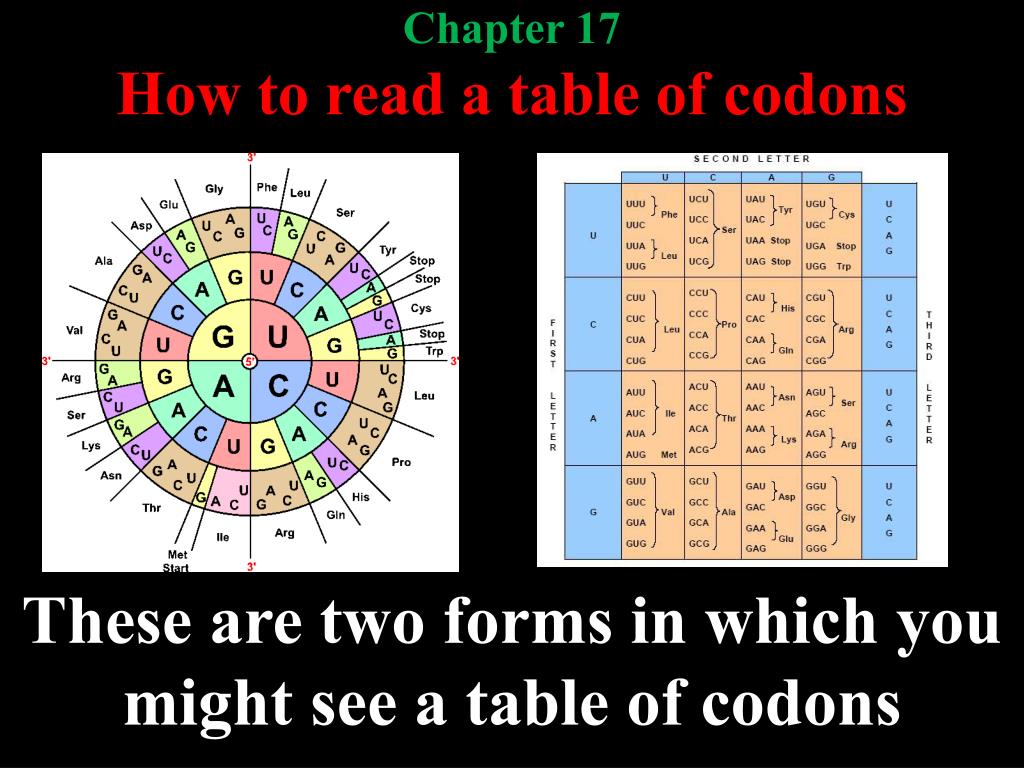

  2. Chapter 17How to read a table of codons These are two forms in which you might see a table of codons

  3. Chapter 17How to read a table of codons You read DNA from 3’ to 5’ (anticodons)→ You read RNA from 5’ to 3’ (codons)→

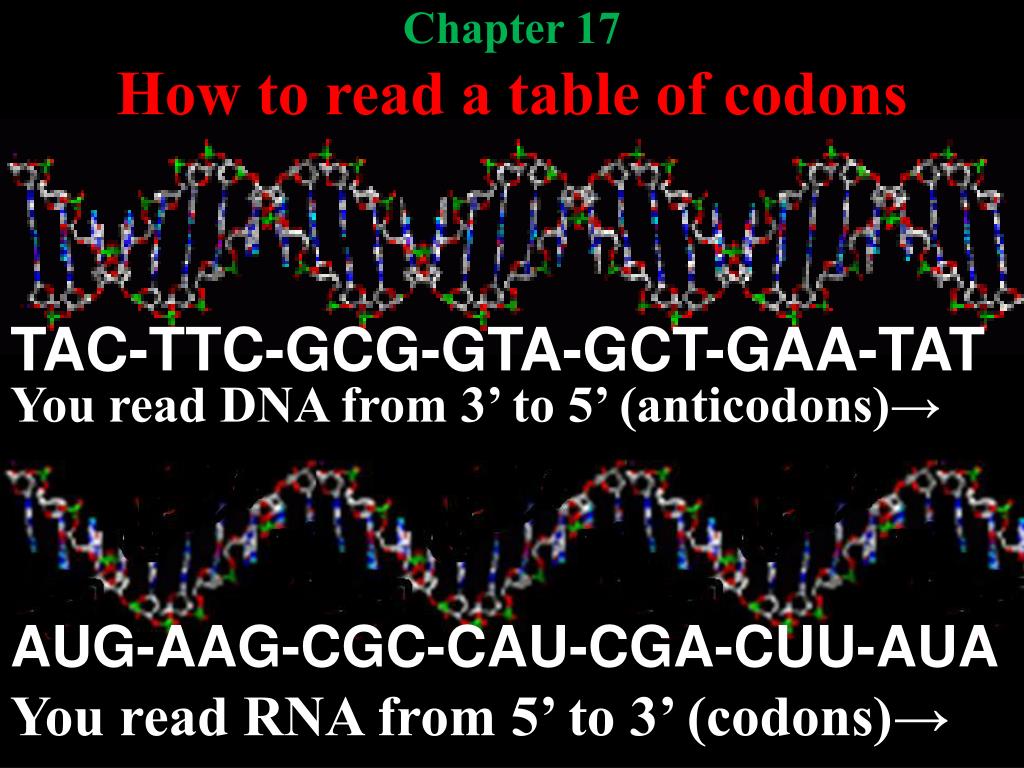

  4. Chapter 17How to read a table of codons TAC-TTC-GCG-GTA-GCT-GAA-TAT You read DNA from 3’ to 5’ (anticodons)→ AUG-AAG-CGC-CAU-CGA-CUU-AUA You read RNA from 5’ to 3’ (codons)→

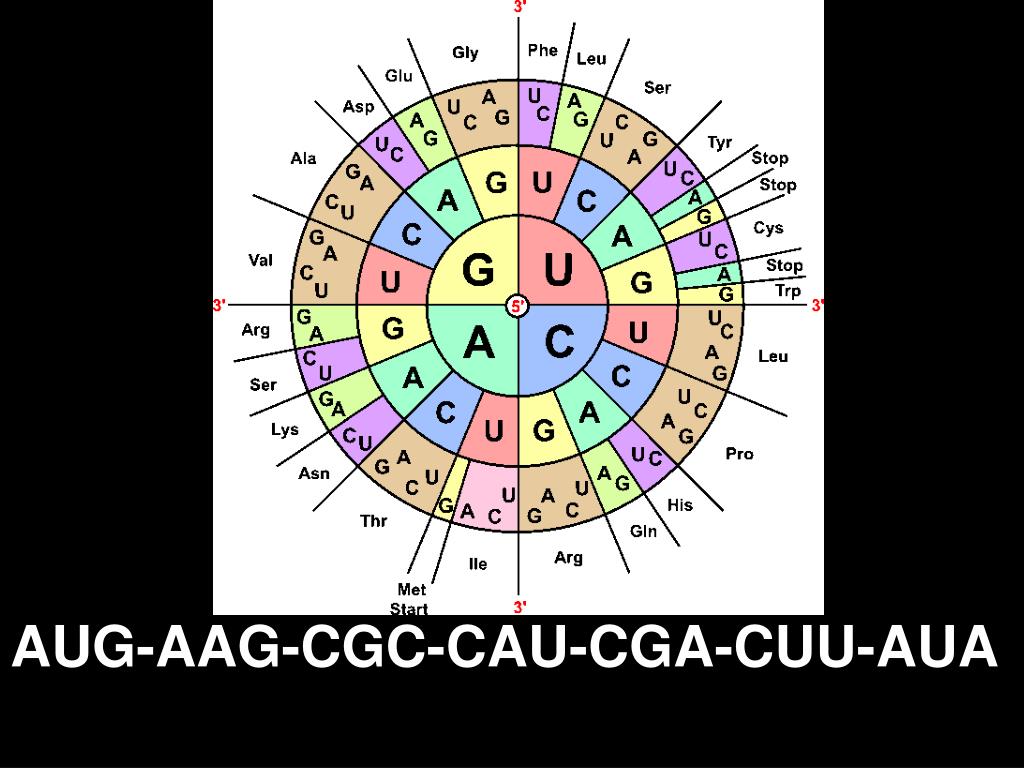

  5. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA

  6. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA

  7. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA

  8. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met

  9. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met

  10. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met

  11. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met - lys

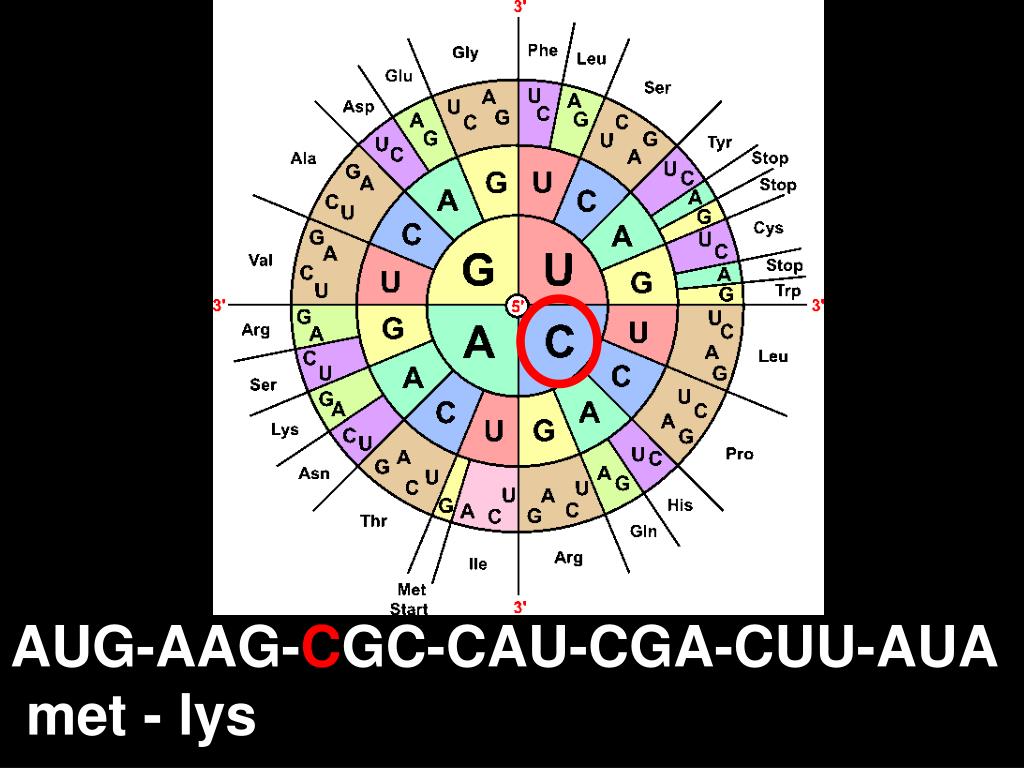

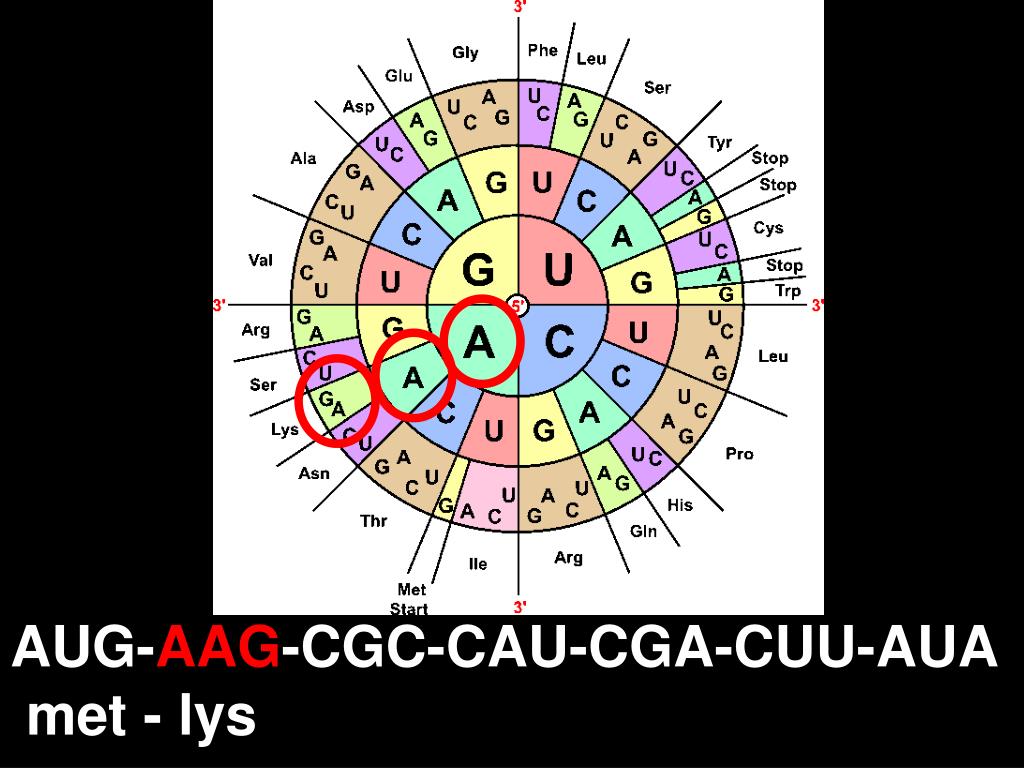

  12. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met - lys

  13. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met - lys

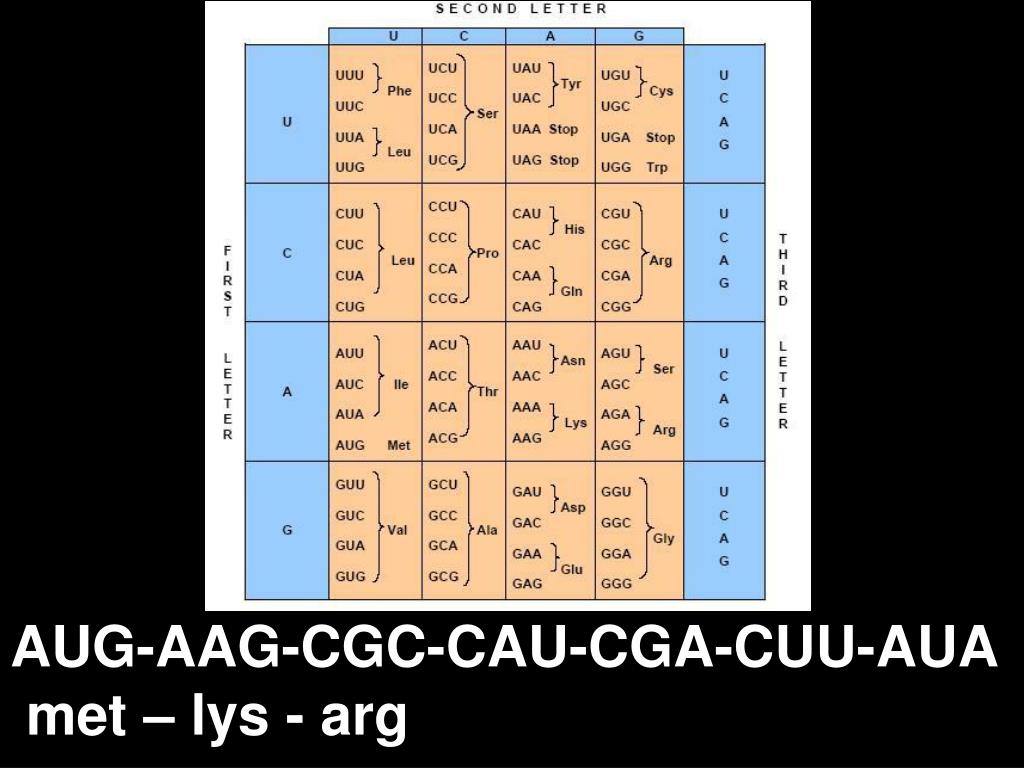

  14. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys - arg

  15. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys - arg

  16. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys - arg

  17. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys - arg

  18. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys – arg - his

  19. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys – arg - his

  20. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys – arg - his

  21. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys – arg – his - arg

  22. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys – arg – his - arg

  23. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys – arg – his - arg

  24. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys – arg – his – arg - leu

  25. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys – arg – his – arg - leu

  26. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met – lys – arg – his – arg - leu

  27. Chapter 17 AUG-AAG-CGC-CAU-CGA-CUU-AUA met - lys - arg - his - arg - leu - lie

  28. 3’ → anticodons → 5’ TAC-TTC-GCG-GTA-GCT-GAA-TAT 5’ → codons → 3’ AUG-AAG-CGC-CAU-CGA-CUU-AUA met - lys - arg - his - arg - leu - lie

  29. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ TTG-CTA-CAG-TAG 3’ • 3’ AAC-GAC-GUC-AUA 5’ • 5’ AUG-CTG-CAG-TAT 3’ • 3’ AAA-AAT-ATA-ACA 5’ • 3’ AAA-GAA-TAA-CAA 5’

  30. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ TTG-CTA-CAG-TAG 3’ • 3’ AAC-GAC-GUC-AUA 5’ • 5’ AUG-CTG-CAG-TAT 3’ • 3’ AAA-AAT-ATA-ACA 5’ • 3’ AAA-GAA-TAA-CAA 5’ • Anticodons, 3’ → 5’

  31. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ TTG-CTA-CAG-TAG 3’ • 3’ AAC-GAC-GUC-AUA 5’ • 5’ AUG-CTG-CAG-TAT 3’ • 3’ AAA-AAT-ATA-ACA 5’ • 3’ AAA-GAA-TAA-CAA 5’ • Anticodons, 3’ → 5’

  32. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 3’ GAT-GAC-ATC-GTT 5’ • 3’ AAC-GAC-GUC-AUA 5’ • 3’ TAT-GAC-GTC-GUA 5’ • 3’ AAA-AAT-ATA-ACA 5’ • 3’ AAA-GAA-TAA-CAA 5’ • Anticodons, 3’ → 5’

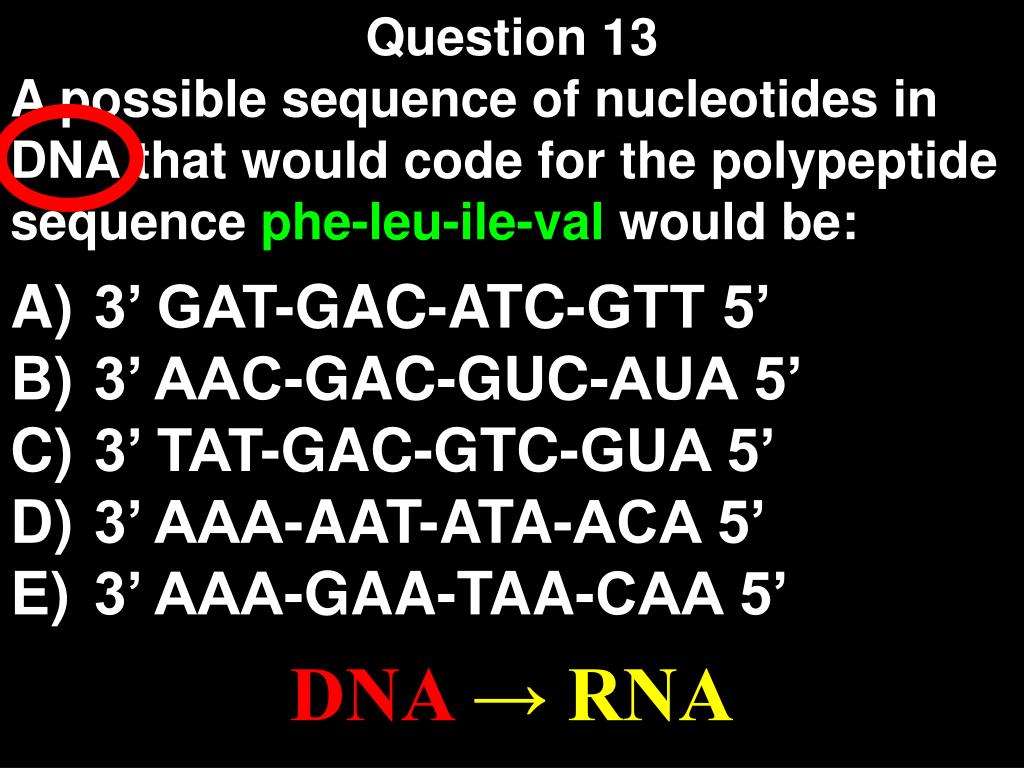

  33. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 3’ GAT-GAC-ATC-GTT 5’ • 3’ AAC-GAC-GUC-AUA 5’ • 3’ TAT-GAC-GTC-GUA 5’ • 3’ AAA-AAT-ATA-ACA 5’ • 3’ AAA-GAA-TAA-CAA 5’ • DNA → RNA

  34. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 3’ GAT-GAC-ATC-GTT 5’ • 3’ AAC-GAC-GUC-AUA 5’ • 3’ TAT-GAC-GTC-GUA 5’ • 3’ AAA-AAT-ATA-ACA 5’ • 3’ AAA-GAA-TAA-CAA 5’ • DNA → RNA

  35. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • 3’ AAC-GAC-GUC-AUA 5’ • 3’ TAT-GAC-GTC-GUA 5’ • 3’ AAA-AAT-ATA-ACA 5’ • 3’ AAA-GAA-TAA-CAA 5’ • DNA → RNA

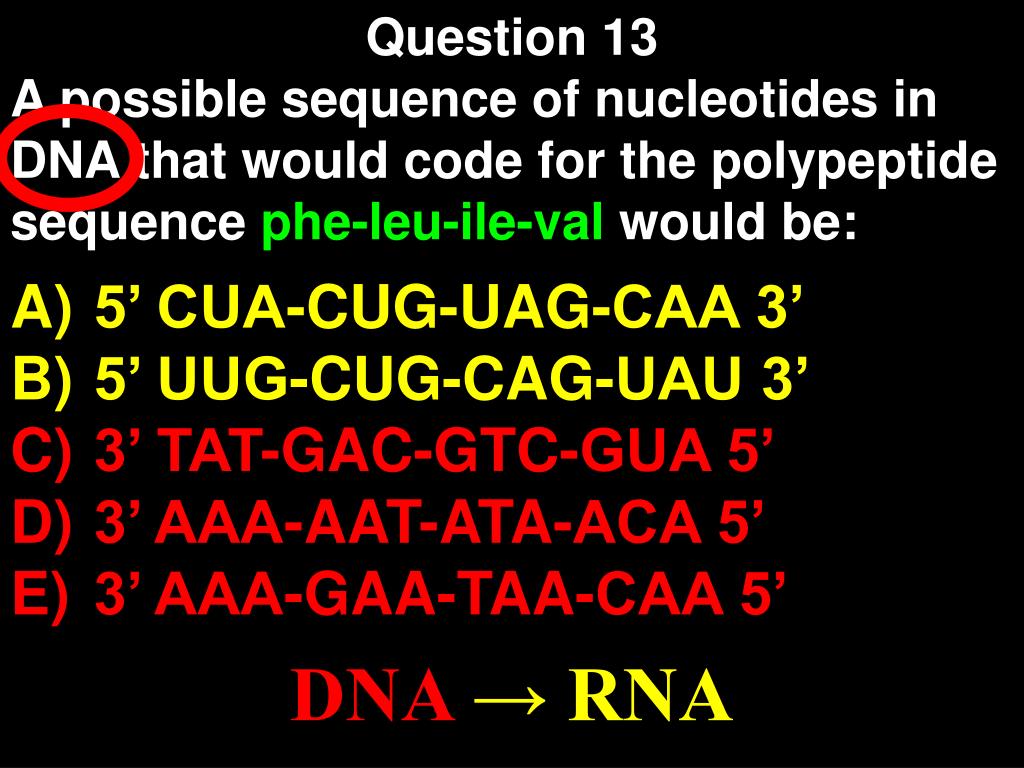

  36. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • 5’ UUG-CUG-CAG-UAU 3’ • 3’ TAT-GAC-GTC-GUA 5’ • 3’ AAA-AAT-ATA-ACA 5’ • 3’ AAA-GAA-TAA-CAA 5’ • DNA → RNA

  37. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • 5’ UUG-CUG-CAG-UAU 3’ • 5’ AUA-CUG-CAG-CAU 3’ • 3’ AAA-AAT-ATA-ACA 5’ • 3’ AAA-GAA-TAA-CAA 5’ • DNA → RNA

  38. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • 5’ UUG-CUG-CAG-UAU 3’ • 5’ AUA-CUG-CAG-CAU 3’ • 5’ UUU-UUA-UAU-UGU 3’ • 3’ AAA-GAA-TAA-CAA 5’ • DNA → RNA

  39. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • 5’ UUG-CUG-CAG-UAU 3’ • 5’ AUA-CUG-CAG-CAU 3’ • 5’ UUU-UUA-UAU-UGU 3’ • 5’ UUU-CUU-AUU-GUU 3’ • DNA → RNA

  40. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • 5’ UUG-CUG-CAG-UAU 3’ • 5’ AUA-CUG-CAG-CAU 3’ • 5’ UUU-UUA-UAU-UGU 3’ • 5’ UUU-CUU-AUU-GUU 3’ • DNA → RNA → amino acids

  41. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • leu • B) 5’ UUG-CUG-CAG-UAU 3’ • C) 5’ AUA-CUG-CAG-CAU 3’ • D) 5’ UUU-UUA-UAU-UGU 3’ • E) 5’ UUU-CUU-AUU-GUU 3’

  42. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • leu • B) 5’ UUG-CUG-CAG-UAU 3’ • C) 5’ AUA-CUG-CAG-CAU 3’ • D) 5’ UUU-UUA-UAU-UGU 3’ • E) 5’ UUU-CUU-AUU-GUU 3’

  43. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • B) 5’ UUG-CUG-CAG-UAU 3’ • C) 5’ AUA-CUG-CAG-CAU 3’ • D) 5’ UUU-UUA-UAU-UGU 3’ • E) 5’ UUU-CUU-AUU-GUU 3’

  44. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • B) 5’ UUG-CUG-CAG-UAU 3’ • leu • C) 5’ AUA-CUG-CAG-CAU 3’ • D) 5’ UUU-UUA-UAU-UGU 3’ • E) 5’ UUU-CUU-AUU-GUU 3’

  45. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • B) 5’ UUG-CUG-CAG-UAU 3’ • leu • C) 5’ AUA-CUG-CAG-CAU 3’ • D) 5’ UUU-UUA-UAU-UGU 3’ • E) 5’ UUU-CUU-AUU-GUU 3’

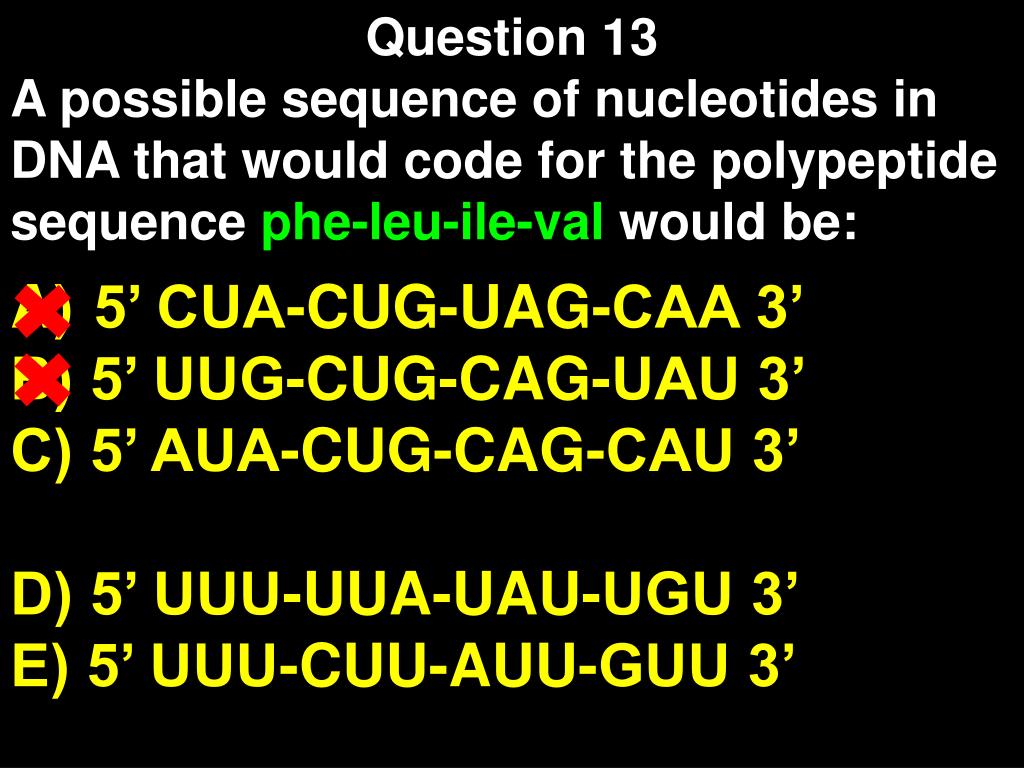

  46. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • B) 5’ UUG-CUG-CAG-UAU 3’ • C) 5’ AUA-CUG-CAG-CAU 3’ • D) 5’ UUU-UUA-UAU-UGU 3’ • E) 5’ UUU-CUU-AUU-GUU 3’

  47. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • B) 5’ UUG-CUG-CAG-UAU 3’ • C) 5’ AUA-CUG-CAG-CAU 3’ • lie • D) 5’ UUU-UUA-UAU-UGU 3’ • E) 5’ UUU-CUU-AUU-GUU 3’

  48. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • B) 5’ UUG-CUG-CAG-UAU 3’ • C) 5’ AUA-CUG-CAG-CAU 3’ • lie • D) 5’ UUU-UUA-UAU-UGU 3’ • E) 5’ UUU-CUU-AUU-GUU 3’

  49. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • B) 5’ UUG-CUG-CAG-UAU 3’ • C) 5’ AUA-CUG-CAG-CAU 3’ • D) 5’ UUU-UUA-UAU-UGU 3’ • E) 5’ UUU-CUU-AUU-GUU 3’

  50. Question 13 A possible sequence of nucleotides in DNA that would code for the polypeptide sequence phe-leu-ile-val would be: • 5’ CUA-CUG-UAG-CAA 3’ • B) 5’ UUG-CUG-CAG-UAU 3’ • C) 5’ AUA-CUG-CAG-CAU 3’ • D) 5’ UUU-UUA-UAU-UGU 3’ • phe • E) 5’ UUU-CUU-AUU-GUU 3’
