iNOW! Interdomain Profile Version 2.1 (AG Approved)

iNOW! Interdomain Profile Version 2.1 (AG Approved). SIG Chairs: Boaz Michaely, VocalTec Comm. Ltd boaz@vocaltec.com Terry L. Anderson, Lucent Technologies tla@lucent.com. Interdomain v2.1 Overview. Scope phone-to-phone, fax-to-fax service across administrative domains. GW-GW, GK-GK

soo
Télécharger la présentation

iNOW! Interdomain Profile Version 2.1 (AG Approved)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. iNOW! Interdomain Profile Version 2.1 (AG Approved) SIG Chairs: Boaz Michaely, VocalTec Comm. Ltd boaz@vocaltec.com Terry L. Anderson, Lucent Technologies tla@lucent.com

  2. Interdomain v2.1 Overview • Scope • phone-to-phone, fax-to-fax service across administrative domains. • GW-GW, GK-GK • Specific Points of reference: • GW to GW voice: H.323v2 using fast connect. • GW to GW Fax using T.38. • GK to GK using H.225.0 Annex G. • GRC and DRC allowed • Focus on Clearinghouse support

  3. CH Anx G - mandatory GK V2 GK/BE GK/BE V2 GK Annex G Usage OSP optional (V3 ?)

  4. Supported Models Zone A Zone B Annex G GK GK GW GW GW GW GW GW Inter Zone

  5. Supported Models Domain A Domain B Annex G GK/BE GK/BE GK GK GW GW GW GW GW GW Bilateral Agreement between domains

  6. Supported Models Clearing House BES Domain A Domain B CH/BE GK/BE GK/BE GK GK GW GW GW GW GW GW Clearing House

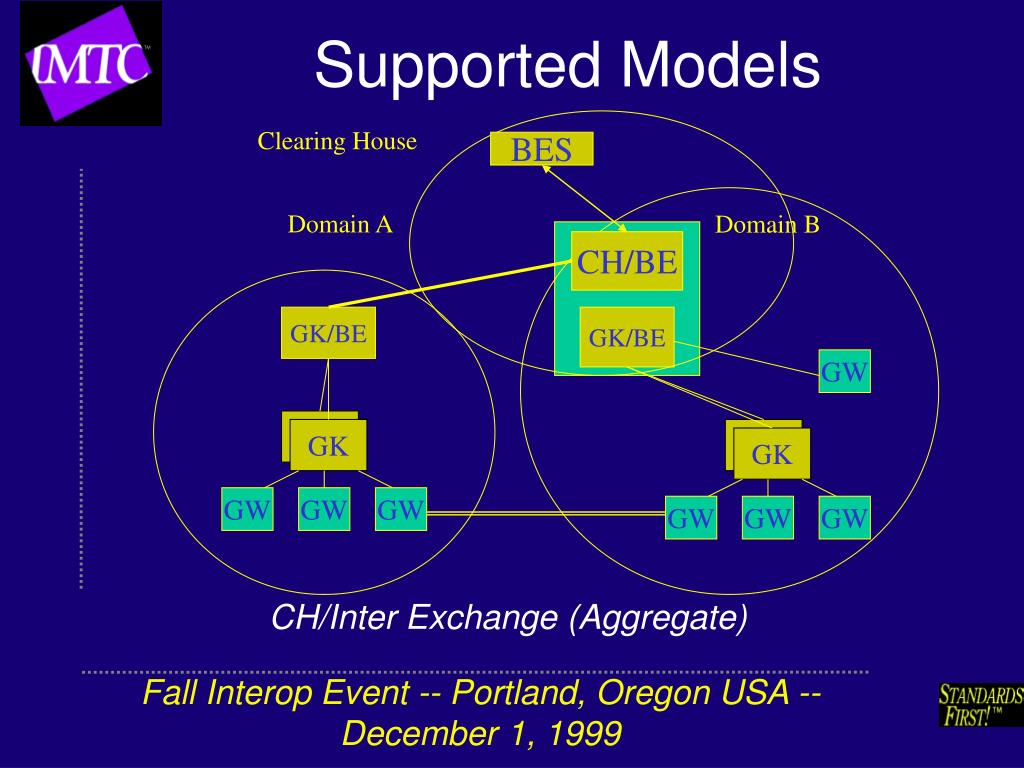

  7. GW Supported Models Clearing House BES Domain A Domain B CH/BE GK/BE GK/BE GK GK GW GW GW GW GW GW CH/Inter Exchange (Aggregate)

  8. Ability of CH to control access and monitor usage (CDR) on per-call online basis. Domains may be able to have similar control on access to each other. Supported prefixes are provisioned offline. Online provisioning (supported in Annex G) is optional - usage left unspecified. Requirements

  9. Expected Implementation Focus • Annex G: new, not all problem were envisioned. • Fax: usage of T.38. Similar reasons.

  10. Implementer’s Guide Scope • Delimited by the scope of iNOW v2: • Gateway to gateway and gatekeeper to gatekeeper. • Follow requirements specified in profile. • Stick to the scenarios described in the profile - do not add or delete! • Criteria for inclusion : • Ambiguities - “how to proceed when receiving message…” • Inconsistencies . • Significant performance penalty and security holes.
