Minimum Weight Triangulation

Minimum Weight Triangulation. Plamen Ivanov Problem 1 from The Open Problems Project http://maven.smith.edu/~orourke/TOPP/P1.html#gj-cigtn-79. The MWT. A minimum weight triangulation of P is a triangulation of P which has a minimum sum of the Euclidean lengths of its edges. Application:

sook
Télécharger la présentation

Minimum Weight Triangulation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

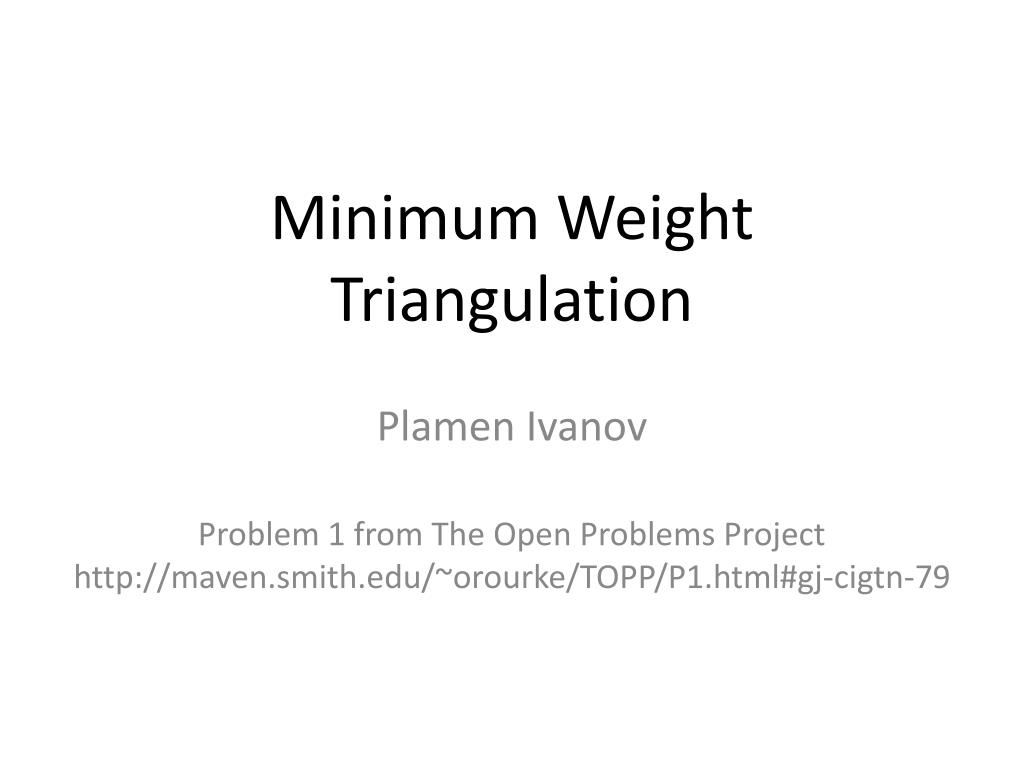

  1. Minimum Weight Triangulation PlamenIvanov Problem 1 from The Open Problems Project http://maven.smith.edu/~orourke/TOPP/P1.html#gj-cigtn-79

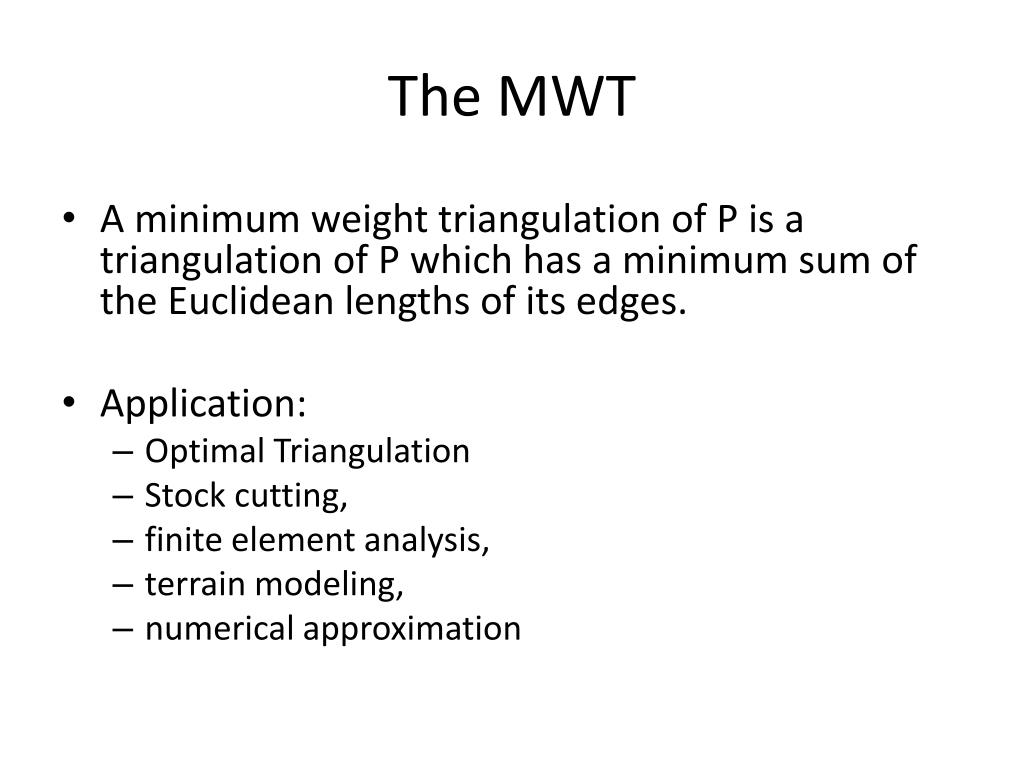

  2. The MWT • A minimum weight triangulation of P is a triangulation of P which has a minimum sum of the Euclidean lengths of its edges. • Application: • Optimal Triangulation • Stock cutting, • finite element analysis, • terrain modeling, • numerical approximation

  3. Example Triangulations Figure taken from: Mulzer, W., and Rote, G. 2008. Minimum-weight triangulation is NP-hard. J. ACM 55, 2, Article 11 (May 2008)

  4. The Question • Can a minimum weight triangulation of a planar point set---one minimizing the total edge length--be found in polynomial time?

  5. Approaches • Minimum Weight Steiner Triangulation: • David Eppstein: shows that by using a Quadtree and O(n) Steiner points a MWST can be approximated. Additionally the MWT has weight of θ(n) times that of the MWST. • Running time O(n log n + k) , where k is the number of Steiner points.

  6. A Quadtree

  7. Approaches • Minimum Weight Steiner Triangulation: • The Quadtree: • partitions the space which has the input set of points • each point is alone in a square • Steiner points: • add a Steiner point at each location where the convex hull of the points crosses a line segment of the quadtree. • include as Steiner points all corners of quadtreesquares

  8. Approaches • Greedy Approximations: • Christos Levcopoulos and DragoKrznaric: show a quasi-greedy approach that approximates the optimal by a tight factor of . Running time is O(n log n). • Matthew T. Dickerson, Scott A. McElfresh, and Mark H. Montague: give O(n2) running times for several algorithms for general cases

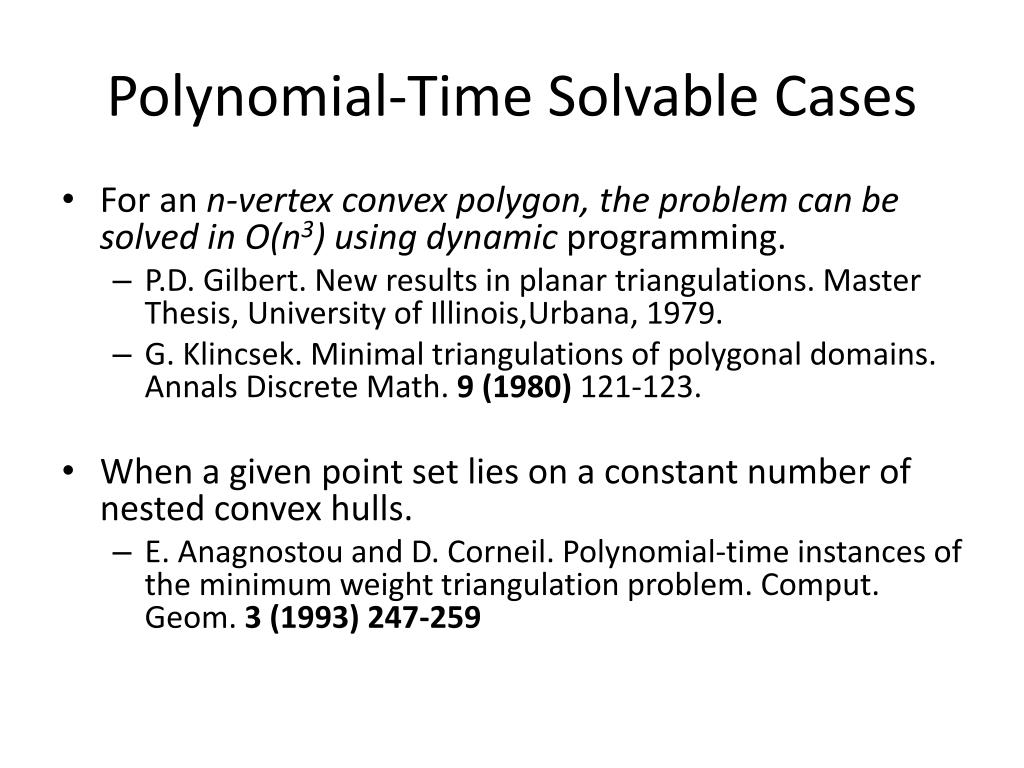

  9. Polynomial-Time Solvable Cases • For an n-vertex convex polygon, the problem can be solved in O(n3) using dynamic programming. • P.D. Gilbert. New results in planar triangulations. Master Thesis, University of Illinois,Urbana, 1979. • G. Klincsek. Minimal triangulations of polygonal domains. Annals Discrete Math. 9 (1980) 121-123. • When a given point set lies on a constant number of nested convex hulls. • E. Anagnostou and D. Corneil. Polynomial-time instances of the minimum weight triangulation problem. Comput. Geom. 3 (1993) 247-259

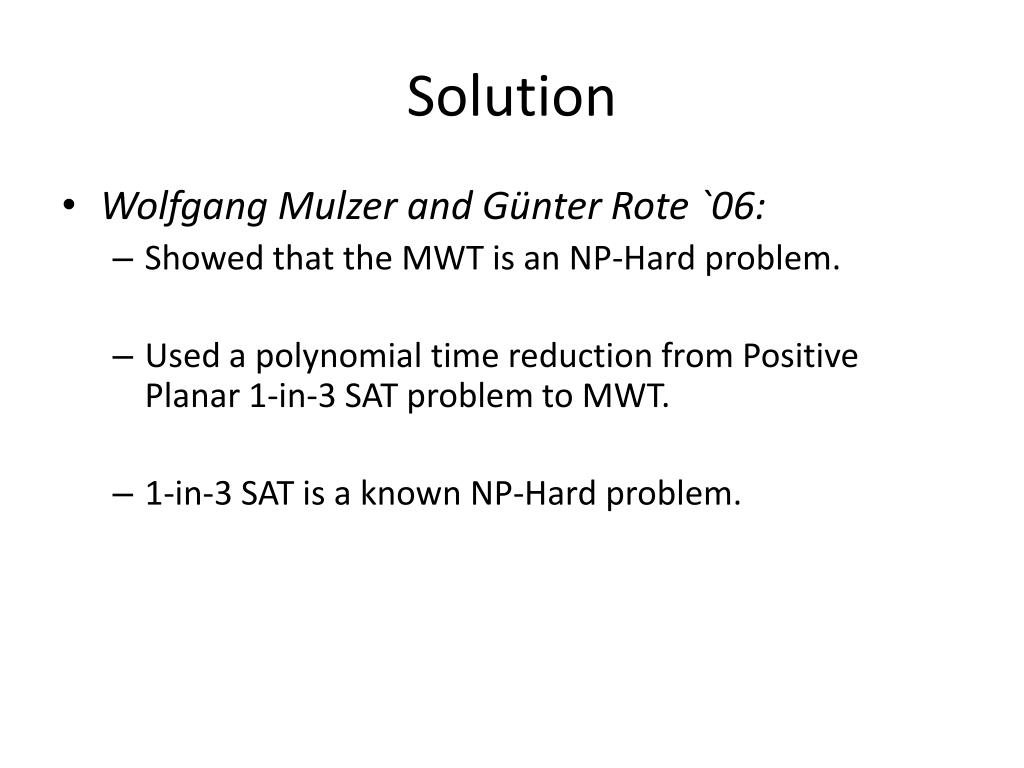

  10. Solution • Wolfgang Mulzer and Günter Rote `06: • Showed that the MWT is an NP-Hard problem. • Used a polynomial time reduction from Positive Planar 1-in-3 SAT problem to MWT. • 1-in-3 SAT is a known NP-Hard problem.

  11. Further Work • It is not known whether the MWT problem is in NP, since it is not known how to compare sums of Euclidean lengths in polynomial time.
