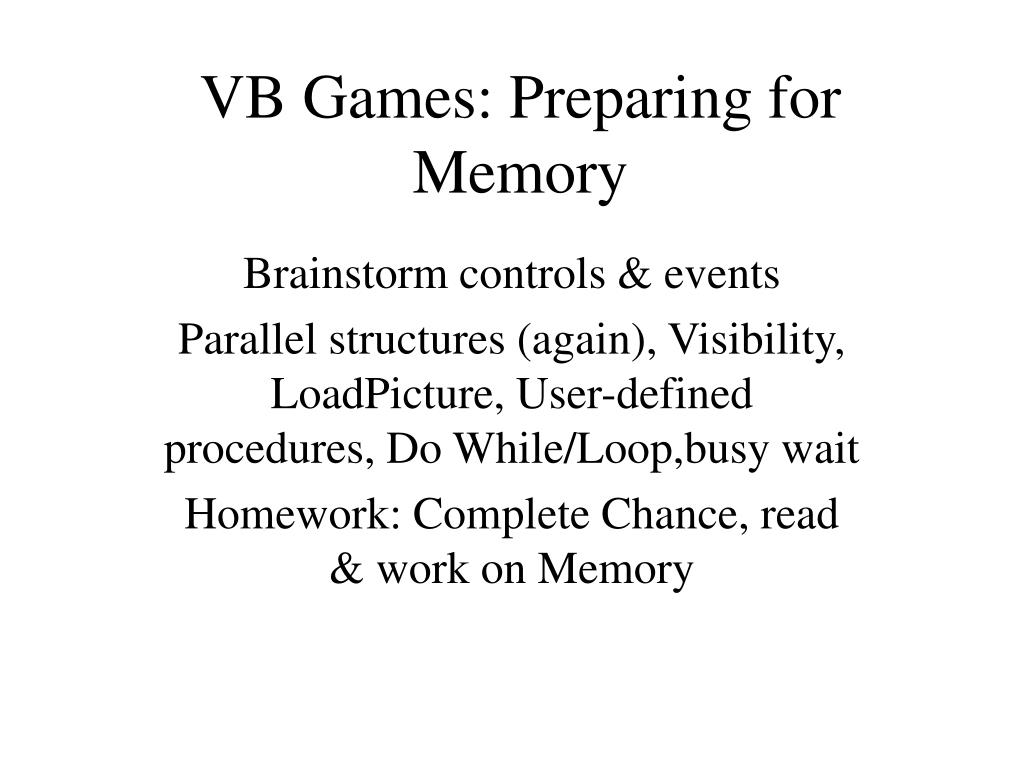

  1. VB Games: Preparing for Memory Brainstorm controls & events Parallel structures (again), Visibility, LoadPicture, User-defined procedures, Do While/Loop,busy wait Homework: Complete Chance, read & work on Memory

  2. Questions • Controls • Coding • Logic • ?

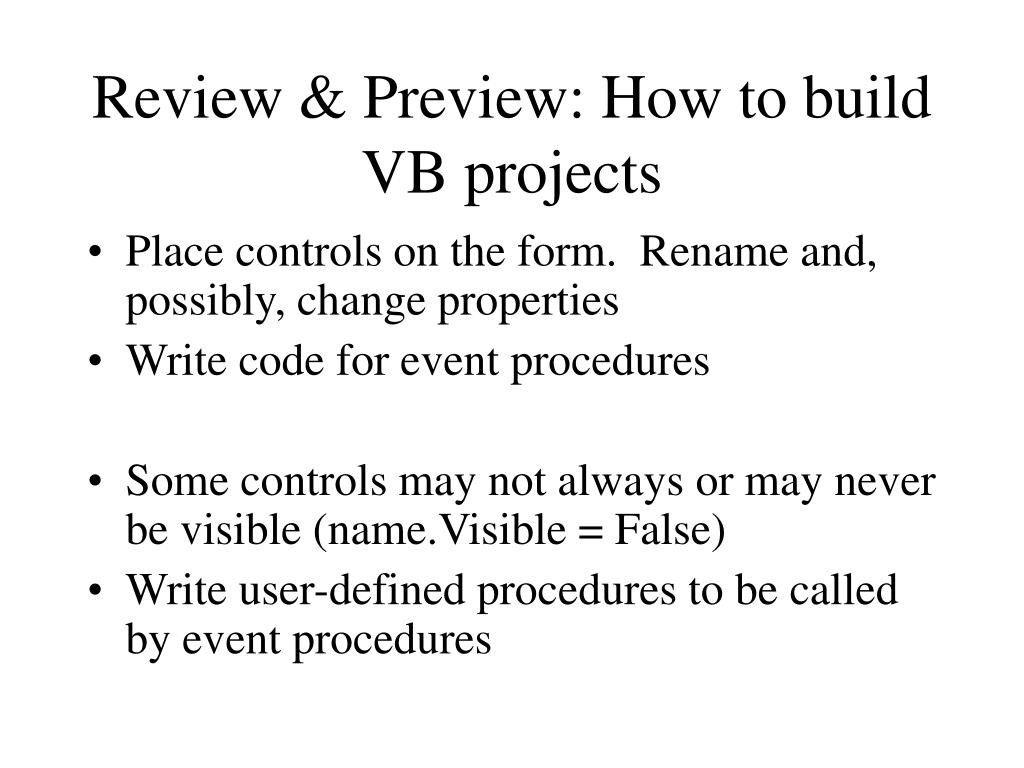

  3. Review & Preview: How to build VB projects • Place controls on the form. Rename and, possibly, change properties • Write code for event procedures • Some controls may not always or may never be visible (name.Visible = False) • Write user-defined procedures to be called by event procedures

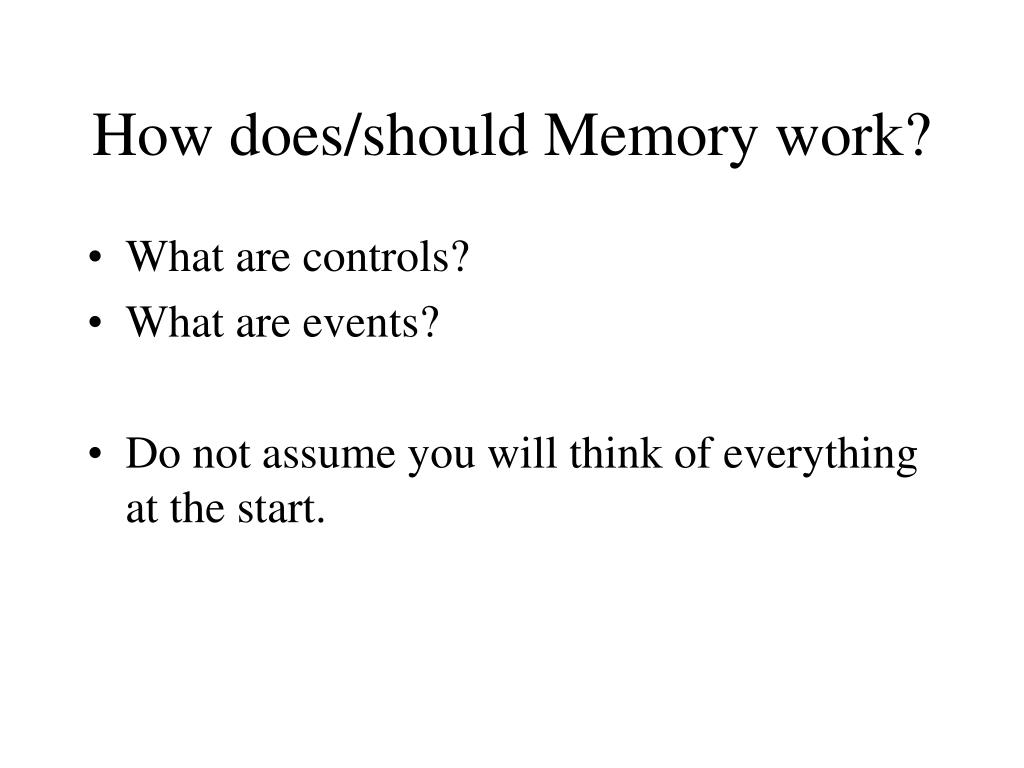

  4. How does/should Memory work? • What are controls? • What are events? • Do not assume you will think of everything at the start.

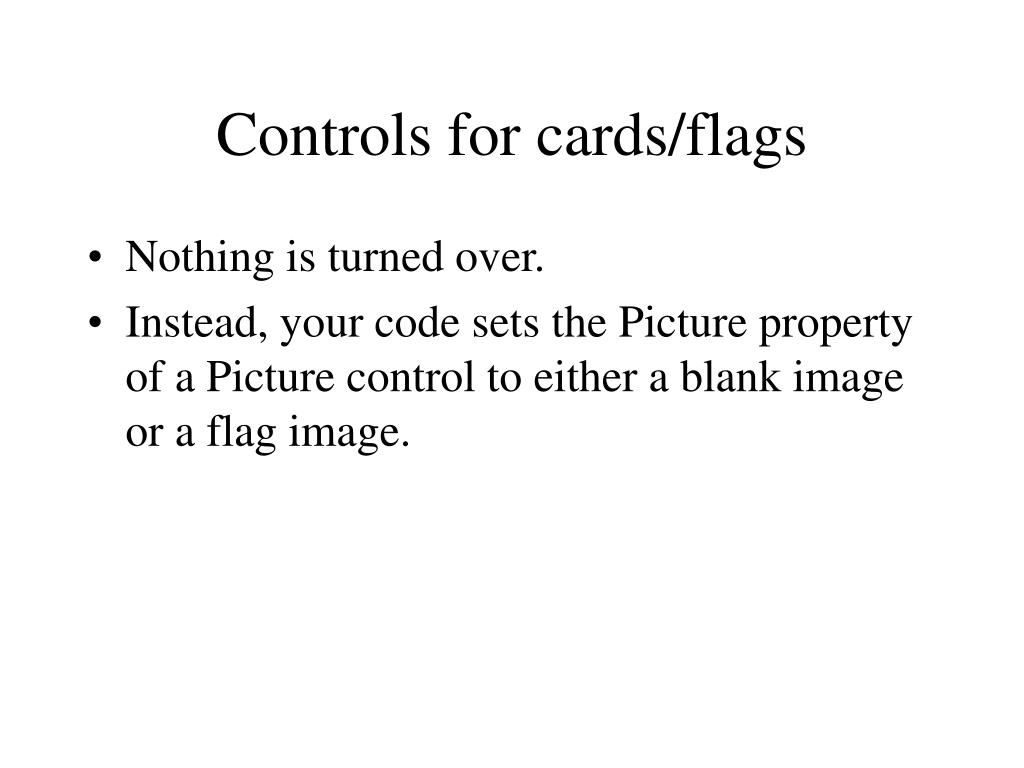

  5. Controls for cards/flags • Nothing is turned over. • Instead, your code sets the Picture property of a Picture control to either a blank image or a flag image.

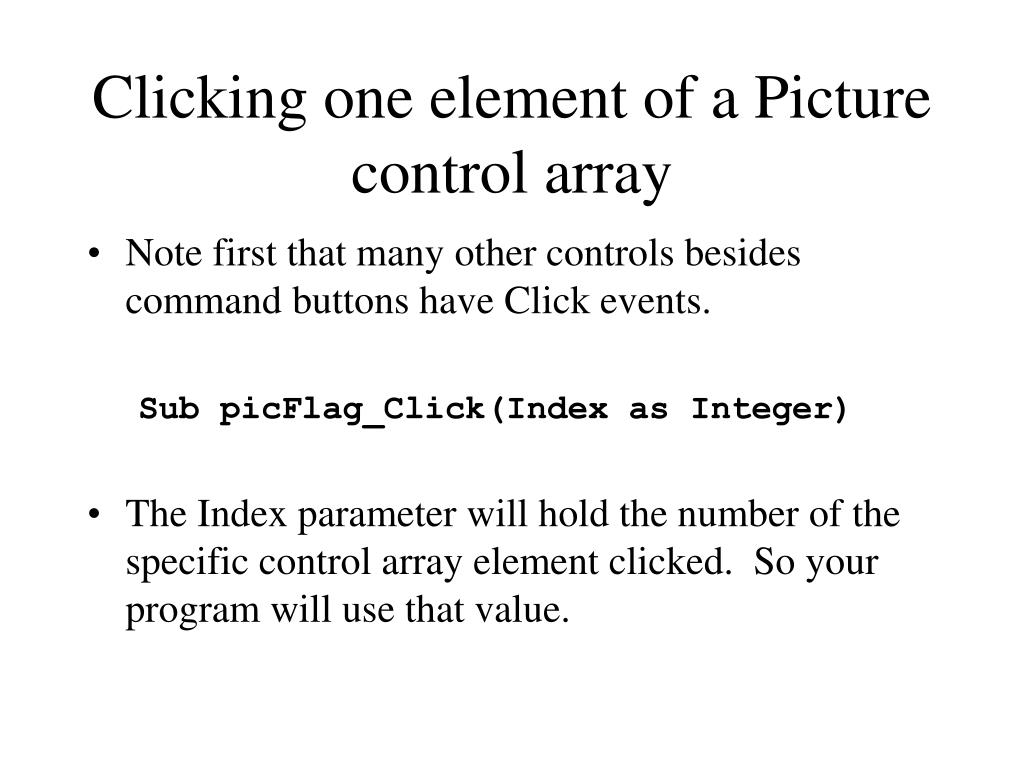

  6. Clicking one element of a Picture control array • Note first that many other controls besides command buttons have Click events. Sub picFlag_Click(Index as Integer) • The Index parameter will hold the number of the specific control array element clicked. So your program will use that value.

  7. Parallel arrays in Memory • Cards represented by Picture controls and Label controls holding the name of the card/flag. Set this up in Form_Load. The Label controls are always invisible. • Picture controls have a blank picture (blank.bmp). You could design a fancy ‘back of card’ OR • Picture controls have a picture of a flag (assume player clicks on the Index card). picFlag(Index.Picture)=LoadPicture(lblFlagName(Index))

  8. Checking for matches • The picFlag_Click procedure must keep track of whether this is a first pick or second pick. Do this using a Boolean variable: blnFirstTurn. Store first pick in global variable: intFirstPick. • Checking is done using the names of the image files, not ‘looking at’ the pictures. • Text suggests using a user-defined procedure to do the check. The user-defined procedure will have two parameters: Sub test_for_match(pick1 as Integer, pick2 as Integer)

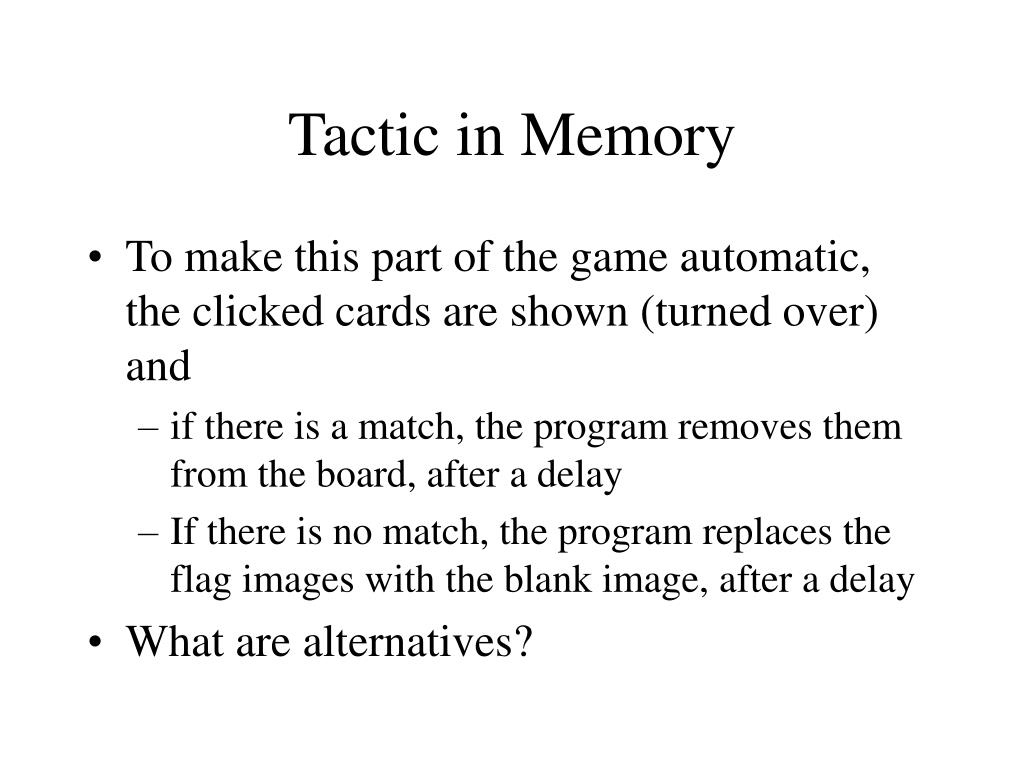

  9. Tactic in Memory • To make this part of the game automatic, the clicked cards are shown (turned over) and • if there is a match, the program removes them from the board, after a delay • If there is no match, the program replaces the flag images with the blank image, after a delay • What are alternatives?

  10. Looping structures • You have used For/Next loops to do lines of code a set number of times, using an index value • Another looping structure is Do While condition … Loop • You need to make sure that something happens to change the condition so that it becomes false. If not, the loop will keep going.

  11. How to do delay? • The chapter suggests what is called a busy wait. It uses two built-in Visual Basic procedures: • Timer: returns the number of seconds elapsed since midnight on your computer’s internal clock • DoEvents: allows your computer to do other things, such as printing

  12. Delay user-defined procedure Call delay with parameter indicating the amount of time Sub delay(interval as Single) Dim sngStart as Single sngStart = Timer ‘sets start time Do While Timer < (SngStart + interval) DoEvents ‘do nothing here, but ‘system can take over Loop When complete, delay procedure ends. Control returns to calling program.

  13. How do you know when to define a user-defined procedure? • There are rules-of-thumb, but not absolute rules. • If lines of code would be repeated, then it is a good idea to define a procedure. • If, otherwise, a procedure would be too big then it is a good idea to divide it. • Subjective: if the code seems to be a coherent thing…

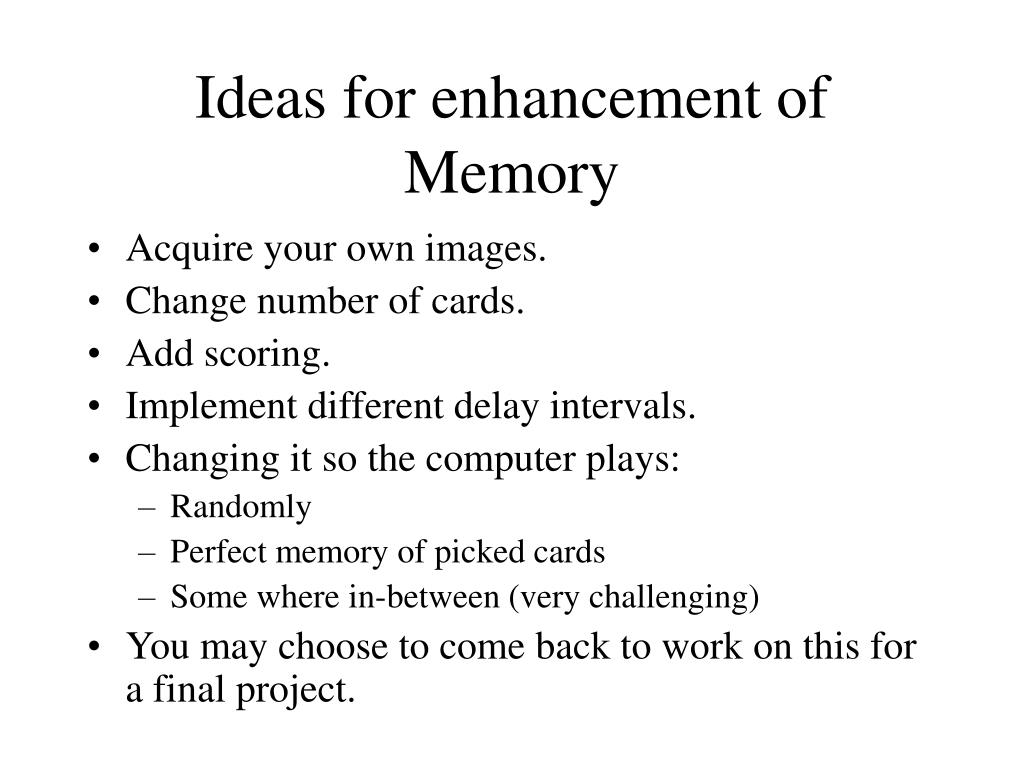

  14. Ideas for enhancement of Memory • Acquire your own images. • Change number of cards. • Add scoring. • Implement different delay intervals. • Changing it so the computer plays: • Randomly • Perfect memory of picked cards • Some where in-between (very challenging) • You may choose to come back to work on this for a final project.

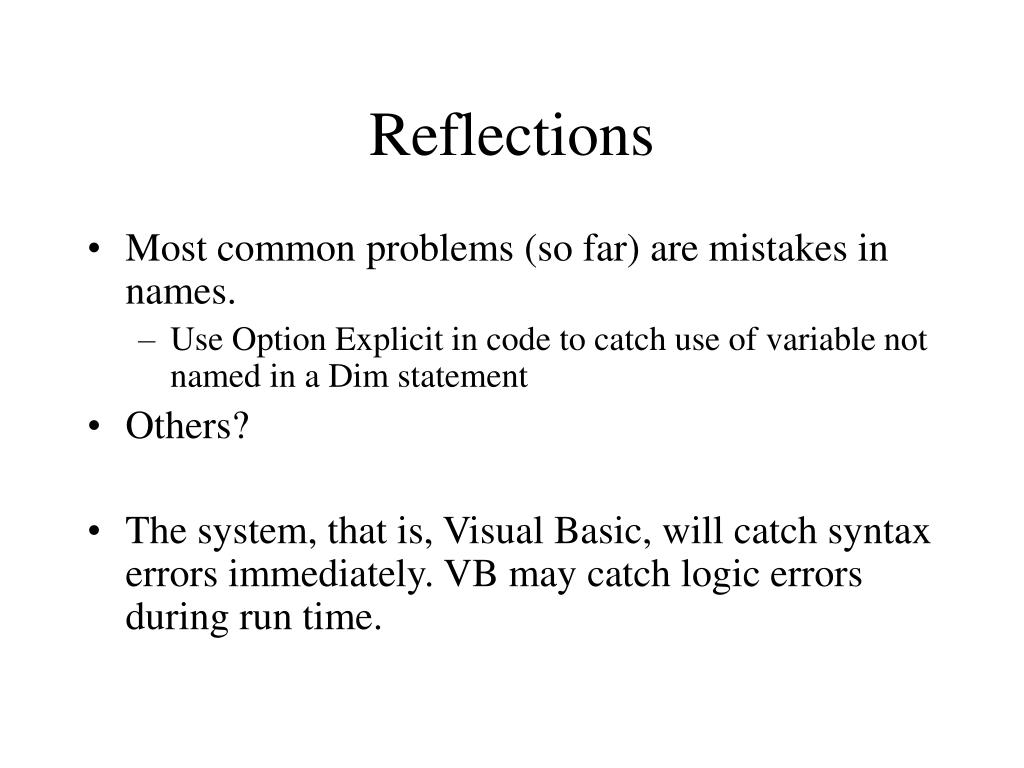

  15. Reflections • Most common problems (so far) are mistakes in names. • Use Option Explicit in code to catch use of variable not named in a Dim statement • Others? • The system, that is, Visual Basic, will catch syntax errors immediately. VB may catch logic errors during run time.
