  1. SIM329 Certificate Enrollment Across Boundaries Rashmi Jha Program Manager Microsoft Corporation

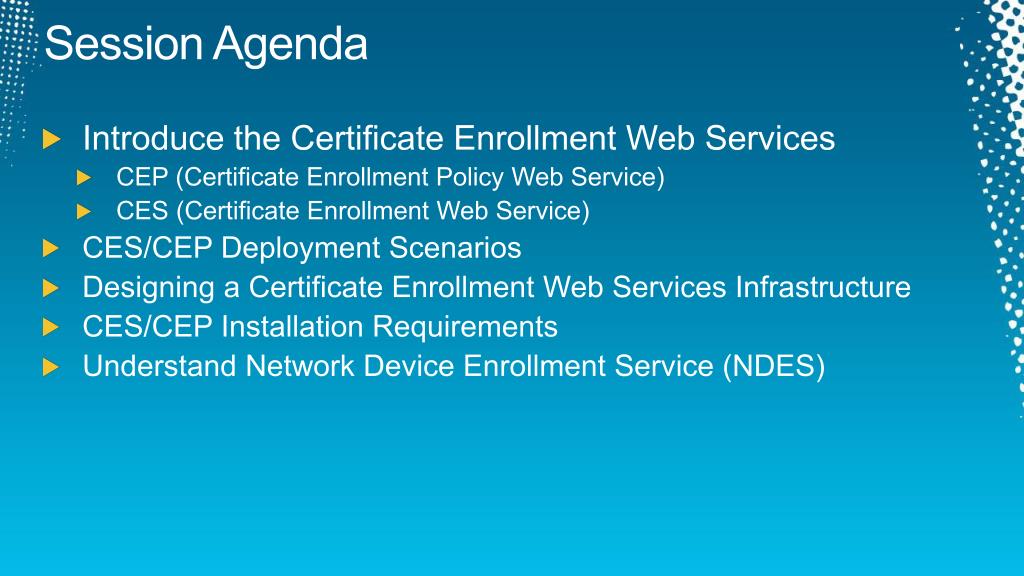

  2. Session Agenda • Introduce the Certificate Enrollment Web Services • CEP (Certificate Enrollment Policy Web Service) • CES (Certificate Enrollment Web Service) • CES/CEP Deployment Scenarios • Designing a Certificate Enrollment Web Services Infrastructure • CES/CEP Installation Requirements • Understand Network Device Enrollment Service (NDES)

  3. Pre-requisites • General understanding of PKI • General understanding of Windows Server 2008 Active Directory Certificate Services (ADCS)

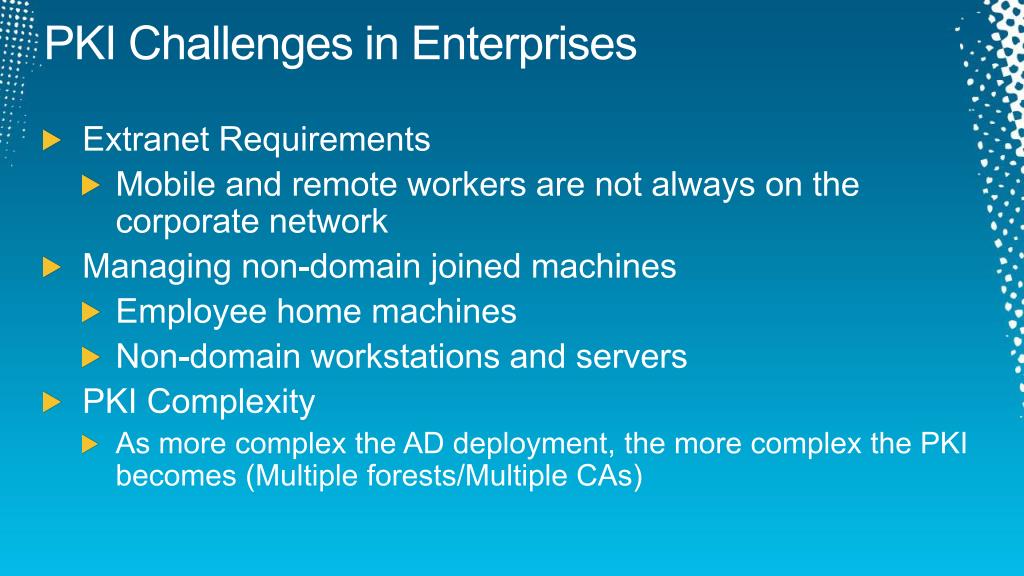

  4. PKI Challenges in Enterprises • Extranet Requirements • Mobile and remote workers are not always on the corporate network • Managing non-domain joined machines • Employee home machines • Non-domain workstations and servers • PKI Complexity • As more complex the AD deployment, the more complex the PKI becomes (Multiple forests/Multiple CAs)

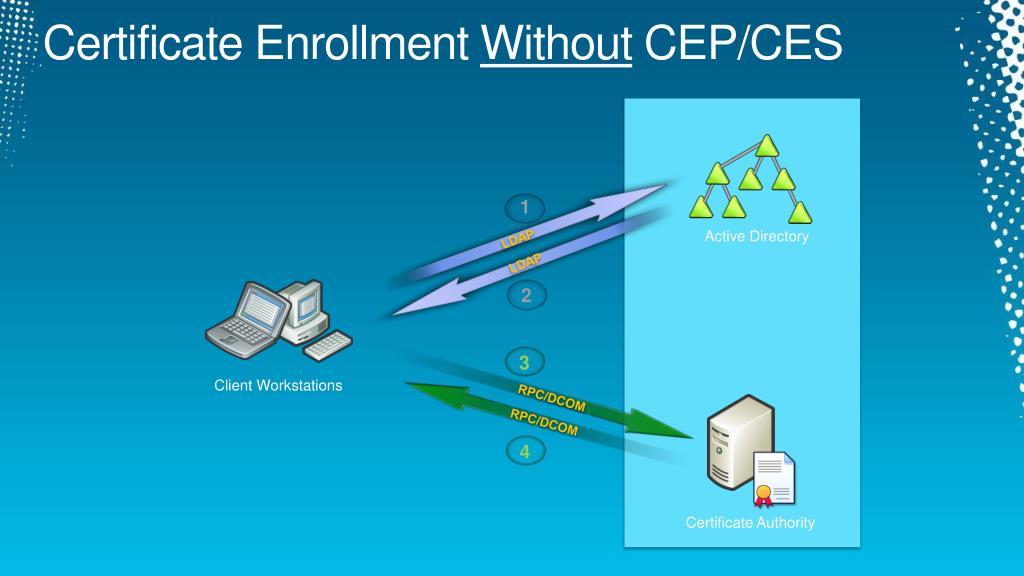

  5. Certificate Enrollment Without CEP/CES 1 LDAP LDAP Active Directory 2 4 3 Client Workstations RPC/DCOM RPC/DCOM Certificate Authority

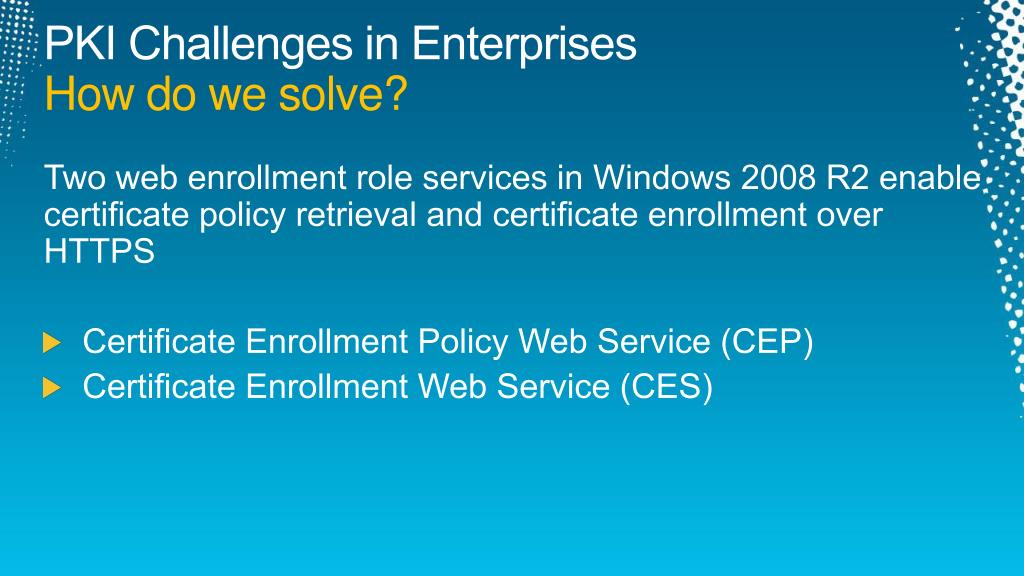

  6. PKI Challenges in EnterprisesHow do we solve? Two web enrollment role services in Windows 2008 R2 enable certificate policy retrieval and certificate enrollment over HTTPS • Certificate Enrollment Policy Web Service (CEP) • Certificate Enrollment Web Service (CES)

  7. Certificate Enrollment With CEP/CES HTTPS Only 2 LDAP LDAP Retrieve Policies 1 Active Directory Certificate Enrollment Policy Web Service (CEP) Policies 7 3 8 6 5 Certificate Client Workstations Configured with Certificate Enrollment Policy (Windows 7 & 2008R2 Only) Certificate Request RPC/DCOM RPC/DCOM Certificate Enrollment Web Service (CES) Certificate Authority 4

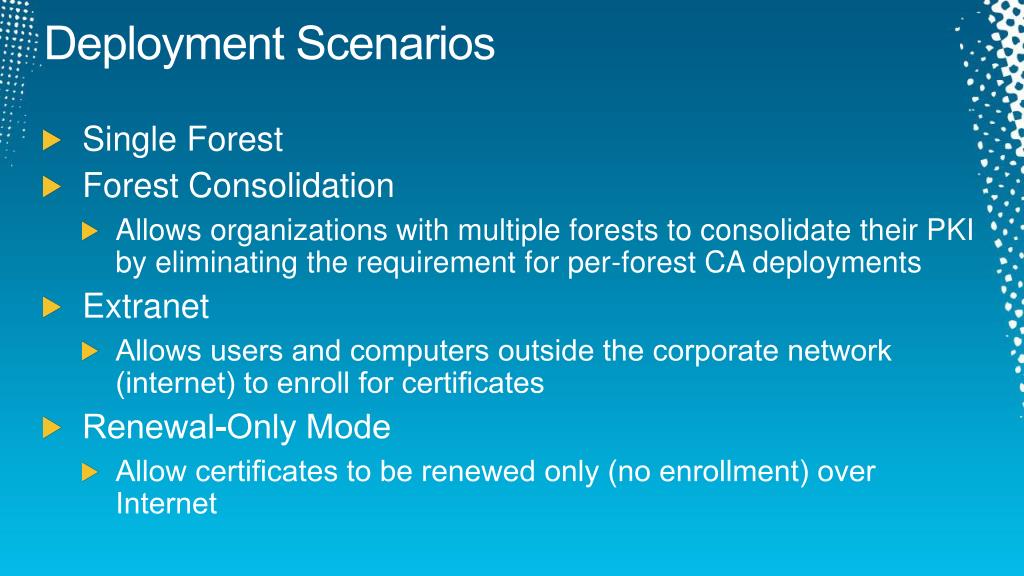

  8. Deployment Scenarios • Single Forest • Forest Consolidation • Allows organizations with multiple forests to consolidate their PKI by eliminating the requirement for per-forest CA deployments • Extranet • Allows users and computers outside the corporate network (internet) to enroll for certificates • Renewal-Only Mode • Allow certificates to be renewed only (no enrollment) over Internet

  9. Designing a Certificate Enrollment Web Services Infrastructure • Firewall Configuration • Delegation (Certificate Enrollment Web Service Account) • Selecting Service Accounts • Selecting Authentication Methods

  10. Firewall Configuration

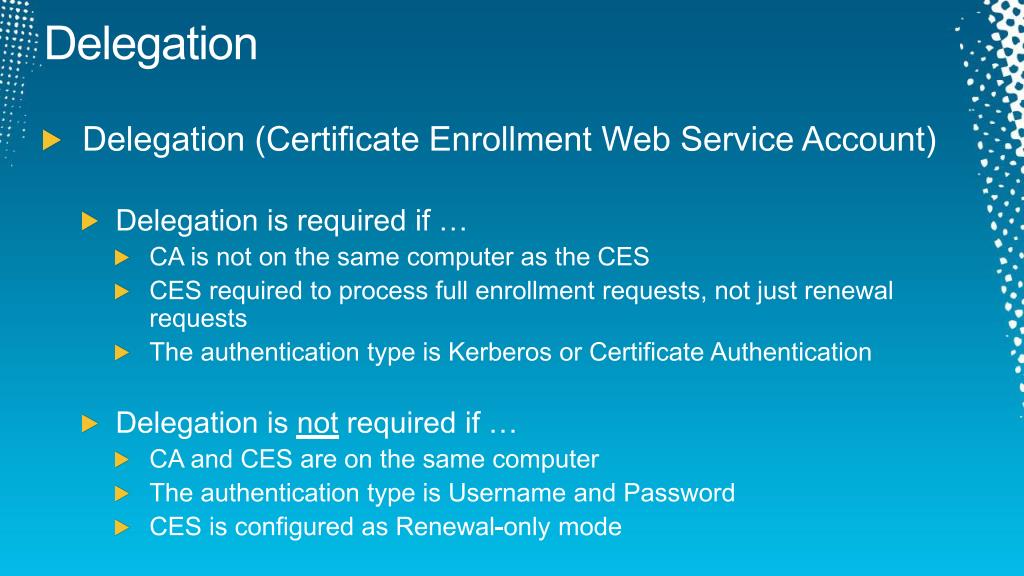

  11. Delegation • Delegation (Certificate Enrollment Web Service Account) • Delegation is required if … • CA is not on the same computer as the CES • CES required to process full enrollment requests, not just renewal requests • The authentication type is Kerberos or Certificate Authentication • Delegation is not required if … • CA and CES are on the same computer • The authentication type is Username and Password • CES is configured as Renewal-only mode

  12. Selecting Service Account • Both CEP & CES must run as either a domain user or application pool ID • Local users are not supported • Managed Service Accounts may be used • CES service account must be a member of the local IIS_IUSRS group • CES service account must have Request Certificates permission on the CA

  13. Selecting Authentication Methods • Windows Integrated Authentication • Client Certificate Authentication • Username and Password • Anonymous authentication to the web services is not supported

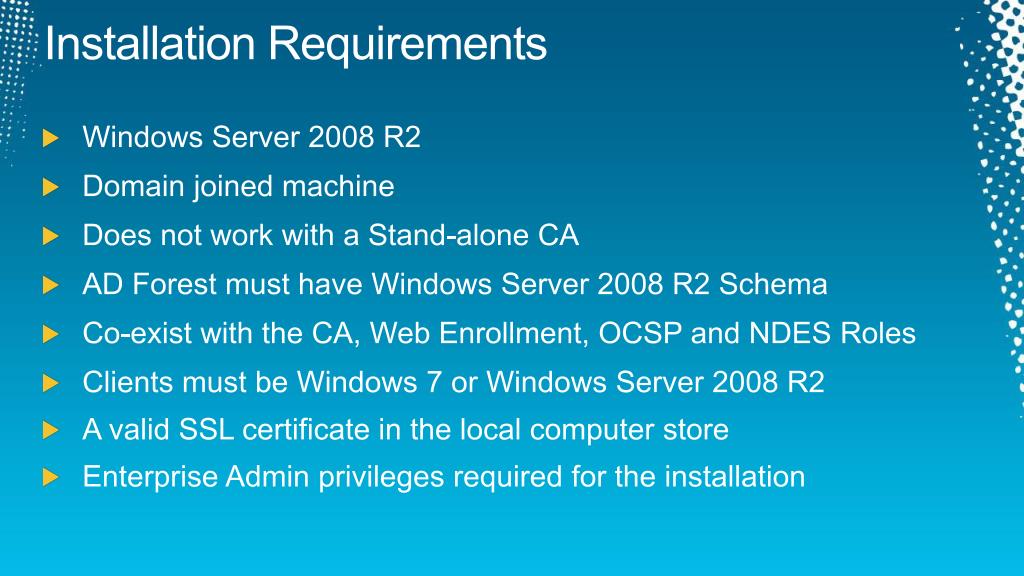

  14. Installation Requirements • Windows Server 2008 R2 • Domain joined machine • Does not work with a Stand-alone CA • AD Forest must have Windows Server 2008 R2 Schema • Co-exist with the CA, Web Enrollment, OCSP and NDES Roles • Clients must be Windows 7 or Windows Server 2008 R2 • A valid SSL certificate in the local computer store • Enterprise Admin privileges required for the installation

  15. CEP/CES Configuration &Enrollment using CEP/CES Sunil Kondapally Senior Software Development Engineer Active Directory Certificate Services demo

  16. Network Device Enrollment Service (NDES)

  17. Overview • NDES Enrollment Process • Understanding NDES Components • New Features • Entities Involved

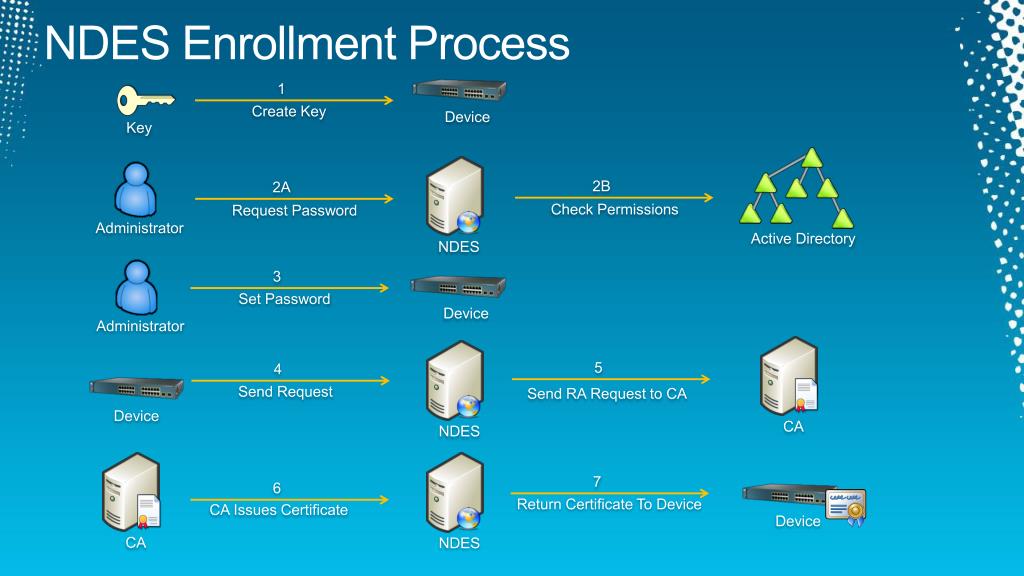

  18. NDES Enrollment Process 6 7 3 1 4 5 2A 2B Send RA Request to CA Return Certificate To Device CA Issues Certificate Send Request Set Password Create Key Check Permissions Request Password Device Device Device Key Administrator Administrator Active Directory NDES CA NDES CA NDES Device

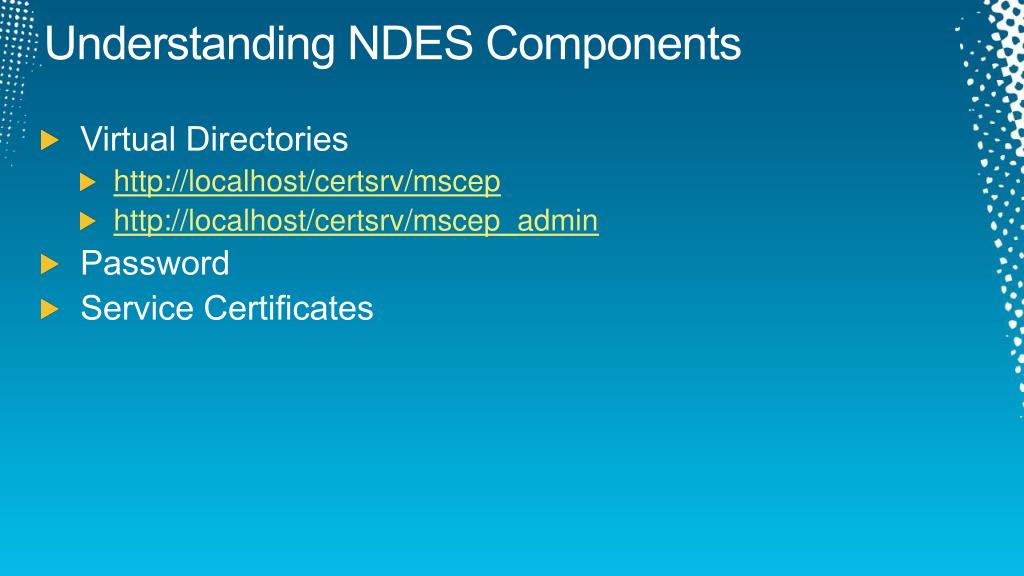

  19. Understanding NDES Components • Virtual Directories • http://localhost/certsrv/mscep • http://localhost/certsrv/mscep_admin • Password • Service Certificates

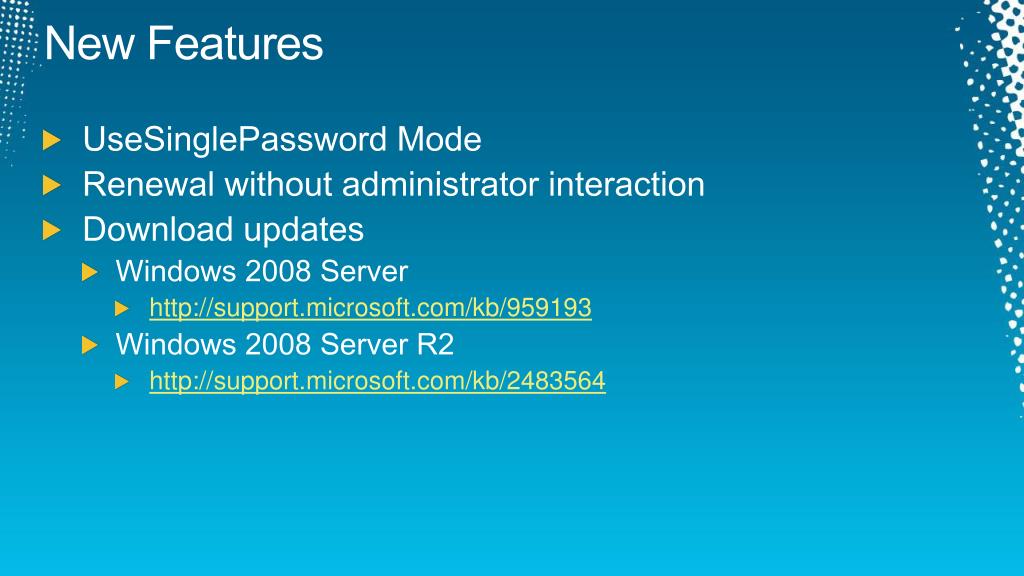

  20. New Features • UseSinglePassword Mode • Renewal without administrator interaction • Download updates • Windows 2008 Server • http://support.microsoft.com/kb/959193 • Windows 2008 Server R2 • http://support.microsoft.com/kb/2483564

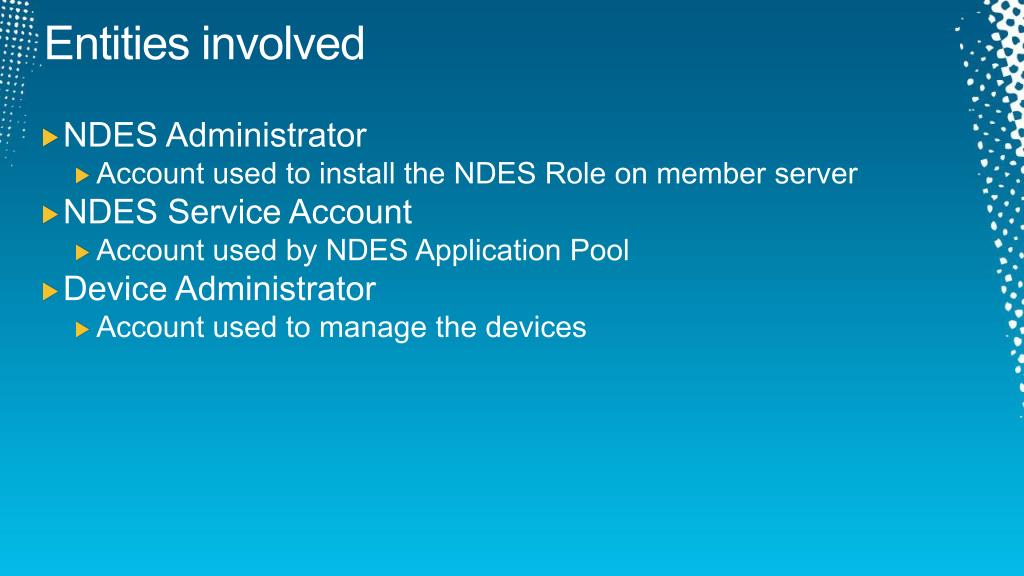

  21. Entities involved • NDES Administrator • Account used to install the NDES Role on member server • NDES Service Account • Account used by NDES Application Pool • Device Administrator • Account used to manage the devices

  22. NDES Enrollment Sunil Kondapally Senior Software Development Engineer Active Directory Certificate Services demo

  23. Related Content Certificate Enrollment Web Services http://www.microsoft.com/downloads/en/details.aspx?FamilyID=28B910F8-6374-48DD-A897-11FFF62AB795 NDES http://www.microsoft.com/downloads/en/confirmation.aspx?familyId=e11780de-819f-40d7-8b8e-10845bc8d446&displayLang=en http://tools.ietf.org/html/draft-nourse-scep-22 How to configure RPC dynamic port allocation to work with firewalls http://support.microsoft.com/kb/154596
