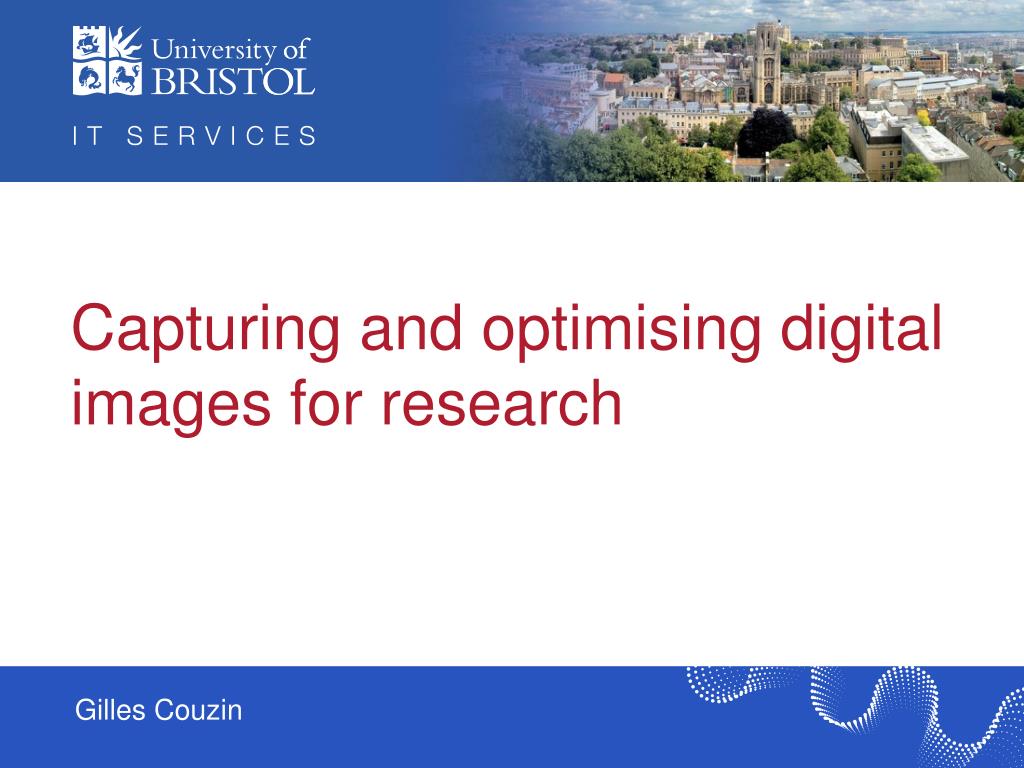

  1. Capturing and optimising digital images for research Gilles Couzin

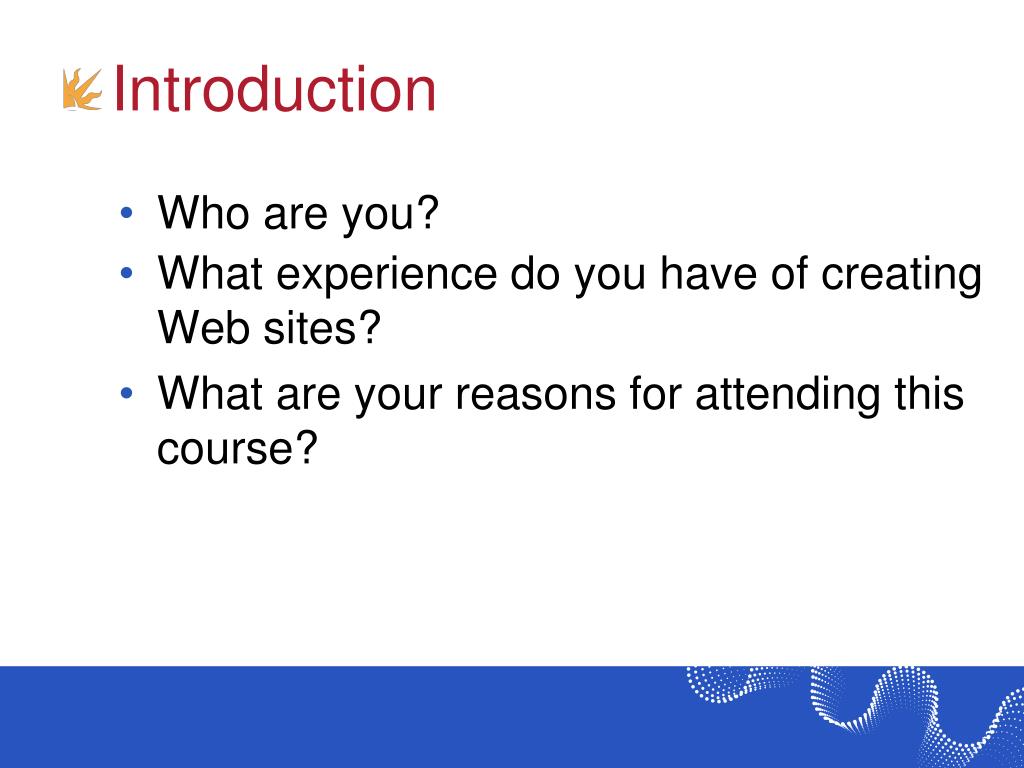

  2. Introduction • Who are you? • What experience do you have of creating Web sites? • What are your reasons for attending this course?

  3. Learning objectives By the end of this course, you will be able to: • Explain the digitisation process • Set scanning parameters to the purpose of your scan • Use Serif PhotoPlus to: • Crop images and correct perspective problems • Adjust tone and colours • Sharpen images • Scale images • Use four different graphic file formats for the right purpose

  4. Introduction to digital imaging • The binary counting system • From analogue to digital • The digital image • Spatial resolution • Colour resolution (bit depth) • Colour representation

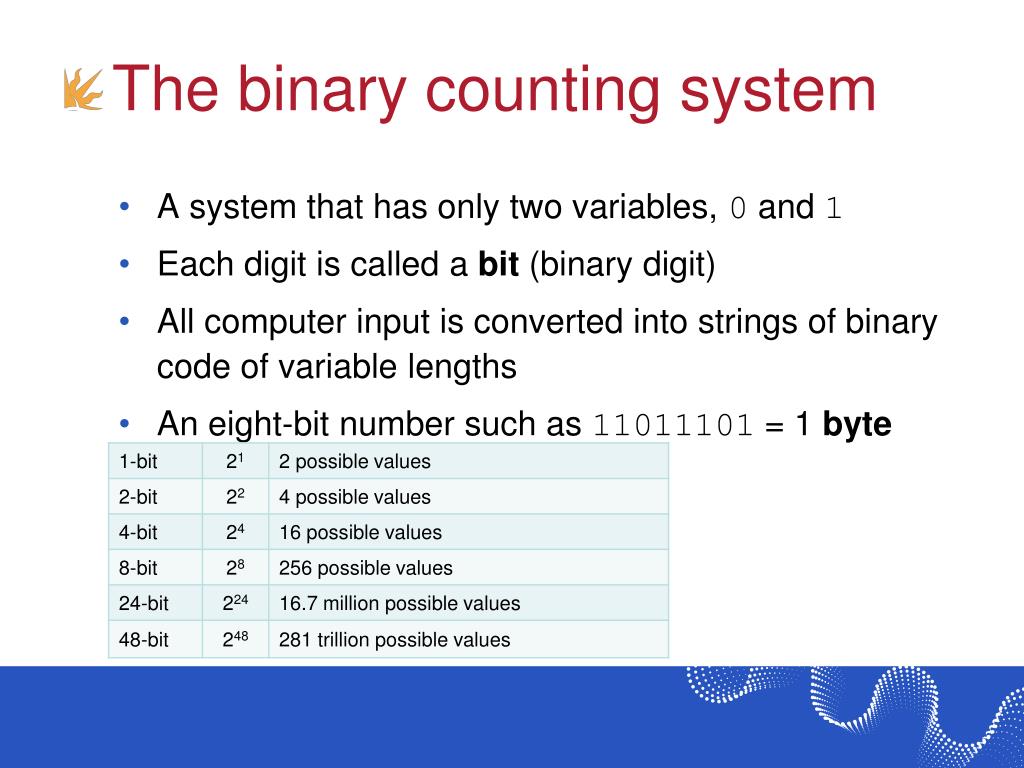

  5. The binary counting system • A system that has only two variables, 0 and 1 • Each digit is called a bit (binary digit) • All computer input is converted into strings of binary code of variable lengths • An eight-bit number such as 11011101 = 1 byte

  6. From analogue to digital (1) • Traditional photographic images are analogue – i.e. they have continuous tones and in theory may contain an infinite number of colours and brightness. • Digitisation is the process of converting the information contained in an analogue image into binary data. • Scanners and digital cameras are the most common method for ‘capturing’ digital images.

  7. From analogue to digital (2) Continuous bright- ness curve of an analogue image Same curve after digitisation into 16 discrete levels (4-bit)

  8. The digital image • A digital image is a rectangular grid of pixels (or picture elements) • A pixel refers to the dots of light on a computer monitor and to the smallest, basic component of a digital image • Each pixel is part of a mosaic of many thousand or millions of pixels that form the image

  9. Spatial resolution (1) • The quantity of pixels in a defined area (dpi or ppi). • The frequency at which samples are taken during the scanning process from the analogue image (spi). • The number of pixels is the only attribute that counts; physical size expressed in inches/cm is irrelevant. • Increasing the number of samples improves the visual quality of the image but… • …there is a point at which adding more samples has little visual benefit and some distinct disadvantages. • Digital cameras: one mega pixel = one million pixels (in the whole image, not per inch).

  10. Spatial resolution (2) 50 x 35 pixels = 1750 total; 5:1 250 x 175 pixels = 43,750 total; 1:1

  11. Colour resolution (bit depth) • Measures how much colour information is available to display or print each pixel in an image: • A pixel with a colour depth of 1 bit has 2 (21) levels (B&W) • A pixel with a colour depth of 4 bit has 16 (24) levels • A pixel with a colour depth of 8 bit has 256 (28) levels 256 greys (8-bit/pixel) Black & white (1-bit/pixel) 16 greys (4-bit/pixel)

  12. Colour representation (1) • What are colours? • the way our brain, by use of our eyes, interprets electromagnetic radiation originating from sun light (white light). • the part of the electromagnetic spectrum that our eyes can actually detect ("visible light") stretches from between 380 and 780 nanometres in wavelength.

  13. Colour representation (2) • Two models of colour representation:

  14. Colour representation (3) • Colours on a computer monitor: • Use the RGB model • 8-bit (256 colours) per channel • Any colour can be represented by a specific combination of 3 numbers comprised between 0 and 255 – for example:R255 + G255 + B0 = Yellow • A 24-bit pixel (8 bit per channel) can display up to roughly 16.7 million, possible colours!

  15. Colour representation (3) • RGB colour workspaces: • Refers to the gamut (range ofcolours that can be displayedor printed by a specific device • sRGB: standard colour spacefor computer monitors, webbrowsers, etc. • Adobe RGB (1998):recommended RGB editingspace for print output, beforeconversion to CMYK
