  1. SDD offline status Francesco Prino INFN sezione di Torino ALICE offline week – October 20th 2008

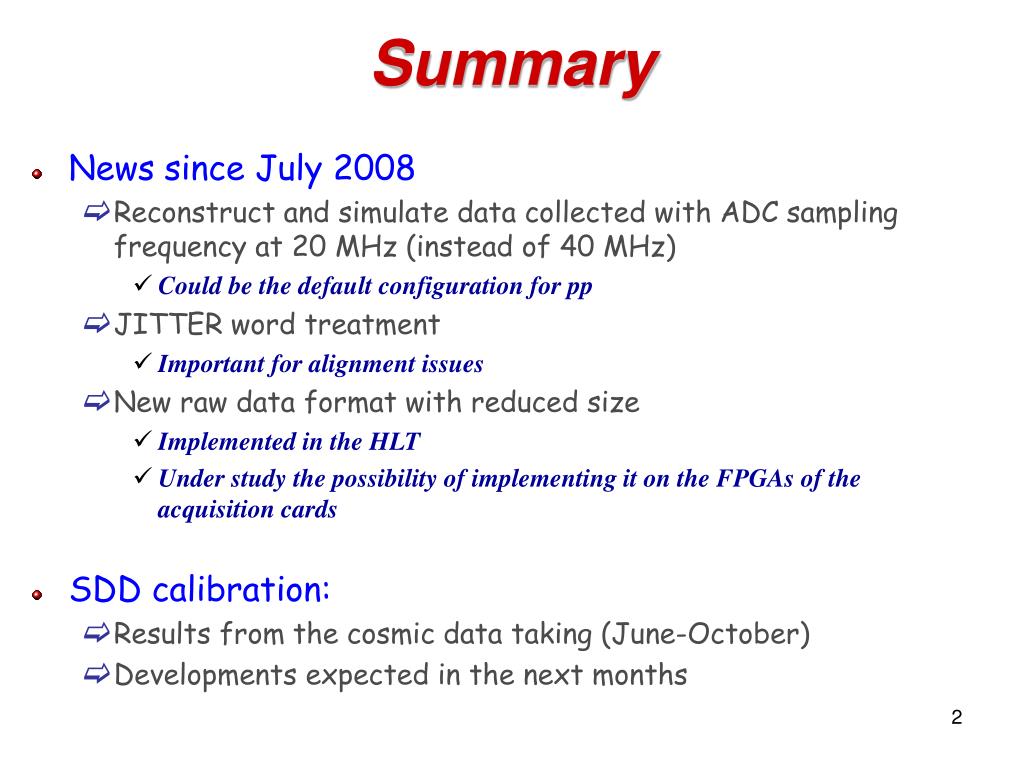

  2. Summary • News since July 2008 • Reconstruct and simulate data collected with ADC sampling frequency at 20 MHz (instead of 40 MHz) • Could be the default configuration for pp • JITTER word treatment • Important for alignment issues • New raw data format with reduced size • Implemented in the HLT • Under study the possibility of implementing it on the FPGAs of the acquisition cards • SDD calibration: • Results from the cosmic data taking (June-October) • Developments expected in the next months

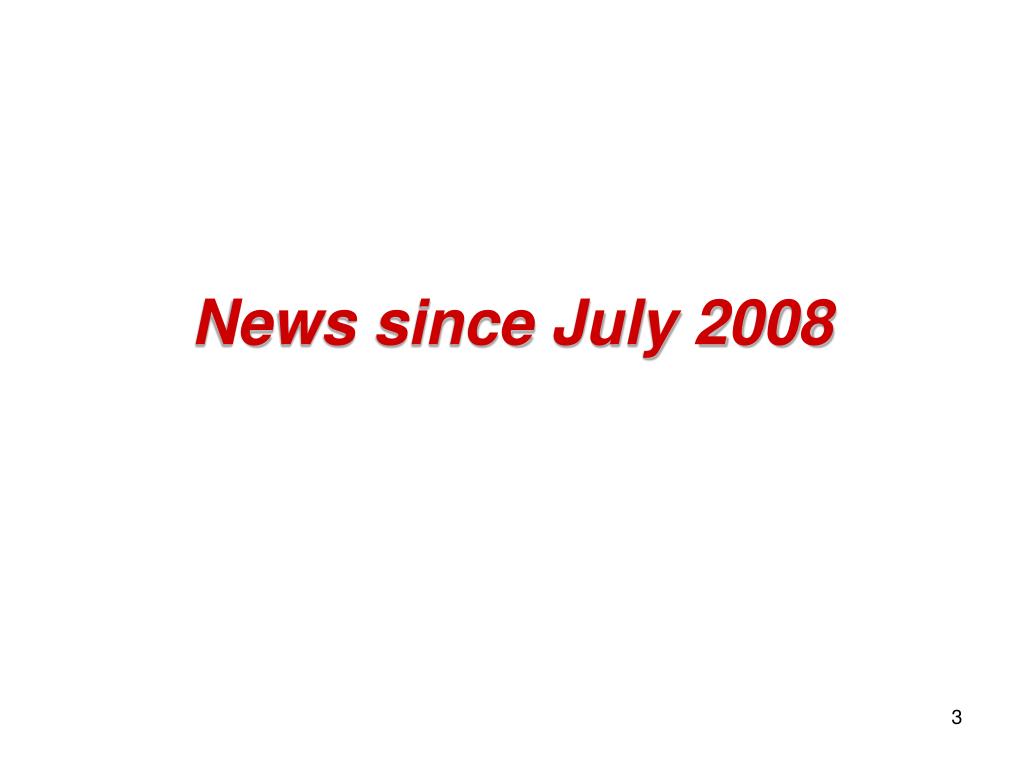

  3. News since July 2008

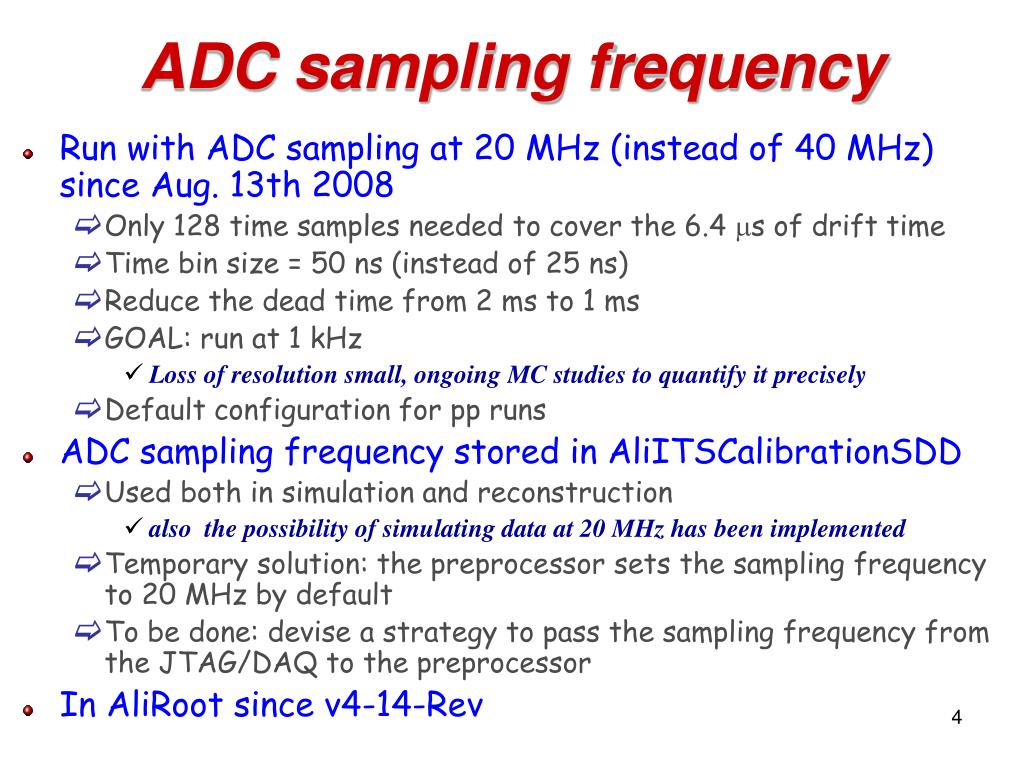

  4. ADC sampling frequency • Run with ADC sampling at 20 MHz (instead of 40 MHz) since Aug. 13th 2008 • Only 128 time samples needed to cover the 6.4 ms of drift time • Time bin size = 50 ns (instead of 25 ns) • Reduce the dead time from 2 ms to 1 ms • GOAL: run at 1 kHz • Loss of resolution small, ongoing MC studies to quantify it precisely • Default configuration for pp runs • ADC sampling frequency stored in AliITSCalibrationSDD • Used both in simulation and reconstruction • also the possibility of simulating data at 20 MHz has been implemented • Temporary solution: the preprocessor sets the sampling frequency to 20 MHz by default • To be done: devise a strategy to pass the sampling frequency from the JTAG/DAQ to the preprocessor • In AliRoot since v4-14-Rev

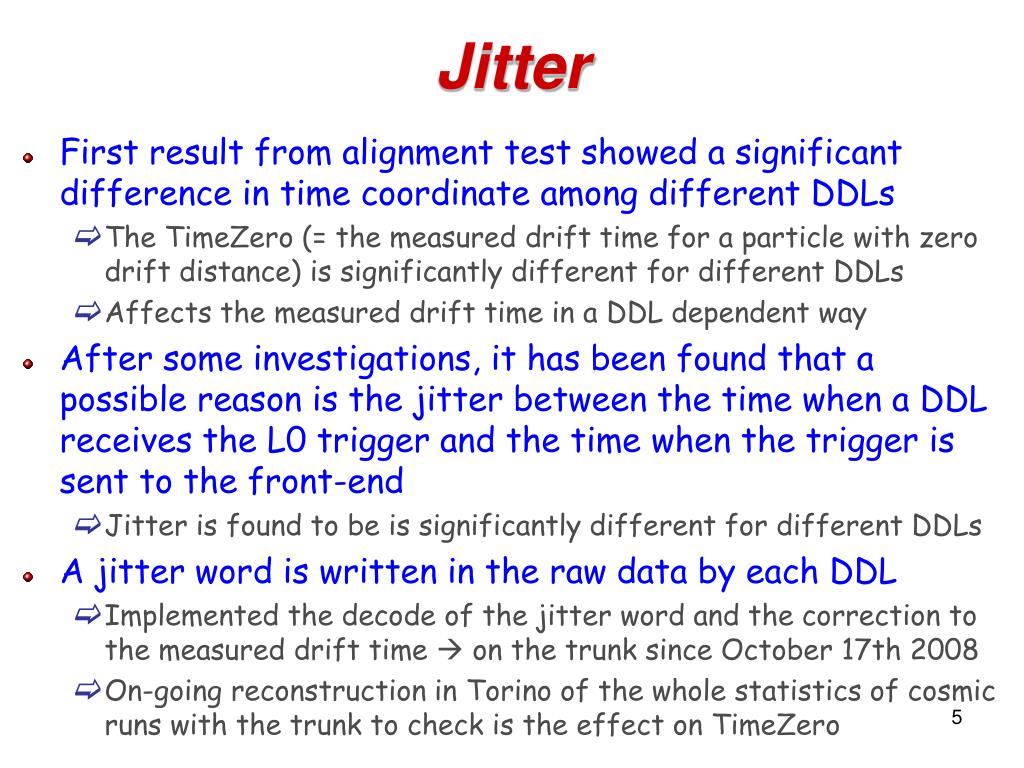

  5. Jitter • First result from alignment test showed a significant difference in time coordinate among different DDLs • The TimeZero (= the measured drift time for a particle with zero drift distance) is significantly different for different DDLs • Affects the measured drift time in a DDL dependent way • After some investigations, it has been found that a possible reason is the jitter between the time when a DDL receives the L0 trigger and the time when the trigger is sent to the front-end • Jitter is found to be is significantly different for different DDLs • A jitter word is written in the raw data by each DDL • Implemented the decode of the jitter word and the correction to the measured drift time  on the trunk since October 17th 2008 • On-going reconstruction in Torino of the whole statistics of cosmic runs with the trunk to check is the effect on TimeZero

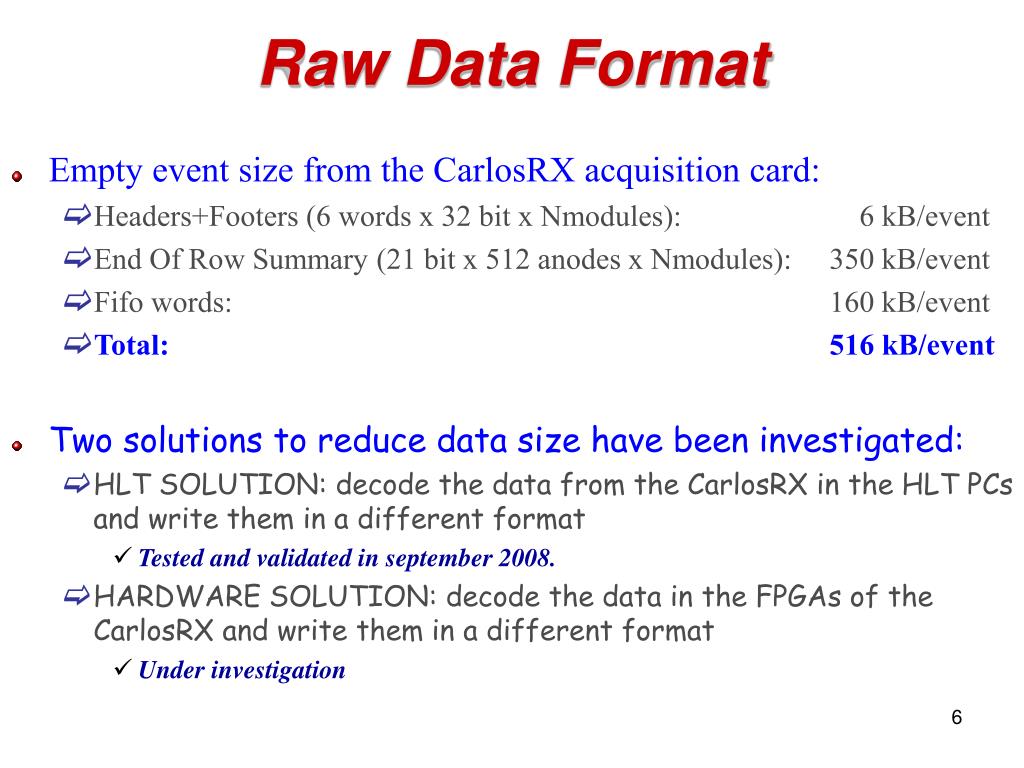

  6. Raw Data Format • Empty event size from the CarlosRX acquisition card: • Headers+Footers (6 words x 32 bit x Nmodules): 6 kB/event • End Of Row Summary (21 bit x 512 anodes x Nmodules): 350 kB/event • Fifo words: 160 kB/event • Total: 516 kB/event • Two solutions to reduce data size have been investigated: • HLT SOLUTION: decode the data from the CarlosRX in the HLT PCs and write them in a different format • Tested and validated in september 2008. • HARDWARE SOLUTION: decode the data in the FPGAs of the CarlosRX and write them in a different format • Under investigation

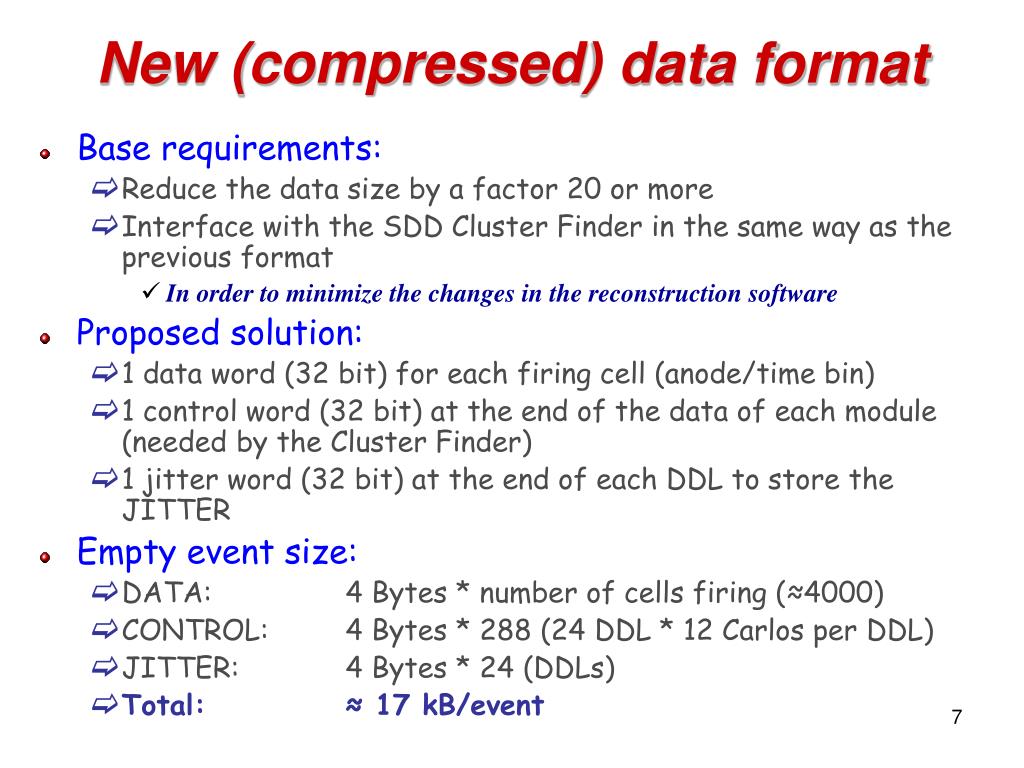

  7. New (compressed) data format • Base requirements: • Reduce the data size by a factor 20 or more • Interface with the SDD Cluster Finder in the same way as the previous format • In order to minimize the changes in the reconstruction software • Proposed solution: • 1 data word (32 bit) for each firing cell (anode/time bin) • 1 control word (32 bit) at the end of the data of each module (needed by the Cluster Finder) • 1 jitter word (32 bit) at the end of each DDL to store the JITTER • Empty event size: • DATA: 4 Bytes * number of cells firing (≈4000) • CONTROL: 4 Bytes * 288 (24 DDL * 12 Carlos per DDL) • JITTER: 4 Bytes * 24 (DDLs) • Total: ≈ 17 kB/event

  8. Implementation (I) • New class AliITSCompressRawDataSDD • Used by the HLT to decode data and encode in the new format • New class AliITSRawStreamSDDCompressed • Read and decode data in the new format • Tested and validated at P2, event rate ≈ 600-800 Hz • Example Plots from test runs: event 25 from run 62157 with HLT mode B (both data formats available in the raw data)

  9. Implementation (II) • New class AliITSCompressRawDataSDD • Used by the HLT to decode data and encode in the new format • Tested and validated at P2, reached event rate 600-800 Hz • New class AliITSRawStreamSDDCompressed • Read and decode data in the new format • Tested and validated on both real and simulated data • New Class AliITSHLTforSDD and new object in OCDB • Store the HLT mode • Object stored in the OCDB and filled by the Preprocessor at the end of each PHYSICS run • Modified AliITSDDLRawData, AliITSClusterFinderV2SDD, AliITSQADataMakerRec • Write/read the simulated/real data in the new format if AliITSHLTforSDD->IsModeC()==kTRUE • All modifications ported to v4-15-Release

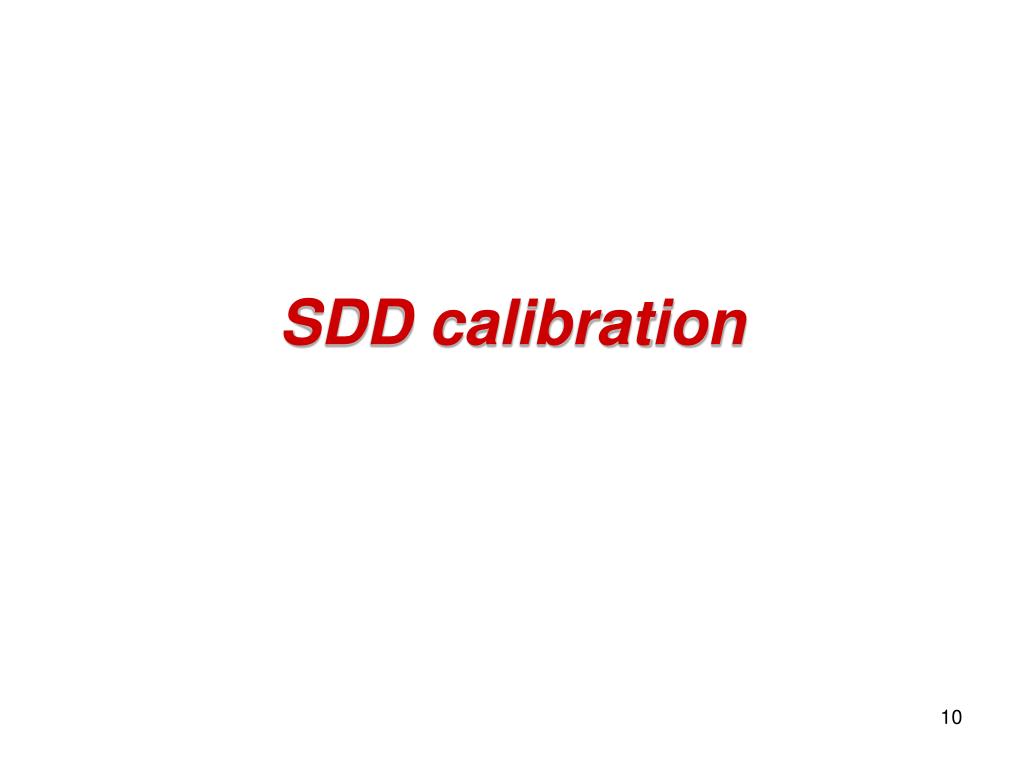

  10. SDD calibration

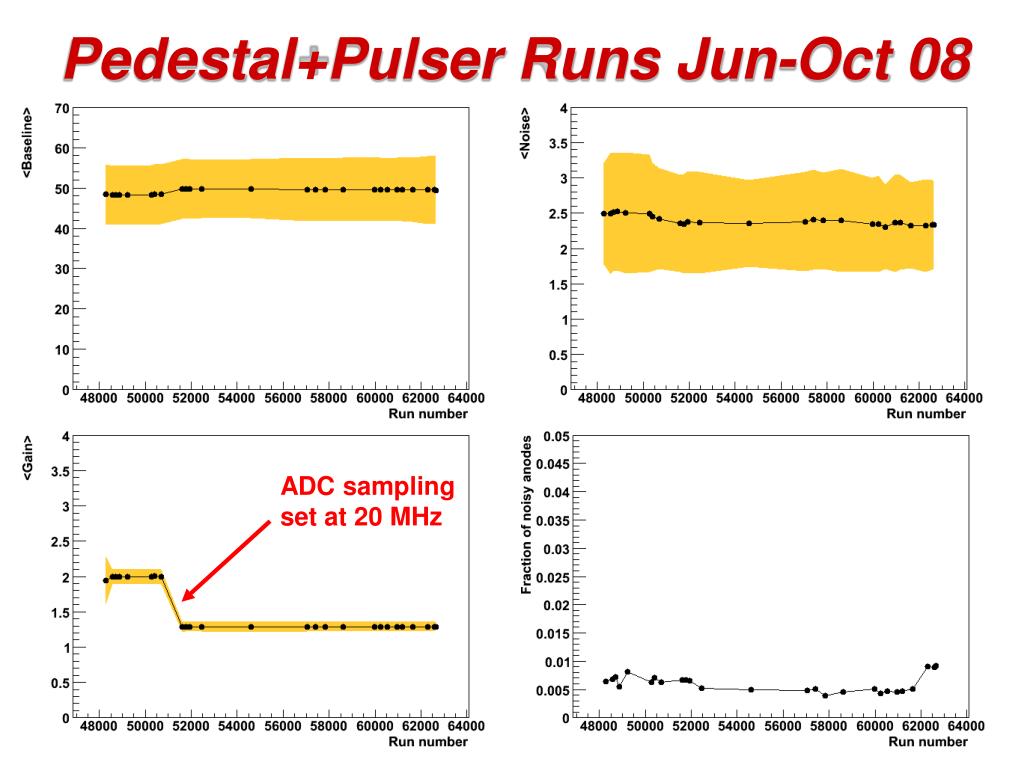

  11. Pedestal+Pulser Runs Jun-Oct 08 ADC sampling set at 20 MHz

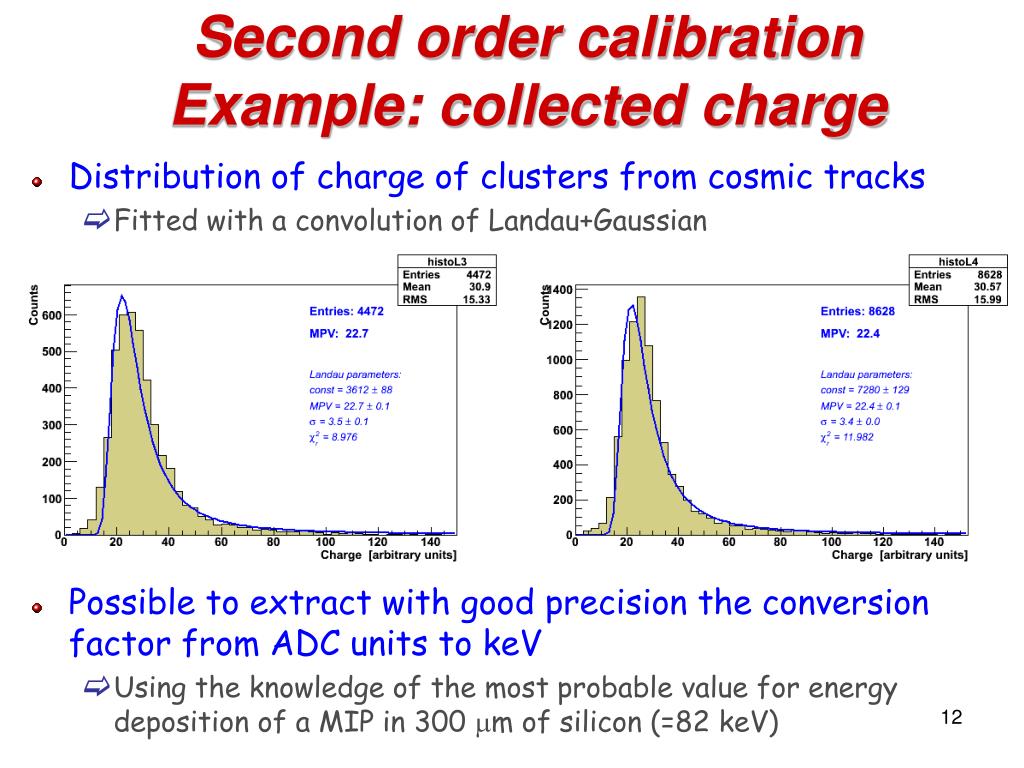

  12. Second order calibration Example: collected charge • Distribution of charge of clusters from cosmic tracks • Fitted with a convolution of Landau+Gaussian • Possible to extract with good precision the conversion factor from ADC units to keV • Using the knowledge of the most probable value for energy deposition of a MIP in 300 mm of silicon (=82 keV)

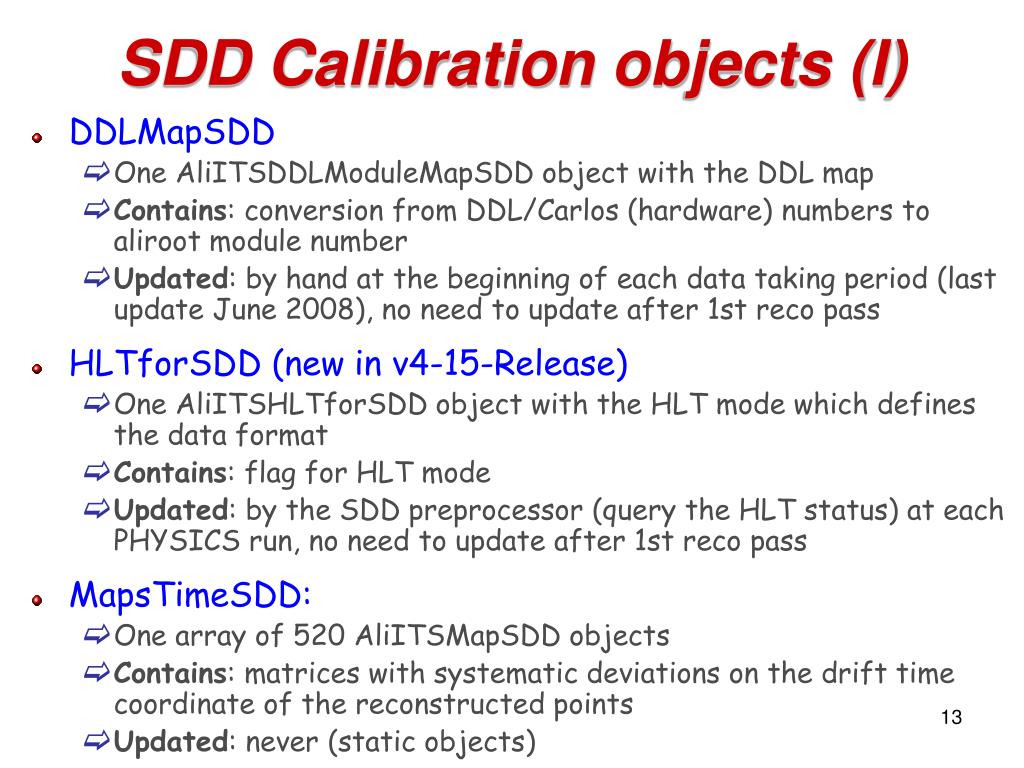

  13. SDD Calibration objects (I) • DDLMapSDD • One AliITSDDLModuleMapSDD object with the DDL map • Contains: conversion from DDL/Carlos (hardware) numbers to aliroot module number • Updated: by hand at the beginning of each data taking period (last update June 2008), no need to update after 1st reco pass • HLTforSDD (new in v4-15-Release) • One AliITSHLTforSDD object with the HLT mode which defines the data format • Contains: flag for HLT mode • Updated: by the SDD preprocessor (query the HLT status) at each PHYSICS run, no need to update after 1st reco pass • MapsTimeSDD: • One array of 520 AliITSMapSDD objects • Contains: matrices with systematic deviations on the drift time coordinate of the reconstructed points • Updated: never (static objects)

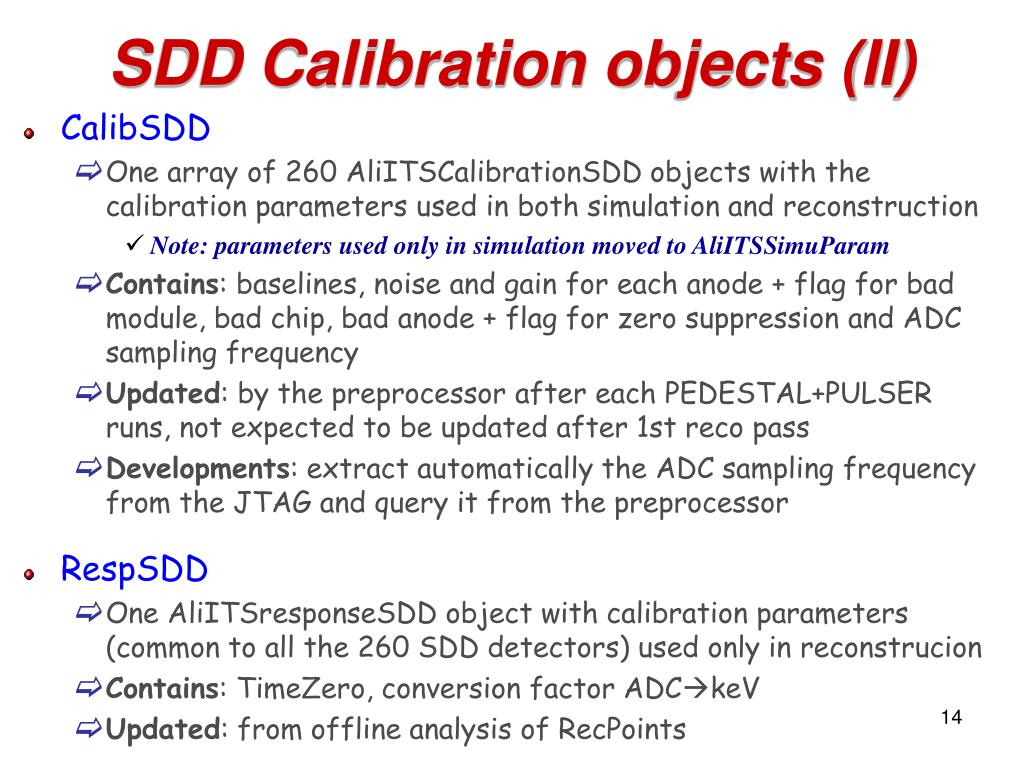

  14. SDD Calibration objects (II) • CalibSDD • One array of 260 AliITSCalibrationSDD objects with the calibration parameters used in both simulation and reconstruction • Note: parameters used only in simulation moved to AliITSSimuParam • Contains: baselines, noise and gain for each anode + flag for bad module, bad chip, bad anode + flag for zero suppression and ADC sampling frequency • Updated: by the preprocessor after each PEDESTAL+PULSER runs, not expected to be updated after 1st reco pass • Developments: extract automatically the ADC sampling frequency from the JTAG and query it from the preprocessor • RespSDD • One AliITSresponseSDD object with calibration parameters (common to all the 260 SDD detectors) used only in reconstrucion • Contains: TimeZero, conversion factor ADCkeV • Updated: from offline analysis of RecPoints

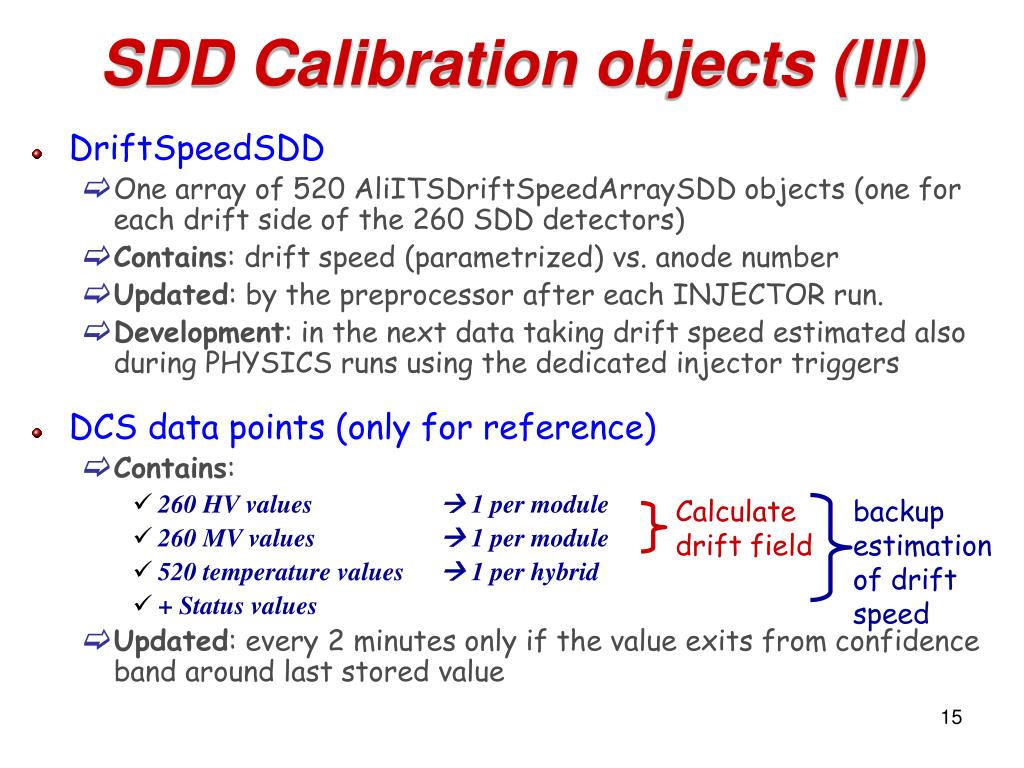

  15. SDD Calibration objects (III) • DriftSpeedSDD • One array of 520 AliITSDriftSpeedArraySDD objects (one for each drift side of the 260 SDD detectors) • Contains: drift speed (parametrized) vs. anode number • Updated: by the preprocessor after each INJECTOR run. • Development: in the next data taking drift speed estimated also during PHYSICS runs using the dedicated injector triggers • DCS data points (only for reference) • Contains: • 260 HV values  1 per module • 260 MV values  1 per module • 520 temperature values  1 per hybrid • + Status values • Updated: every 2 minutes only if the value exits from confidence band around last stored value Calculate drift field backup estimation of drift speed

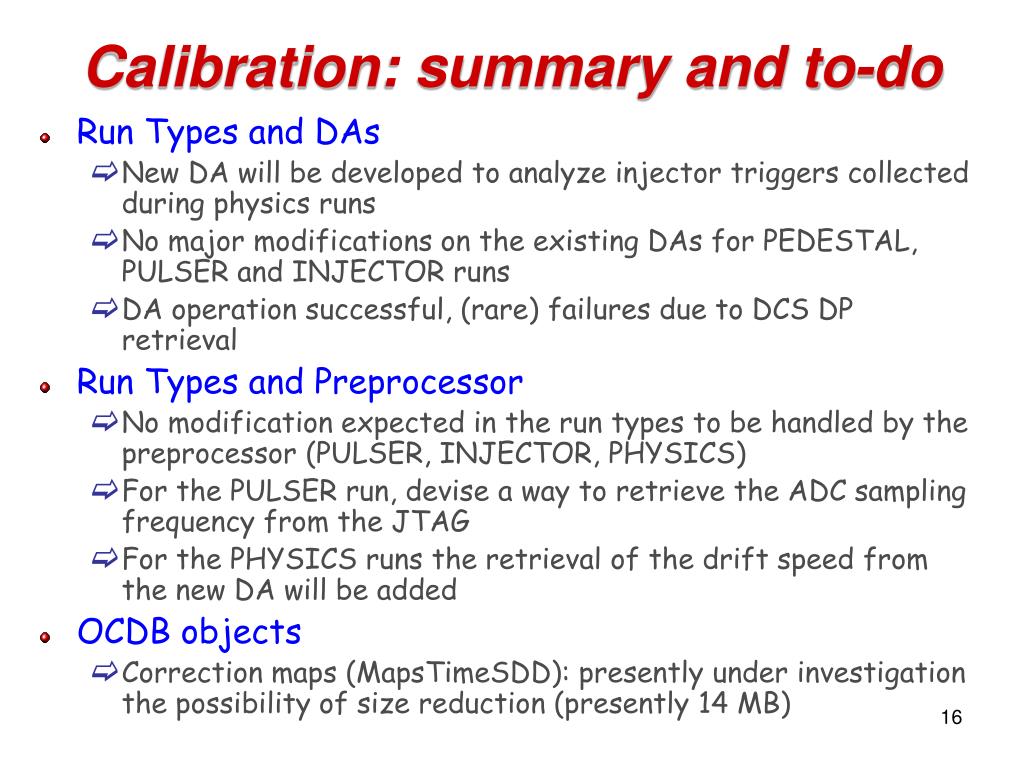

  16. Calibration: summary and to-do • Run Types and DAs • New DA will be developed to analyze injector triggers collected during physics runs • No major modifications on the existing DAs for PEDESTAL, PULSER and INJECTOR runs • DA operation successful, (rare) failures due to DCS DP retrieval • Run Types and Preprocessor • No modification expected in the run types to be handled by the preprocessor (PULSER, INJECTOR, PHYSICS) • For the PULSER run, devise a way to retrieve the ADC sampling frequency from the JTAG • For the PHYSICS runs the retrieval of the drift speed from the new DA will be added • OCDB objects • Correction maps (MapsTimeSDD): presently under investigation the possibility of size reduction (presently 14 MB)

  17. Backup

  18. Status of the QA • Code for RecPoint QA ready and tested and committed to aliroot trunk (M. Siciliano, P. Cerello) • Histograms for the online expert • 1081 from raw data + 6 from RecPoints • Histograms for the offline shifter: • 2 from raw data (Z-phi occupancy x 2 layers) • 4 from Rec Points (Z-phi + charge x 2 layers) • Work in progress on the checker

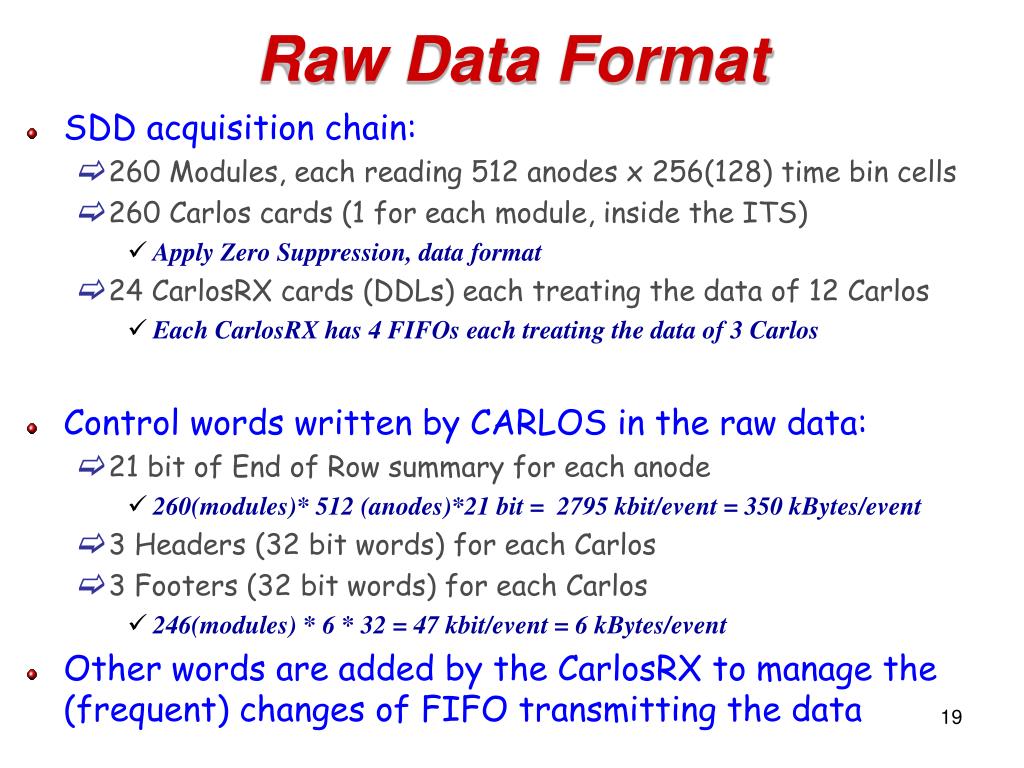

  19. Raw Data Format • SDD acquisition chain: • 260 Modules, each reading 512 anodes x 256(128) time bin cells • 260 Carlos cards (1 for each module, inside the ITS) • Apply Zero Suppression, data format • 24 CarlosRX cards (DDLs) each treating the data of 12 Carlos • Each CarlosRX has 4 FIFOs each treating the data of 3 Carlos • Control words written by CARLOS in the raw data: • 21 bit of End of Row summary for each anode • 260(modules)* 512 (anodes)*21 bit = 2795 kbit/event = 350 kBytes/event • 3 Headers (32 bit words) for each Carlos • 3 Footers (32 bit words) for each Carlos • 246(modules) * 6 * 32 = 47 kbit/event = 6 kBytes/event • Other words are added by the CarlosRX to manage the (frequent) changes of FIFO transmitting the data

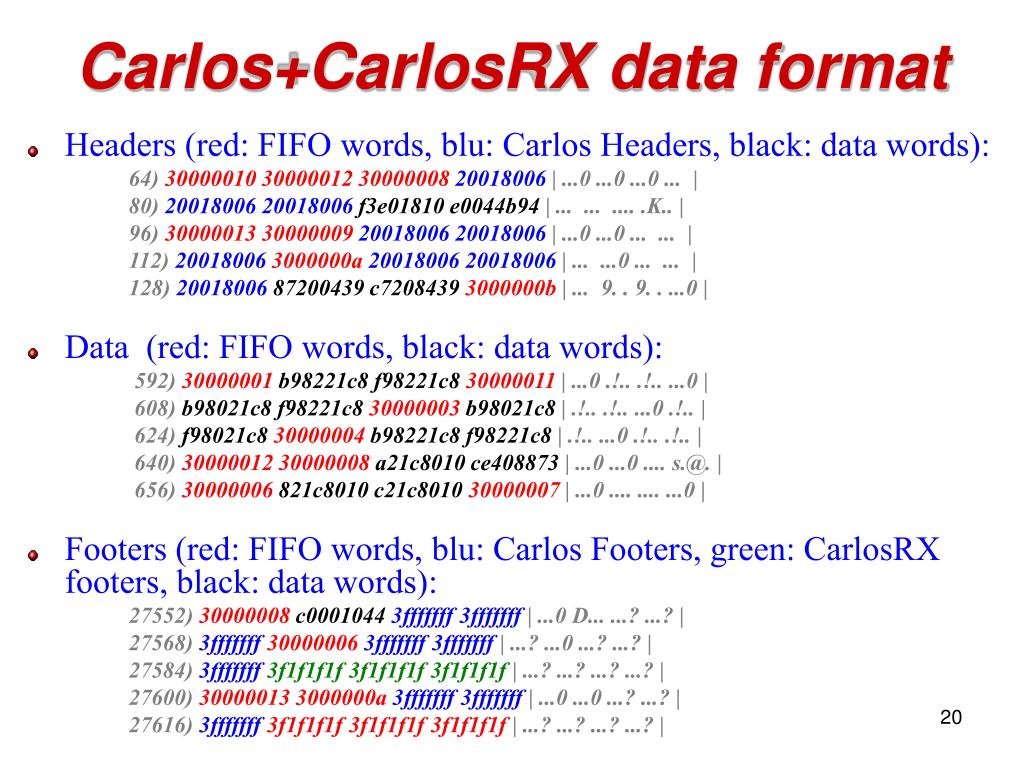

  20. Carlos+CarlosRX data format • Headers (red: FIFO words, blu: Carlos Headers, black: data words): 64) 30000010300000123000000820018006 | ...0 ...0 ...0 ... | 80) 20018006 20018006 f3e01810 e0044b94| ... ... .... .K.. | 96) 30000013 3000000920018006 20018006 | ...0 ...0 ... ... | 112) 200180063000000a20018006 20018006| ... ...0 ... ... | 128) 2001800687200439 c72084393000000b| ... 9. . 9. . ...0 | • Data (red: FIFO words, black: data words): 592)30000001b98221c8 f98221c830000011| ...0 .!.. .!.. ...0 | 608)b98021c8 f98221c830000003b98021c8| .!.. .!.. ...0 .!.. | 624)f98021c830000004b98221c8 f98221c8 | .!.. ...0 .!.. .!.. | 640)30000012 30000008a21c8010 ce408873 | ...0 ...0 .... s.@. | 656)30000006821c8010 c21c801030000007| ...0 .... .... ...0 | • Footers (red: FIFO words, blu: Carlos Footers, green: CarlosRX footers, black: data words): 27552)30000008c00010443fffffff 3fffffff| ...0 D... ...? ...? | 27568) 3fffffff300000063fffffff 3fffffff| ...? ...0 ...? ...? | 27584) 3fffffff3f1f1f1f 3f1f1f1f 3f1f1f1f| ...? ...? ...? ...? | 27600) 300000133000000a3fffffff 3fffffff| ...0 ...0 ...? ...? | 27616) 3fffffff3f1f1f1f 3f1f1f1f 3f1f1f1f| ...? ...? ...? ...? |

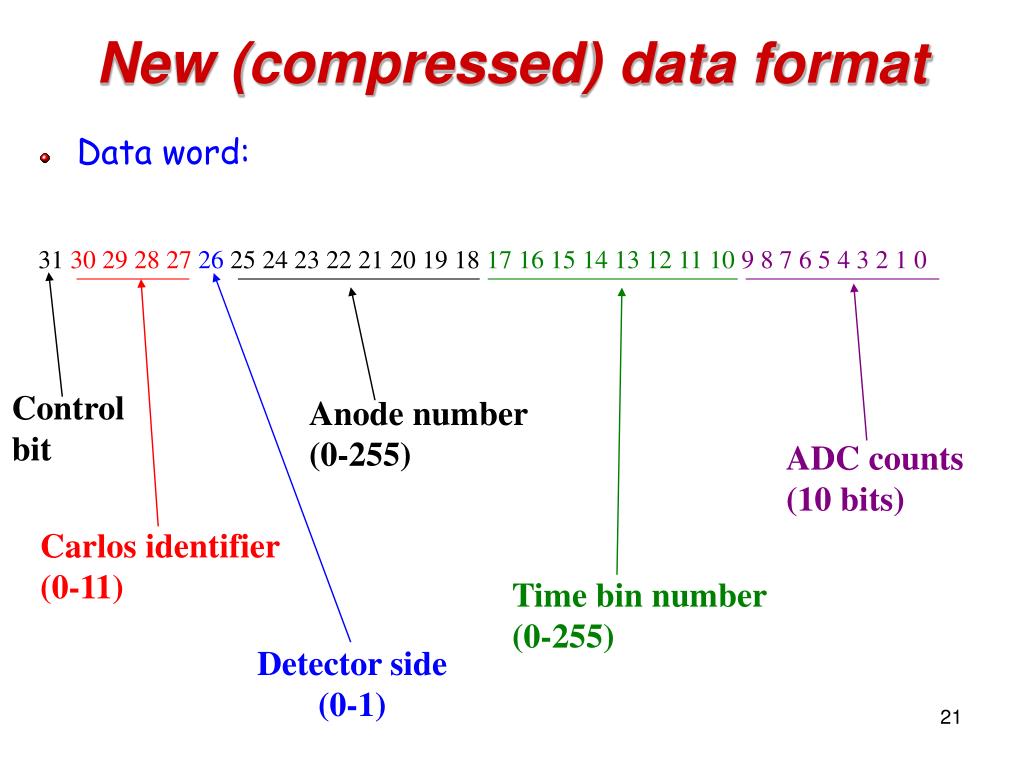

  21. New (compressed) data format • Data word: 31 30 29 28 2726 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 109 8 7 6 5 4 3 2 1 0 Control bit Anode number (0-255) ADC counts (10 bits) Carlos identifier (0-11) Time bin number (0-255) Detector side (0-1)
