Neurofeedback for Insomnia

Neurofeedback for Insomnia. A New Look at an Old Workhorse: A Pilot Study of Z -Score Sensorimotor & Individualized Neurofeedback

stan
Télécharger la présentation

Neurofeedback for Insomnia

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

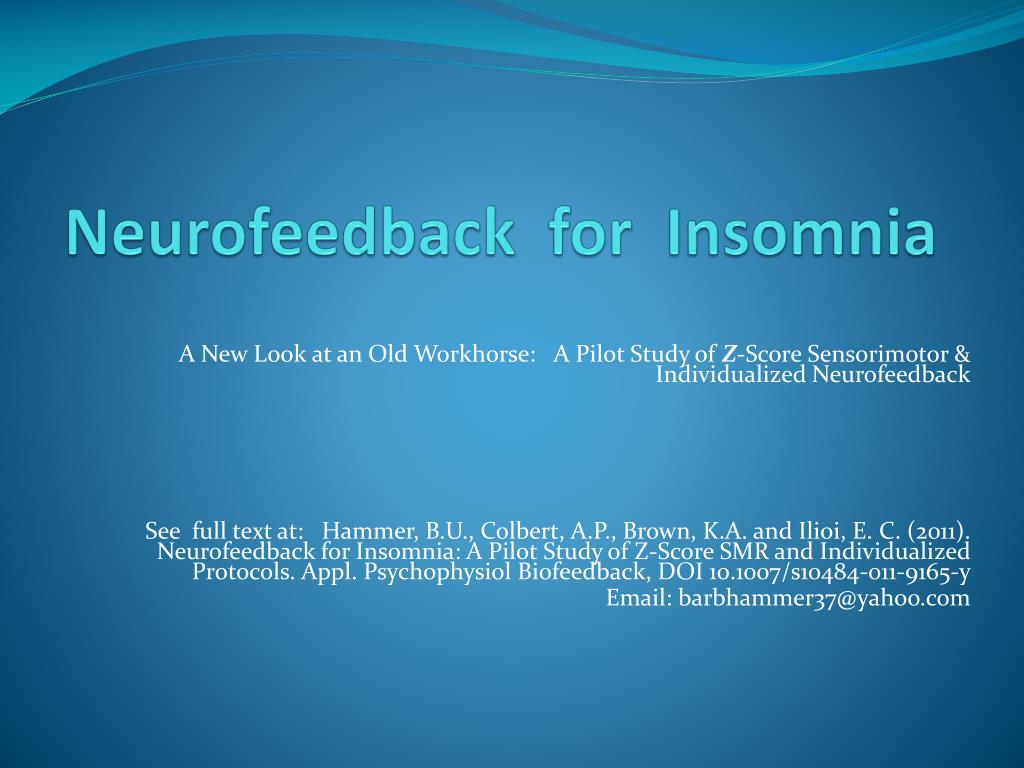

  1. Neurofeedback for Insomnia A New Look at an Old Workhorse: A Pilot Study of Z-Score Sensorimotor & Individualized Neurofeedback See full text at: Hammer, B.U., Colbert, A.P., Brown, K.A. and Ilioi, E. C. (2011). Neurofeedback for Insomnia: A Pilot Study of Z-Score SMR and Individualized Protocols. Appl. Psychophysiol Biofeedback, DOI 10.1007/s10484-011-9165-y Email: barbhammer37@yahoo.com

  2. Barbara U. Hammer, Ph.D., Agatha P. Colbert, MD, Kimberly A. Brown, MSOM, Helfgott Research Institute, National College of Natural Medicine, Portland, OR, Elena C. Ilioi, Psychology Honours, McGill University, Montreal, Quebec, Canada The authors are grateful to the Helfgott Research Institute of the National College of Natural Medicine in Portland, Oregon for its generous support of this research. We are especially appreciative of the help from Mark L. Smith and Nancy Wigton on the design of the protocols, William Gregory and Heather Jaskirat Wild for her assistance with the data analysis, and the generous support of our research assistants, Sean E. Griffith and Tineke Malus. We thank all those who participated in this study, including those who took the time to complete the telephone screening and the extended screening sessions but who were not offered the opportunity to continue and to receive treatment.

  3. Insomnia Definition Primary Insomnia (DSM 307.44): Complaints of Difficulty Falling Asleep, Staying Asleep or Awakening too early, or Non-restorative Sleep which occurs for at least one month and: 1. Causes significant distress or impairment in social, occupational, or other important areas of functioning. 2. Does not occur exclusively during the course of Narcolepsy, Breathing-Related Disorder, Circadian Rhythm Sleep Disorder or a Parasomnia. 3. Does not occur exclusively during the course of another mental disorder. 4. Is not due to the direct physiological effects of a substance or general medical condition.

  4. 2005 NIH Conference on Insomnia declared Insomnia an Epidemic: • 20-30% of adults in the U.S. suffer from Insomnia\ • Insomnia associated with increased Illness, accidents, healthcare utilization, and industrial expenses Costs estimated at $14-80 billion annually • Pharmacotherapy limited due to negative side effects

  5. Psychological treatments • highest co-morbidity • Insomnia persists despite psychotherapy for depression or anxiety • Cognitive Behavior Therapy— • demonstrated 70% efficacy , effectiveness, efficiency for treatment of Insomnia but seldom used • difficult to administer requiring specialized training/many sessions • Challenges remain primarily in service delivery system. Internet based program promising • Neurofeedback • SMR from Sterman 1960’s to Hauri (1980’s)=cats to humans, improved sleep • Theta benefitted tense insomniacs • Individualized studied here

  6. Peter Hauri (9/2008): SMR Neurofeedback in 1980’s used Analog Equipment not feasible for general clinical use: Too Expensive Too Cumbersome Too Time consuming Time to revisit SMR for Insomnia with Digital equipment and new training methods.

  7. Pilot Study Overview: IRB approved 8/2008 Purpose–Compare treatment effects of Z score NFB SMR & sequential, quantitative EEG (sQEEG) guided Individually Designed (IND) protocols for Rx of Insomnia. Methods –Eight completed single-blind study. Intervention –Fifteen 20-minute sessions Z-Score NFB. Pre-treatment Screening—Medical History Questionnaire Psychiatric Diagnostic Screening Inventory (PDSQ) plus: Pre-post measures – Insomnia Severity Index (ISI) Pittsburgh Sleep Quality Index (PSQI) Psychopathology (MMPI-2-RF) Clinical Interview Satisfaction/Happiness Quality of Life Index (QOLI) sQEEG

  8. PARTICIPANTS: 25+ Telephone Screening –unpaid, recruited over 4 months Exclusions—use of sleep aids, psychotropic meds, meds that impact sleep, mental disorders, physical disorders that could interfere, prior NFB, enrolled in another sleep study, pregnant or shift worker 12 Selected/Met DSM 307.44 criteria 2 Declined to start due to personal/extraneous reasons 2 Dropped out due to personal/external reasons >8 visits

  9. Sleep Measures ISI= Insomnia Severity Index--Perceived Severity of Symptoms + Daytime Dysfunctions for past 1-2weeks PSQI=Pittsburgh Sleep Quality Inventory--General Sleep Disturbance + Daytime Dysfunctions for past 1month Daily Sleep Diaries=from Screening Visits to Post Testing-- recordings of bedtime, rising time, estimated latency, WASO, TST, Sleep Quality 1-10, adverse events or unusual circumstances Actiwatch=72hours pre and post treatment

  10. Measures of Daytime Functioning MMPI-2 RF-Most widely researched, used measure of psychopathology. Newest version Psychiatric Diagnostic Screening-Questionnaire- PDSQ—Guide to depth clinical interview to confirm absent Dx Quality of Life Index-QOLI—Measures positive mental health=daytime function

  11. Objective Physiological Measures sQEEG=Quantitative Electroencephalogram Profiles the brain’s electrical functioning in direct comparison with normative database (NeuroGuide). Like other direct physiological measures, such as blood sugar, lipids or liver enzymes, the EEG has demonstrated high reliability Actiwatch-Numerous technical difficulties invalidated use

  12. sQEEG—EEG General Screening Records several minutes at 4 scalp sites in 5 runs for total of 19 of 10/20 sites Records overall synchrony measures between each set of 4 sites BrainMaster Certified Calibration tested EEG amplifier for NFB/QEEG

  13. NFB=Operant Conditioning to Norm Training to Norm =Normalizing physiological process via self-regulating brainwave distribution Based on Principles of Learning via Operant Conditioning Z-Score NFB designed to use Live, Instantaneous record as basis of Reinforcement

  14. Experimental Groups Group 1—Z-Score Individualized Protocol (IND) = Normalized 4 highest abnormal site(s) (HAS4) via reward of correct enhancement or inhibition of variables > ±1.96 Z , at increasingly larger percentage of normal Z scores. Modified PZOKUL. Group 2—Z-Score SMR Protocol (SMR) = Training at Cz and C4, LE, reward production of SMR (12-15Hz) & inhibition of excessive theta & high beta, & all other amplitudes & connectivity measures within normal. Modified PZOKUL . General Training Procedure = Initial % of all variables in the normal range =50% raised as % Time >80 Z scores normal. When % variables >80, Z score limit was reduced as far as possible.

  15. Success of Training All subjects reached training goal of 80% correct within normal range for 80% of the training time. Four of 5 in SMR improved SMR Z-scores (toward 0) at training sites ANOVA Age, sex, PDSQ, Group not significant covariates. Groups combined for all measures. Pre-Post Significant Changes Significant improvement on all primary sleep measures. See Table 2 & 3, Figs 2 & 3 Sleep Efficiency above diagnostic cutoff Post treatment WASO significantly improved in half. QOLI significantly improved MMPI clinical improvement sQEEG significant lowering of Delta (sleepiness) & Beta (arousal) Table 4 Six month Follow-up Six of 8 responded Five of 6 remained free of insomnia, one returned to baseline, 3 improved from baseline

  16. Actiwatch—72 Hour data pre-post with Multiple Technical Difficulties Prevented Analysis • Click sound inaudible • Possibly defective recording hardware • Possibly defective recording software • Vender suggested corrections via Sleep Log questionable • User errors discovered too late to re-train

  17. Adverse Events • None reported • __________________________ • Two drop-outs • Unexpected life-style changes (trauma induced) interfering with treatment schedule

  18. Conclusions: • Baseline EEGs showed both excessive sleepiness and hyperarousal, which significantly improved post-treatment. • Both NFB protocols provided significant improvement in self reported sleep, daytime functioning, mental health, and sQEEG. • SMR treatment at least as effective as IND, and significantly less burdensome to administer.

  19. Discussion • Data replicates early SMR studies with new equipment and advanced software/training designs • Z score NFB possibly effective at 8 Rx sessions (160”) training time, possibly faster than traditional NFB & CBT • 3) SMR at least as effective as Individually designed protocol based on sQEEG • 4) Participants improved on ALL self-report sleep measures, quality of life, and mental health

  20. Discussion (continued) All Participants became normal sleepers, relatively quickly 6) Safe, well-tolerated, non-pharmacological, Non-Invasive 7) SMR easily practiced clinically

  21. Limitations: Small Sample Size Regression toward Mean Lack of Control group Single Blind Design Lack of useful Actiwatch/objective sleep measure Lack of EEG connectivity measures in IND

  22. I love sleep. My life has the tendency to fall apart when I'm awake, you know? Ernest Hemingway
