  1. Saints Row Scheduler • Randall Turner, Volition, Inc. • Randall.turner@volition-inc.com • Discussion Areas: • Saints Row project • Saint’s Row scheduler

  2. Saint’s Row

  3. Single Thread, CPU Bound

  4. Alpha Kits • Two Hardware Threads • Dual Core • Hardware thread • Software thread • Many software threads on one hardware thread • Software threads != concurrency. Hardware threads do.

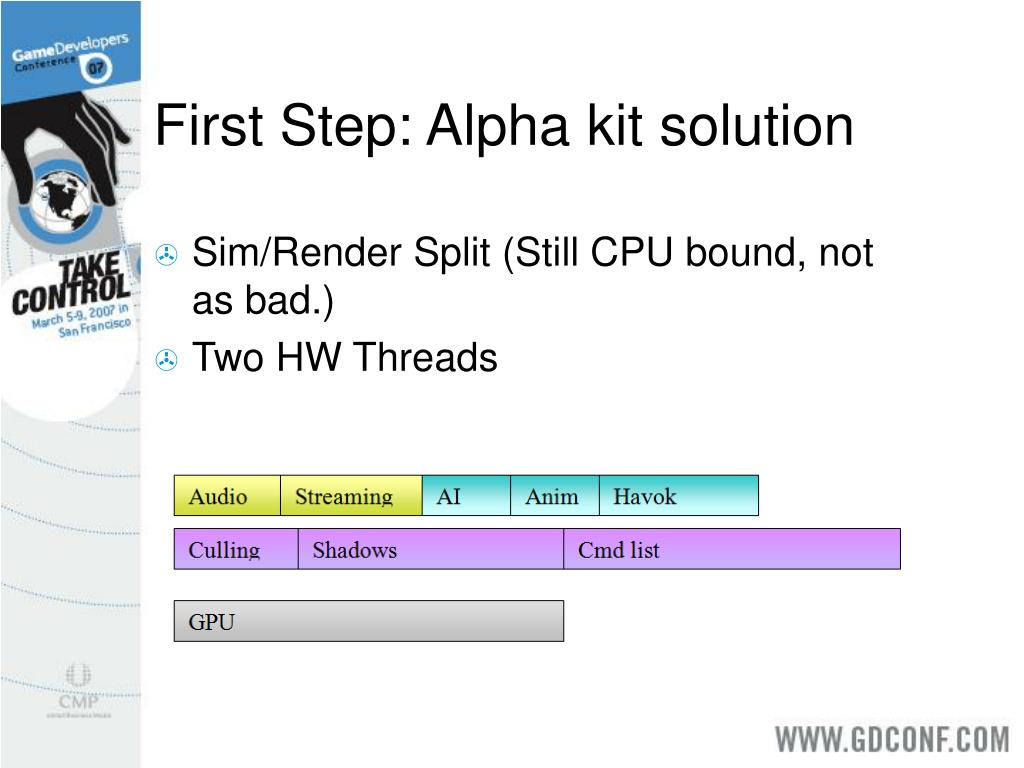

  5. First Step: Alpha kit solution • Sim/Render Split (Still CPU bound, not as bad.) • Two HW Threads

  6. Beta Kits • Betas = Six hardware threads, Woo Hoo! • But each hardware thread was slower than Alphas. • Homogeneous processing, unified memory

  7. First Beta Soluton

  8. Problem • Still only using mostly two HW threads (Sim, Render) • Badly CPU bound • No more major “natural” separation points

  9. Interim Solution • Manually move processing to other HW threads. • Example – Shadow Calculations • Create a SW thread to process half of the object list • Process half the list when triggered.

  10. Fixed Concurrent Processing • Uses an entire SW thread for one type of processing. • Wastes system resources • Hard coded to execute that processing type only. • Inflexible, Scales up badly.

  11. Solution… Scheduler & Jobs

  12. Goal • Make all movable so will use available space

  13. Scheduler (Job Manager) • Jobs • Worker threads • Job Queues • Triggers

  14. Jobs • Independently schedulable entity • No dependencies on other jobs. • Atomic with respect to other jobs • Essentially a function/data pair

  15. Creating Jobs • Extract parallelism from loops. (Splatting) • Segregate memory usage • Thread safe interactions with systems • critical sections • double-buffering

  16. Examples • Compute shadow silhouettes • Character animation • Object visibility culling • Building command buffers • Bad candidate - AI processing • Not easily turned into jobs due to interaction with large, difficult to thread safe data set.

  17. Basic Scheduler Flow

  18. Worker Threads • One per HW thread • Draws jobs from job queues • Associated with job “type” • Sim jobs, Render jobs, or “any” job. • “Soft” or “Hard” linkage • Dynamically configurable • Wakes up when jobs go into job queue • Can be deactivated

  19. Job Queues • One per job type • Sim or Render • Implicit prioritization • High frequency, contention sensitive • Used critical sections on version 1.0

  20. Triggers • Fire on completion of jobs • Scheduling Triggers – schedule more jobs • Event Triggers - activate suspended threads • Can tie together to create state machines.

  21. First Pass

  22. Final Pass • 90% CPU Utilization

  23. Flow-Around • Callback to scheduler on interrupt • Allow “small” jobs to complete, then resume • Jobs contain duration info

  24. Havok • Timestep called from Scheduler job • More flexible • Problem: Has own internal scheduler • Timestep Goes “Serial” • Jobs don’t flow • Solution: break out and splat serial processing ourselves.

  25. Havok - serial extraction

  26. Performance • Critical Sections • Scheduler v1.0 all critical sections • Blockage risk – CS owner preemption • Can stall ALL threads • Lock-Free • Faster – x2 no contention, x10-20 high-contention situations • NO blockage risk (Woo Hoo!) • GP Gems 6, Fober

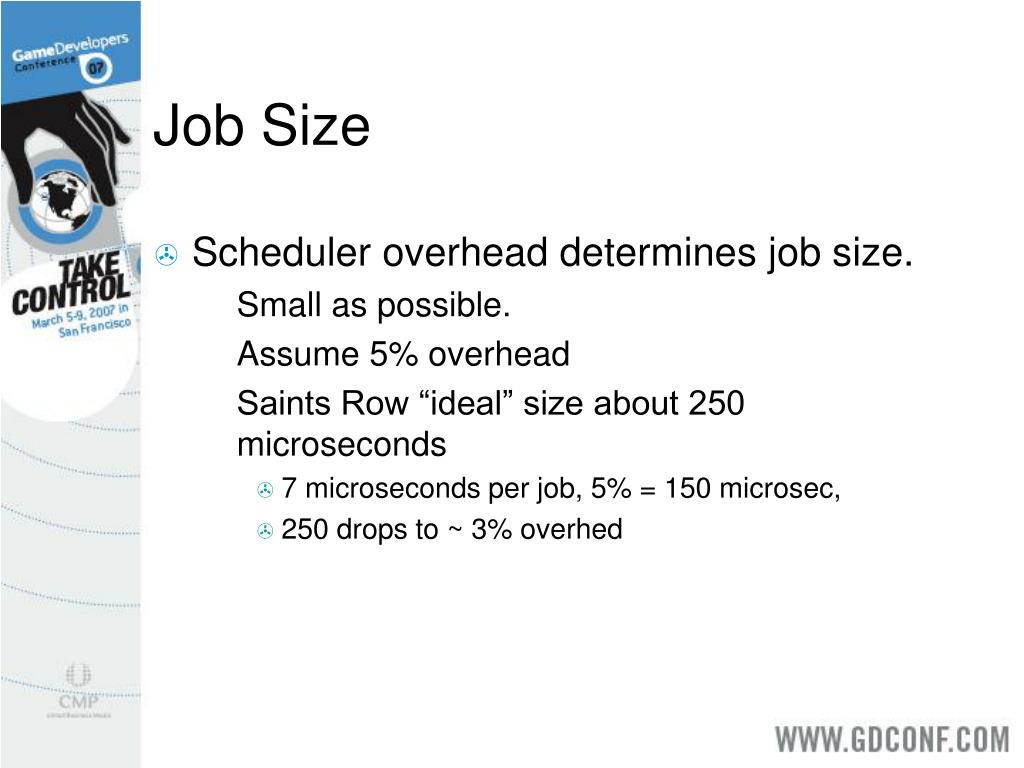

  27. Job Size • Scheduler overhead determines job size. • Small as possible. • Assume 5% overhead • Saints Row “ideal” size about 250 microseconds • 7 microseconds per job, 5% = 150 microsec, • 250 drops to ~ 3% overhed

  28. Questions? For latest slides: • http://www.volition-inc.com/gdc07/

  29. Extras • Pix with PVS on, night, high load • Release, w/o PIX samples, ~ 35ms

  30. Lock Free URL’s • Fober implementation: • http://www.grame.fr/pub/LockFree.pdfhttp://www.grame.fr/pub/TR-050523.pdf • Toby Jones: • GP Gems 6 • Good coding style
