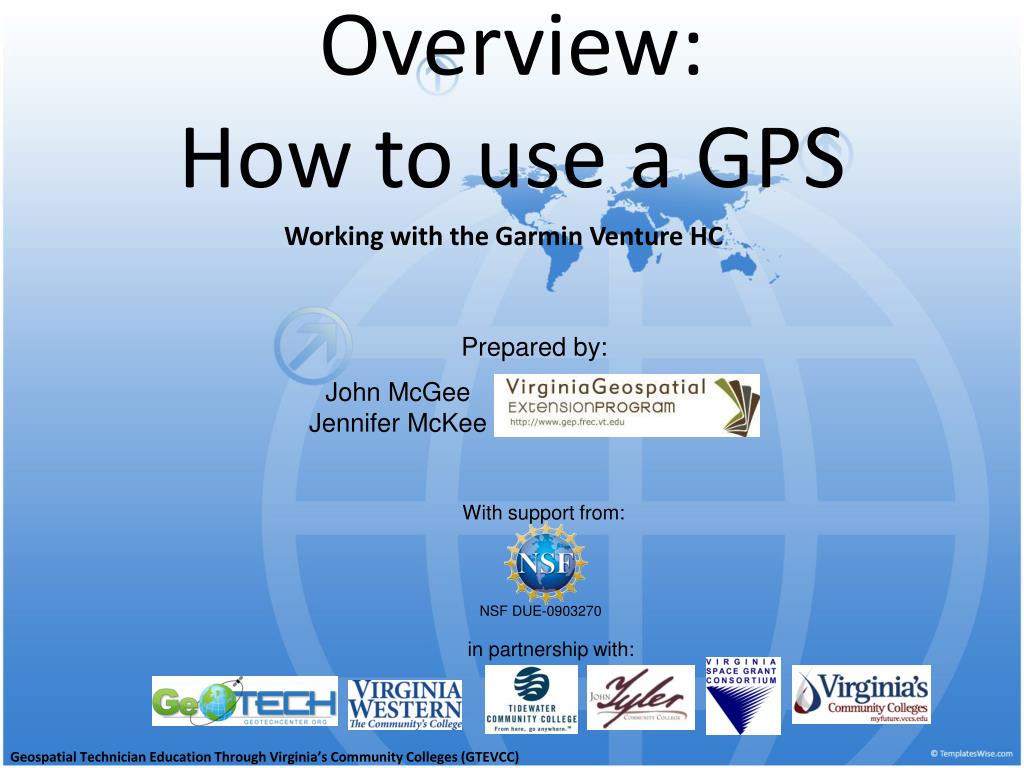

  1. Overview: How to use a GPS Prepared by: John McGee Jennifer McKee Working with the Garmin Venture HC With support from: NSF DUE-0903270 in partnership with: Geospatial Technician Education Through Virginia’s Community Colleges (GTEVCC)

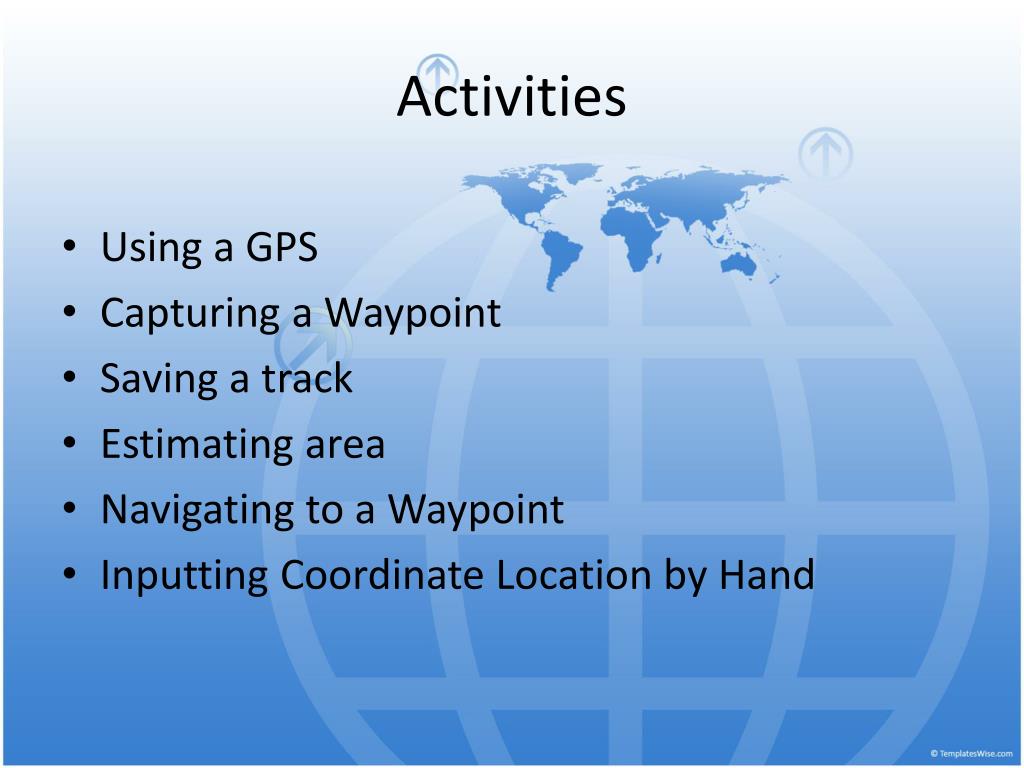

  2. Activities • Using a GPS • Capturing a Waypoint • Saving a track • Estimating area • Navigating to a Waypoint • Inputting Coordinate Location by Hand

  3. Using a GPS Satellite page Map page Compass page Main menu Mark waypoint

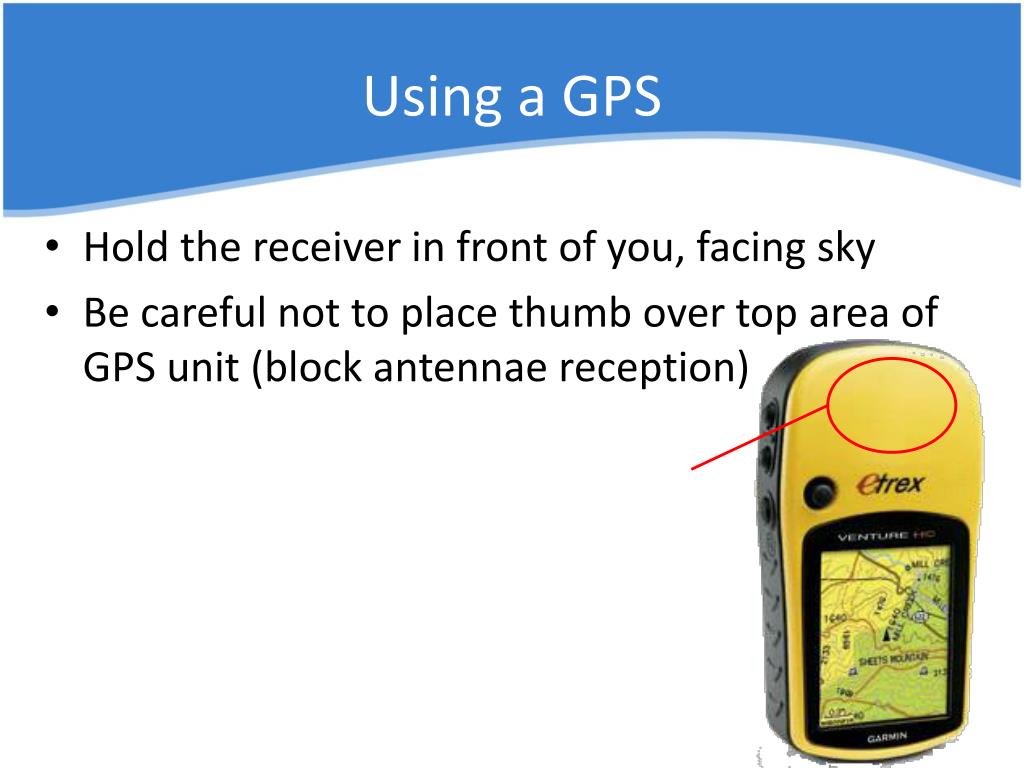

  4. Using a GPS • Hold the receiver in front of you, facing sky • Be careful not to place thumb over top area of GPS unit (block antennae reception)

  5. Capturing a Waypoint • To capture a waypoint press & hold the Rocker key straight down • To accept the waypoint select OK or To change the name of the waypoint, highlight the name field* & press Enter to open the on-screen keypad, select OK twice when done *

  6. Saving a Track • Using the Page key, find the Main Menu page • Select the Tracks icon & push enter • Save the entire track...or Select the beginning & ending points for the track 4. Select OK

  7. Estimating Area • Using the Page key, find the Main Menu page • Highlight the Setup icon & push Enter • Highlight “Page Seq. “& push Enter • Highlight <Add Page> & push Enter • Highlight “Area Calculation” • Add Calculate Area page

  8. Estimating Area Continued • Select Start on the Calculate Area page • Walk the area to be measured • Select Stop on the Calculate Area page • Area will be displayed, Units of measurement can be altered • To save the track, select Save

  9. Navigate to a Waypoint • Using the Page key, find the Main Menu page • Highlight Find icon & push Enter • Highlight Waypoints & push Enter • Highlight a waypoint & push Enter • Highlight “Go To” at the bottom right of the page • The compass page will open showing the compass direction & distance to your waypoint

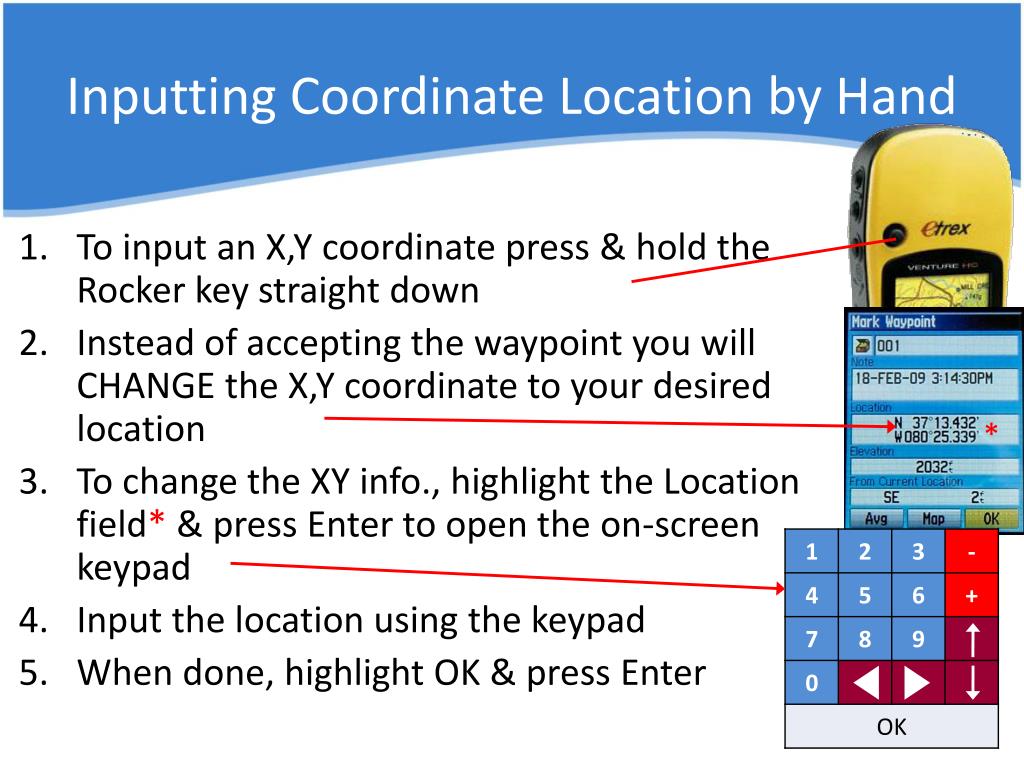

  10. Inputting Coordinate Location by Hand • To input an X,Y coordinate press & hold the Rocker key straight down • Instead of accepting the waypoint you will CHANGE the X,Y coordinate to your desired location • To change the XY info., highlight the Location field* & press Enter to open the on-screen keypad • Input the location using the keypad • When done, highlight OK & press Enter *

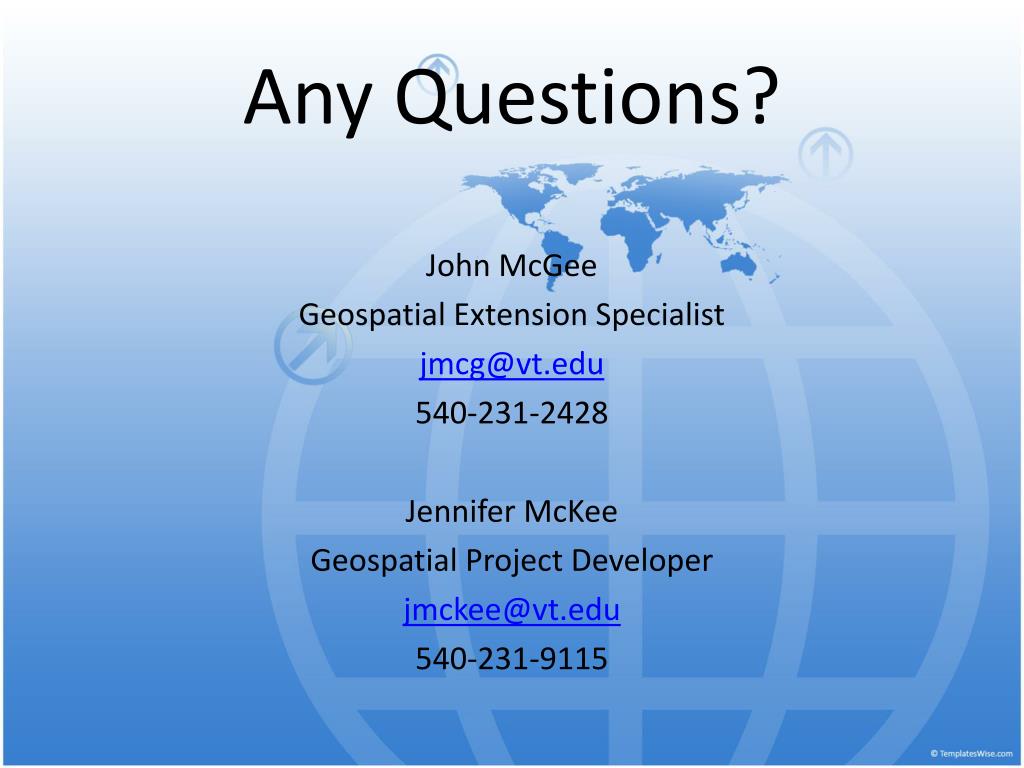

  11. Any Questions? John McGee Geospatial Extension Specialist jmcg@vt.edu 540-231-2428 Jennifer McKee Geospatial Project Developer jmckee@vt.edu 540-231-9115
