Presentation Transcript

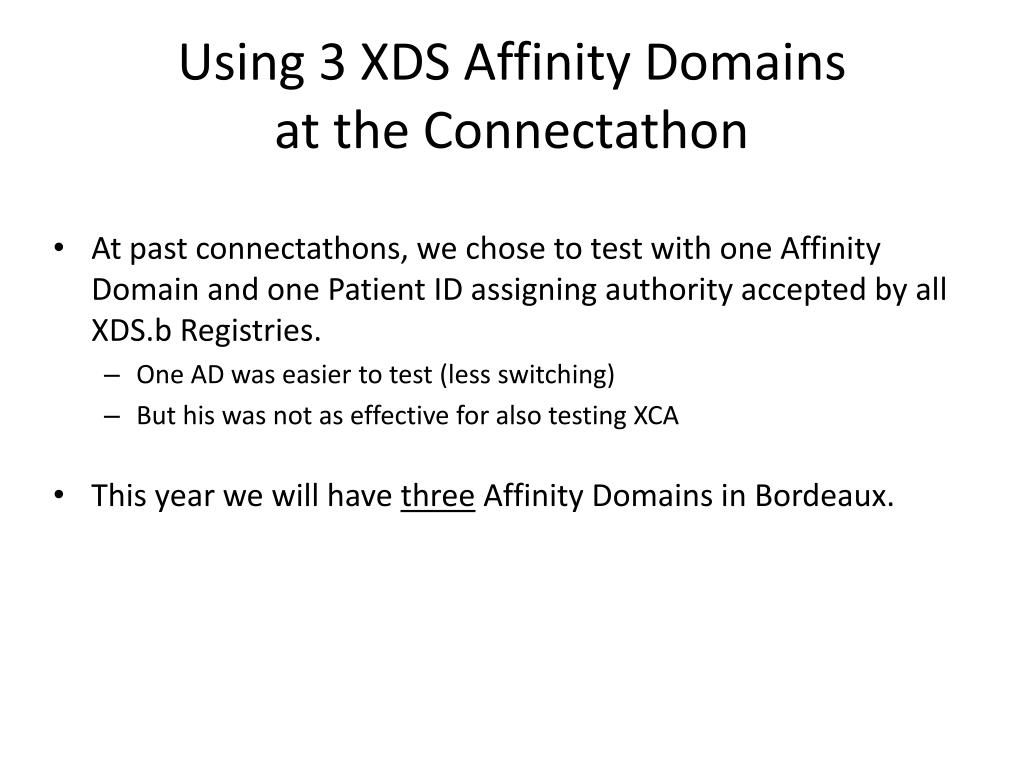

  1. Using 3 XDS Affinity Domains at the Connectathon • At past connectathons, we chose to test with one Affinity Domain and one Patient ID assigning authority accepted by all XDS.b Registries. • One AD was easier to test (less switching) • But his was not as effective for also testing XCA • This year we will have three Affinity Domains in Bordeaux.

  2. Using 3 XDS Affinity Domains at the Connectathon (Part 2) • Each Affinity Domain hasits own (different) ‘master’ assigning authority for Patient IDs (eg …3000.1.1, …3000.1.2, ...3000.1.3) • For ease-of-reference, we call these the ‘blue’, ‘red’, and ‘green’ domains • Each XDS.b Registry is assigned to one of these 3 domains for the week. • The Patient ID feed must have the Assigning Authority OID for its domain • All documents submitted must use the proper Assigning Authority OID • Affinity domain codes (from codes.xml) are the same across all 3 affinity domains • A simplification to ease testing

  3. Assigning Authority & XDS.b / XDS-I.b • We define 3 “Master” Patient ID Assigning Authority values (eg …3000.1.1, …3000.1.2, ...3000.1.3) • XDS.b Registries: • A given Registry is assigned only one of these values. It only accepts Patient Feeds and Documents submitted for this Assigning Authority. This value remains the same for the whole week. • We have ~15 Registries in Bordeaux. That means that five of the Registries will be assigned to accept a Patient ID with the …3000.1.1 value, five are assigned the …3000.1.2 value, etc. This is no different than what we have done up until now with multiple Registries accepting the same assigning authority value. • XDS.b Repositories: • A Repository shouldn’t care if it has stored documents for patients with different assigning authority values; the Repository can keep its database and be paired with different Registries during the week with no adverse effect. • XDS.b Sources & Consumers: • The burden for multiple assigning authority domains lies here. • Sources will have to pay close attention to Assigning Authority of the Registry associated with the Doc Repository to which they are submitting a document. • Consumers will have to know the Assigning Authority value of the Registry it is querying.

  4. 1.3.6.1.4.1.21367.3000.1.3 assigning authority 1.3.6.1.4.1.21367.3000.1.1 Sources Sources Sources Sources Sources Sources Patient ID feed Patient ID feed Sources Sources Sources Sources Sources Sources Sources Sources Sources Sources Sources Sources Repos. Repos. Repos. Repos. Registry Registry XCA GW XCA GW PIX MGR XCA GW Registry Repos. Repos. Patient ID feed 1.3.6.1.4.1.21367.30001.2

  5. Patient ID Assigning Authorityfor XDS.b Registries to accept

  6. Assigning Authority & HL7 actors • PIX/PIXv3/XDS.b Patient Identity Sources: • For tests driven by XDS.b, we will use a tool to serve as the Patient Identity Source (able to send demographics with red, blue, green assigning authority) • As usual, for PIX peer-to-per tests, each PIX Patient ID Source actor will have its own assigning authority value given to them in the gazelle configuration section • PIX/PIXv3 Managers: • Should receive a feed for all patients created by the Patient Identity Source tool used for XDS.b testing (including red, blue, green assigning authority values) • PIX/PIXv3 Consumers: • Are already required to specify the affinity domain in their PIX Query; they may optionally specify ‘what domain returned’, to query a PIX Manager for a Patient ID in the domain they want • PDQ/PDQv3 Suppliers: • PDQ Suppliers will be given one of the red/blue/green assigning authority values • It responds to PDQ queries using the value of the Assigning Authority OID it has been given • See next slide

  7. Assigning Authority for PDQ/PDS systems

  8. Multiple domains & XCA & XCPD • XCA Initiating and Responding Gateways: • Connectathon Monitors assigned to XCA will help Gateways “plug in” to this infrastructure • Those Gateways that support the ‘XDS affinity domain’ option can be associated with one of the affinity domains • They will either learn about patients by accepting a Patient ID feed, or will do it some other non-IHE way • A few Gateways will also support XCPD, and can test this as well
