Understanding Color Perception and Mixing Pigments

stefan avatar
stefan
15 diapositives · 261 Views · Jul 29, 2014

Explore how humans see colors, the subtractive color process, and how mixing pigments creates different hues. This lesson covers how objects reflect light and why leaves appear green, as well as the CMYK color model.

Understanding Color Perception and Mixing Pigments - slide 1
01 / 15Understanding Color Perception and Mixing Pigments
1 / 17

Télécharger la présentation

Understanding Color Perception and Mixing Pigments
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

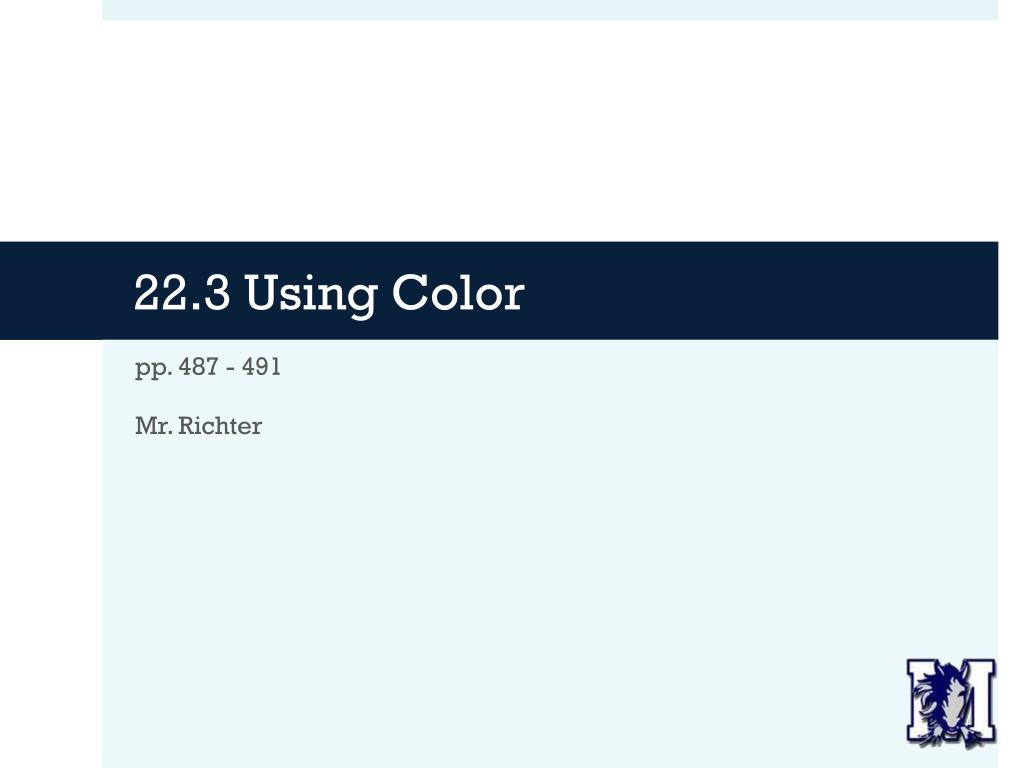

  1. 22.3 Using Color pp. 487 - 491 Mr. Richter

  2. Agenda • Warm-Up • Review HW • Notes: • How We See Objects • Mixing Pigments (The Subtractive Color Process)

  3. Objectives: We Will Be Able To… • Describe how humans see specific colors. • Explain the subtractive color process. • Determine what color of light will be reflected if a colored light is shined on a certain object.

  4. Warm-Up: • Leaves are green. What makes them green? That is, why do we perceive them to be green? • Discuss at your table and we will discuss as a class in a few minutes.

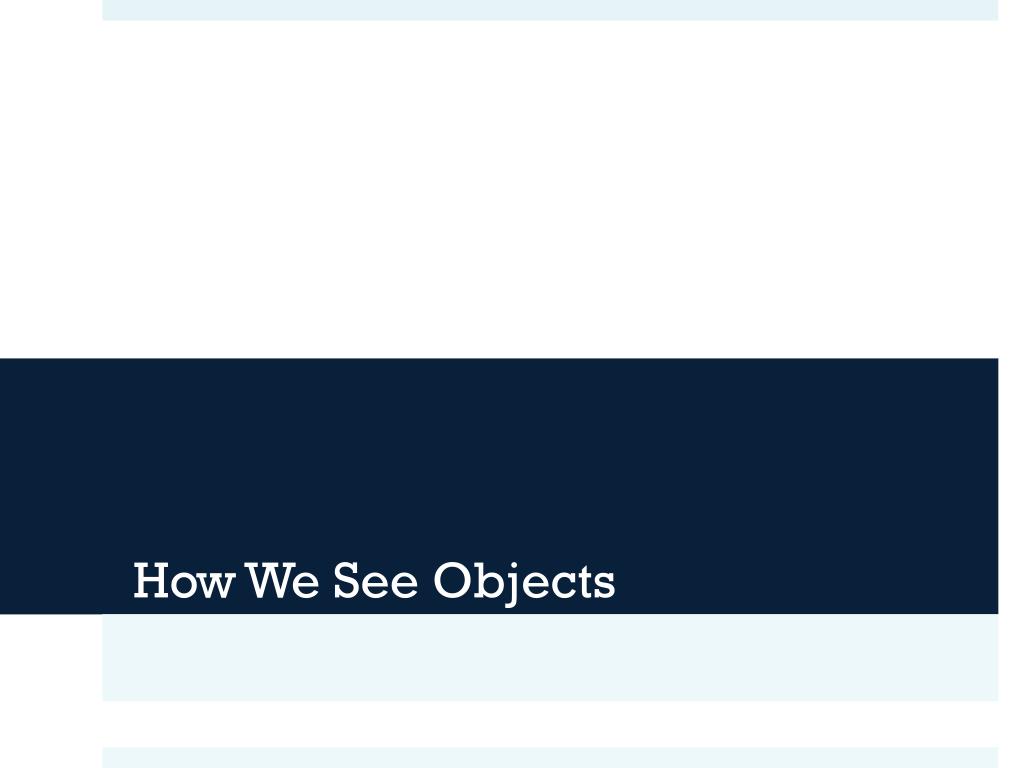

  5. How We See Objects

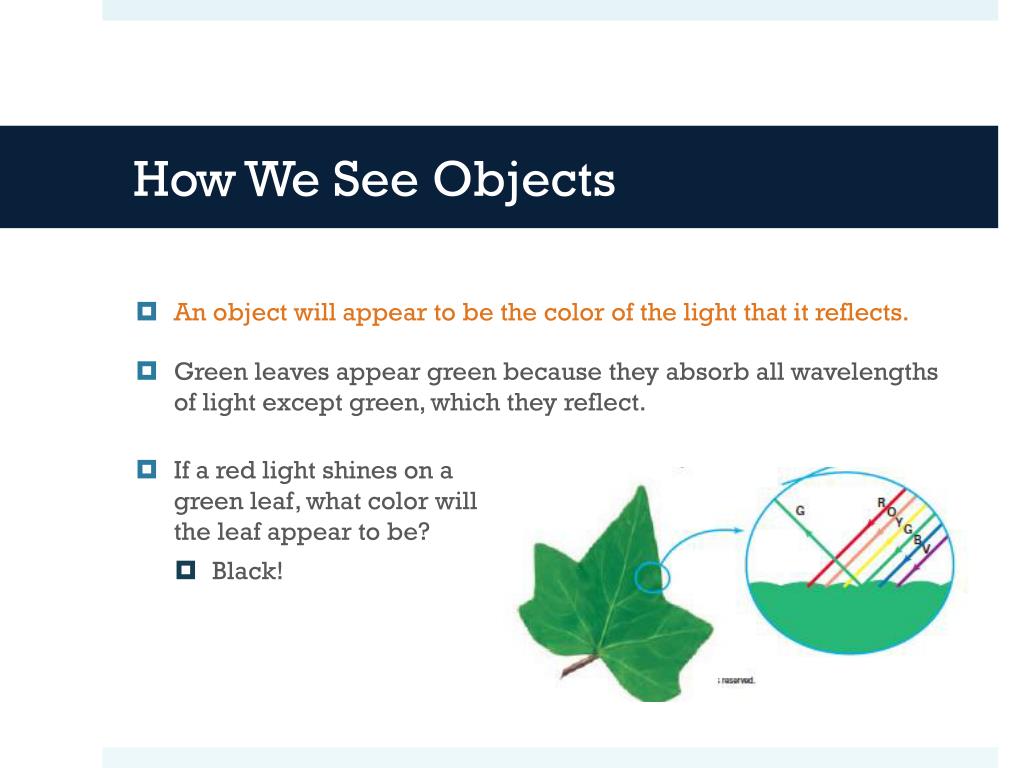

  6. How We See Objects • An object will appear to be the color of the light that it reflects. • Green leaves appear green because they absorb all wavelengths of light except green, which they reflect. • If a red light shines on a green leaf, what color will the leaf appear to be? • Black!

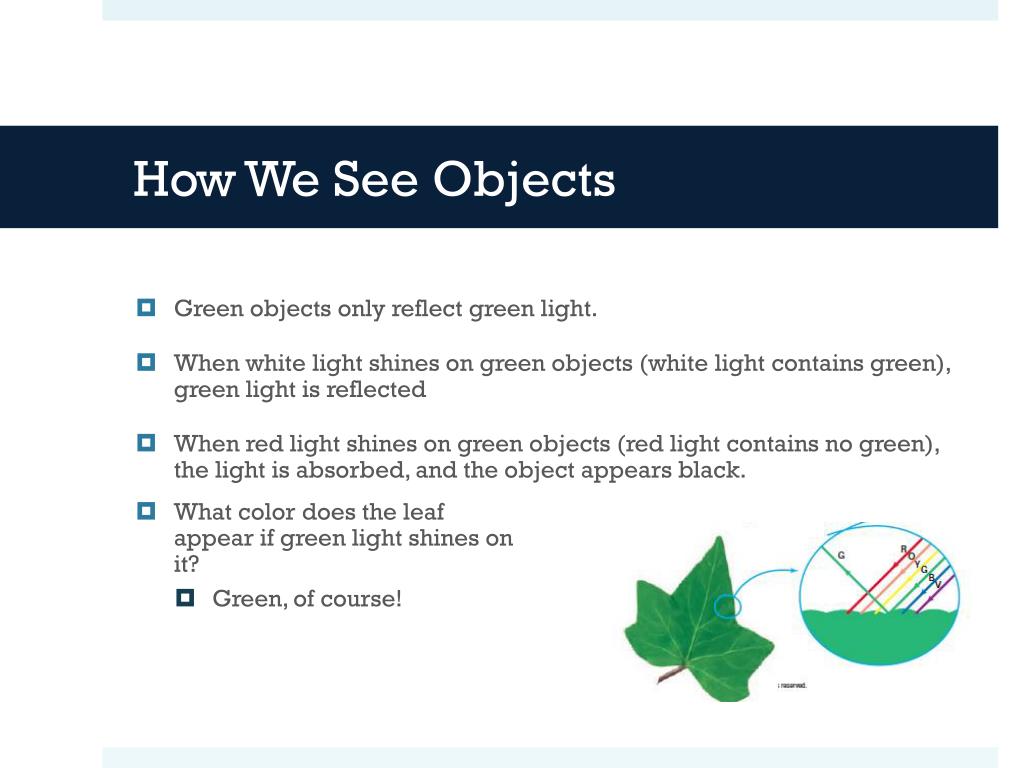

  7. How We See Objects • Green objects only reflect green light. • When white light shines on green objects (white light contains green), green light is reflected • When red light shines on green objects (red light contains no green), the light is absorbed, and the object appears black. • What color does the leaf appear if green light shines on it? • Green, of course!

  8. Mixing Pigments The Subtractive Color Process

  9. Mixing Pigments • To make objects a certain color, pigments (little specks of colored material) are mixed together. • For an object to reflect a certain color, all other colors of light must be absorbed. • This is called the subtractive color process.

  10. Mixing Pigments • The subtractive color process is also called the CMYK process: • Cyan • Magenta • Yellow • blacK • These colors are the subtractive primary colors.

  11. Mixing Pigments • How do you make green paint? • Mix cyan (which absorbs red) • With yellow (which absorbs blue) • If red and blue are absorbed, only green is reflected!

  12. Mixing Pigments • If pure yellow light shines on a magenta t-shirt, what color will the t-shirt appear to an observer? • Yellow light = green + red light • Magenta = reflects red + blue • Yellow shining on magenta reflects only red light

  13. Expert • http://www.youtube.com/watch?v=gtgBHsSzCPE

  14. Wrap-Up: Did we meet our objectives? • Describe how humans see specific colors. • Explain the subtractive color process. • Determine what color of light will be reflected if a colored light is shined on a colored object.

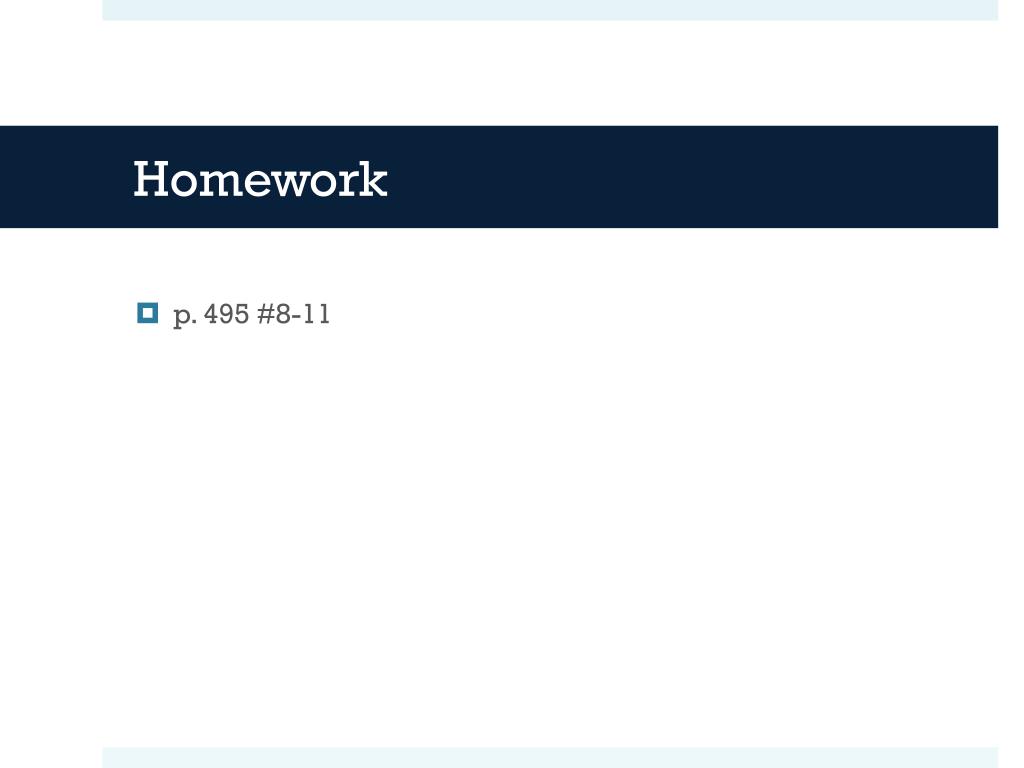

  15. Homework • p. 495 #8-11
