Cyclic Hydrocarbons

Cyclic Hydrocarbons. Examples. Testosterone. Hydrocarbon ring structures. When two ends of a hydrocarbon chain join together. Naming and Drawing Cyclic hydrocarbons. Draw the ring, according to the root of the name.

steffie
Télécharger la présentation

Cyclic Hydrocarbons

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

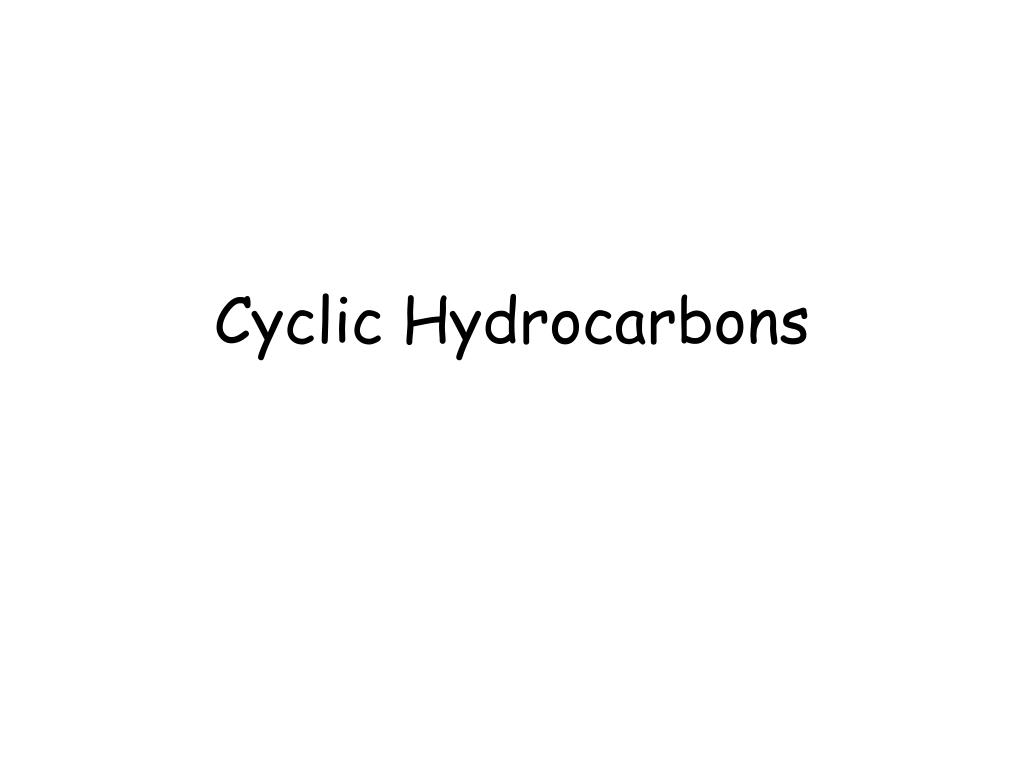

  1. Cyclic Hydrocarbons

  2. Examples Testosterone

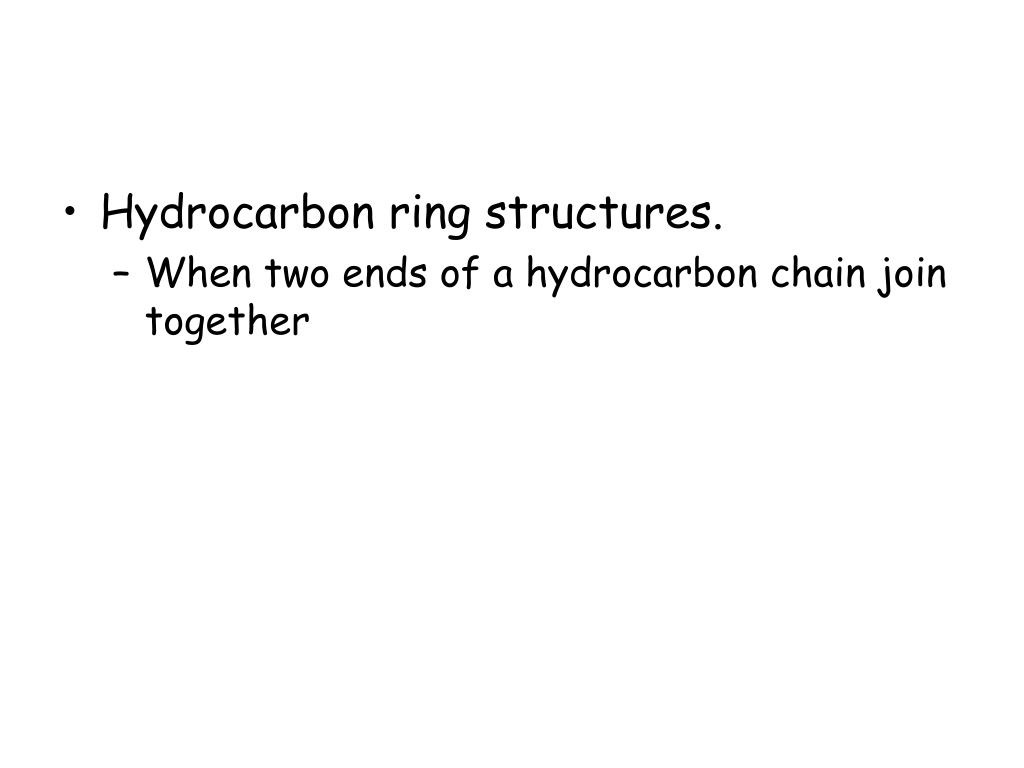

  3. Hydrocarbon ring structures. • When two ends of a hydrocarbon chain join together

  4. Naming and Drawing Cyclic hydrocarbons • Draw the ring, according to the root of the name. • Choose one of the ring carbon atoms as carbon number 1. Place each branch accordingly.

  5. Draw a condensed structural diagram for 1, 2, 4-trimethylcycloheptane • Draw the ring, according to the root of the name.

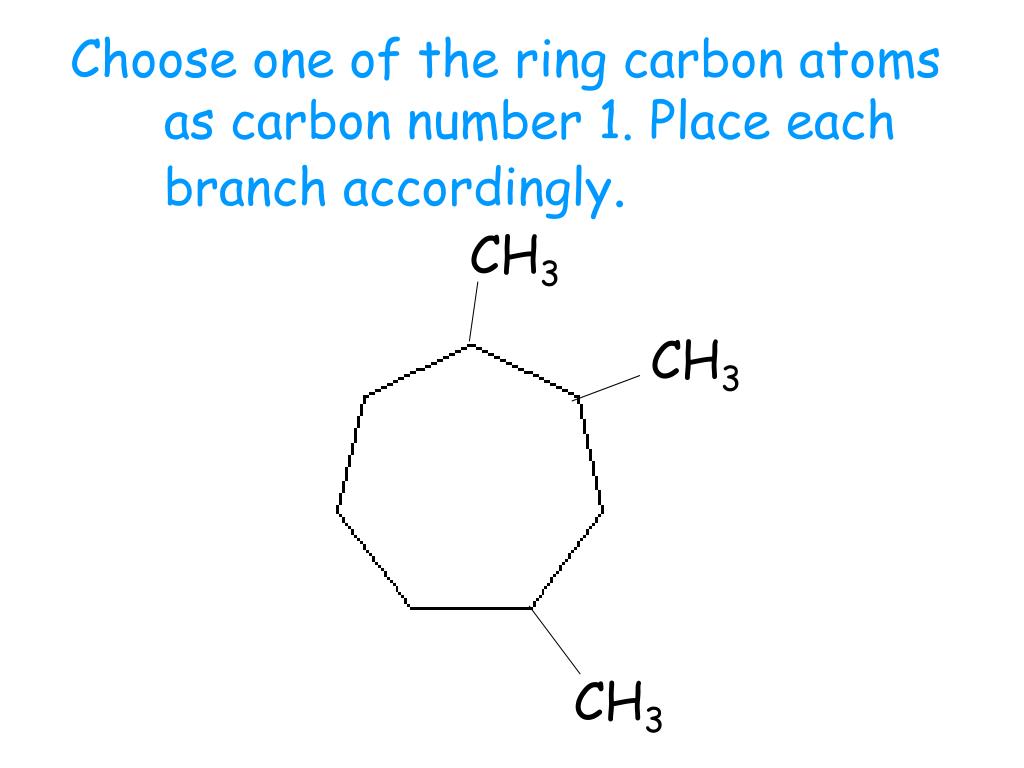

  6. Choose one of the ring carbon atoms as carbon number 1. Place each branch accordingly. CH3 CH3 CH3

  7. Naming Cyclic Hydrocarbons • Identify the branches. • Number the carbons in the ring, in either direction, so that the branches have the lowest possible position numbers. • Write the prefix. • Write the root –cyclo- plus the number of carbon atoms in the ring • Write the suffix name (-ane, ene, yne)

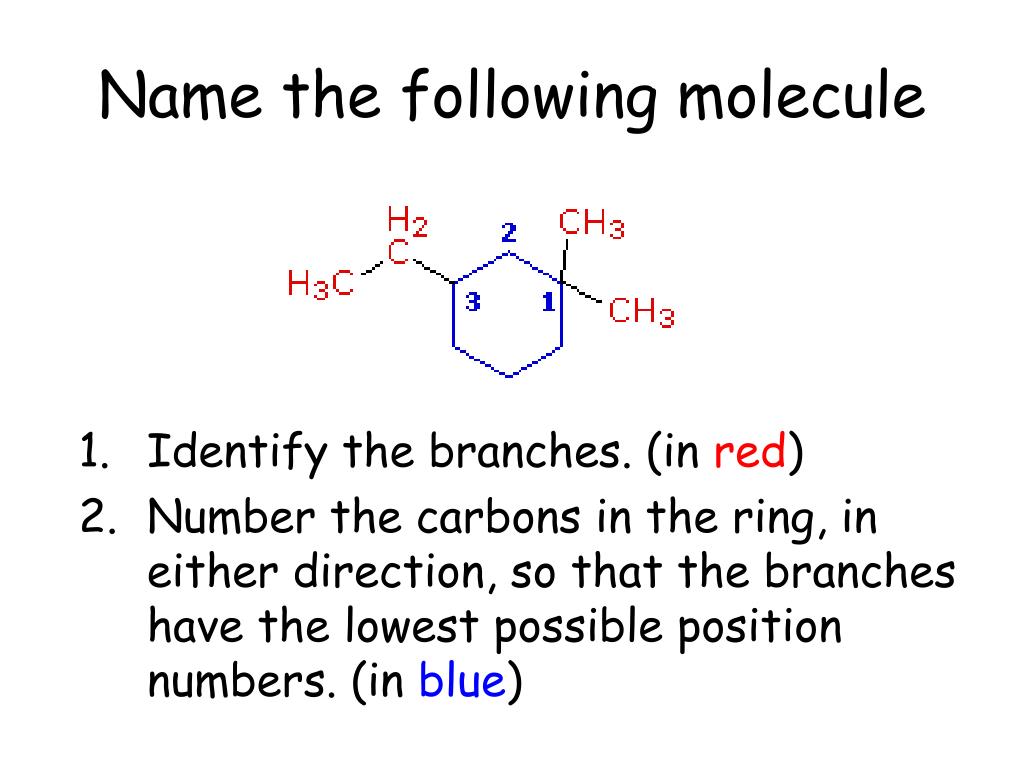

  8. Name the following molecule • Identify the branches. (in red) • Number the carbons in the ring, in either direction, so that the branches have the lowest possible position numbers. (in blue)

  9. Write the prefix. (3-ethyl-1, 1-dimethyl) • Write the root –cyclo- plus the number of carbon atoms in the ring • Write the suffix name (-ane, ene, yne) (cyclohexane)

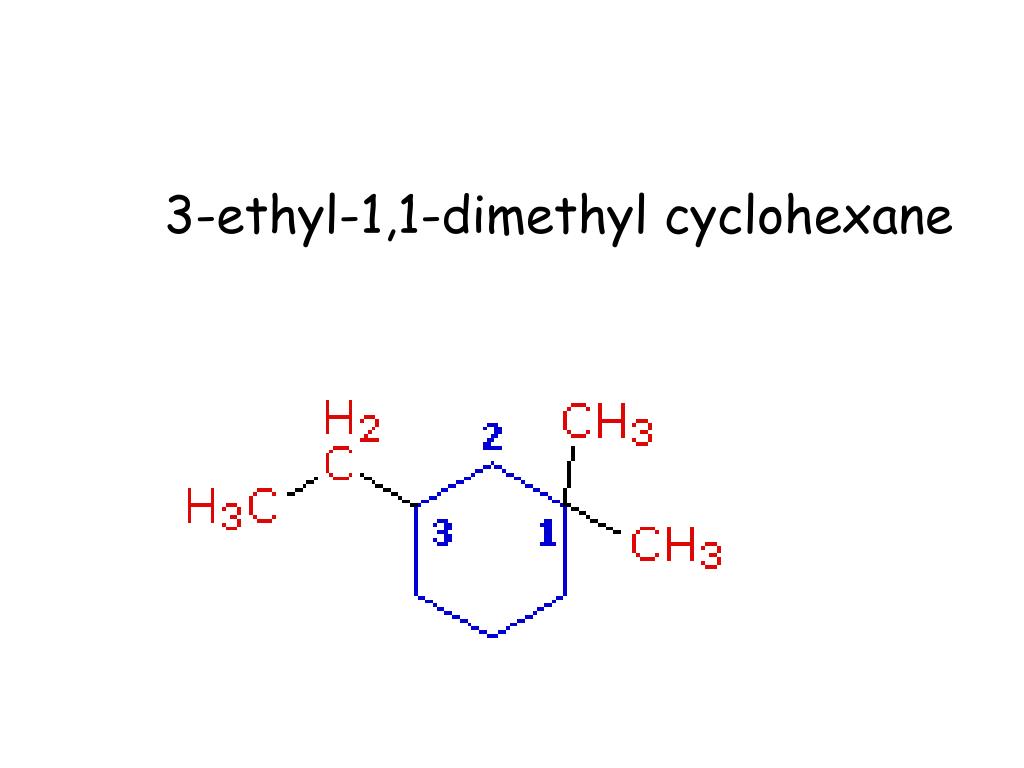

  10. 3-ethyl-1,1-dimethyl cyclohexane

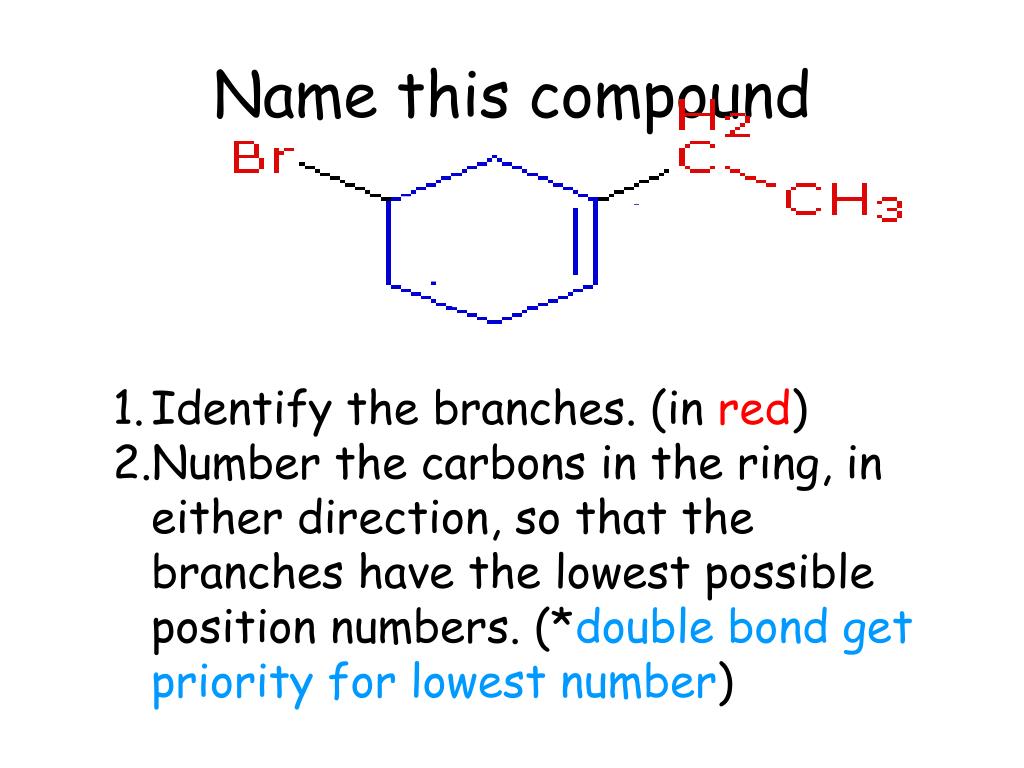

  11. Name this compound • Identify the branches. (in red) • Number the carbons in the ring, in either direction, so that the branches have the lowest possible position numbers. (*double bond get priority for lowest number)

  12. Write the prefix. (4-bromo-2-ethyl) • Write the root –cyclo- plus the number of carbon atoms in the ring • Write the suffix name (-ane, ene, yne) (1-cyclohexene)

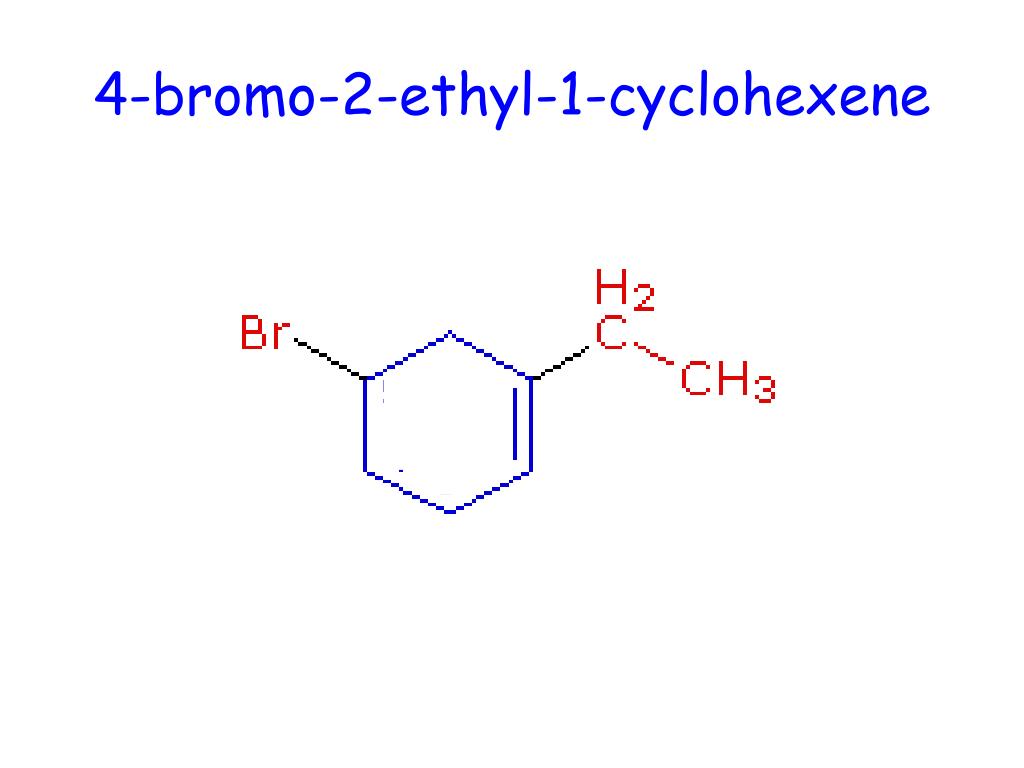

  13. 4-bromo-2-ethyl-1-cyclohexene
