Presentation Transcript

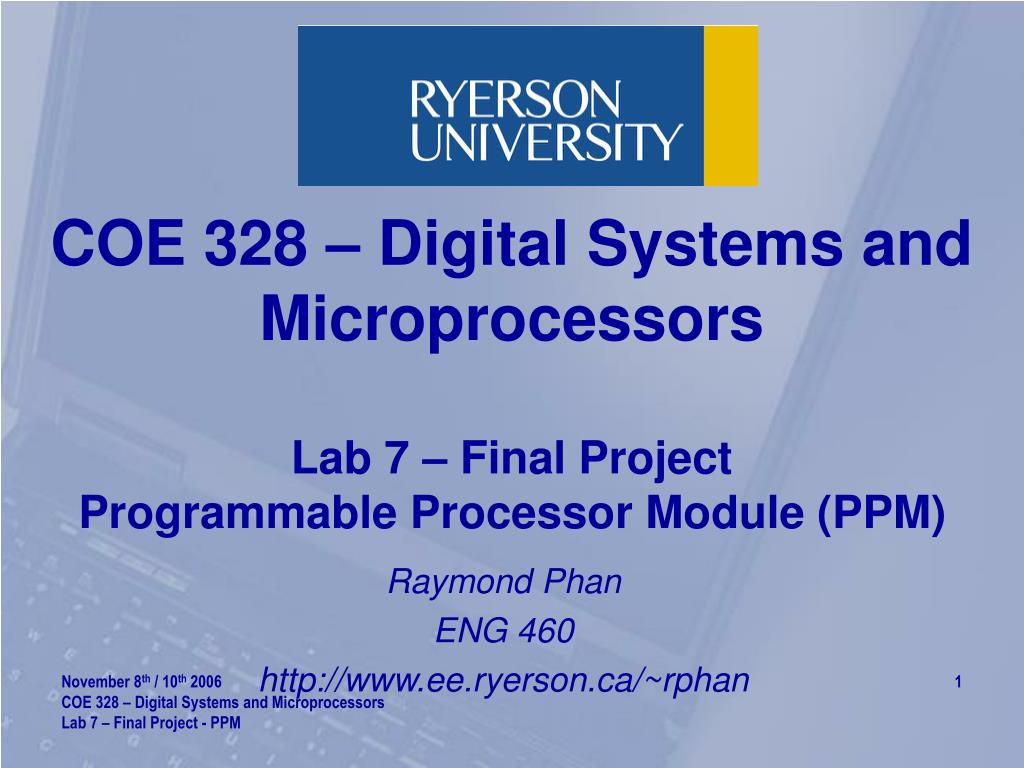

  1. COE 328 – Digital Systems and MicroprocessorsLab 7 – Final ProjectProgrammable Processor Module (PPM) Raymond Phan ENG 460 http://www.ee.ryerson.ca/~rphan

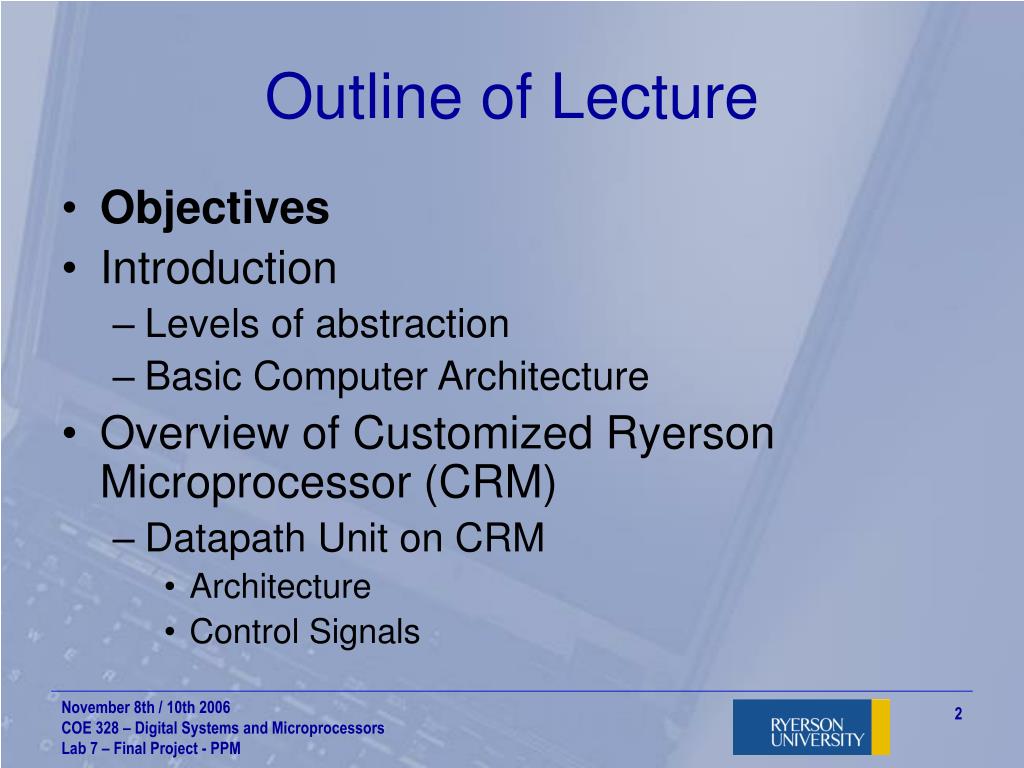

  2. Outline of Lecture • Objectives • Introduction • Levels of abstraction • Basic Computer Architecture • Overview of Customized Ryerson Microprocessor (CRM) • Datapath Unit on CRM • Architecture • Control Signals

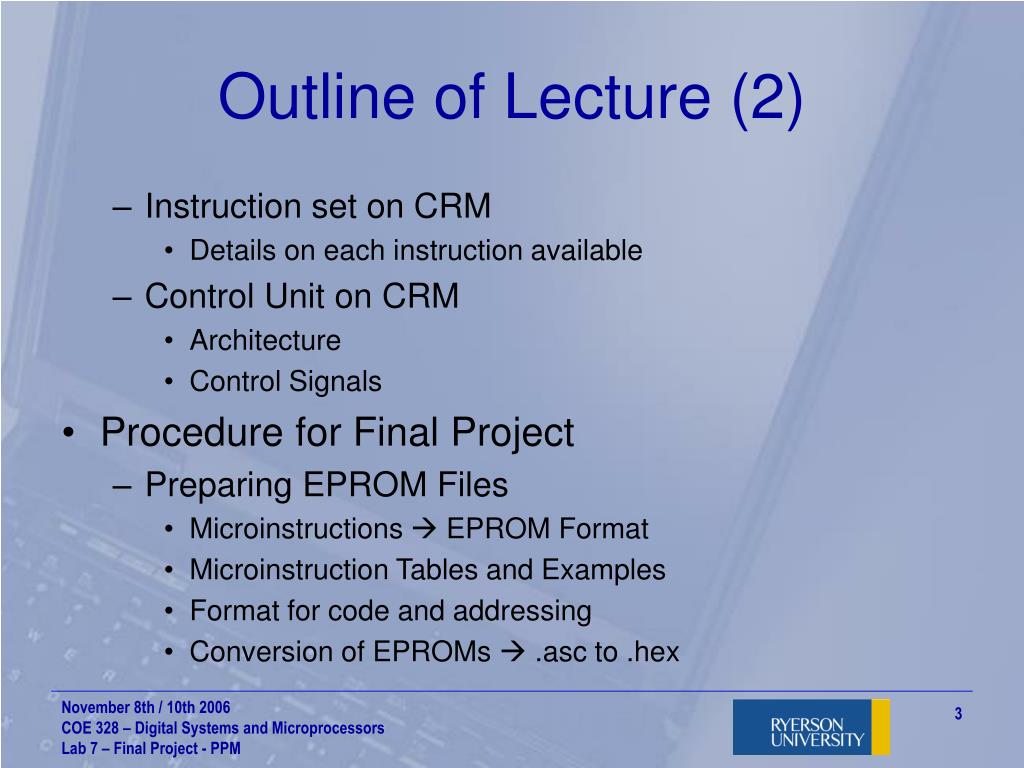

  3. Outline of Lecture (2) • Instruction set on CRM • Details on each instruction available • Control Unit on CRM • Architecture • Control Signals • Procedure for Final Project • Preparing EPROM Files • Microinstructions  EPROM Format • Microinstruction Tables and Examples • Format for code and addressing • Conversion of EPROMs  .asc to .hex

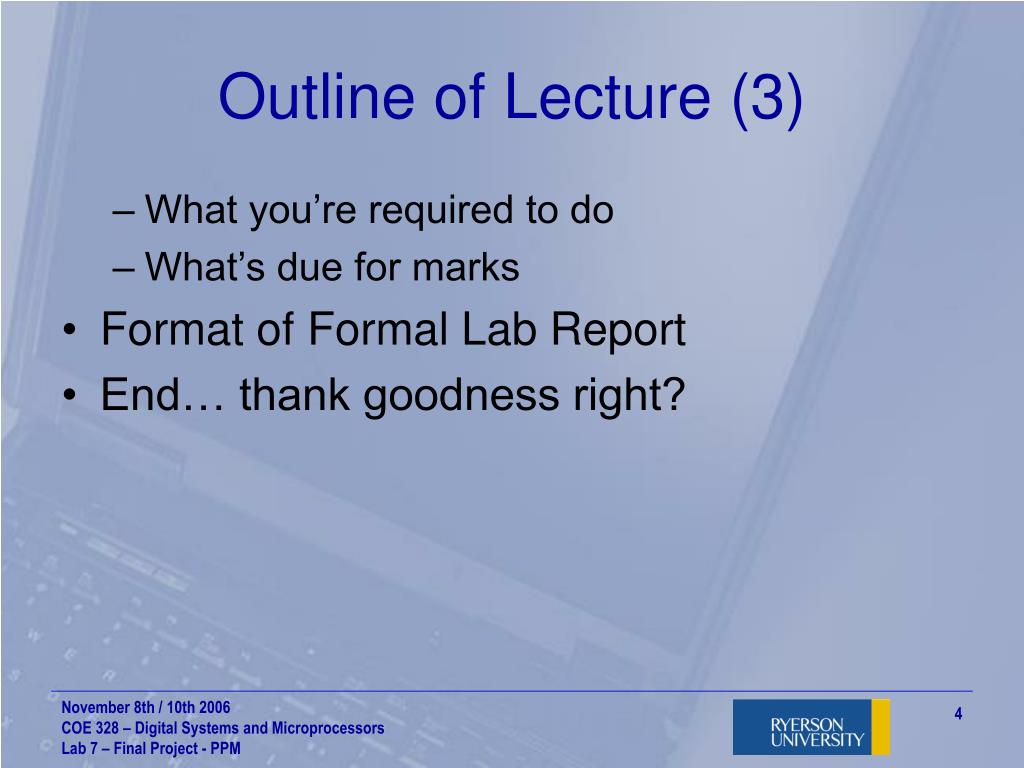

  4. Outline of Lecture (3) • What you’re required to do • What’s due for marks • Format of Formal Lab Report • End… thank goodness right?

  5. Objectives • Get familiar with the basic elements that make up a microprocessor • Working with a microprocessor that Ryerson Profs designed many years ago • Derive the behaviour of the instruction set for a microprocessor (more on this later)

  6. Objectives (2) • Understand programs at the microprocessor level • You get to code your very own custom program at this level! • Things you need to know before we start: • Absolutely NO VHDL seen in this lab (yay?) • No more work on the CPLDs for this lab (bigger yay?) • Electrical guys  No more VHDL for the rest of your life (YAY!)… unless you want to get into digital design

  7. Objectives (3) • Also… don’t be scared! You might be scared of this project for the following reasons: • First time you’ll be programming at a lower level (lower than C or Java) • First time you’ll see the things that make up any microprocessor that exists today • You will be required to understand how exactly a microprocessor works.

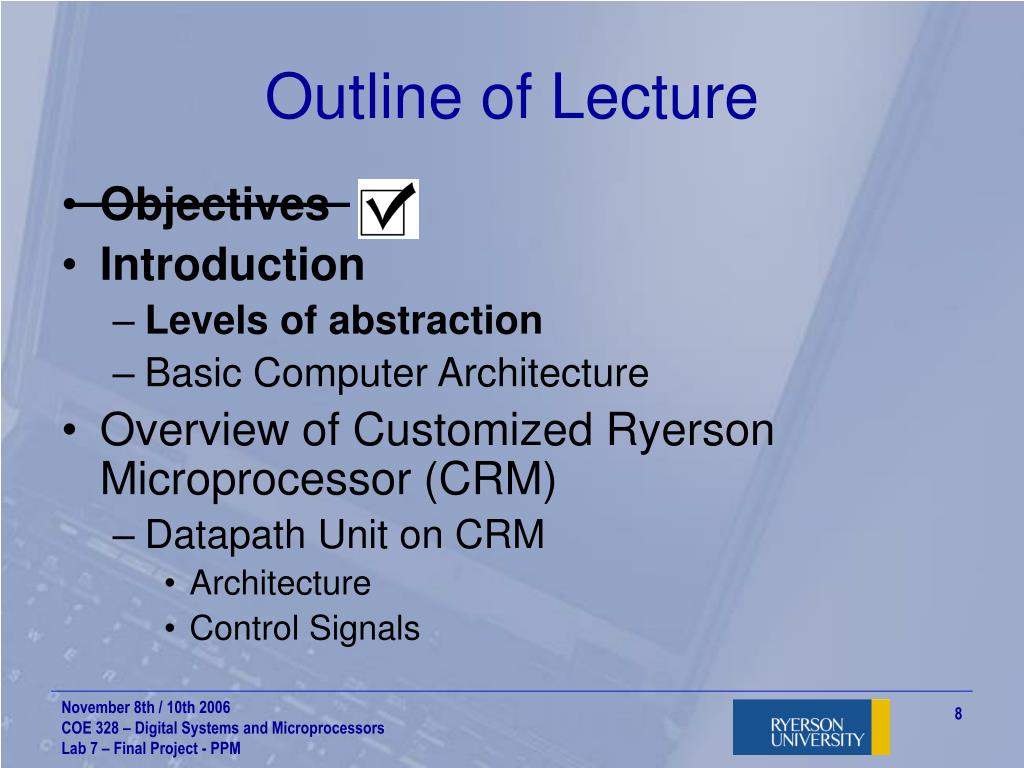

  8. Outline of Lecture • Objectives • Introduction • Levelsof abstraction • Basic Computer Architecture • Overview of Customized Ryerson Microprocessor (CRM) • Datapath Unit on CRM • Architecture • Control Signals

  9. Introduction – Levels of Abstraction • Microprocessor on your computer is responsible for the execution of your program. • For any high-level language, when want to create an executable program, you use a compiler. • Compiler  Turns your high-level language statements into a format that the microprocessor can understand

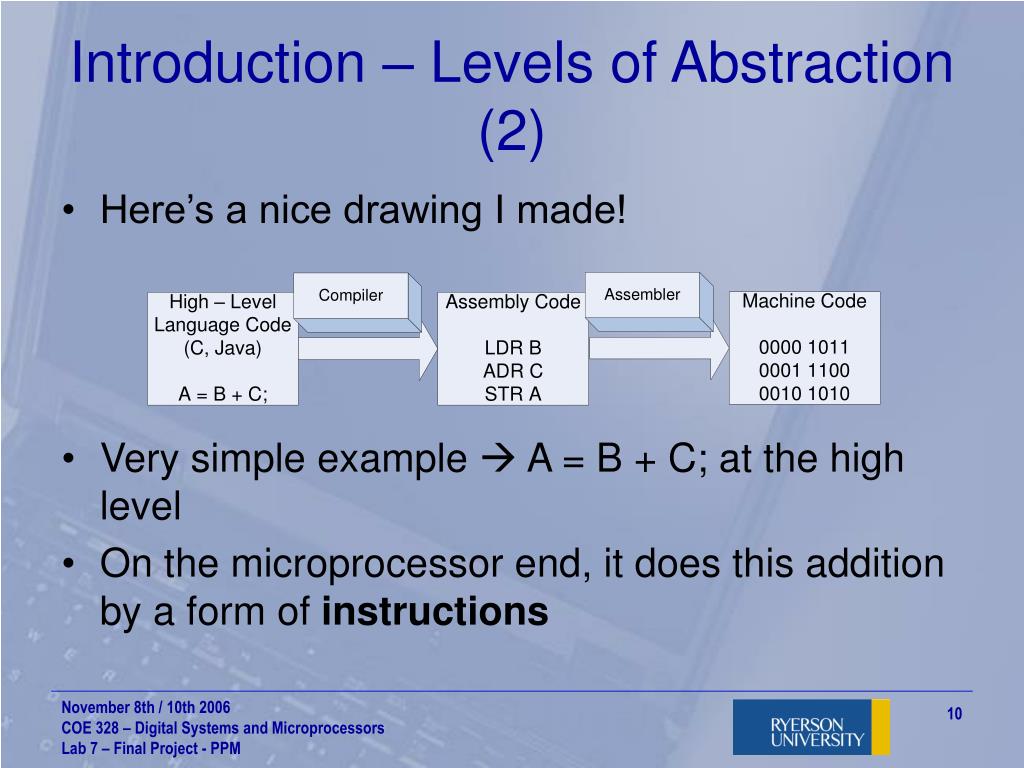

  10. Introduction – Levels of Abstraction (2) • Here’s a nice drawing I made! • Very simple example  A = B + C; at the high level • On the microprocessor end, it does this addition by a form of instructions

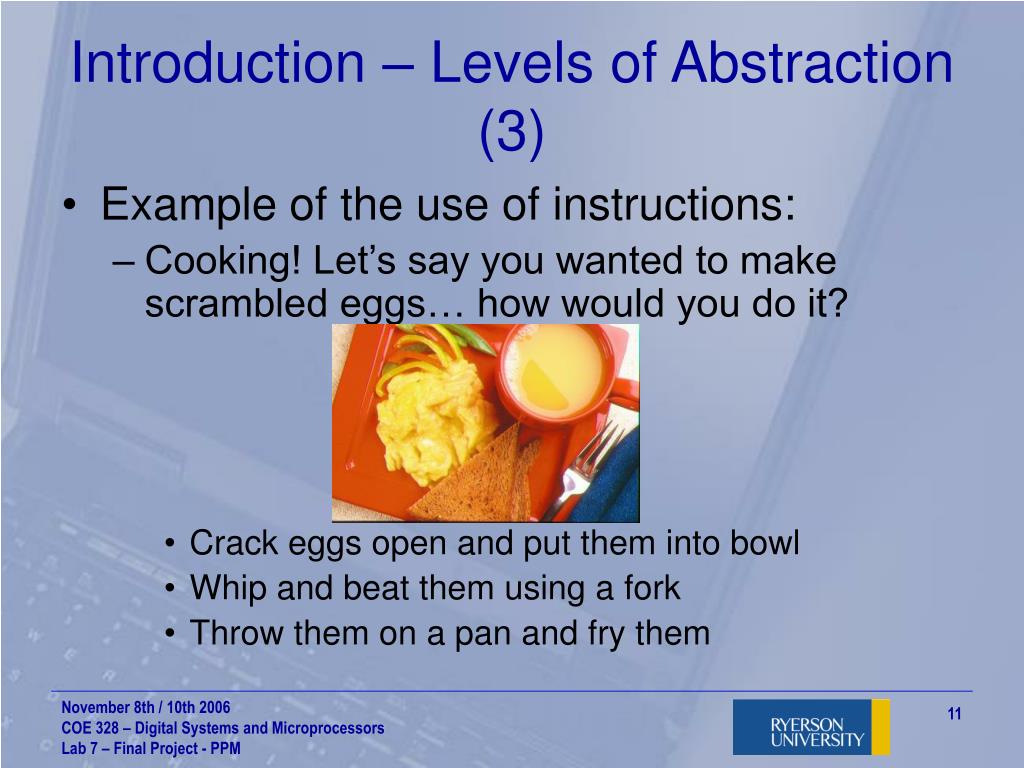

  11. Introduction – Levels of Abstraction (3) • Example of the use of instructions: • Cooking! Let’s say you wanted to make scrambled eggs… how would you do it? • Crack eggs open and put them into bowl • Whip and beat them using a fork • Throw them on a pan and fry them

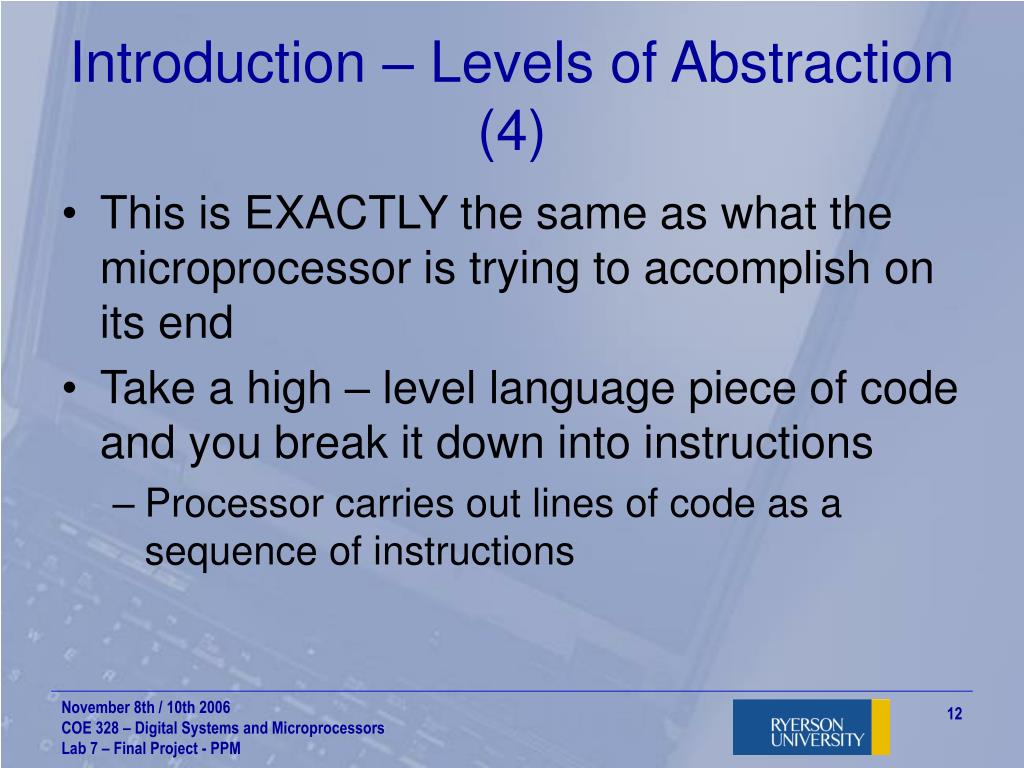

  12. Introduction – Levels of Abstraction (4) • This is EXACTLY the same as what the microprocessor is trying to accomplish on its end • Take a high – level language piece of code and you break it down into instructions • Processor carries out lines of code as a sequence of instructions

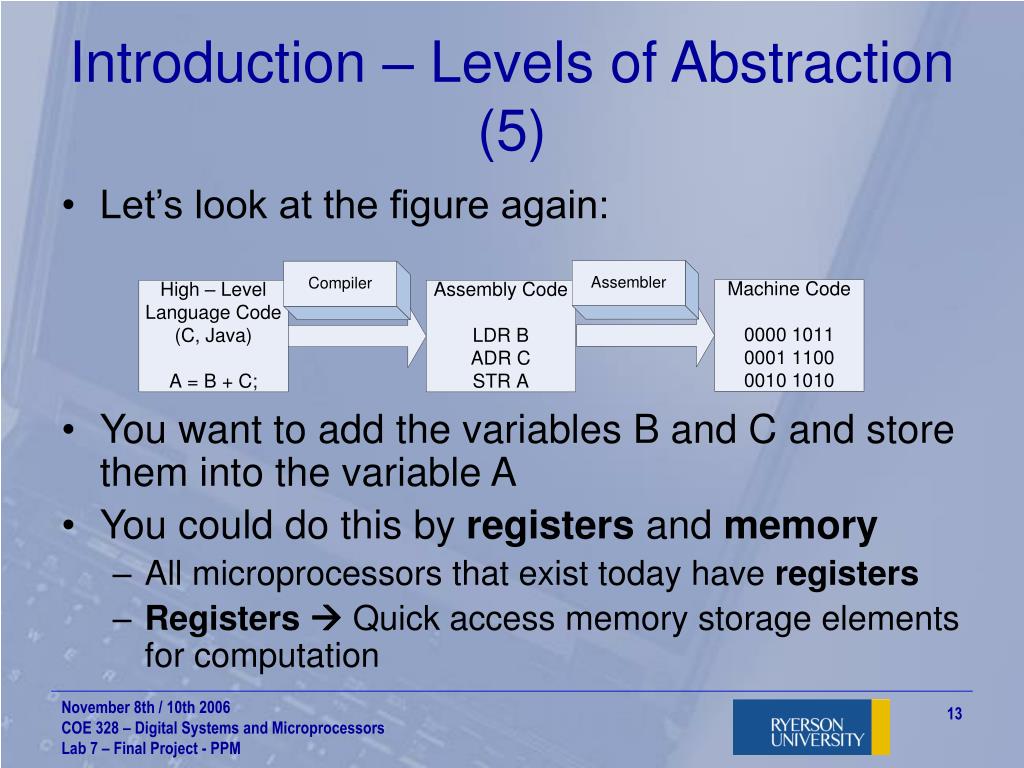

  13. Introduction – Levels of Abstraction (5) • Let’s look at the figure again: • You want to add the variables B and C and store them into the variable A • You could do this by registers and memory • All microprocessors that exist today have registers • Registers  Quick access memory storage elements for computation

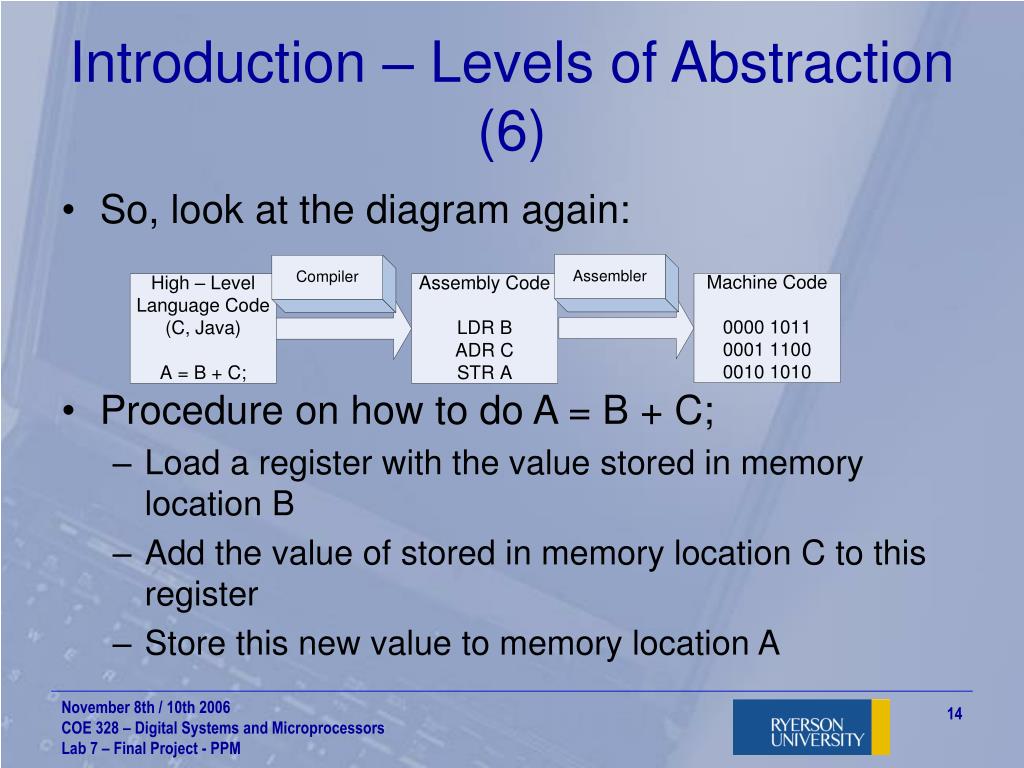

  14. Introduction – Levels of Abstraction (6) • So, look at the diagram again: • Procedure on how to do A = B + C; • Load a register with the value stored in memory location B • Add the value of stored in memory location C to this register • Store this new value to memory location A

  15. Introduction – Levels of Abstraction (7) • But! The microprocessor can ONLY understand 0s and 1s! Look at the diagram again • Once you compile, your program is turned into a series of instructions • The assembler must now take these instructions and turn them into machine code (0s and 1s)

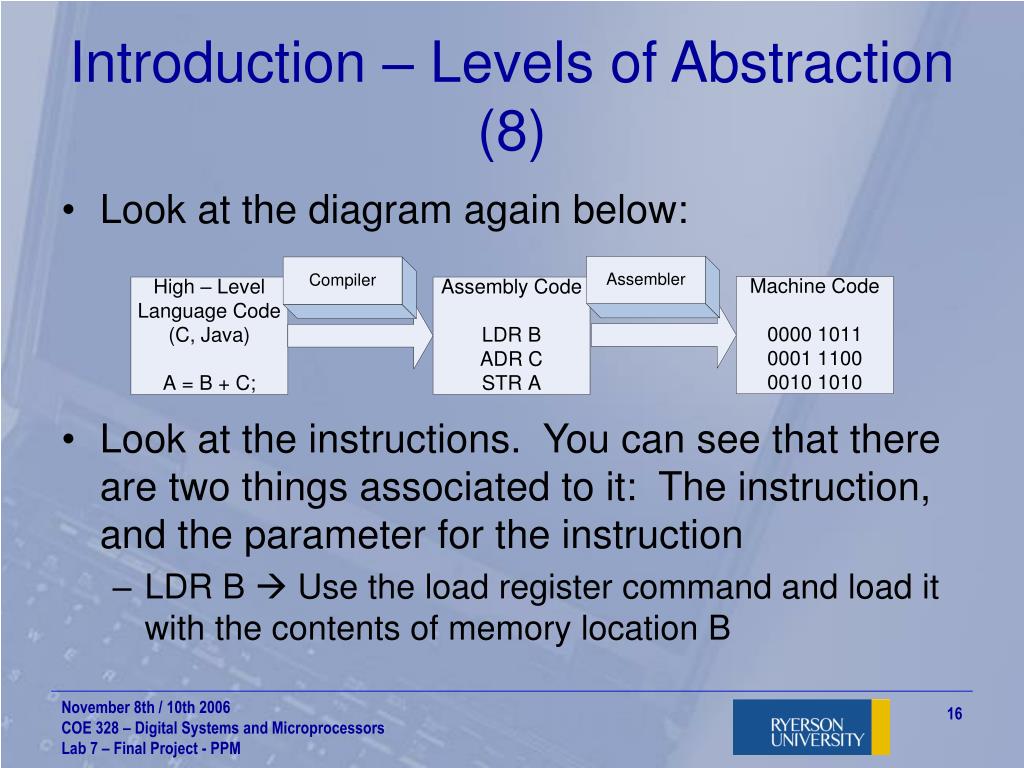

  16. Introduction – Levels of Abstraction (8) • Look at the diagram again below: • Look at the instructions. You can see that there are two things associated to it: The instruction, and the parameter for the instruction • LDR B  Use the load register command and load it with the contents of memory location B

  17. Introduction – Levels of Abstraction (9) • An instruction requires two pieces of information in order to execute • Opcode: The actual instruction itself (LDR, STR) • Operand: The parameter to this instruction (A, B, C) • This is pretty much like a function in C or Java  int number = gimmeSome(value);

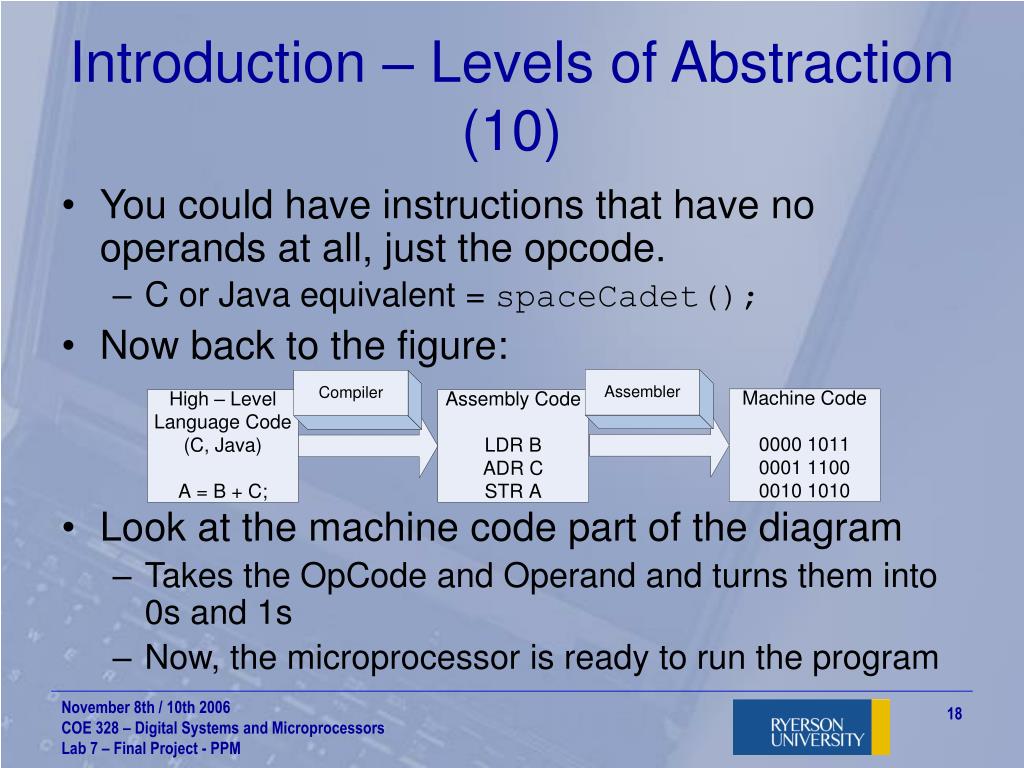

  18. Introduction – Levels of Abstraction (10) • You could have instructions that have no operands at all, just the opcode. • C or Java equivalent = spaceCadet(); • Now back to the figure: • Look at the machine code part of the diagram • Takes the OpCode and Operand and turns them into 0s and 1s • Now, the microprocessor is ready to run the program

  19. Introduction – Levels of Abstraction (11) • Let me mess up your minds a bit: • Instructions like load, store, add, etc… these also need to perform instructions to perform the instructions! These are called micro-instructions • Here’s your time to go huh????? • Back to cooking example: • Scrambled Eggs: You’re performing micro-instructions without even knowing it!

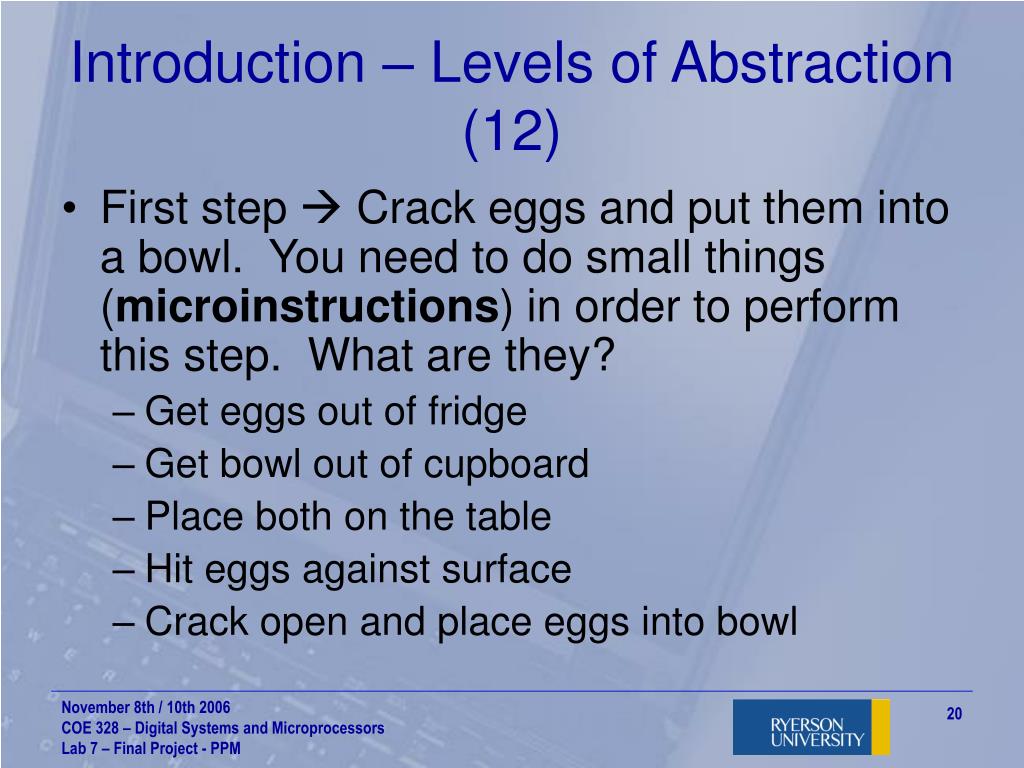

  20. Introduction – Levels of Abstraction (12) • First step  Crack eggs and put them into a bowl. You need to do small things (microinstructions) in order to perform this step. What are they? • Get eggs out of fridge • Get bowl out of cupboard • Place both on the table • Hit eggs against surface • Crack open and place eggs into bowl

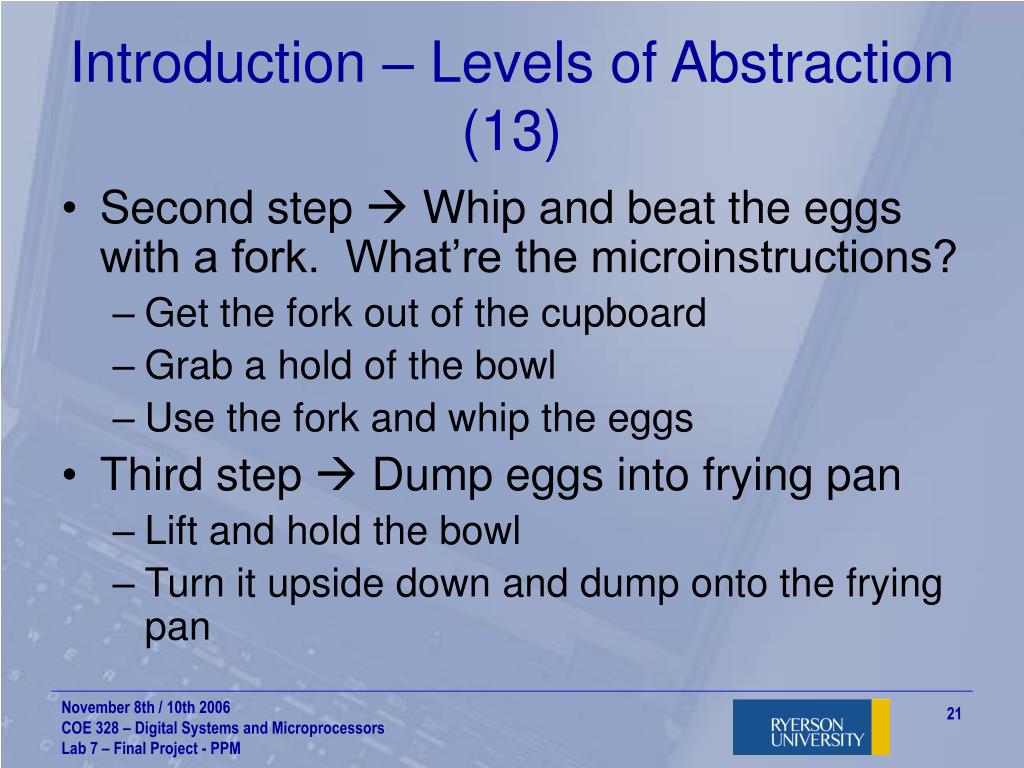

  21. Introduction – Levels of Abstraction (13) • Second step  Whip and beat the eggs with a fork. What’re the microinstructions? • Get the fork out of the cupboard • Grab a hold of the bowl • Use the fork and whip the eggs • Third step  Dump eggs into frying pan • Lift and hold the bowl • Turn it upside down and dump onto the frying pan

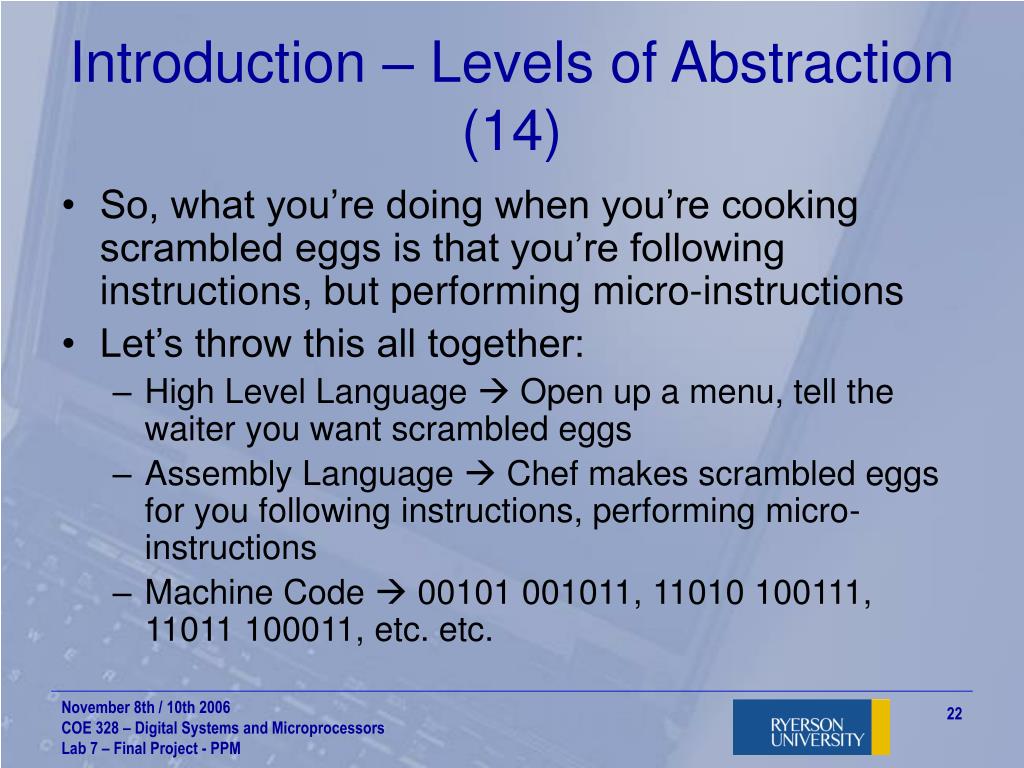

  22. Introduction – Levels of Abstraction (14) • So, what you’re doing when you’re cooking scrambled eggs is that you’re following instructions, but performing micro-instructions • Let’s throw this all together: • High Level Language  Open up a menu, tell the waiter you want scrambled eggs • Assembly Language  Chef makes scrambled eggs for you following instructions, performing micro-instructions • Machine Code  00101 001011, 11010 100111, 11011 100011, etc. etc.

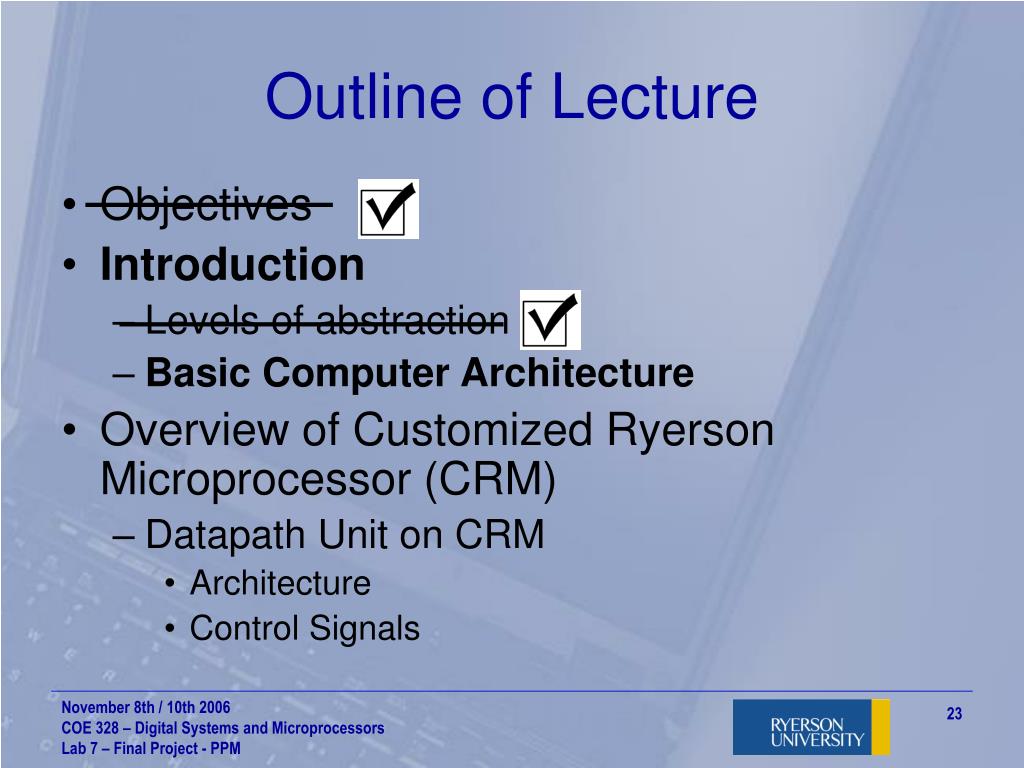

  23. Outline of Lecture • Objectives • Introduction • Levels of abstraction • Basic Computer Architecture • Overview of Customized Ryerson Microprocessor (CRM) • Datapath Unit on CRM • Architecture • Control Signals

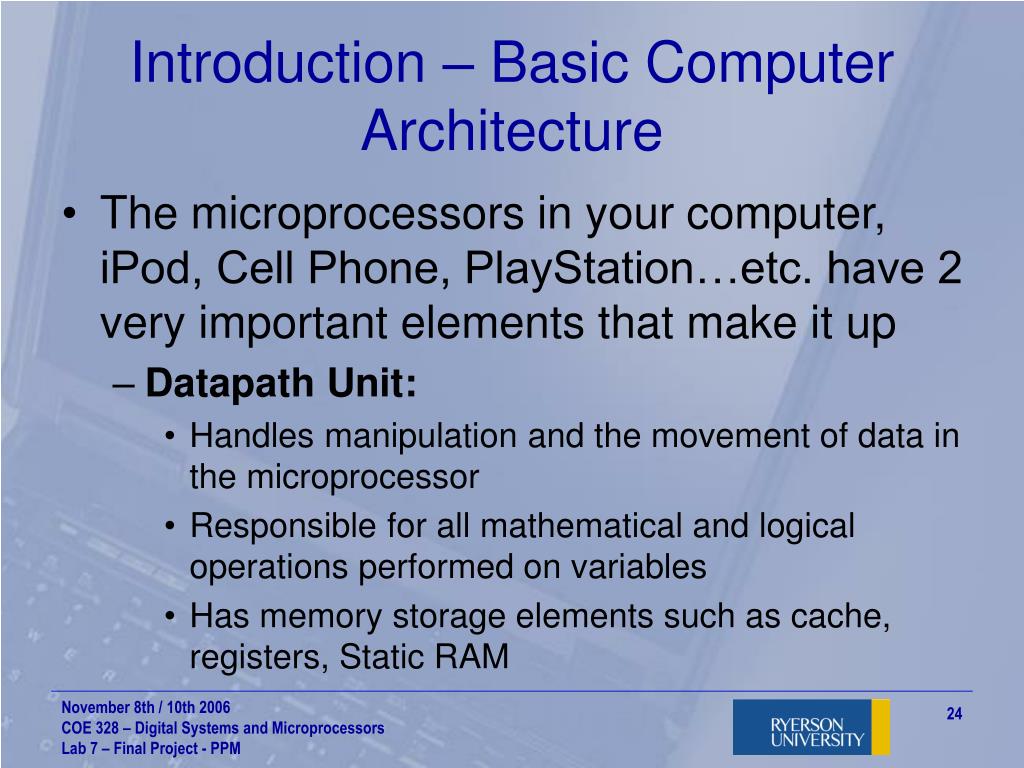

  24. Introduction – Basic Computer Architecture • The microprocessors in your computer, iPod, Cell Phone, PlayStation…etc. have 2 very important elements that make it up • Datapath Unit: • Handles manipulation and the movement of data in the microprocessor • Responsible for all mathematical and logical operations performed on variables • Has memory storage elements such as cache, registers, Static RAM

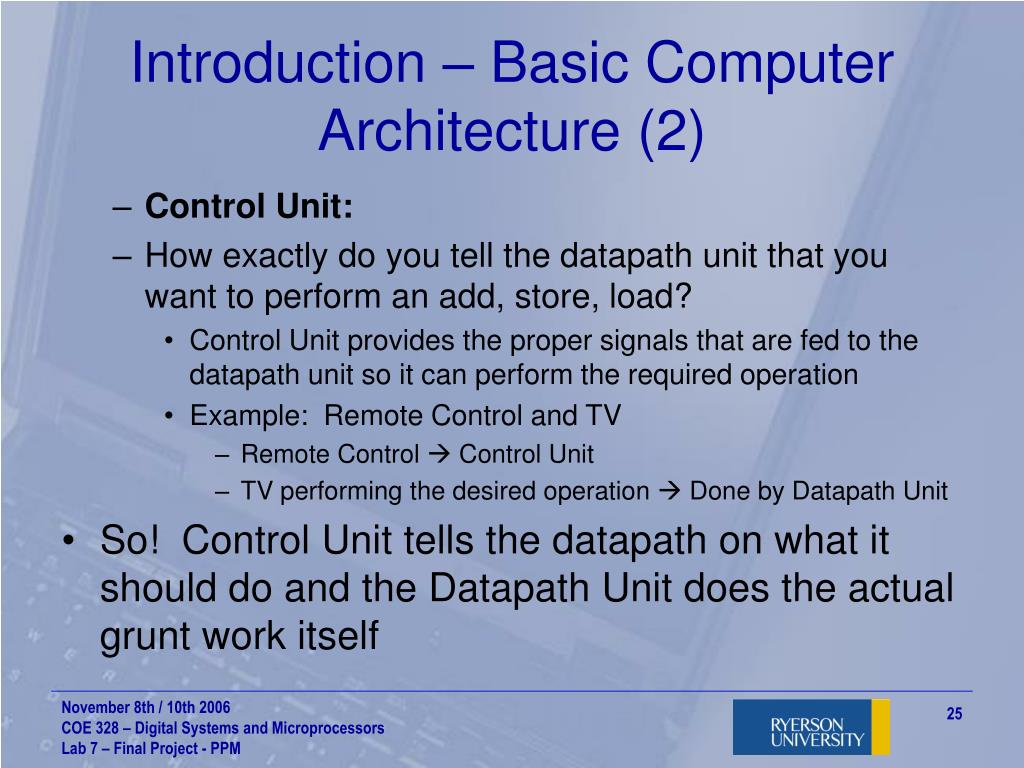

  25. Introduction – Basic Computer Architecture (2) • Control Unit: • How exactly do you tell the datapath unit that you want to perform an add, store, load? • Control Unit provides the proper signals that are fed to the datapath unit so it can perform the required operation • Example: Remote Control and TV • Remote Control  Control Unit • TV performing the desired operation  Done by Datapath Unit • So! Control Unit tells the datapath on what it should do and the Datapath Unit does the actual grunt work itself

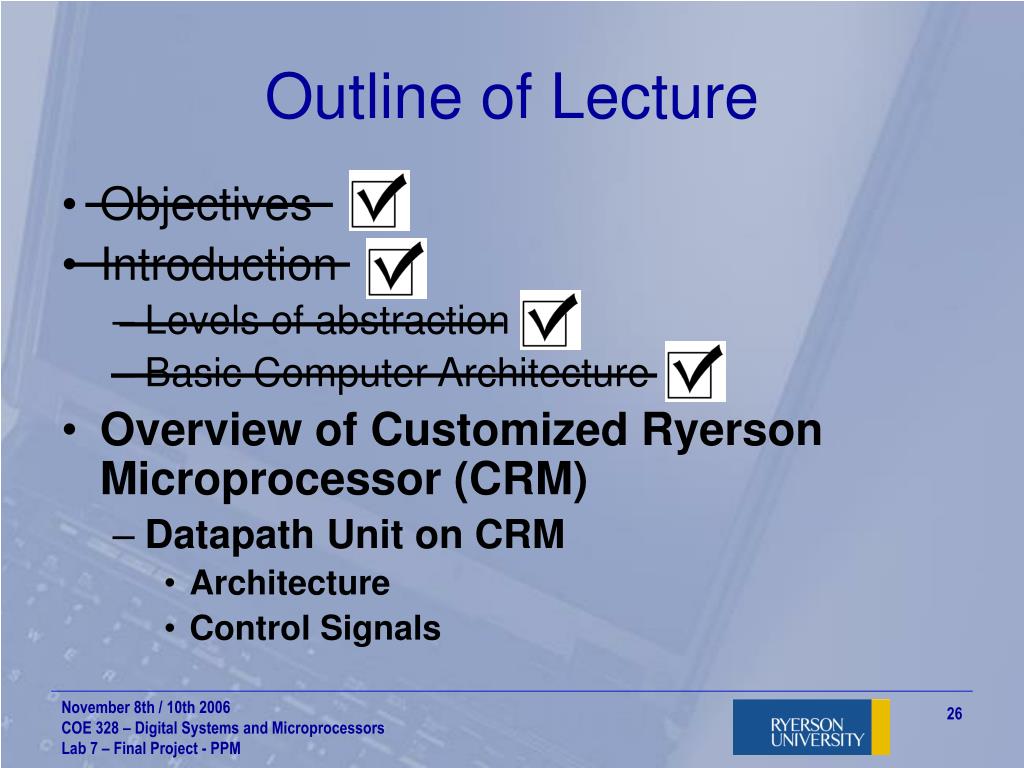

  26. Outline of Lecture • Objectives • Introduction • Levels of abstraction • Basic Computer Architecture • Overview of Customized Ryerson Microprocessor (CRM) • Datapath Unit on CRM • Architecture • Control Signals

  27. Overview of the CRM - Introduction • Back in 1995 or so before: • I knew what the hell a computer was • You all knew what the hell a computer was • I was still sleeping at night with a night light…. Oops. • Ryerson profs developed a customized Microprocessor for this course so you guys know: • How a microprocessor works • The basic architecture of a microprocessor • How to program programs at the microprocessor level • To make your lives miserable because they probably weren’t married and want to take it out on you guys

  28. Overview of the CRM – Introduction (2) • They created and implemented their circuit designs for their customized microprocessor • CRM is physically implemented • Circuit is printed on a PCB (Printed Circuit Board) and is now ready for use • Let’s look at the datapath unit (don’t piss your pants… the circuit might look ugly)

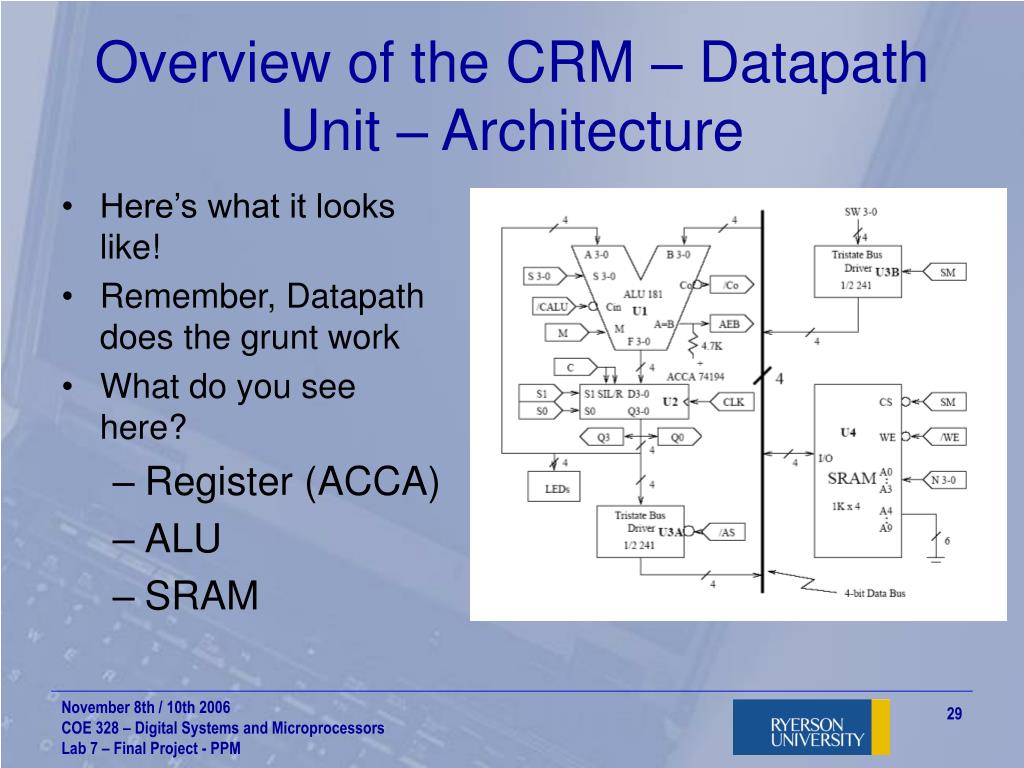

  29. Overview of the CRM – Datapath Unit – Architecture • Here’s what it looks like! • Remember, Datapath does the grunt work • What do you see here? • Register (ACCA) • ALU • SRAM

  30. Overview of the CRM – Datapath Unit – Architecture (2) • Big Vertical Solid Line  Data Bus • Mechanism used to transfer data between entities • 4 bits wide • Only 2 things can be connected to the data bus at one time • Transmitter • Receiver • If you don’t follow this you’ll get a data clashing!

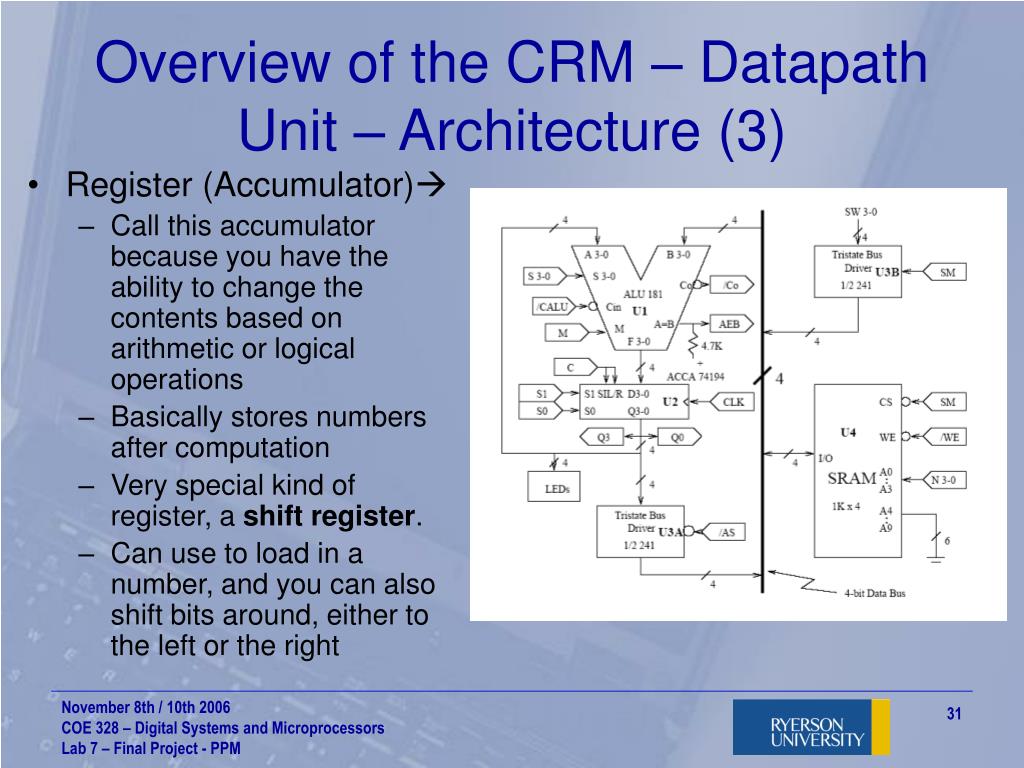

  31. Overview of the CRM – Datapath Unit – Architecture (3) • Register (Accumulator) • Call this accumulator because you have the ability to change the contents based on arithmetic or logical operations • Basically stores numbers after computation • Very special kind of register, a shift register. • Can use to load in a number, and you can also shift bits around, either to the left or the right

  32. Overview of the CRM – Datapath Unit – Architecture (4) • Arithmetic / Logic Unit • Used to do all arithmetic and logical operations on the microprocessor • Takes in 2 inputs, does logical or arithmetic operations on them and stores them into the accumulator • Output of the ALU is sent to the accumulator / shift register

  33. Overview of the CRM – Datapath Unit – Architecture (5) • Tri-State Bus Driver • Acts basically like a switch • Enables and Disables Output that it’s connected to • 4 bits wide

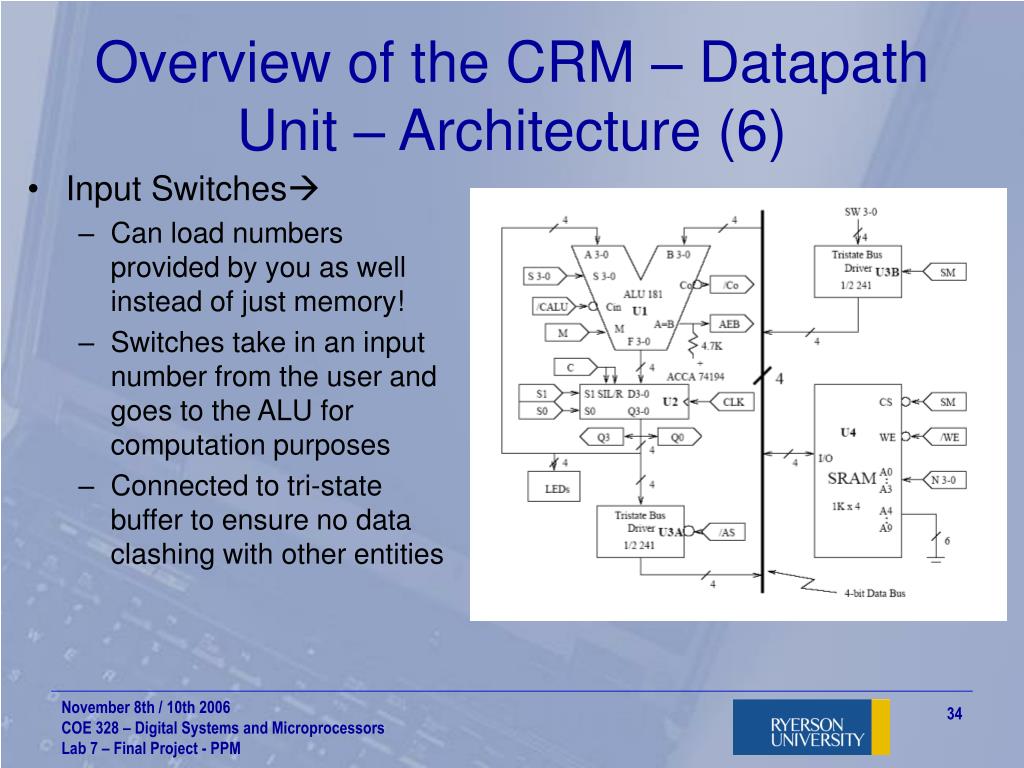

  34. Overview of the CRM – Datapath Unit – Architecture (6) • Input Switches • Can load numbers provided by you as well instead of just memory! • Switches take in an input number from the user and goes to the ALU for computation purposes • Connected to tri-state buffer to ensure no data clashing with other entities

  35. Overview of the CRM – Datapath Unit – Architecture (7) • Static RAM • Used to store numbers from the switches or the accumulator • Used to retrieve stored numbers for use in computing values • Output of RAM also serves as input to the ALU (note the Chip Select used for no data clashing) • 16 memory locations available for this Static RAM chip

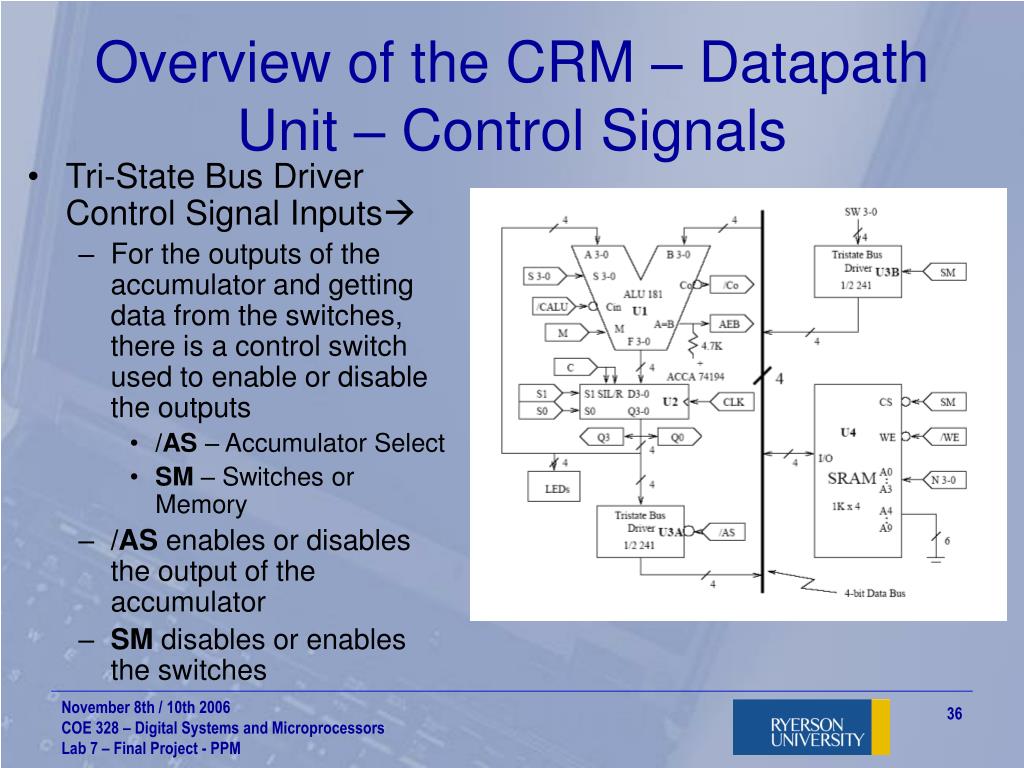

  36. Overview of the CRM – Datapath Unit – Control Signals • Tri-State Bus Driver Control Signal Inputs • For the outputs of the accumulator and getting data from the switches, there is a control switch used to enable or disable the outputs • /AS – Accumulator Select • SM – Switches or Memory • /AS enables or disables the output of the accumulator • SM disables or enables the switches

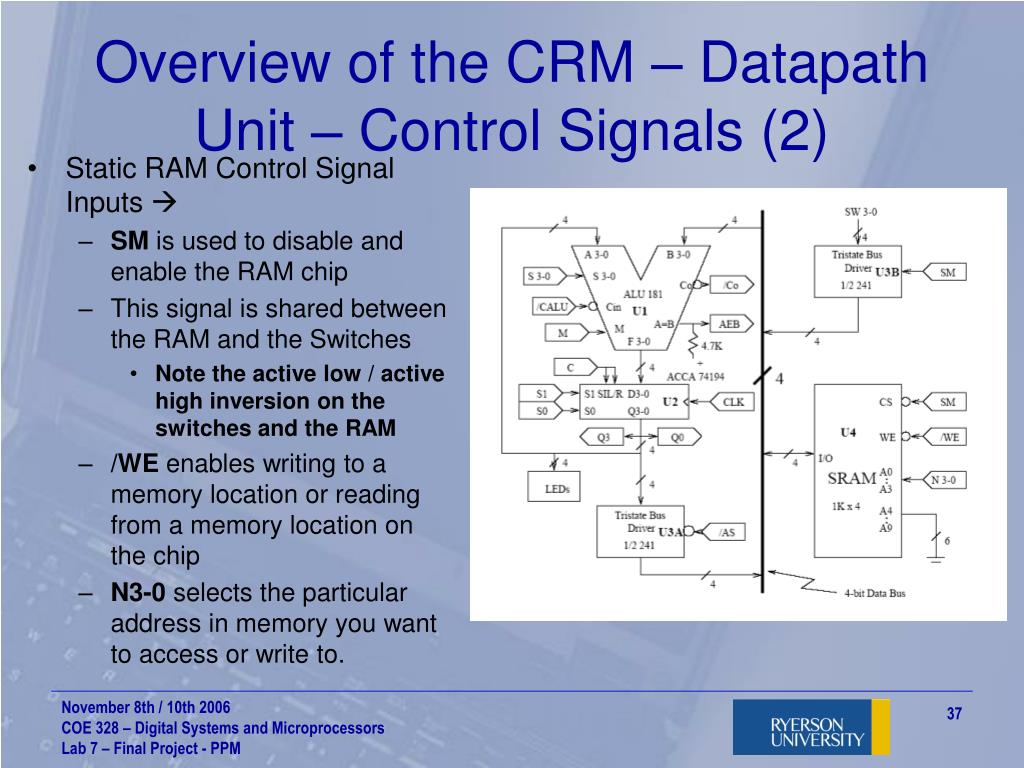

  37. Overview of the CRM – Datapath Unit – Control Signals (2) • Static RAM Control Signal Inputs  • SM is used to disable and enable the RAM chip • This signal is shared between the RAM and the Switches • Note the active low / active high inversion on the switches and the RAM • /WE enables writing to a memory location or reading from a memory location on the chip • N3-0 selects the particular address in memory you want to access or write to.

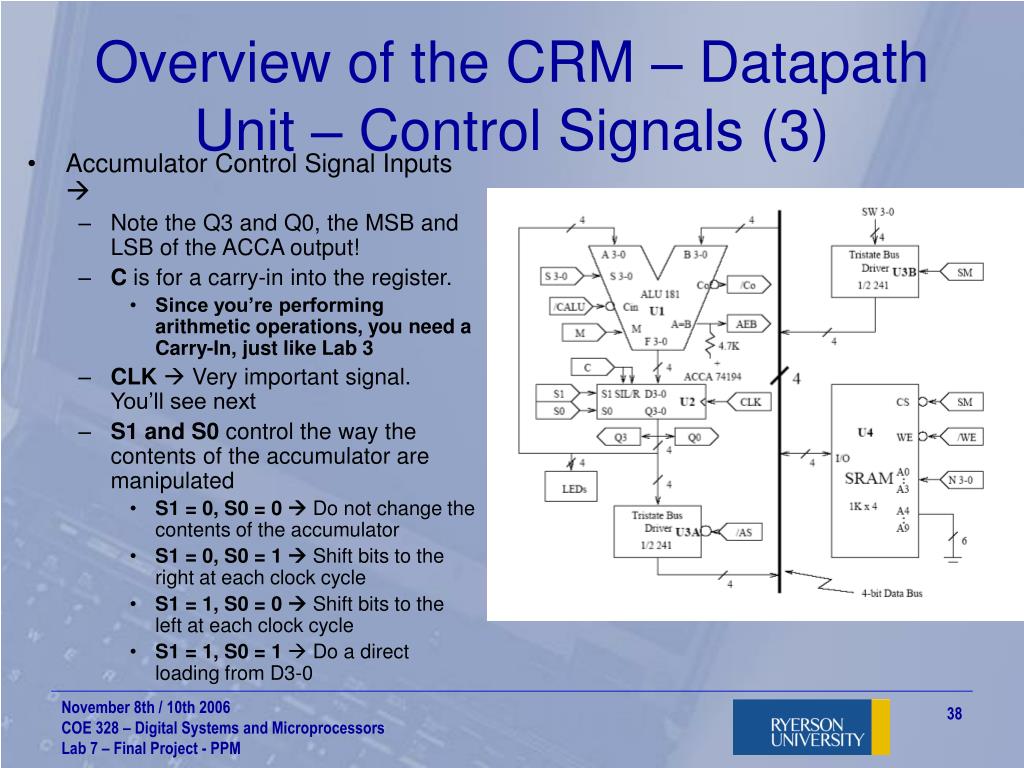

  38. Overview of the CRM – Datapath Unit – Control Signals (3) • Accumulator Control Signal Inputs  • Note the Q3 and Q0, the MSB and LSB of the ACCA output! • C is for a carry-in into the register. • Since you’re performing arithmetic operations, you need a Carry-In, just like Lab 3 • CLK  Very important signal. You’ll see next • S1 and S0 control the way the contents of the accumulator are manipulated • S1 = 0, S0 = 0  Do not change the contents of the accumulator • S1 = 0, S0 = 1  Shift bits to the right at each clock cycle • S1 = 1, S0 = 0  Shift bits to the left at each clock cycle • S1 = 1, S0 = 1  Do a direct loading from D3-0

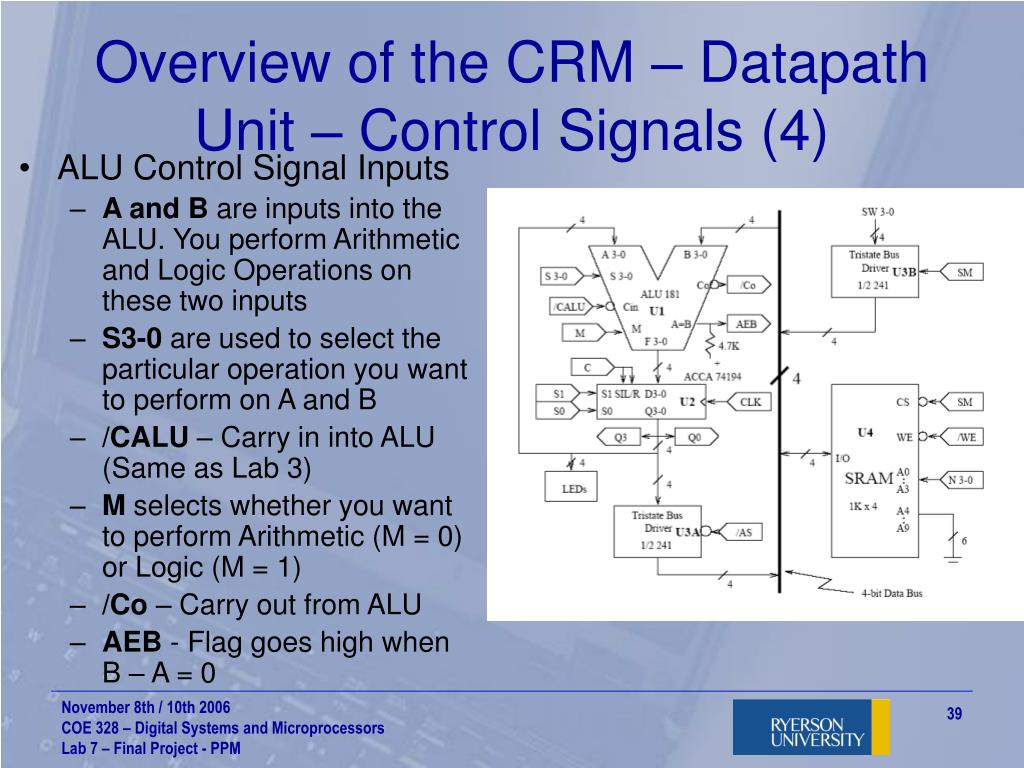

  39. Overview of the CRM – Datapath Unit – Control Signals (4) • ALU Control Signal Inputs • A and B are inputs into the ALU. You perform Arithmetic and Logic Operations on these two inputs • S3-0 are used to select the particular operation you want to perform on A and B • /CALU – Carry in into ALU (Same as Lab 3) • M selects whether you want to perform Arithmetic (M = 0) or Logic (M = 1) • /Co – Carry out from ALU • AEB - Flag goes high when B – A = 0

  40. Outline of Lecture • Objectives • Introduction • Levels of abstraction • Basic Computer Architecture • Overview of Customized Ryerson Microprocessor (CRM) • Datapath Unit on CRM • Architecture • Control Signals

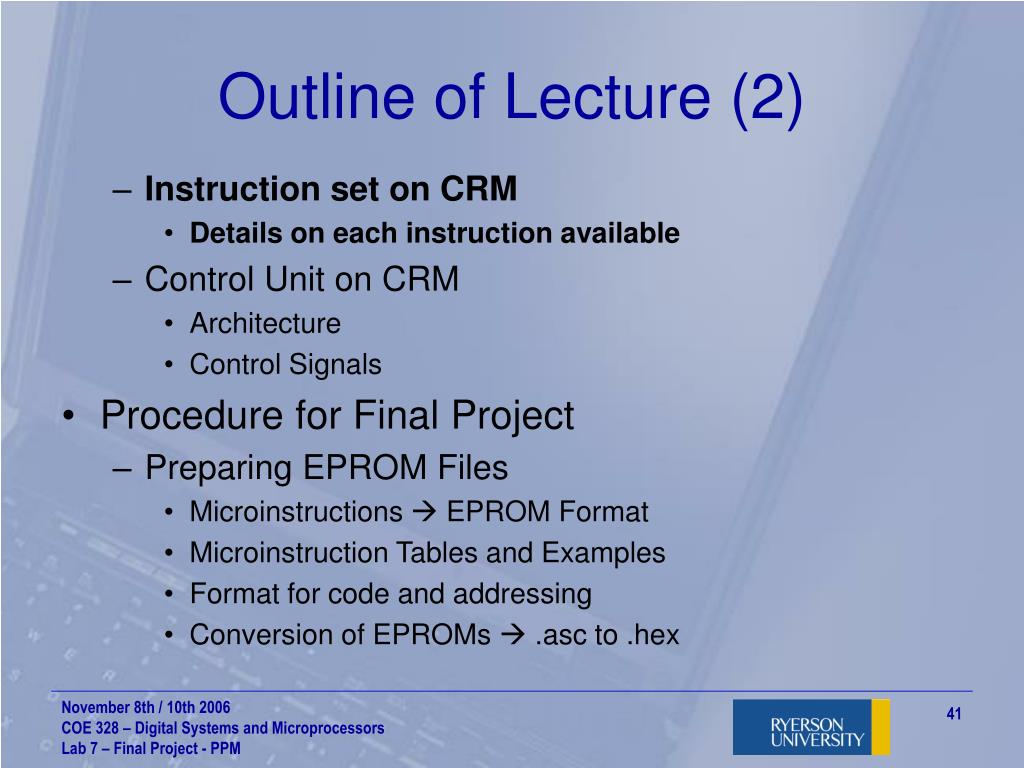

  41. Outline of Lecture (2) • Instruction set on CRM • Details on each instruction available • Control Unit on CRM • Architecture • Control Signals • Procedure for Final Project • Preparing EPROM Files • Microinstructions  EPROM Format • Microinstruction Tables and Examples • Format for code and addressing • Conversion of EPROMs  .asc to .hex

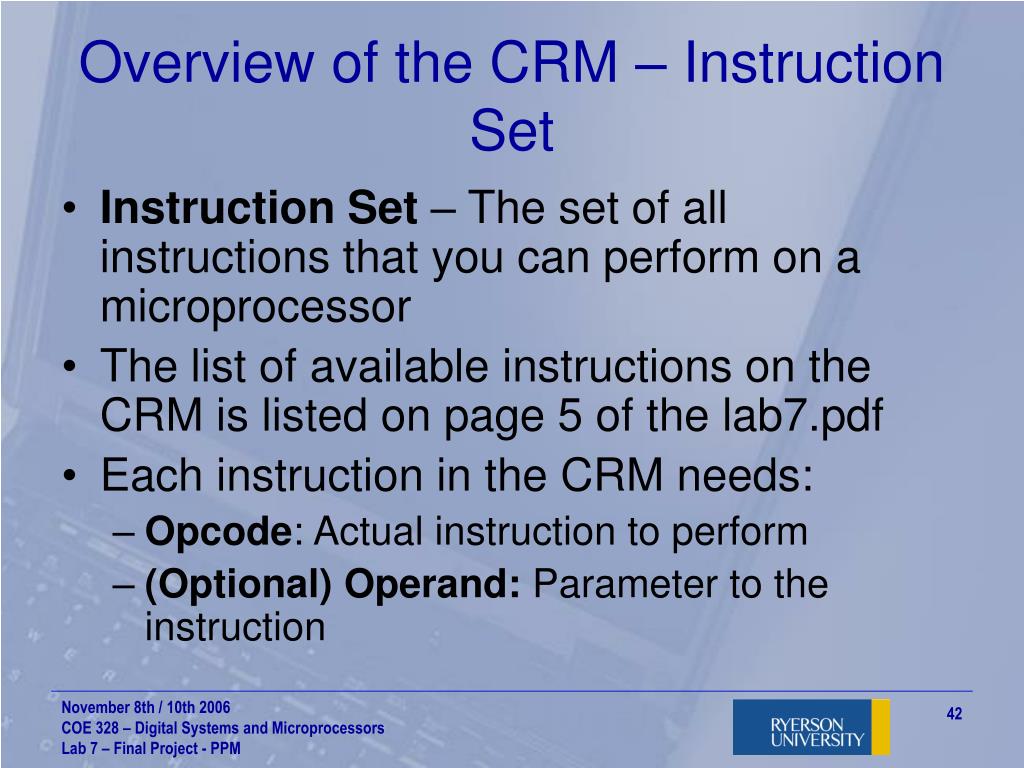

  42. Overview of the CRM – Instruction Set • Instruction Set – The set of all instructions that you can perform on a microprocessor • The list of available instructions on the CRM is listed on page 5 of the lab7.pdf • Each instruction in the CRM needs: • Opcode: Actual instruction to perform • (Optional) Operand: Parameter to the instruction

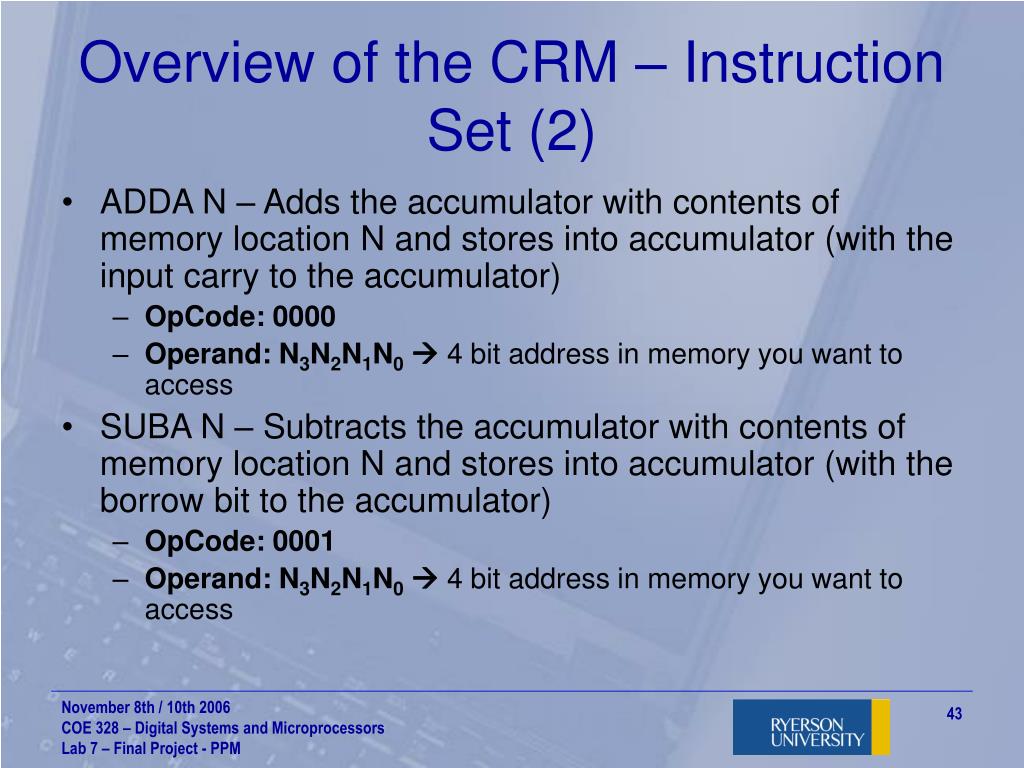

  43. Overview of the CRM – Instruction Set (2) • ADDA N – Adds the accumulator with contents of memory location N and stores into accumulator (with the input carry to the accumulator) • OpCode: 0000 • Operand: N3N2N1N0 4 bit address in memory you want to access • SUBA N – Subtracts the accumulator with contents of memory location N and stores into accumulator (with the borrow bit to the accumulator) • OpCode: 0001 • Operand: N3N2N1N0 4 bit address in memory you want to access

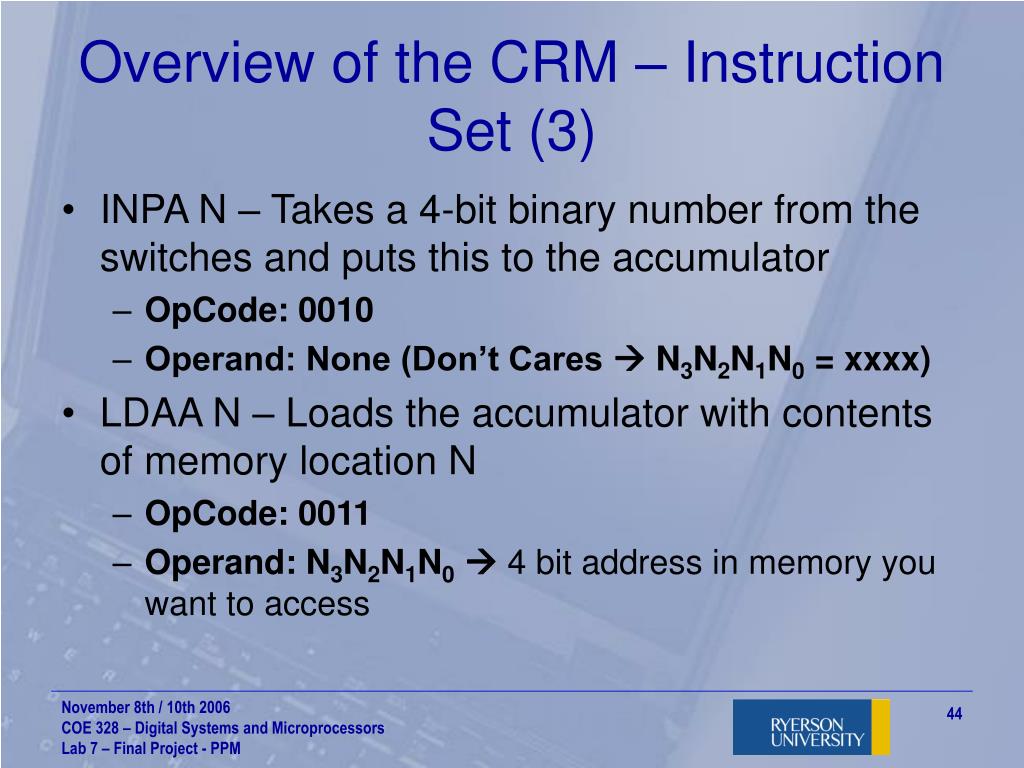

  44. Overview of the CRM – Instruction Set (3) • INPA N – Takes a 4-bit binary number from the switches and puts this to the accumulator • OpCode: 0010 • Operand: None (Don’t Cares  N3N2N1N0 = xxxx) • LDAA N – Loads the accumulator with contents of memory location N • OpCode: 0011 • Operand: N3N2N1N0 4 bit address in memory you want to access

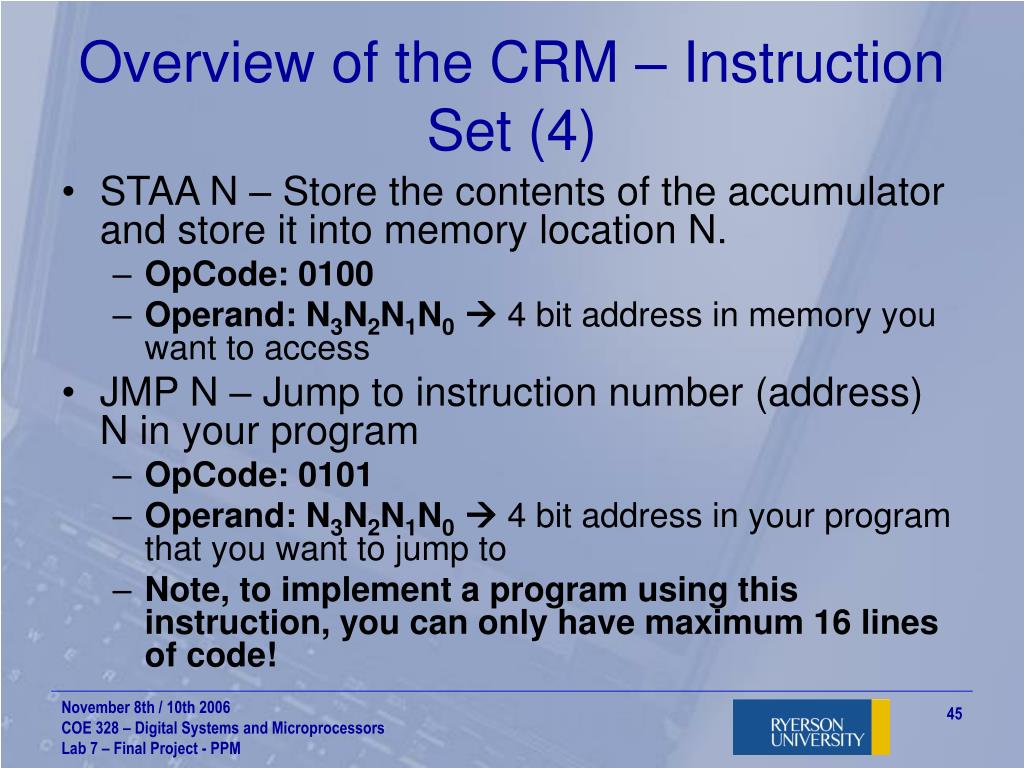

  45. Overview of the CRM – Instruction Set (4) • STAA N – Store the contents of the accumulator and store it into memory location N. • OpCode: 0100 • Operand: N3N2N1N0 4 bit address in memory you want to access • JMP N – Jump to instruction number (address) N in your program • OpCode: 0101 • Operand: N3N2N1N0 4 bit address in your program that you want to jump to • Note, to implement a program using this instruction, you can only have maximum 16 lines of code!

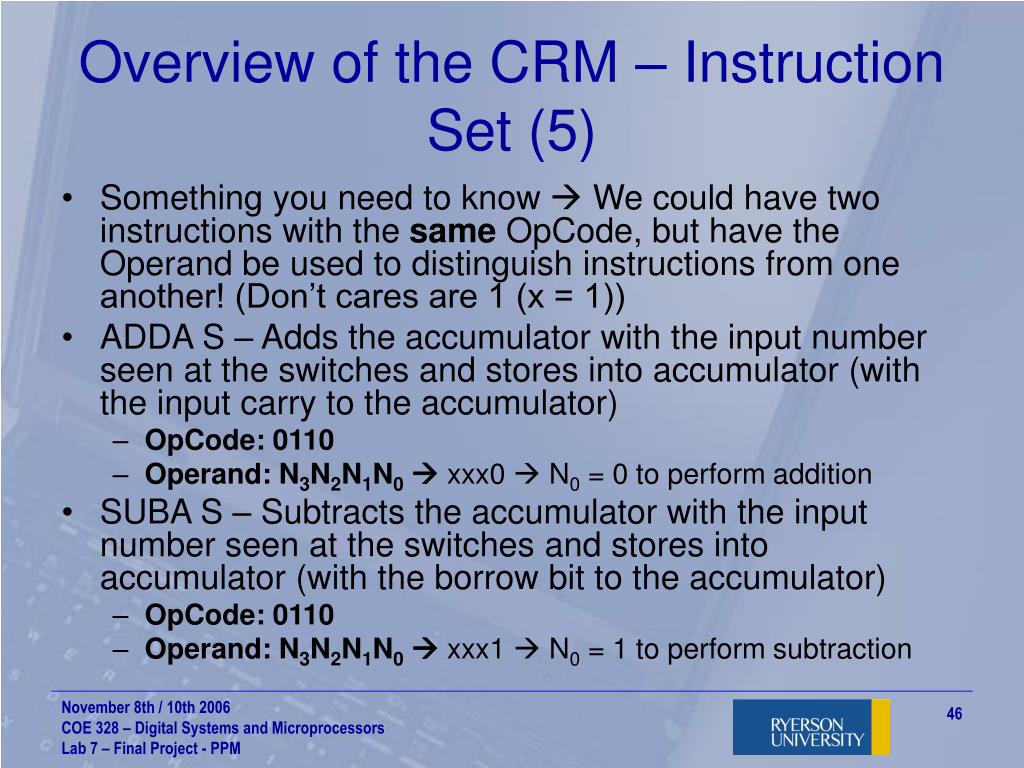

  46. Overview of the CRM – Instruction Set (5) • Something you need to know  We could have two instructions with the same OpCode, but have the Operand be used to distinguish instructions from one another! (Don’t cares are 1 (x = 1)) • ADDA S – Adds the accumulator with the input number seen at the switches and stores into accumulator (with the input carry to the accumulator) • OpCode: 0110 • Operand: N3N2N1N0 xxx0  N0 = 0 to perform addition • SUBA S – Subtracts the accumulator with the input number seen at the switches and stores into accumulator (with the borrow bit to the accumulator) • OpCode: 0110 • Operand: N3N2N1N0 xxx1  N0 = 1 to perform subtraction

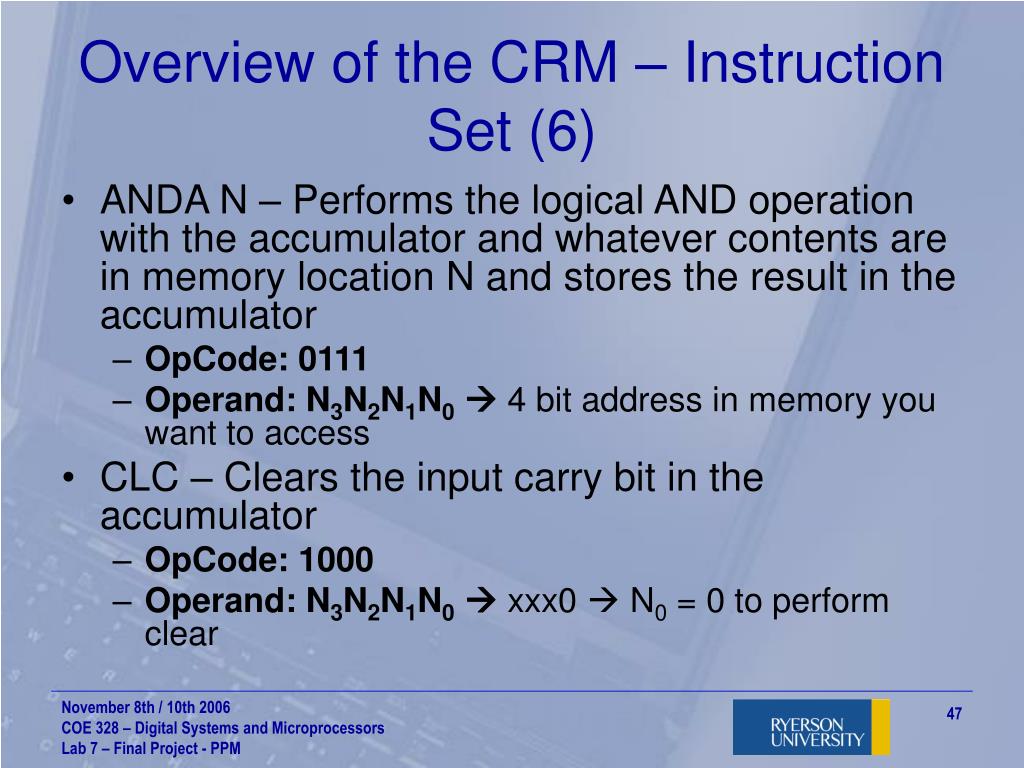

  47. Overview of the CRM – Instruction Set (6) • ANDA N – Performs the logical AND operation with the accumulator and whatever contents are in memory location N and stores the result in the accumulator • OpCode: 0111 • Operand: N3N2N1N0 4 bit address in memory you want to access • CLC – Clears the input carry bit in the accumulator • OpCode: 1000 • Operand: N3N2N1N0 xxx0  N0 = 0 to perform clear

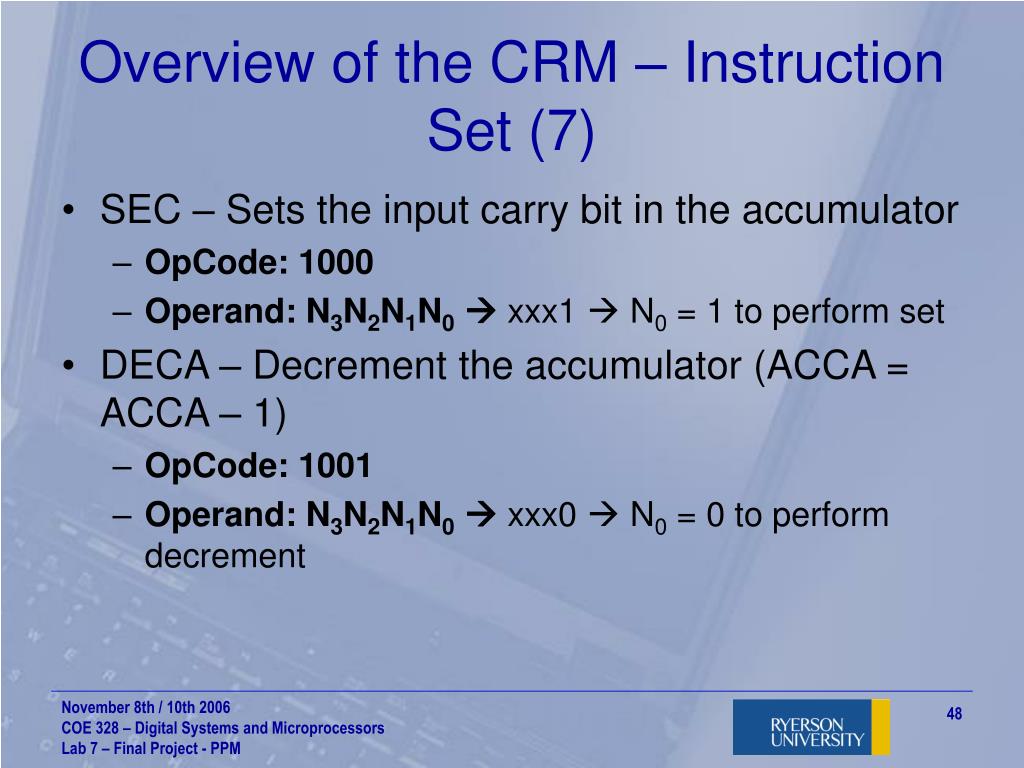

  48. Overview of the CRM – Instruction Set (7) • SEC – Sets the input carry bit in the accumulator • OpCode: 1000 • Operand: N3N2N1N0 xxx1  N0 = 1 to perform set • DECA – Decrement the accumulator (ACCA = ACCA – 1) • OpCode: 1001 • Operand: N3N2N1N0 xxx0  N0 = 0 to perform decrement

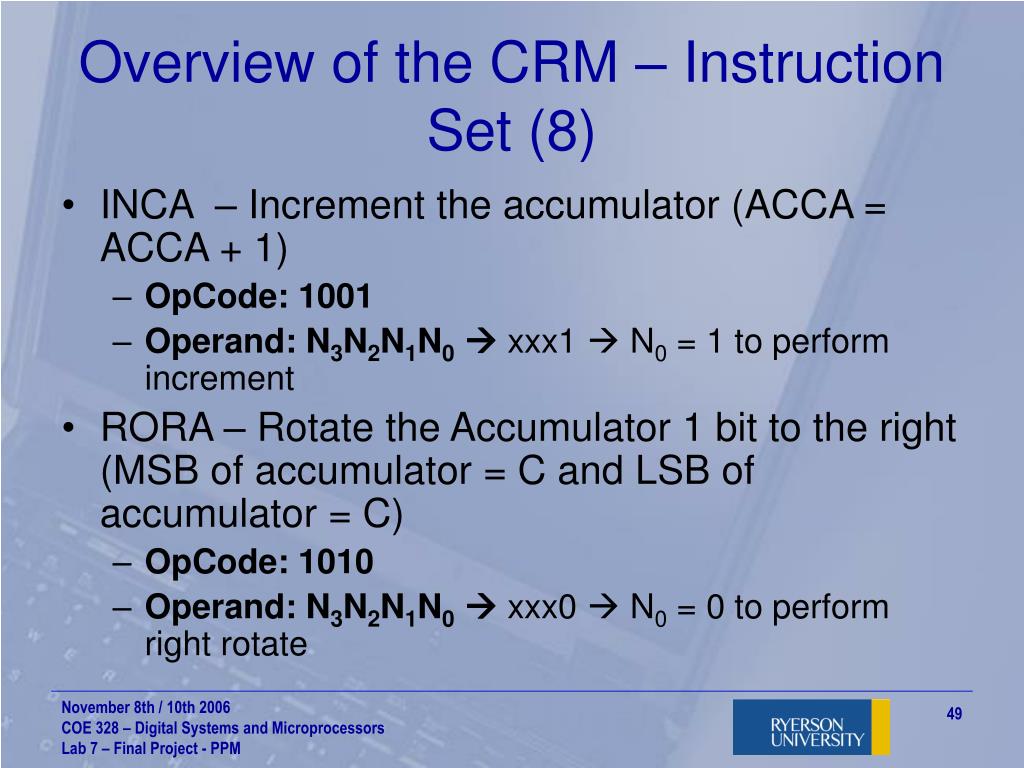

  49. Overview of the CRM – Instruction Set (8) • INCA – Increment the accumulator (ACCA = ACCA + 1) • OpCode: 1001 • Operand: N3N2N1N0 xxx1  N0 = 1 to perform increment • RORA – Rotate the Accumulator 1 bit to the right (MSB of accumulator = C and LSB of accumulator = C) • OpCode: 1010 • Operand: N3N2N1N0 xxx0  N0 = 0 to perform right rotate

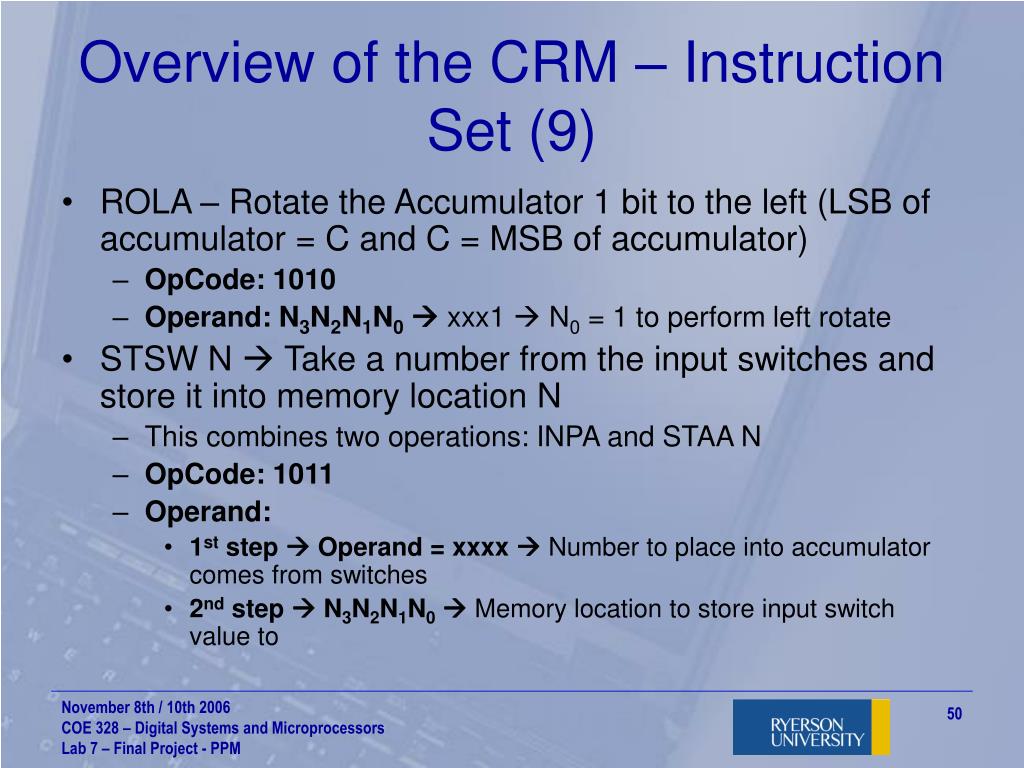

  50. Overview of the CRM – Instruction Set (9) • ROLA – Rotate the Accumulator 1 bit to the left (LSB of accumulator = C and C = MSB of accumulator) • OpCode: 1010 • Operand: N3N2N1N0 xxx1  N0 = 1 to perform left rotate • STSW N  Take a number from the input switches and store it into memory location N • This combines two operations: INPA and STAA N • OpCode: 1011 • Operand: • 1st step  Operand = xxxx  Number to place into accumulator comes from switches • 2nd step  N3N2N1N0 Memory location to store input switch value to
