Power System Diagram: Inrush & Isolation Requirements

This document outlines power converters, inrush requirements, and isolation standards for power systems. It specifies ground connections, internal grounding, and emissions control for spacecraft components.

steventhompson
Télécharger la présentation

Power System Diagram: Inrush & Isolation Requirements

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

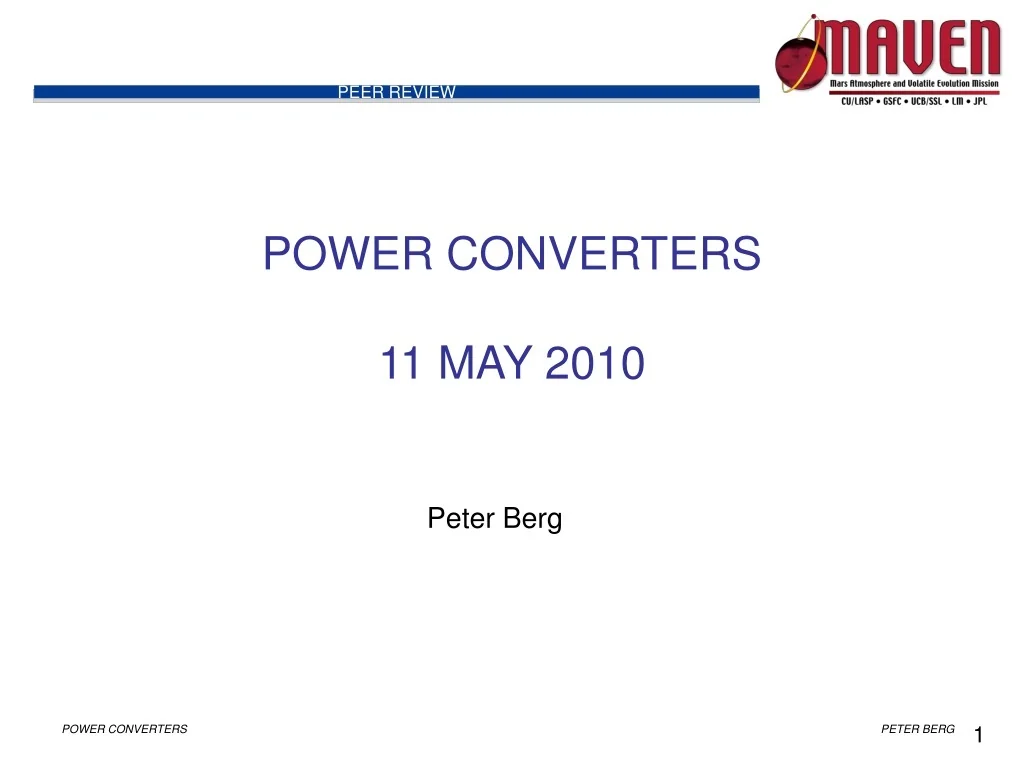

  1. POWER CONVERTERS 11 MAY 2010 Peter Berg

  2. POWER SYSTEM DIAGRAM

  3. INRUSH REQUIREMENT

  4. ISOLATION, GROUNDS 3.1.2.9.2.2 Return-to-Chassis Isolation The return side of the primary DC power interfaces shall be isolated from component chassis by at least 100,000 ohms at DC. 3.1.2.9.2.5 Internal Secondary Power Grounds Secondary power shall be internally grounded at one point only to the source component chassis, provided primary input power isolation requirements are met.

  5. EMISSIONS REQUIREMENT 4.2.5.6.1.2 Conducted Emissions (CE101/102) - Common Mode A Conducted Emissions (CE) (TBD) test to control Common Mode Noise (CMN) also known as a frequency domain current test shall be performed on all non-passive components which receive or generate spacecraft primary power at the component/subsystem level.
