  1. Project Management OfficeLunch & Learn Use Case

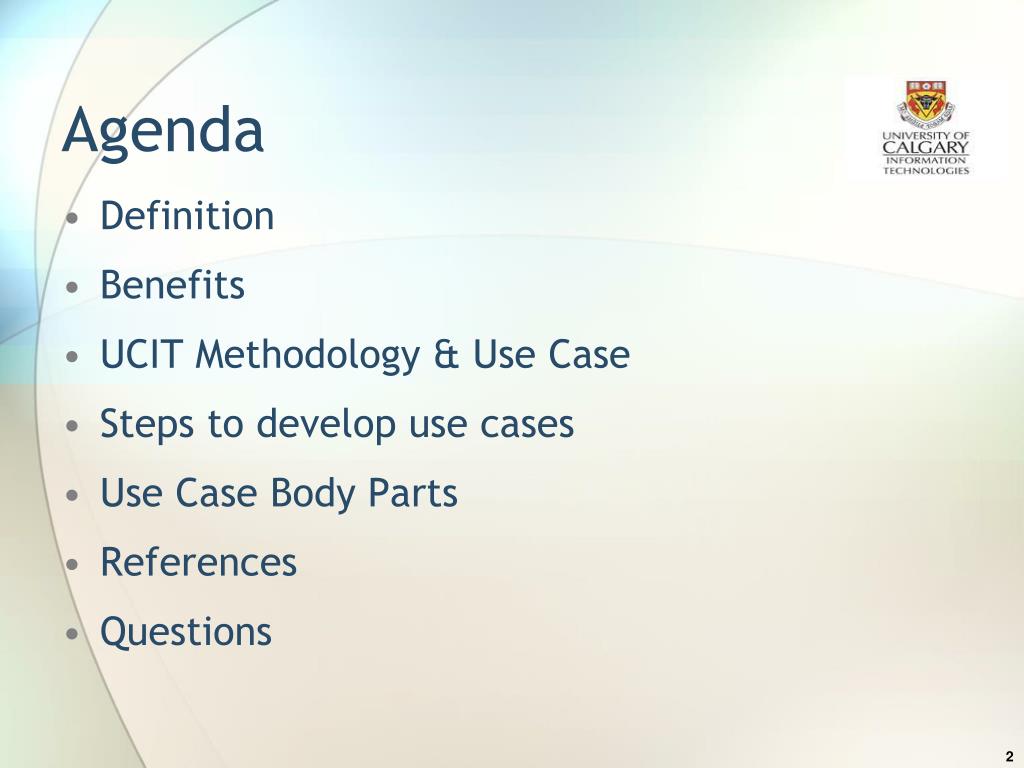

  2. Agenda • Definition • Benefits • UCIT Methodology & Use Case • Steps to develop use cases • Use Case Body Parts • References • Questions

  3. What is a use case? • Describe goal-oriented set of interactions between the actor and the software • A technique used to identify, detail, and clarify software requirements • Focus on WHAT, not HOW • Define the scope/boundary of the software

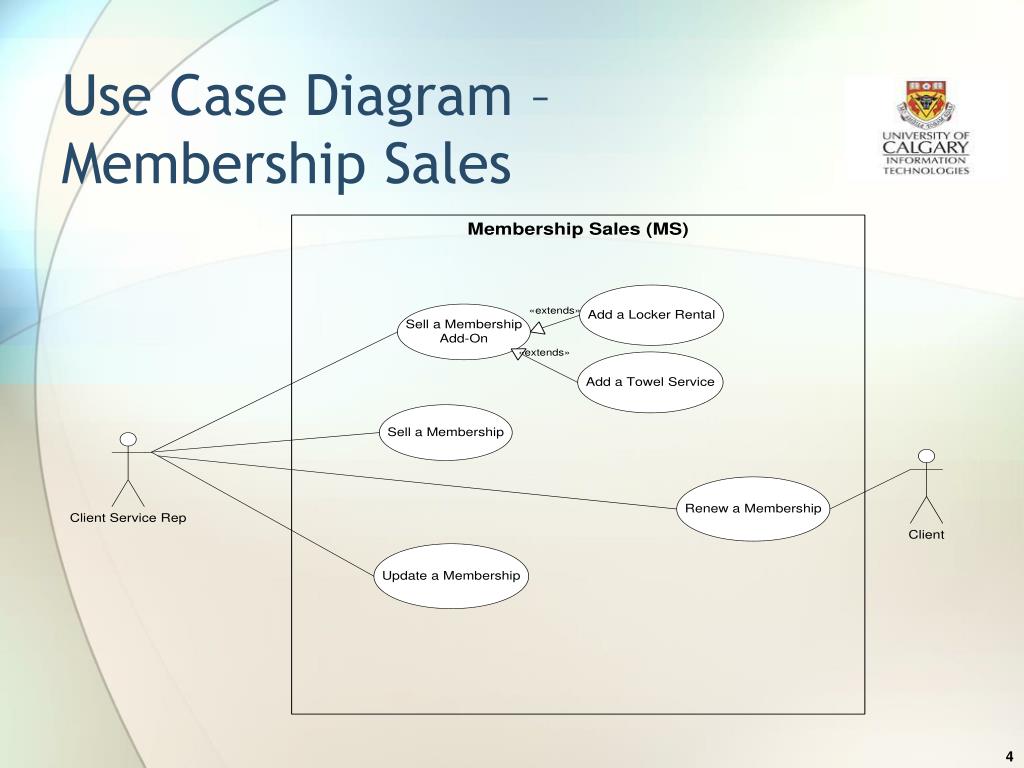

  4. Use Case Diagram – Membership Sales

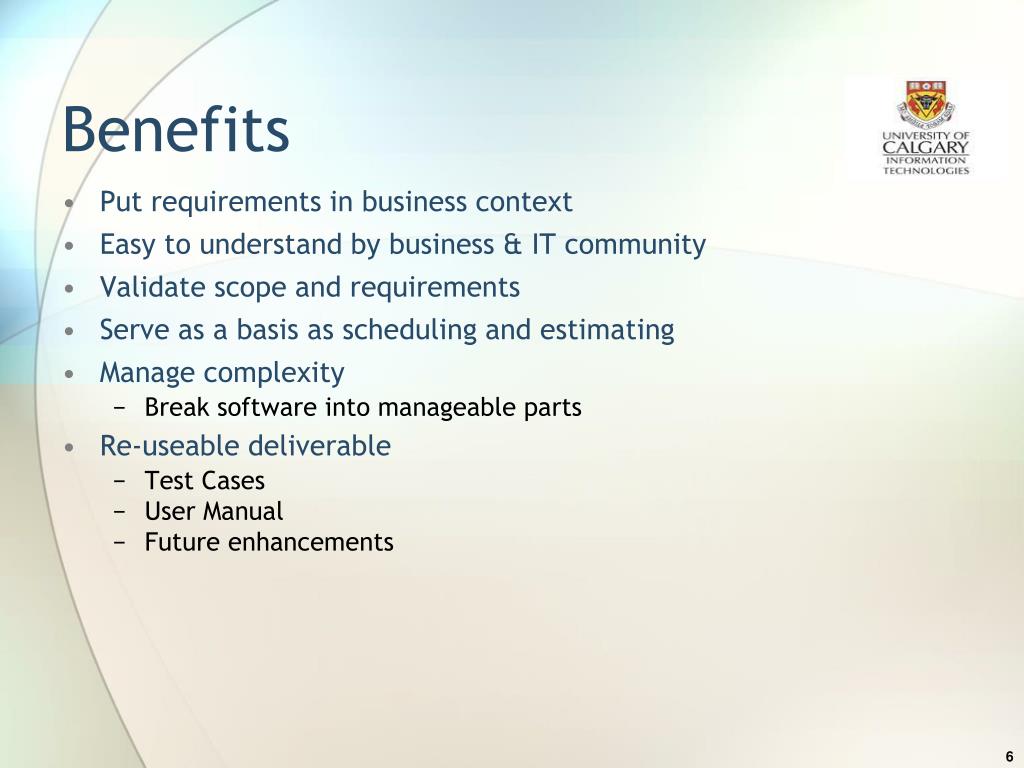

  5. Benefits • Put requirements in business context • Easy to understand by business & IT community • Validate scope and requirements • Serve as a basis as scheduling and estimating • Manage complexity • Break software into manageable parts • Re-useable deliverable • Test Cases • User Manual • Future enhancements

  6. UCIT Methodology & Use Case

  7. Steps to develop use case • Identify actor • Identify use case goals for each actor • Identify re-use opportunity

  8. Example – Membership Sales

  9. Steps to develop use case • Create Use Case Index • Validate against requirements • Determine execution approach • Develop high level use case • Create detail use case • Walkthrough & Revise • Package into final document

  10. Body Parts • Summary • Scenarios & Steps • Exceptions

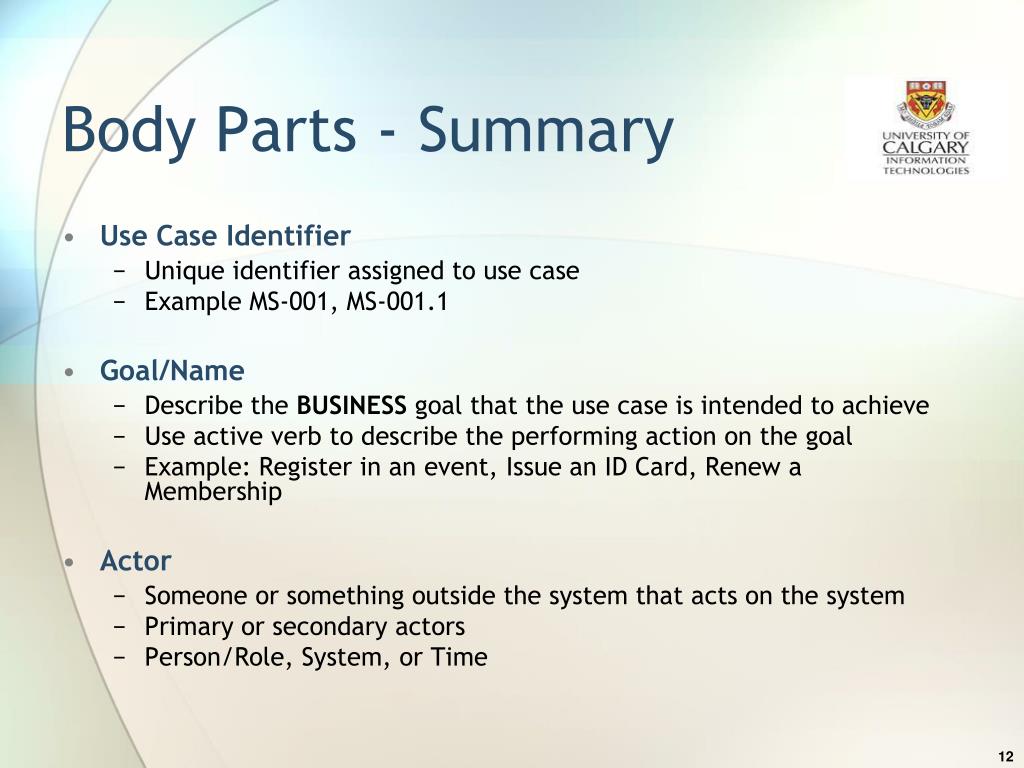

  11. Body Parts - Summary • Use Case Identifier • Unique identifier assigned to use case • Example MS-001, MS-001.1 • Goal/Name • Describe the BUSINESS goal that the use case is intended to achieve • Use active verb to describe the performing action on the goal • Example: Register in an event, Issue an ID Card, Renew a Membership • Actor • Someone or something outside the system that acts on the system • Primary or secondary actors • Person/Role, System, or Time

  12. Body Parts - Scope • Pre & Post Conditions • Pre Conditions – set of criteria must be satisfied before the use can be initiated • Post Conditions – describes the states of the software when the use case ends • Triggers • Event that causes the use case to be initiated • External, Internal, or Temporal • Temporal - Send Payroll Deduction to PeopleSoft • Internal – Apply Client Restriction Automatically • Business vs. System Use case

  13. Example – Renew a Membership

  14. Body Parts - Scenario • Main Scenario • Consists of steps required to achieve the business goals • Happy Day Scenario – most likely case • Alternate Paths • Other possible scenarios • Branch from main scenario when the situation differs

  15. Body Parts - Exceptions • Steps taken to deal with failure • System or human cause • Access to ID Core Service failed • Payment failed to go through Moneris

  16. Example – Sell a Membership

  17. Example – Sell a Membership

  18. More Information • Books • Writing Effective Use Cases • Patterns for Use Cases • Websites • www.usecases.org • en.wikipedia.org/use_case

  19. Questions
